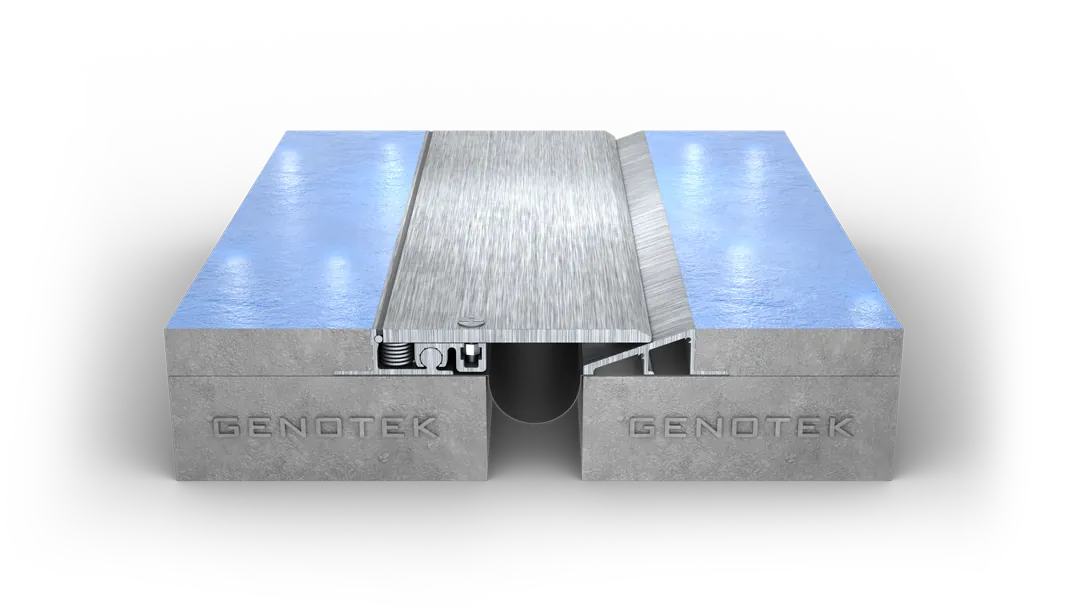

z8000
proload hd series

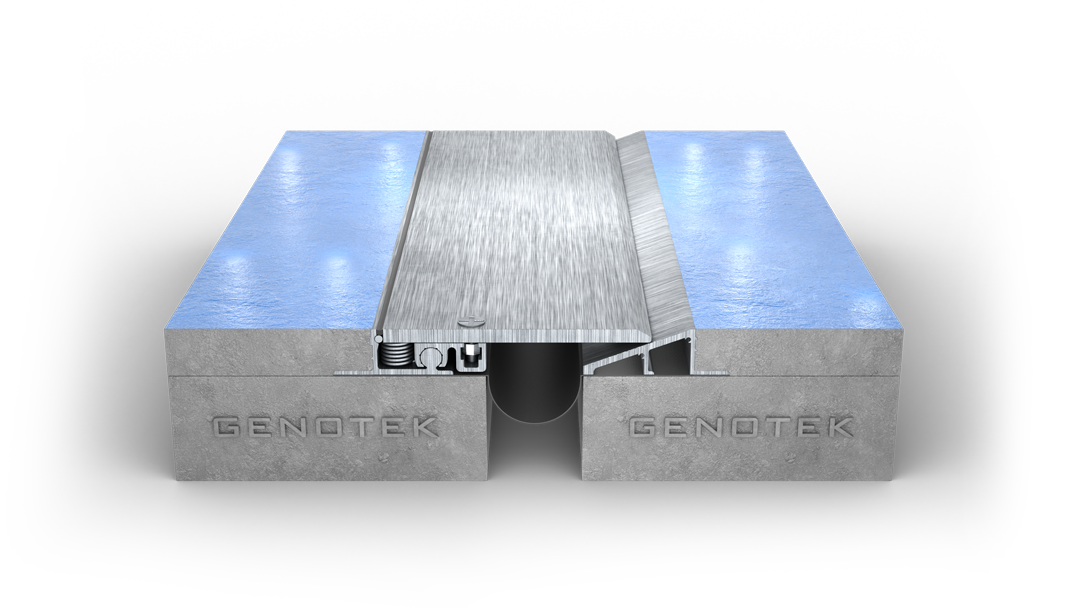

Introducing the Z-8000
seismic movement accommodation
the z-8000 accommodates –100% / +50% of nominal joint width. the aluminum rotational frame follows vertical differential movement between the slabs without lifting the edge of the cover plate.
water protection
an optional water barrier membrane can be specified with the z-8000. it is draped into the gap and retained by the frames, so no mechanical punctures pass through the membrane sheet. order it together with the system.
load bearing
the z8000 under traffic.
assembly in action
this video demonstrates the assembly process, perfectly designed for easy installation for durability and reliability.

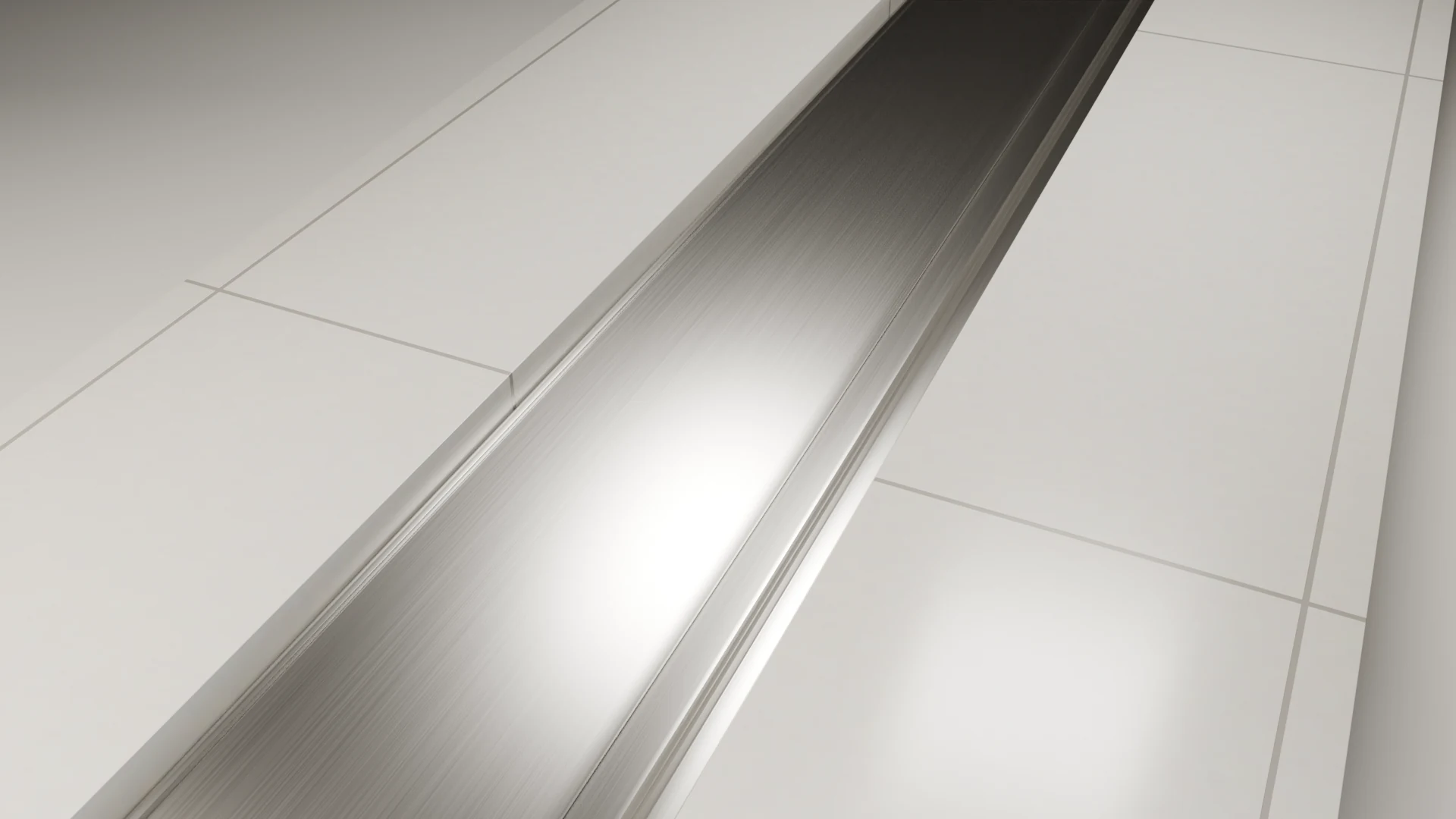

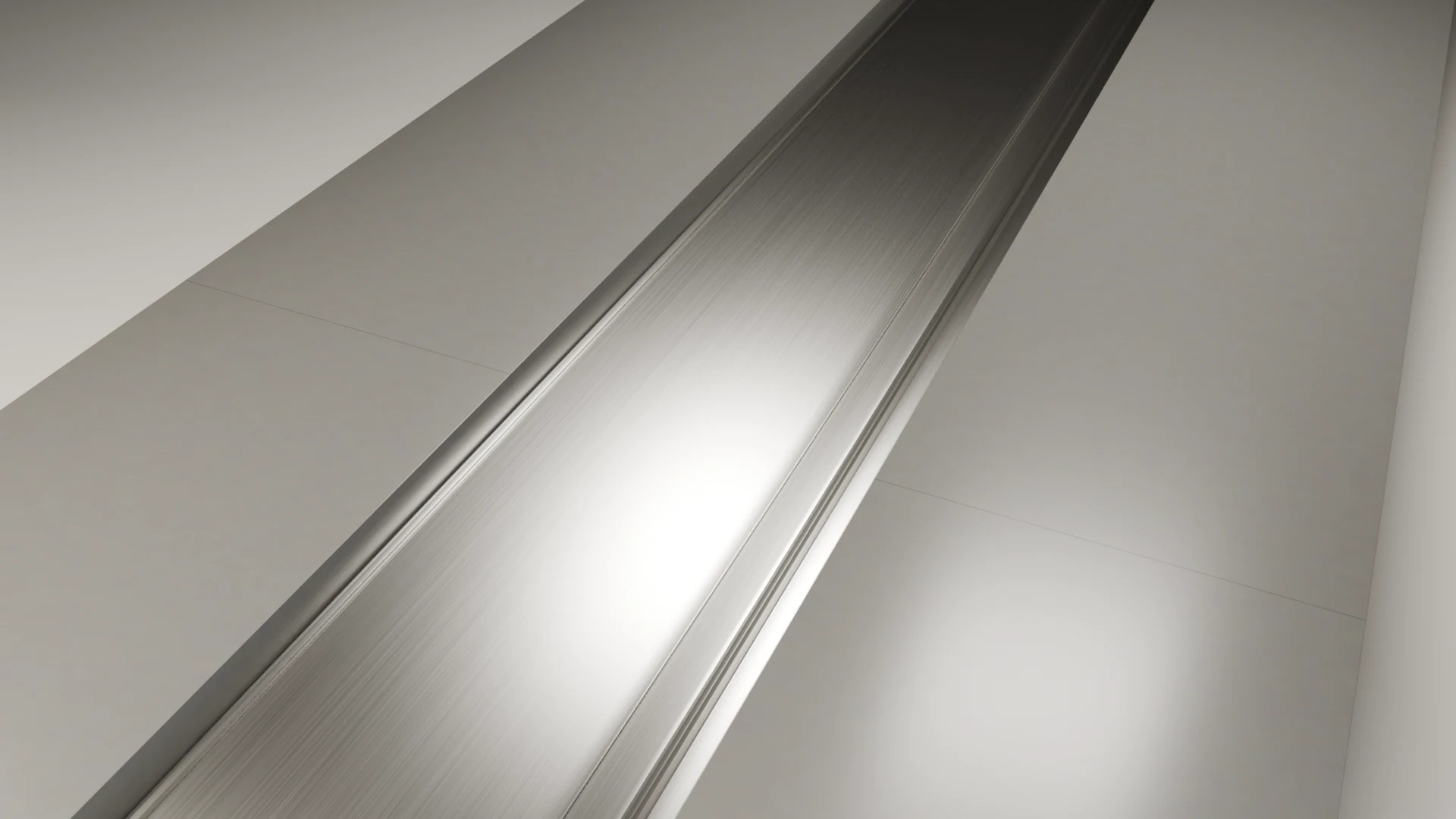

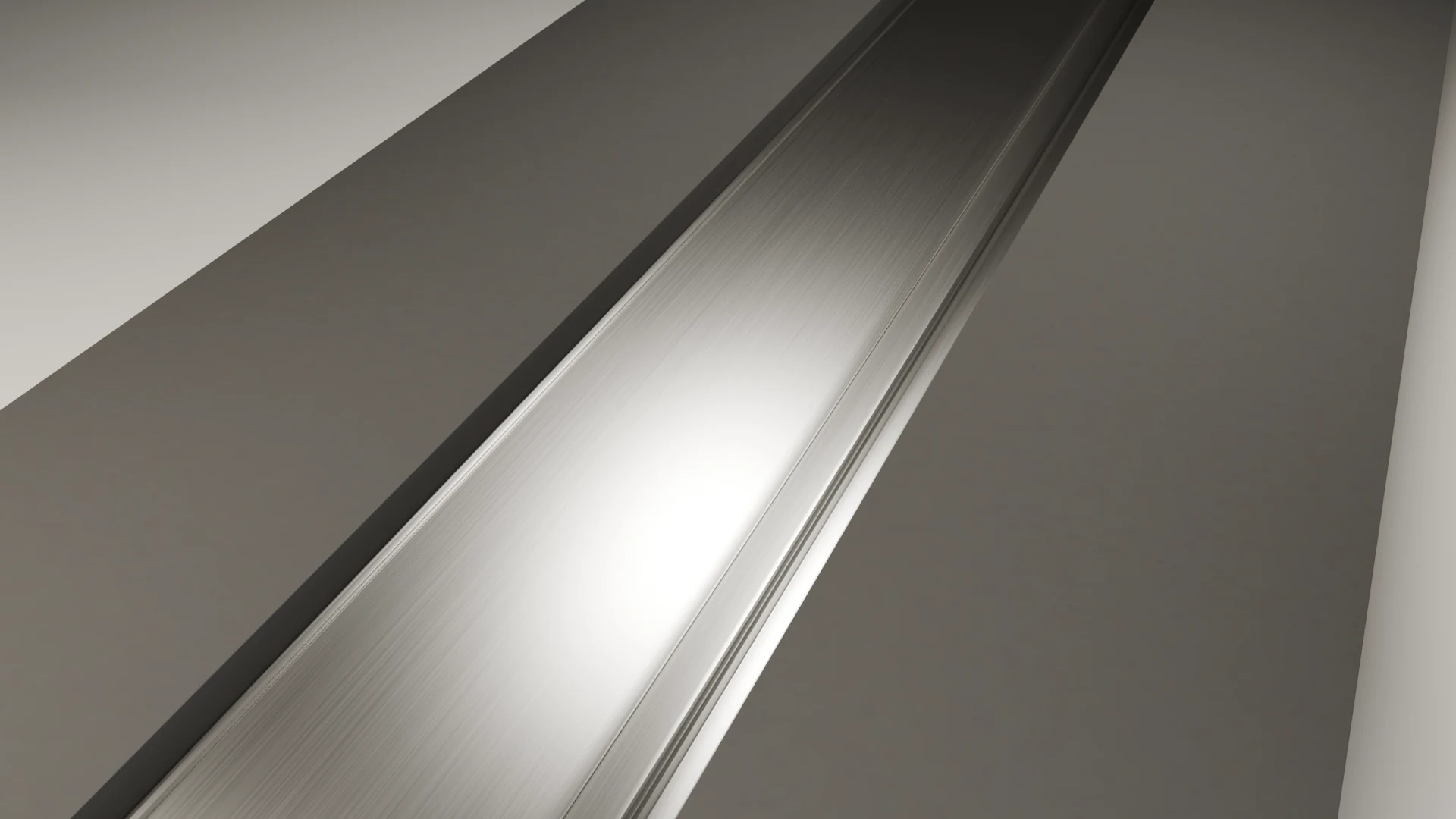

Aesthetic Choice
The Z-8000 cover plate is flush with the finished floor, so the joint reads as one clean line in tile, polished concrete or asphalt. The plate is available in aluminum or stainless steel (304 or 316).

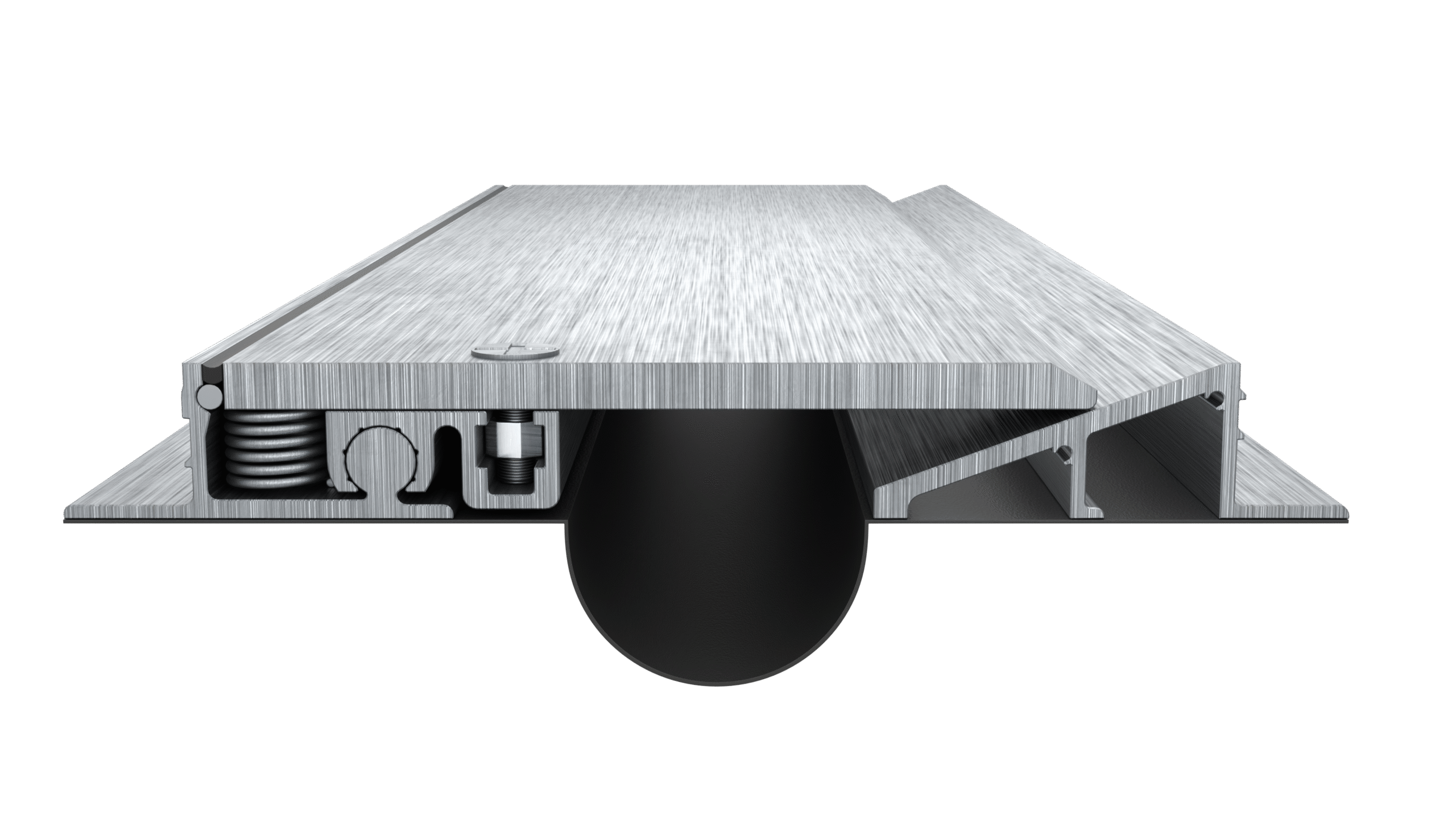

Construction

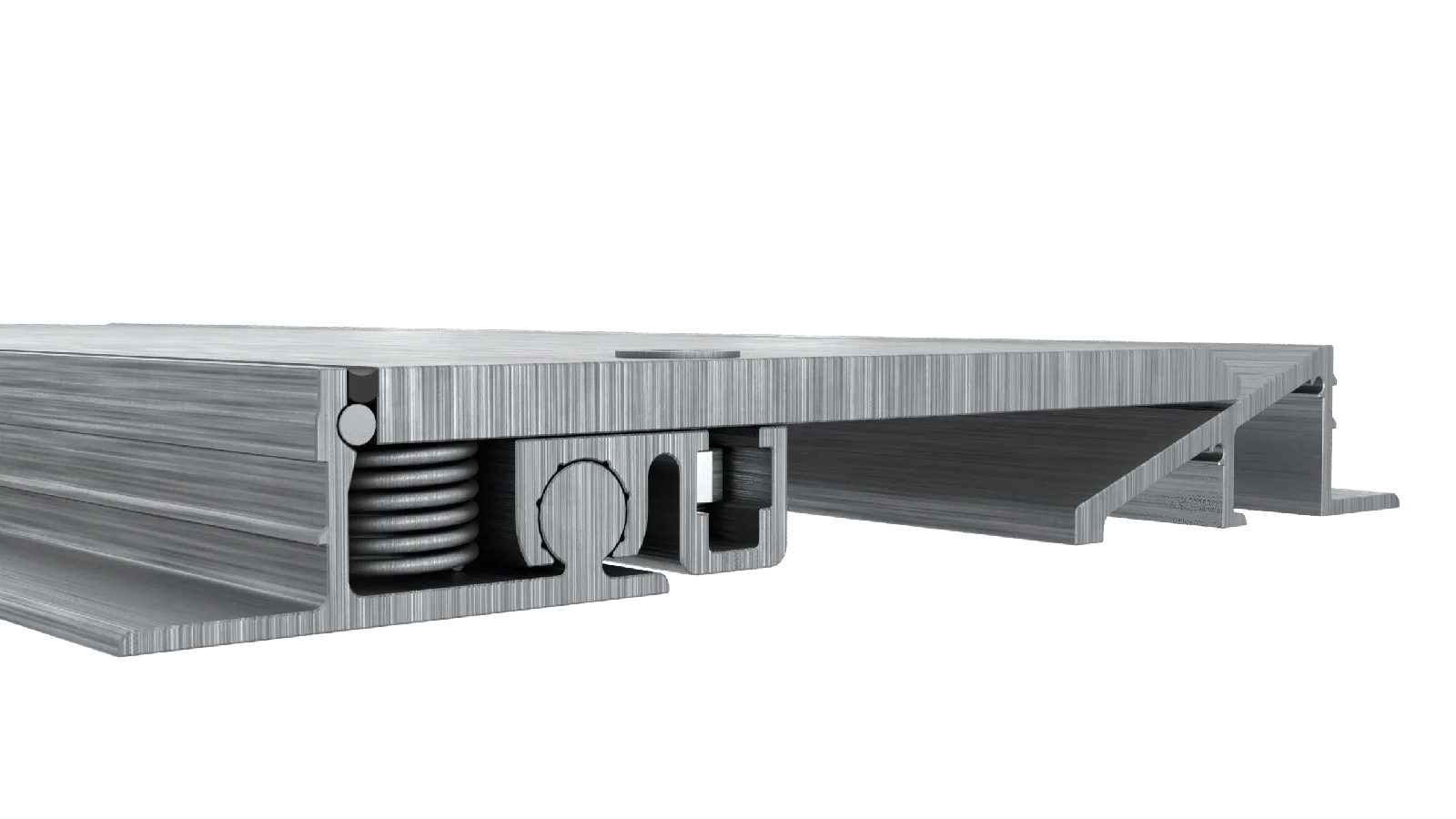

Premium Aluminum for Architectural Materials

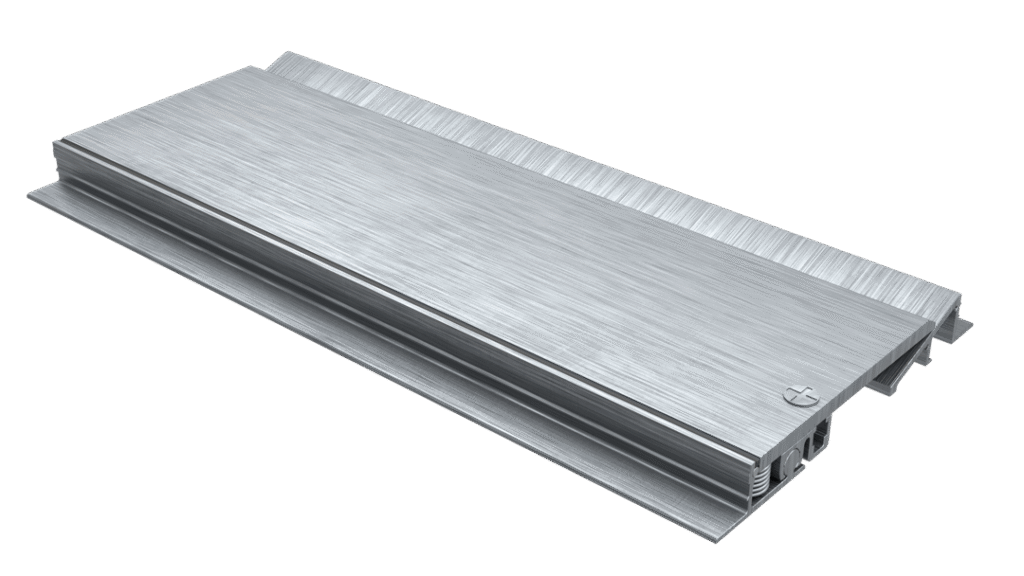

System Drawing

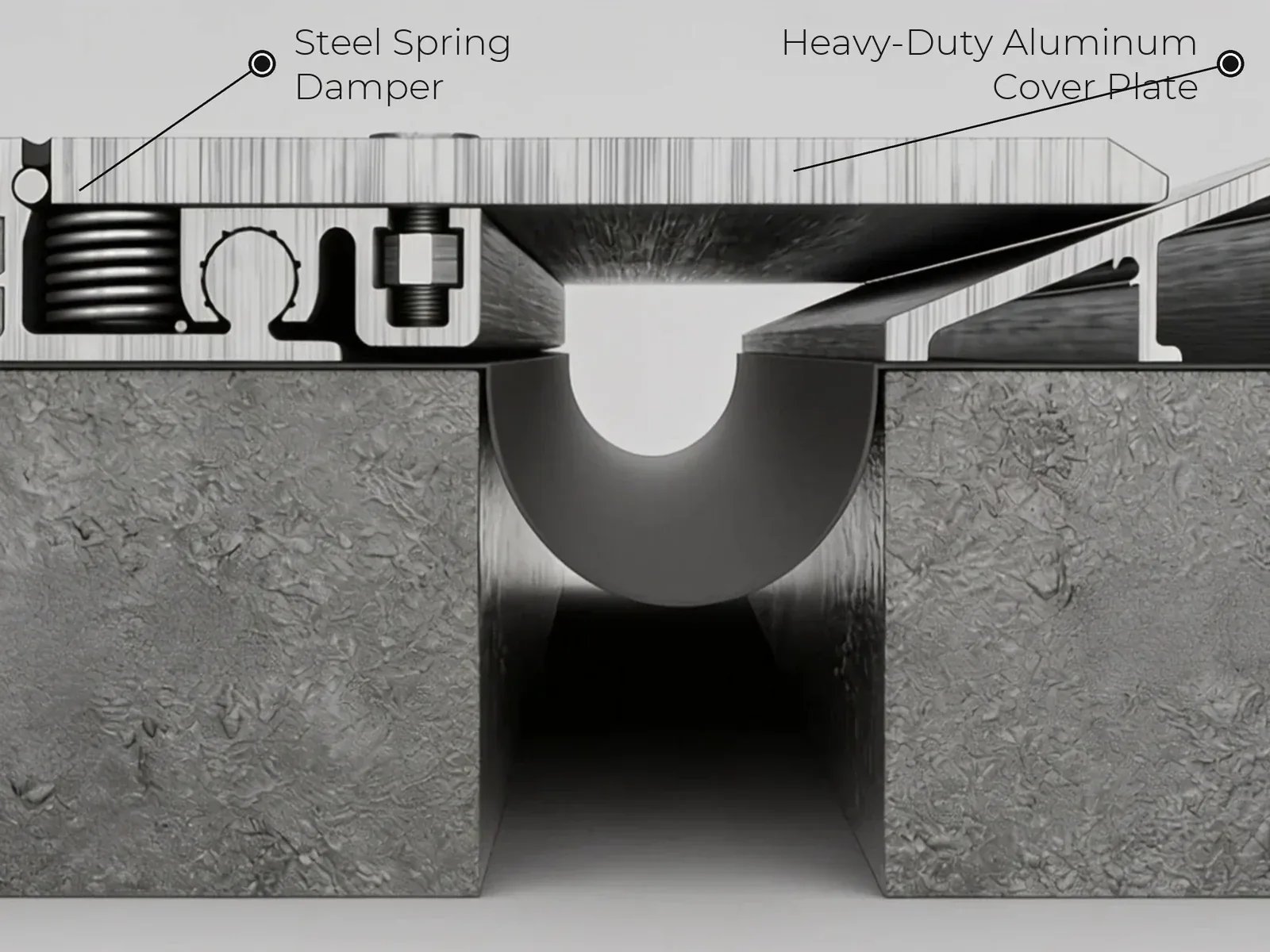

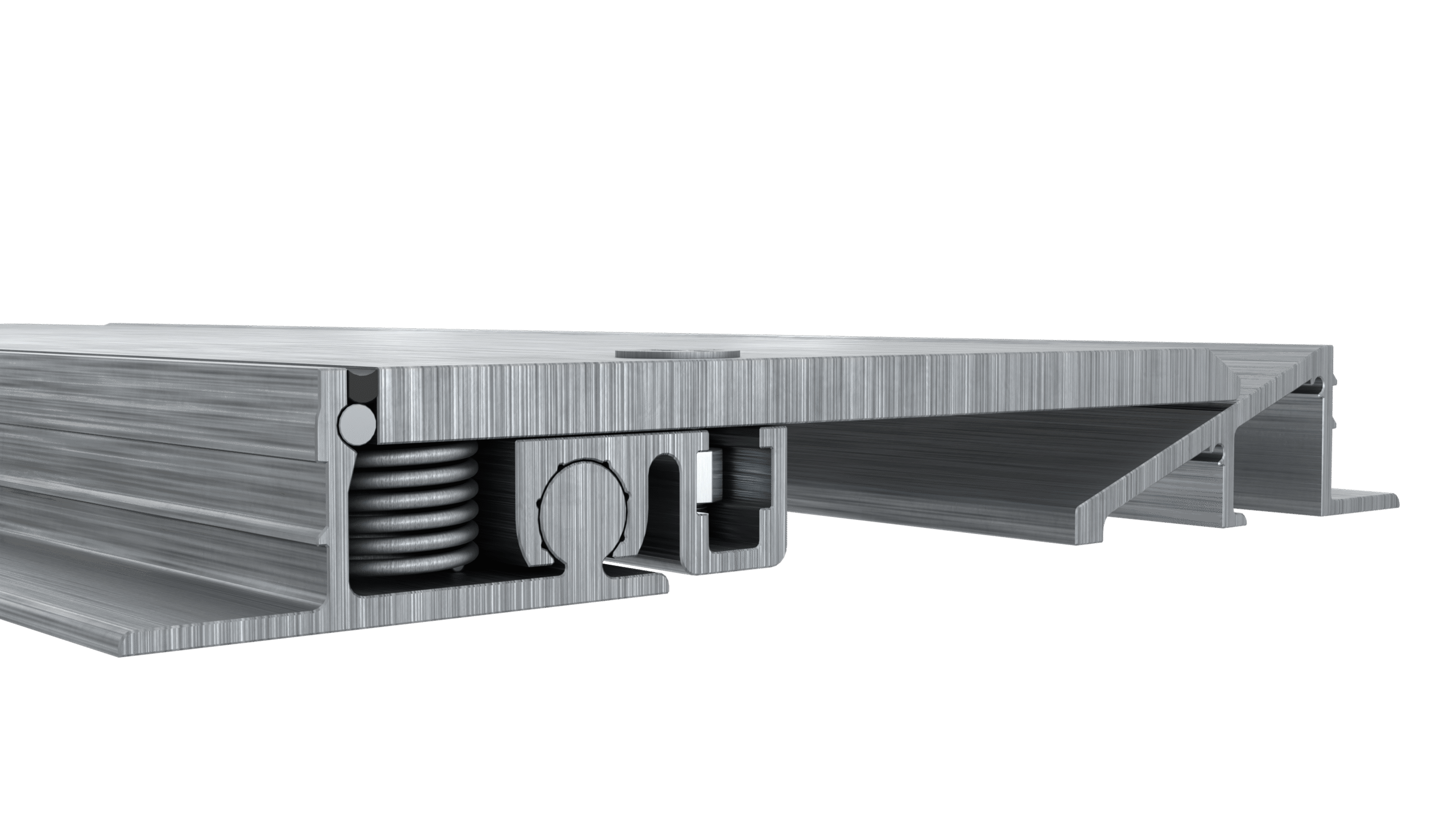

Steel Spring Damper System

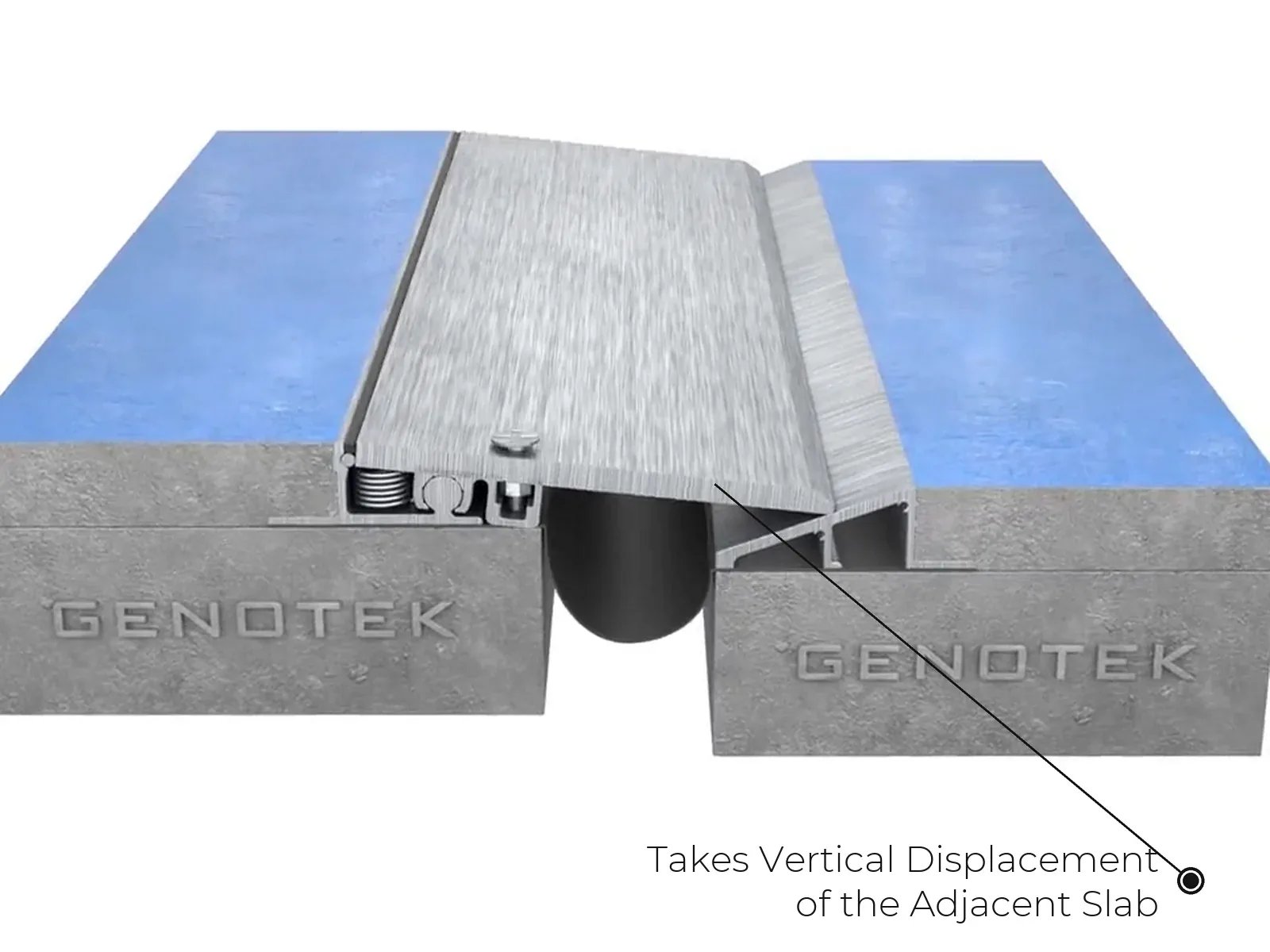

Takes Vertical Slab Displacement
gap size calculator
enter your expansion gap measurement to see if this product is right for you.
profile specifications
| model name | joint width (mm) | height (mm) | sightline (mm) | movement capability (%) | load capacity |
|---|---|---|---|---|---|
| z-8000-100-t1 | 100 | 50 | 333 | -100/+50% | — |
| z-8000-200 | 200 | 50 | 518 | -100/+50% | — |
datasheet specifications
| Series | ULTRAPARK Series (Z-8000 & ZK-8000) |
|---|---|
| System type | Heavy-Duty Seismic Floor System |
| Suitable movement | Thermal, Seismic, Settlement |
| Recommended for | Interior and exterior areas where thermal and multi-directional/seismic movement is required; Areas having a regular passage of forklifts, trucks and other heavy-duty vehicles |
| Components | Extruded Aluminum Support Profiles; Aluminum / Stainless Steel Cover Plate; Steel Spring |
| Material: Support Frames | Extruded aluminum, grade AA 6063 preferred |
| Material: Cover Plate | Aluminum, Stainless Steel 304 or Stainless Steel 316 |
| Material: Vapor Barrier (Optional) | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); black |
| Supply length | 3.00 m per piece (centre plate, base frame assembly and support frame) |
| Substrate tolerance | Surface level within ±2 mm; gap level within ±5 mm |
| Sizes | Per the system drawings; profiles can be customized to requirements |
Source: Z8000 technical datasheet. Sizes and dimensions: profile specifications above and the system drawings.
