proflex wc series
d4000
proflex wc series
sku: d4000 · wall
best for: high seismic zones, airports, hospitals, convention centres, and critical infrastructure requiring large-gap coverage with multi-directional movement capacity.
Introducing the D-4000

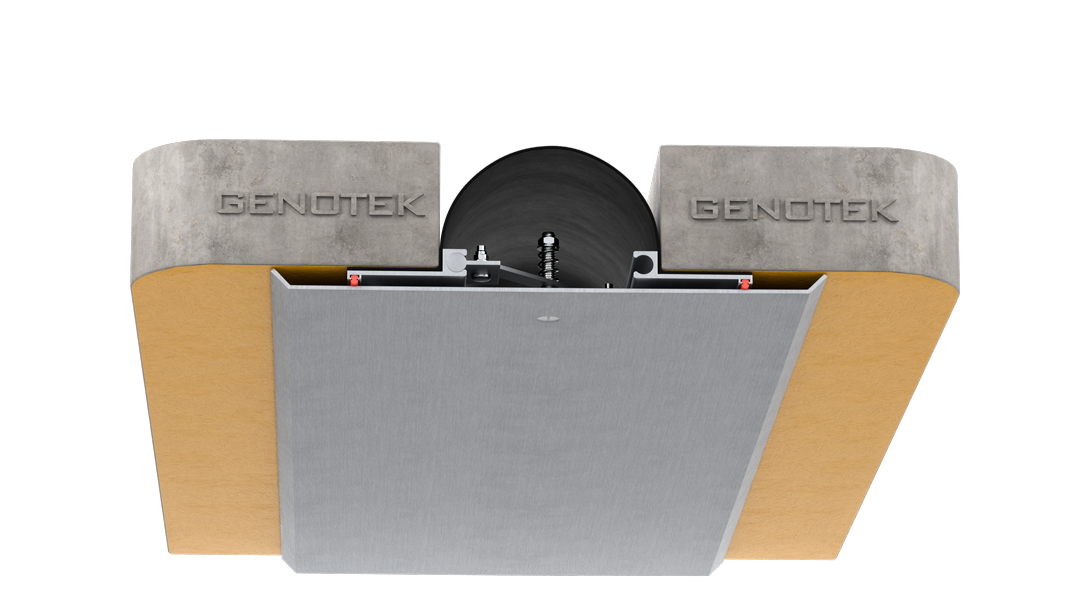

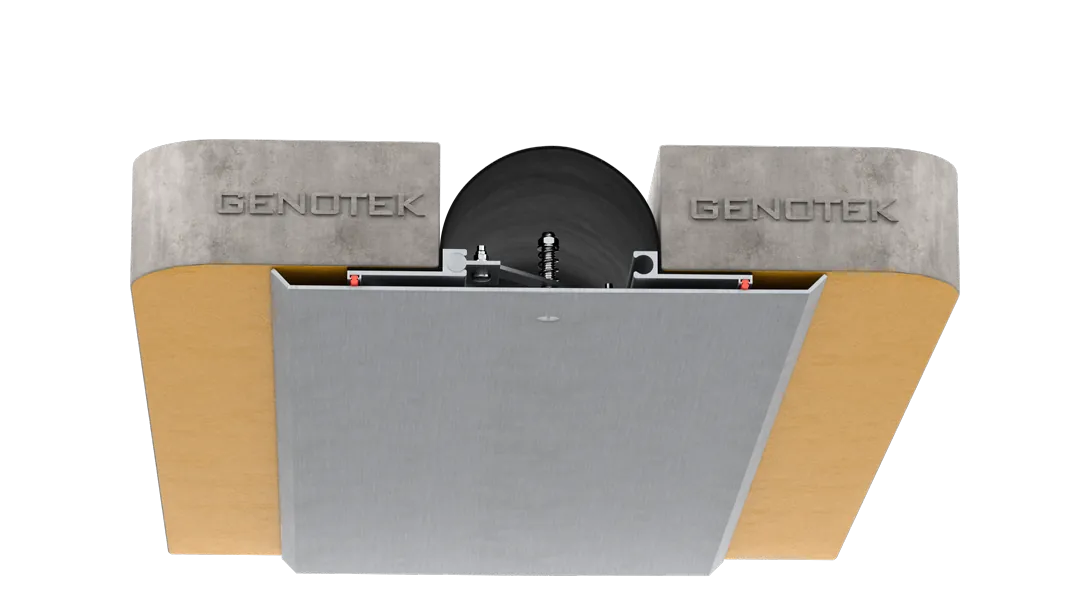

The PROFLEX WC Series D-4000 is a centre-bar seismic expansion joint cover for interior and exterior walls and ceilings where thermal, settlement and multi-directional movement is expected. Extruded aluminum support profiles carry a cover plate, a rubber insert and a steel turnbar assembly. The cover plate can be aluminum, bronze or stainless steel, and the profile can be powder coated to match the wall or ceiling finish.
movement
01 — movement
seismic movement absorption
the d 4000 is engineered to handle complex multi-directional movements, ensuring the joint cover maintains its integrity and functionality even during significant seismic events. this capability is crucial for maintaining building safety and preventing damage during earthquakes.
assembly
02 — assembly
assembly in action
this video demonstrates the assembly process, perfectly designed for easy installation for durability and aesthetics.

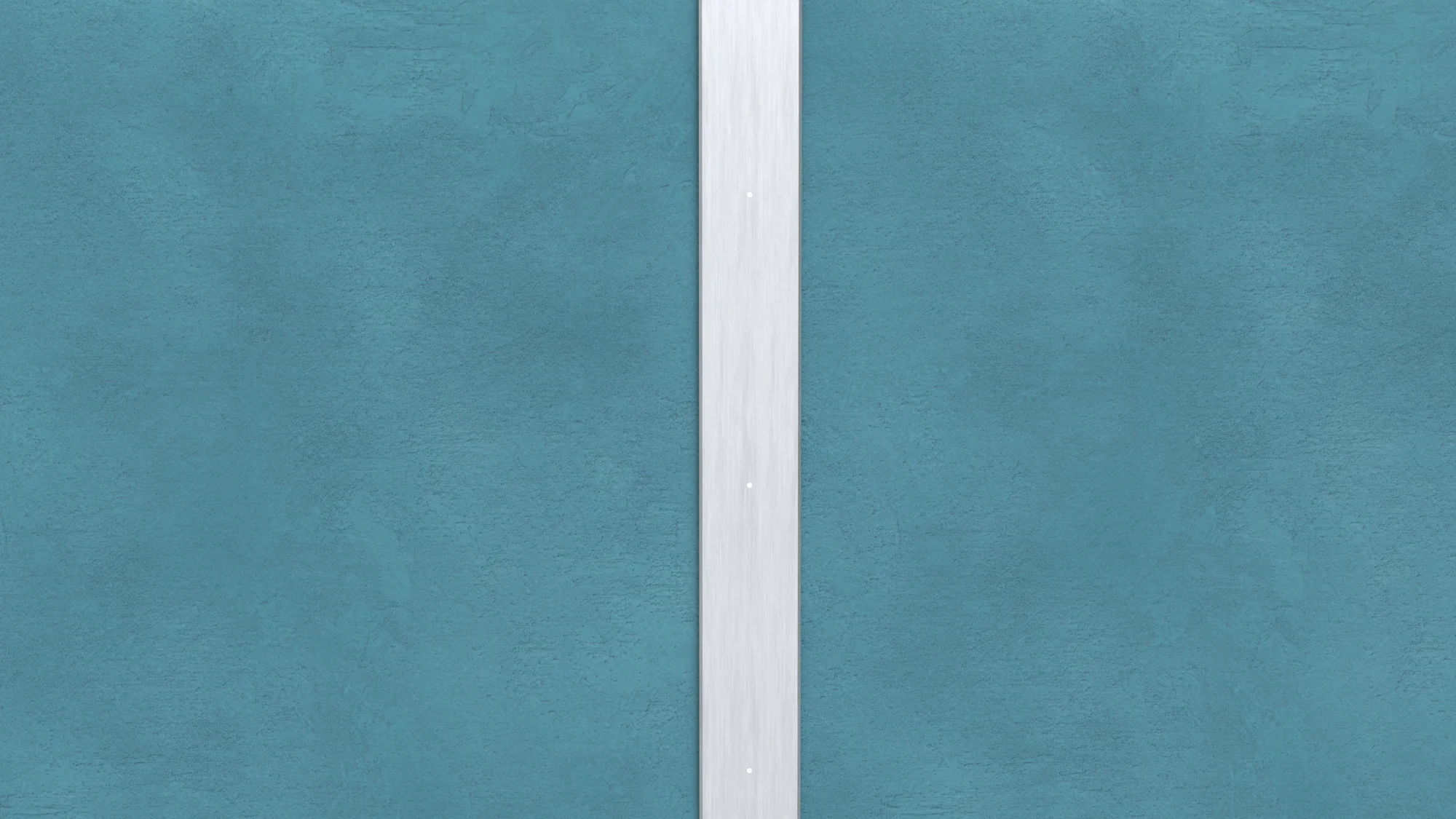

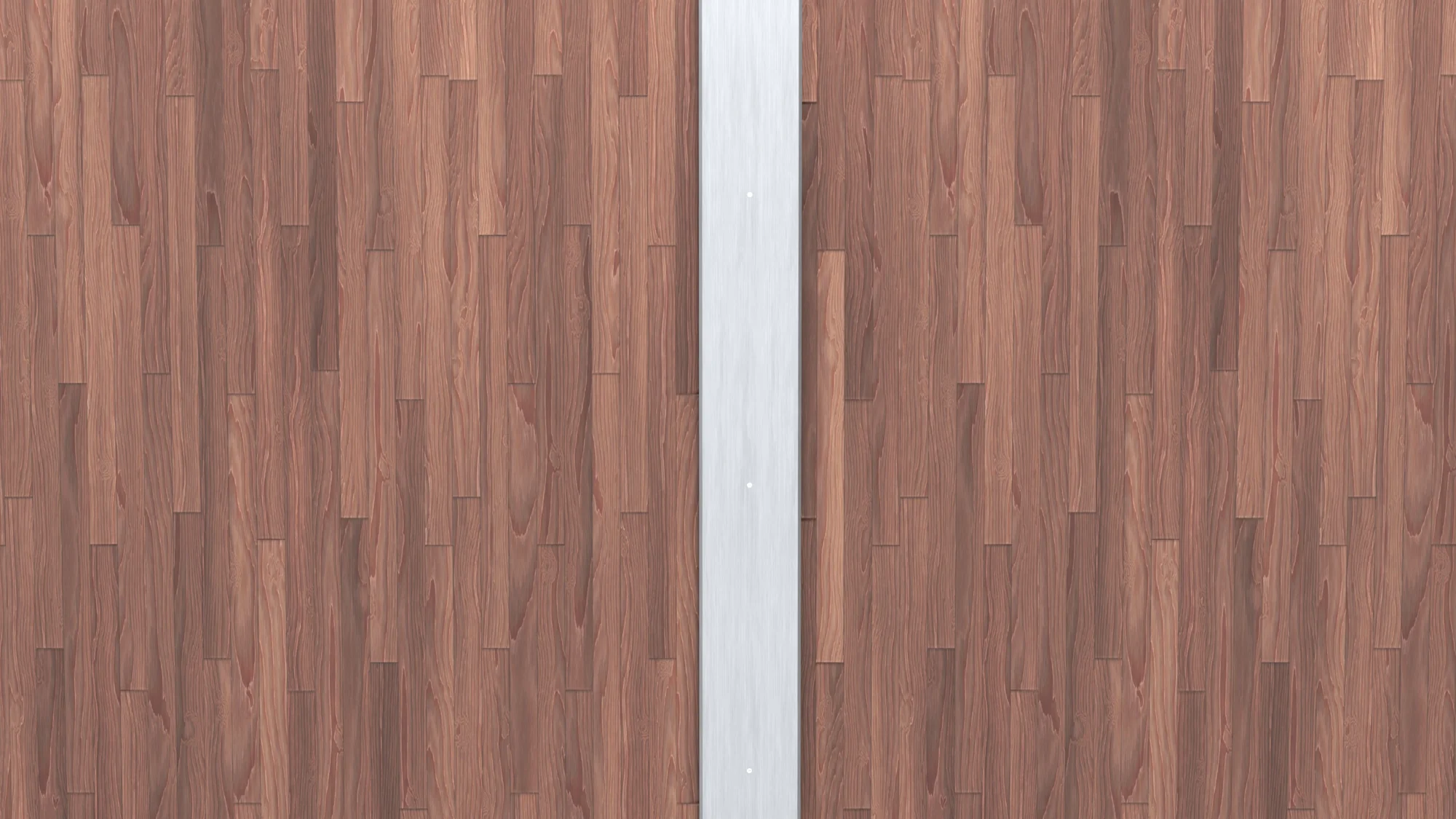

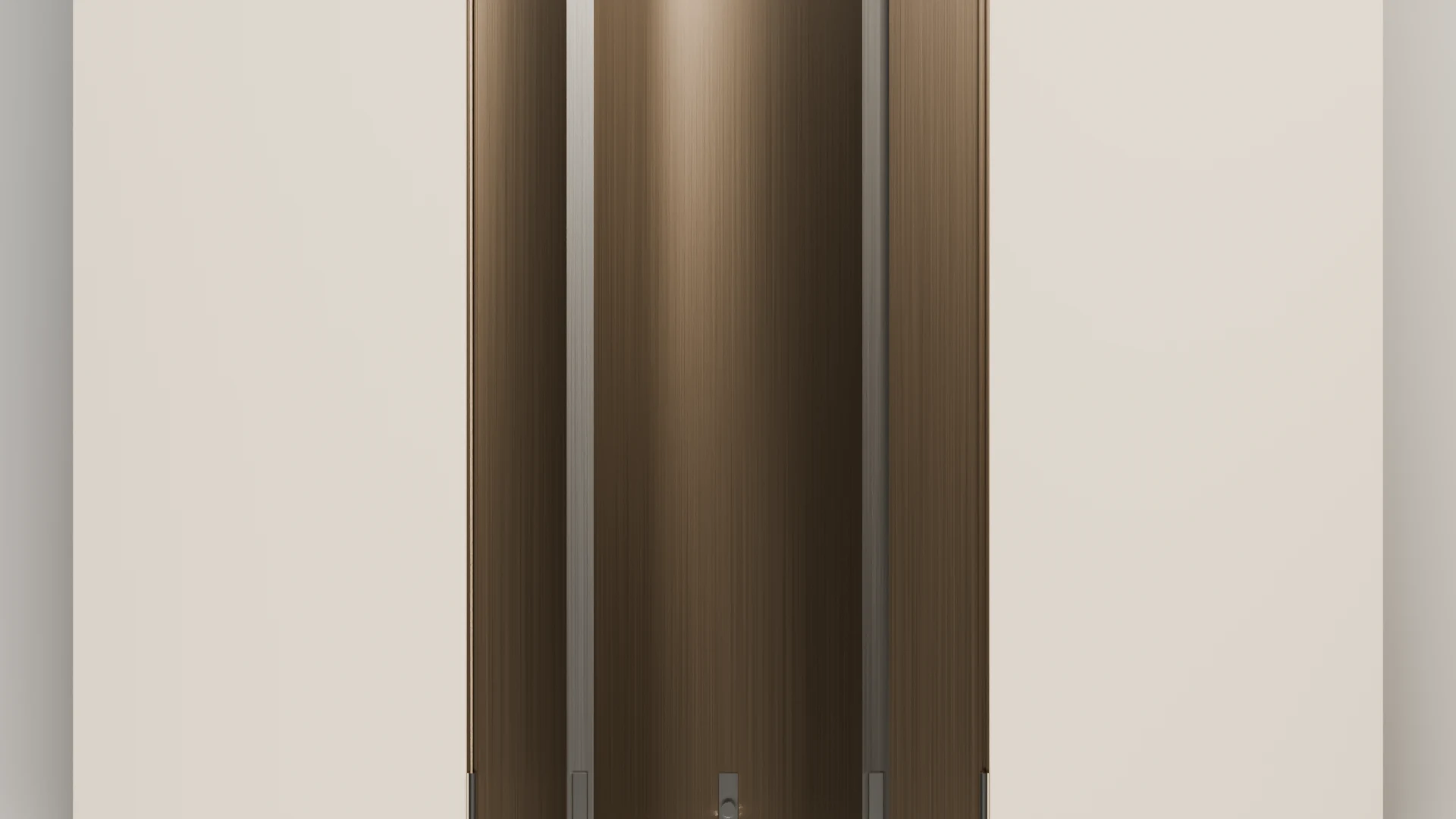

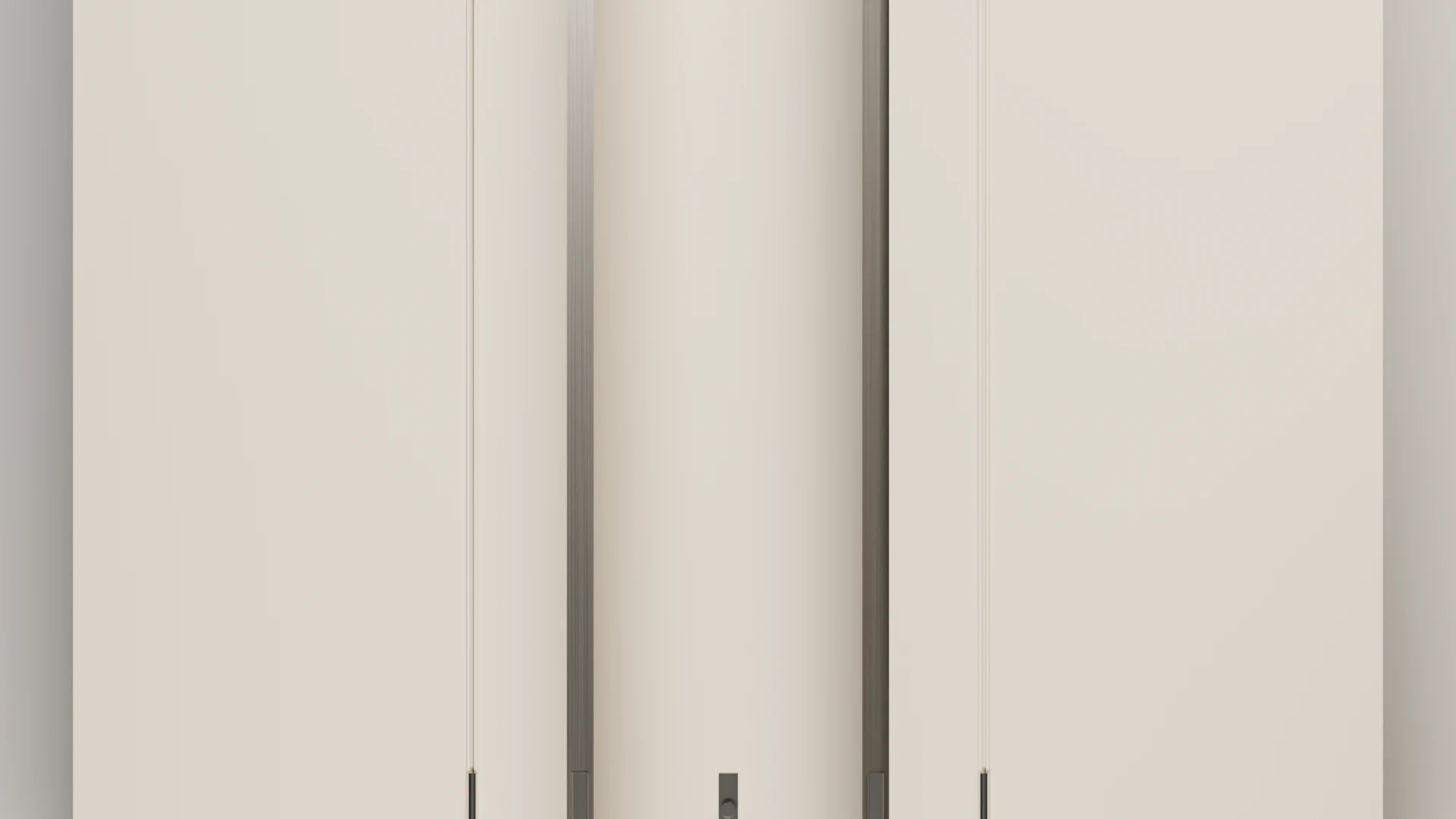

Aesthetic Choice
D 4000 focuses on seamless integration with wall aesthetics. Its ability to be powder coated in any RAL color allows it to match or complement any wall finish, making it an ideal choice for both functional and design-conscious projects.

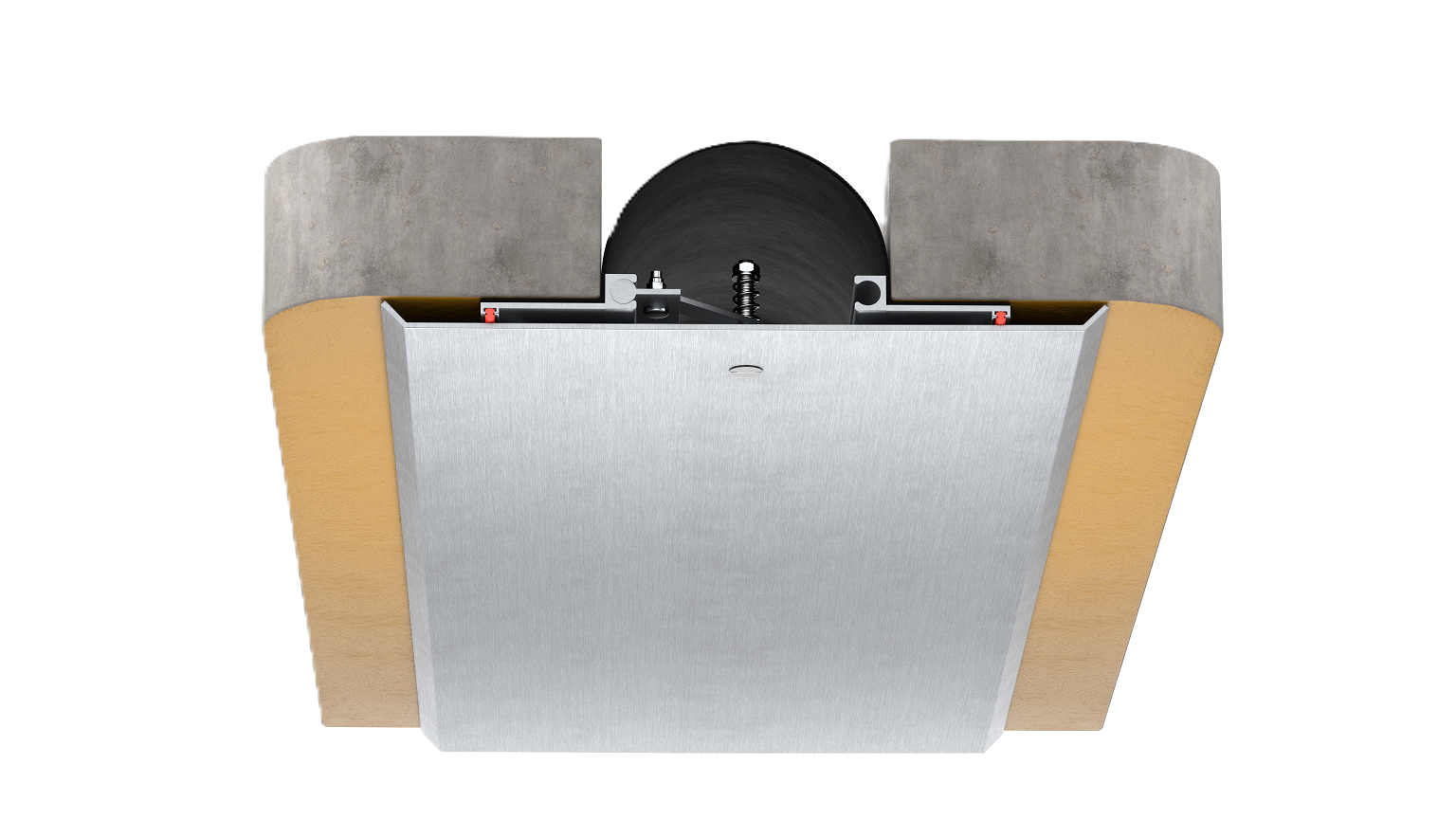

Low profile Design
Engineered to minimize visual impact while maximizing functionality, the D 4000 integrates smoothly with wall surfaces.
Custom Powder coating
Available in any RAL color, the D 4000 can be perfectly matched to existing wall colors or used as a design element, offering unparalleled aesthetic flexibility.

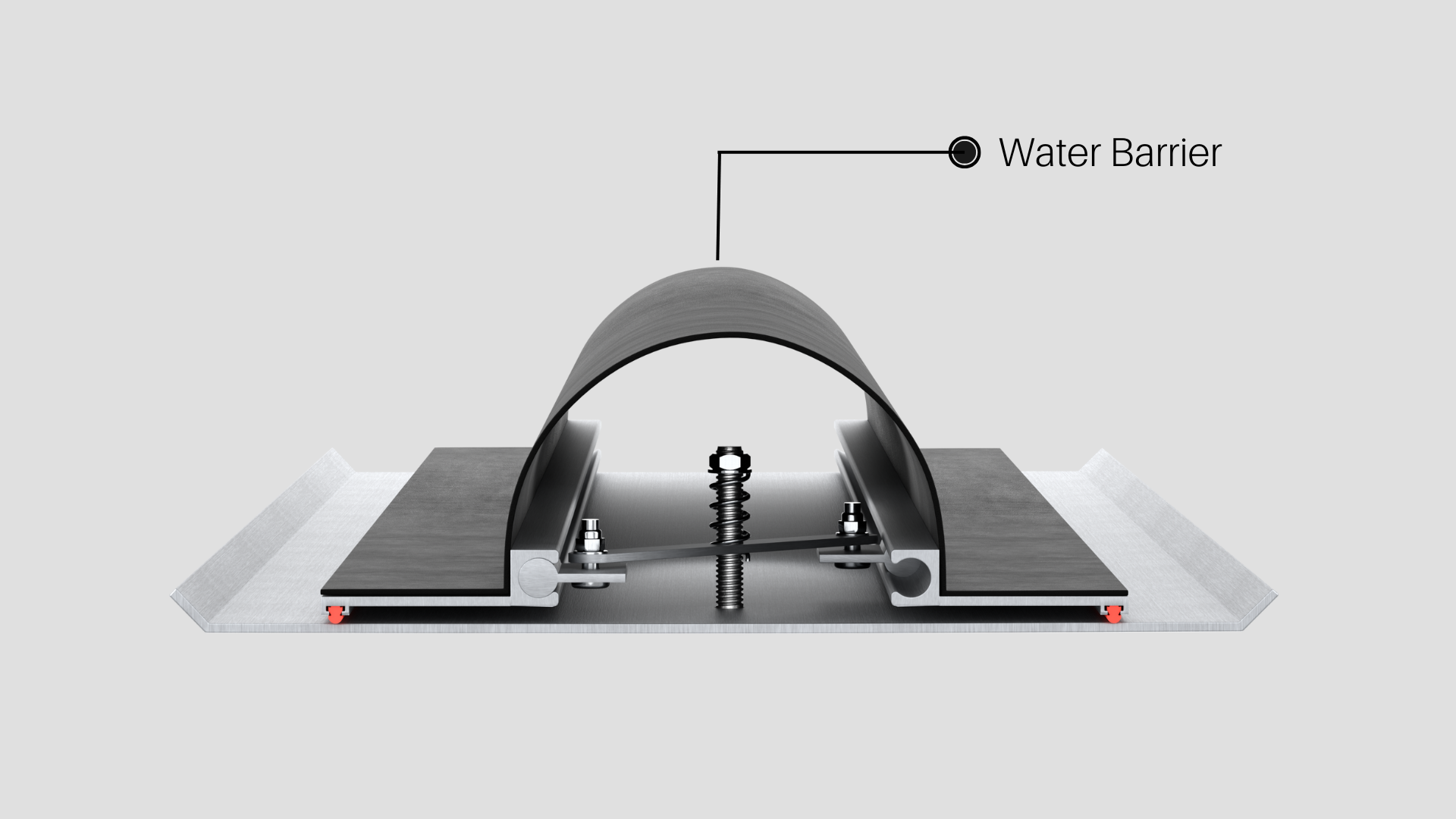

Water Barrier for External Application
The D4000 model is designed to excel in external applications, offering seamless integration with a water barrier. This innovative feature ensures superior waterproofing, making it the perfect solution for areas where water ingress is a concern. Durable and reliable, the D4000 sets a new standard for protection in challenging environments.

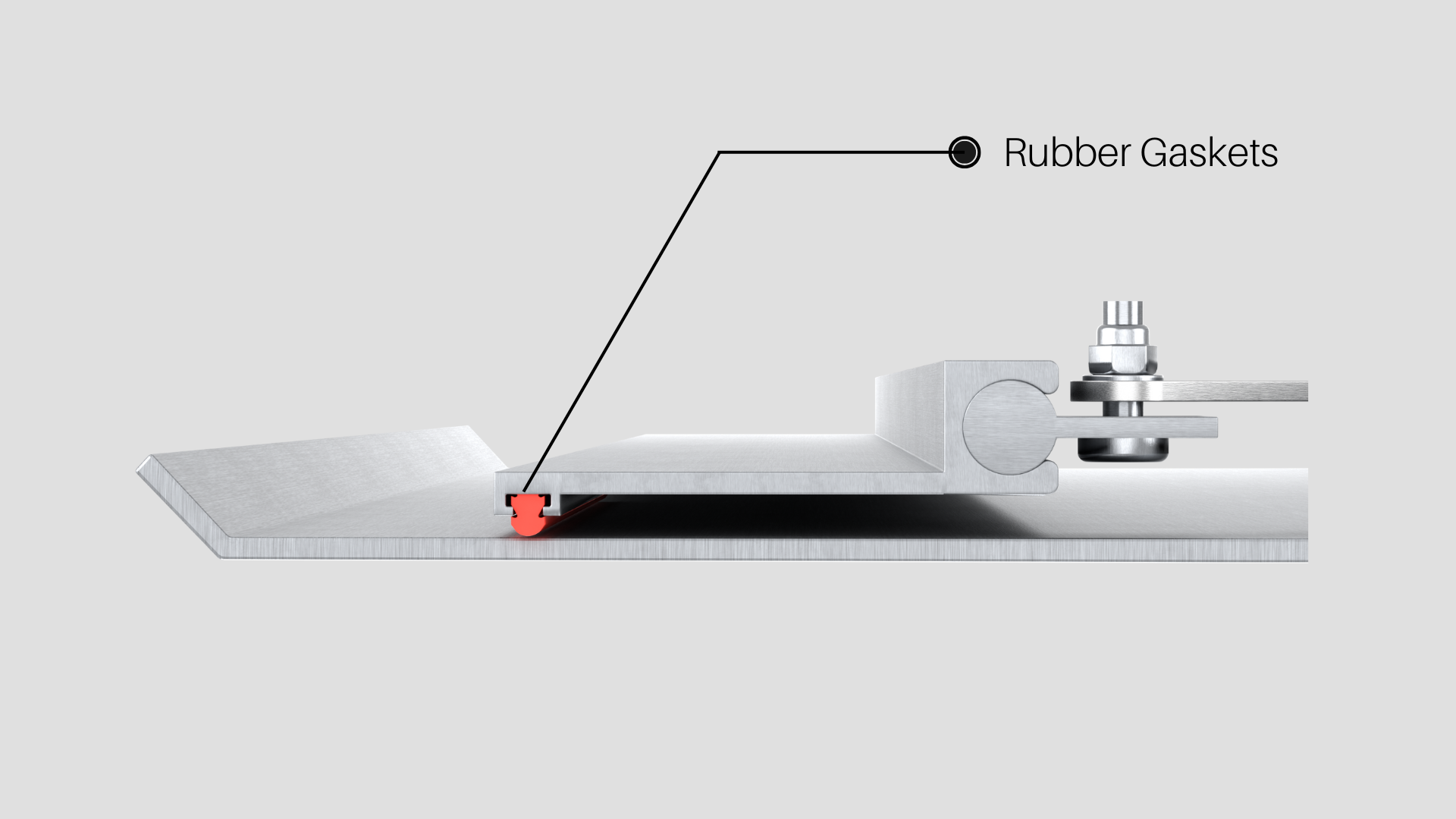

Rubber Gaskets for Noise Dampening
Integrated rubber gaskets provide noise reduction between metal components, minimizing wear due to movement.

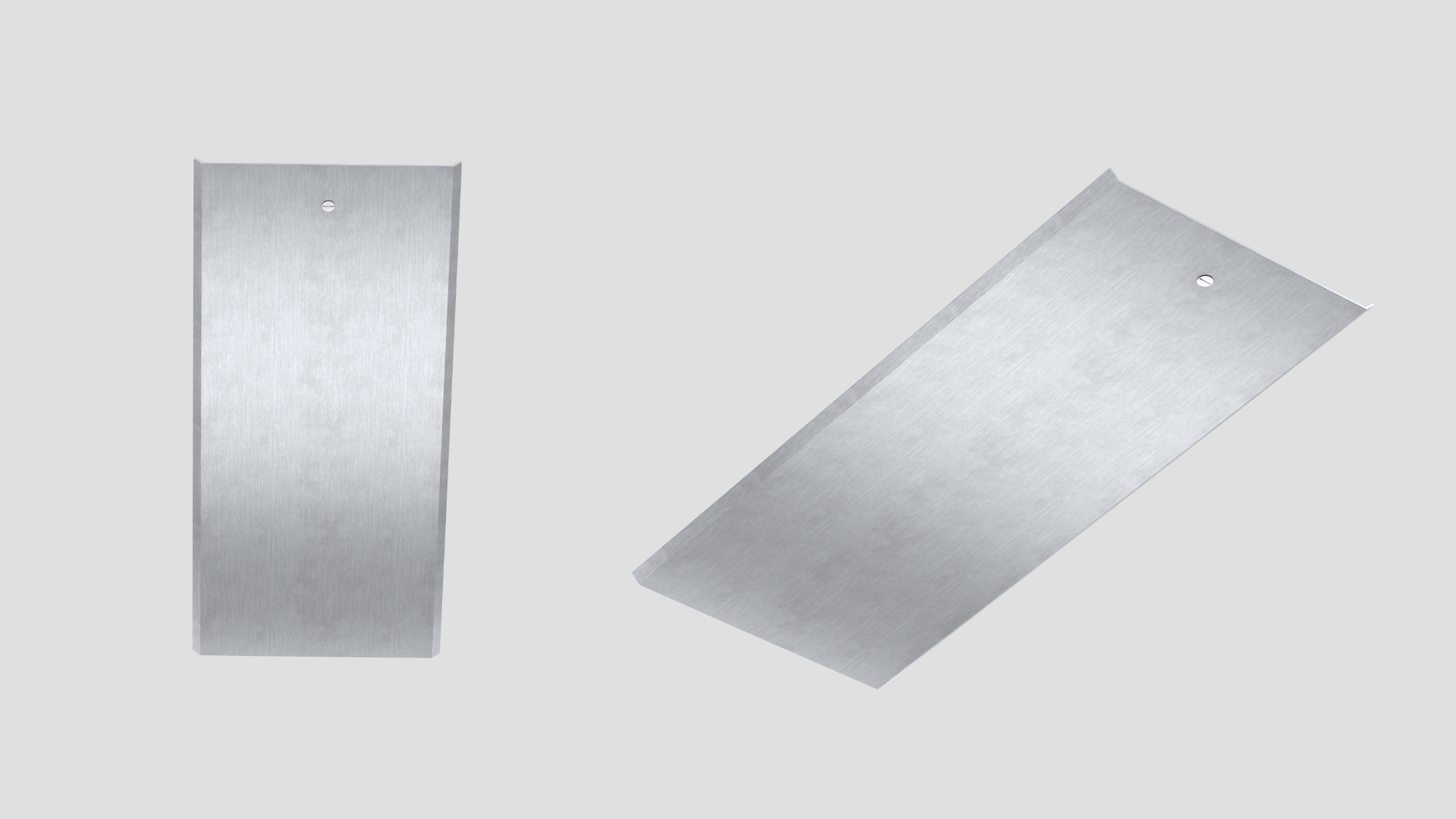

Premium Architectural Material
Constructed from high-grade aluminum, offering an optimal balance of strength, flexibility, and weight.
System Drawing
System drawings for the D-4000 expansion joint cover and its DK-4000 variant, showing the aluminum support profiles, cover plate, rubber insert and turnbar assembly for wall and ceiling joints. Each size can be downloaded as a DWG and PDF.
interactive tool
gap size calculator
enter your expansion gap measurement to see if this product is right for you.
20mm ≈ credit card
50mm ≈ two fingers
100mm ≈ fist width
200mm ≈ hand span
mm
d4000 covers gap sizes from 50mm to 450mm. enter your measurement above to see the movement capacity, profile width, and whether this product handles your requirements.
technical data
profile specifications
| model name | joint width (mm) | height (mm) | sightline (mm) | movement capability (%) |
|---|---|---|---|---|
| d-4000-100 | 100 | 9 | 258 | ±50 |
| d-4000-200 | 200 | 9 | 408 | -68/+50 |
| d-4000-300 | 300 | 9 | 558 | -78/+50 |
| d-4000-350 | 300 | 9 | 558 | -80/+90 |
| dk-4000-100 | 100 | 9 | 179 | -89/+25 |
| dk-4000-200 | 200 | 9 | 304 | -90/+25 |
| dk-4000-300 | 300 | 9 | 429 | -93/+25 |
| dk-4000-350 | 350 | 9 | 509 | -93/+48 |
from the technical datasheet
datasheet specifications
| Series | PROFLEX WC Series (D-4000 & DK-4000) |
|---|---|
| System type | Centre Bar Seismic Wall & Ceiling System |
| Mounting | Surface-mounted |
| Suitable movement | Seismic, Thermal, Settlement |
| Recommended for | Interior and exterior areas where thermal and multi- directional/seismic movement is expected; Applications where high movement capacity is required |
| Components | Extruded Aluminum Support Profiles; Aluminum Cover Plate; Rubber Insert; Steel Turnbar Assembly |
| Material: Support Profiles | Extruded aluminum, grade AA 6063 preferred |
| Material: Cover Plate | Aluminum, Stainless Steel 304 or Stainless Steel 316 |
| Material: Turnbar | Galvanized Steel; finish: “A” Coating (Corrosion Protection) |
| Material: Vapor Barrier (Optional) | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); black |
| Finishes | Powder coated |
| Supply length | 3.00 m per piece (support profile and cover plate) |
| Substrate tolerance | Surface level within ±2 mm; gap level within ±5 mm |
| Sizes | Per the system drawings; profiles can be customized to requirements |
Source: D4000 technical datasheet. Sizes and dimensions: profile specifications above and the system drawings.
