ecoglide series
d3200
ecoglide series
sku: d3200 · wall
best for: interior and exterior walls and ceilings, including drywall and direct-to-substrate installations, where seismic or multi-directional movement is expected.

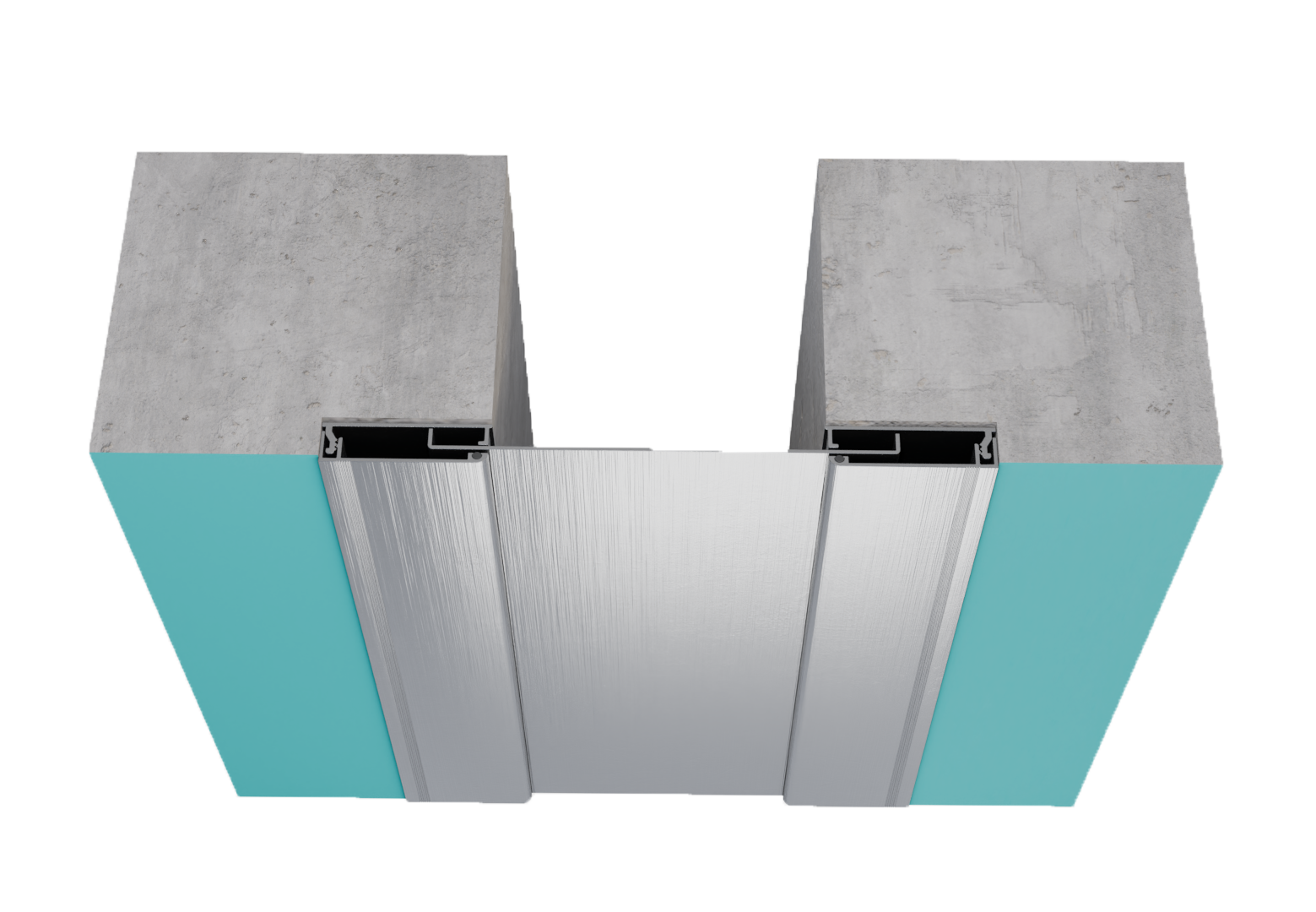

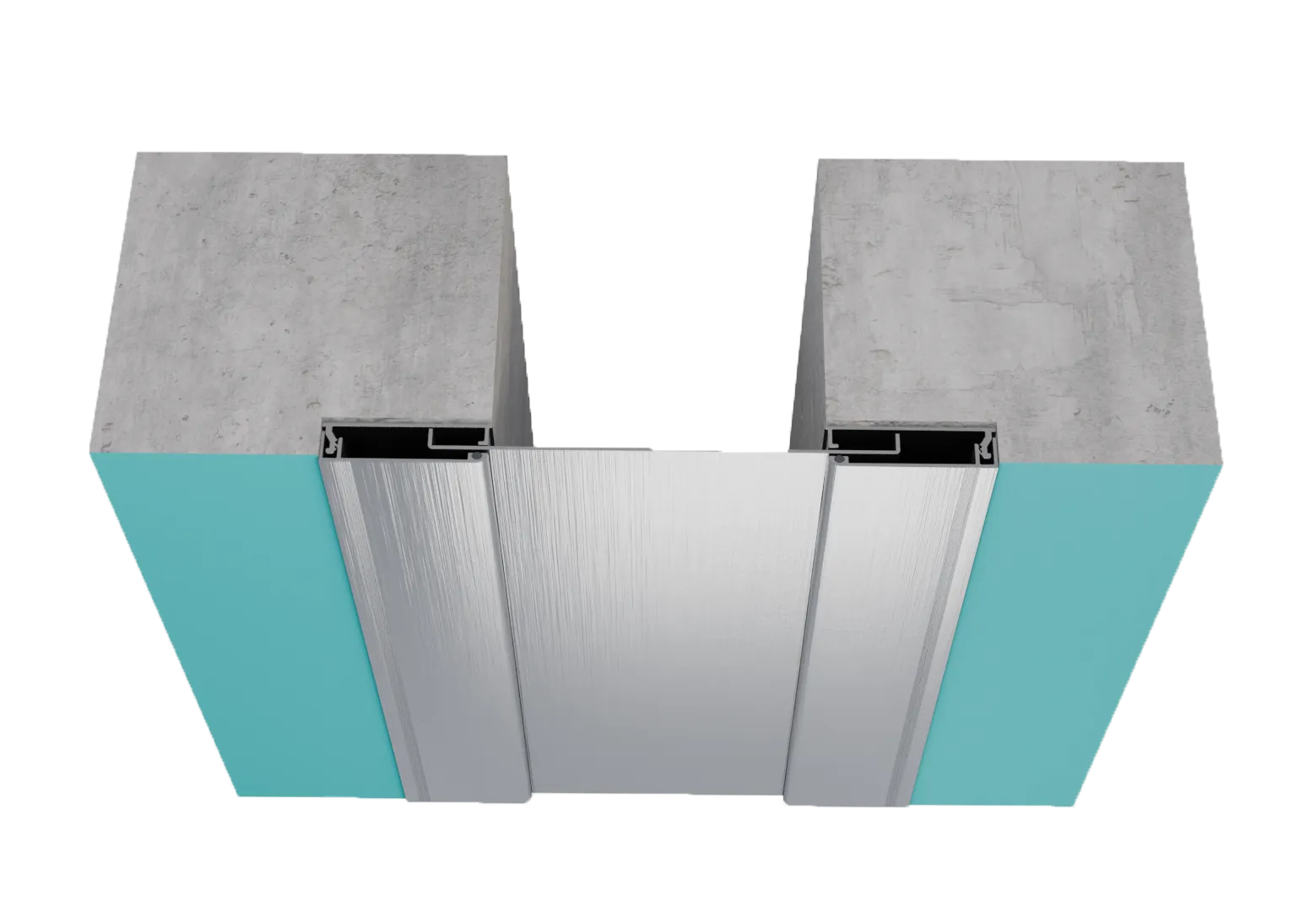

Introducing the ECOGLIDE Series D-3200
A versatile and aesthetically pleasing expansion joint cover designed for wall and ceiling applications. This innovative system features a clip-in design with two cassette-style enclosures and a free-floating center plate, all crafted from durable aluminum 6063. The D-3200 seamlessly accommodates horizontal, lateral, and wind movement deflections, ensuring the integrity of your structure. With its hidden screw system and customizable finishes, the ECOGLIDE Series D-3200 offers a sleek, modern look that complements any architectural style.
movement
01 — movement
movement accommodation
the ecoglide series d-3200 is engineered to handle complex movement scenarios, including horizontal, lateral, and wind movement deflections. this expansion joint cover is built for durability and wear resistance, maintaining its performance and aesthetics over time
assembly
02 — assembly
assembly

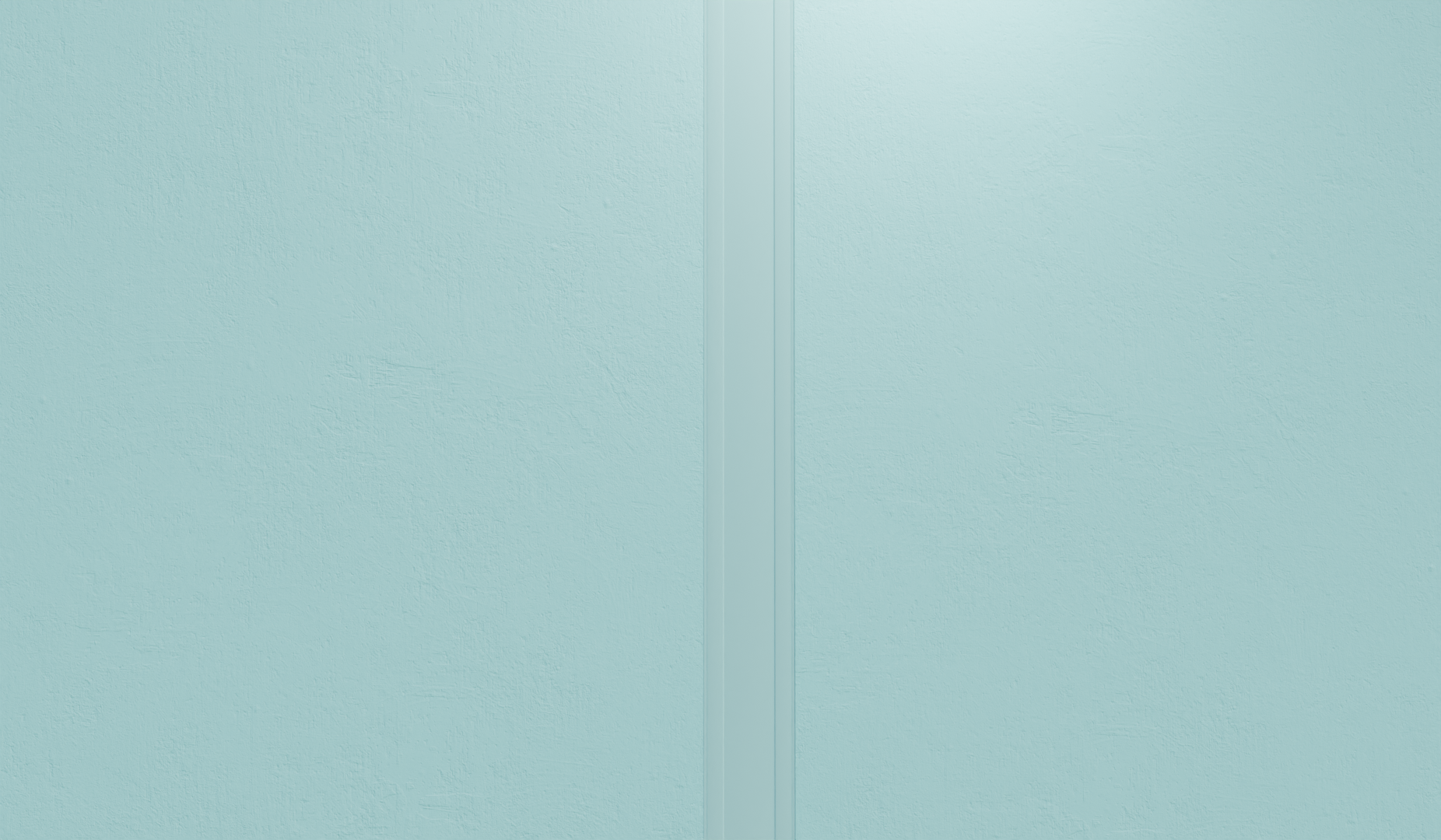

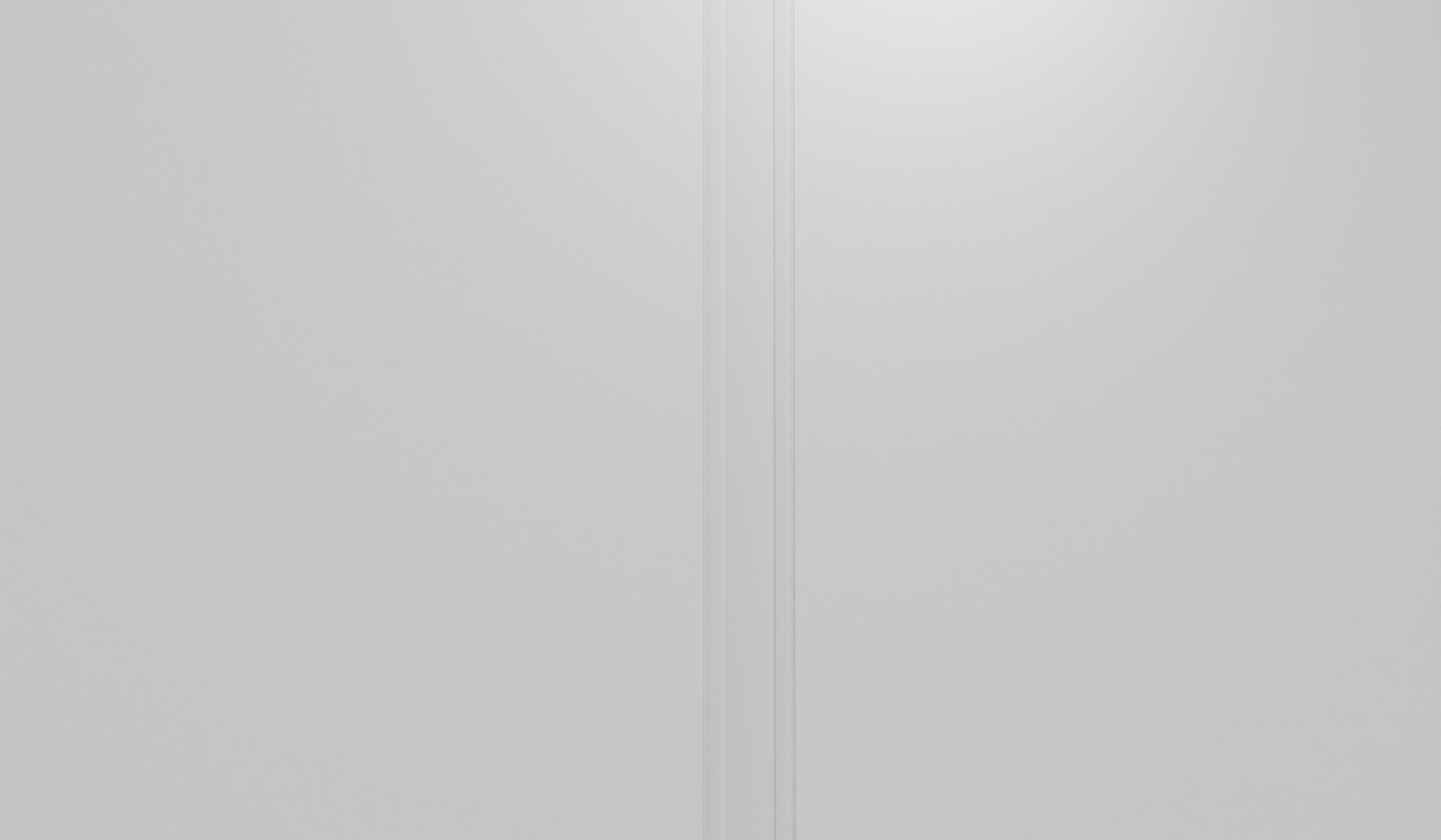

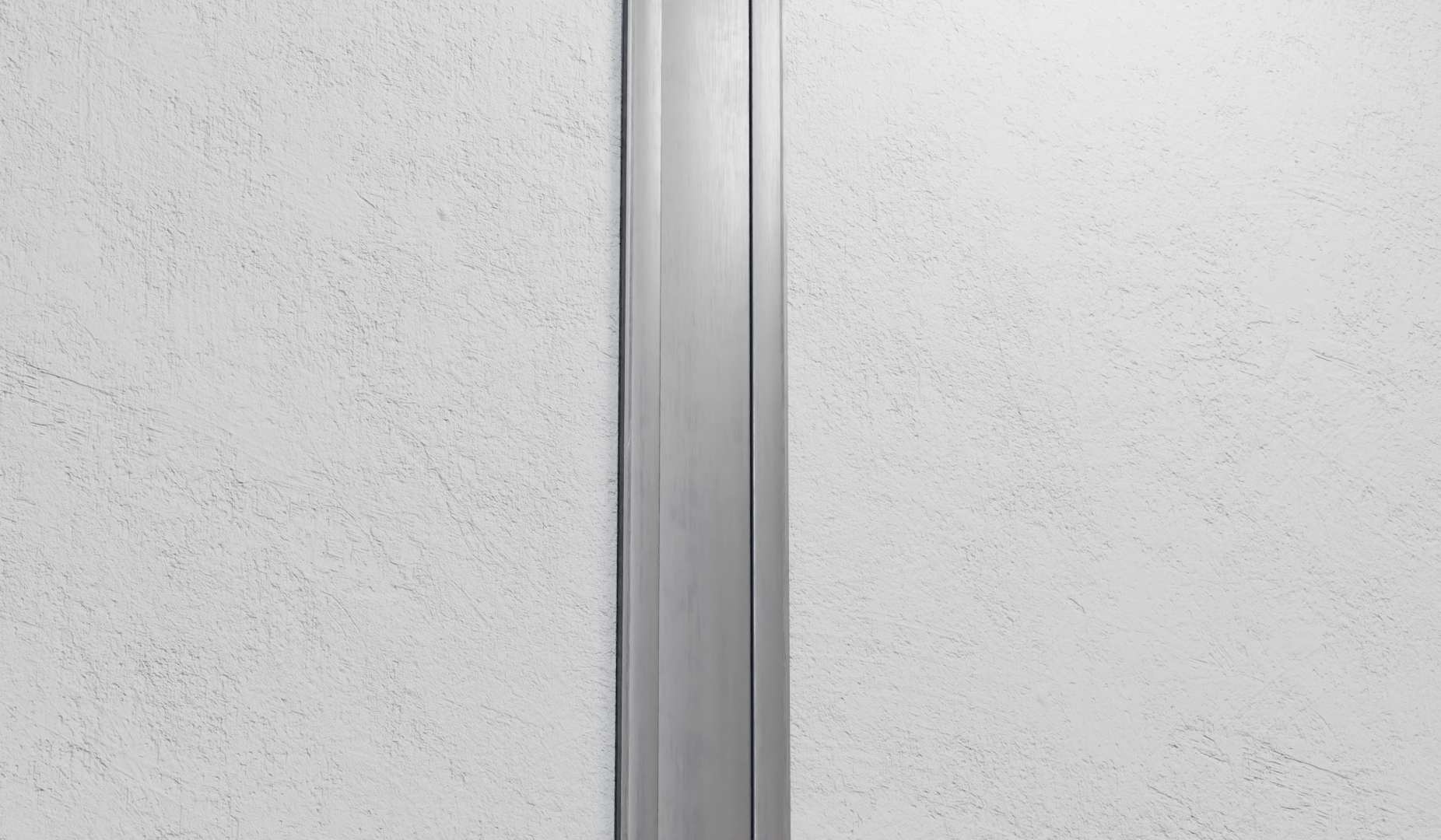

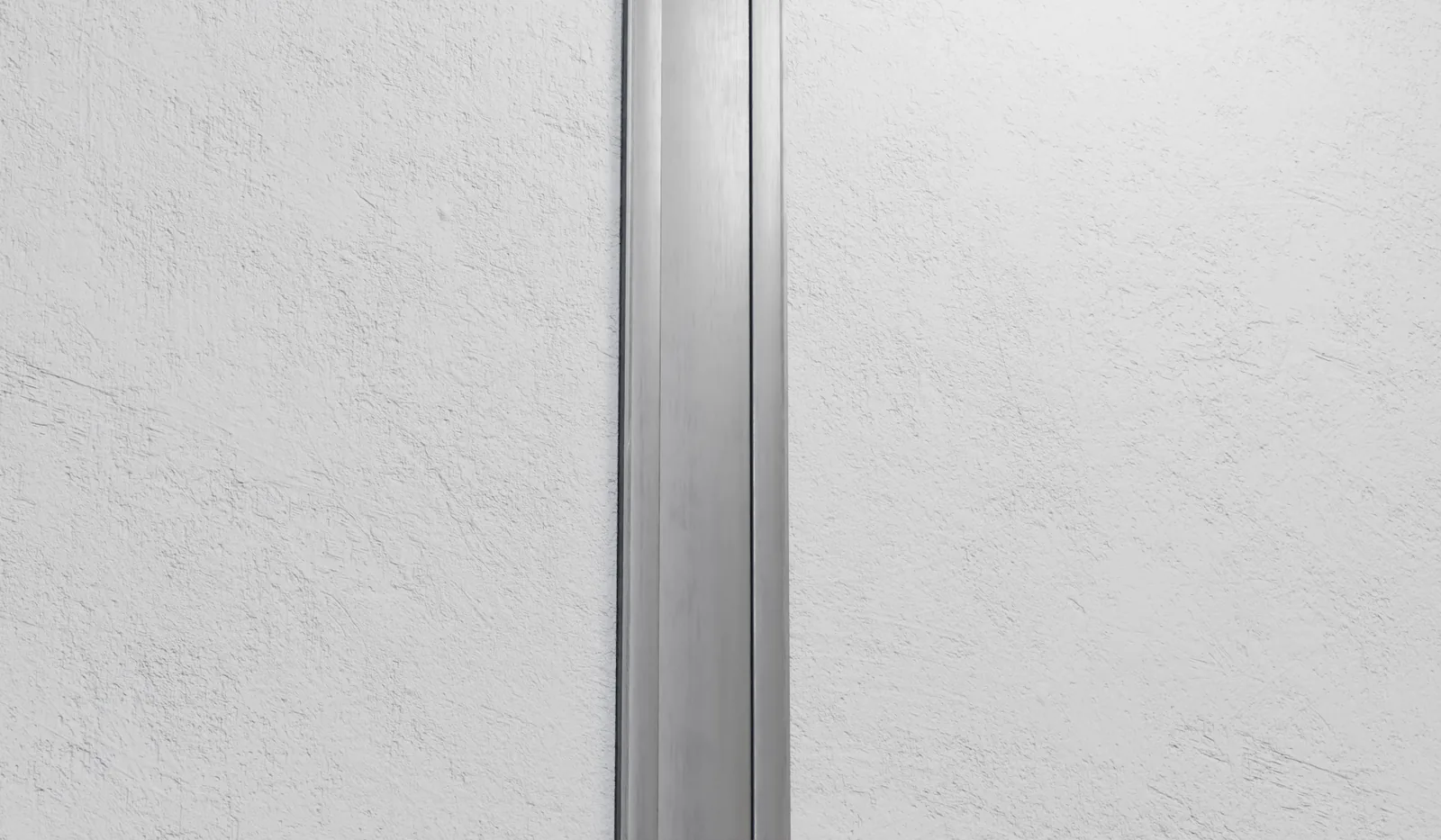

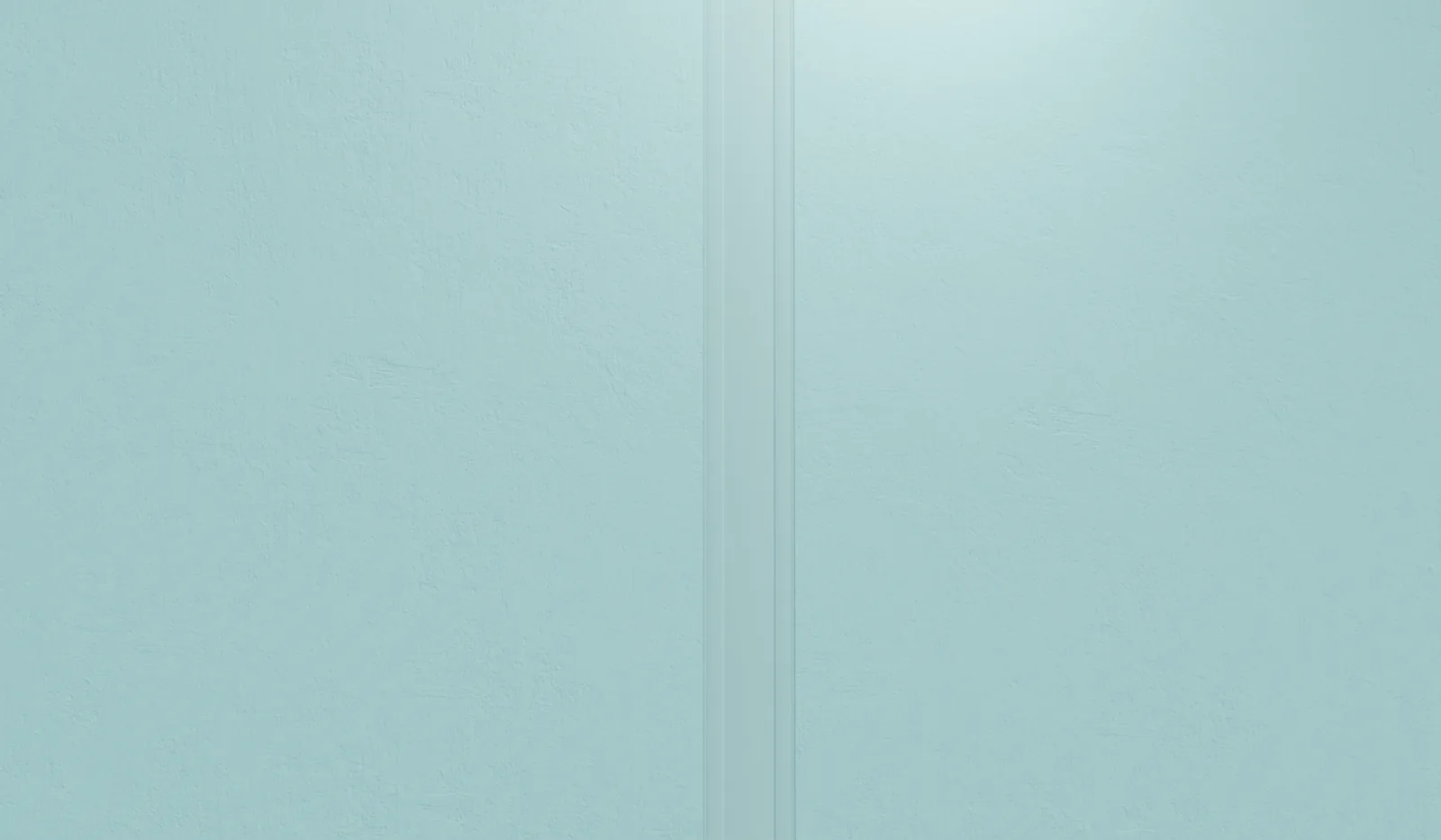

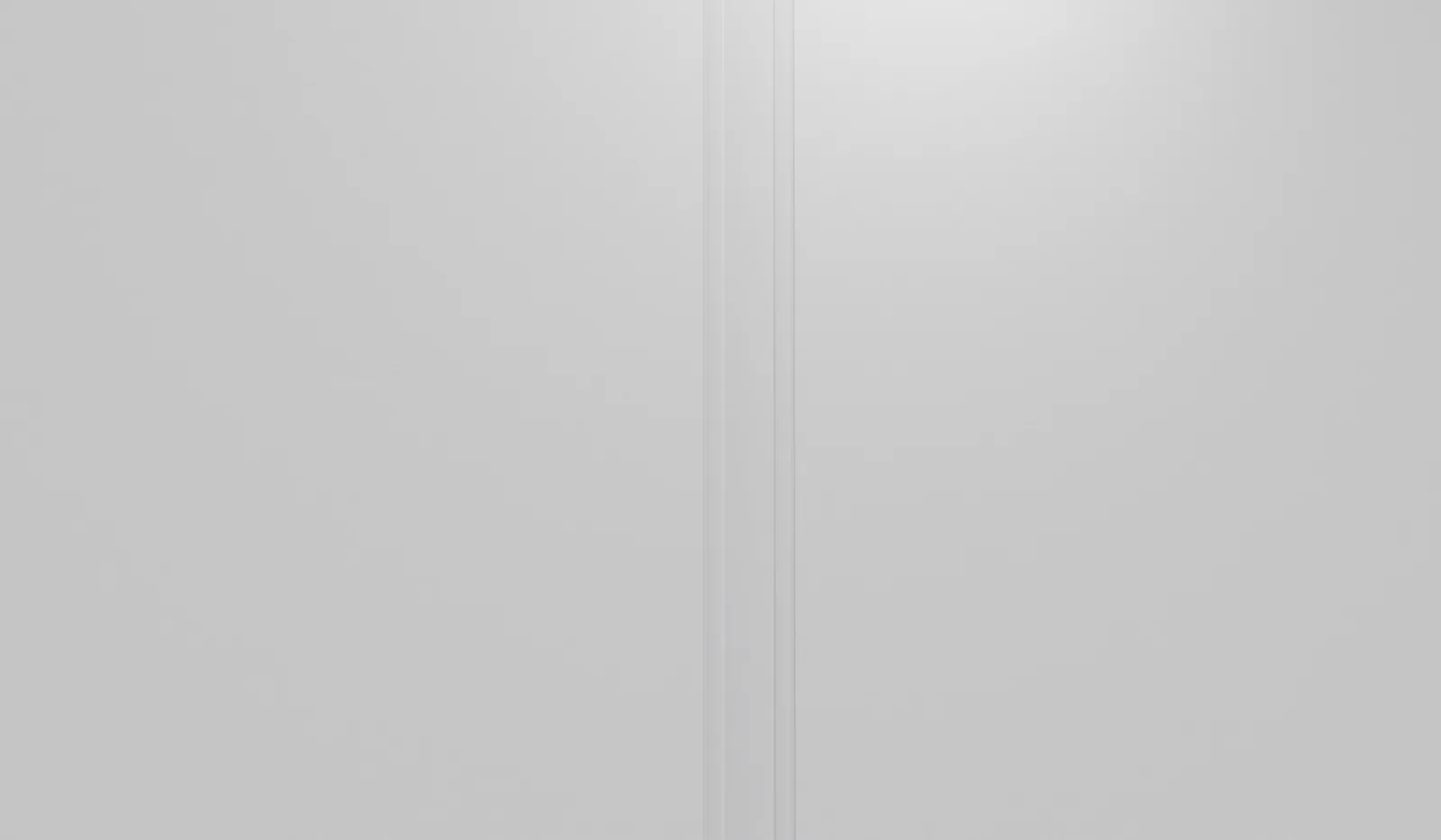

Aesthetic Choice
The aluminum components come standard with an anodized finish for enhanced durability and rust prevention. The D-3200 can also be powder coated in any RAL color to match wall finishes and create a cohesive look.
Hidden Screw System
The D-3200’s male and female components create a seamless, clip-in design that conceals fasteners, resulting in a clean, attractive appearance
Rubber Gaskets
Integrated rubber gaskets seal the air gaps between the center plate and side enclosures, preventing water intrusion and ensuring a watertight seal
Easy Access
The snap-fit assembly allows for convenient access to the joint’s interior for inspection and maintenance purposes

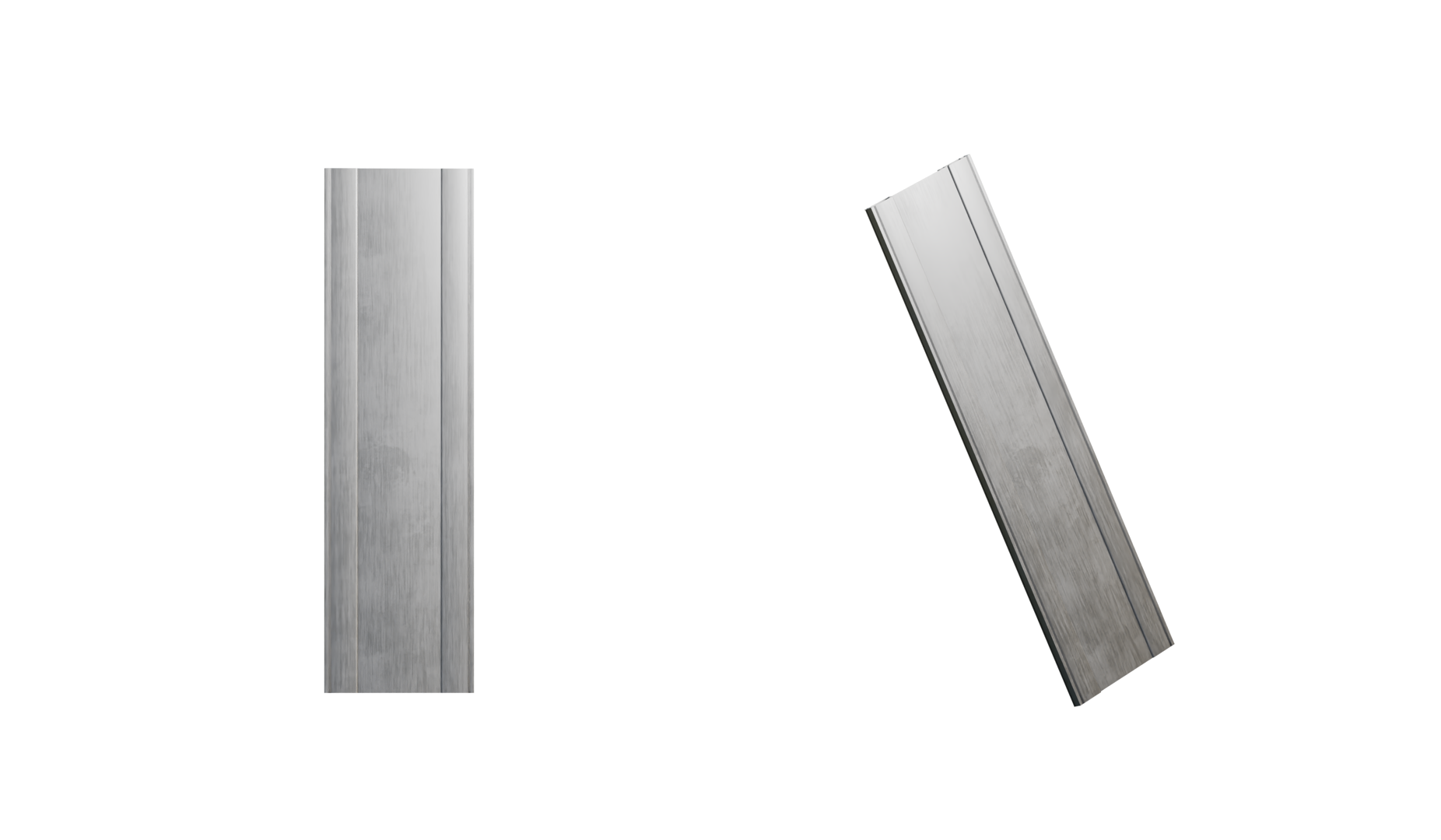

Aluminum 6063
The ECOGLIDE Series D-3200 is fabricated from high-quality aluminum 6063, known for its excellent strength-to-weight ratio, corrosion resistance, and durability. This material choice ensures the expansion joint cover’s long-lasting performance and visual appeal
System Drawing
System drawings for the D-3200 expansion joint cover and its DK-3200 variant, showing the support frame, center plate and cover frame for wall-to-wall and ceiling-to-ceiling joints. Each size can be downloaded as a DWG and PDF.
interactive tool
gap size calculator
enter your expansion gap measurement to see if this product is right for you.
20mm ≈ credit card
50mm ≈ two fingers
100mm ≈ fist width
200mm ≈ hand span
mm
d3200 covers gap sizes from 50mm to 250mm. enter your measurement above to see the movement capacity, profile width, and whether this product handles your requirements.
technical data
profile specifications
| model name | joint width (mm) | height (mm) | sightline (mm) | movement capability (%) |
|---|---|---|---|---|
| d-3200-100 | 100 | 15 | 200 | ±40 |
| d-3200-200 | 200 | 15 | 376 | ±50 |
| dk-3200-100 | 100 | 15 | 150 | ±20 |
| dk-3200-200 | 200 | 15 | 288 | ±25 |
from the technical datasheet
datasheet specifications
| Series | ECOGLIDE Series (D-3200 & DK-3200) |
|---|---|
| System type | Glide Plate Seismic System |
| Suitable movement | Thermal, Seismic, Settlement |
| Recommended for | Interior & Exterior Wall & Ceiling Areas; Drywall Applications; Areas of Installation directly to Wall Substrate |
| Components | Extruded Aluminum Support Frame; Extruded Aluminum Center Plate; Extruded Aluminum Cover Frame; Elastomeric Rubber Gasket |
| Material: Support Frames, Cover Frames And Center Plate | Extruded aluminum, grade AA 6063 preferred |
| Material: Elastomeric Rubber Gasket | Ethylene Propylene Diene Monomer (EPDM); finish: Smooth Finish; black |
| Material: Vapor Barrier (Optional) | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); black |
| Finishes | Anodized, Powder coated |
| Supply length | 3.00 m per piece (aluminum centre plate, cover frames and support frame) |
| Substrate tolerance | Surface level within ±2 mm; gap level within ±5 mm |
| Sizes | Per the system drawings; profiles can be customized to requirements |
Source: D3200 technical datasheet. Sizes and dimensions: profile specifications above and the system drawings.
alternatives
similar products to consider
premiumd4000
proflex wc series
high seismic zones, airports, hospitals, convention centres, and critical infrastructure requiring large-gap coverage with multi-directional movement capacity.
- gap range
- 50 – 450mm
- movement
- ±100%
premiumz5000
profinish series
premium commercial lobbies, luxury hotels, hospitals, and architectural interiors requiring seamless tile-finished floor joints with seismic movement.
- gap range
- 50 – 450mm
- movement
- ±100%

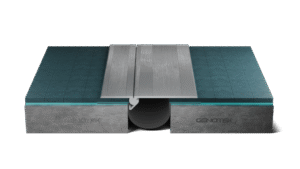

standardcfh
