cfh
prohinge series

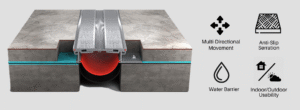

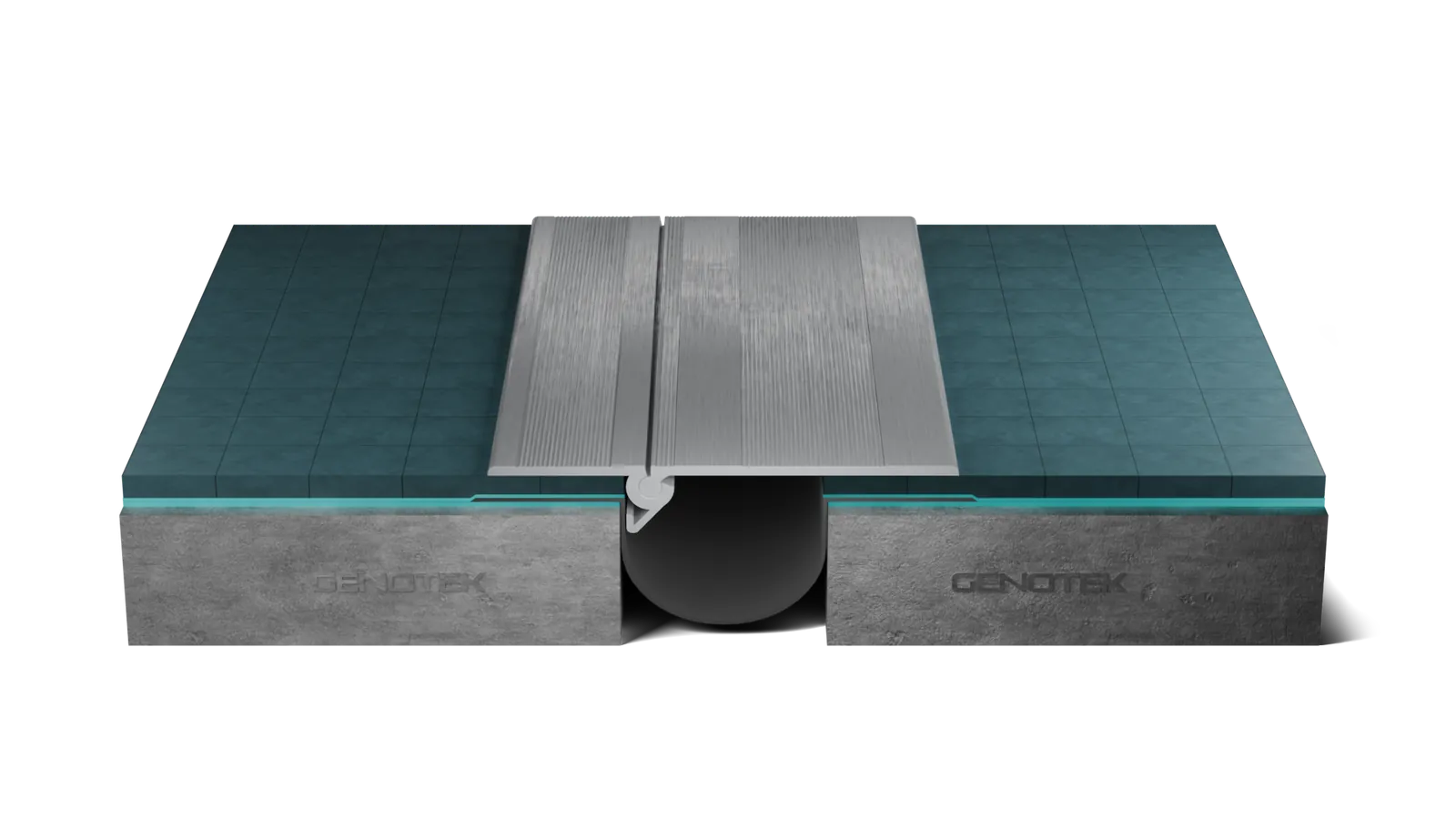

Introducing the CF H
thermal & settlement movement accommodation
the hinged aluminum profile system allows the prohinge series to handle multi-directional movements while maintaining alignment and functionality, even under heavy load conditions
water protection

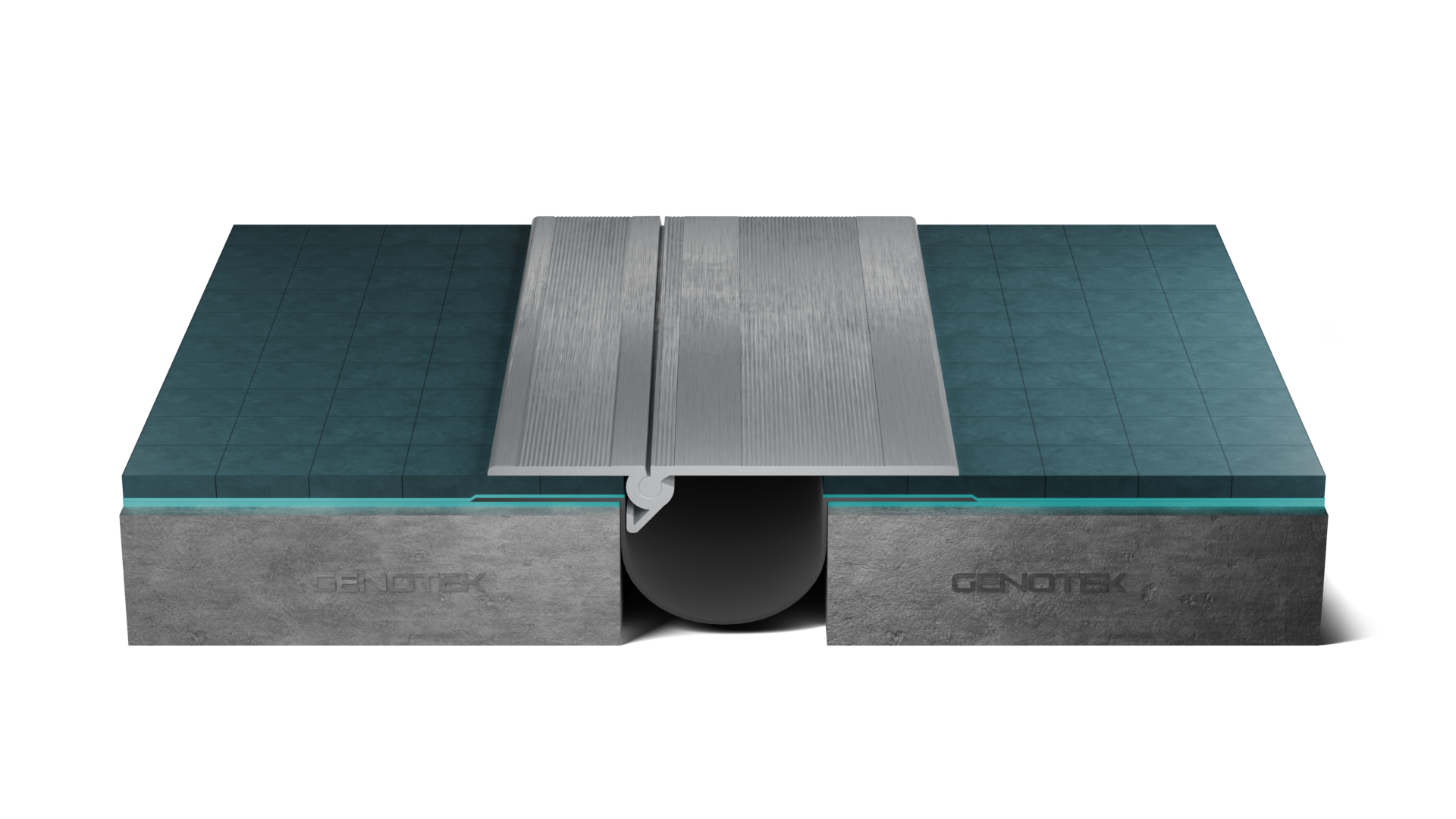

the water barrier below the cfh carries water away along the joint, so the structure below stays dry as the joint moves.
load bearing
these expansion joint covers are engineered to withstand the pressure. the cfh series offers various models tailored to your specific needs, ensuring that your floors remain stable and secure under any load.
assembly in action
this video demonstrates the assembly process, perfectly designed for easy installation for durability and reliability.
Aesthetic Choice

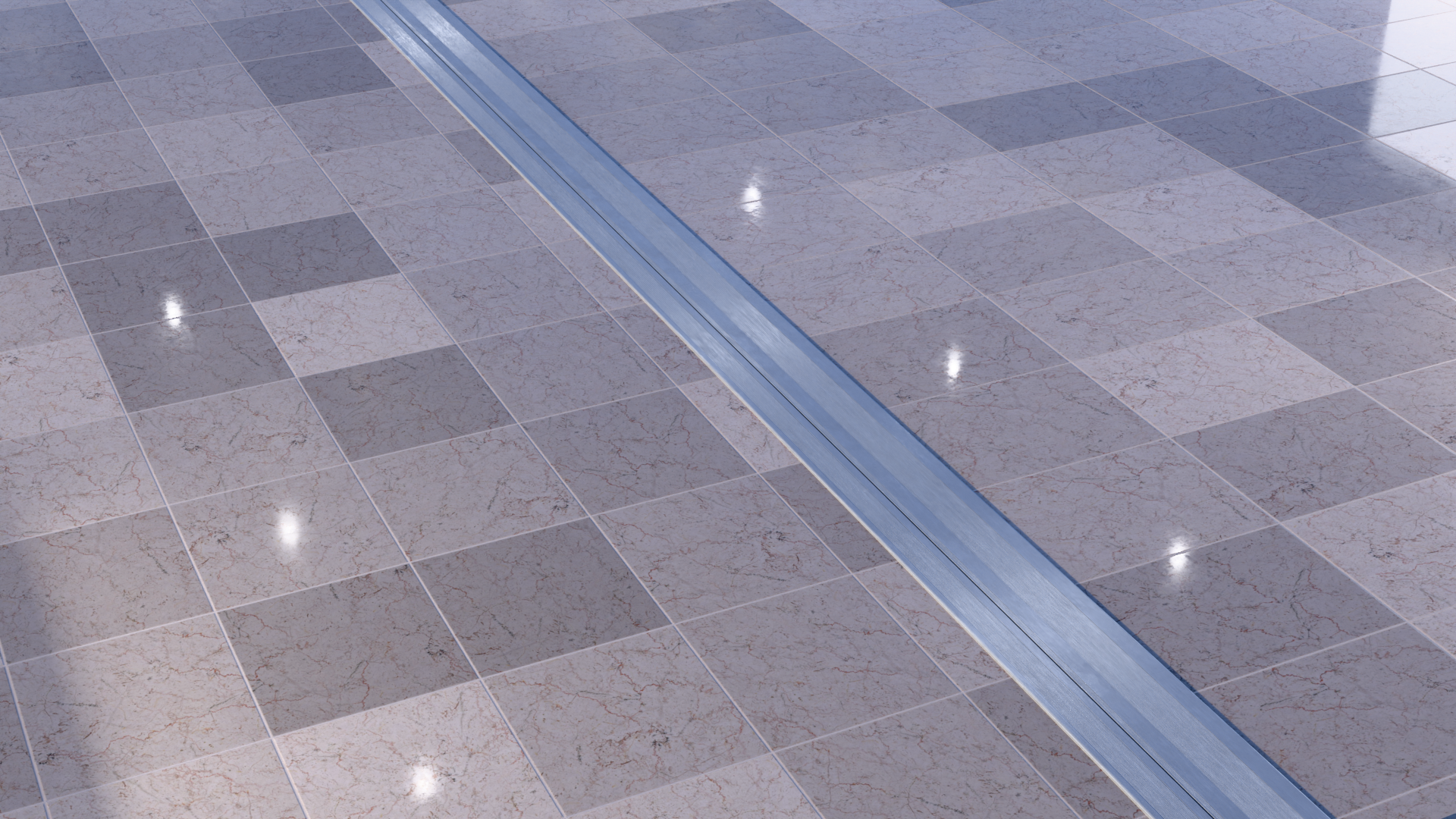

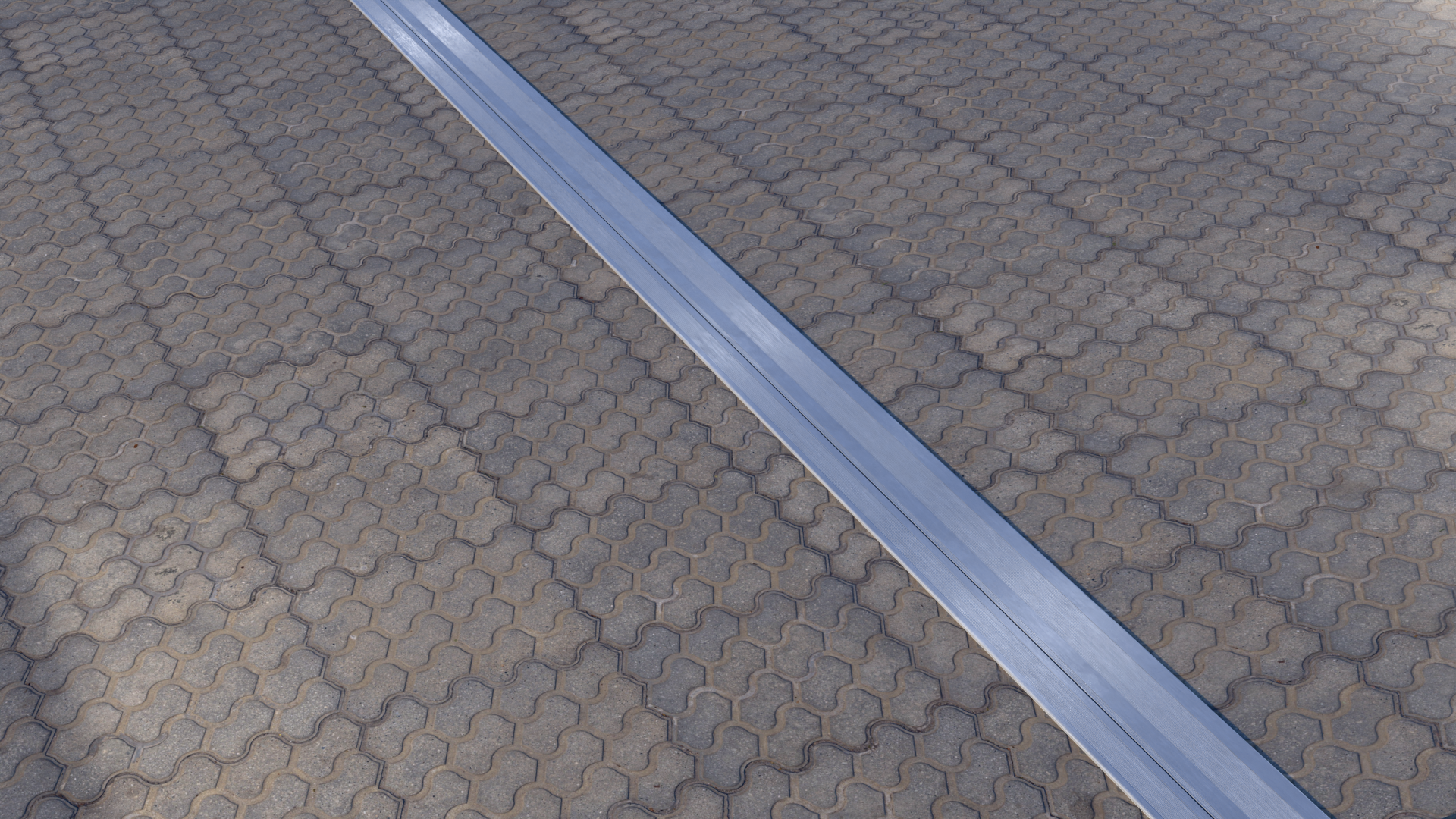

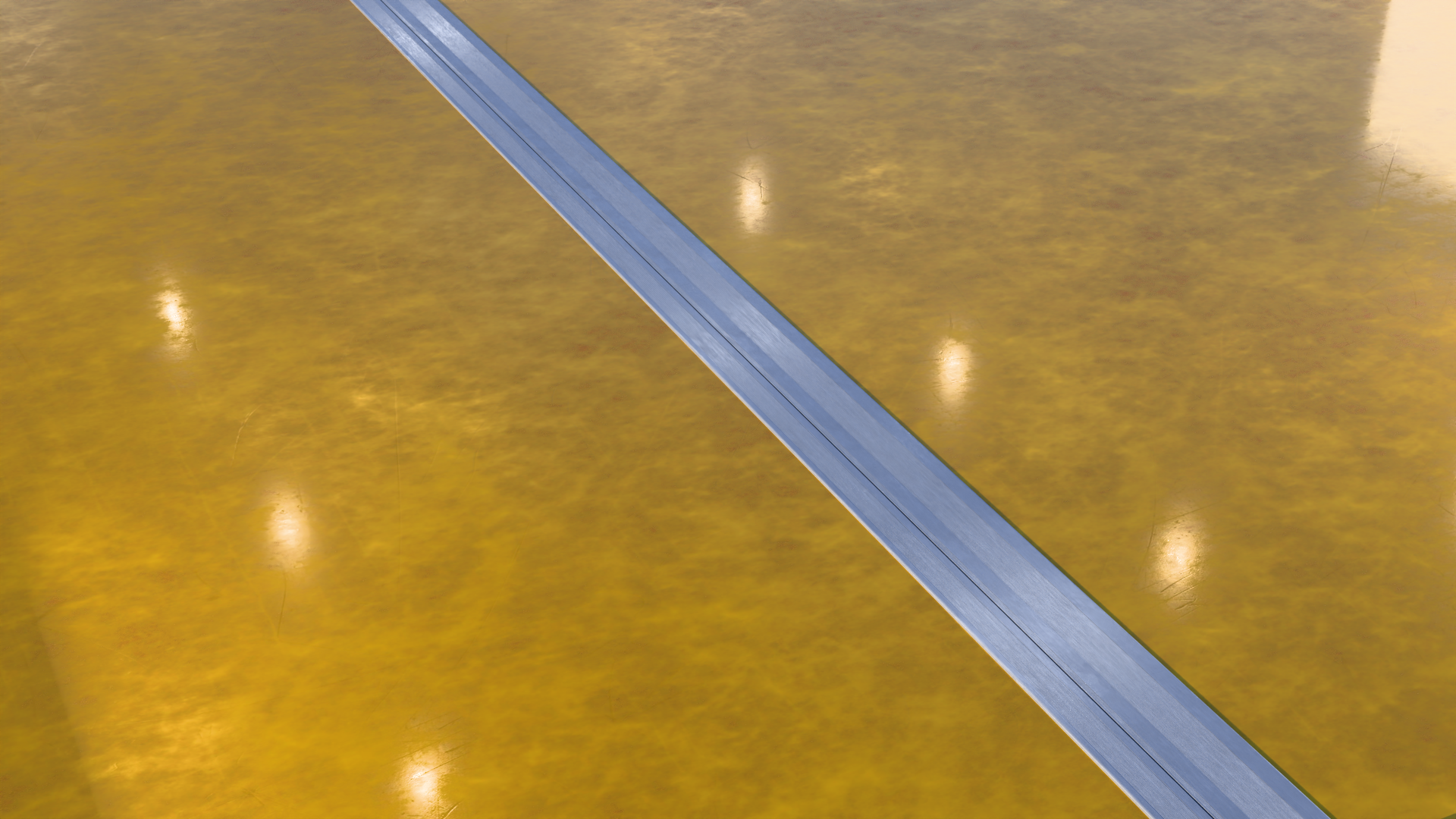

The CF H adapts to project-specific requirements with variable sizes, dimensions and colors, allowing the cover to sit cleanly with a wide range of floor finishes — from tiled interiors to epoxy-coated concrete and paver surfaces. The result is a seamless, unobtrusive finish that blends into the surrounding architecture while still meeting PROHINGE-series performance requirements.

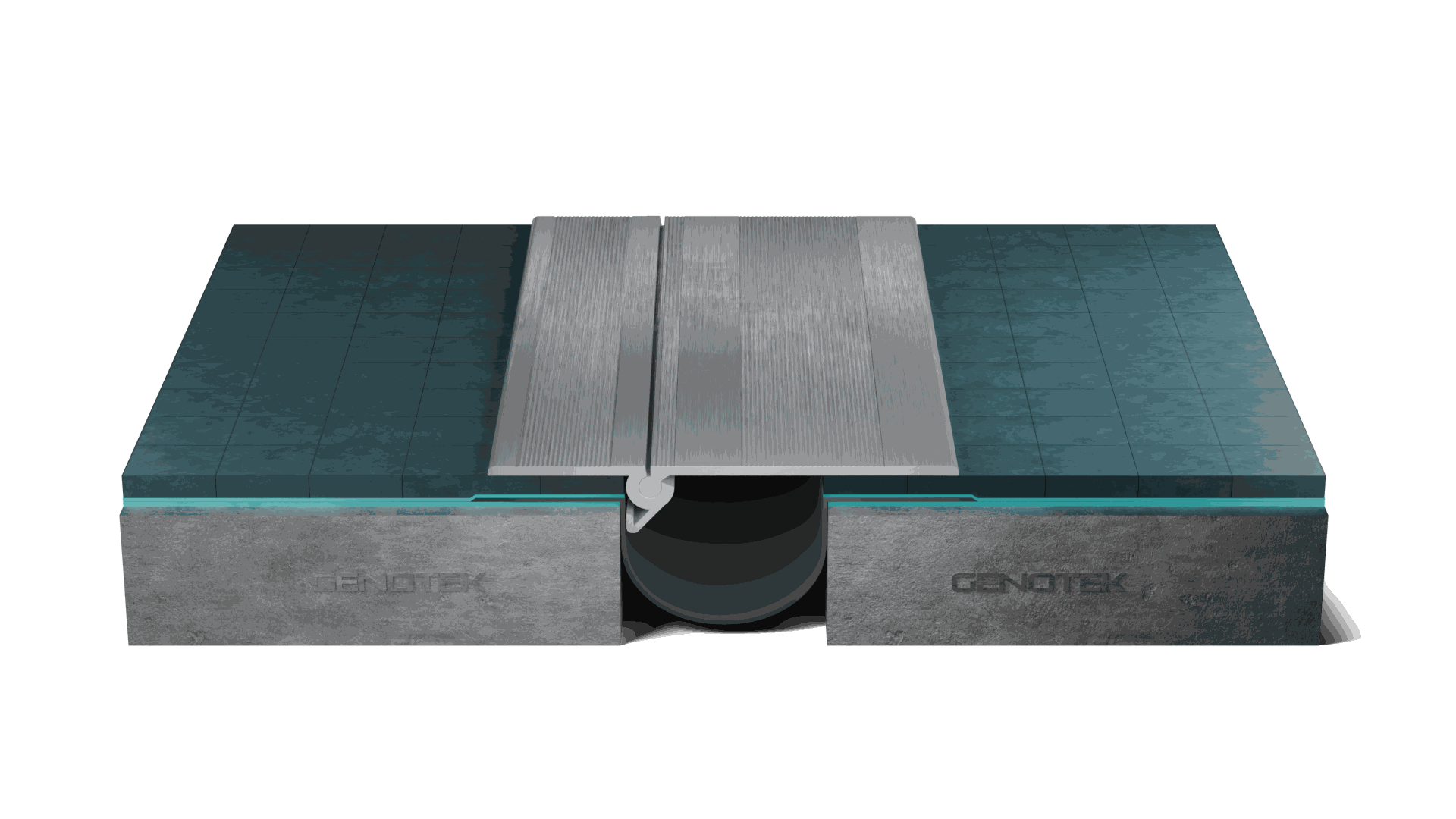

Surface-Mounted Design for Versatility

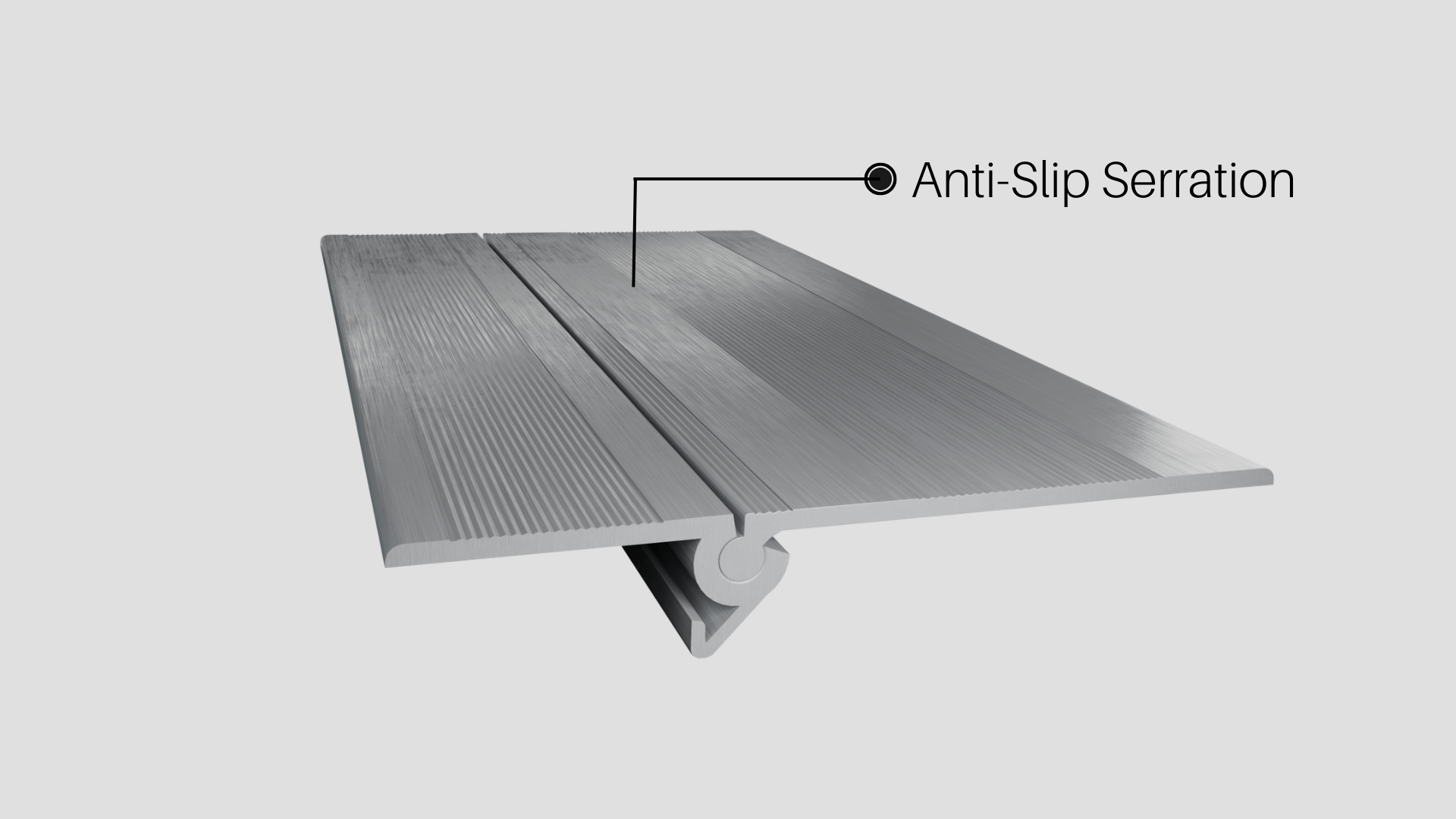

Anti-slip Serration

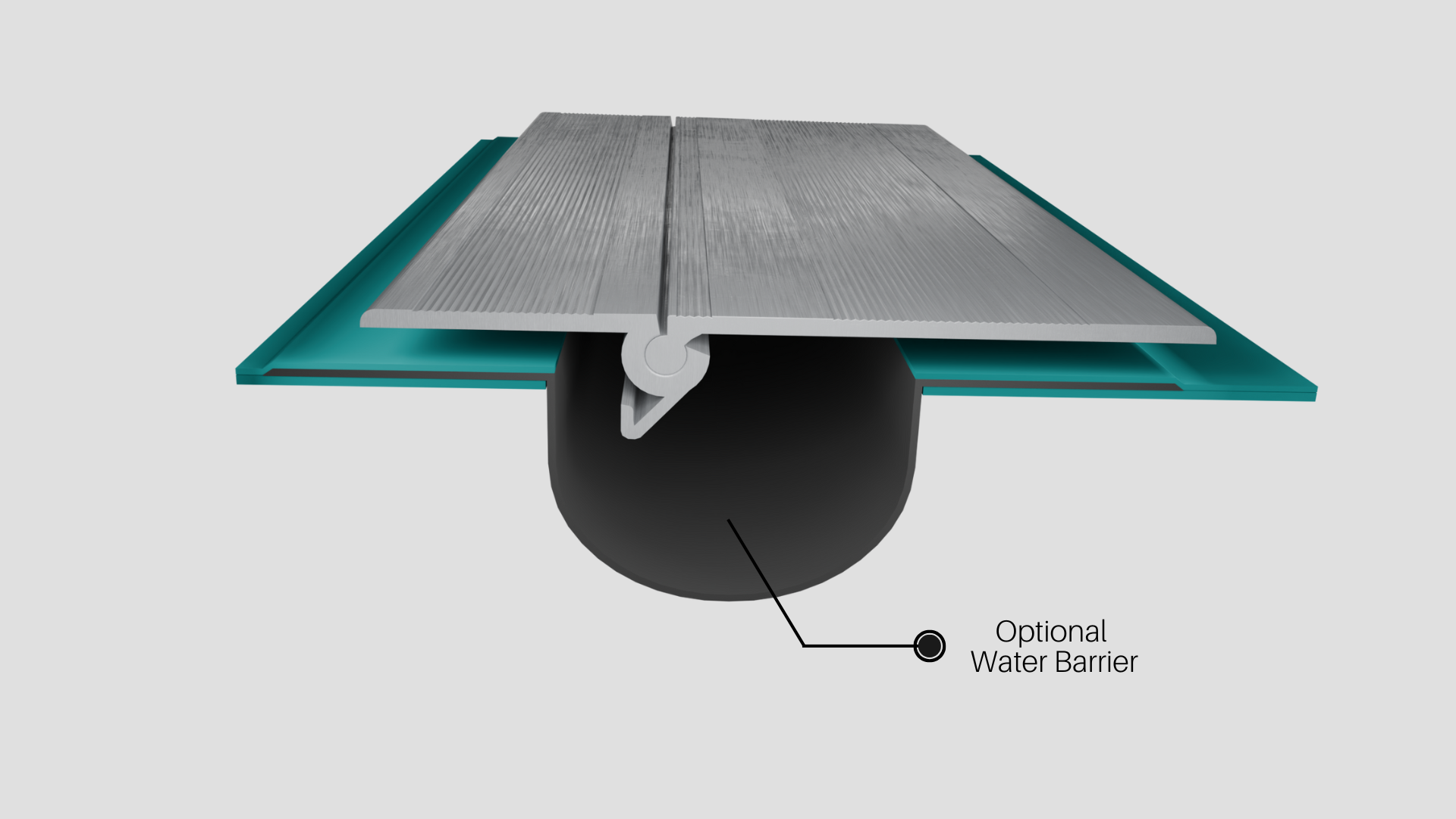

Optional Vapor Barrier for Moisture Protection

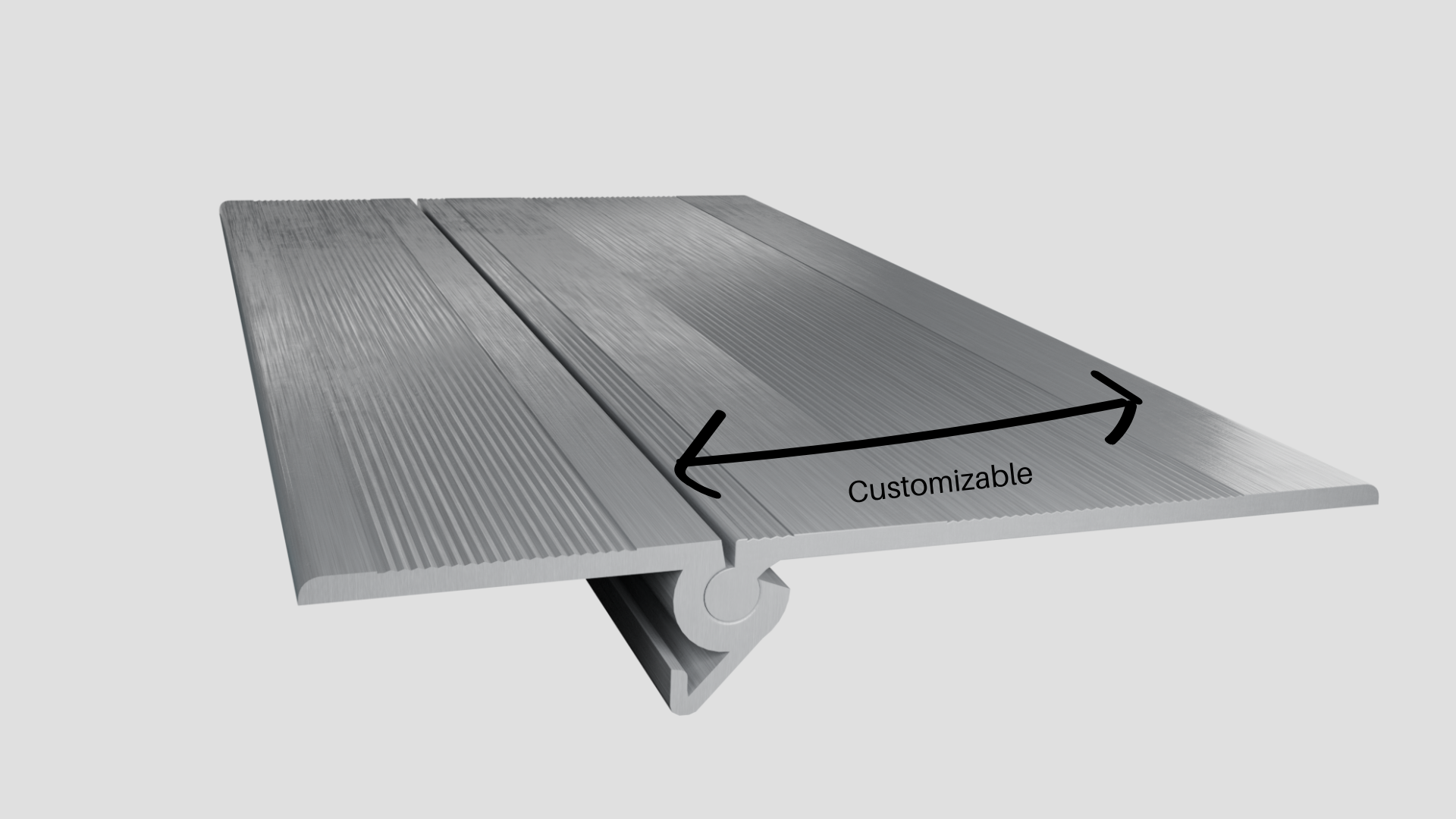

Customizable Configurations

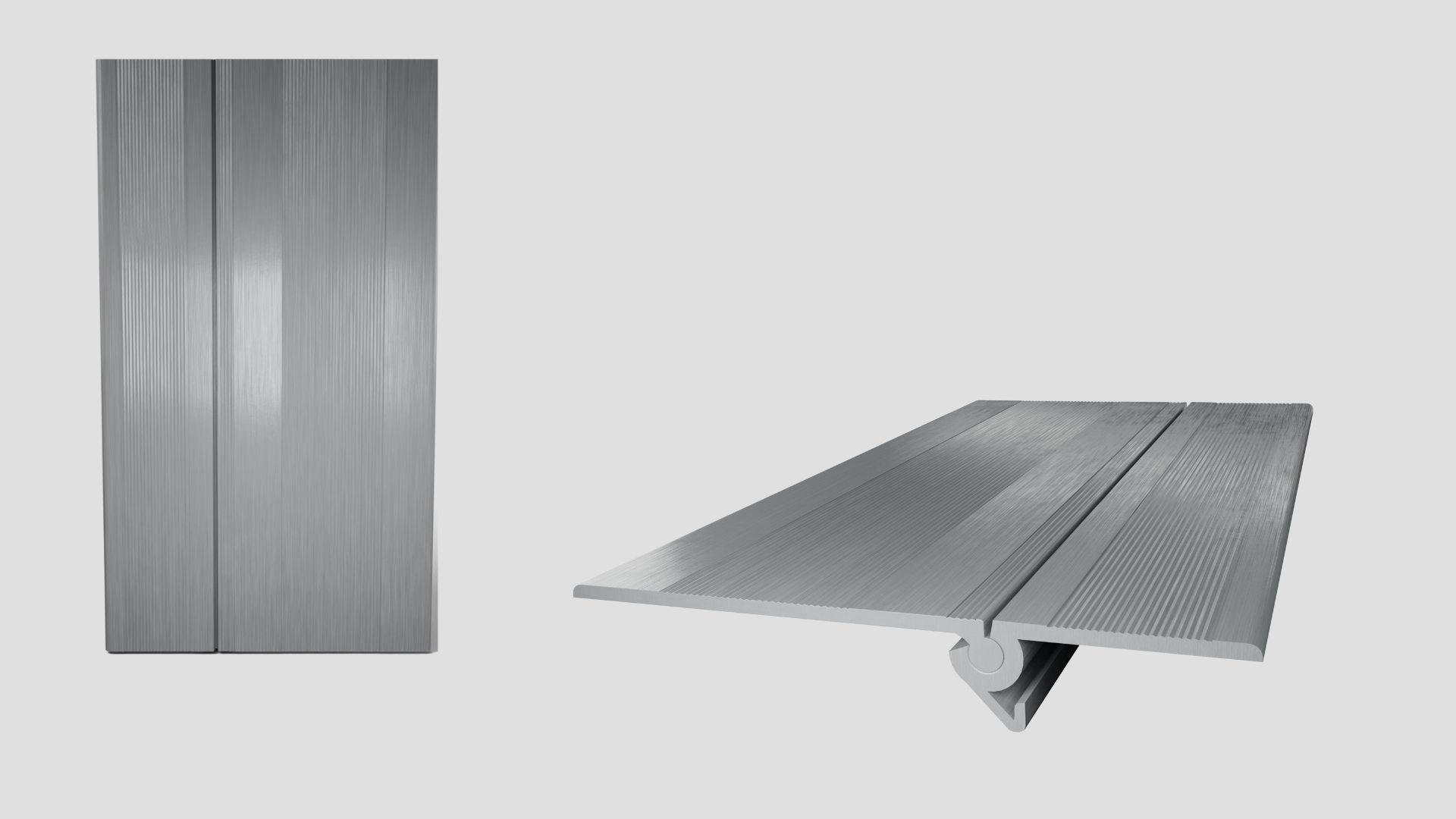

Premium Aluminum for Architectural Materials

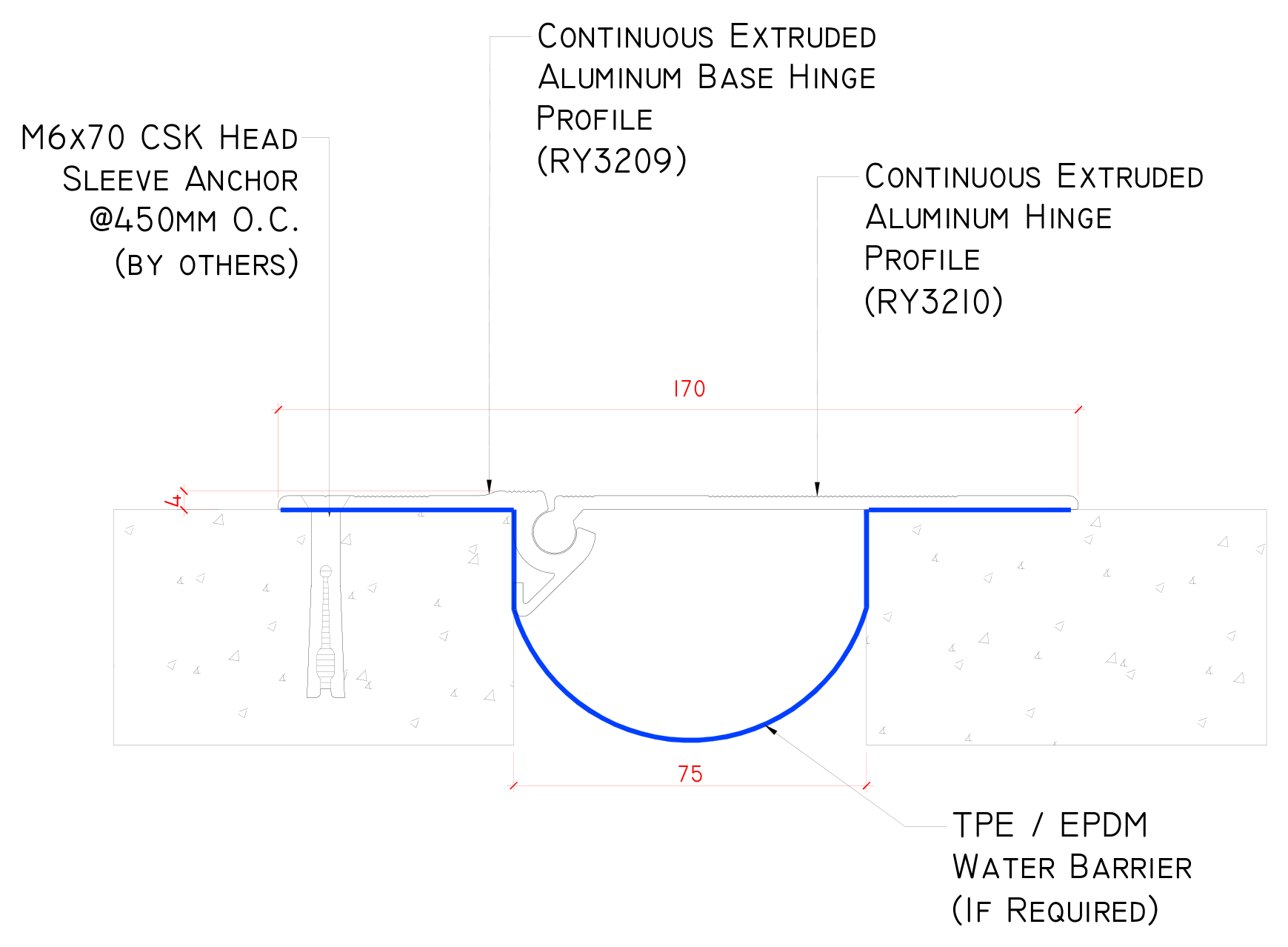

System Drawing
gap size calculator
enter your expansion gap measurement to see if this product is right for you.
profile specifications
| model name | joint width (mm) | height (mm) | sightline (mm) | movement capability (%) | load capacity |
|---|---|---|---|---|---|
| cfh-170 | 75 | 4 | 170 | +50/-70% | PEDESTRIAN |
| cfh-210 | 100 | 4 | 210 | -60/+50% | VEHICULAR |
| cfh-260 | 125 | 4 | 260 | -68/+64% | VEHICULAR |
| cfh-365 | 200 | 6 | 365 | -80/+50% | VEHICULAR |
| cfhk-119 | 75 | 4 | 119 | +50/-70% | PEDESTRIAN |
| cfhk-209 | 125 | 4 | 209 | -68/+64% | VEHICULAR |
| cfhk-314 | 200 | 6 | 314 | -80/+50% | VEHICULAR |
datasheet specifications
| Series | PROHINGE Series (CFH) |
|---|---|
| System type | Hinged Safety Seismic Floor System |
| Mounting | Surface-mounted |
| Suitable movement | Thermal, Seismic, Settlement |
| Load capacity | Heavy Volume Pedestrian Traffic; Vehicular Loads |
| Recommended for | Areas where Low Maintenance Profile is required; Retrofit as well as new installations |
| Components | Continuous extruded aluminum hinged profile; Continuous extruded aluminum Cover profile |
| Material: Hinge Profile, Cover Profile | Extruded aluminum, grade AA 6063 preferred |
| Material: Vapor Barrier (Optional) | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); black |
| Supply length | 3.00 m per piece (aluminum / stainless steel cover plate) |
| Substrate tolerance | Surface level within ±2 mm; gap level within ±5 mm |
| Sizes | Per the system drawings; profiles can be customized to requirements |
Source: CFH technical datasheet. Sizes and dimensions: profile specifications above and the system drawings.
