z1680
promate rm series
Introducing the Z1680

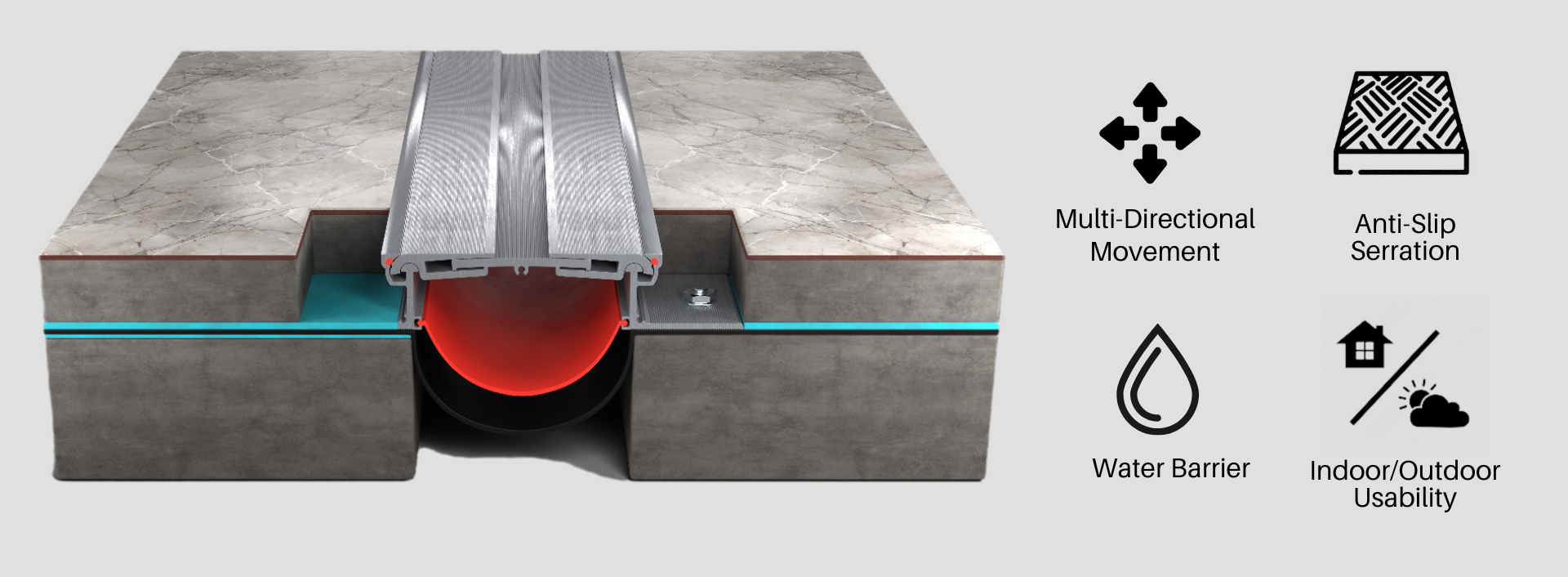

three-directional movement accommodation
engineered to handle thermal, settlement, and minor seismic movement, the promate rm series allows adjacent concrete slabs to expand and contract freely. this multi-directional capability ensures lasting structural integrity even in areas exposed to significant loading and environmental shifts.
water protection
the clip-in water barrier. feel secure with the satisfying snap as the clip-in water barrier locks into place, shielding against leaks. with 300% elongation, it adapts to movement while maintaining integrity. no anchor bolt punctures mean superior protection, even in open-to-sky locations. heat-weldable tpe forms seamless intersections, eliminating weak points. the barrier holds water during rain or washing, then allows evaporation once the source stops. save time with quick installation and enjoy long-lasting protection. experience the simplicity and reliability of the clip-in water barrier.
load bearing
the promate z 1680 series is designed to accommodate a wide range of load-bearing requirements. whether your project involves light pedestrian traffic or heavy vehicular loads, these expansion joint covers are engineered to withstand the pressure. the z 1680 series offers various models tailored to your specific needs, ensuring that your floors remain stable and secure under any load. from shopping malls to parking garages and industrial facilities, trust the load bearer to provide the right level of support for your application.
assembly in action
this video demonstrates the assembly process, perfectly designed for easy installation for durability and reliability.

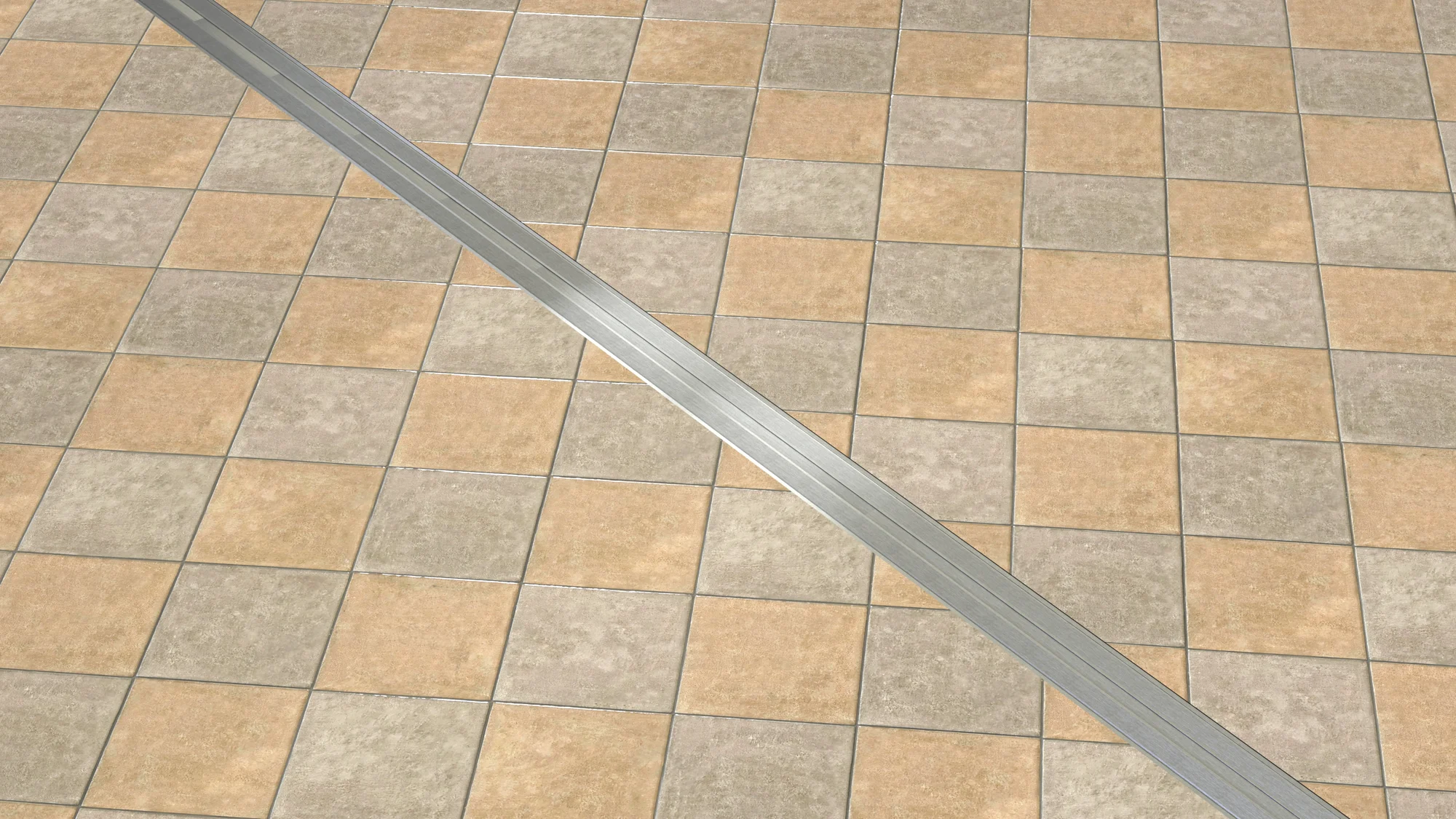

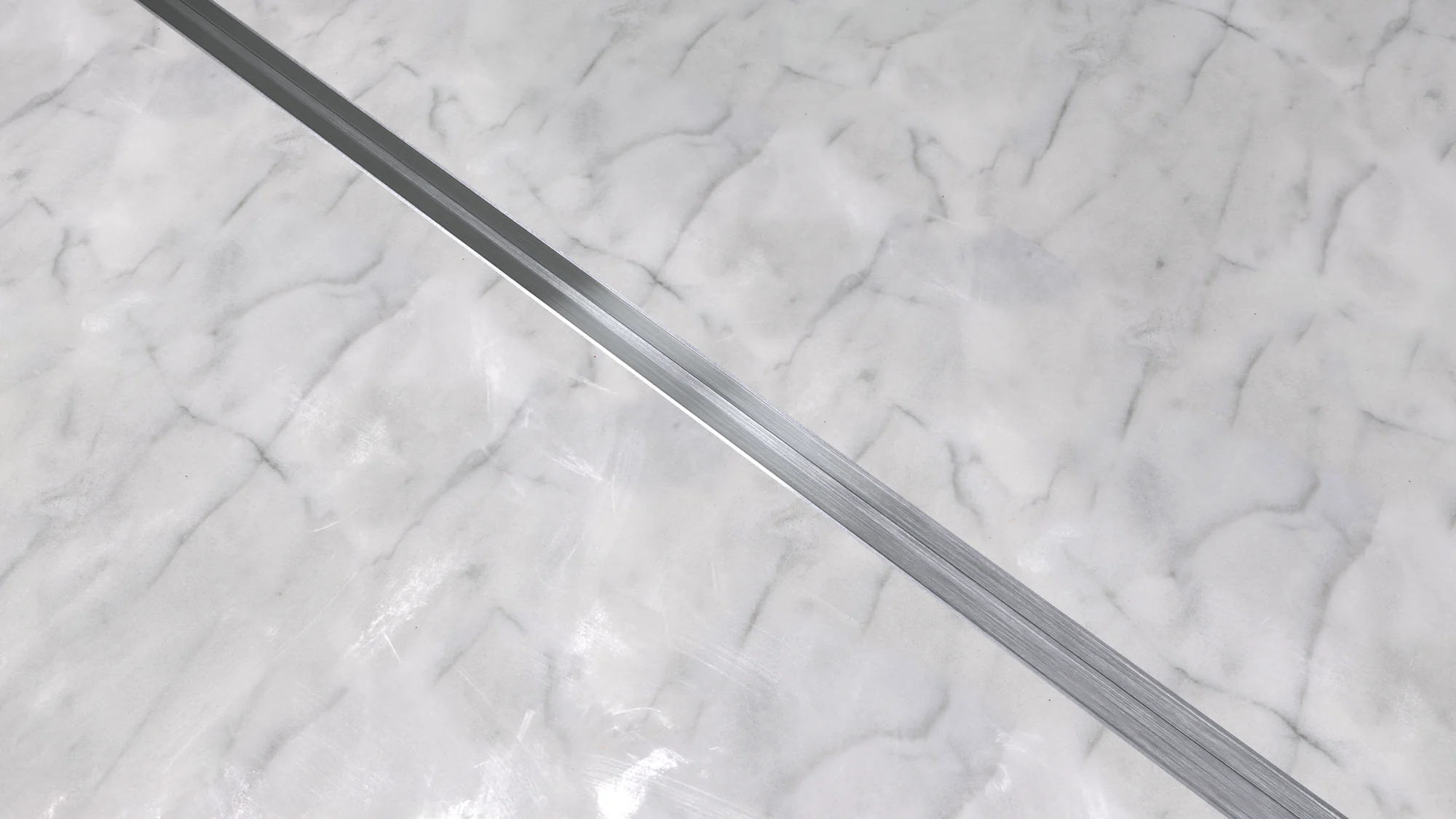

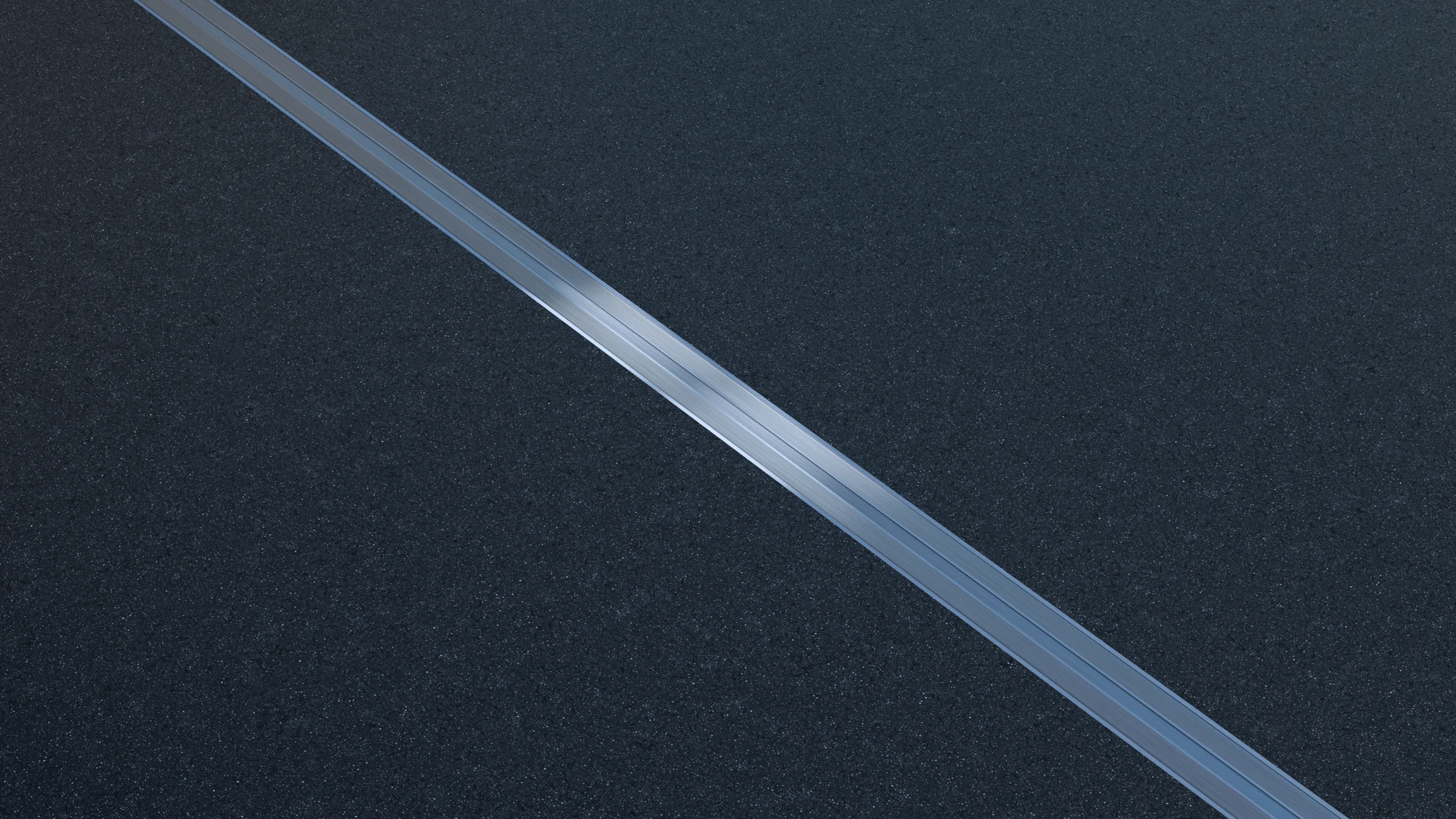

Aesthetic Choice
The aesthetic champion. the PROMATE Z 1680, crafted entirely from sleek aluminum, effortlessly complements any floor finish. whether you’re working with polished concrete, rustic pavers, elegant marble, or modern tiles, this expansion joint cover seamlessly blends in, enhancing the overall aesthetic of your space. trust the Z 1680 to provide not only exceptional functionality but also a touch of sophistication to your project, no matter the design style.

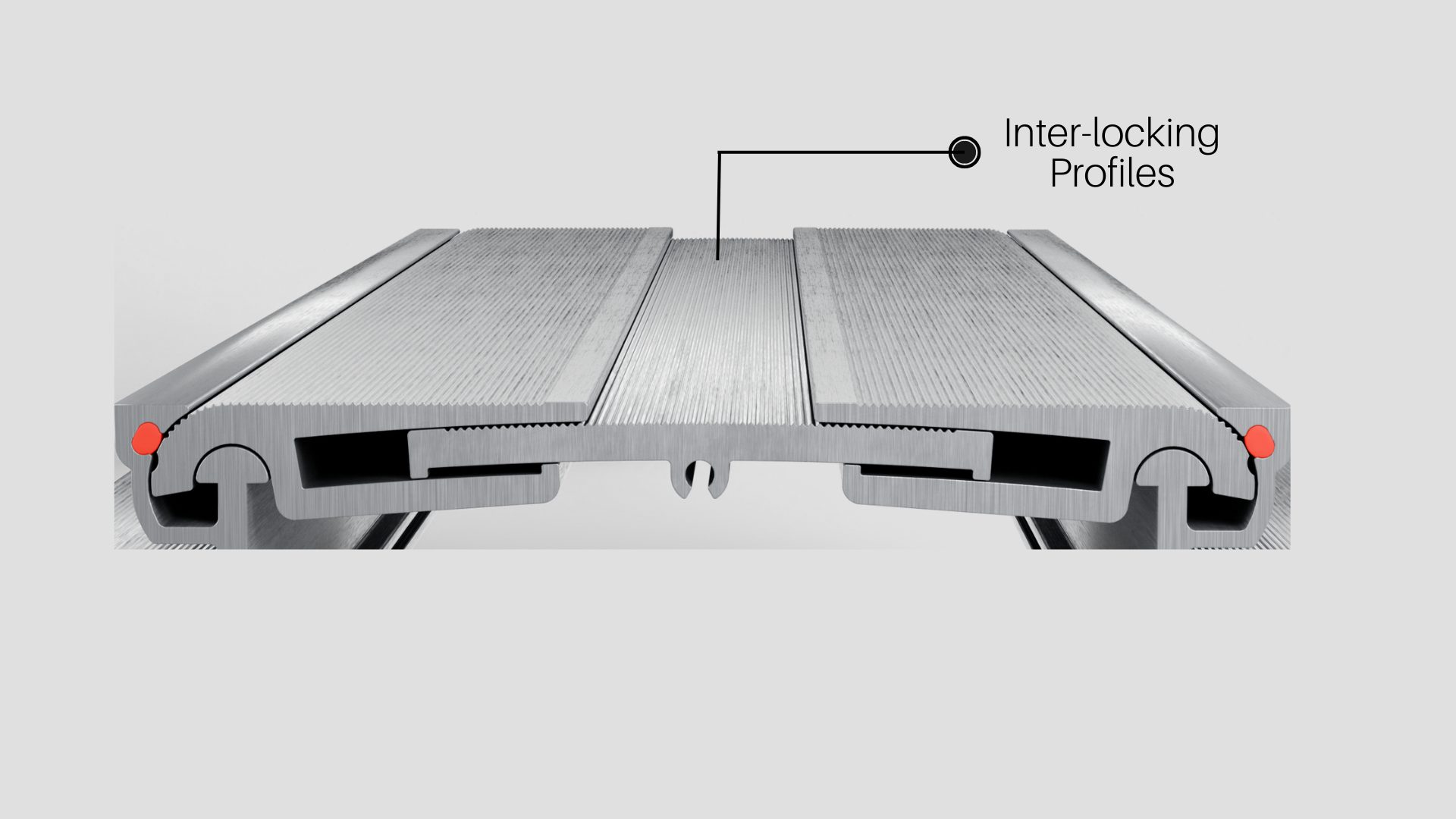

Interlocking Profiles

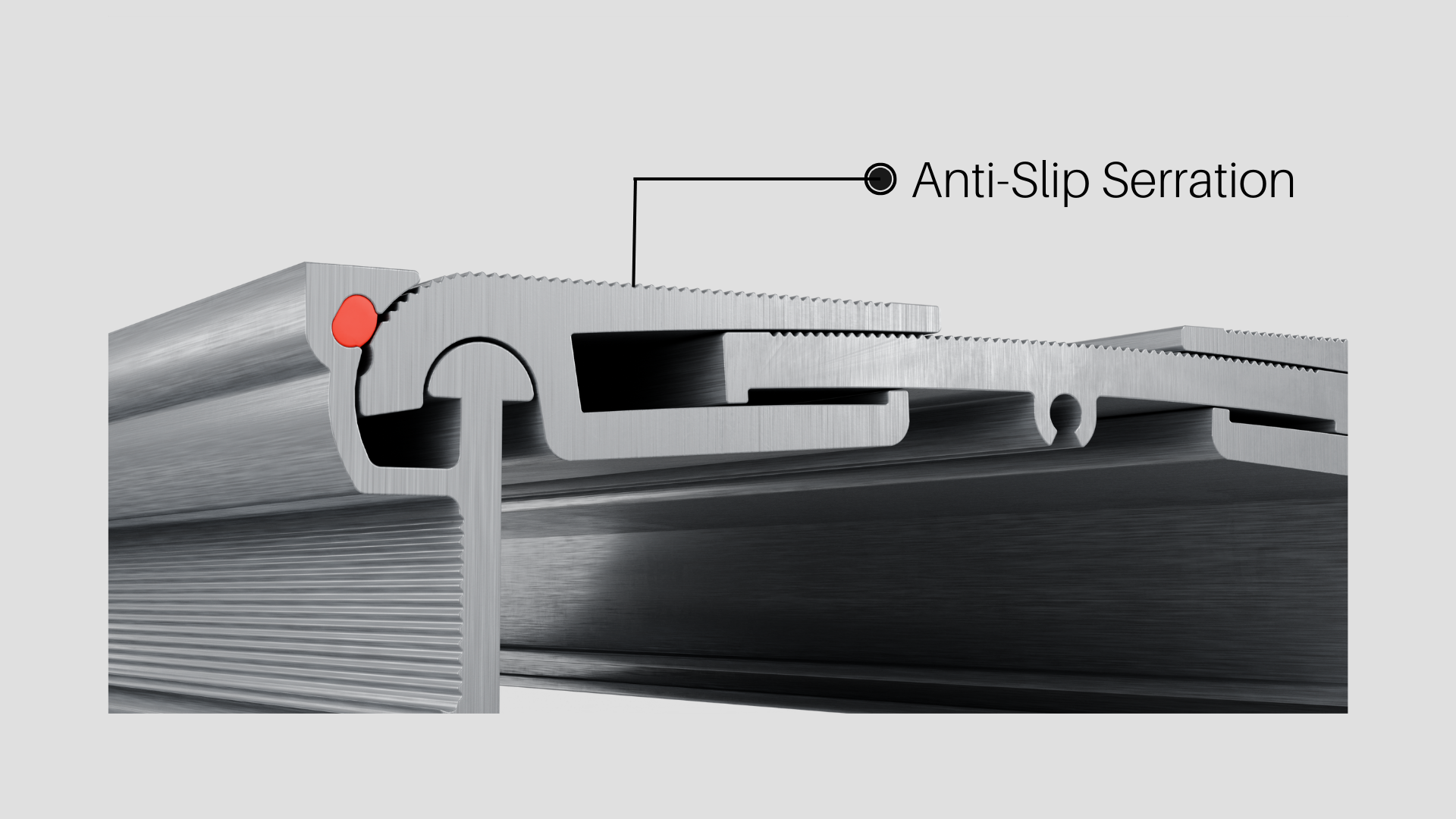

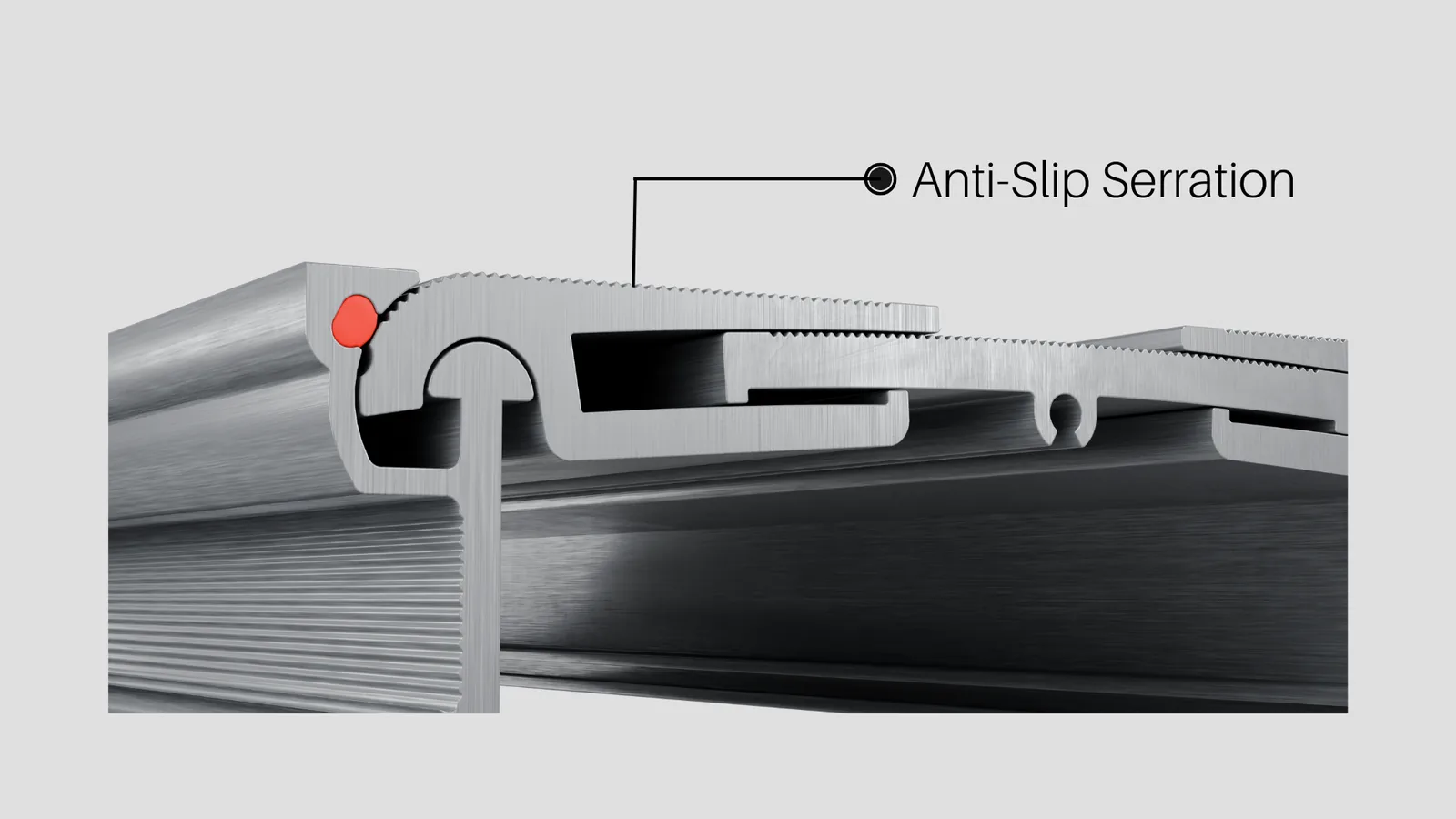

Anti-slip Serration

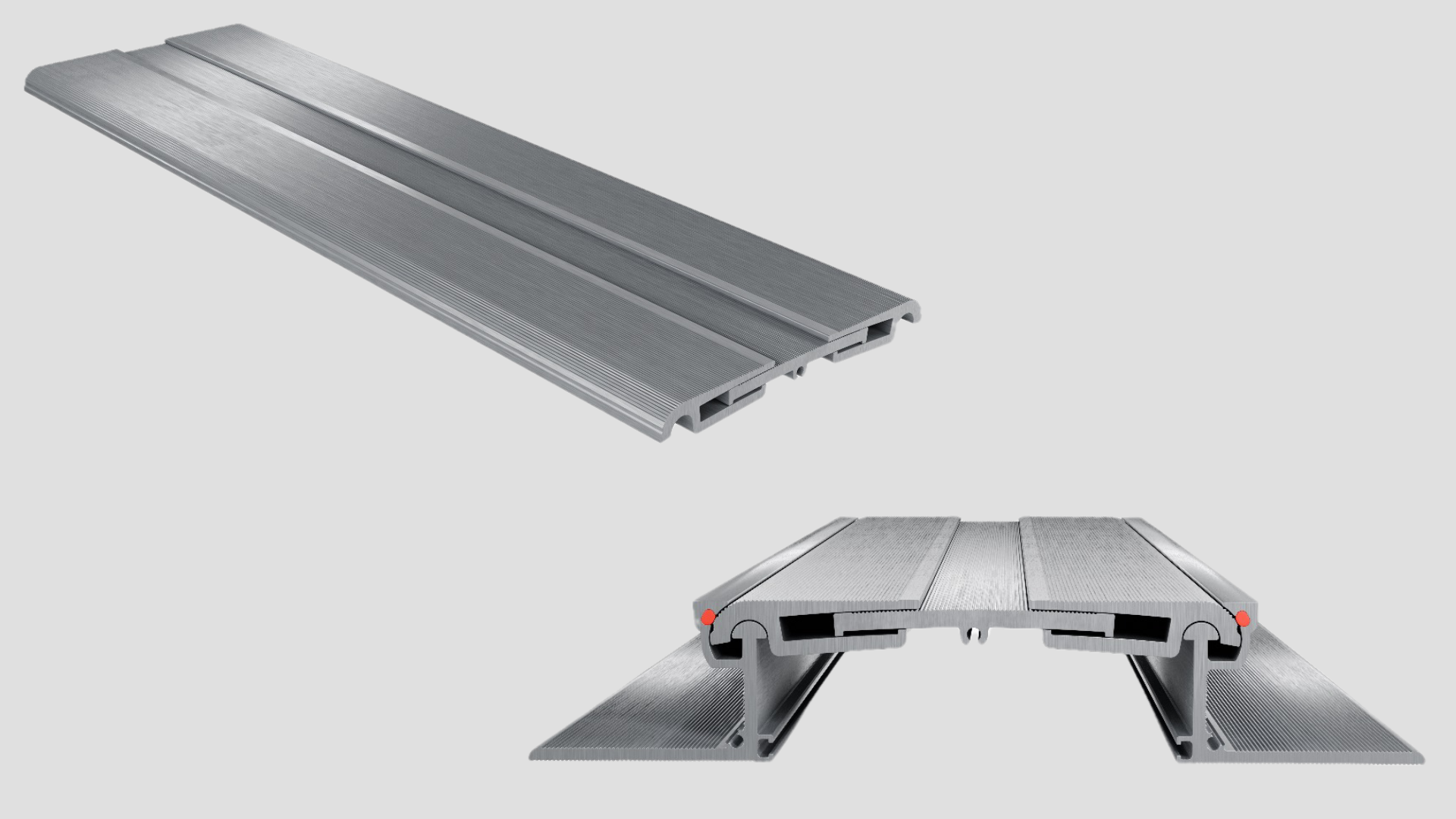

Premium Aluminum for Architectural Materials

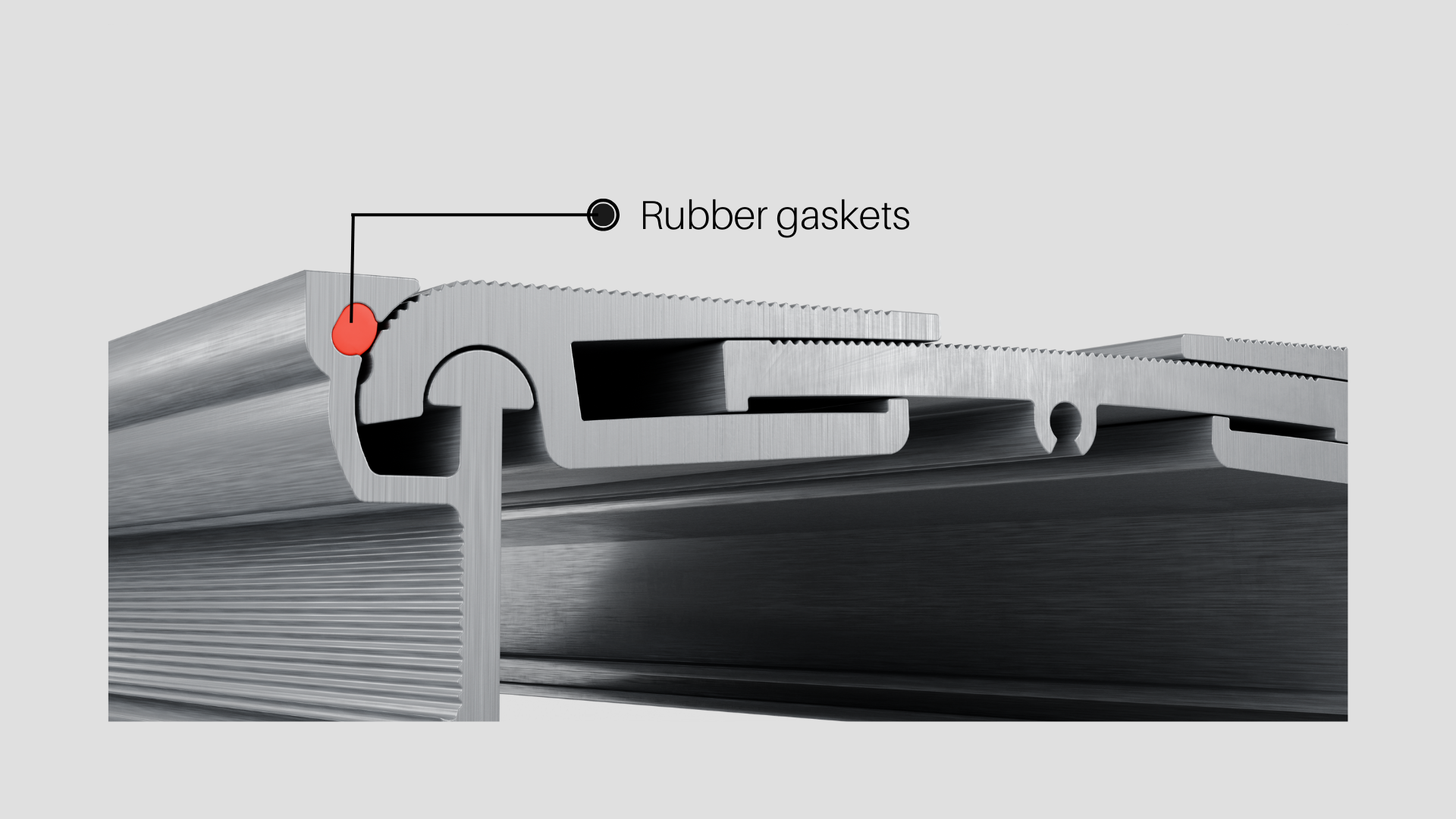

Rubber Gaskets for Noise Dampening

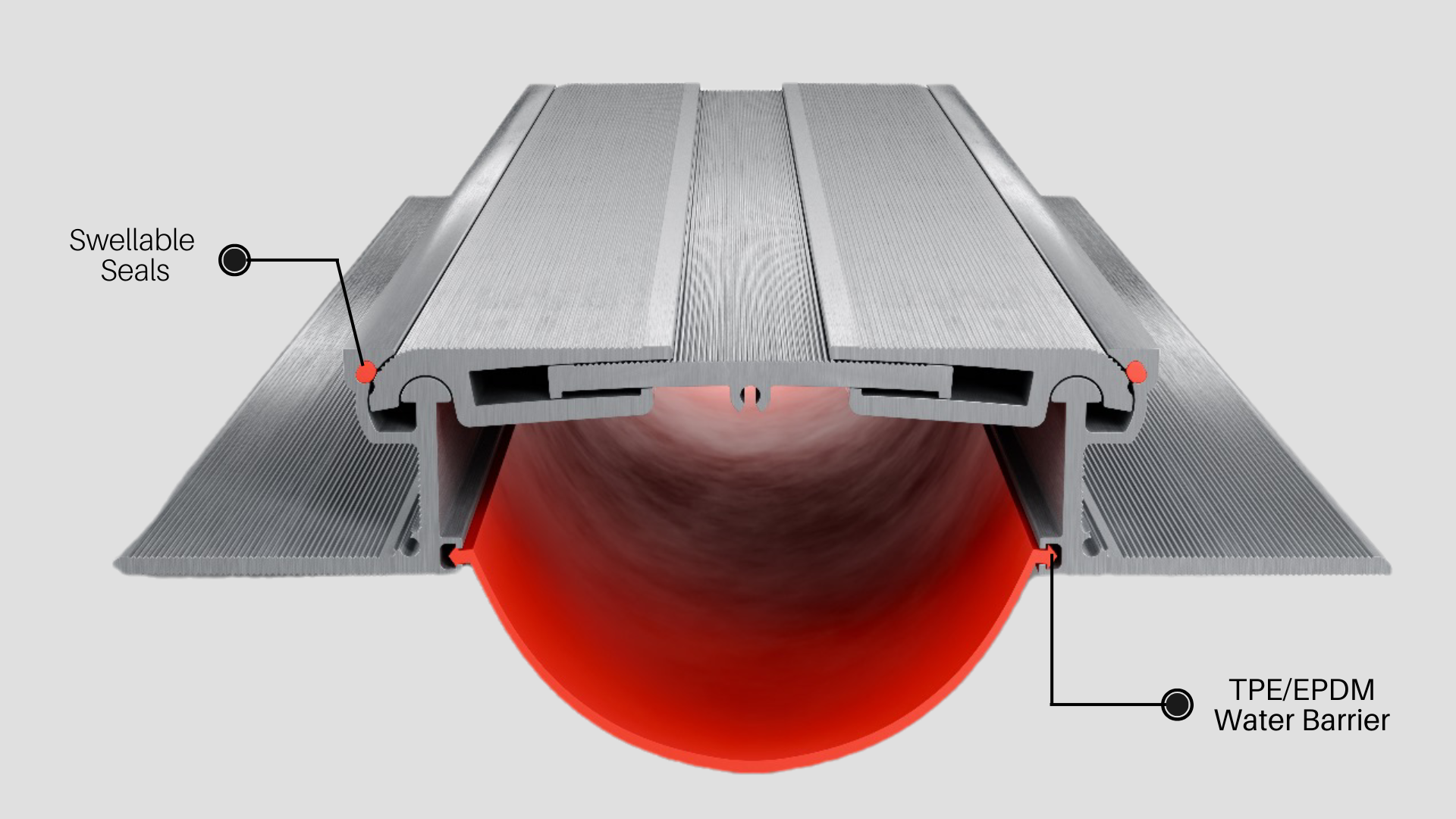

Thermoplastic Elastomer (TPE)

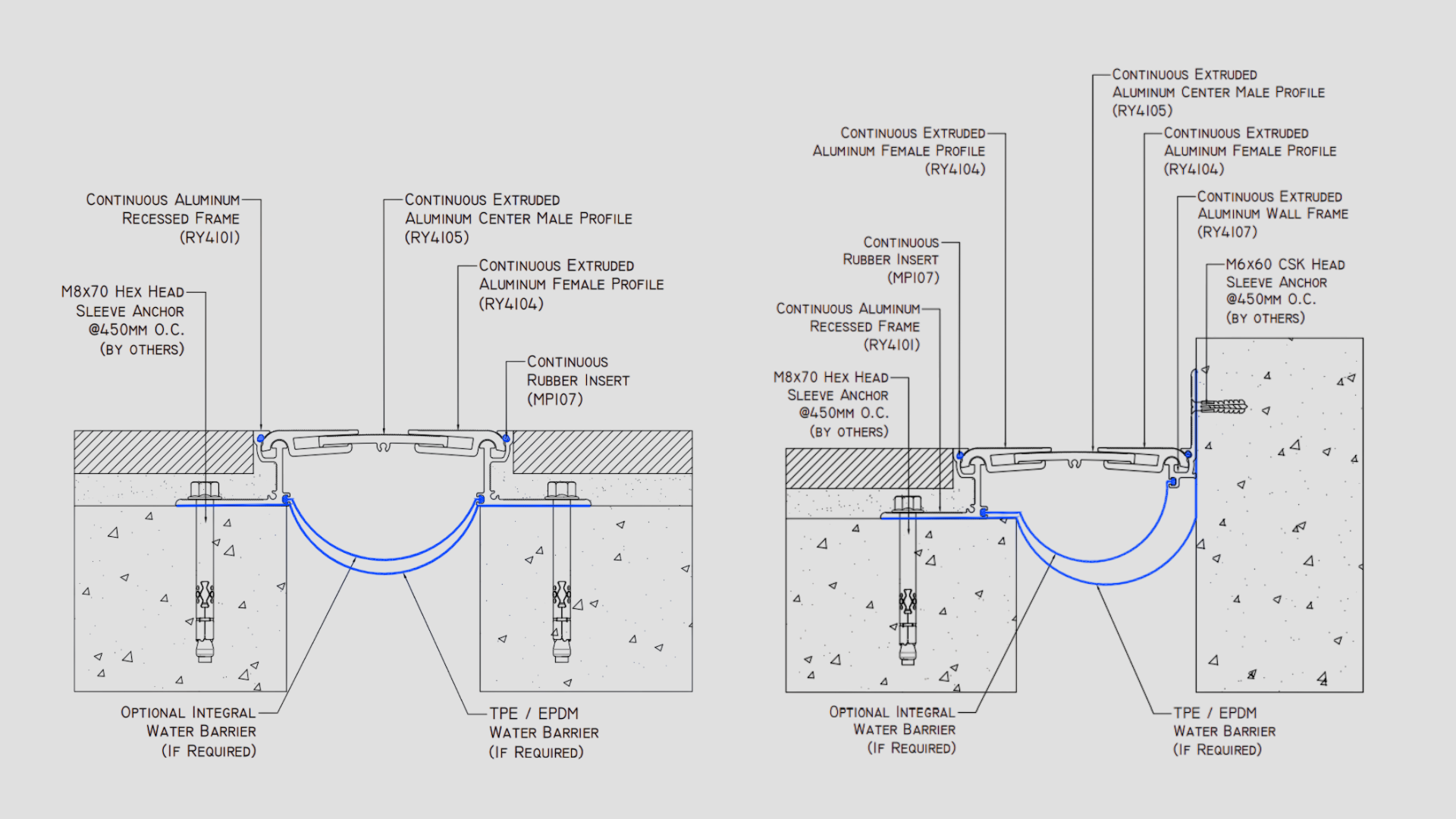

System Drawing
gap size calculator
enter your expansion gap measurement to see if this product is right for you.
profile specifications
| model name | joint width (mm) | height (mm) | sightline (mm) | movement capability (%) | load capacity |
|---|---|---|---|---|---|
| z-1680-50 | 50 | 35 | 85 | ±22 | VEHICULAR |
| z-1680-90 | 90 | 35 | 121 | ±25 | VEHICULAR |
| zk-1680-50 | 50 | 35 | 85 | ±22 | VEHICULAR |
| zk-1680-90 | 90 | 35 | 121 | ±25 | VEHICULAR |
datasheet specifications
| Series | PROMATE RM Series (Z-1680 & ZK-1680) |
|---|---|
| System type | Thermal Recessed Modular Floor System |
| Mounting | Recessed |
| Suitable movement | Thermal, Settlement |
| Load capacity | Pedestrian Traffic; Vehicular Traffic |
| Recommended for | Areas undergoing heavy vehicular traffic; Areas requiring less maintenance; Parking Garages |
| Components | Extruded Aluminum Support Profiles; Extruded Aluminum Interlocking Profiles which accommodate the expansion and contraction in the adjacent concrete slabs |
| Material: Support Profiles & Interlocking Profiles | Extruded aluminum, grade AA 6063 preferred |
| Material: Vapor Barrier (Optional) | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); black |
| Supply length | 3.00 m per piece (support profiles and interlocking profiles) |
| Substrate tolerance | Surface level within ±2 mm; gap level within ±5 mm |
| Sizes | Per the system drawings; profiles can be customized to requirements |
Source: Z1680 technical datasheet. Sizes and dimensions: profile specifications above and the system drawings.
