gen1000
propark 3p series

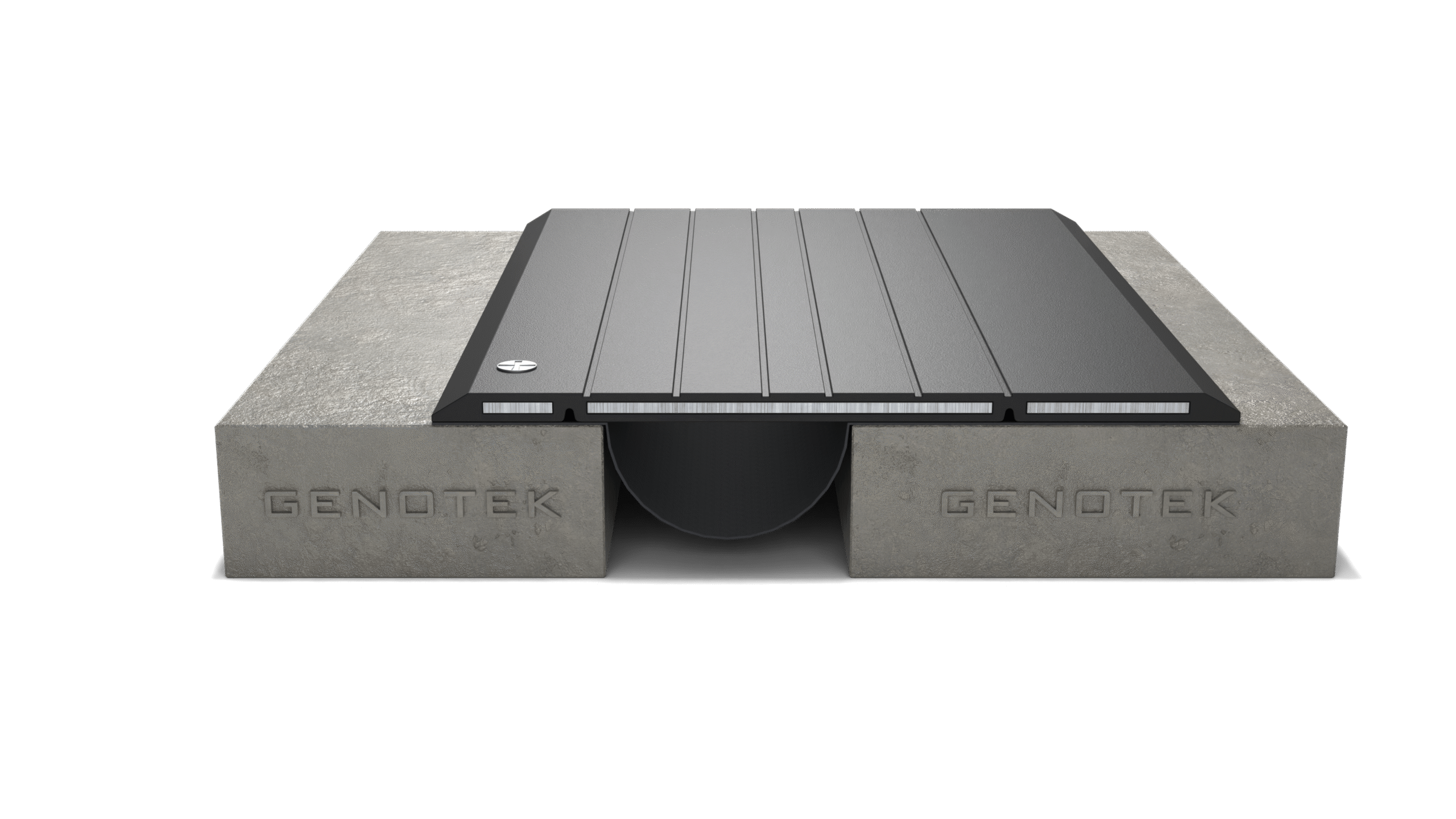

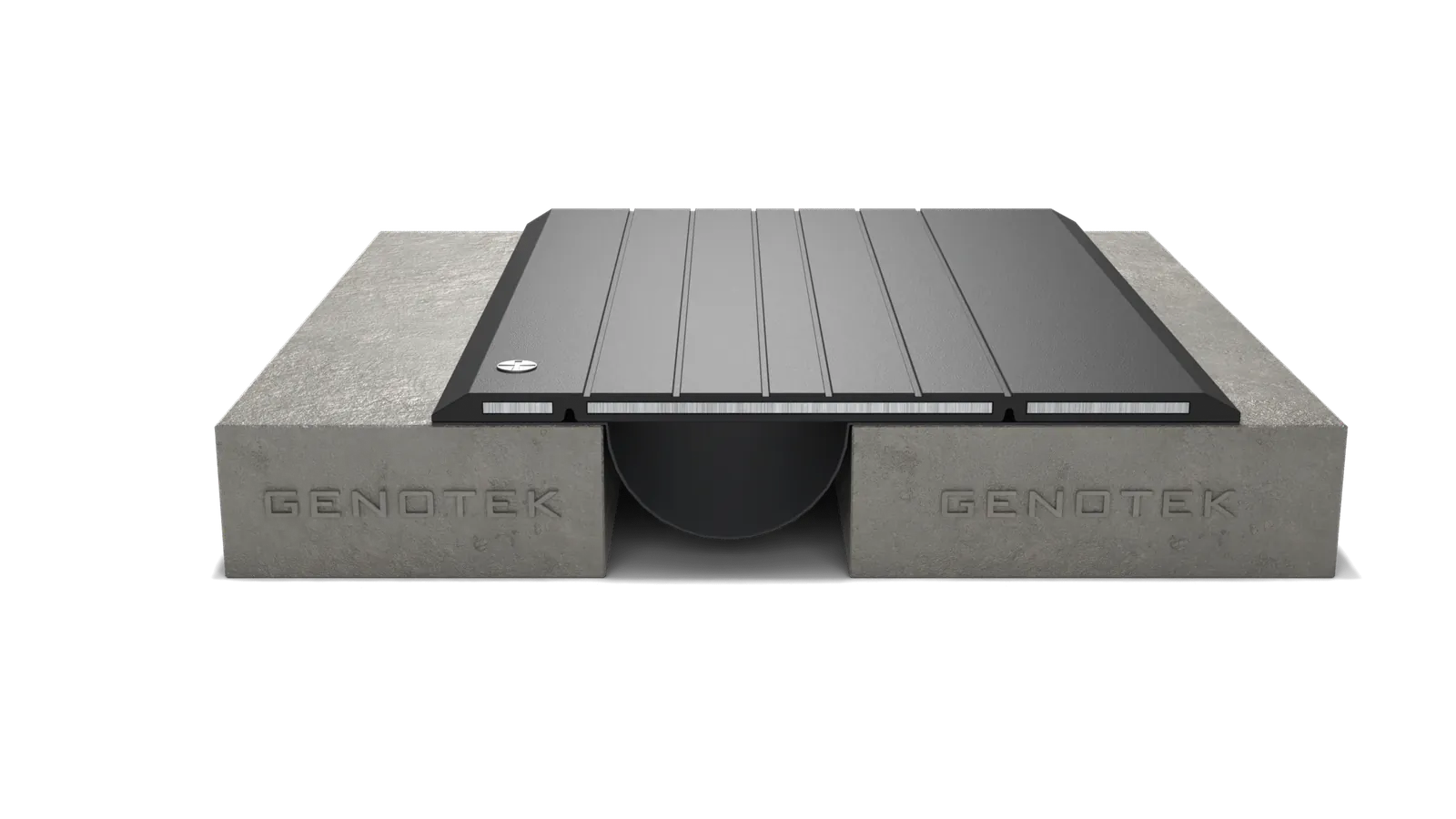

Introducing the PROPARK Series GEN-1000
seismic movement accommodation
designed to accommodate multi-directional movement, including vertical displacement of up to 20-30mm, the gen-1000 adapts to structural shifts without compromising integrity or functionality. the unique three-part design allows for tilting and flexing, ensuring a secure and stable surface even under extreme seismic conditions
water protection
the barrier is designed to temporarily retain water, effectively preventing it from flowing through or escaping during events such as rainfall or washing. once the water source is no longer active, the barrier facilitates the gradual release of the retained moisture by allowing it to evaporate naturally over time. this controlled process ensures both containment and eventual drying, maintaining the integrity of the area without causing any lasting accumulation of water.
load bearing
engineered to withstand heavy vehicular traffic, this system is well-suited to areas experiencing continuous use, reducing maintenance needs while maintaining structural integrity.
assembly
how the gen1000 goes together on site, from the frames to the finished joint.

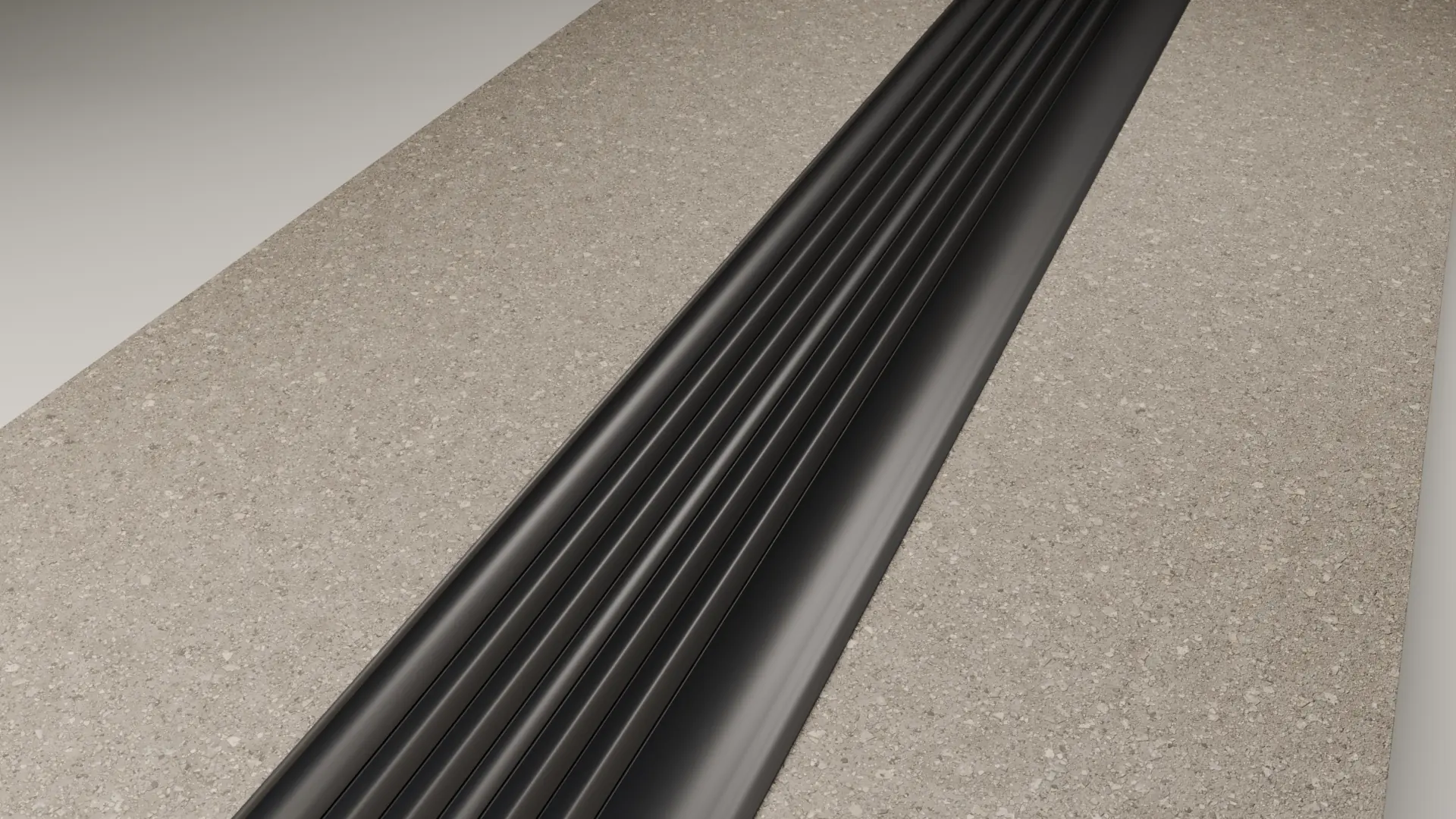

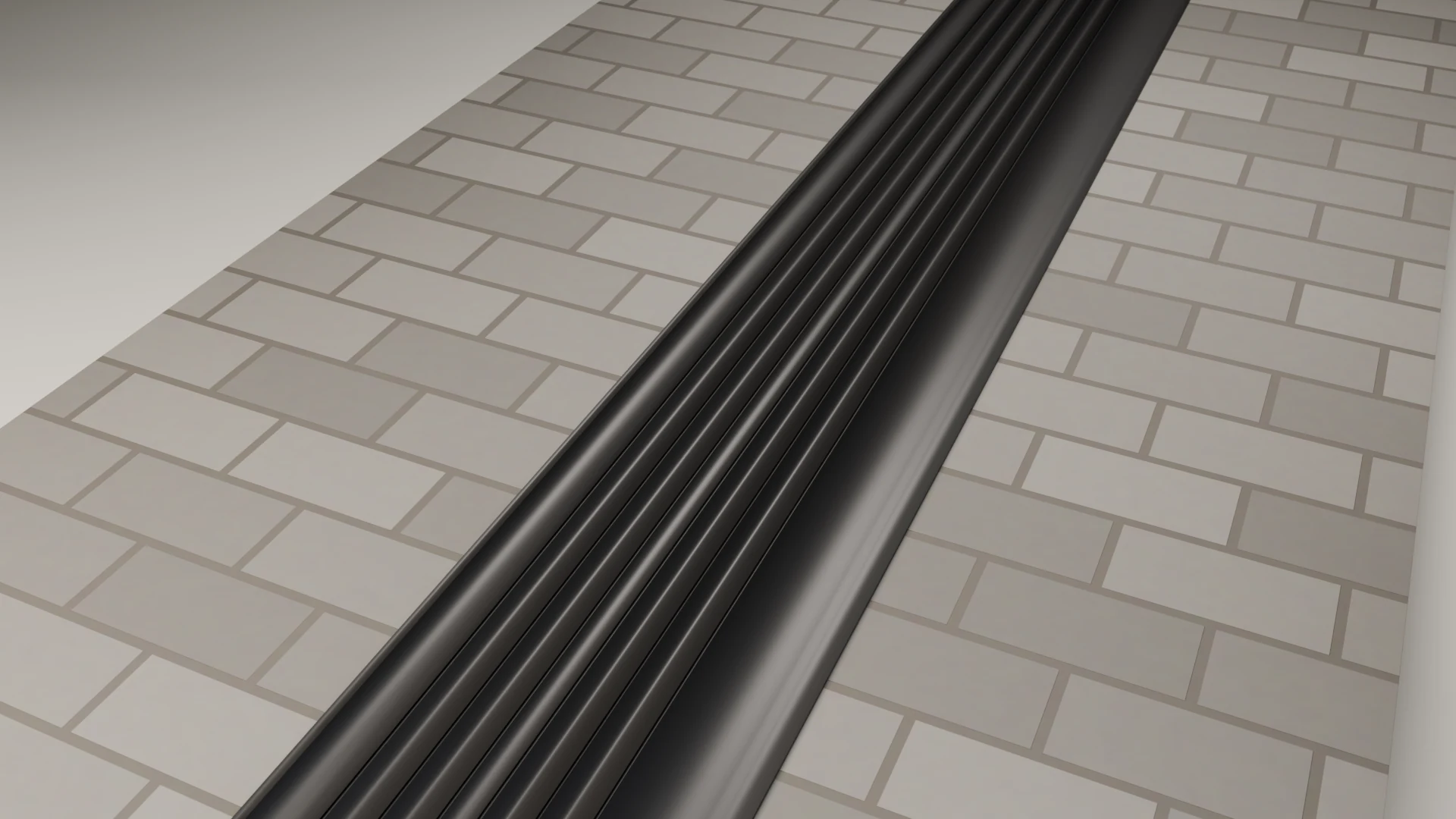

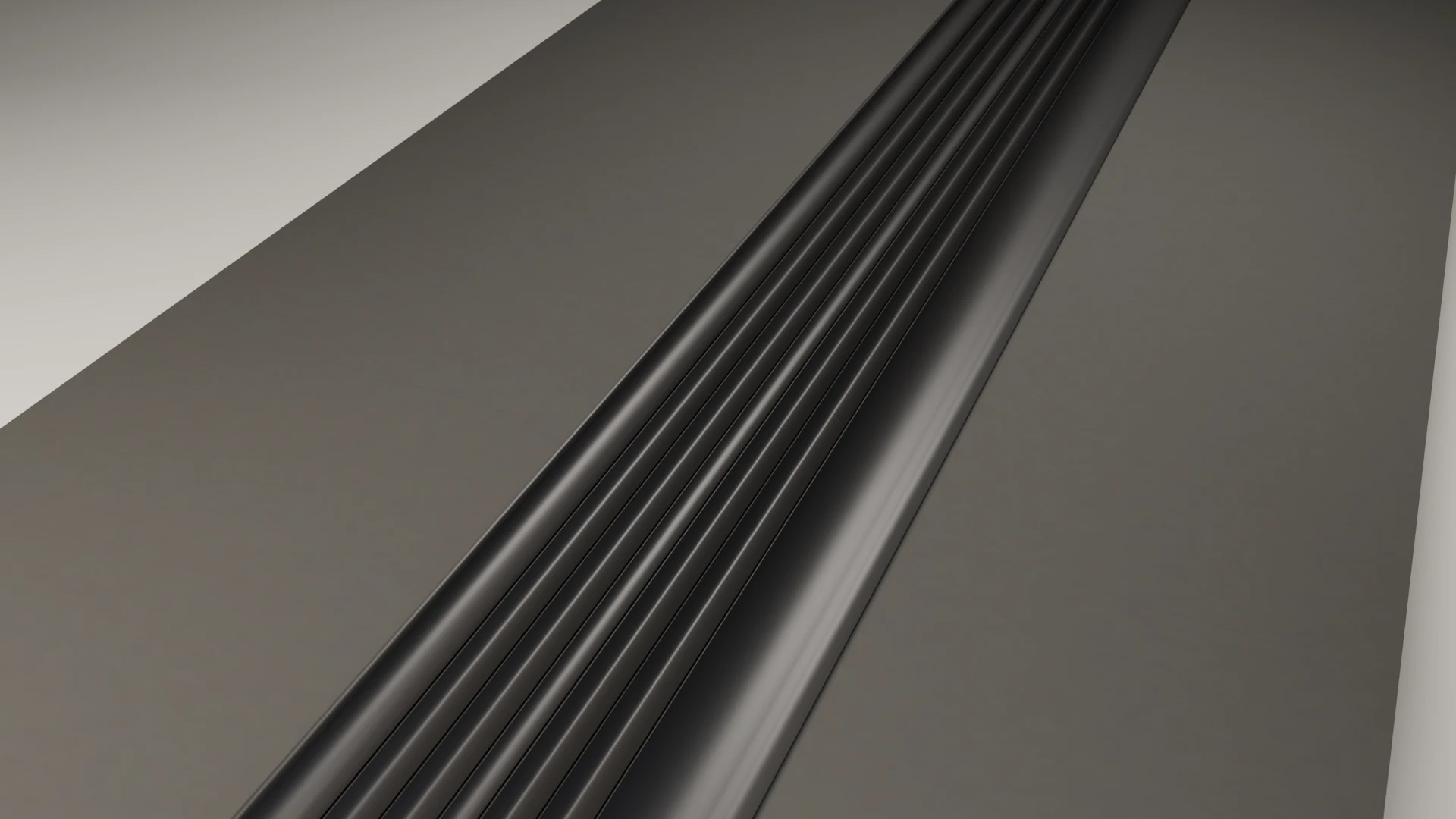

Aesthetic Choice
The GEN-1000 sits on the finished deck of exterior areas, parking structures and service-vehicle routes, whether that is concrete, asphalt or pavers. Its grooved black EPDM surface, with the steel plates fully encapsulated, looks the same on every deck.
Three-Part Seismic Design

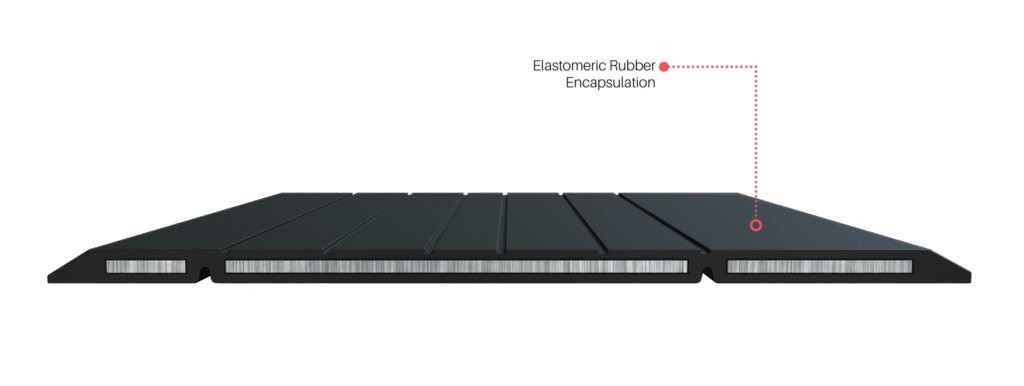

Rubber Encapsulation

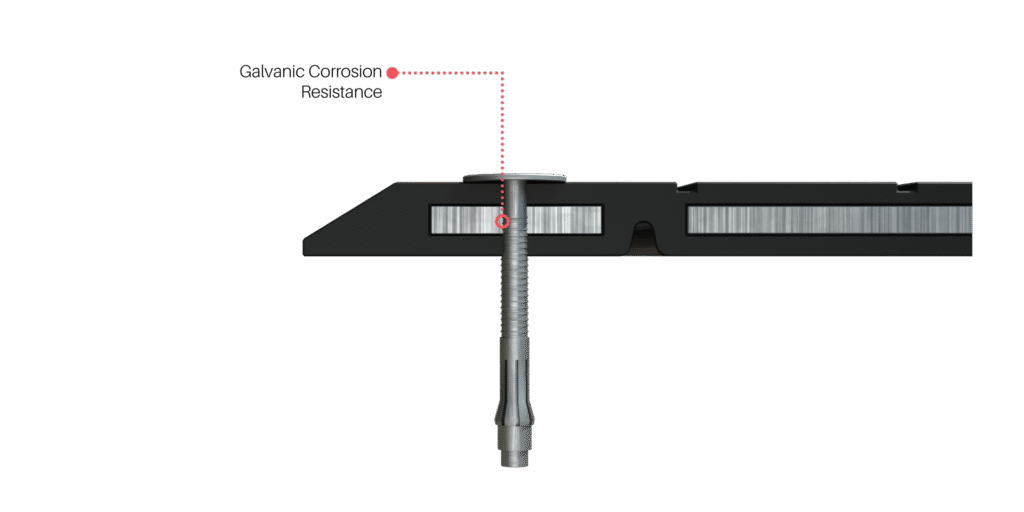

Corrosion Resistance

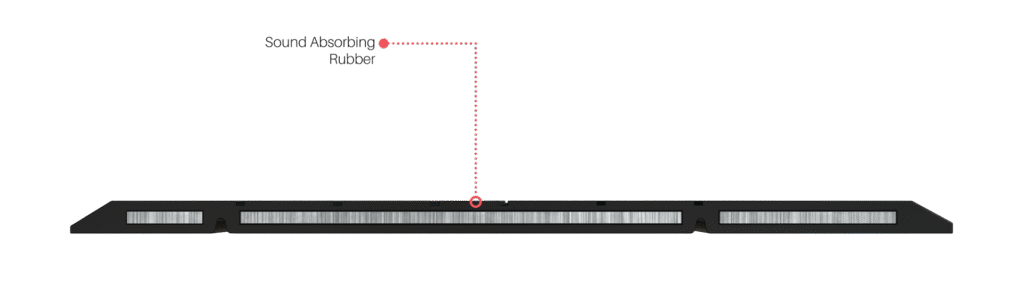

Sound Absorption

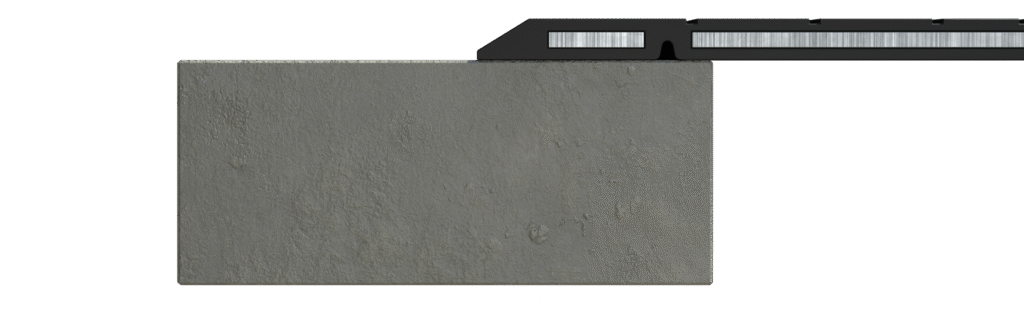

Surface Mounted Installation

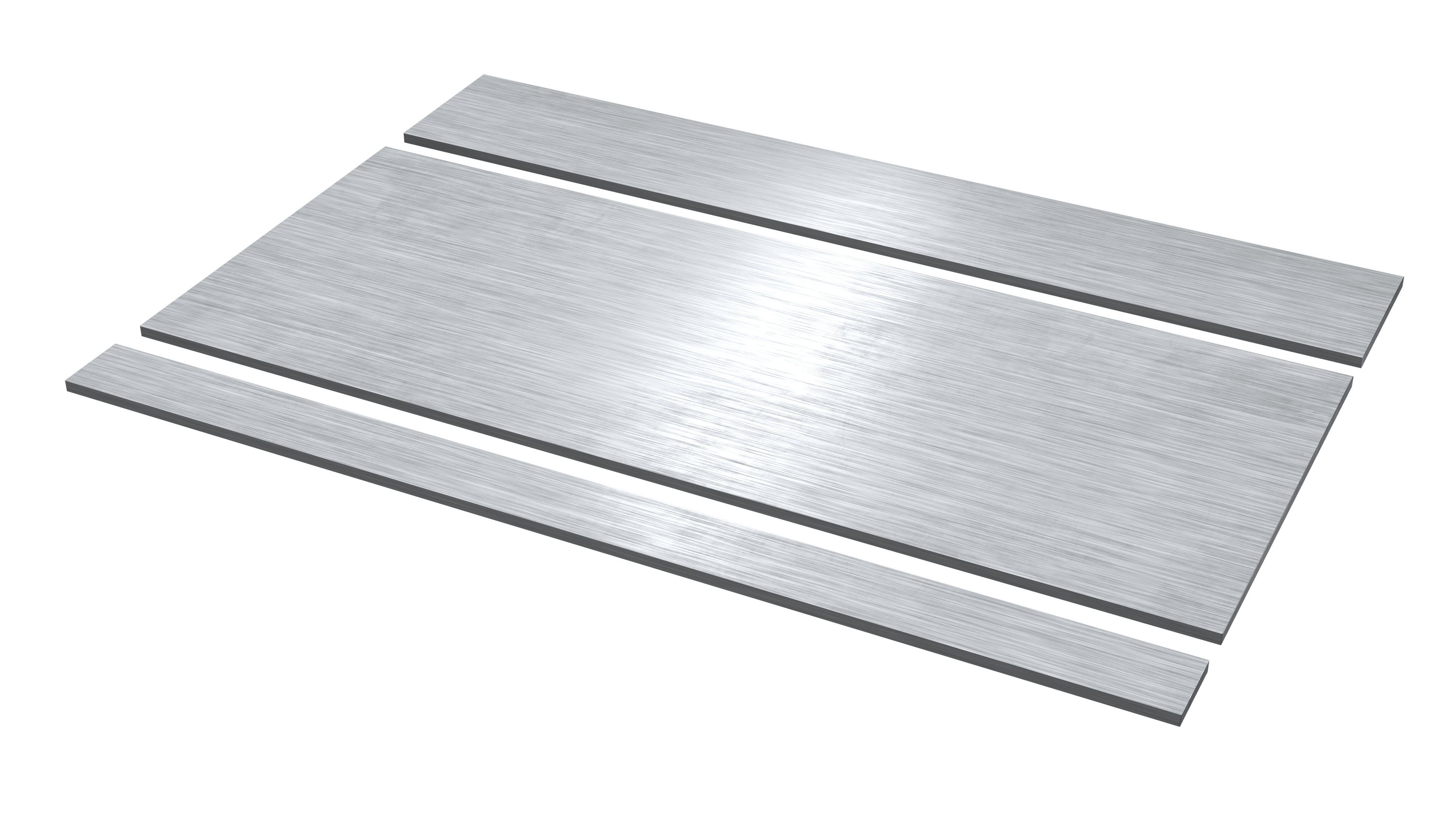

Steel Plates

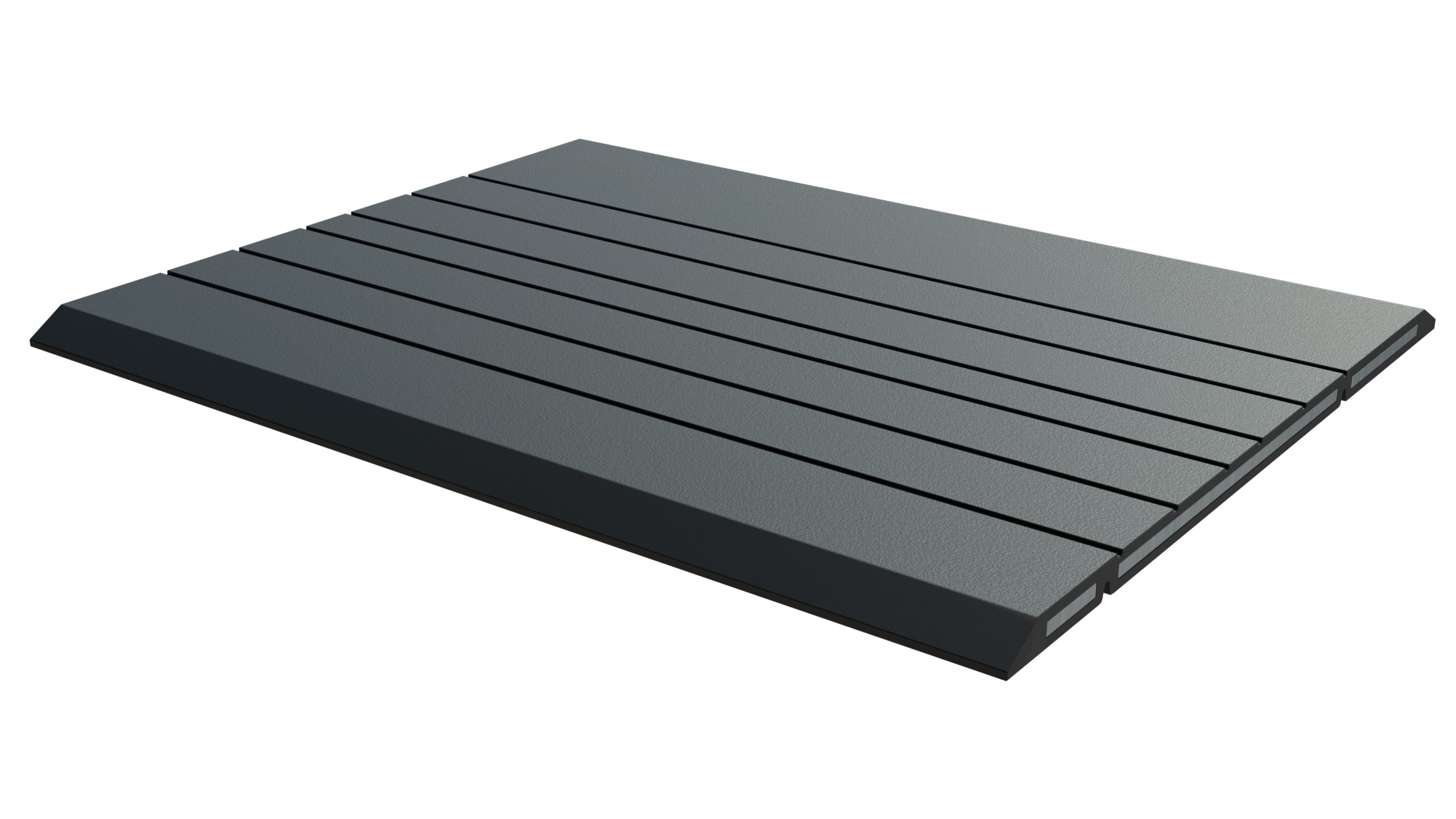

Elastomeric Rubber
System Drawing
gap size calculator
enter your expansion gap measurement to see if this product is right for you.
profile specifications
| model name | joint width (mm) | height (mm) | sightline (mm) | movement capability (%) | load capacity |
|---|---|---|---|---|---|
| gen-1000-100 | 100 | 13 | 350 | +50/-100 | VEHICULAR |
| genk-1000-100 | 100 | 13 | 275 | +50/-100 | VEHICULAR |
datasheet specifications
| Series | PROPARK 3P Series (GEN-1000 & GENK-1000) |
|---|---|
| System type | Heavy-Duty Surface Mount System |
| Mounting | Surface-mounted |
| Suitable movement | Thermal, Settlement |
| Load capacity | Heavy Pedestrian Traffic; Heavy Vehicular Traffic |
| Recommended for | Heavy Duty Traffic Areas; Heavy Load Bearing Areas; Exterior Areas; Parking Structures; Stadiums Concourses; Multi-Level Carparks; Emergency & Service Vehicle Areas; Pedestrian Bridges and Walkways |
| Components | Elastomeric Rubber Molded Independent Steel Plates |
| Material: Encapsulating Elastomeric Rubber Profile | Ethylene Propylene Diene Monomer; finish: Grooved Finish; black |
| Material: Steel Plates | Galvanized Iron Plate, Stainless Steel 304 or Stainless Steel 316 |
| Material: Vapor Barrier (Optional) | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); black |
| Supply length | 2.00 m per piece (elastomeric rubber profile encapsulated steel plates) |
| Substrate tolerance | Surface level within ±2 mm; gap level within ±5 mm |
| Sizes | Per the system drawings; profiles can be customized to requirements |
Source: GEN1000 technical datasheet. Sizes and dimensions: profile specifications above and the system drawings.
similar products to consider
standard- gap range
- 38 – 75mm
- movement
- ±50%
economy- gap range
- 10 – 100mm
- movement
- ±50%
premium- gap range
- 38 – 125mm
- movement
- ±25%
