genb
superseal series

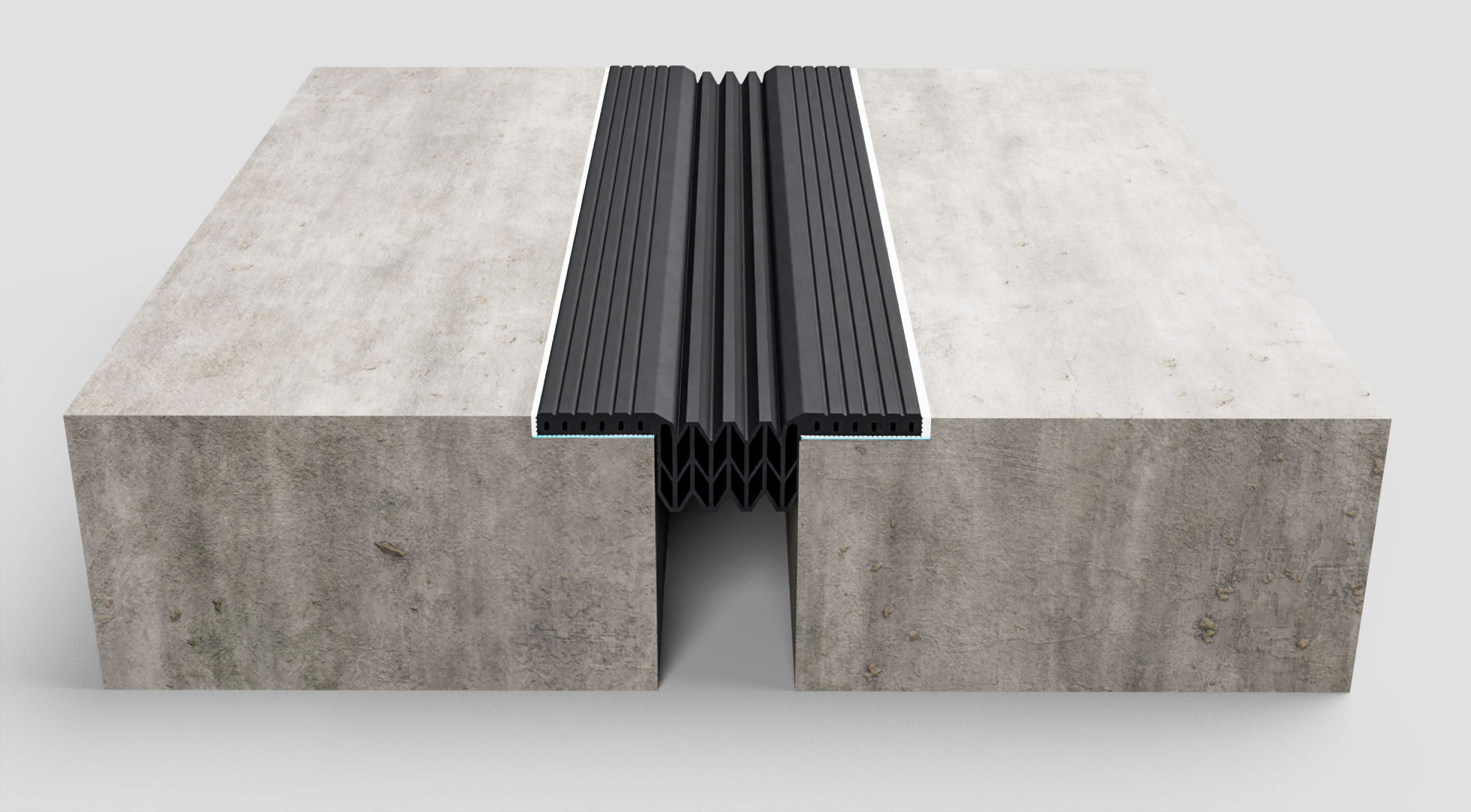

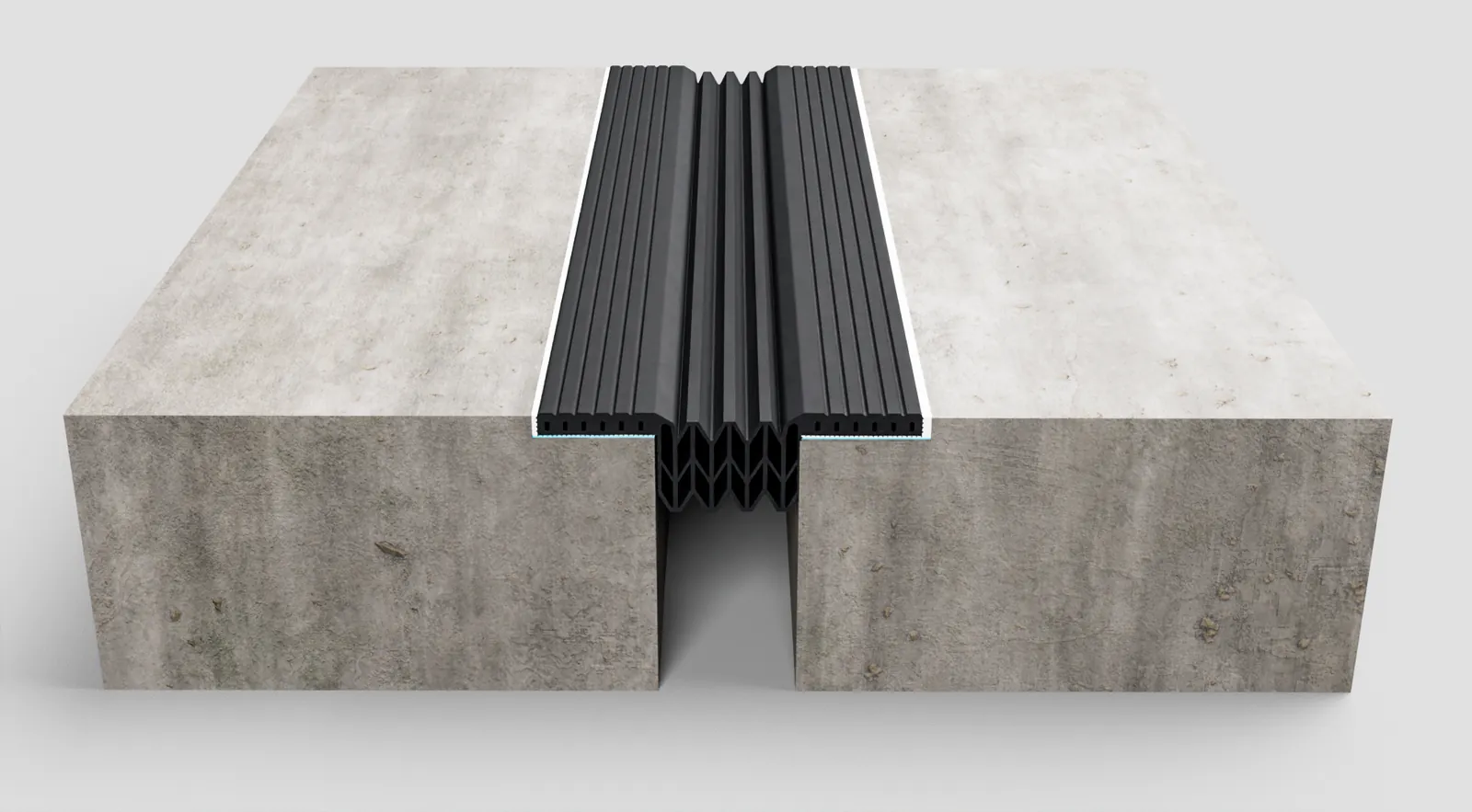

Introducing the Gen B Series
movement absorption
the superseal genb is a single-piece extruded epdm seal that accommodates thermal and settlement movement between the slabs, keeping a flush, flexible joint under traffic in car parks, stadiums and driveways.
waterproof integrity
the one-piece extruded epdm membrane has extended wings bonded to the concrete slab with epoxy, so no anchor bolts penetrate the seal. this keeps water out at the finished floor level and protects the slab reinforcement.
load bearing
the genb under traffic, rated vehicular. the load capacity of each size is in the profile specifications below.
assembly

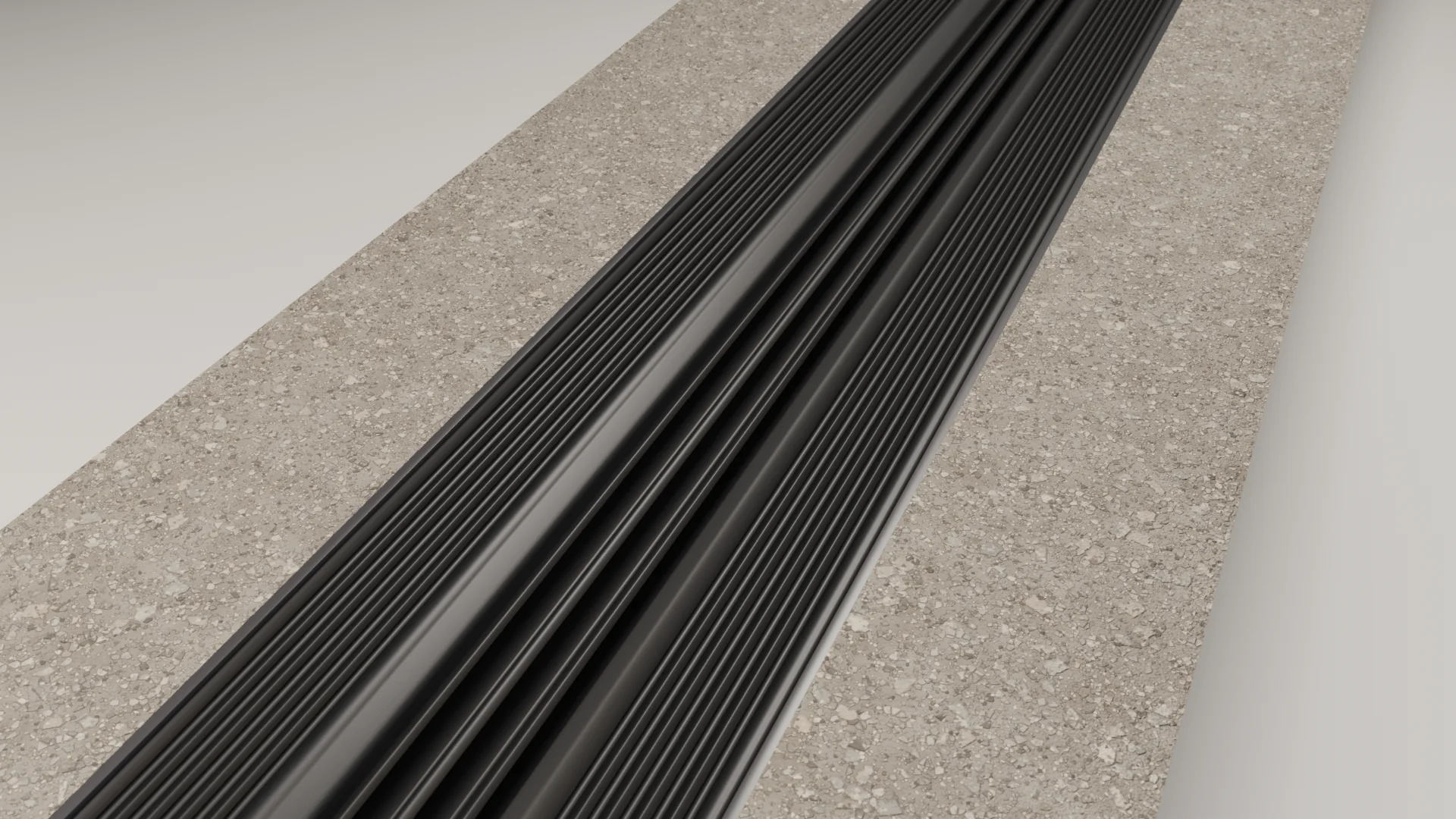

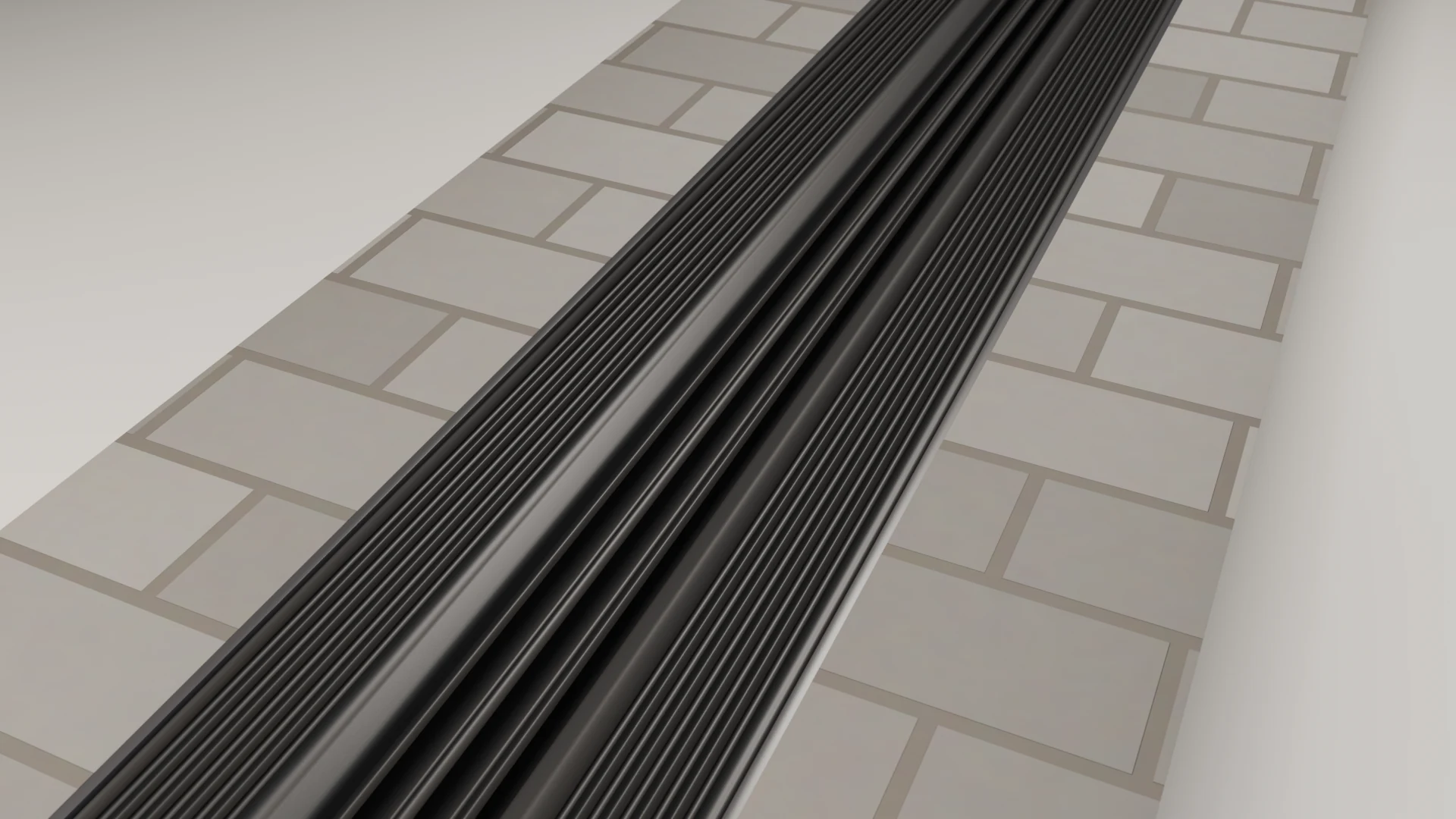

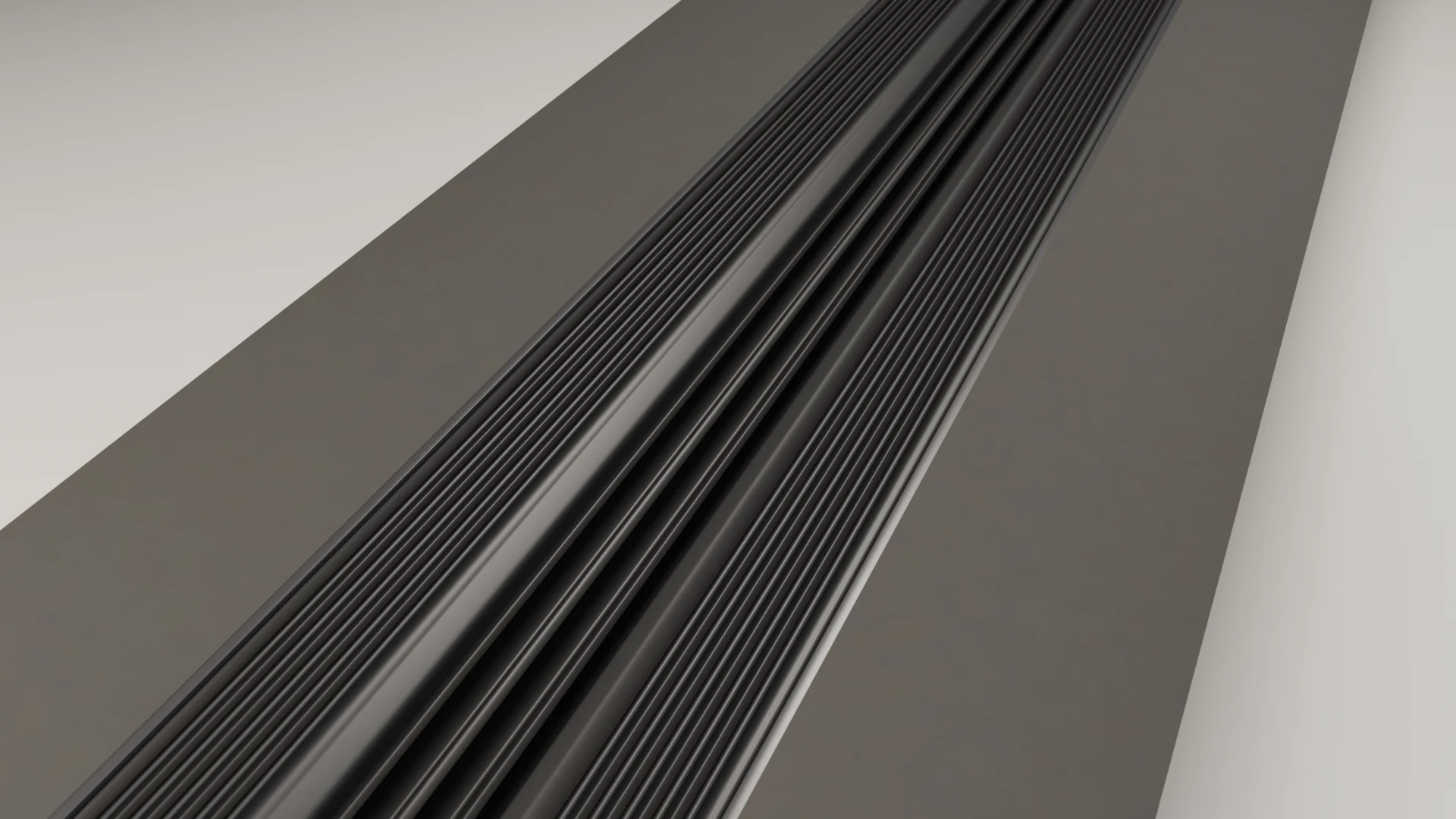

Aesthetic Choice
The GEN B EPDM seal sits flush with the deck in parking structures, stadiums and walkways, whether the surface is concrete, asphalt or pavers. Its grooved black finish looks the same on every deck.
Winged Design

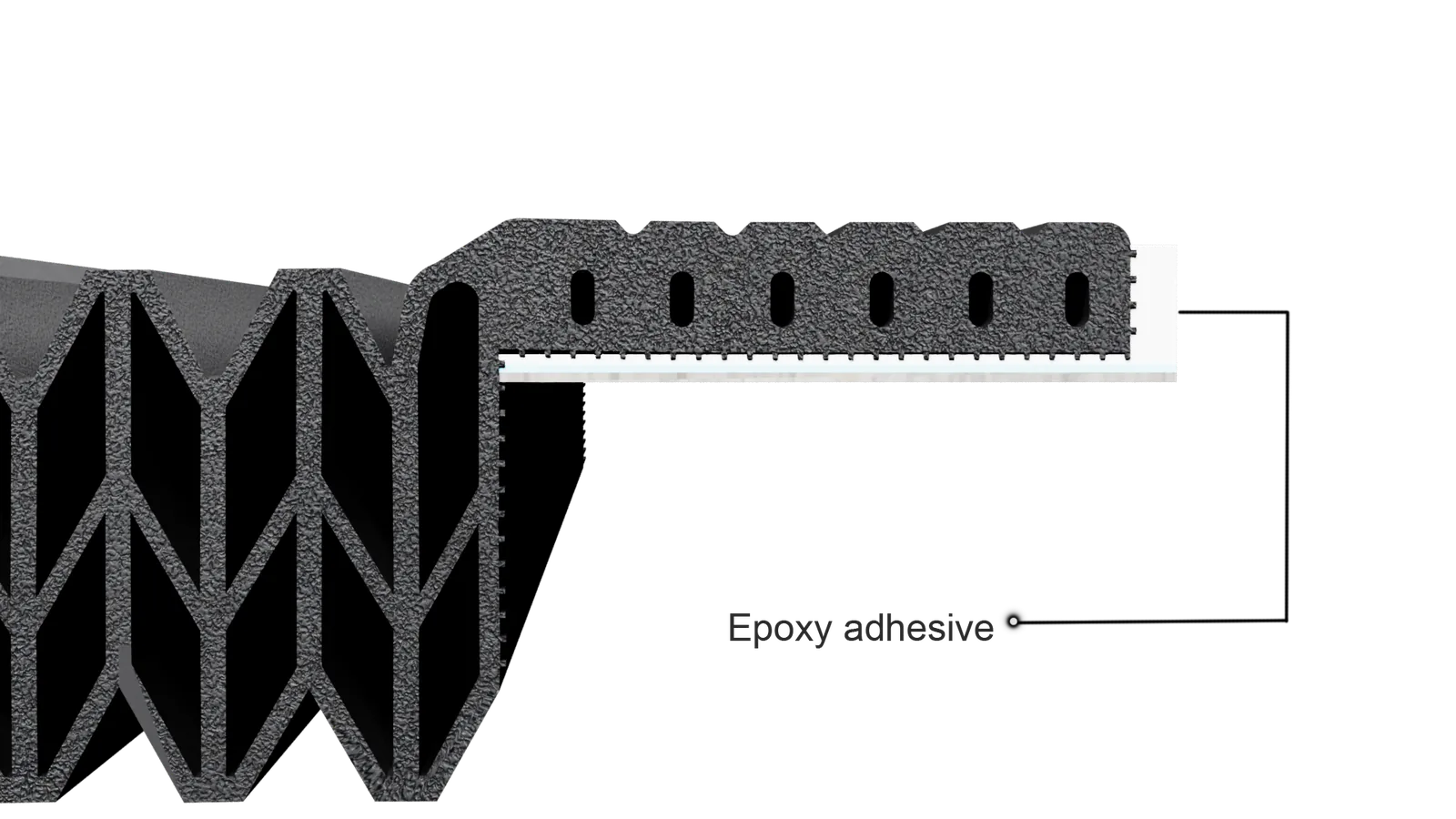

Anchor-Free Installation

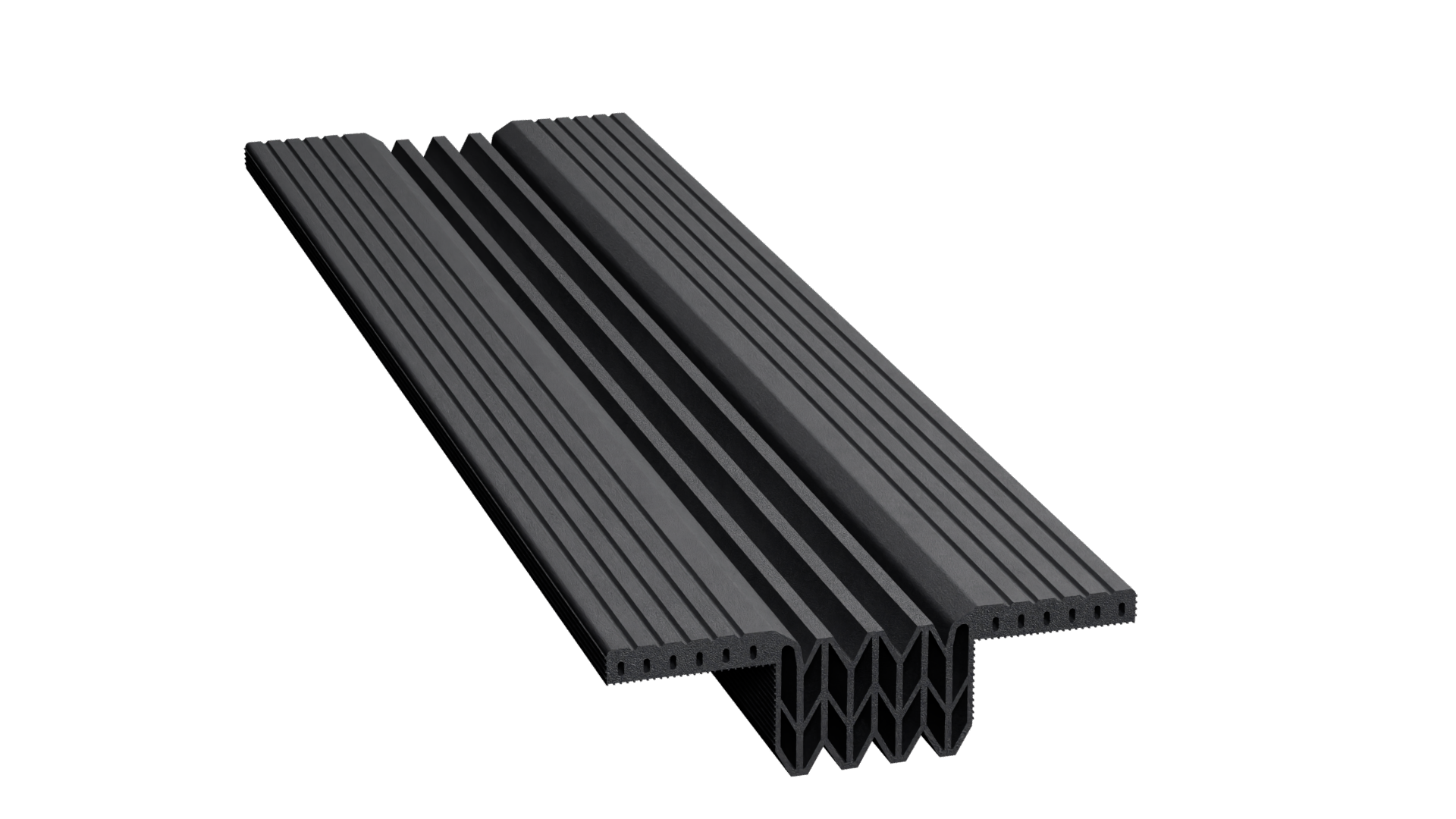

EPDM Construction
Quick Installation

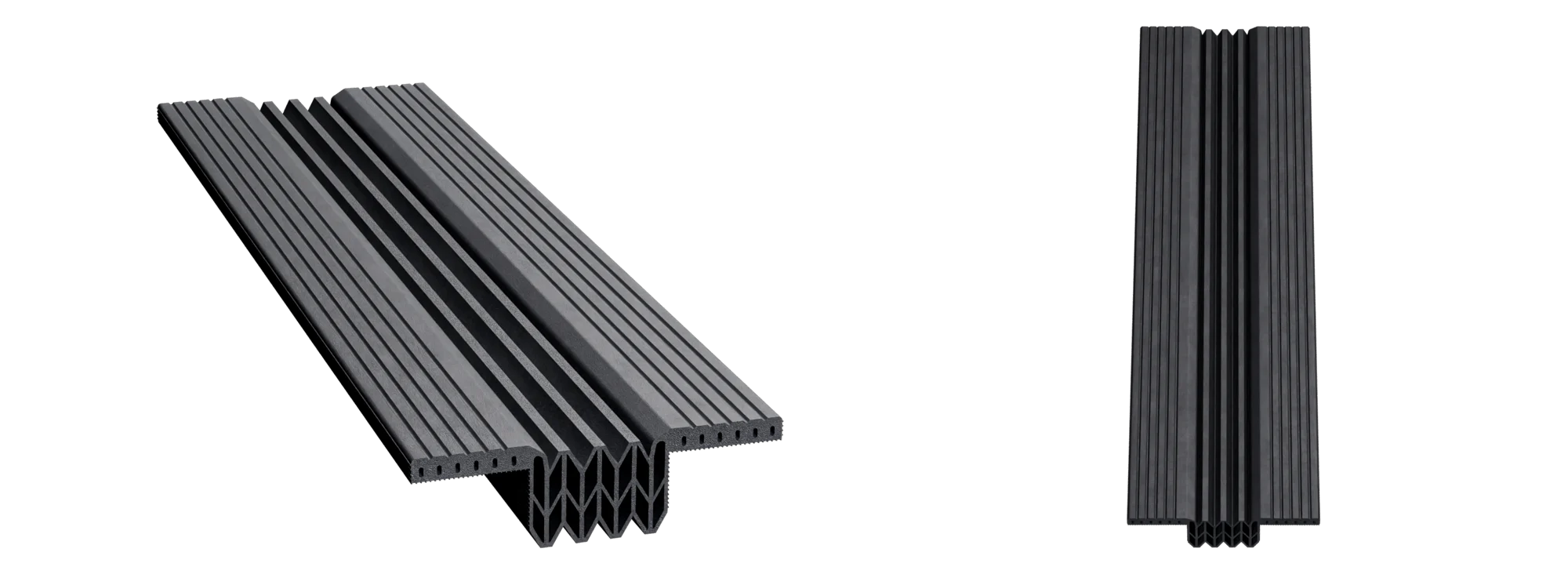

Seal

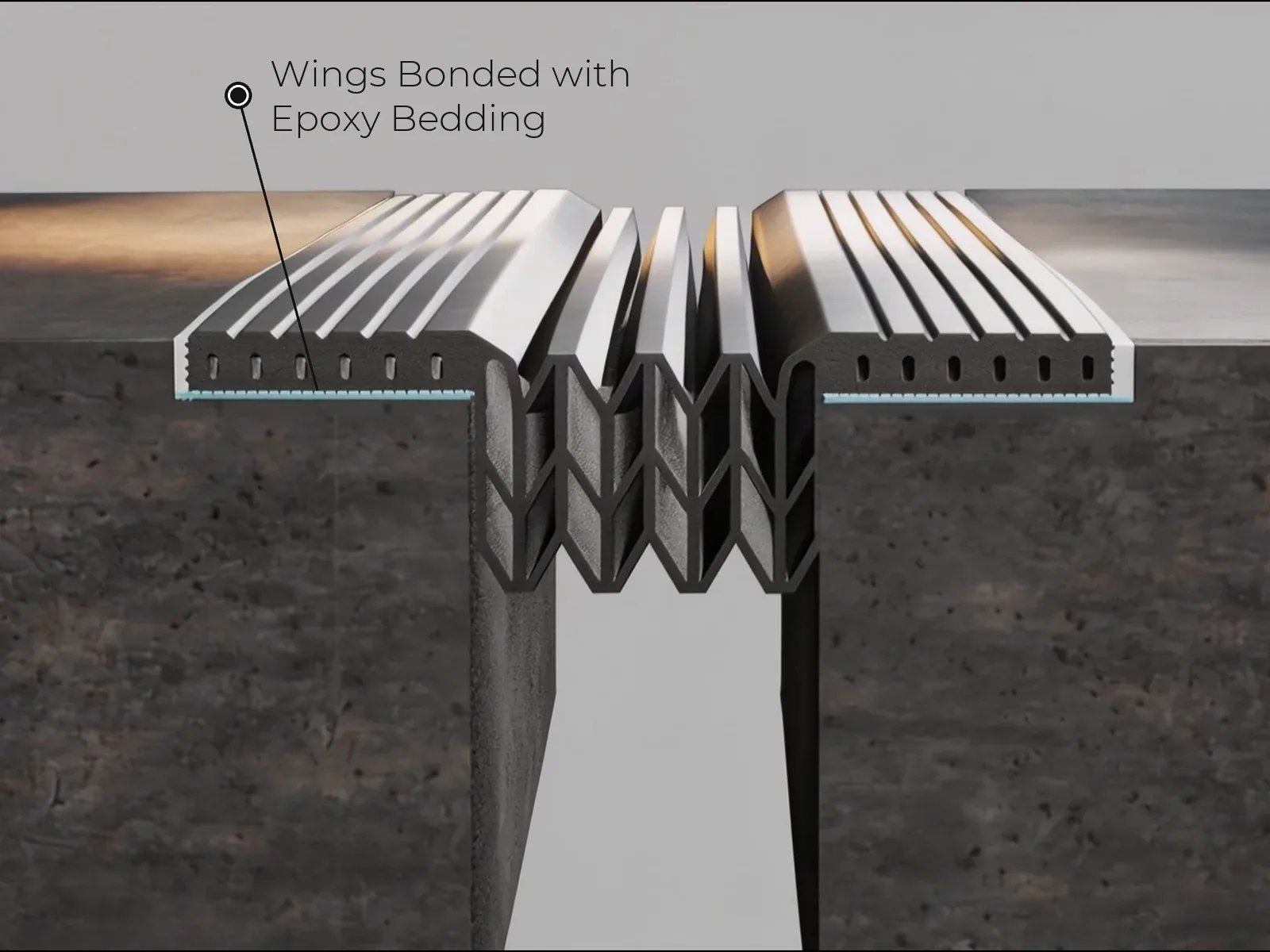

Epoxy Bedding Compound

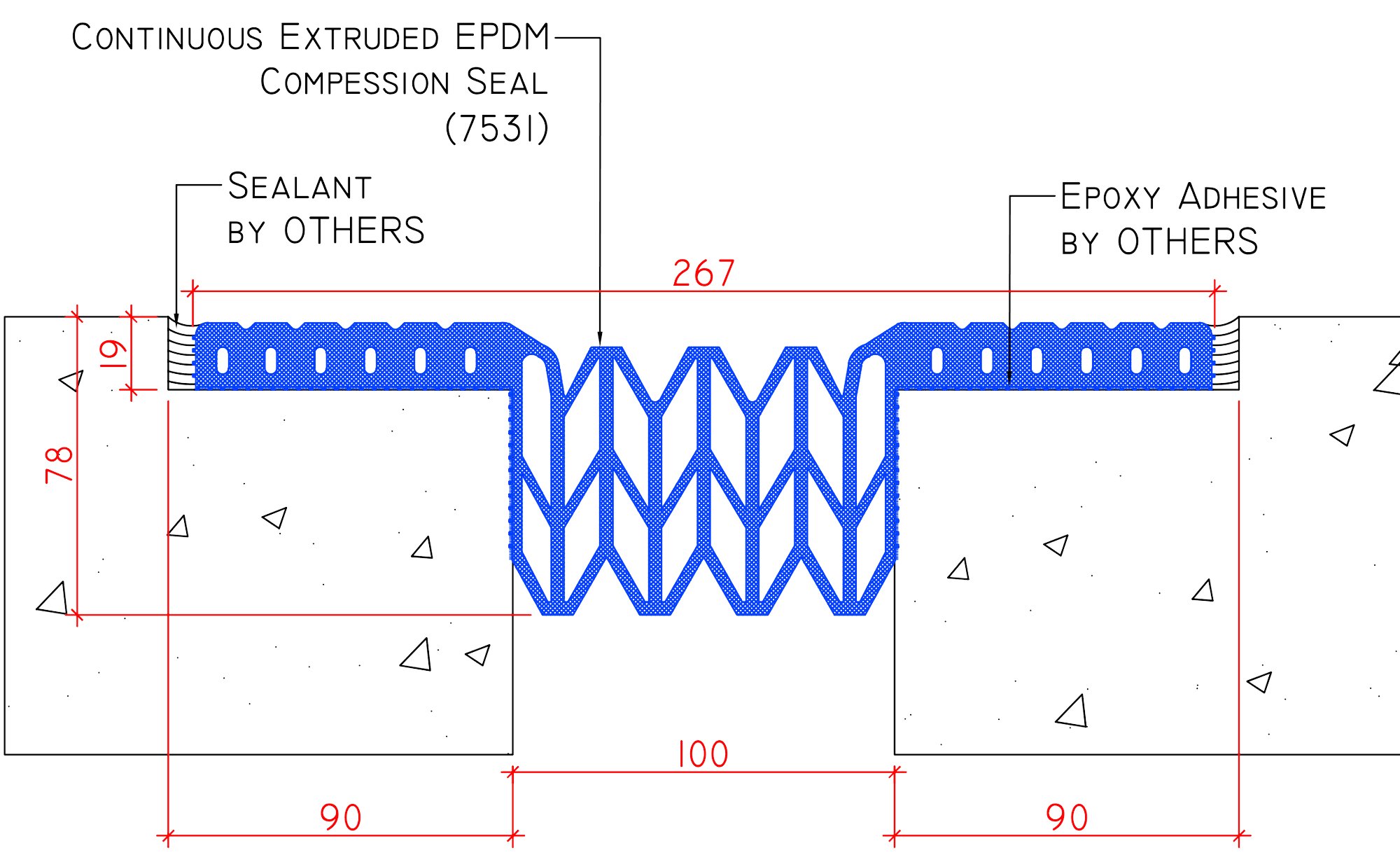

System Drawing
gap size calculator
enter your expansion gap measurement to see if this product is right for you.
profile specifications
| model name | joint width (mm) | height (mm) | sightline (mm) | movement capability (%) | load capacity |
|---|---|---|---|---|---|
| gen-b-100 | 100 | 19 | 267 | -70/+100 | VEHICULAR |
| gen-b-50 | 50 | 19 | 216 | -60/+100 | VEHICULAR |
| gen-bk-100 | 100 | 19 | 184 | -70/+100 | VEHICULAR |
| gen-bk-50 | 50 | 19 | 133 | -60/+100 | VEHICULAR |
datasheet specifications
| Series | SUPERSEAL Series (GEN-B) |
|---|---|
| System type | Membrane Sealing System |
| Fixing | Bonded to the slab with an epoxy bedding |
| Suitable movement | Thermal, Settlement |
| Recommended for | Heavy-duty traffic areas and heavy load bearing areas; Parking structures; Stadiums; Multi-level carparks; Emergency & service vehicle areas; Pedestrian bridges and walkways |
| Components | Continuous Extruded Elastomeric Compression Seal |
| Material: Elastomeric Rubber Seal | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); finish: Grooved Finish; black |
| Substrate tolerance | Surface level within ±2 mm; gap level within ±5 mm |
| Sizes | Per the system drawings; profiles can be customized to requirements |
Source: GENB technical datasheet. Sizes and dimensions: profile specifications above and the system drawings.
similar products to consider
economy- gap range
- 10 – 60mm
- movement
- ±25%
standard- gap range
- 38 – 75mm
- movement
- ±50%
economy- gap range
- 30 – 280mm
- movement
- ±50%
