gna
ecoseal series

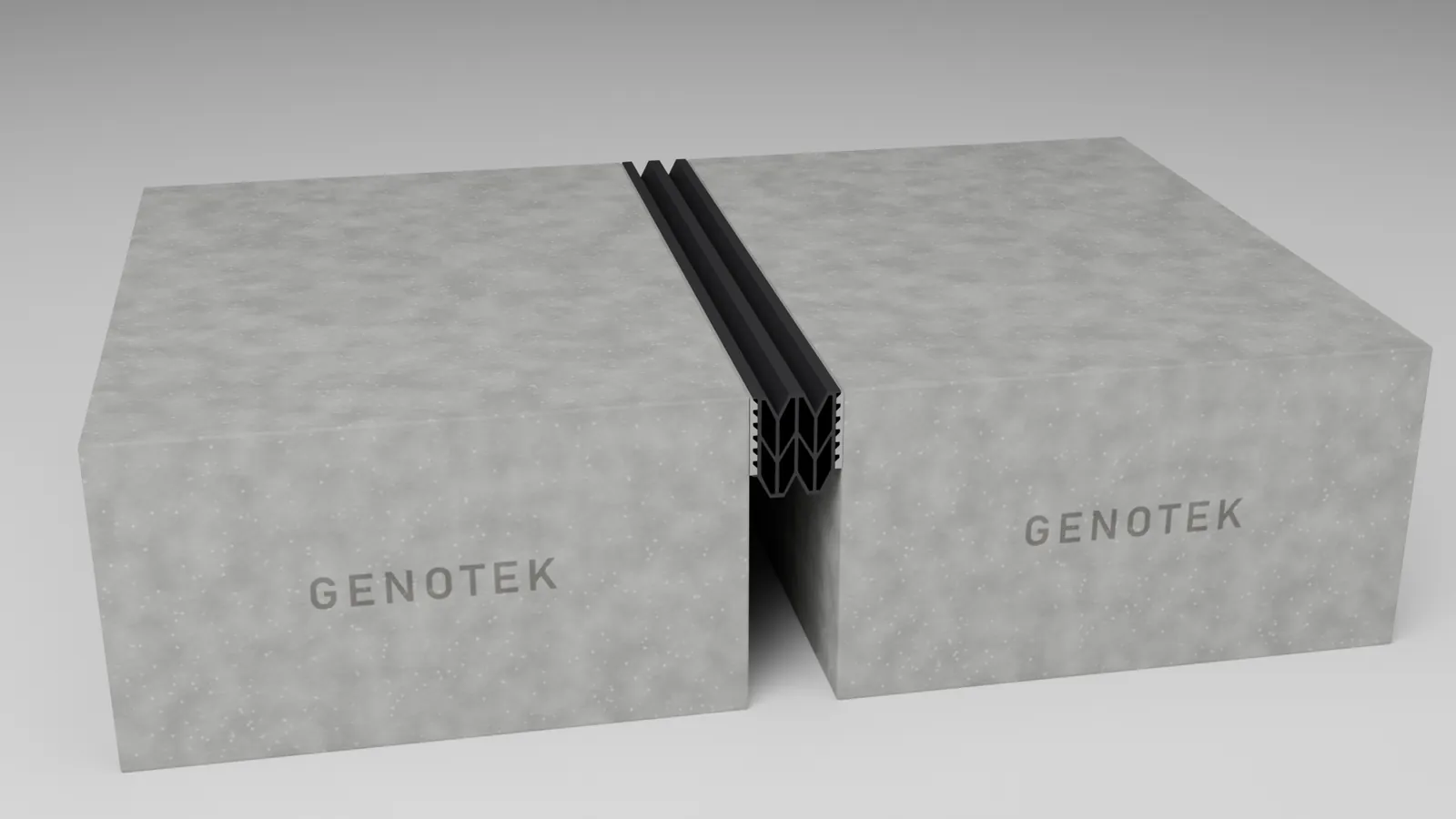

Introducing the GN A
movement absorption
the ecoseal gna closed-cell design gives the joint a +/-50% movement capability, accommodating thermal and settlement movement between the slabs while staying bonded and watertight.
water protection
the continuous membrane nature of the gn-a series, combined with its innovative installation method, provides superior waterproofing. by eliminating anchor bolt penetrations, the system prevents water ingress at the finished floor level and protects the reinforcement layer of the slab from potential water damage
load bearing
engineered to withstand pedestrian and light vehicular traffic, this system is well-suited to areas experiencing continuous use, reducing maintenance needs while maintaining integrity
installation in action
this video demonstrates the installation process, perfectly designed for easy installation for durability and reliability

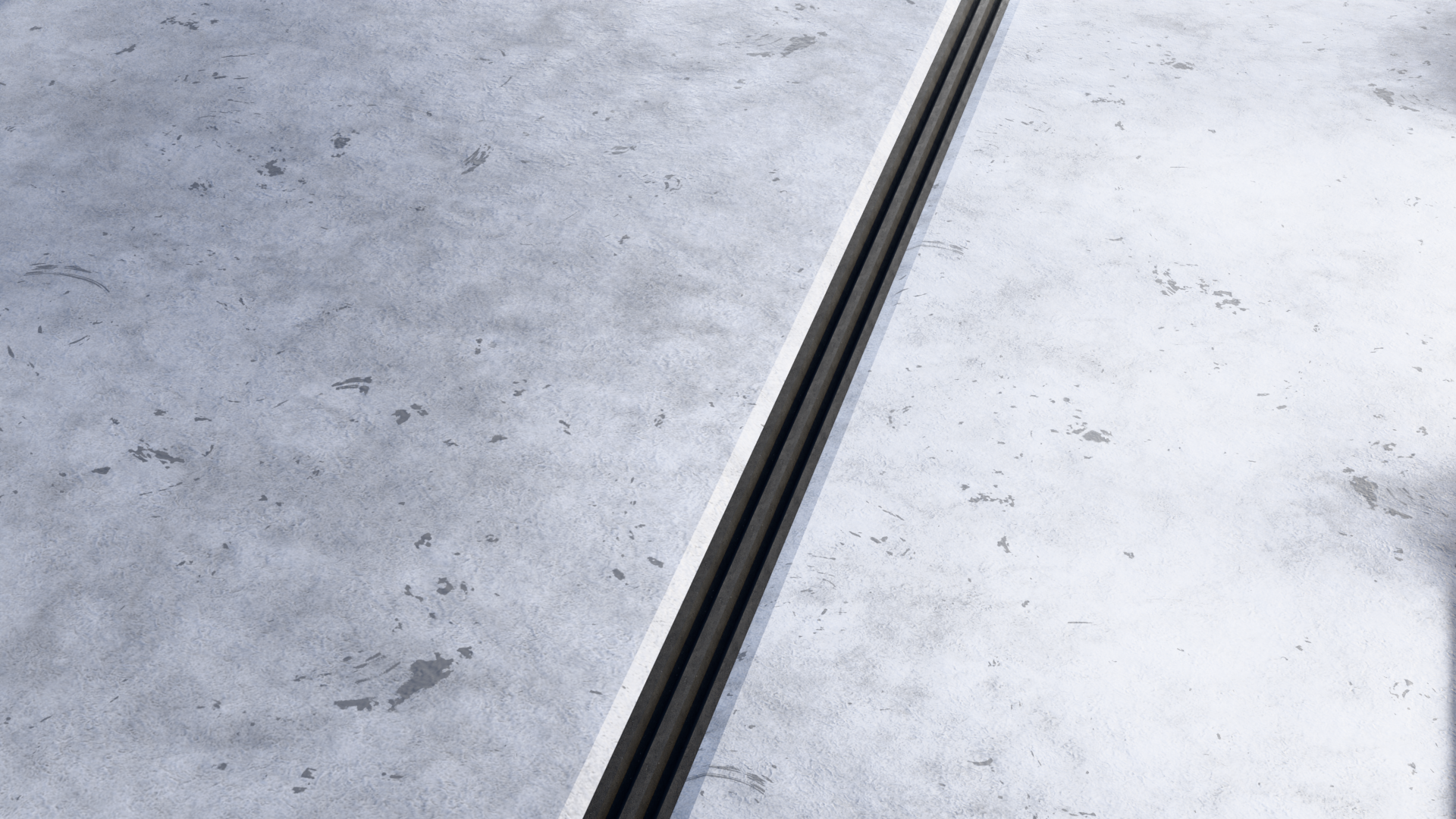

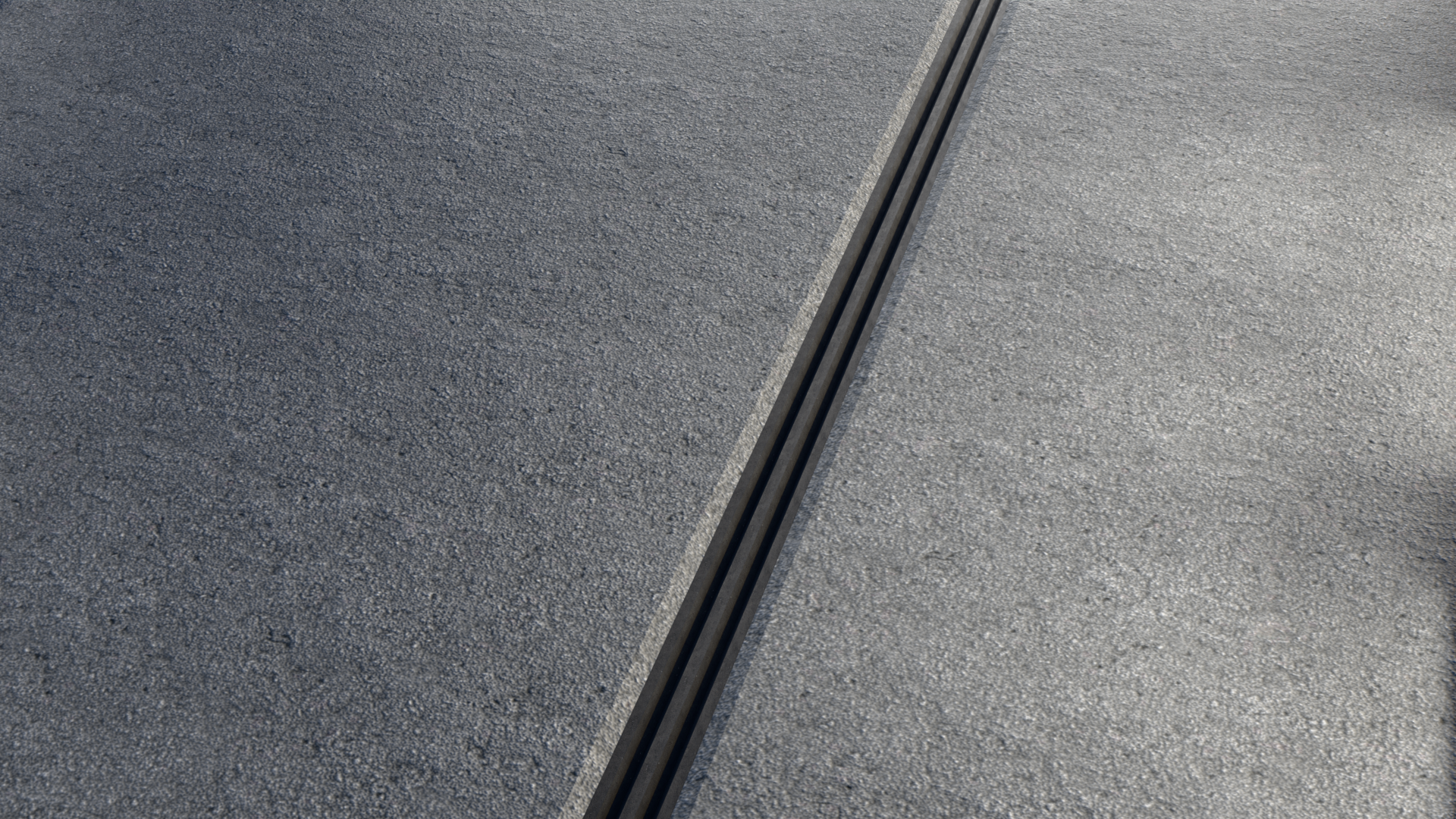

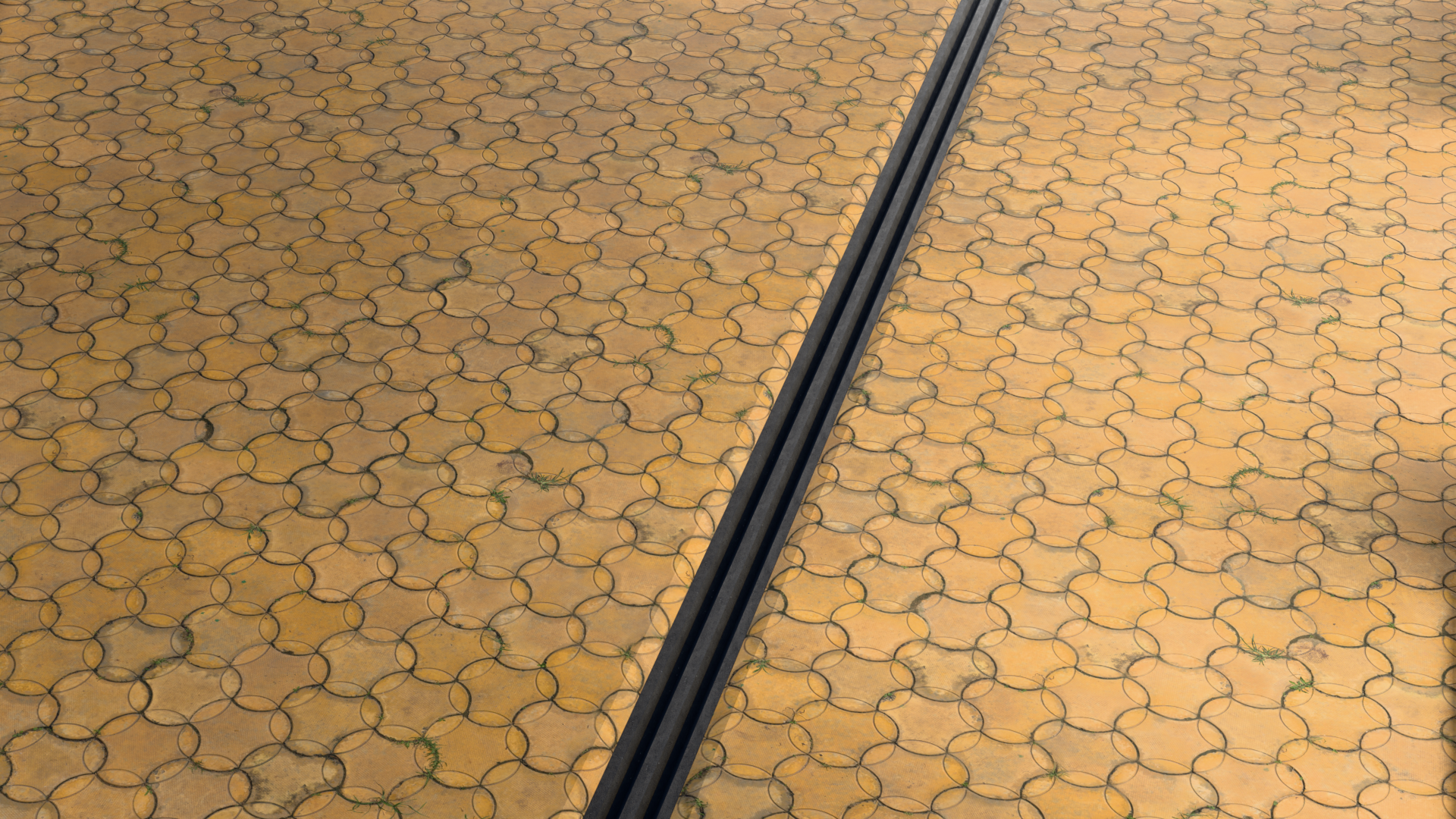

Aesthetic Choice
The system is customizable to specific project requirements, with variable sizes, dimensions to suit a wide range of applications

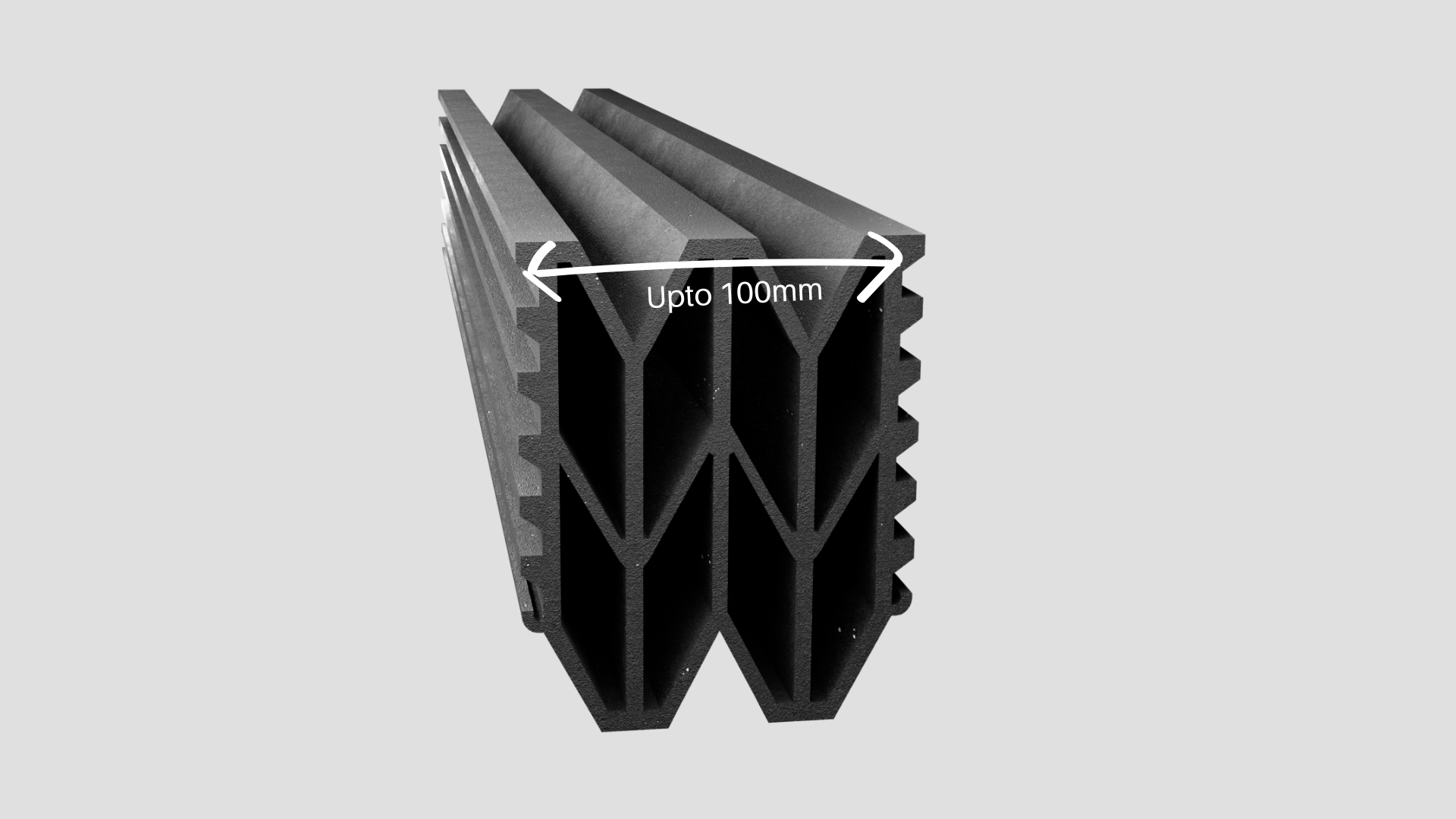

Versatile Joint Width Accommodation

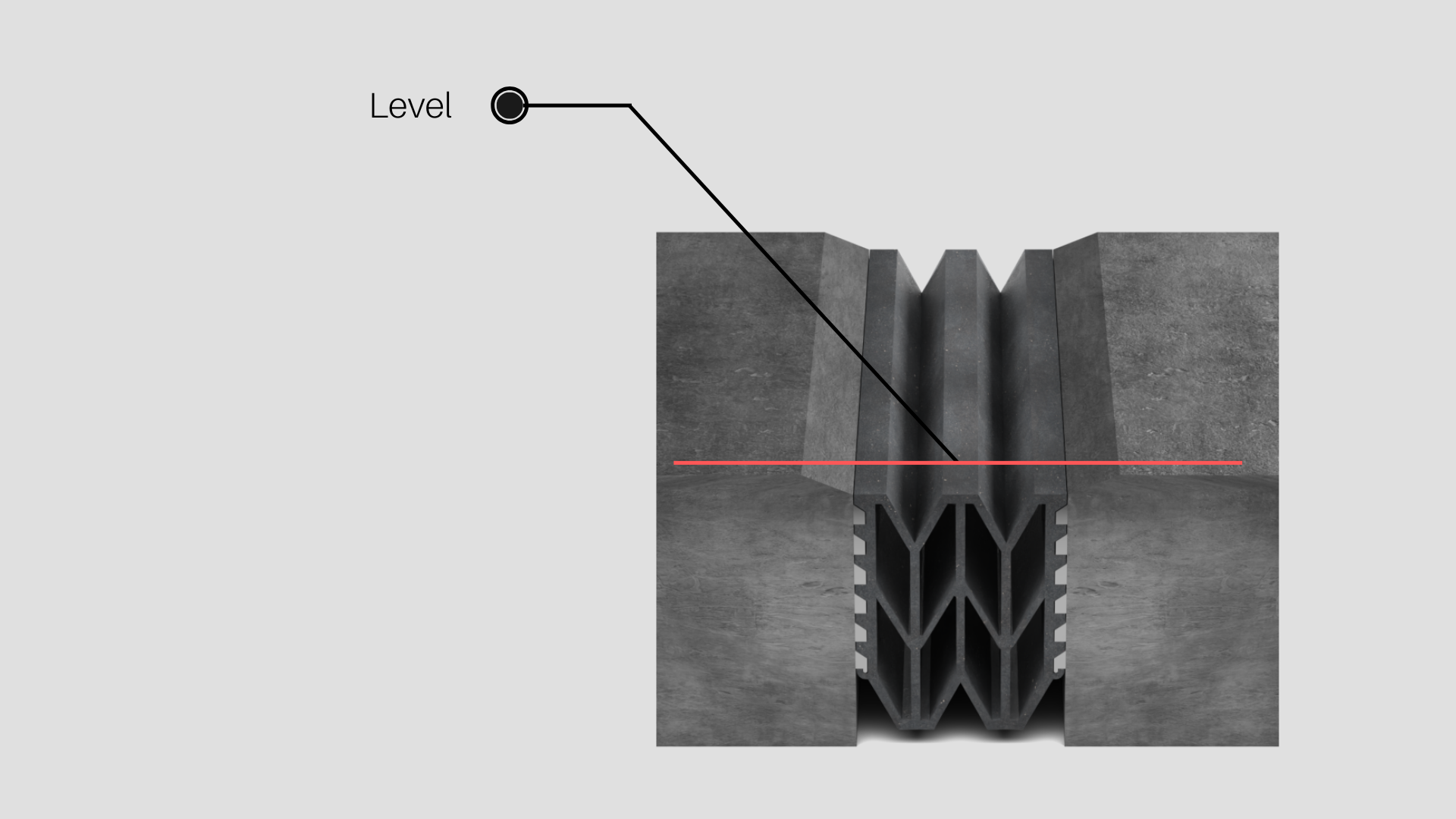

Surface-Level Installation

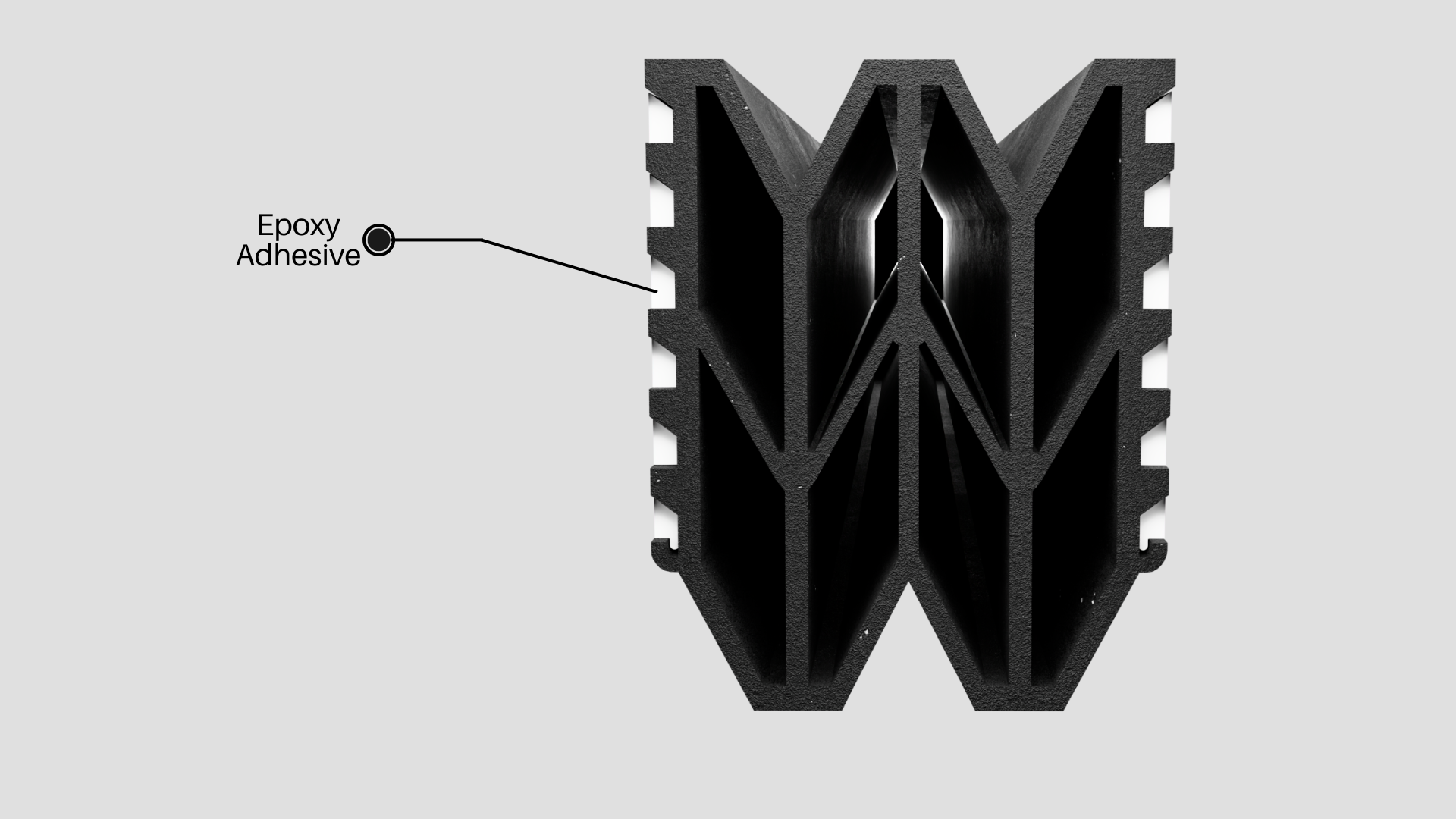

Adhesive Based Installation

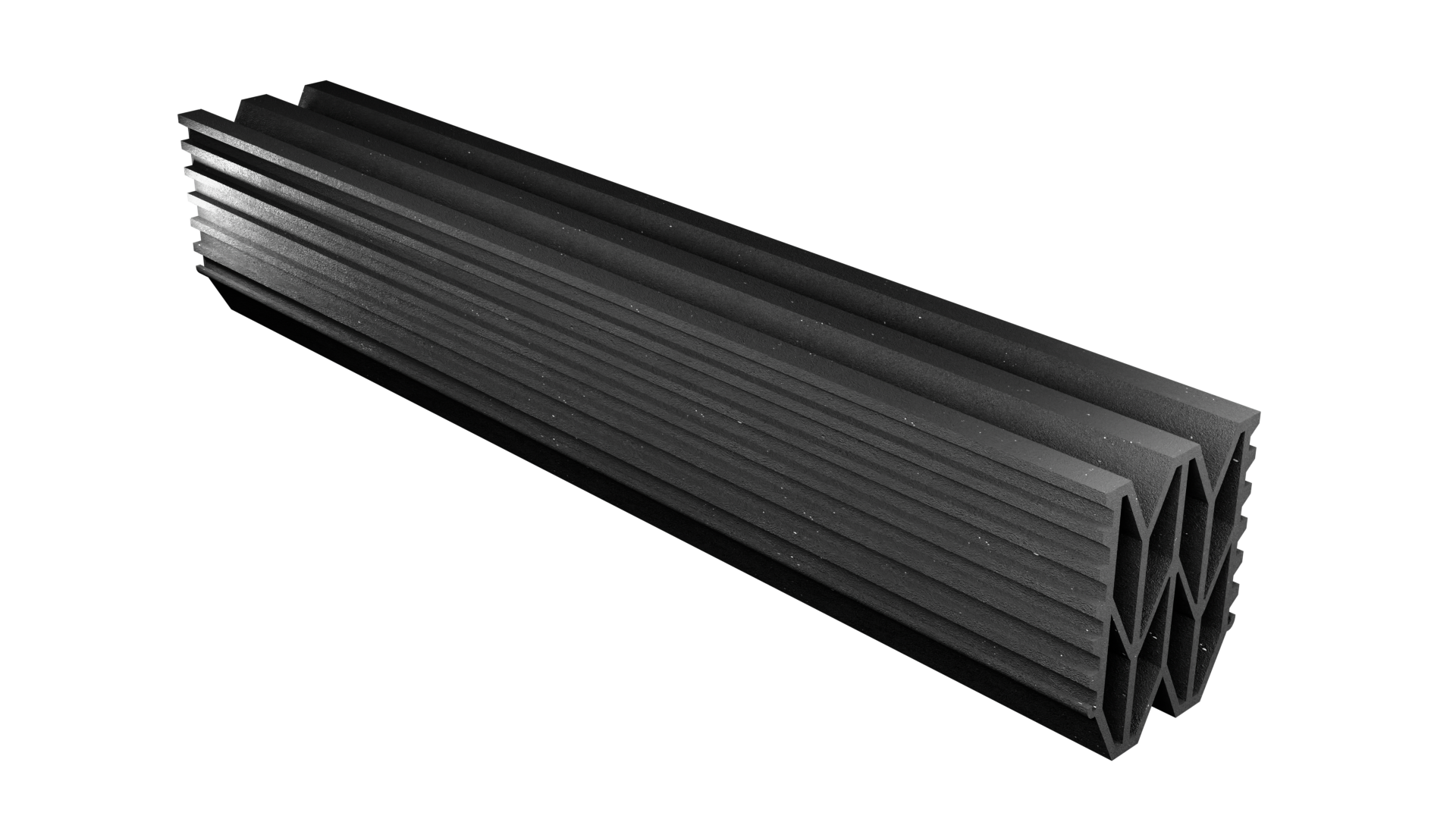

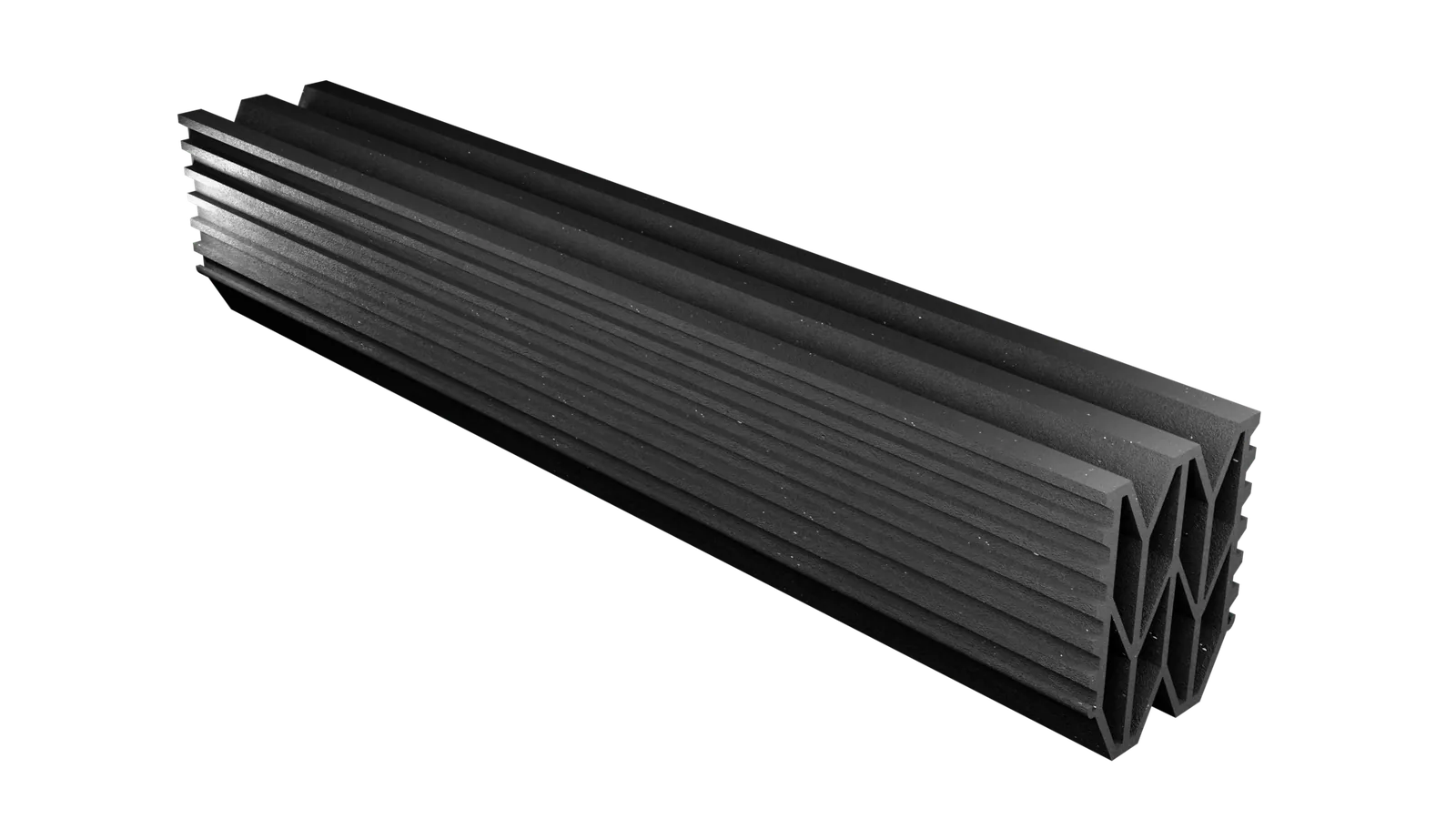

EPDM Construction

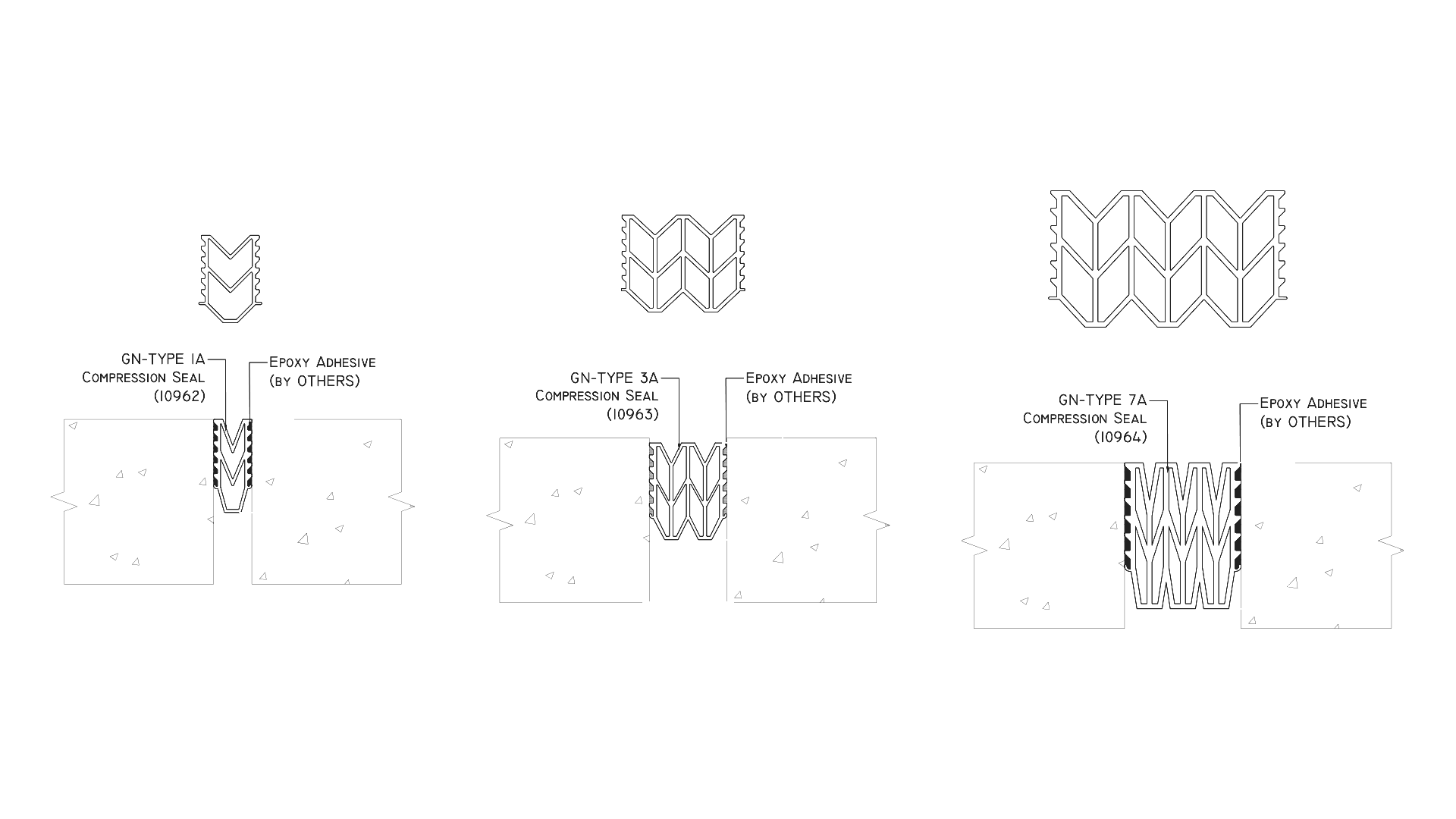

System Drawing
gap size calculator
enter your expansion gap measurement to see if this product is right for you.
profile specifications
| model name | joint width (mm) | height (mm) | sightline (mm) | movement capability (%) |
|---|---|---|---|---|
| gn-type 1a | 25 | 57 | 38 | -40/+100 |
| gn-type 3a | 50 | 64 | 80 | -50/+100 |
| gn-type 7a | 75 | 89 | 152 | -33/+150 |
datasheet specifications
| Series | ECOSEAL Series (GN-A) |
|---|---|
| System type | Compression Seal System |
| Fixing | Bonded to the adjacent slabs with high-strength epoxy |
| Suitable movement | Thermal, Settlement |
| Movement capacity | Up to +150 % (per type; see the system drawings) |
| Recommended for | Exterior areas where heavy pedestrian and light vehicular traffic are present; Areas where weather protection is critical; Areas having bends and/or gradients |
| Components | Extruded Elastomeric Rubber Insert which absorbs the expansion & contraction in the adjacent concrete slabs |
| Material: Elastomeric Rubber Seal | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); finish: Smooth or Grooved Finish; black |
| Substrate tolerance | Surface level within ±2 mm; gap level within ±5 mm |
| Sizes | Per the system drawings; profiles can be customized to requirements |
Source: GNA technical datasheet. Sizes and dimensions: profile specifications above and the system drawings.
