procover series
d1500
procover series
sku: d1500 · wall
best for: interior and exterior walls and ceilings, including drywall and direct-to-substrate installations, where a snap-fit surface-mount cover is required.

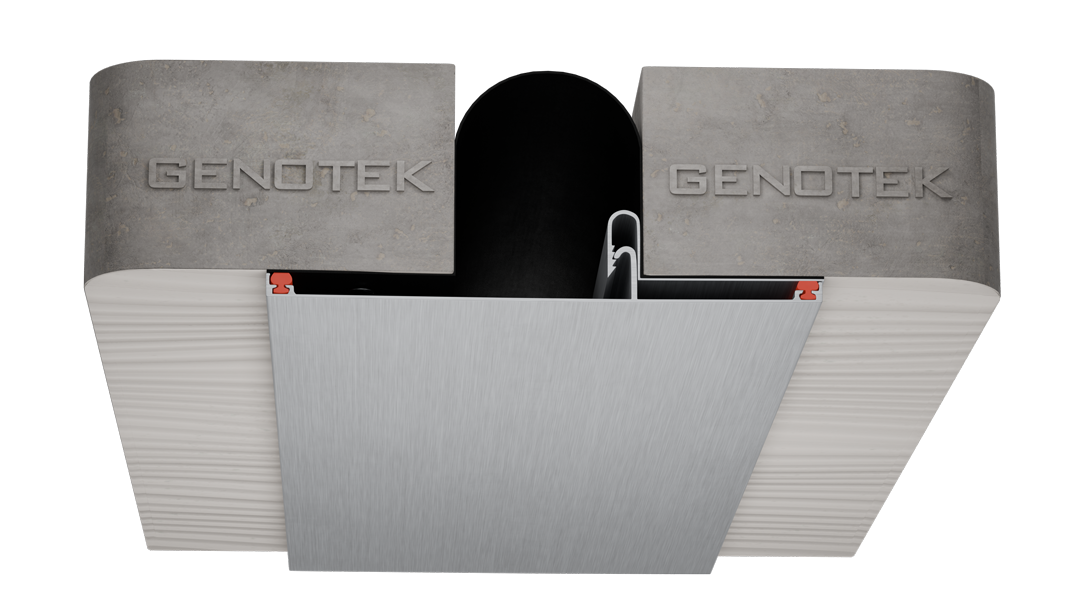

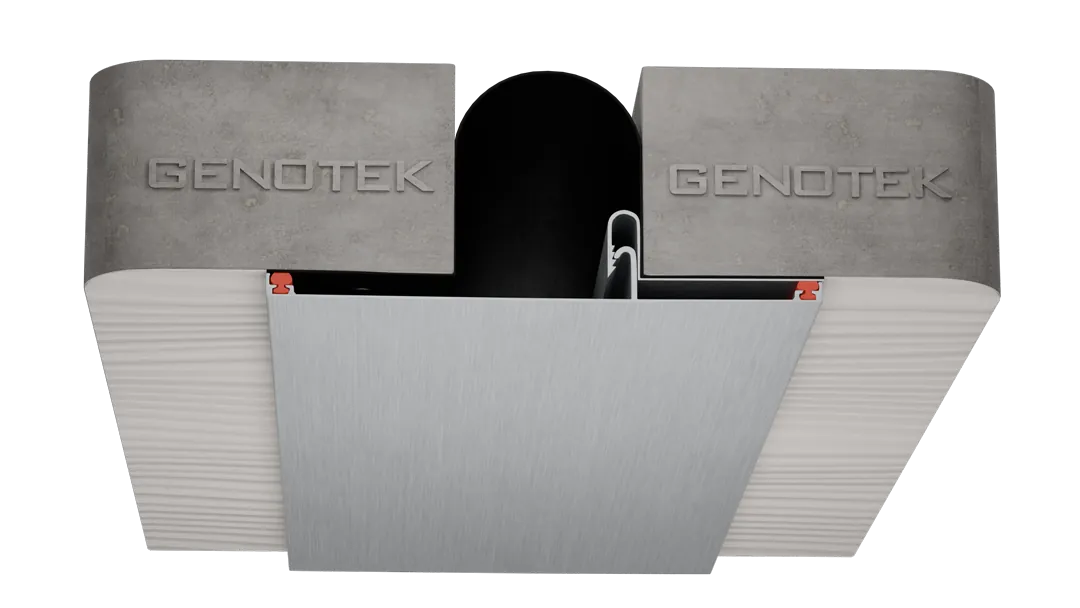

Introducing the PROCOVER Series D-1500
Introducing the D 1500, an economical yet aesthetically pleasing thermal wall expansion joint cover designed for superior performance and visual appeal. This innovative system offers a significant upgrade from simple sheet metal cover plates, providing better aesthetics, improved movement accommodation, and the ability to absorb surface irregularities. With its hidden screw design and clip-type installation, the D 1500 delivers a sleek, professional finish while maintaining cost-effectiveness. Ideal for a wide range of wall applications, this aluminum-based system combines functionality with design flexibility
movement
01 — movement
movement accommodation
the d 1500 is engineered to absorb horizontal thermal movement, ensuring the joint cover maintains its integrity and functionality during building expansions and contractions. this capability is crucial for preventing wall damage and maintaining structural integrity
assembly
02 — assembly
assembly in action
this video demonstrates the assembly process, perfectly designed for easy installation for durability and aesthetics

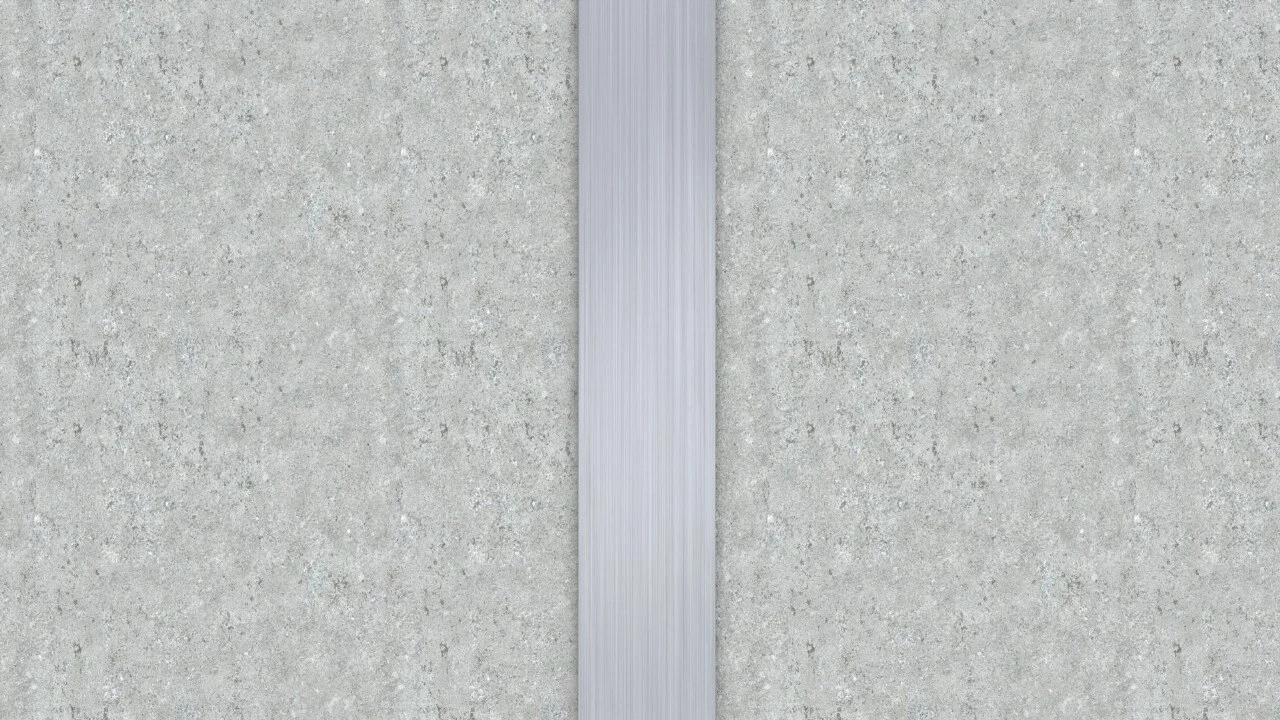

Aesthetic Choice
The PROCOVER D-1500 suits a wide range of wall types and finishes — from commercial buildings to residential interiors. Custom powder coating lets the cover sit cleanly against any surface, giving architects flexibility to match the joint to the surrounding finish rather than working around it.

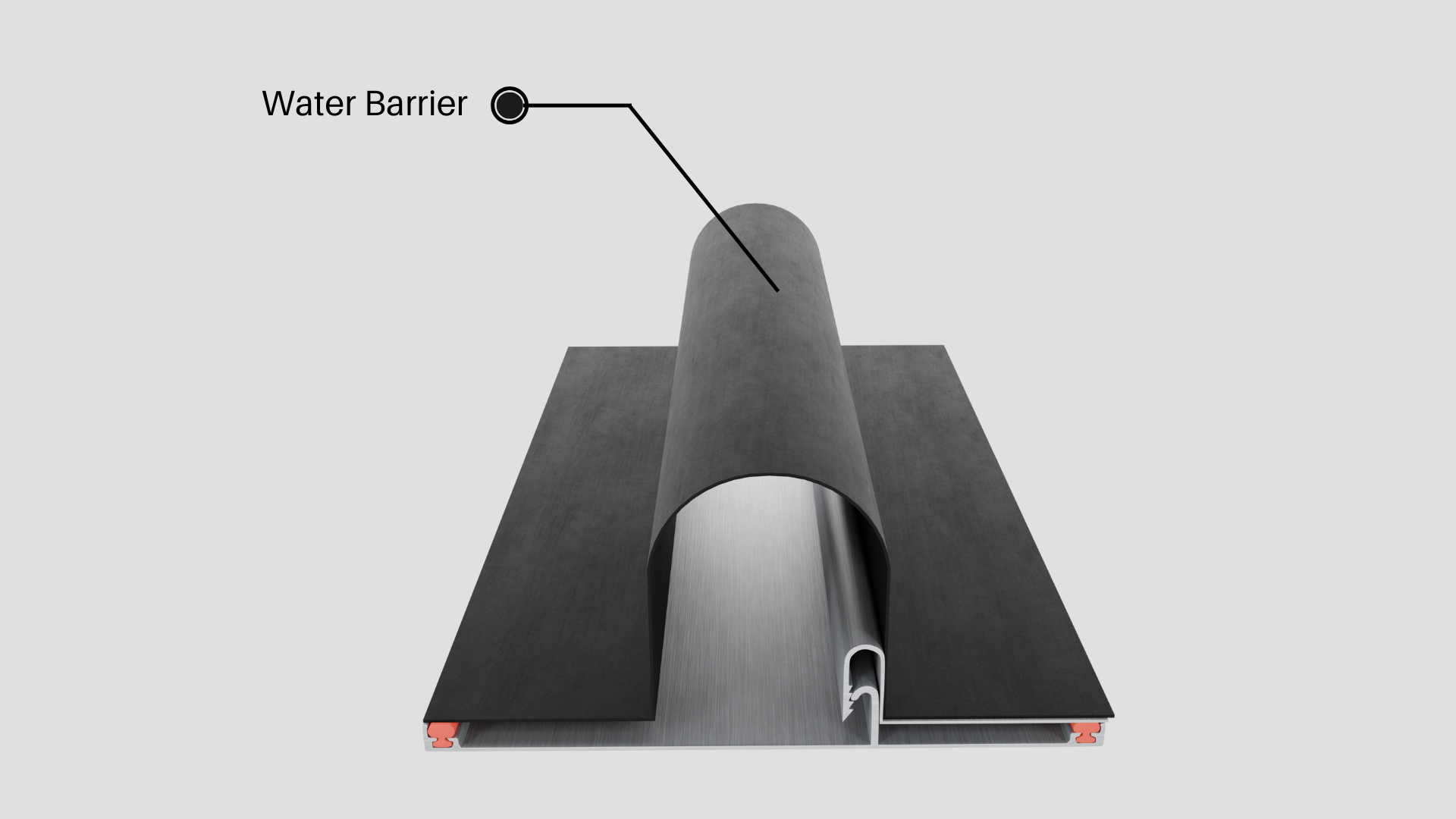

Water Barrier for External Application
The D1500 model is designed to excel in external applications, offering seamless integration with a water barrier. This innovative feature ensures superior waterproofing, making it the perfect solution for areas where water ingress is a concern. Durable and reliable

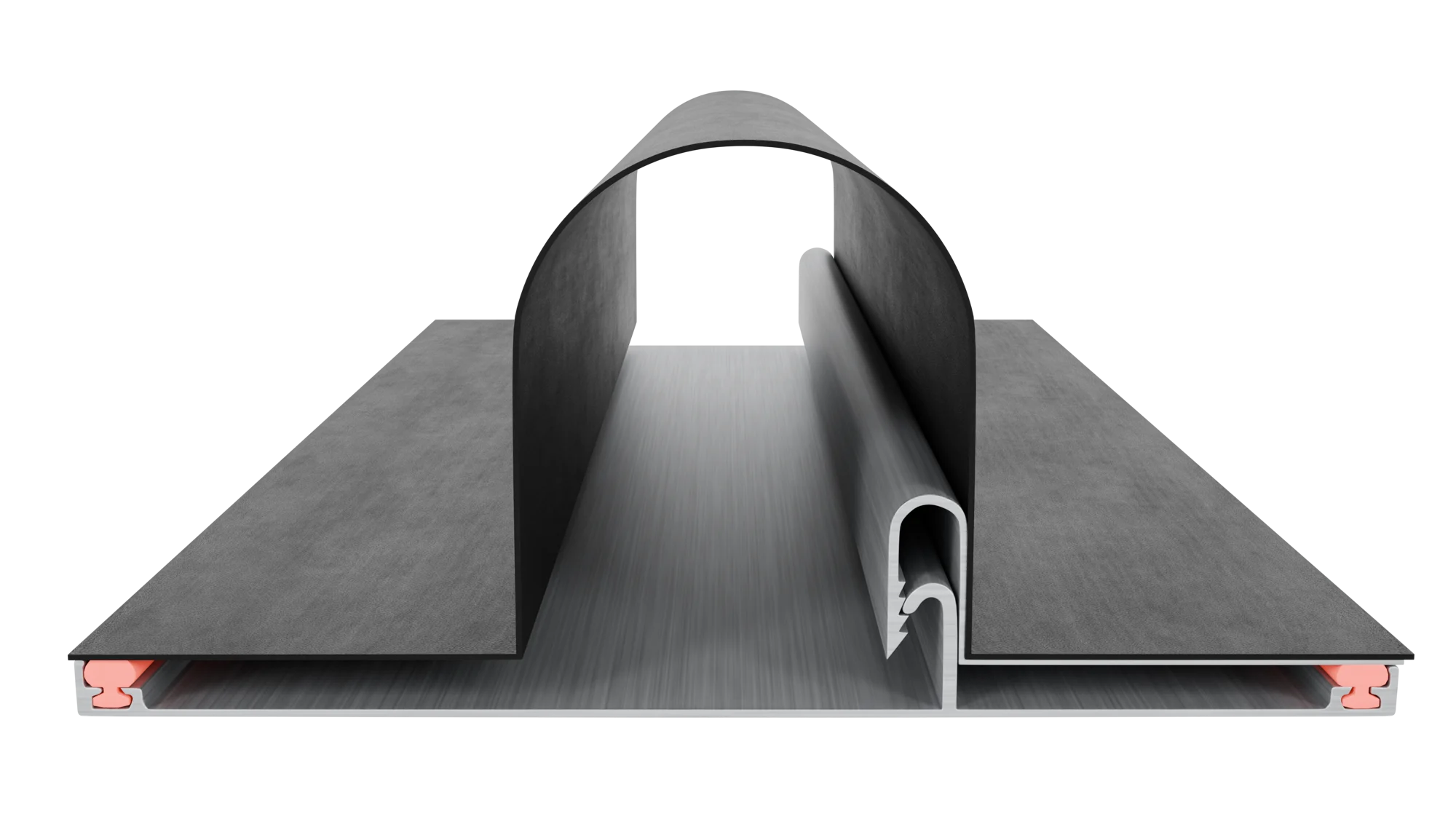

Low-Profile Design
Engineered to minimize visual impact while maximizing functionality, the D 1500 integrates smoothly with wall surfaces.

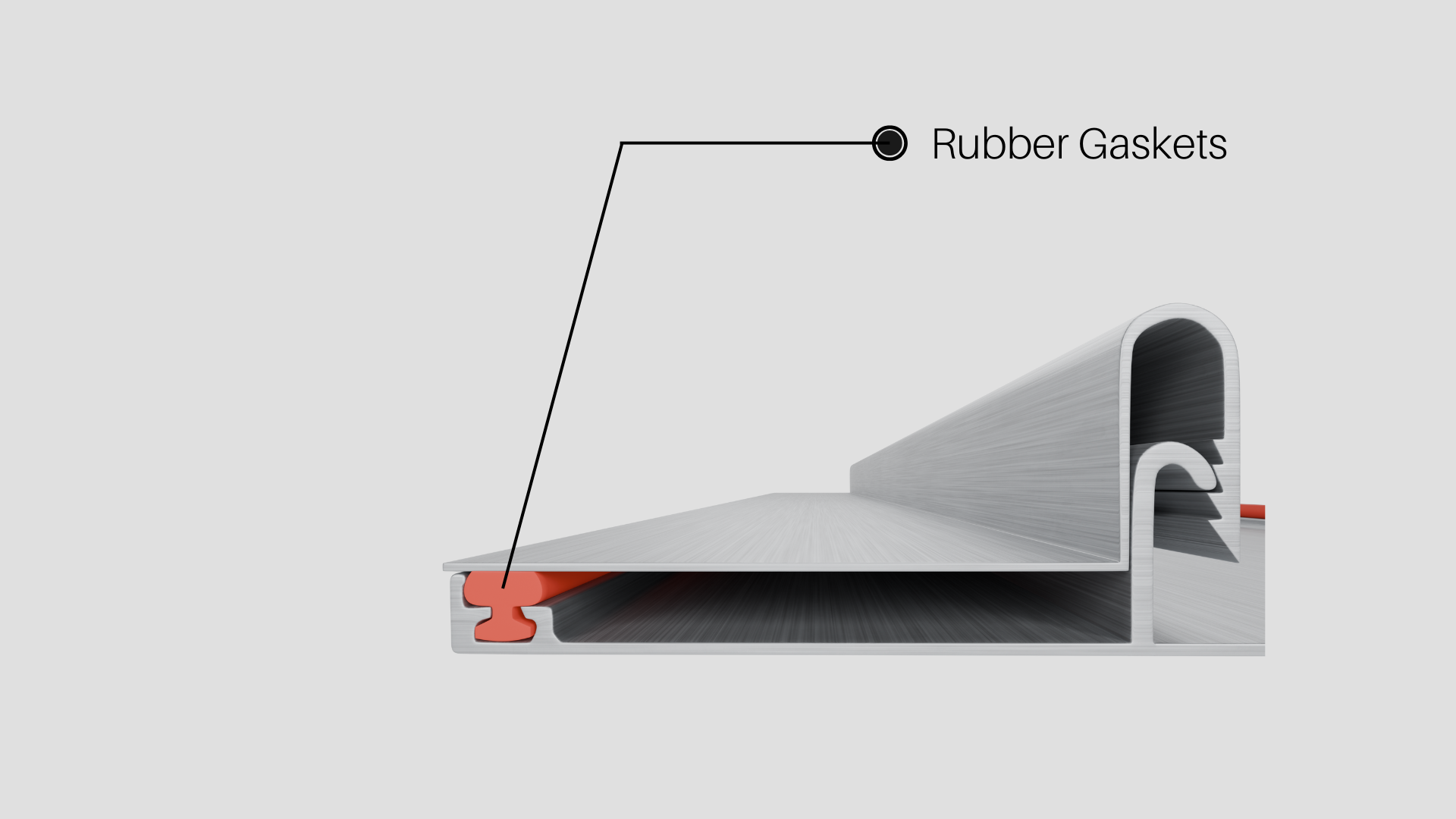

Rubber Gaskets
An elastomeric rubber gasket on the moving side of the cover plate stops the plate scratching the wall finish, so the cover can slide freely across the wall surface as the joint moves.
Custom Powder Coating
Available in any RAL color, the D 1500 can be perfectly matched to existing wall colors or used as a design element, offering unparalleled aesthetic flexibility

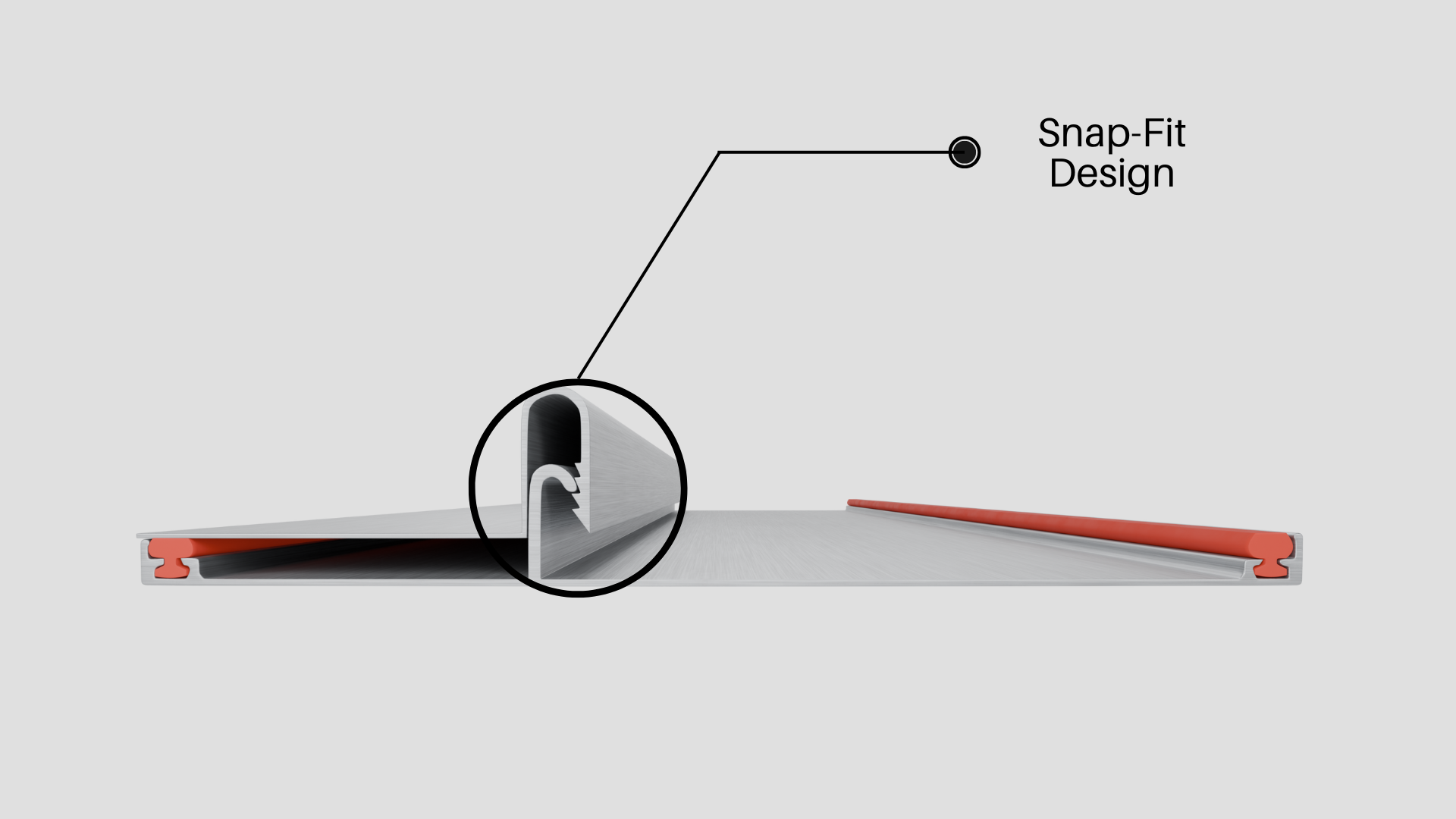

Clip Mechanism
Engineered for secure attachment and easy installation, enhancing the overall performance and longevity of the joint cover

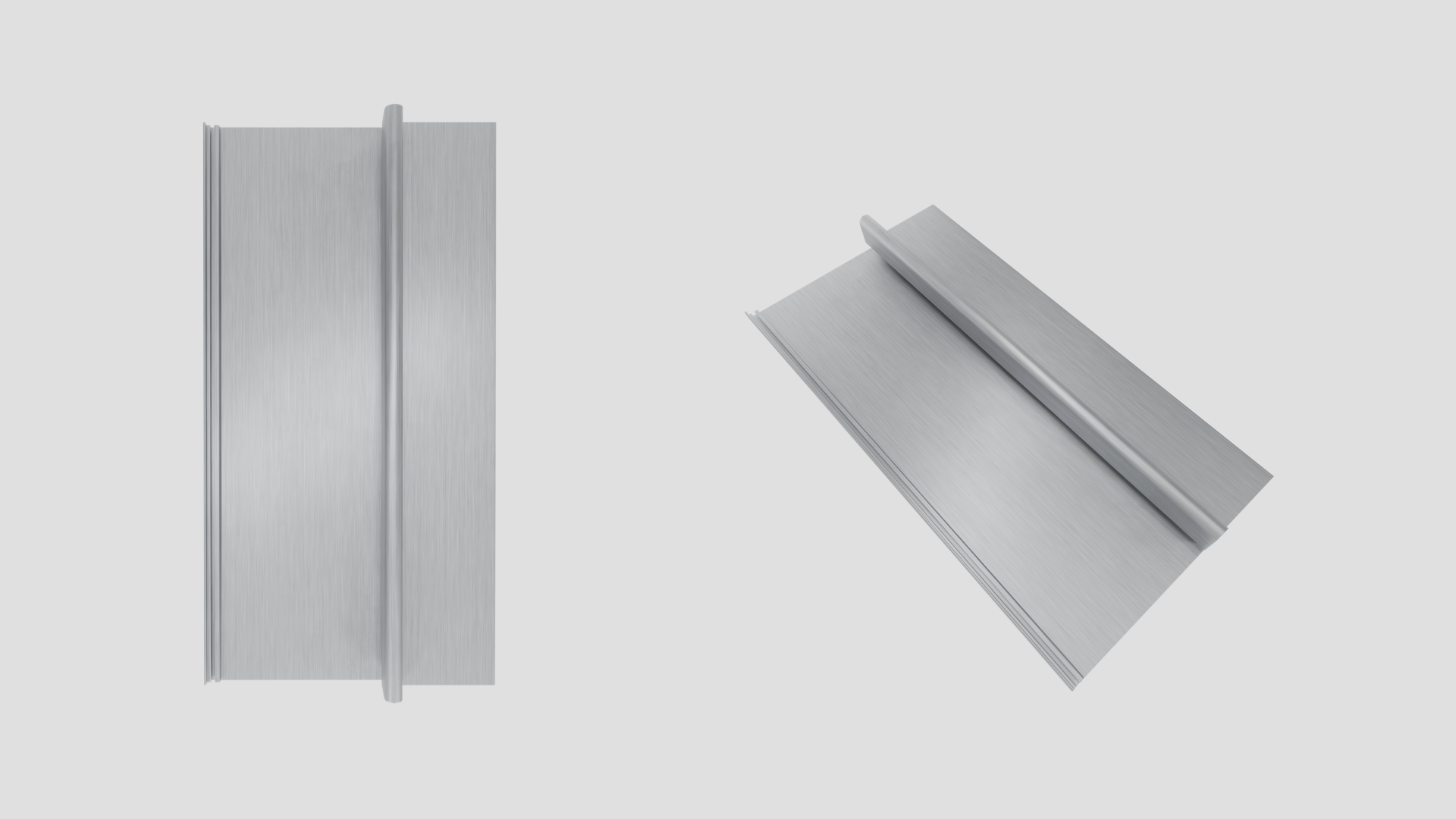

Aluminum 6063
The PROCOVER Series D-1500 is fabricated from high-quality aluminum 6063, known for its excellent strength-to-weight ratio, corrosion resistance, and durability. This material choice ensures the expansion joint cover’s long-lasting performance and visual appeal

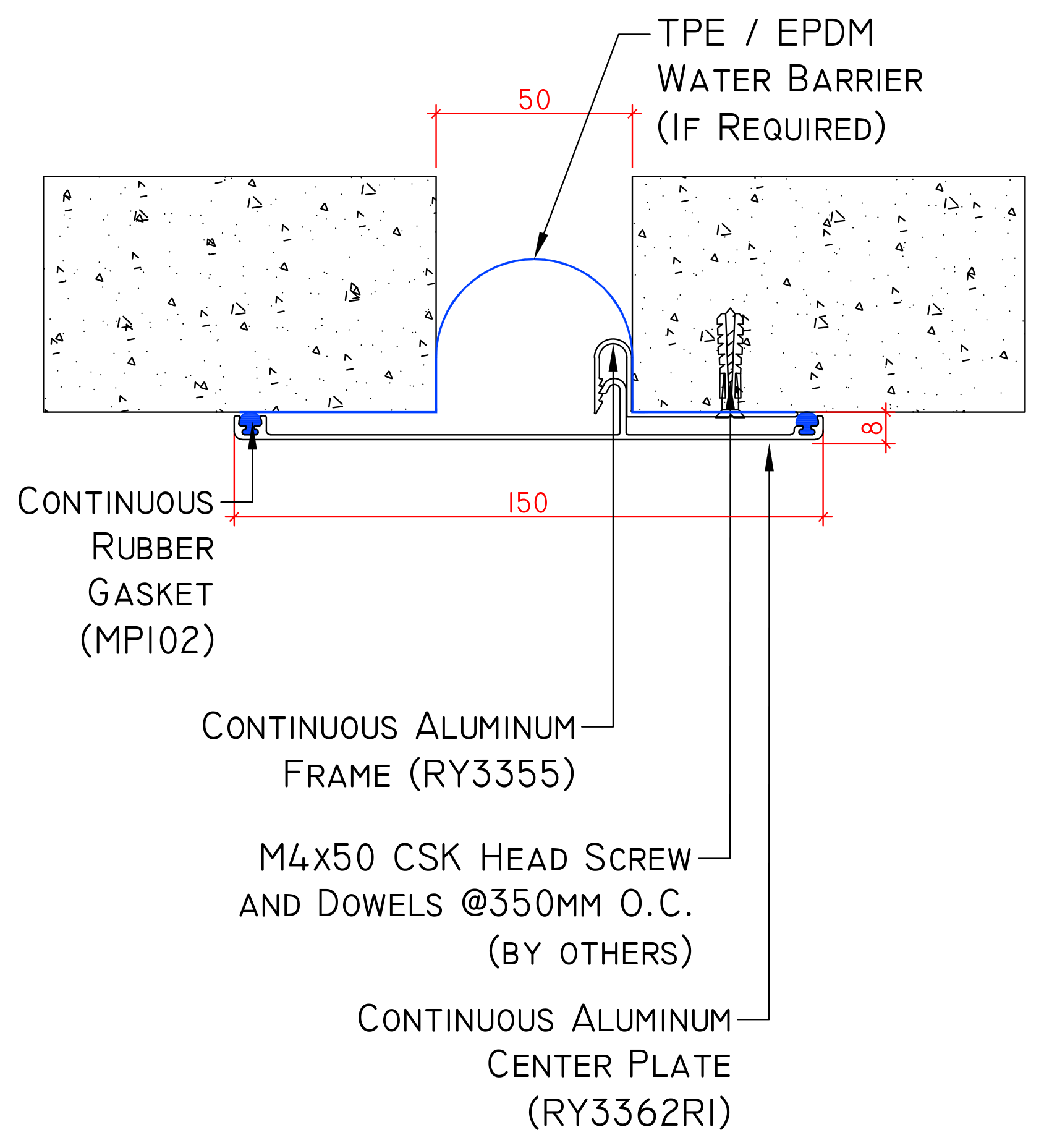

System Drawing
System drawings for the D-1500 expansion joint cover and its DK-1500 variant, showing the aluminum cover plate, retainer and rubber gasket for surface-mounted wall and ceiling joints. Each size can be downloaded as a DWG and PDF.
interactive tool
gap size calculator
enter your expansion gap measurement to see if this product is right for you.
20mm ≈ credit card
50mm ≈ two fingers
100mm ≈ fist width
200mm ≈ hand span
mm
d1500 covers gap sizes from 15mm to 94mm. enter your measurement above to see the movement capacity, profile width, and whether this product handles your requirements.
technical data
profile specifications
| model name | joint width (mm) | height (mm) | sightline (mm) | movement capability (%) |
|---|---|---|---|---|
| d-1500-50 | 50 | 8 | 150 | ±80 |
| dk-1500-50 | 50 | 8 | 100 | ±70 |
from the technical datasheet
datasheet specifications
| Series | PROCOVER Series (D-1500 & DK-1500) |
|---|---|
| System type | Surface Mount Wall & Ceiling System |
| Mounting | Surface-mounted |
| Fixing | Snap-fit cover plate on an aluminum retainer fixed to the wall |
| Suitable movement | Thermal, Seismic, Settlement |
| Recommended for | Interior & Exterior Wall & Ceiling Areas; Drywall Applications; Areas of Installation directly to Wall Substrate |
| Components | Extruded Aluminum Cover Plate; Extruded Aluminum Retainer; Elastomeric Rubber Gasket |
| Material: Retainer, Cover Plate | Extruded aluminum, grade AA 6063 preferred |
| Material: Elastomeric Rubber Gasket | Ethylene Propylene Diene Monomer (EPDM); finish: Smooth Finish; black |
| Material: Vapor Barrier (Optional) | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); black |
| Finishes | Anodized, Powder coated |
| Supply length | 3.00 m per piece (cover plate and support frame) |
| Substrate tolerance | Surface level within ±2 mm; gap level within ±5 mm |
| Sizes | Per the system drawings; profiles can be customized to requirements |
Source: D1500 technical datasheet. Sizes and dimensions: profile specifications above and the system drawings.
