procap series
we
procap series
sku: we · wall
best for: hospital walls, hotel corridors, office ceilings, and commercial interiors.

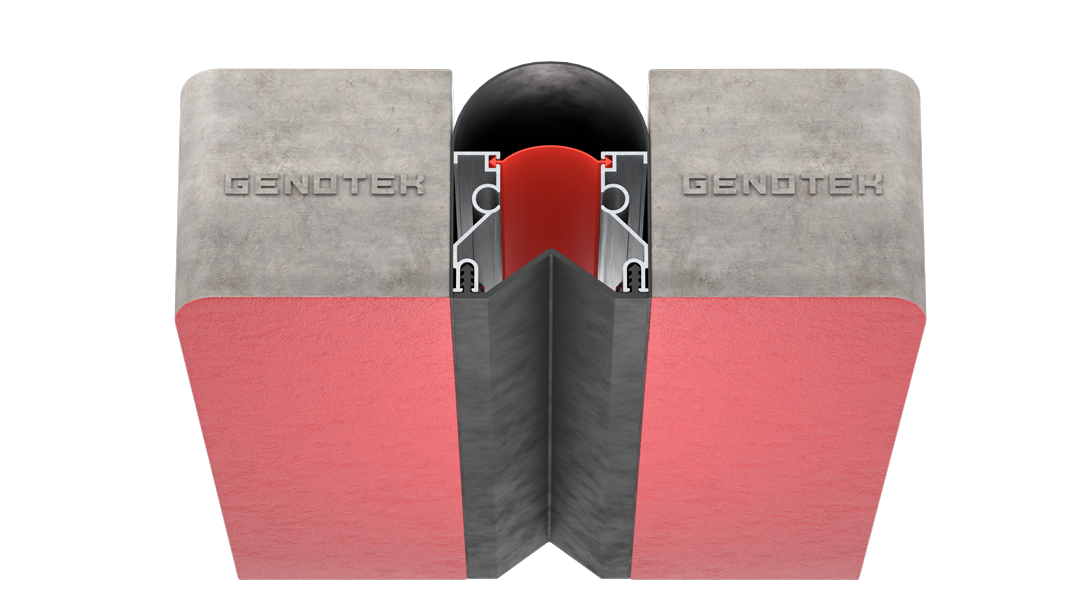

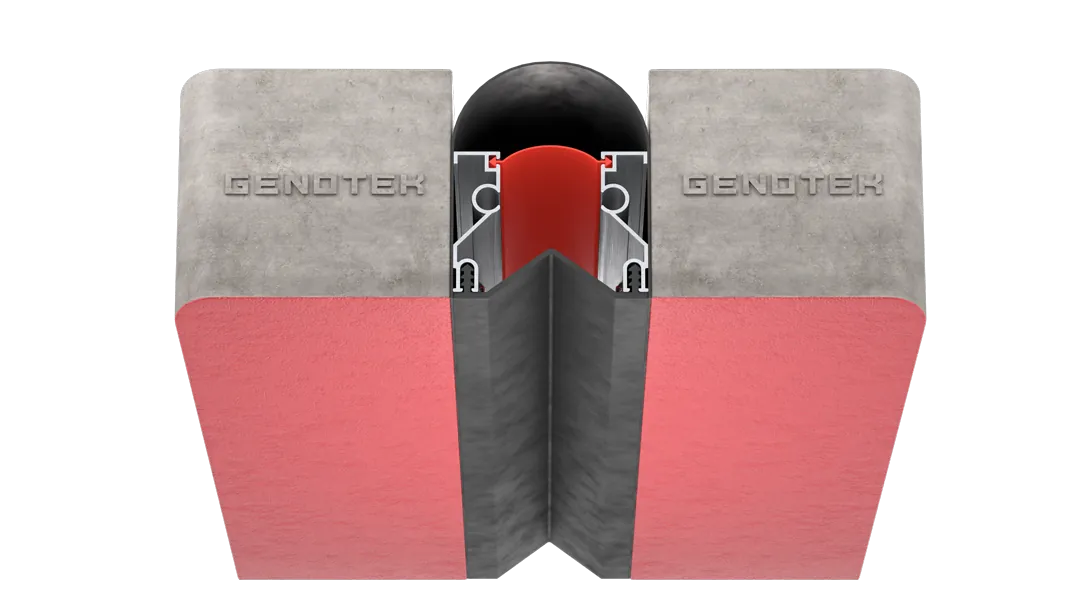

Introducing the PROCAP Series WE
The PROCAP Series WE & WEK is an interior and exterior seismic expansion joint system designed for wall and ceiling applications. With a robust aluminum and elastomeric rubber construction, this profile effectively absorbs seismic and multi-directional movements while maintaining structural and aesthetic integrity. Its optional back seal enhances weather protection, making it ideal for environments where durability and reliability are critical.
movement
01 — movement
movement accommodation
the elastomeric rubber insert allows the procap series to handle seismic, thermal, and settlement movements effectively, ensuring that adjacent structures maintain their integrity under dynamic conditions.
assembly
02 — assembly
assembly in action
this video demonstrates the assembly process, perfectly designed for easy installation for durability and reliability.

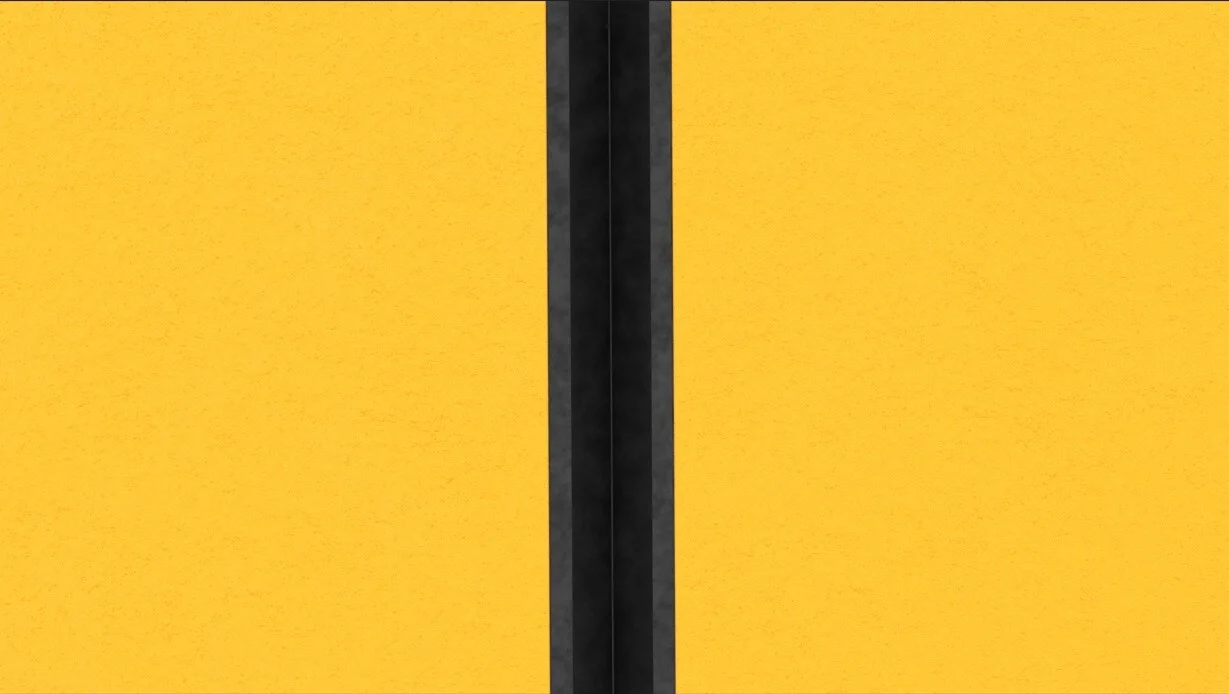

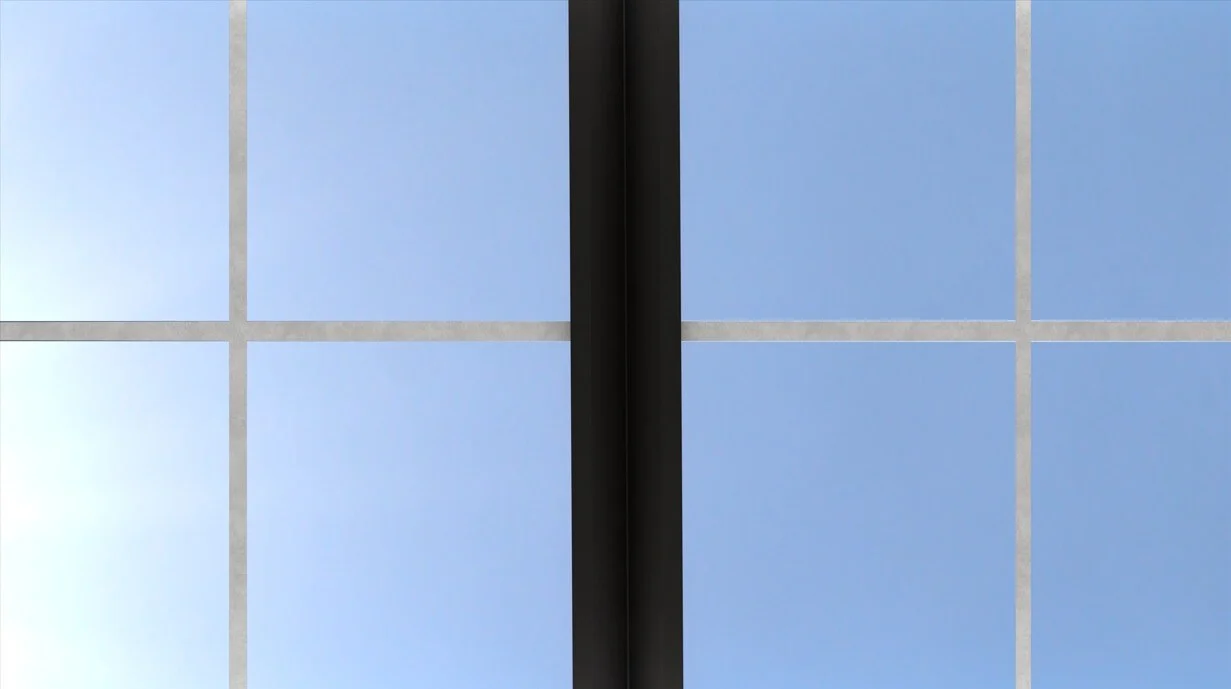

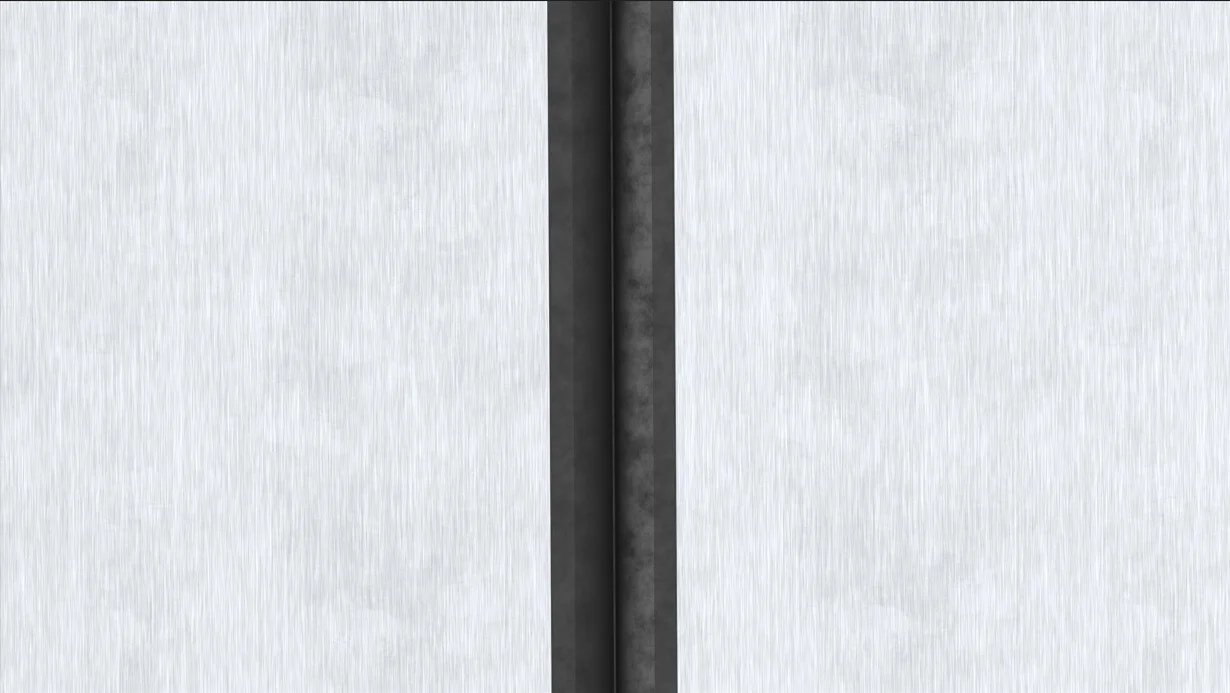

Aesthetic Choice
The PROCAP WE’s rubber components can be customized to match any wall design. The insert is available in any color to match adjacent wall finishes and create a cohesive look — so the expansion joint cover recedes into the architecture rather than interrupting it.

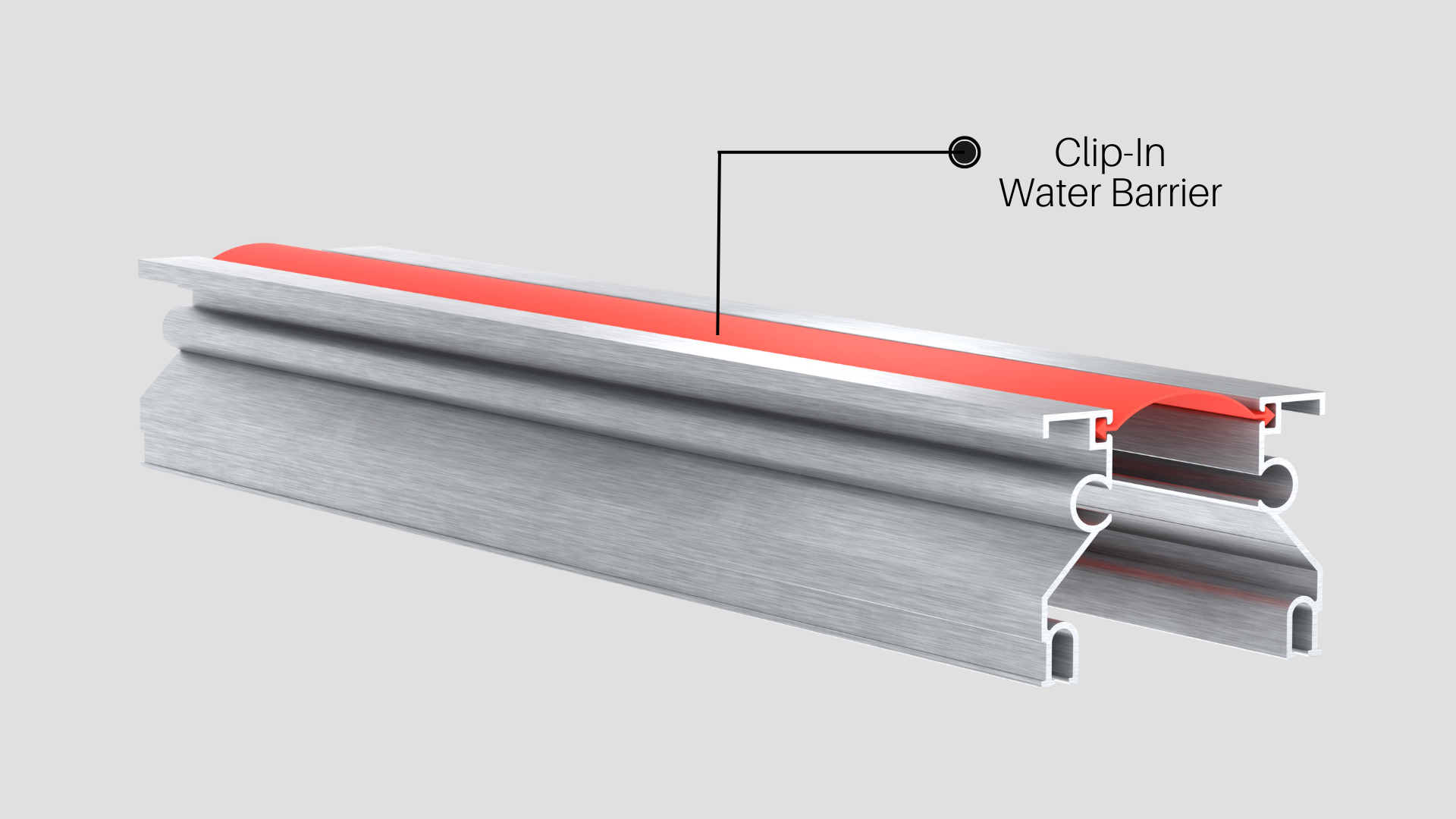

Additional Water Protection
Elastomeric rubber Clip-In insert for enhanced weather resistance and structural protection

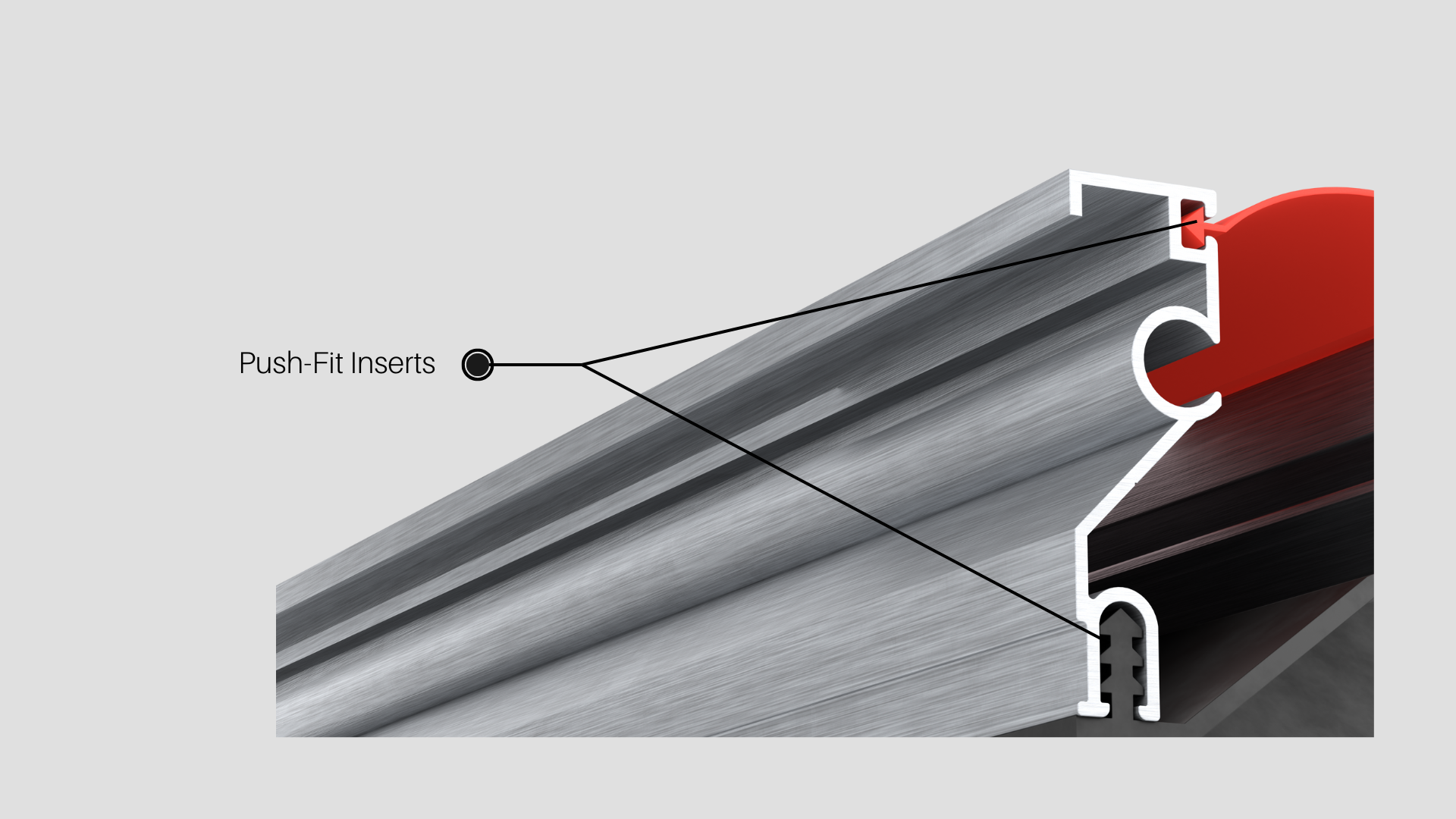

Simple and Secure Installation
The PROCAP Series is engineered for straightforward installation, with push-fit inserts for easy installation
Wide Range of Customization
Available in any color, the WE can be perfectly matched to existing wall colors or used as a design element, offering unparalleled aesthetic flexibility

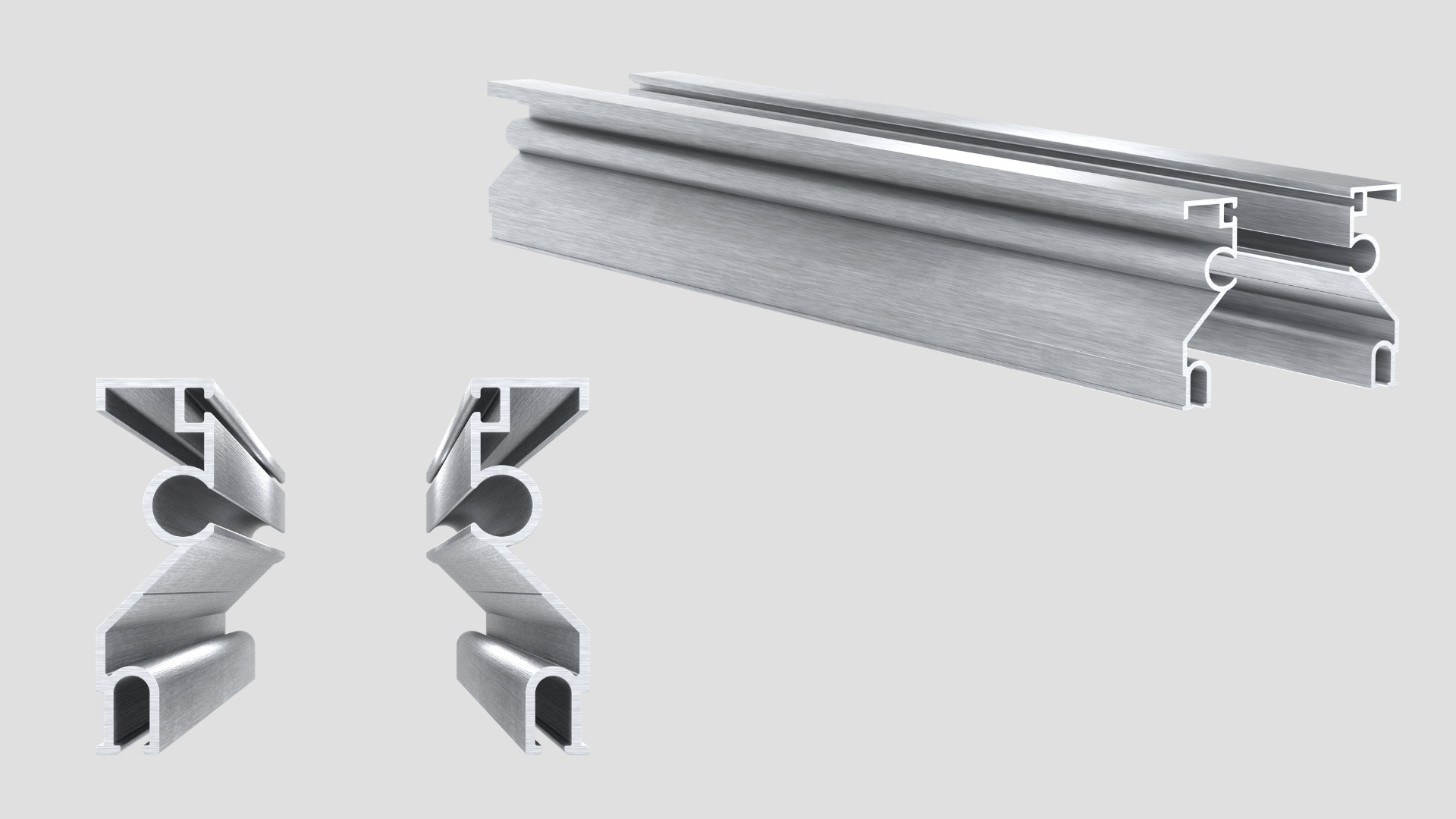

Durable Aluminum Support Profiles
Constructed from high-grade AA 6063 aluminum, the support profiles offer corrosion resistance, structural strength, and long-lasting performance in demanding environments.

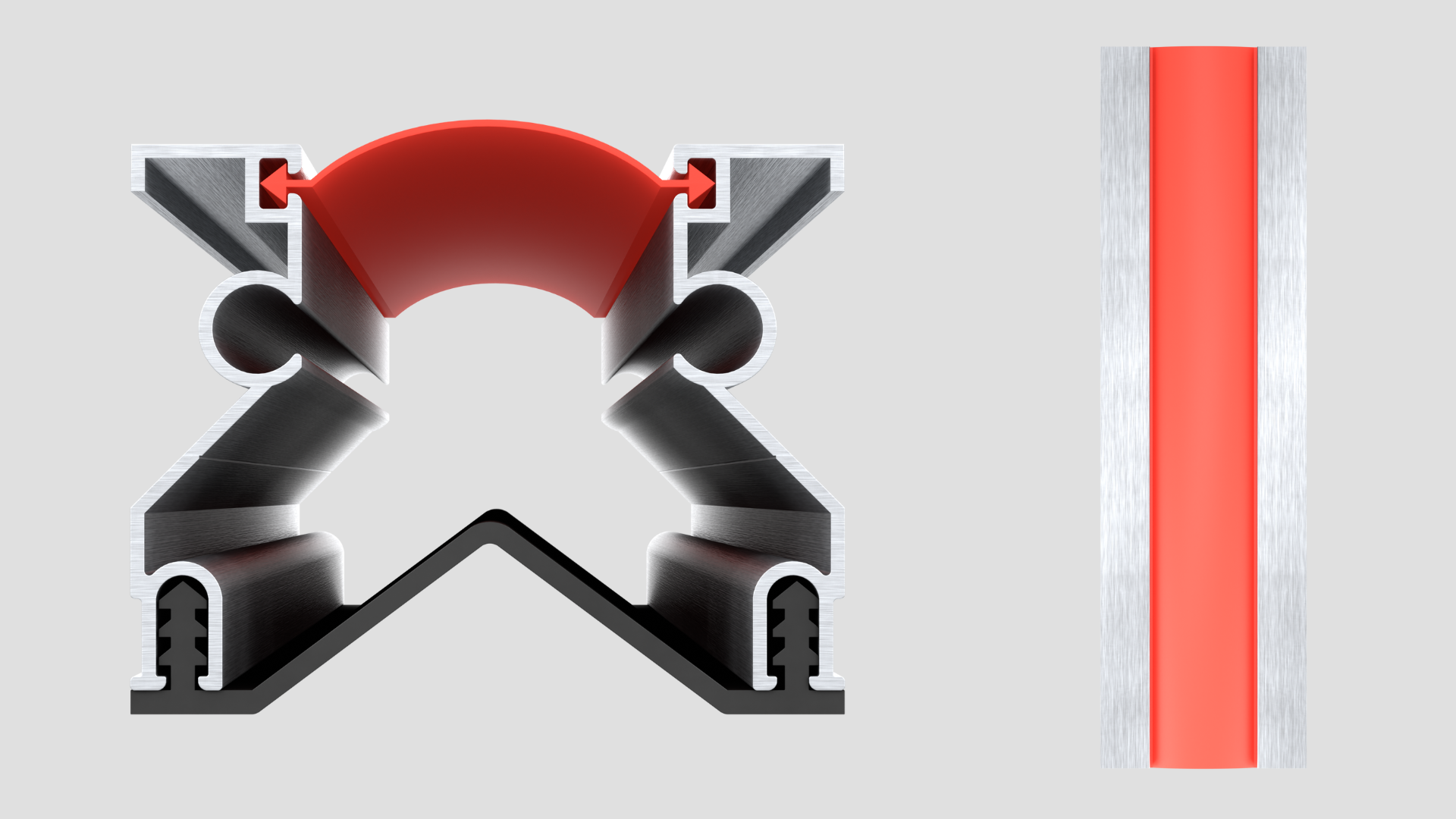

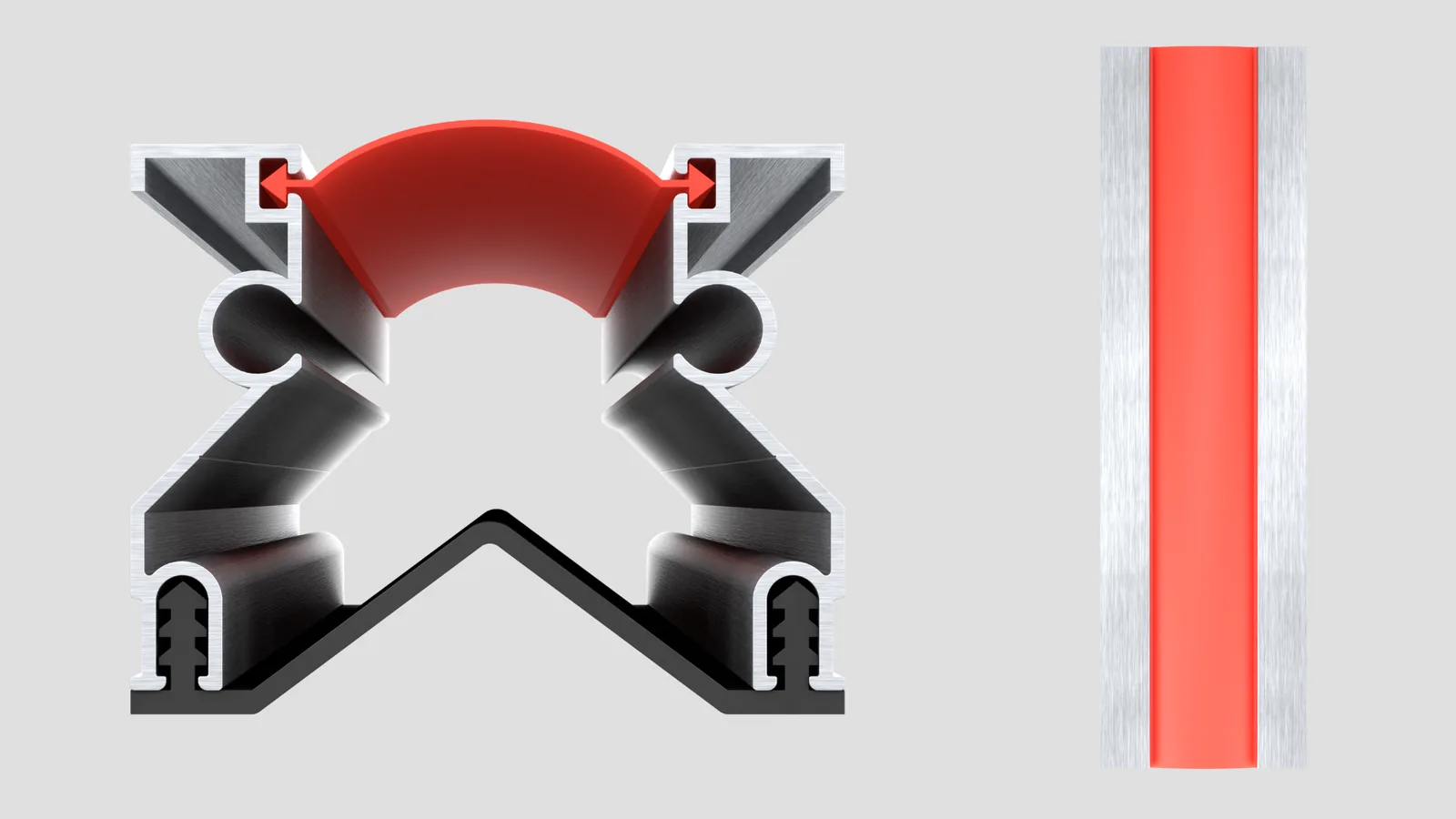

Premium Aluminum for Architectural Materials
Aluminum grade 6063, the premium material used in the expansion joint cover, offers strength, corrosion resistance, and durability. Available in T5 and T6 tempers or customized to meet project needs, this versatile alloy ensures exceptional structural integrity and longevity. Aluminum 6063 withstands high-traffic areas, extreme temperatures, and corrosive conditions, making it an ideal choice for diverse applications, from commercial facilities to infrastructure projects.

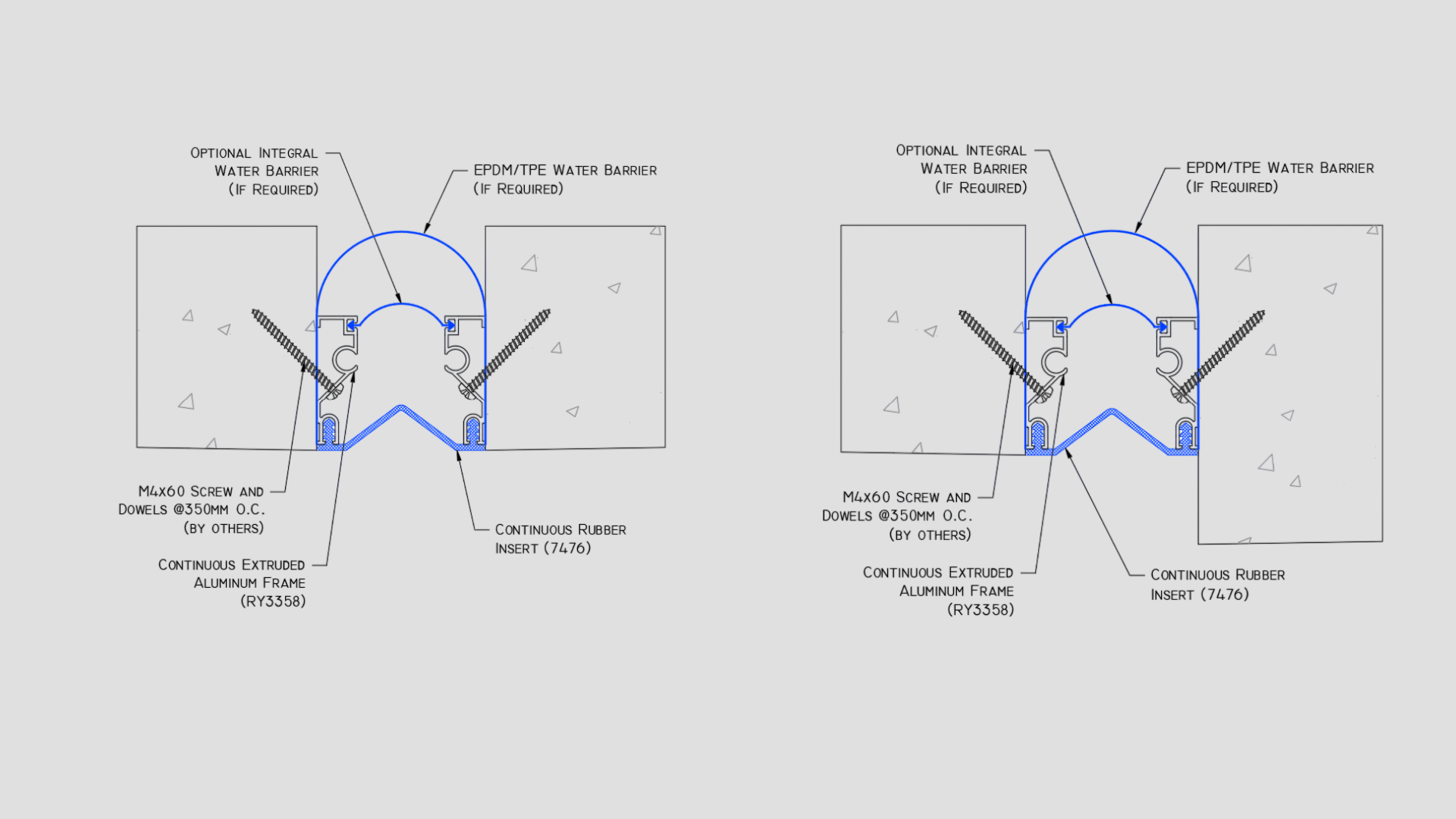

System Drawing
System drawings for the WE expansion joint cover include 75, 100, 200 and 900 mm joint widths in wall-to-wall or ceiling-to-ceiling conditions, all 60 mm high with an optional water barrier. Each size is downloadable as DWG and PDF.
interactive tool
gap size calculator
enter your expansion gap measurement to see if this product is right for you.
20mm ≈ credit card
50mm ≈ two fingers
100mm ≈ fist width
200mm ≈ hand span
mm
we covers gap sizes from 15mm to 125mm. enter your measurement above to see the movement capacity, profile width, and whether this product handles your requirements.
technical data
profile specifications
| model name | joint width (mm) | height (mm) | sightline (mm) | movement capability (%) |
|---|---|---|---|---|
| we-100 | 100 | 60 | 100 | ±50 |
| we-200 | 200 | 60 | 200 | ±50 |
| we-75 | 75 | 60 | 75 | ±50 |
| we-900 | 900 | 60 | 900 | ±50 |
| we-150 | 150 | 60 | 150 | ±50 |
from the technical datasheet
datasheet specifications
| Series | PROCAP Series (WE & WEK) |
|---|---|
| System type | Interior & Exterior Seismic System |
| Suitable movement | Seismic, Thermal, Settlement |
| Recommended for | Interior and Exterior Areas where Seismic / Multi-Directional Movements are present; Areas where Weather Protection is Critical |
| Components | Extruded Aluminum Support Profiles; Elastomeric Rubber Insert which absorbs the expansion & contraction in the adjacent concrete slabs; Integrated Elastomeric Rubber Back seal (Optional) |
| Material: Support Profiles | Extruded aluminum, grade AA 6063 preferred |
| Material: Elastomeric Rubber Insert | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); finish: Grooved Finish; black |
| Material: Vapor Barrier (Optional) | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); black |
| Supply length | 3.00 m per piece (support profiles) |
| Substrate tolerance | Surface level within ±2 mm; gap level within ±5 mm |
| Sizes | Per the system drawings; profiles can be customized to requirements |
Source: WE technical datasheet. Sizes and dimensions: profile specifications above and the system drawings.
alternatives
similar products to consider

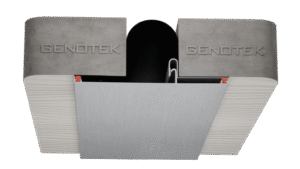

economyd1500
procover series
interior and exterior walls and ceilings, including drywall and direct-to-substrate installations, where a snap-fit surface-mount cover is required.
- gap range
- 15 – 94mm
- movement
- ±25%

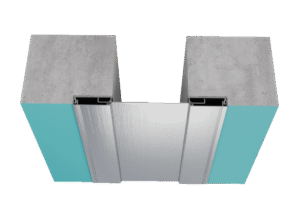

standardd3200
ecoglide series
interior and exterior walls and ceilings, including drywall and direct-to-substrate installations, where seismic or multi-directional movement is expected.
- gap range
- 50 – 250mm
- movement
- ±100%

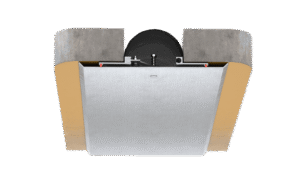

premiumd4000
proflex wc series
high seismic zones, airports, hospitals, convention centres, and critical infrastructure requiring large-gap coverage with multi-directional movement capacity.
- gap range
- 50 – 450mm
- movement
- ±100%
