z5000
profinish series
Introducing the Z-5000
seismic movement accommodation
capable of handling multi-directional seismic movement, lateral shear, and thermal expansion, the profinish series ensures flexibility without stressing its metal components. this allows the system to maintain its integrity and function even under significant structural shifts.
water protection
featuring an integrated water barrier that connects seamlessly to adjacent waterproofing membranes, the profinish ensures complete water resistance without the need for punctures or anchor holes in the barrier. this design prevents water ingress, providing reliable protection in areas exposed to constant moisture.
load bearing
constructed to support heavy pedestrian traffic and light vehicular loads, the profinish series offers durability and resilience for high-traffic interior and exterior spaces.
assembly in action
this video demonstrates the assembly process, perfectly designed for easy installation for durability and reliability.
Aesthetic Choice
The central pan assembly provides a deep recess that can hold finishing materials, effectively concealing the joint while blending with the surrounding flooring. This feature makes the PROFINISH a perfect solution for spaces that prioritize a clean, uninterrupted aesthetic

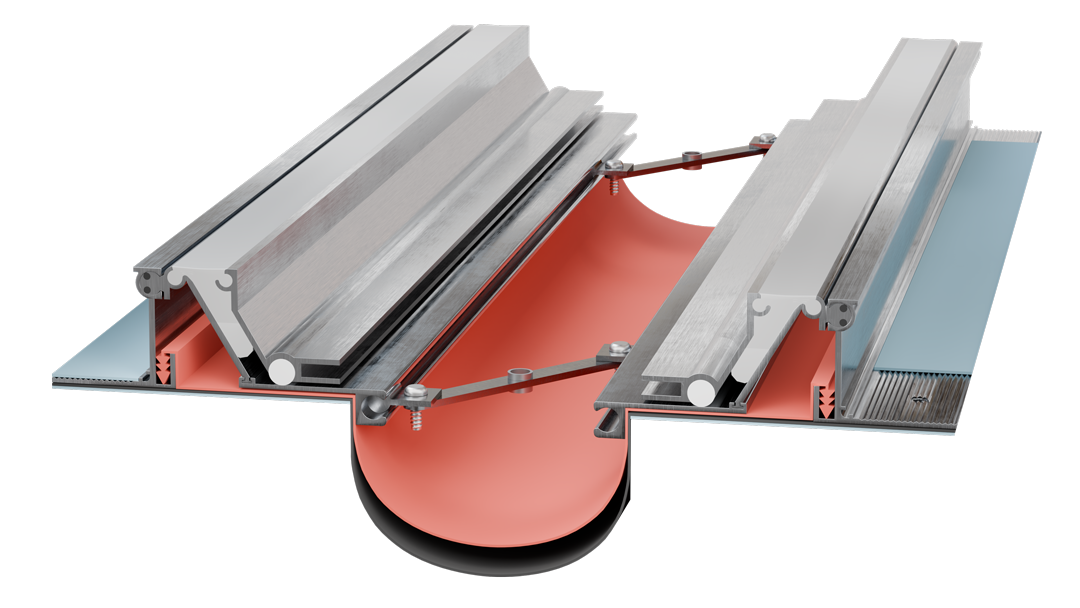

Optional Vapor Barrier

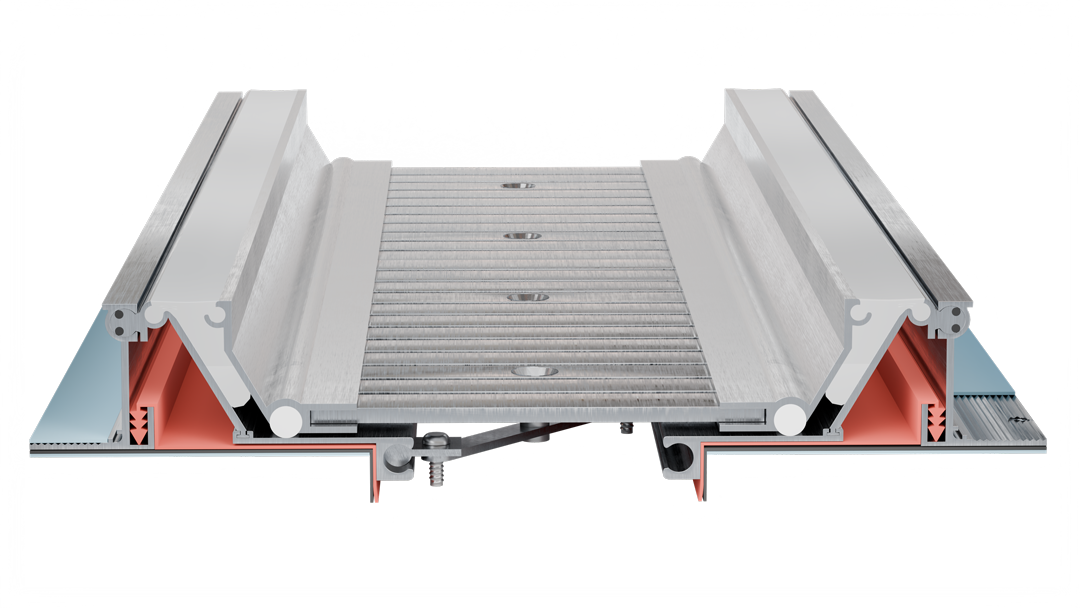

Customizable Recessed Pan for Floor Finishes
Galvanized Steel Turn-bar for Structural Stability

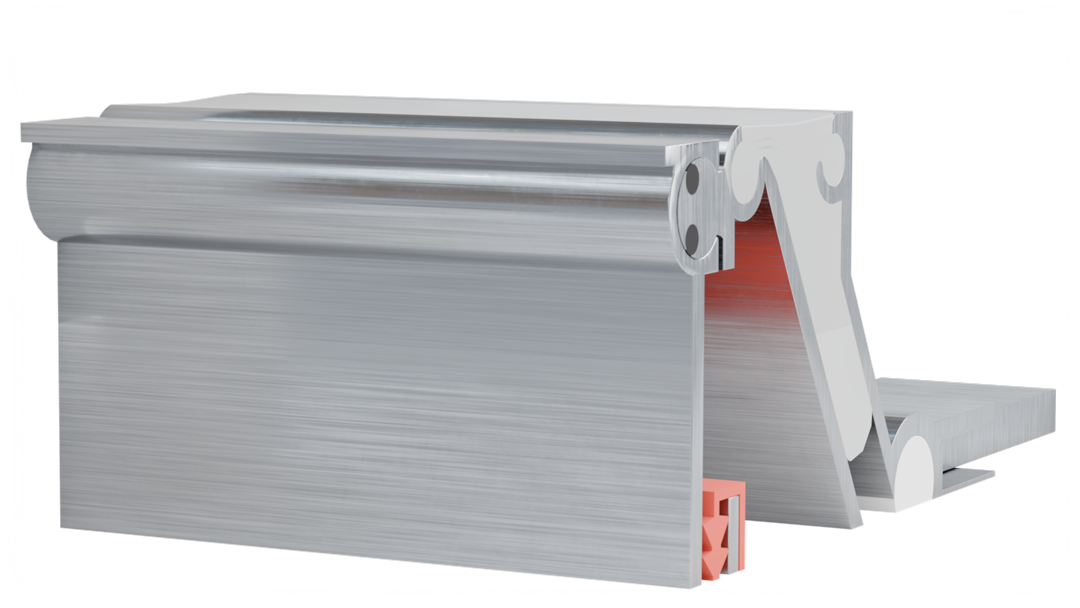

Noise Reduction

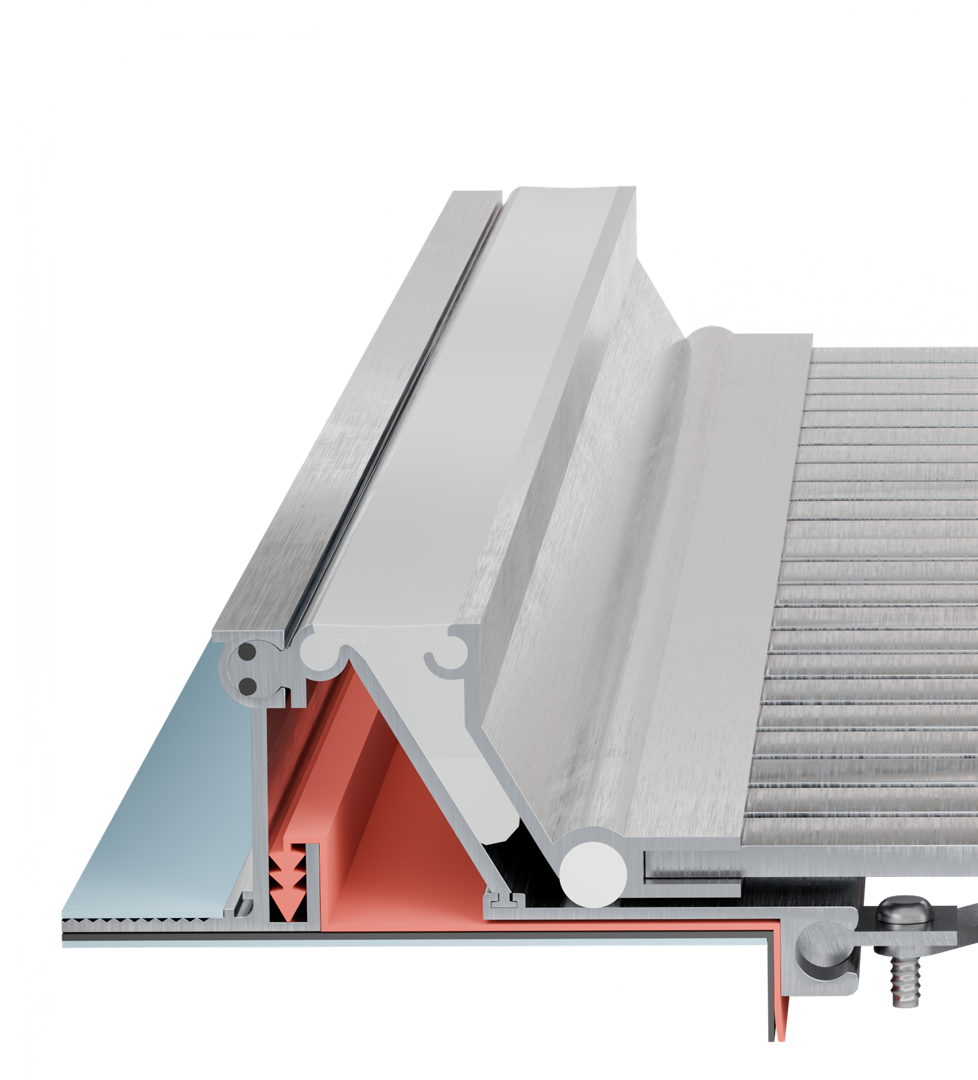

Versatile Sealant and Backer Rod
Premium Aluminum for Architectural Materials

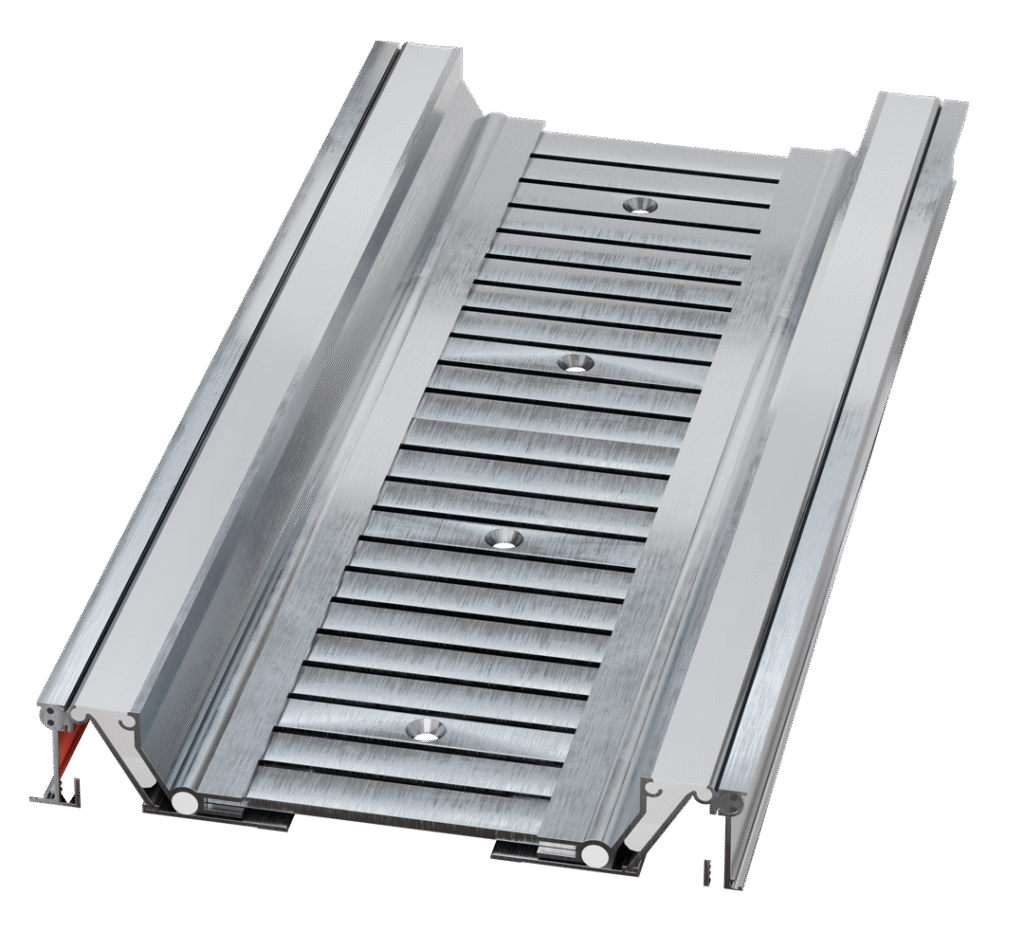

System Drawing
gap size calculator
enter your expansion gap measurement to see if this product is right for you.
profile specifications
| model name | joint width (mm) | height (mm) | sightline (mm) | movement capability (%) | load capacity |
|---|---|---|---|---|---|
| z-5000-100 | 100 | 45 | 268 | ±50 | HEAVY PEDESTRIAN / LIGHT VEHICULAR |
| z-5000-200 | 200 | 45 | 418 | ±50 | HEAVY PEDESTRIAN / LIGHT VEHICULAR |
| z-5000-300 | 300 | 45 | 568 | ±50 | HEAVY PEDESTRIAN / LIGHT VEHICULAR |
| zk-5000-100 | 100 | 45 | 184 | -50/+25 | HEAVY PEDESTRIAN / LIGHT VEHICULAR |
| zk-5000-200 | 200 | 45 | 309 | -50/+25 | HEAVY PEDESTRIAN / LIGHT VEHICULAR |
| zk-5000-300 | 300 | 45 | 434 | -50/+25 | HEAVY PEDESTRIAN / LIGHT VEHICULAR |
datasheet specifications
| Series | PROFINISH Series (Z-5000 & ZK-5000) |
|---|---|
| System type | Pop-up Seismic Expansion Joint Cover |
| Suitable movement | Seismic, Thermal, Settlement |
| Load capacity | Heavy Pedestrian Traffic; Light Vehicular Traffic |
| Recommended for | Areas where Aesthetic plays an important role and Multi Directional/Seismic Movement is expected; Hospitality, Retail, Commercial and similar applications |
| Components | Extruded Aluminum Support Frames Assembly; Extruded Aluminum Center Pan Assembly; Aluminum Center Plate; Steel Turn-bar Assembly |
| Material: Support Profiles, Center Pan Plate, & Pan Nosing | Extruded aluminum, grade AA 6063 preferred |
| Material: Vapor Barrier (Optional) | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); black |
| Supply length | 3.00 m per piece (support profile, pan nosing and center plate) |
| Substrate tolerance | Surface level within ±2 mm; gap level within ±5 mm |
| Sizes | Per the system drawings; profiles can be customized to requirements |
Source: Z5000 technical datasheet. Sizes and dimensions: profile specifications above and the system drawings.
