z5200
superfinish fs series

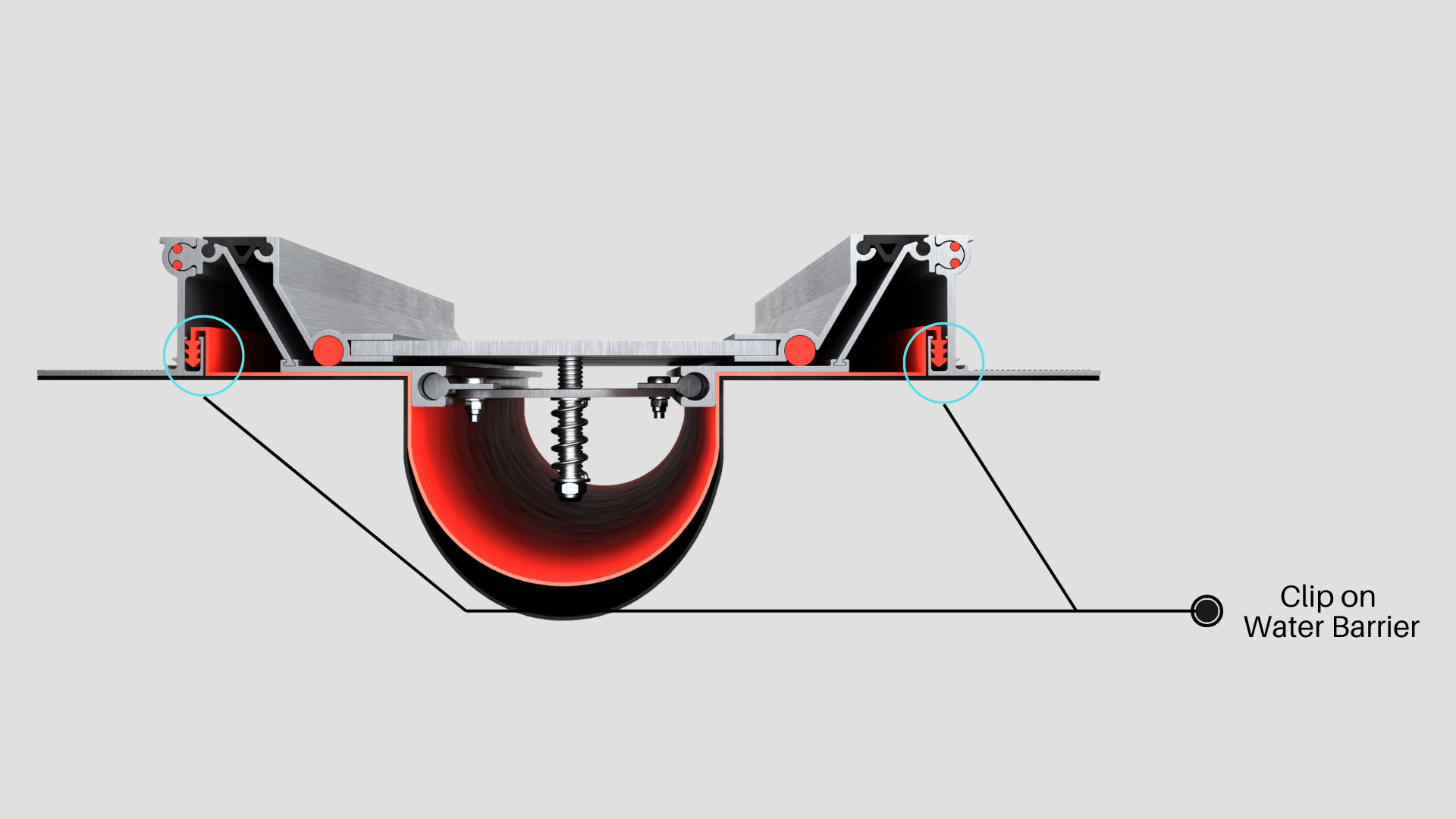

For added protection, an optional vapor barrier is available, constructed from either EPDM or TPV, which offers high tensile and tear resistance, ensuring long-term performance against moisture penetration

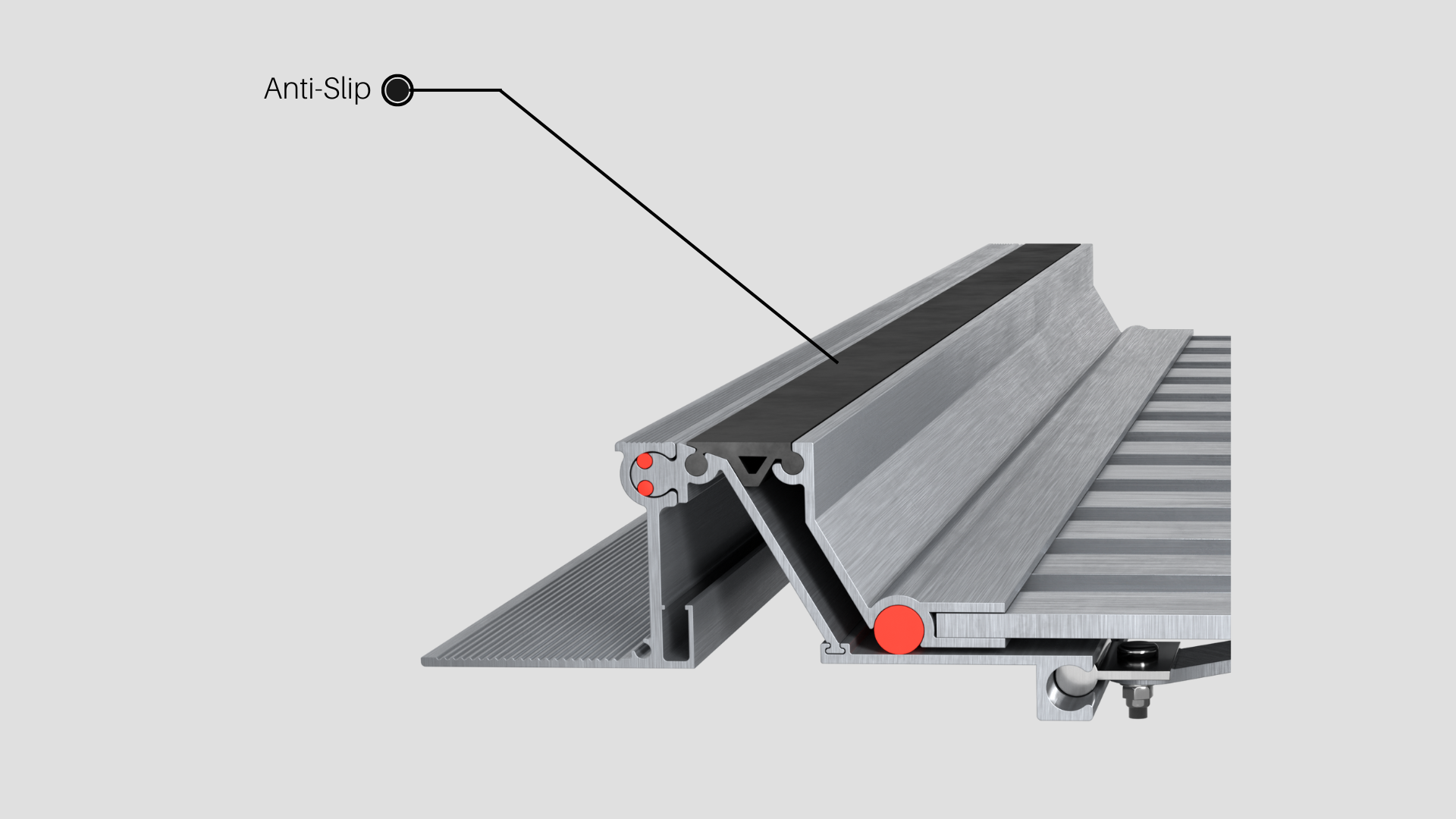

The anti-slip serrations in the aluminum surface of an expansion joint provide exceptional traction and safety along with rubber insert for enhanced grip. These precision-engineered grooves create a high-grip texture that prevents slips and skids, even in wet conditions. The serrated design ensures secure footing for pedestrians and vehicles, enhancing the joint’s overall safety and functionality. Engineered for durability and performance, these anti-slip serrations offer a reliable, long-lasting solution for maintaining a safe environment in various applications

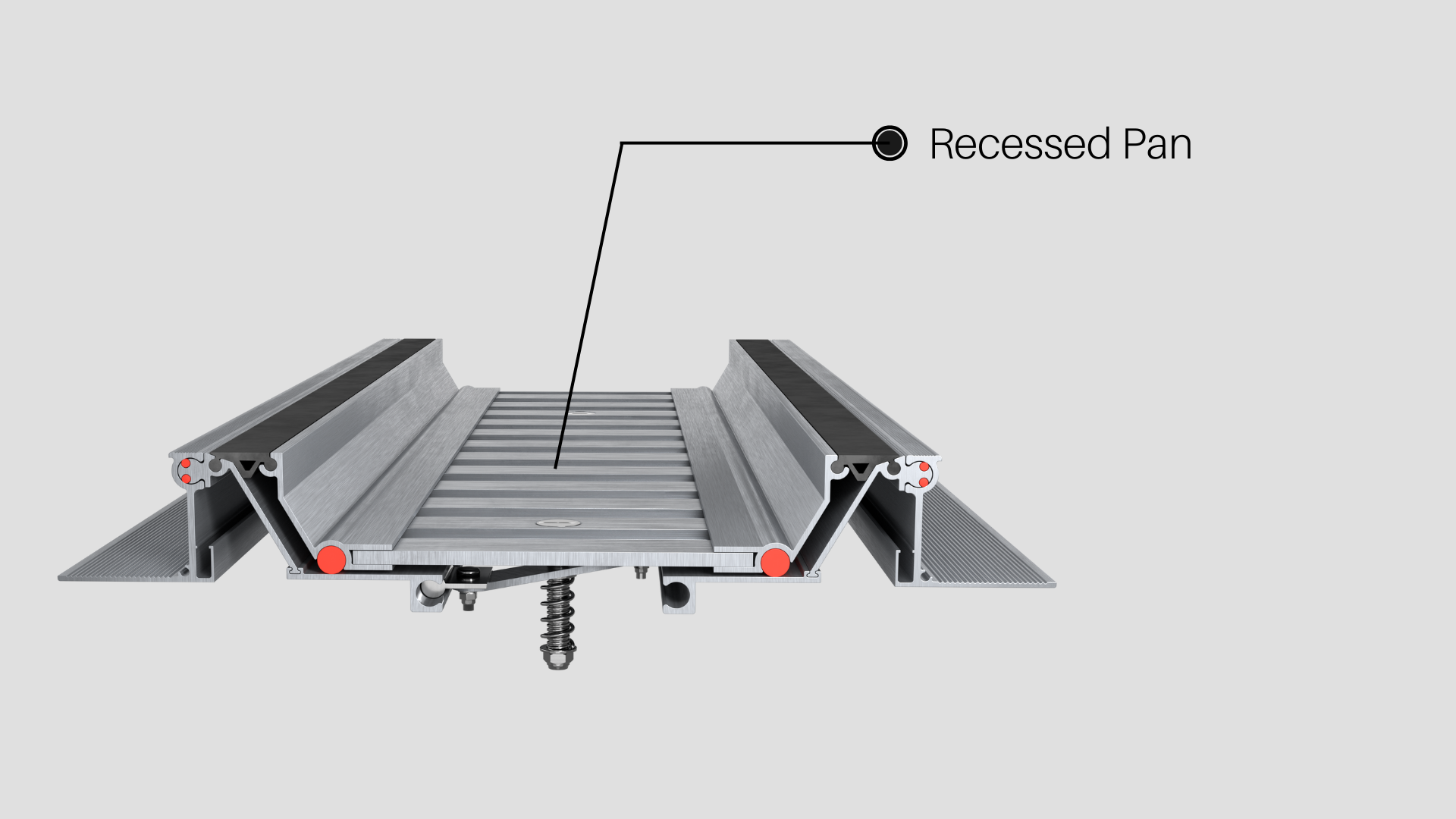

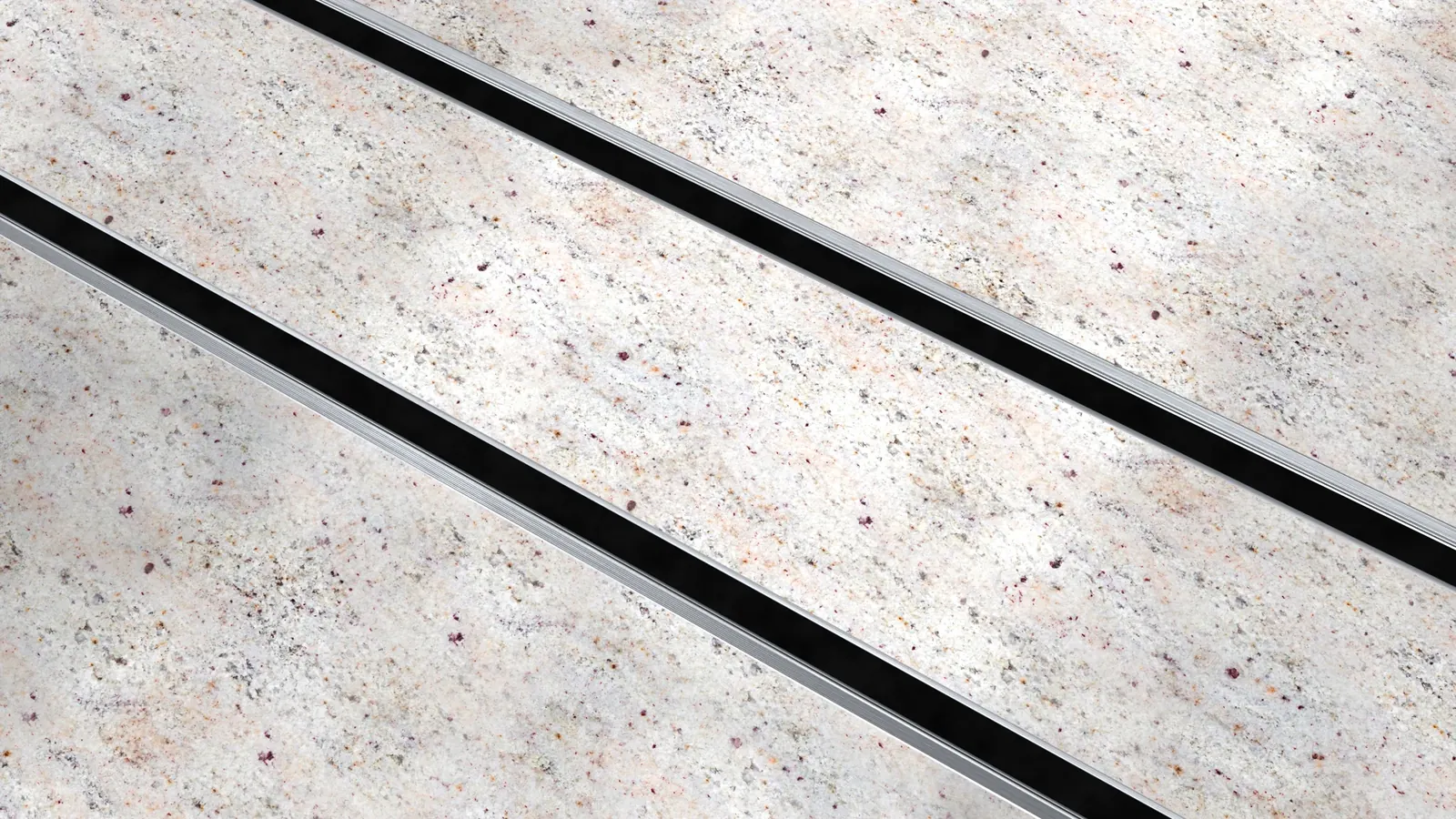

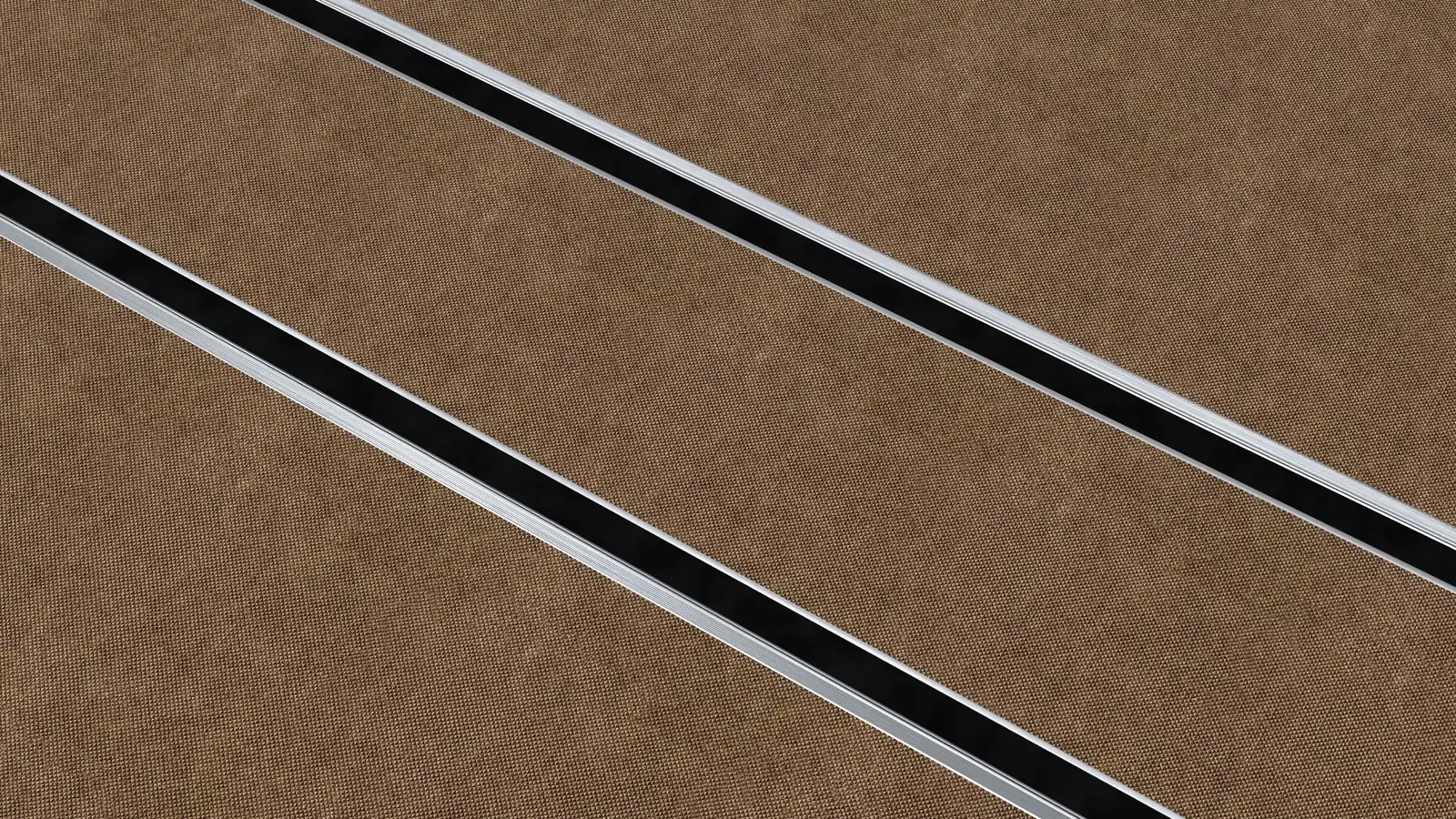

The deep recessed pan allows for customization with various floor finishes, enabling the joint to blend seamlessly with different design styles while maintaining the structural support required for heavy-duty use

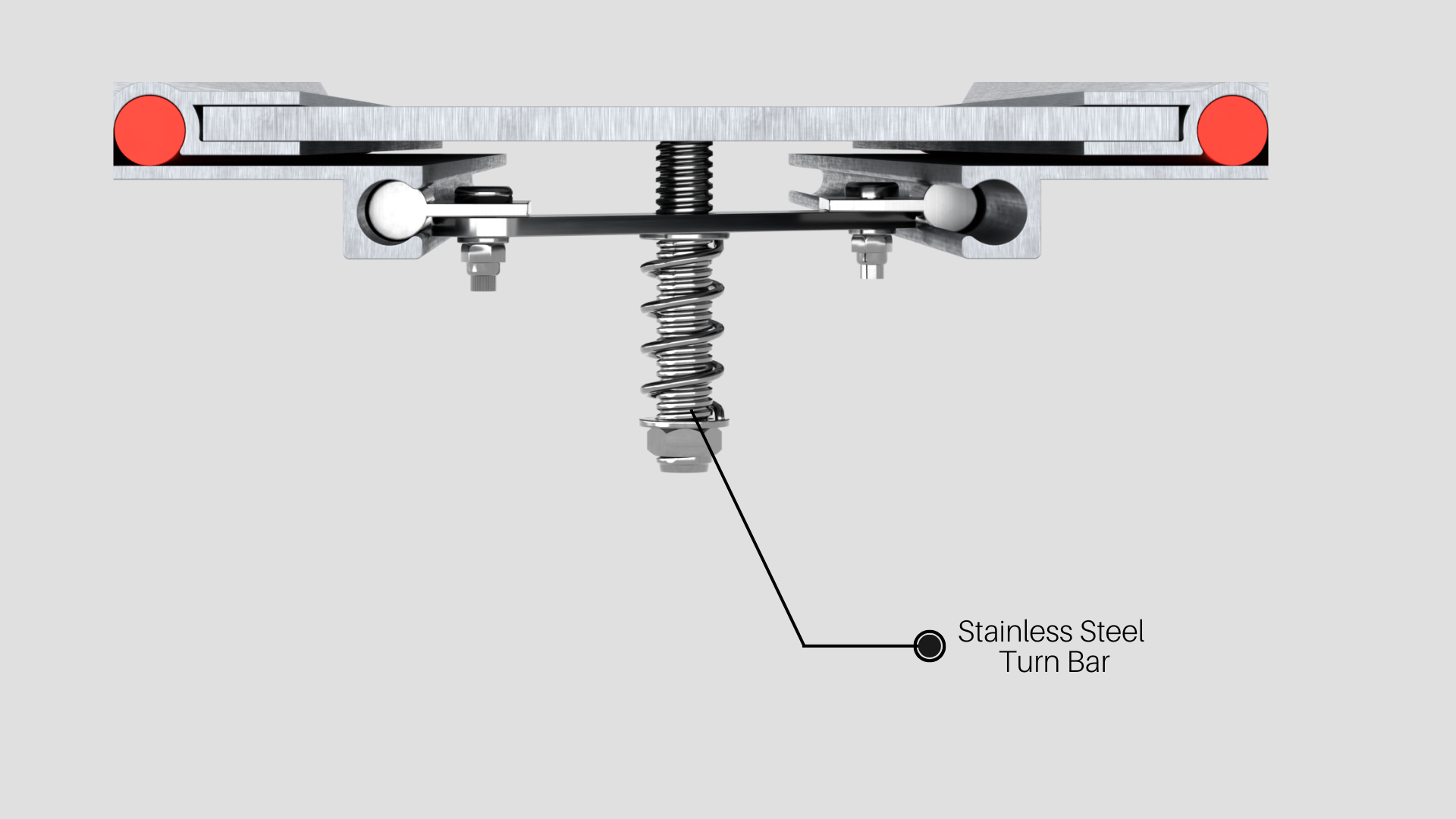

The turn-bar component reinforces stability, enabling the system to accommodate multi-directional movement while keeping the cover aligned and stable.

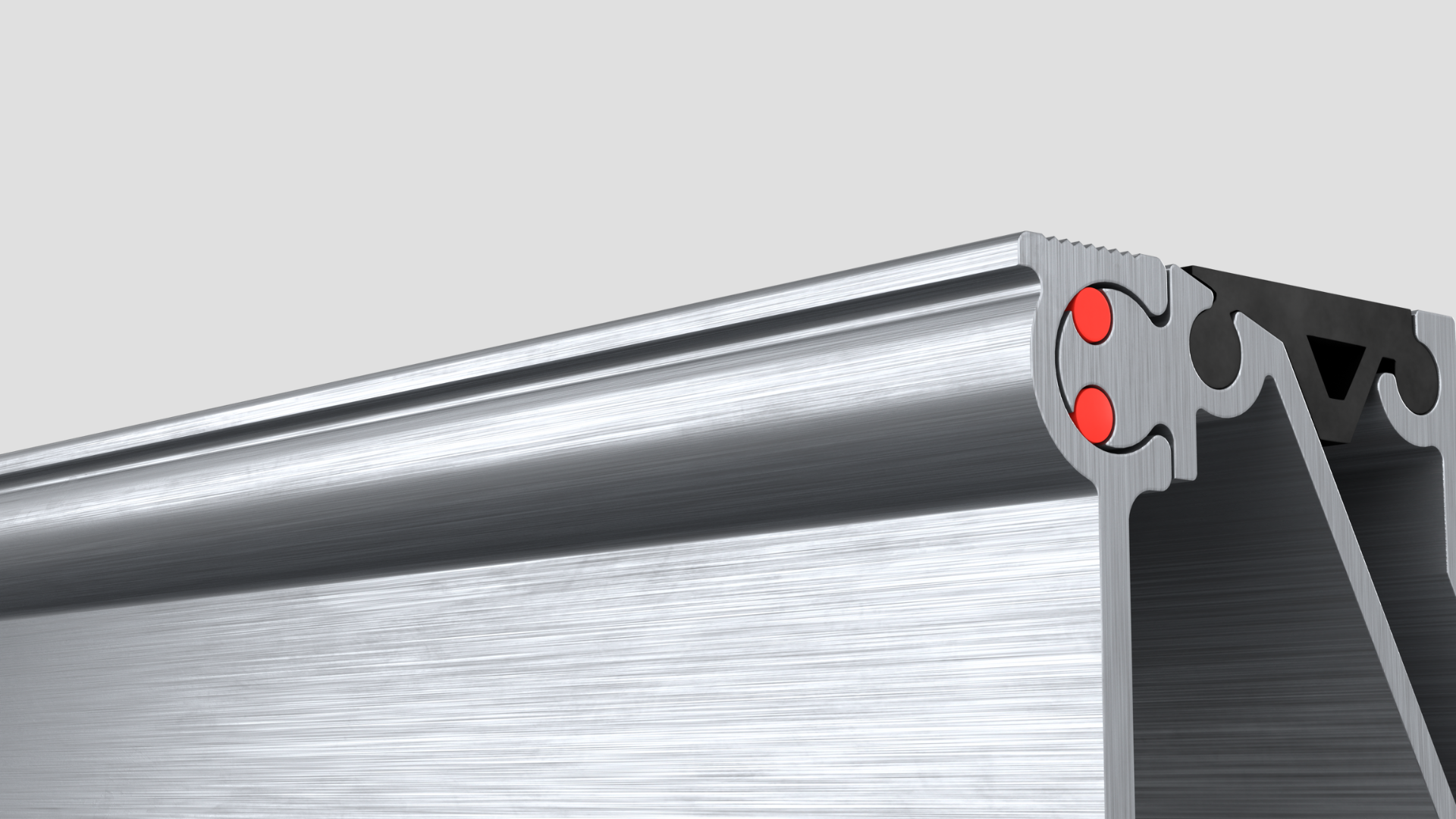

Integrated elastomeric rubber gaskets between the aluminum profiles to cancel out metal-to-metal noise, enhancing acoustic comfort. This feature minimizes noise when subjected to movement, delivering a quiet and efficient joint cover solution for various applications

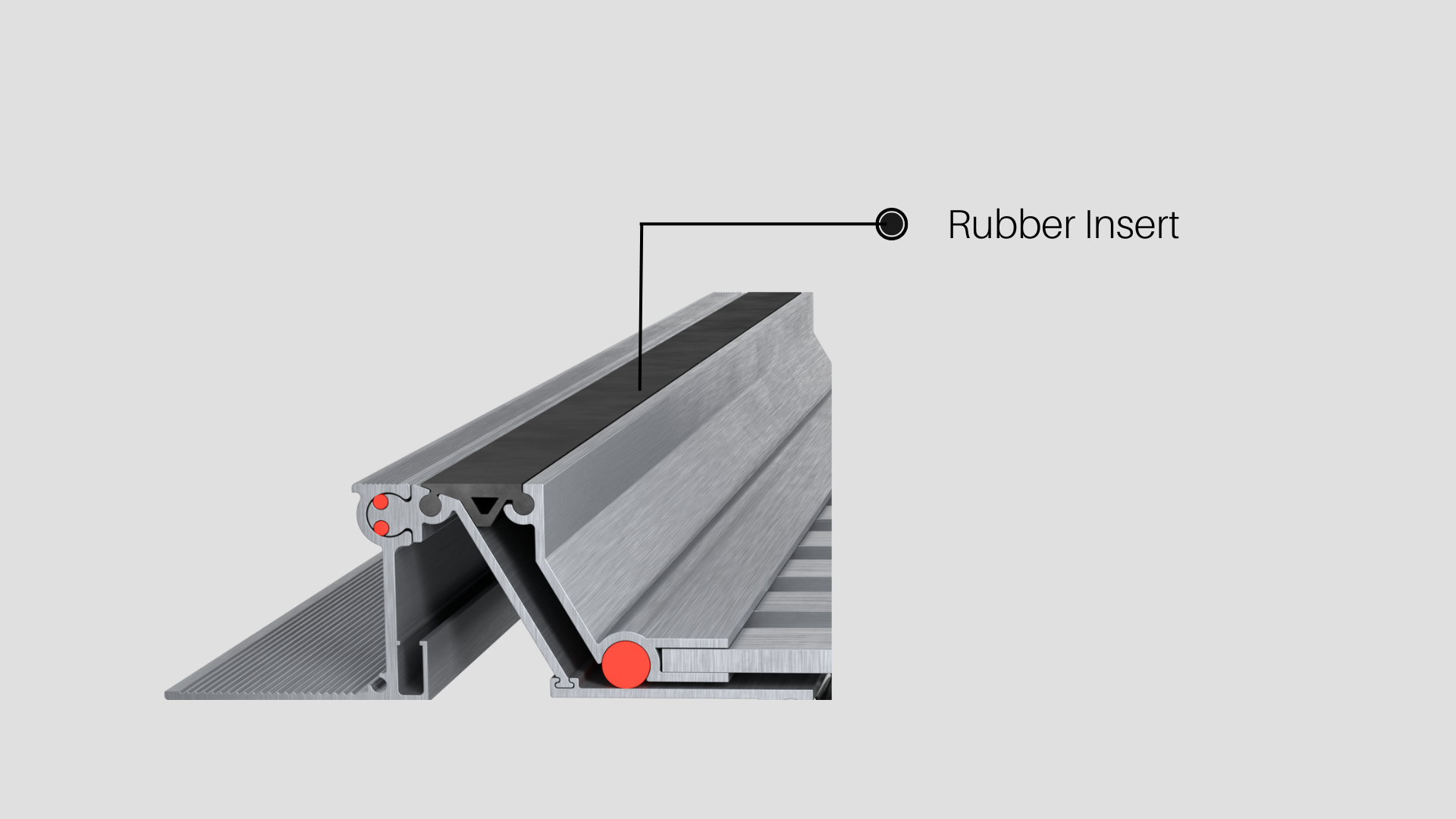

Rubber inserts with a Shore A hardness of 60-70, designed for reliable movement absorption. These inserts provide exceptional durability and flexibility, ensuring seamless performance even under high movement conditions. Additionally, they maintain the aesthetic appeal by effectively concealing the joint, delivering a clean and professional finish to your structure

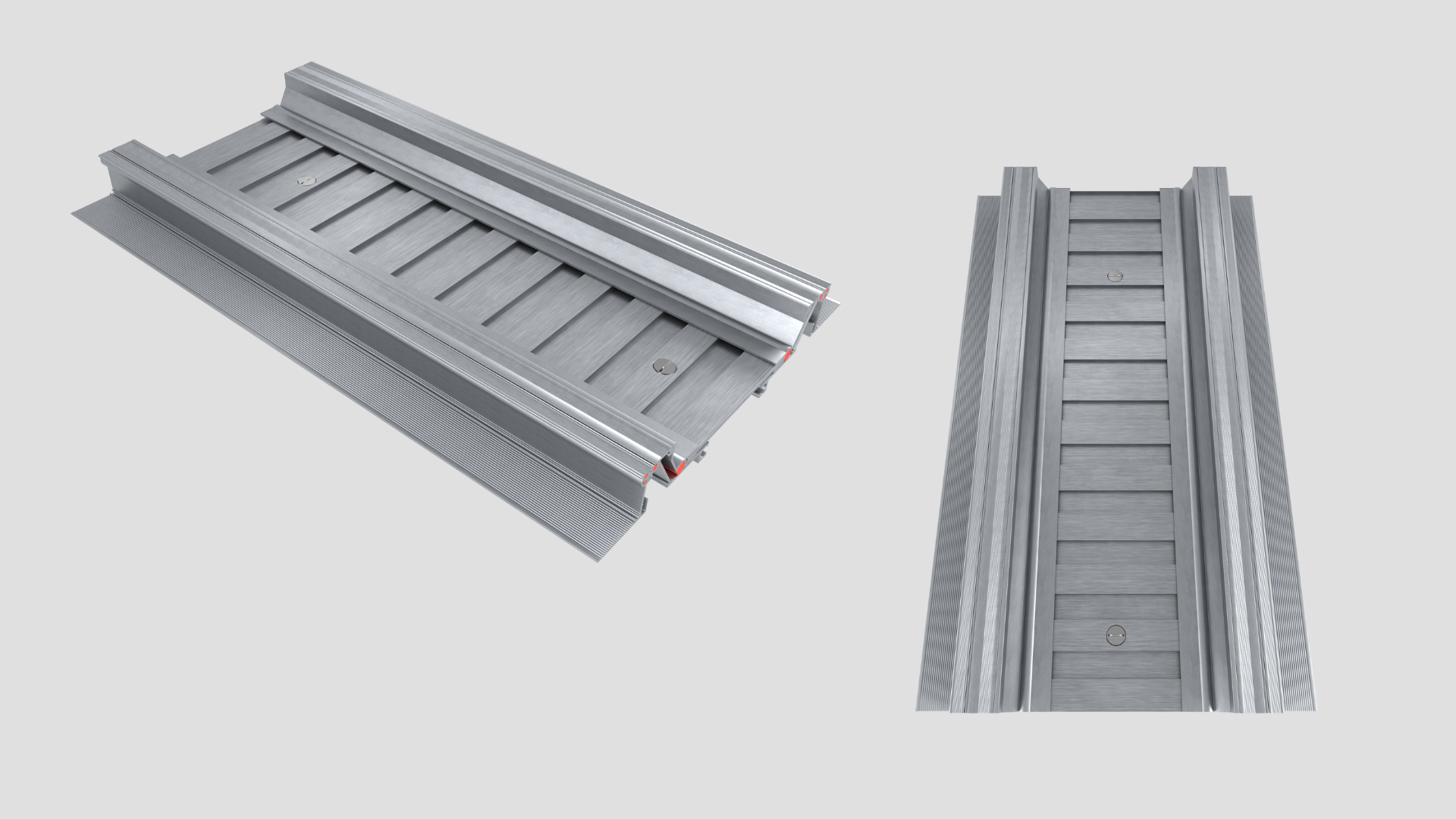

Aluminum grade 6063, the premium material used in the expansion joint cover, offers strength, corrosion resistance, and durability. Available in T5 and T6 tempers or customized to meet project needs, this versatile alloy ensures exceptional structural integrity and longevity. Aluminum 6063 withstands high-traffic areas, extreme temperatures, and corrosive conditions, making it an ideal choice for diverse applications, from commercial facilities to infrastructure projects

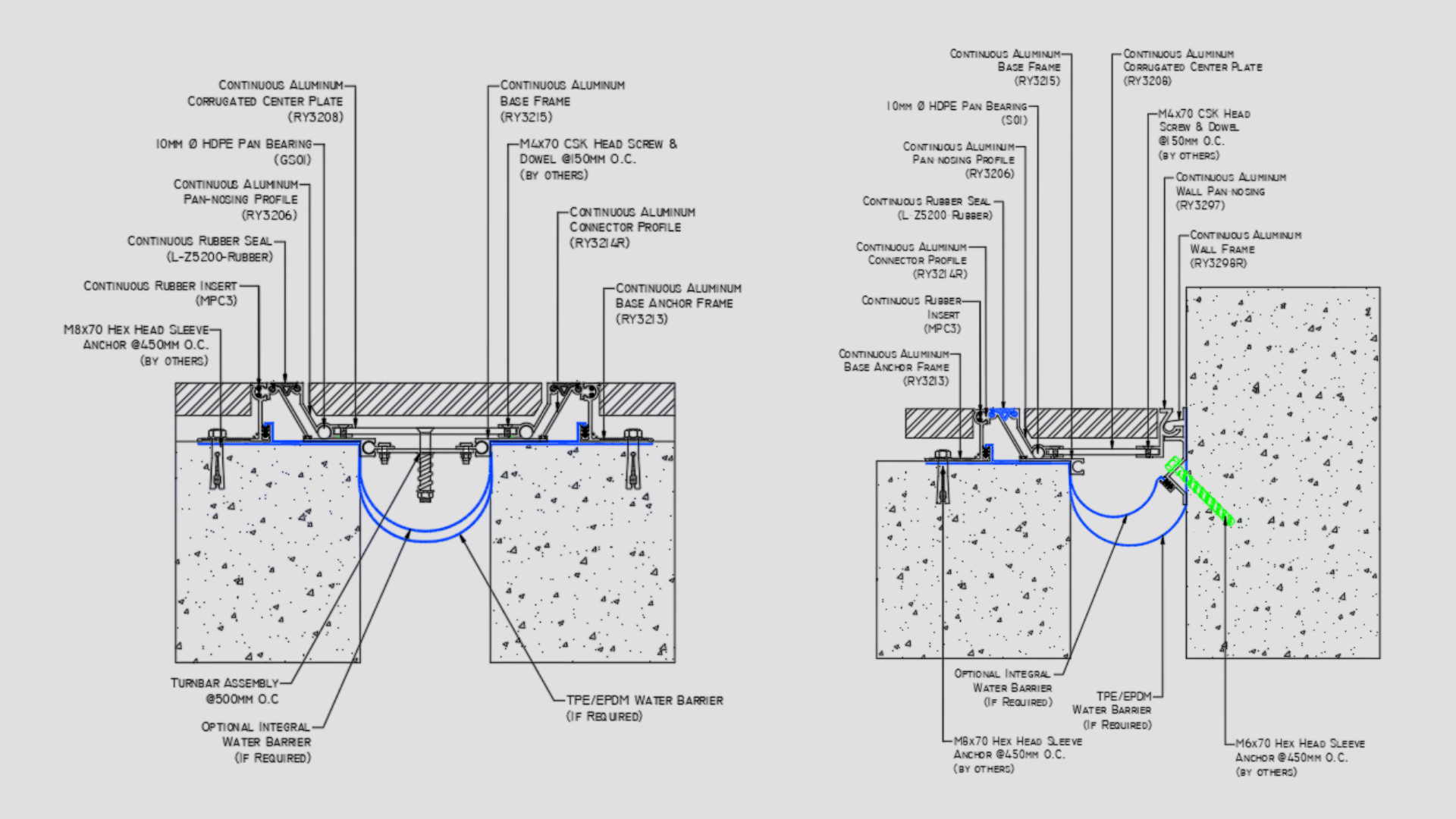

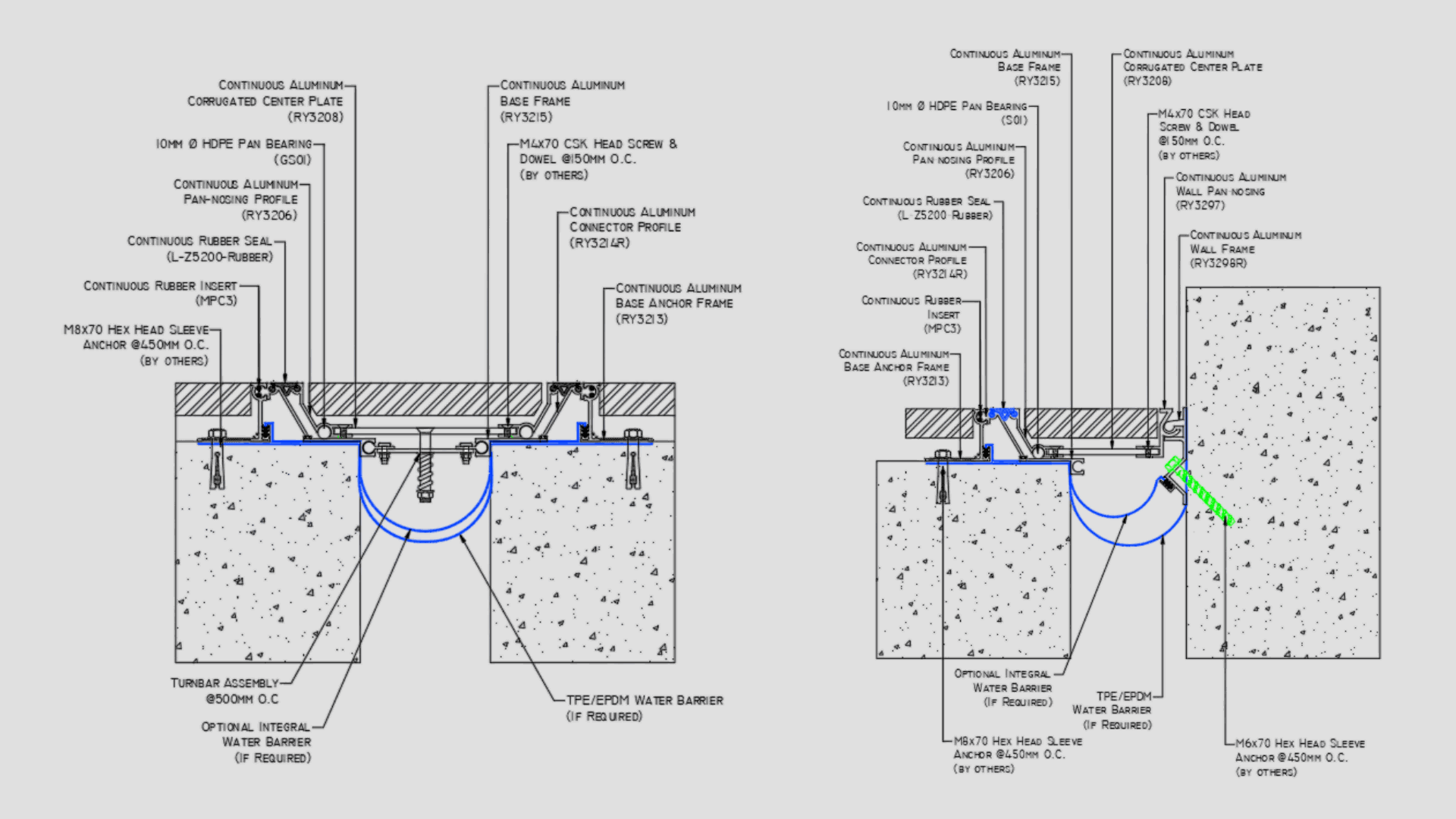

The Z-5200 expansion joint cover system drawings cover 100, 200 and 300 mm joint widths, in floor-to-floor (Z-5200) and floor-to-wall (ZK-5200) conditions, each with its center pan and rubber insert. Each size is downloadable as DWG and PDF.
