Introducing the Z5500

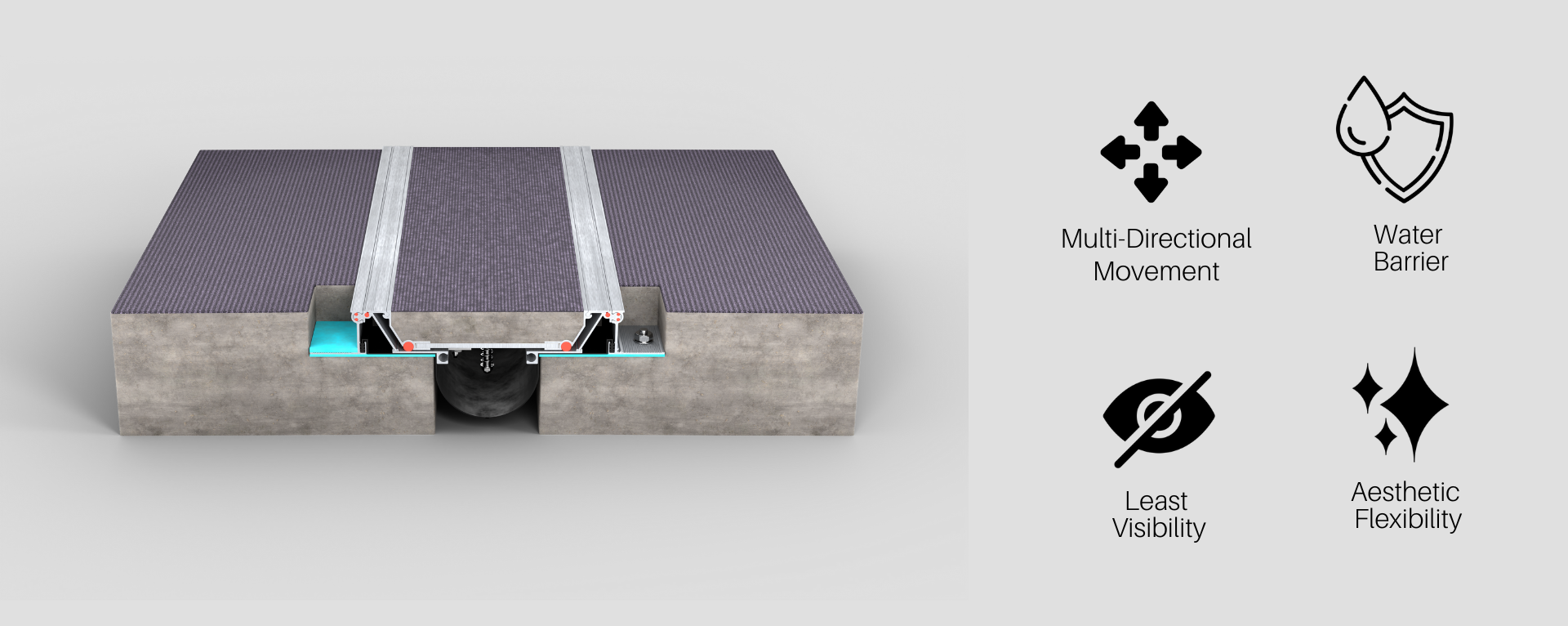

The LUXFINISH Series Z-5500 & ZK-5500 is a premium pop-up seismic expansion joint cover engineered for seamless integration in floors. Designed to provide a minimal visible sightline, this high-performance joint cover is ideal for areas where aesthetics and multi-directional movement are critical. With a unique central pan that can accommodate finishing materials, the LUXFINISH maintains a cohesive look across flooring, making it an excellent choice for hospitality, retail, and commercial environments.
movement
01 — movement
seismic movement accommodation
capable of handling multi-directional seismic movement, lateral shear, and thermal expansion, the luxfinish series ensures flexibility without stressing its metal components. this allows the system to maintain its integrity and function even under significant structural shifts.
water barrier
02 — water barrier
water protection
an optional epdm or tpv vapor barrier can be specified with the luxfinish z-5500 for added protection against water and moisture penetration, for interior and exterior floors.
load bearing
03 — load bearing
load bearing
constructed to support heavy pedestrian traffic and light vehicular loads, the luxfinish series offers durability and resilience for high-traffic interior and exterior spaces
assembly
04 — assembly
assembly in action
this video demonstrates the assembly process, perfectly designed for easy installation for durability and reliability.

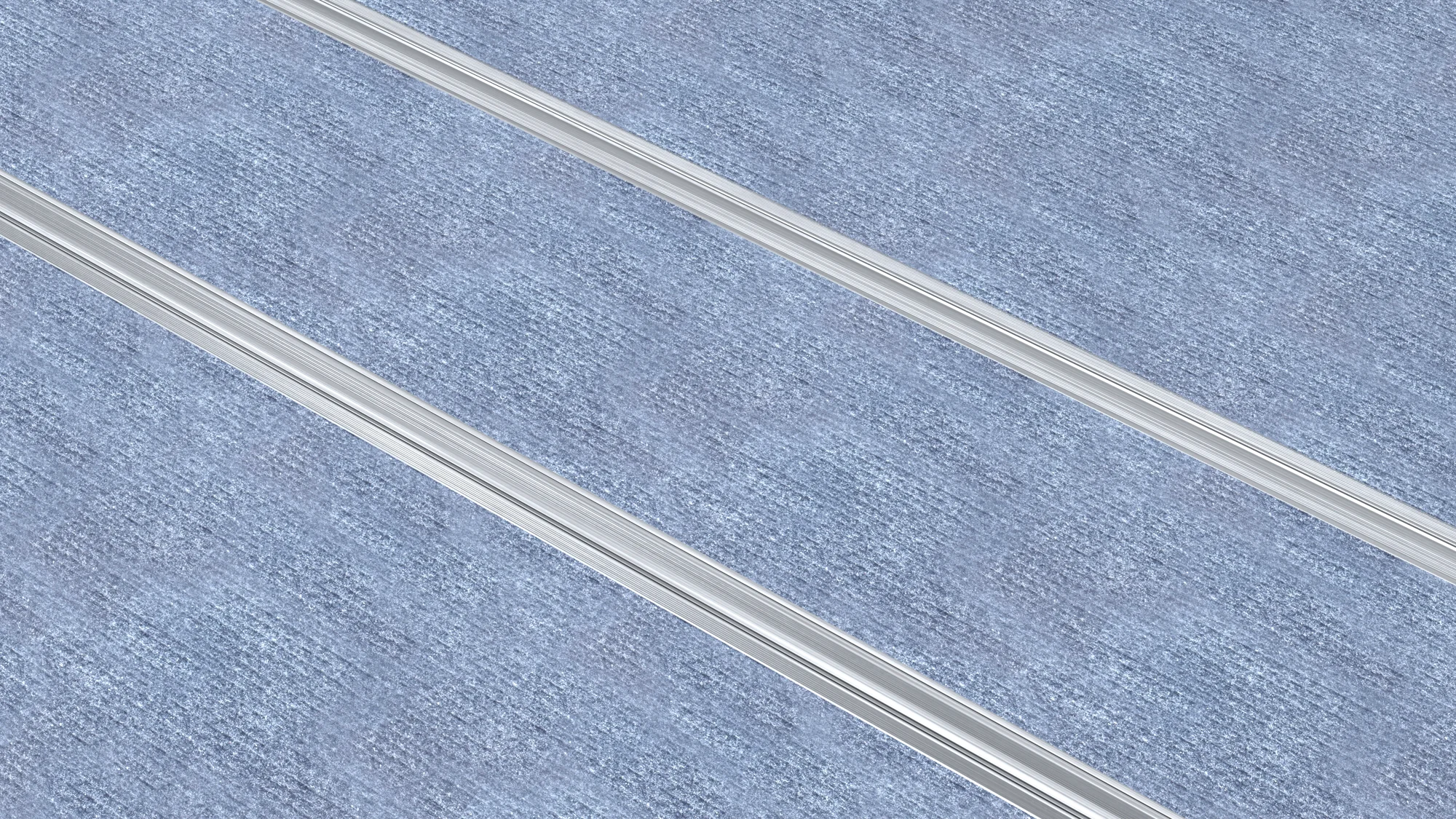

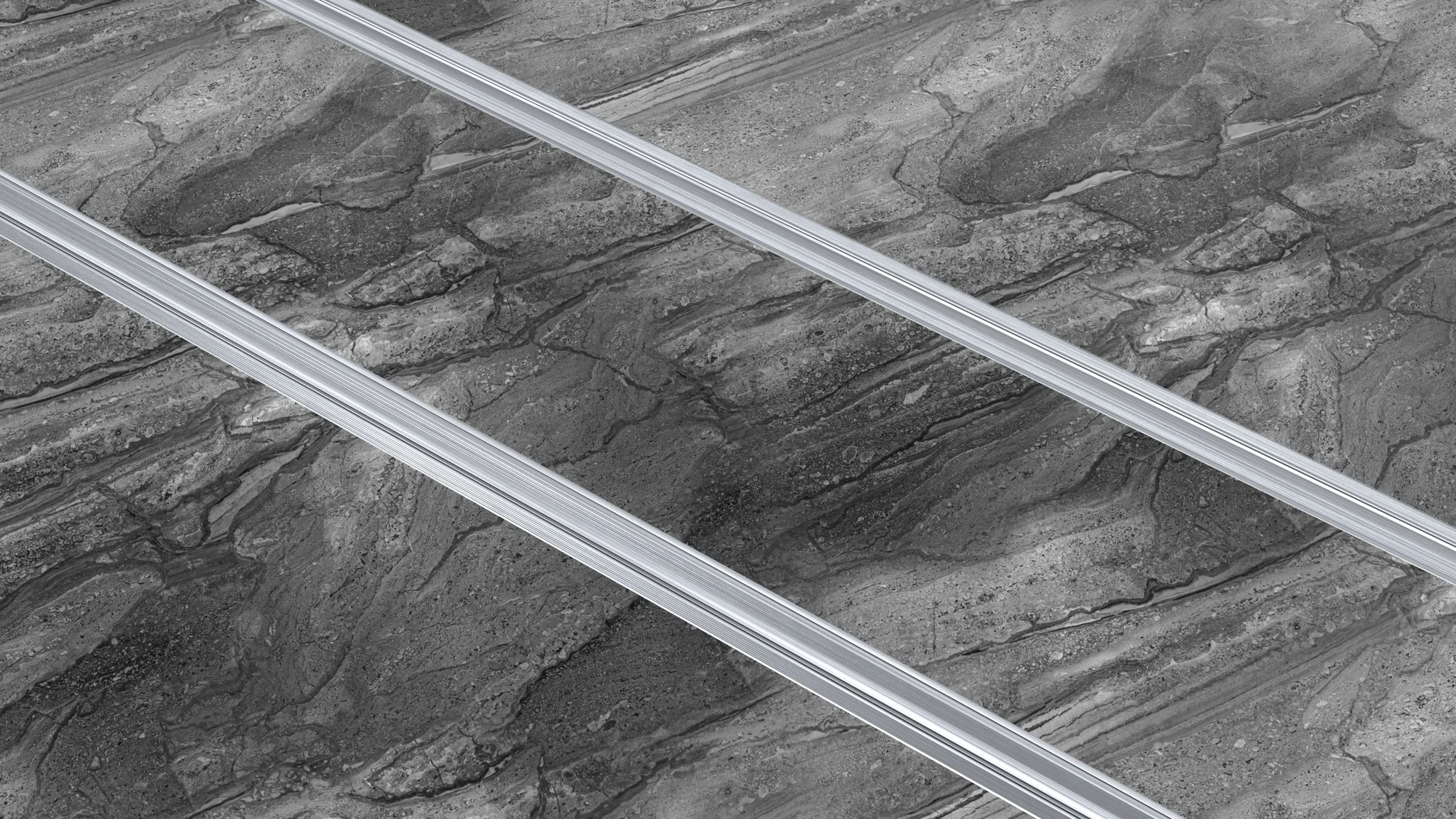

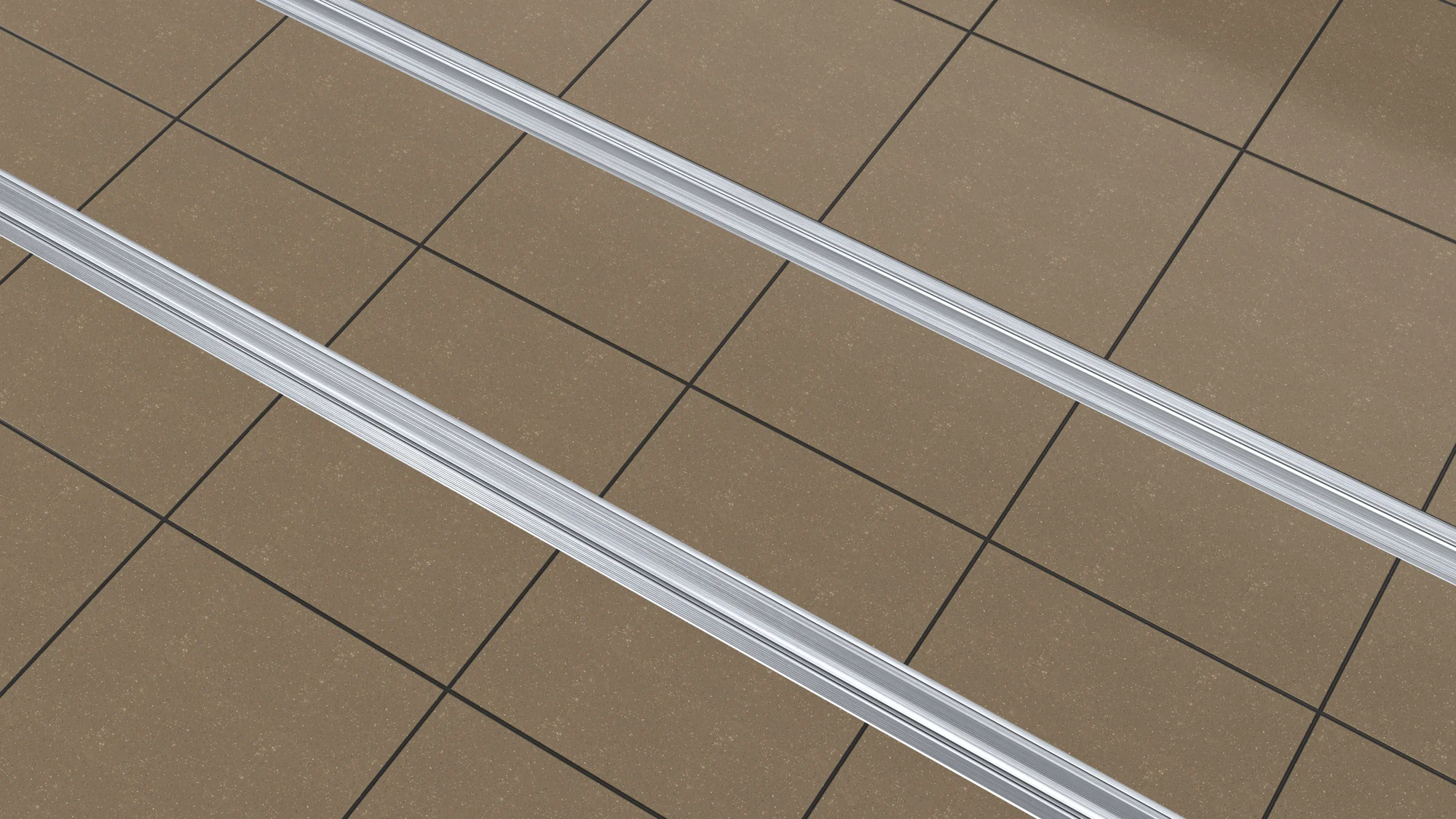

Aesthetic Choice
The central pan assembly provides a deep recess that can hold finishing materials, effectively concealing the joint while blending with the surrounding flooring. This feature makes the LUXFINISH a perfect solution for spaces that prioritize a clean, uninterrupted aesthetic

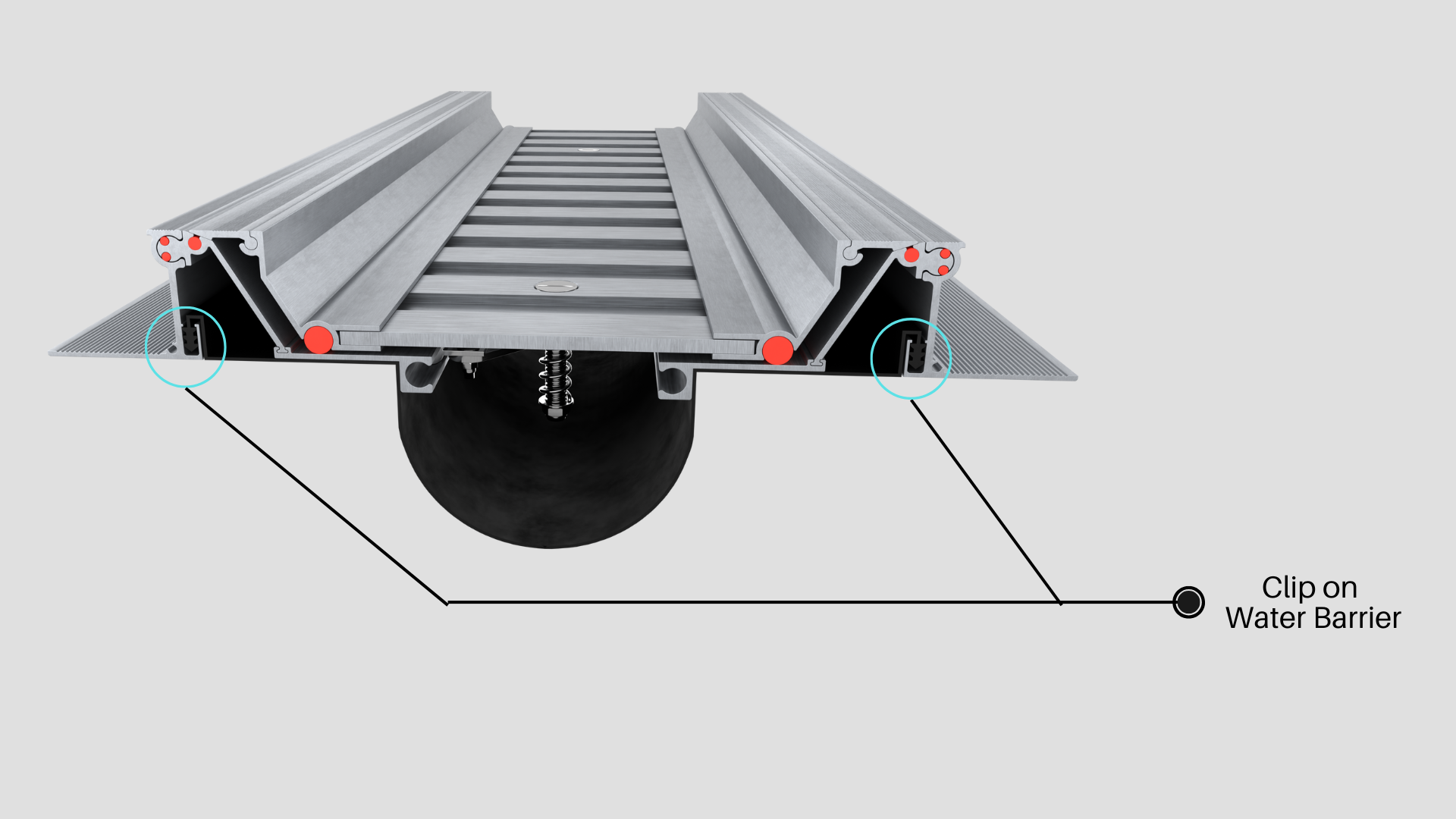

Optional Vapor Barrier
For added protection, an optional vapor barrier is available, constructed from either EPDM or TPV, which offers high tensile and tear resistance, ensuring long-term performance against moisture penetration

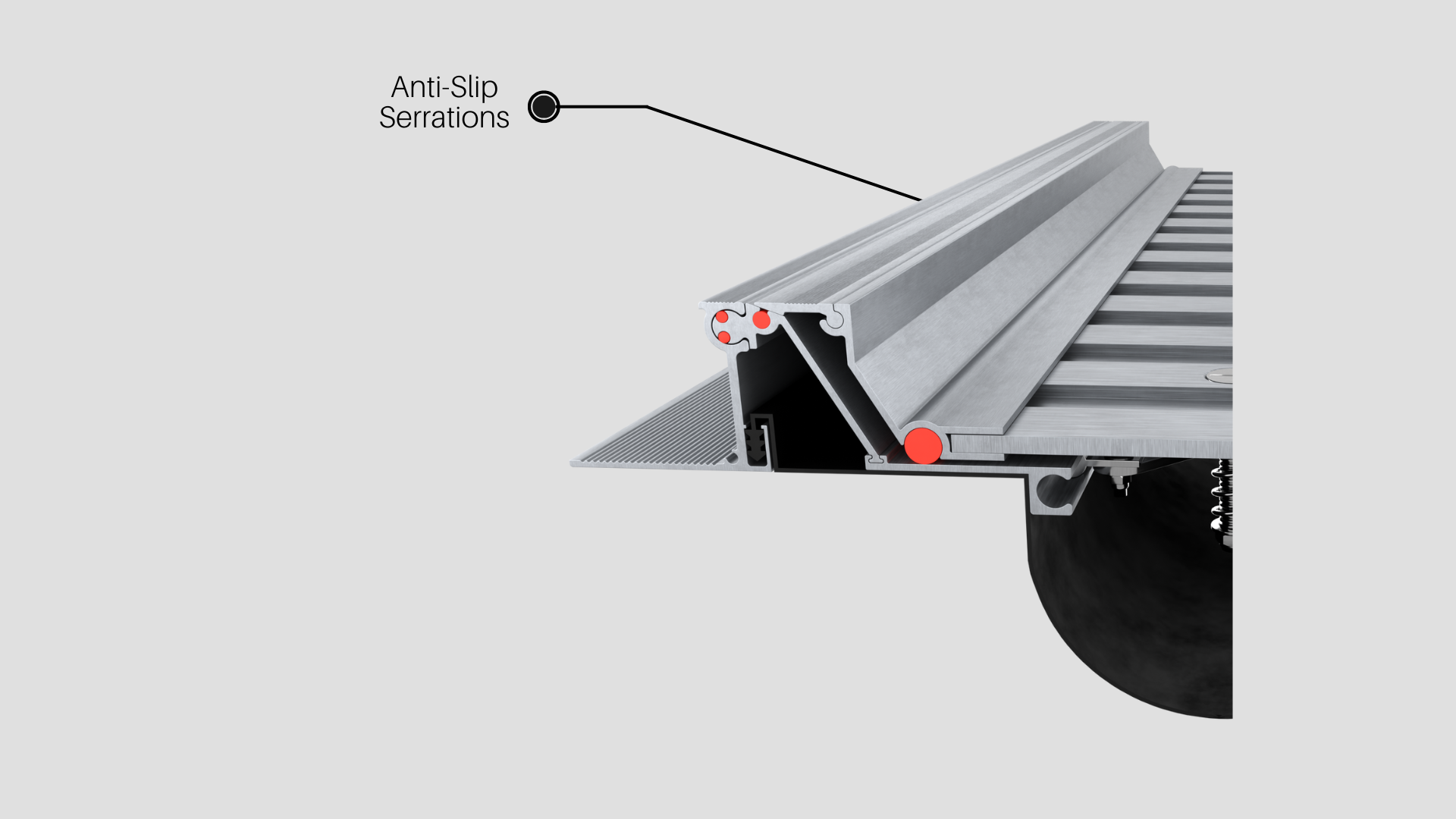

Anti-slip Serration
The anti-slip serrations in the aluminum surface of an expansion joint provide exceptional traction and safety. These precision-engineered grooves create a high-grip texture that prevents slips and skids, even in wet conditions. The serrated design ensures secure footing for pedestrians and vehicles, enhancing the joint’s overall safety and functionality. Engineered for durability and performance, these anti-slip serrations offer a reliable, long-lasting solution for maintaining a safe environment in various applications

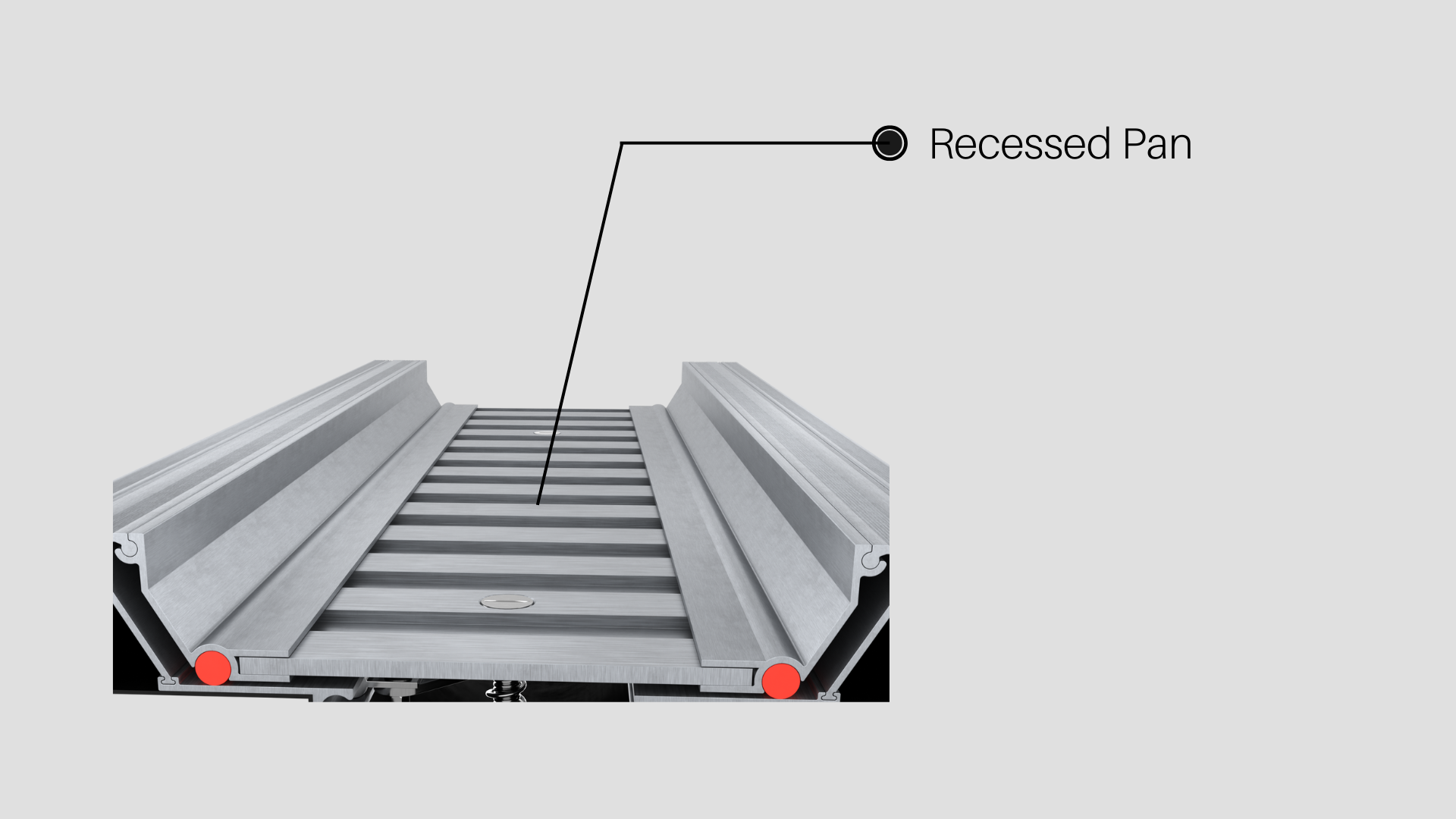

Customizable Recessed Pan for Floor Finishes
The deep recessed pan allows for customization with various floor finishes, enabling the joint to blend seamlessly with different design styles while maintaining the structural support required for heavy-duty use.

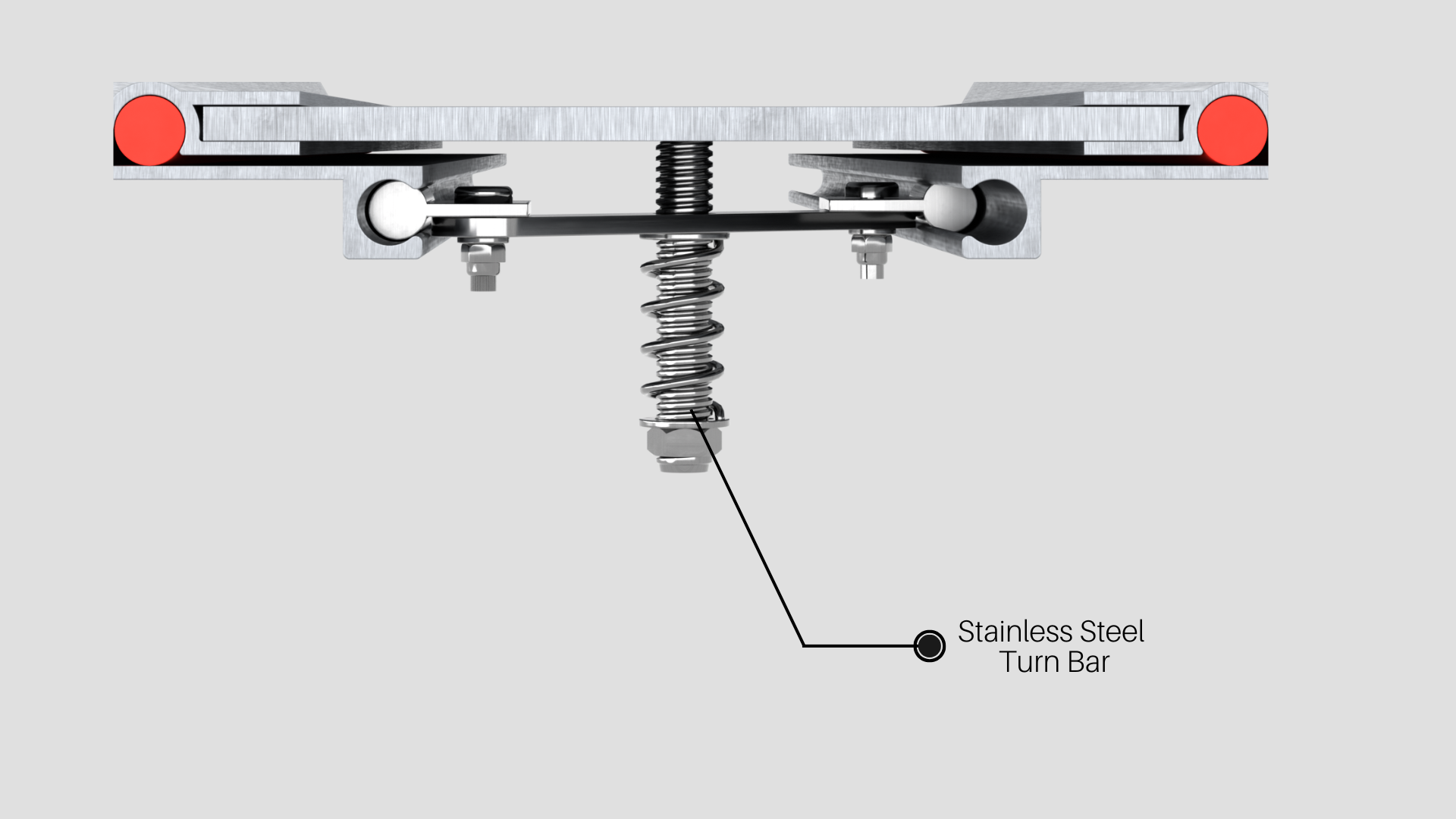

Galvanized Steel Turn-bar for Structural Stability
The turn-bar component reinforces stability, enabling the system to accommodate multi-directional movement while keeping the cover aligned and stable.

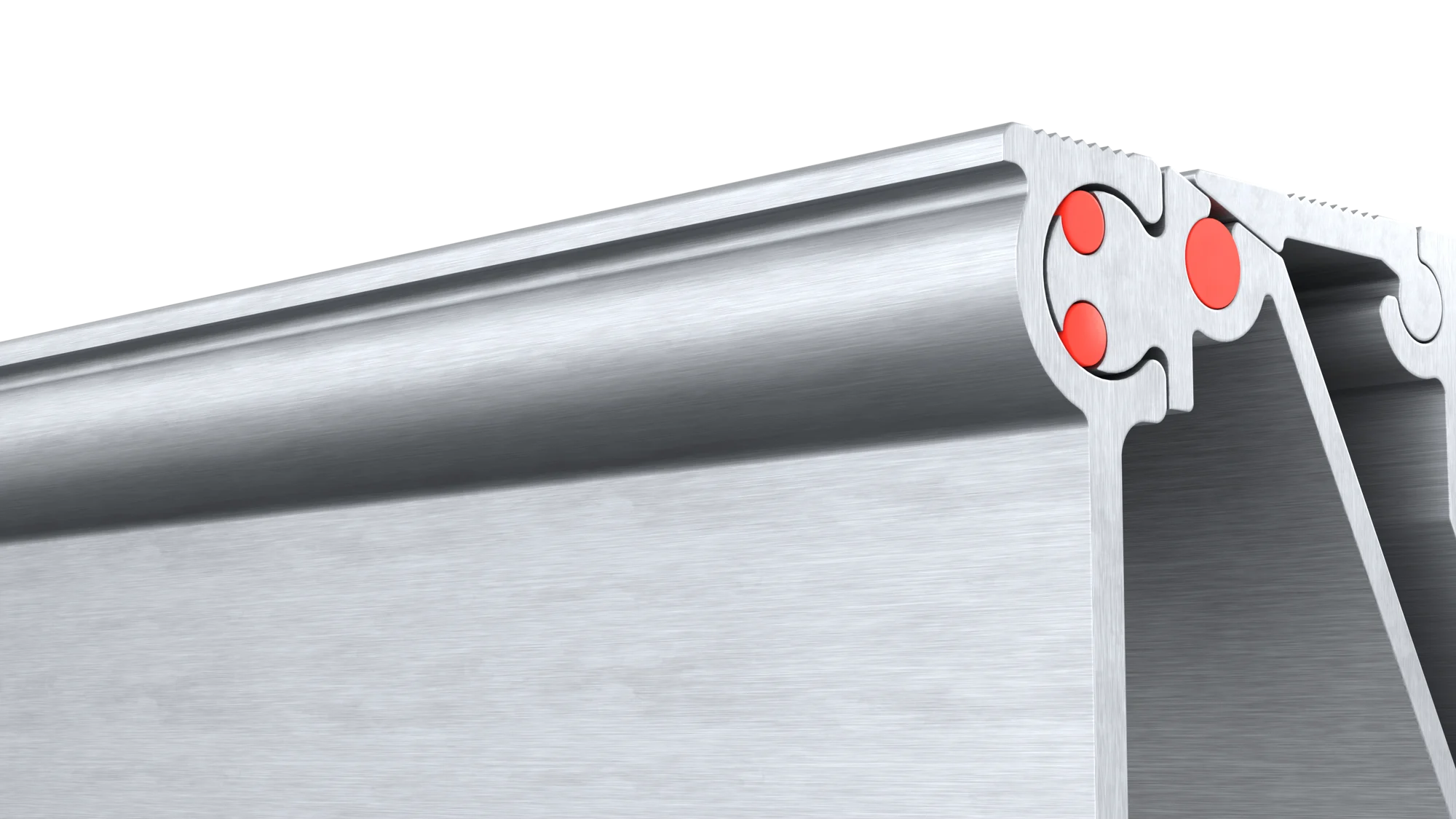

Noise Reduction
Integrated elastomeric rubber gaskets between the aluminum profiles to cancel out metal-to-metal noise, enhancing acoustic comfort. This feature minimizes noise when subjected to movement, delivering a quiet and efficient joint cover solution for various applications.

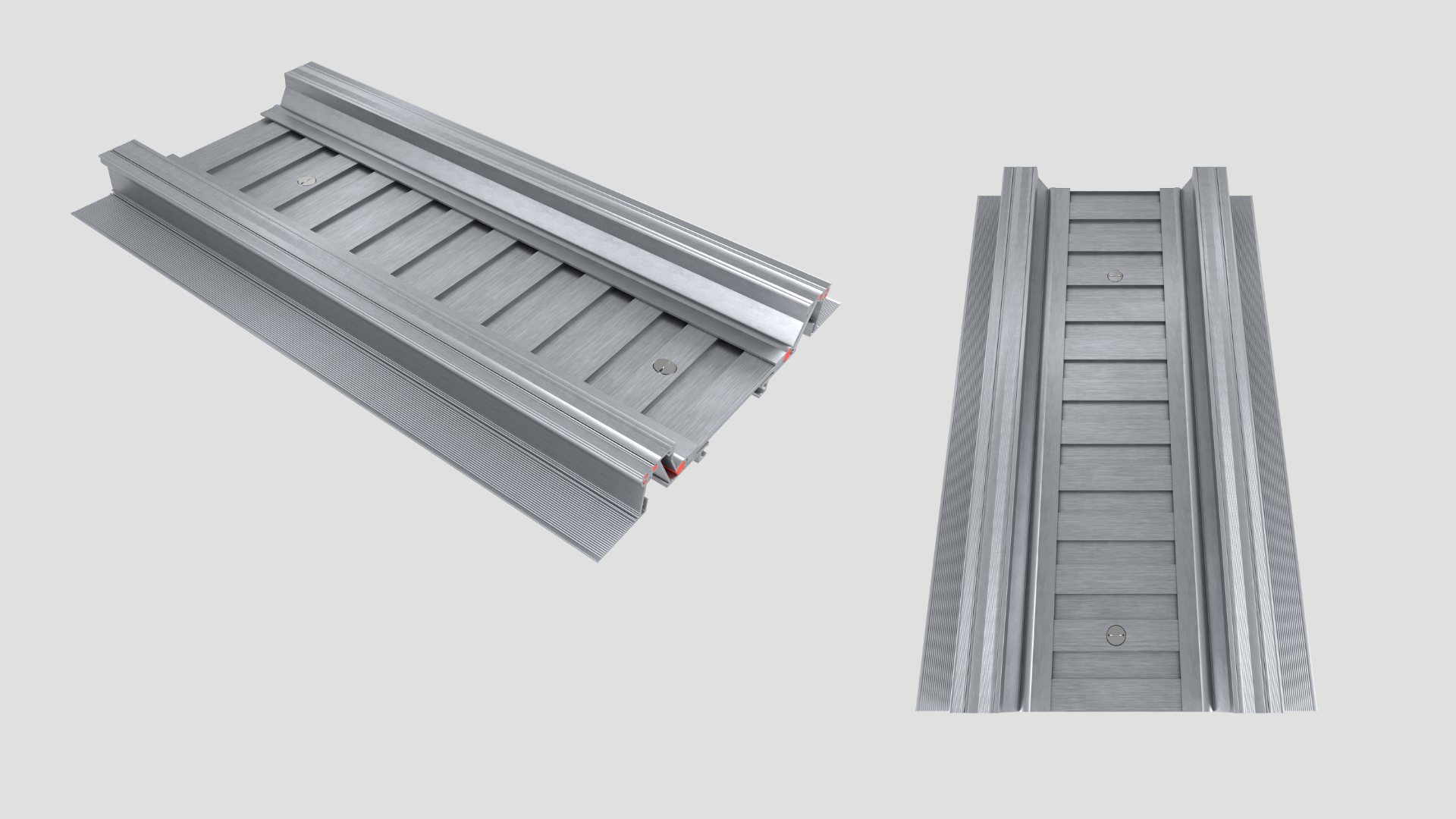

Premium Aluminum for Architectural Materials
Aluminum grade 6063, the premium material used in the expansion joint cover, offers strength, corrosion resistance, and durability. Available in T5 and T6 tempers or customized to meet project needs, this versatile alloy ensures exceptional structural integrity and longevity. Aluminum 6063 withstands high-traffic areas, extreme temperatures, and corrosive conditions, making it an ideal choice for diverse applications, from commercial facilities to infrastructure projects.

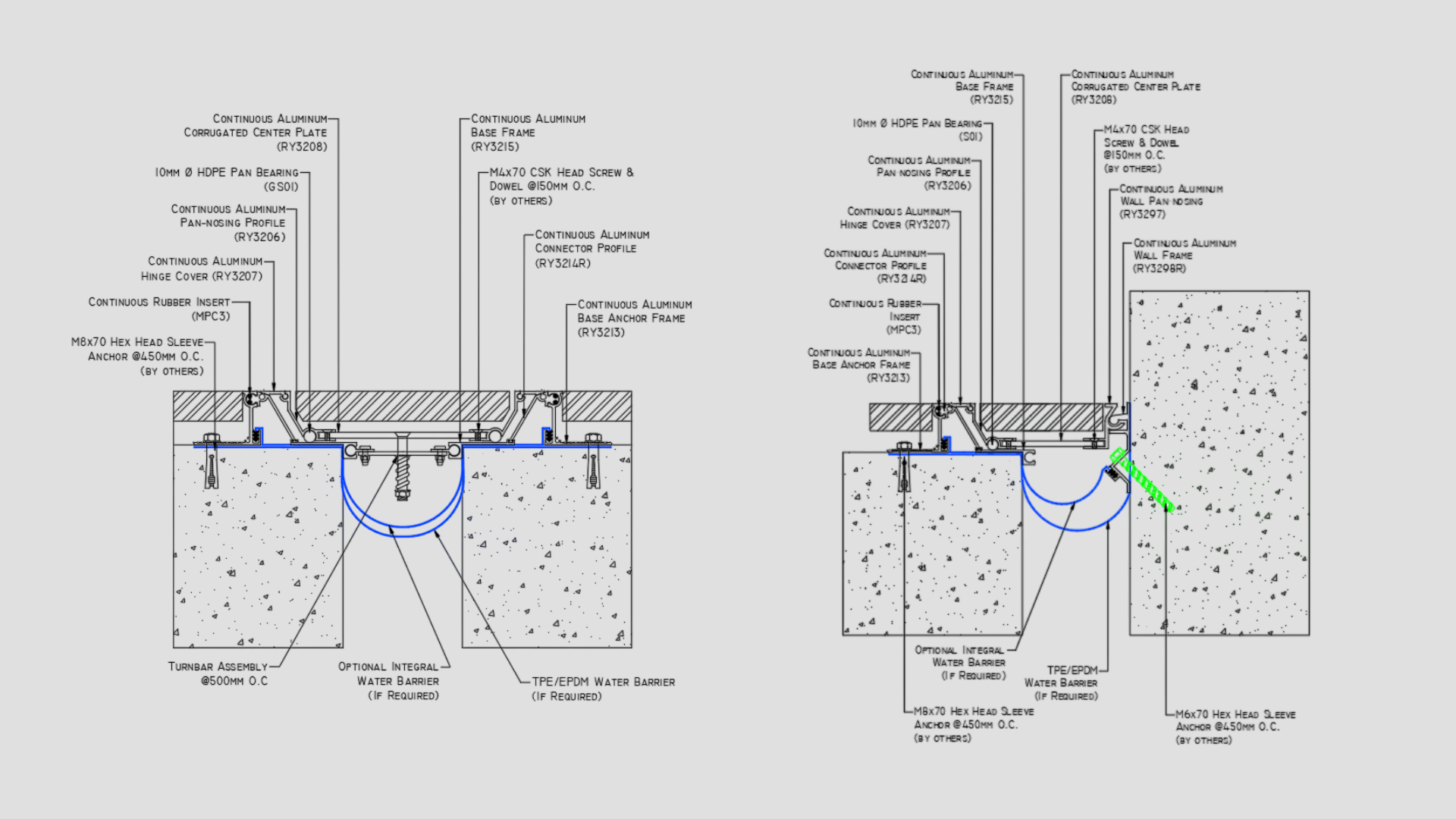

System Drawing
The Z-5500 expansion joint cover system drawings cover 200, 300 and 350 mm joint widths in floor-to-floor conditions, and 100, 200, 300 and 350 mm in floor-to-wall (ZK-5500) conditions. Each size is downloadable as DWG and PDF.
interactive tool
gap size calculator
enter your expansion gap measurement to see if this product is right for you.
20mm ≈ credit card
50mm ≈ two fingers
100mm ≈ fist width
200mm ≈ hand span
mm
z5500 covers gap sizes from 50mm to 450mm. enter your measurement above to see the movement capacity, profile width, and whether this product handles your requirements.
technical data
profile specifications
| model name | joint width (mm) | height (mm) | sightline (mm) | movement capability (%) | load capacity |
|---|---|---|---|---|---|
| z-5500-200 | 200 | 45 | 418 | ±50 | HEAVY PEDESTRIAN / LIGHT VEHICULAR |
| z-5500-300 | 300 | 45 | 568 | ±50 | HEAVY PEDESTRIAN / LIGHT VEHICULAR |
| z-5500-350 | 350 | 45 | 668 | ±50 | 400 |
| zk-5500-100 | 100 | 45 | 184 | -50/+25 | HEAVY PEDESTRIAN / LIGHT VEHICULAR |
| zk-5500-200 | 200 | 45 | 309 | -50/+25 | HEAVY PEDESTRIAN / LIGHT VEHICULAR |
| zk-5500-300 | 300 | 45 | 434 | -50/+25 | HEAVY PEDESTRIAN / LIGHT VEHICULAR |
| zk-5500-350 | 350 | 45 | 509 | -50/+25 | 400 |
from the technical datasheet
datasheet specifications
| Series | LUXFINISH Series (Z-5500 & ZK-5500) |
|---|---|
| System type | Pop-up Seismic Expansion Joint Cover |
| Suitable movement | Seismic, Thermal, Settlement |
| Load capacity | Heavy Pedestrian Traffic; Light Vehicular Traffic |
| Recommended for | Areas where Aesthetic plays an important role and Multi Directional/Seismic Movement is expected; Hospitality, Retail, Commercial and similar applications |
| Components | Extruded Aluminum Support Assembly; Extruded Aluminum Center Pan Assembly; Aluminum Hinge Cover; Galvanized Steel Turn-bar |
| Material: Support Profiles, Center Pan Components & Hinge Cover | Extruded aluminum, grade AA 6063 preferred |
| Material: Vapor Barrier (Optional) | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); black |
| Supply length | 3.00 m per piece (support profile components, center pan components and hinge cover) |
| Substrate tolerance | Surface level within ±2 mm; gap level within ±5 mm |
| Sizes | Per the system drawings; profiles can be customized to requirements |
Source: Z5500 technical datasheet. Sizes and dimensions: profile specifications above and the system drawings.
