z5202
superfinish fs series

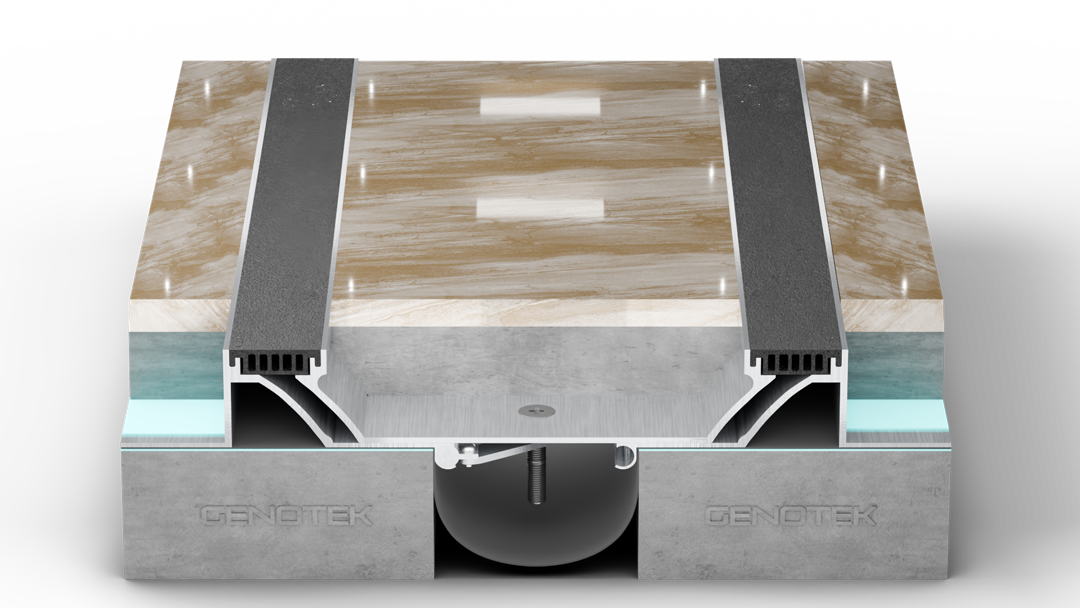

Introducing the Z5202
seismic movement accommodation
capable of handling multi-directional seismic movement, lateral shear, and thermal expansion, the superfinish series ensures flexibility without stressing its metal components. this allows the system to maintain its integrity and function even under significant structural shifts
water protection
featuring an integrated water barrier that connects seamlessly to adjacent waterproofing membranes, the superfinish fs ensures complete water resistance without the need for punctures or anchor holes in the barrier. this design prevents water ingress, providing reliable protection in areas exposed to constant moisture
load bearing
constructed to support heavy pedestrian traffic and light vehicular loads, the superfinish series offers durability and resilience for high-traffic interior and exterior spaces
assembly in action
this video demonstrates the assembly process, perfectly designed for easy installation for durability and reliability.

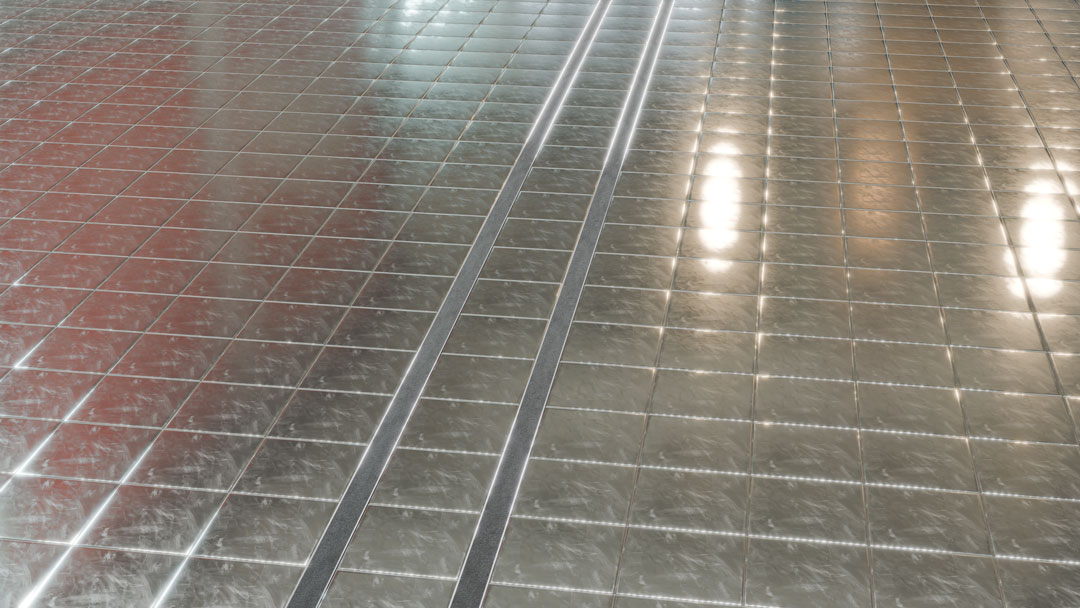

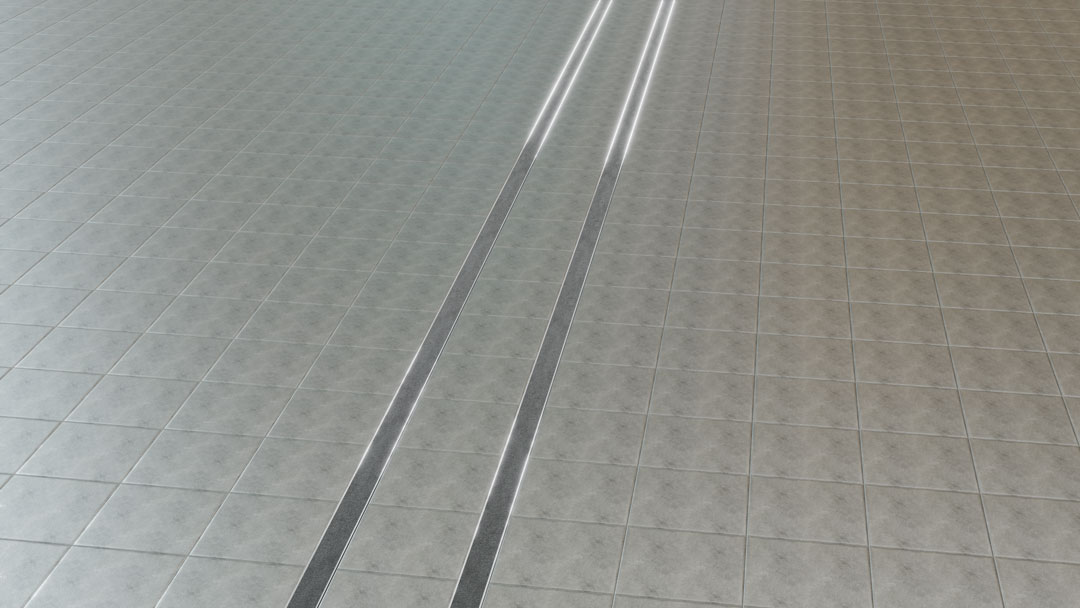

Aesthetic Choice

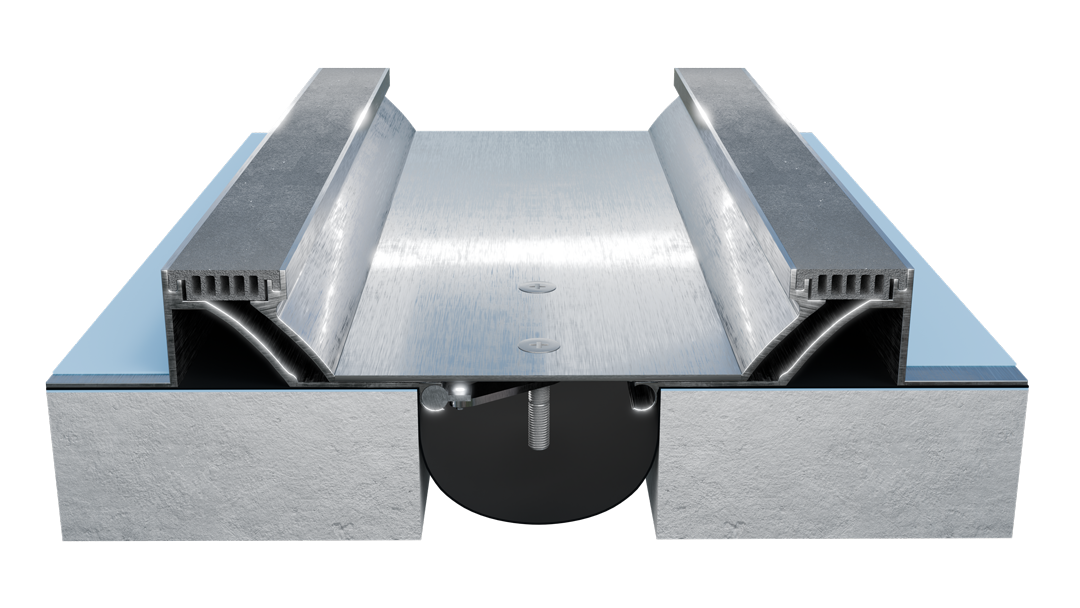

The central pan assembly provides a deep recess that can hold finishing materials, effectively concealing the joint while blending with the surrounding flooring. This feature makes the SUPERFINISH a perfect solution for spaces that prioritize a clean, uninterrupted aesthetic

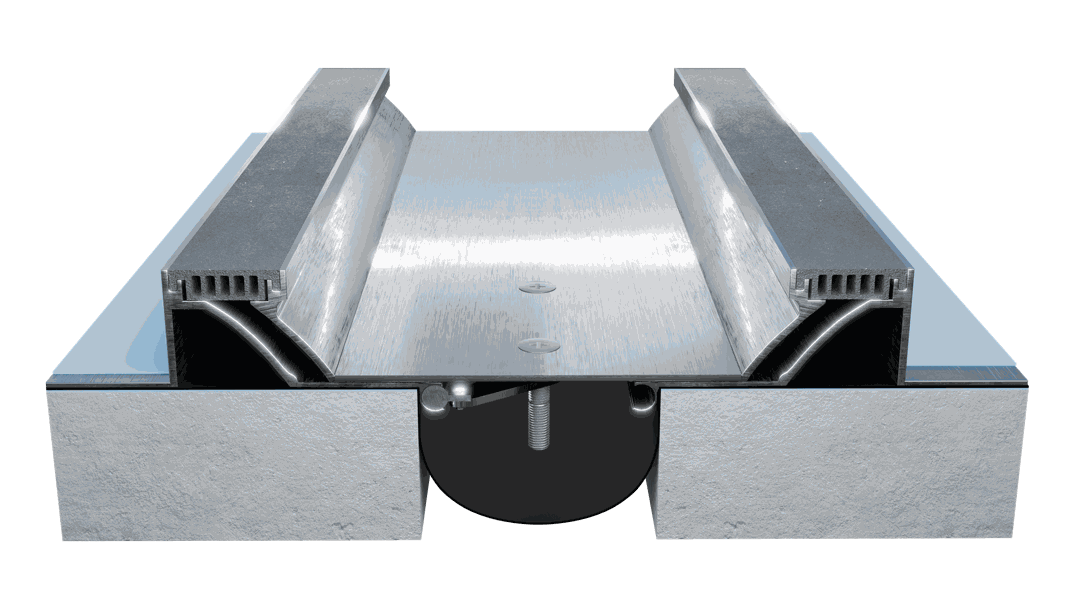

Optional Vapor Barrier

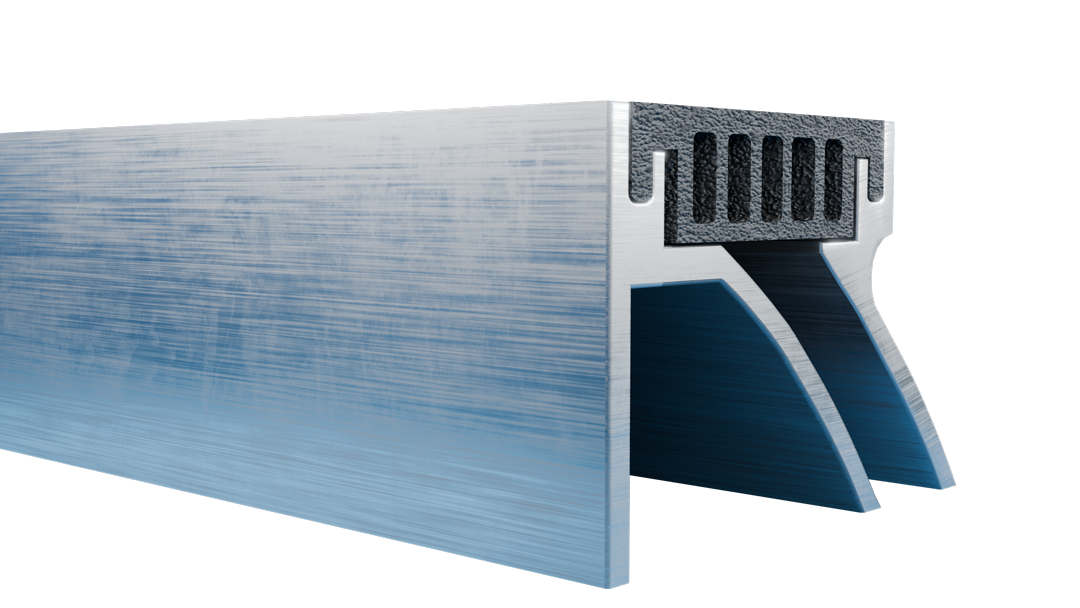

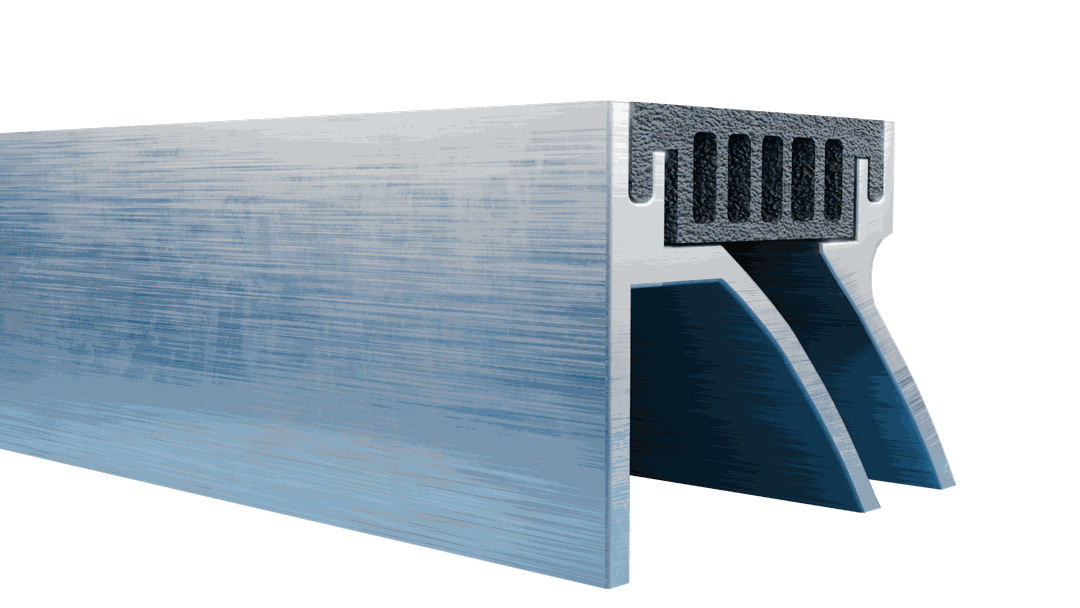

Anti-slip Serration
System Drawing
gap size calculator
enter your expansion gap measurement to see if this product is right for you.
profile specifications
| model name | joint width (mm) | height (mm) | sightline (mm) | movement capability (%) | load capacity |
|---|---|---|---|---|---|
| z-5202-100 | 100 | 50 | 300 | ±50 | 10 |
| z-5202-150 | 150 | 50 | 406 | ±50 | 10 |
| z-5202-200 | 200 | 50 | 456 | ±25 | 10 |
| z-5202-250 | 220-260 | 50 | 506 | ±25 | 10 |
| z-5202-80 | 50-80 | 50 | 234 | ±50 | 10 |
| zk-5202-200 | 200 | 50 | 328 | ±12 | 10 |
| zk-5202-250 | 220-260 | 50 | 378 | ±12 | 10 |
datasheet specifications
| Series | SUPERFINISH FS Series (Z-5202 & ZK-5202) |
|---|---|
| System type | Pop-Up Seismic System |
| Suitable movement | Thermal, Seismic, Settlement |
| Recommended for | Interior and Exterior Areas where thermal and Multi-Directional/Seismic Movement is expected; Areas where Aesthetic plays an important role; Hospitality, Retail, Commercial and similar applications |
| Components | Extruded Aluminum Support Profiles; Extruded Aluminum Center Pan; Dual Elastomeric Rubber Insert which absorb expansion and contraction of the adjacent concrete slabs; Steel Turnbar Assembly |
| Material: Support Frames & Center Pan | Extruded aluminum, grade AA 6063 preferred |
| Material: Elastomeric Rubber Insert | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); finish: Smooth Finish; black |
| Material: Vapor Barrier (Optional) | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); black |
| Supply length | 3.00 m per piece (aluminum support frame & center pan) |
| Substrate tolerance | Surface level within ±2 mm; gap level within ±5 mm |
| Sizes | Per the system drawings; profiles can be customized to requirements |
Source: Z5202 technical datasheet. Sizes and dimensions: profile specifications above and the system drawings.
