z5002
profinish series
Introducing the Z-5002
seismic movement accommodation
the z-5002 accommodates ±50% of nominal joint width in multiple directions (±75% for the z-5002-200 at 64 mm height). steel center bar and spring assemblies at 500 mm on center return the pan to center after movement.
water protection
an optional water barrier membrane can be specified with the z-5002. it is draped into the gap and retained by the base frames, so no mechanical punctures pass through the membrane sheet. order it together with the system.
load bearing
rated 10 kn in the system drawings, the z-5002 carries the floor finish across the joint on premium interior floors such as hotels, lobbies, airports, hospitals and malls.
assembly in action
this video demonstrates the assembly process, perfectly designed for easy installation for durability and reliability.

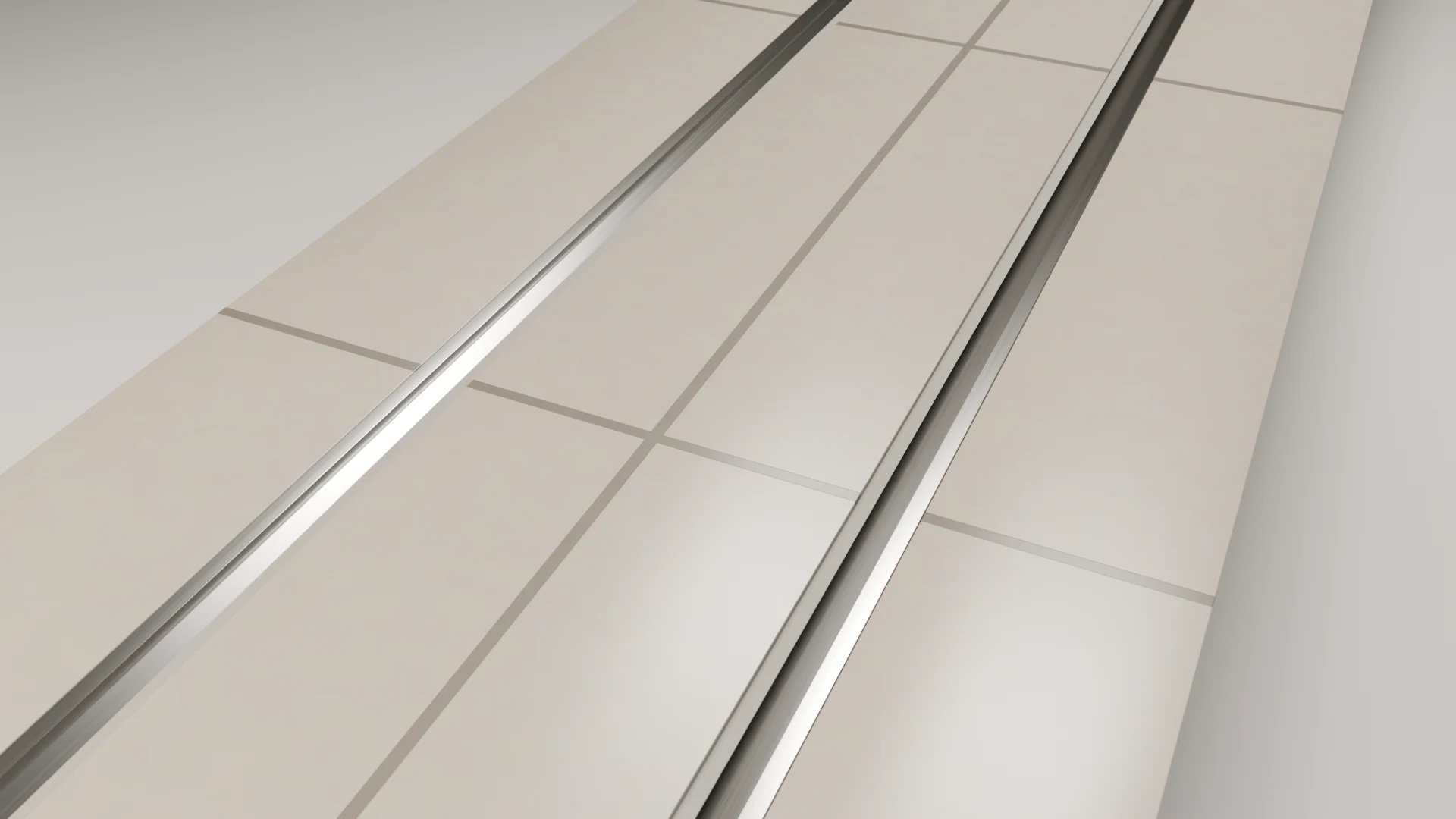

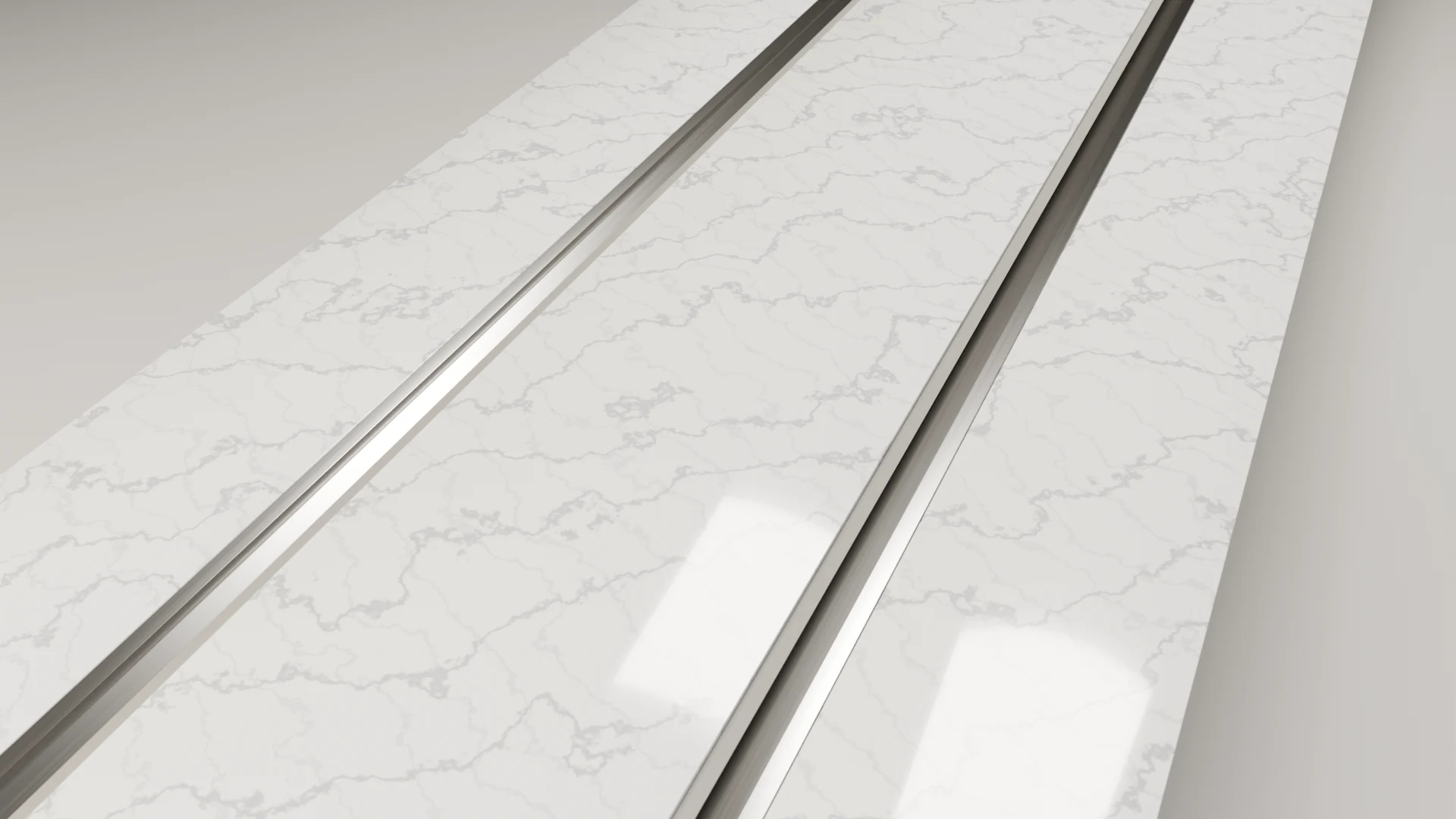

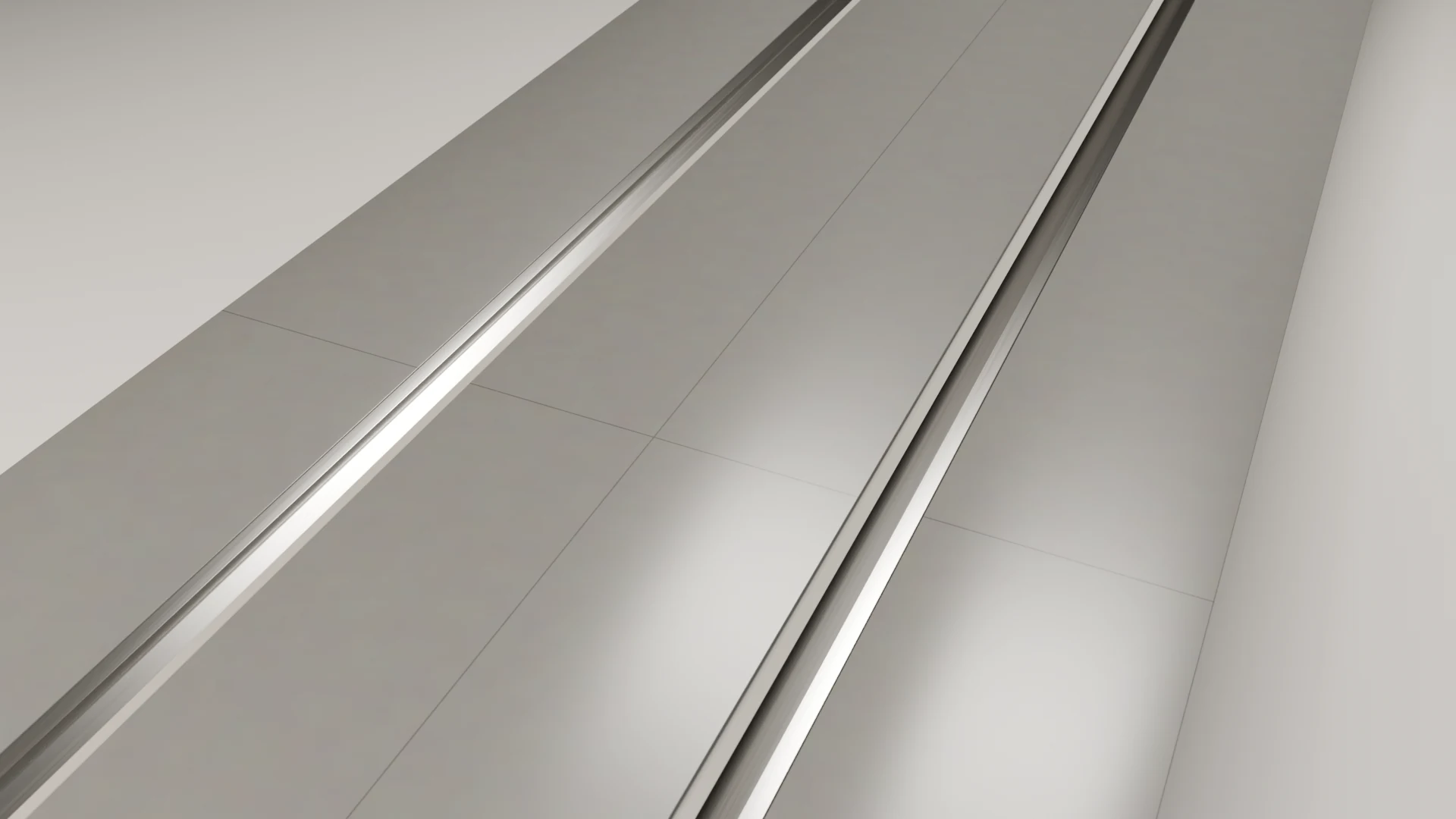

Aesthetic Choice
The extruded aluminum center pan with nosing carries the same tile, stone or terrazzo as the surrounding floor, so only the nosing lines remain visible. At 50 mm and 64 mm heights for joints of 50 mm to 300 mm, the Z-5002 suits hotels, lobbies, airports, hospitals and malls where the finish must run across the joint.

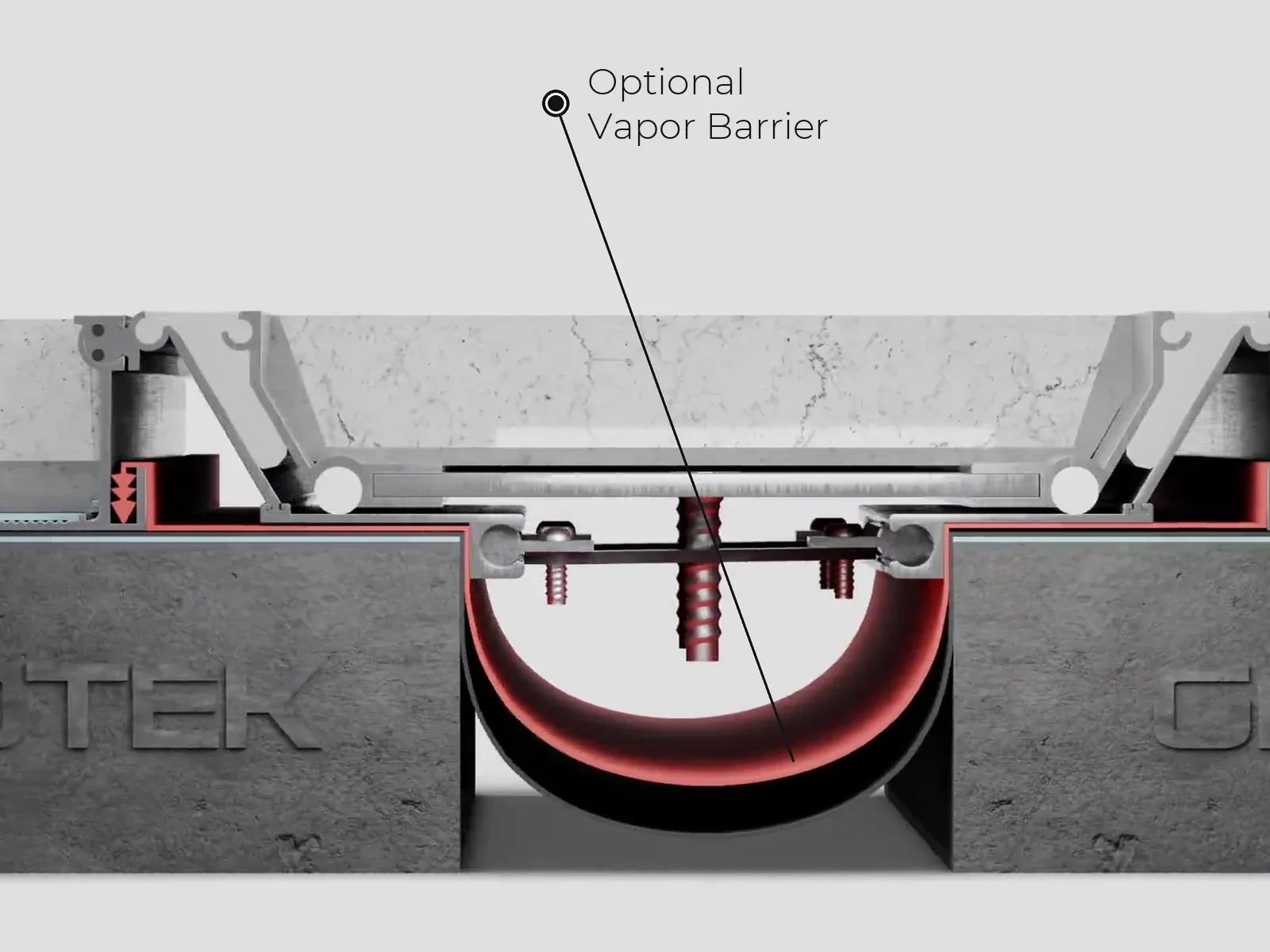

Optional Vapor Barrier

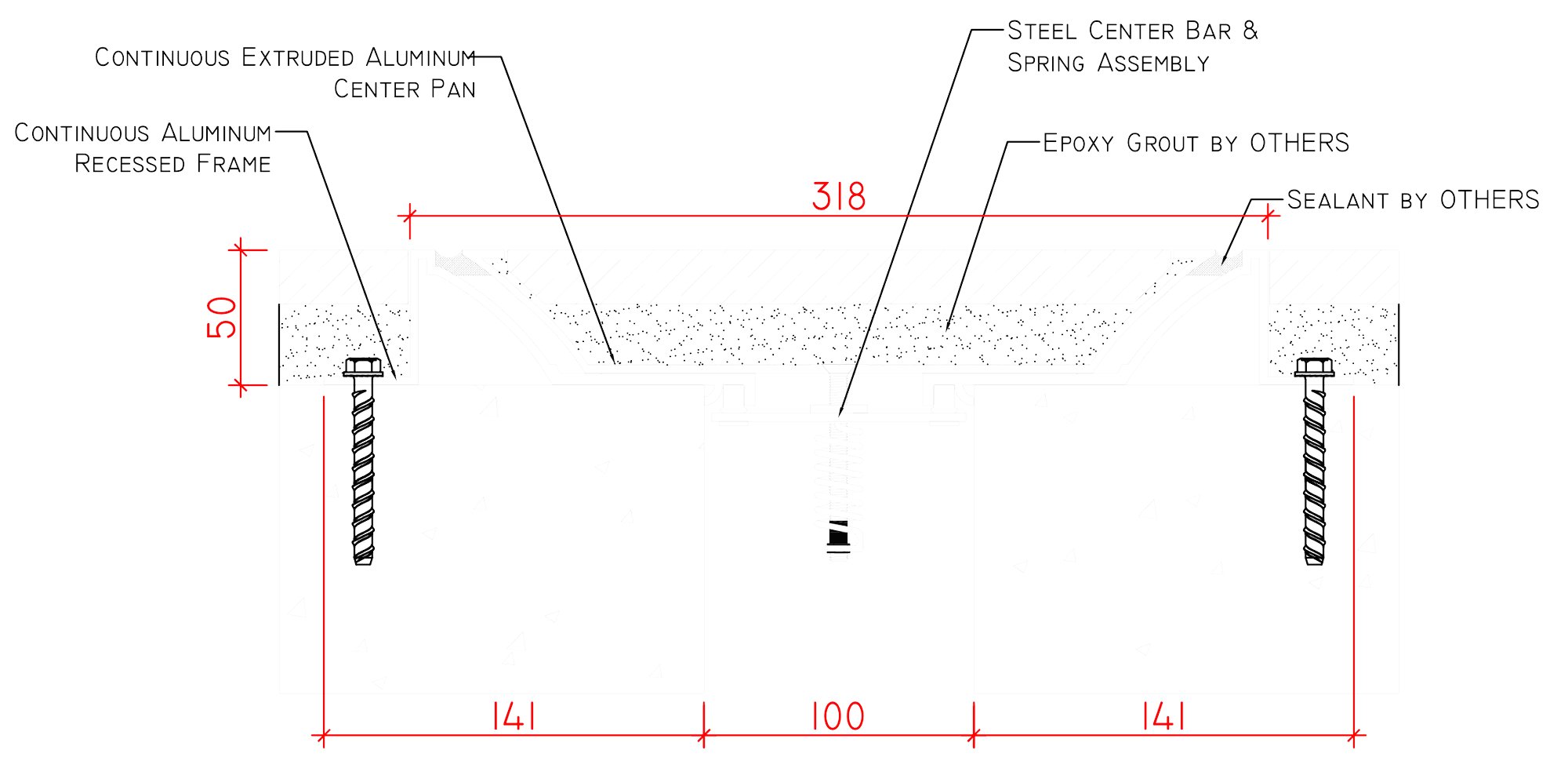

System Drawing

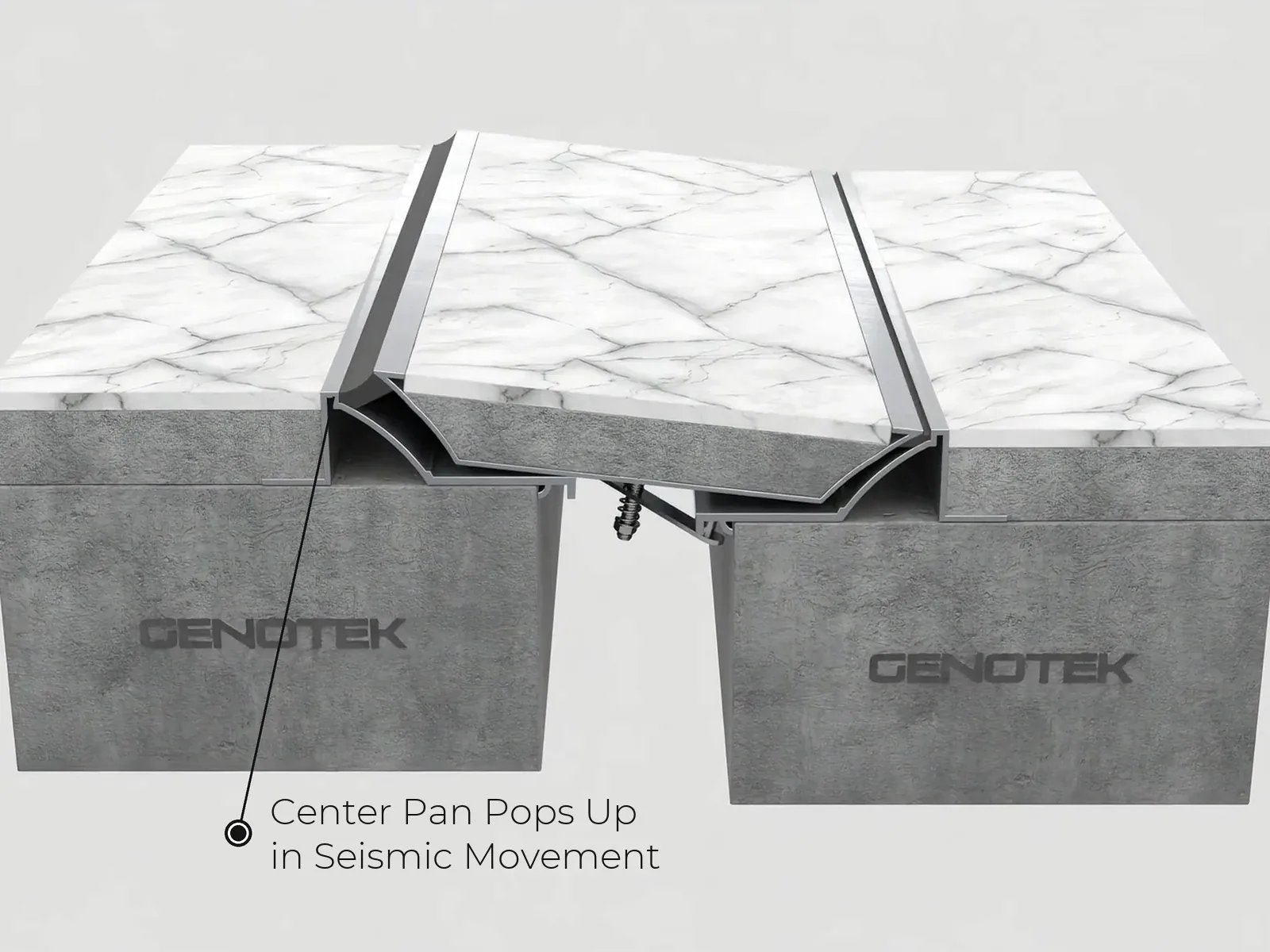

Center Pan Pops Up In Seismic Movement

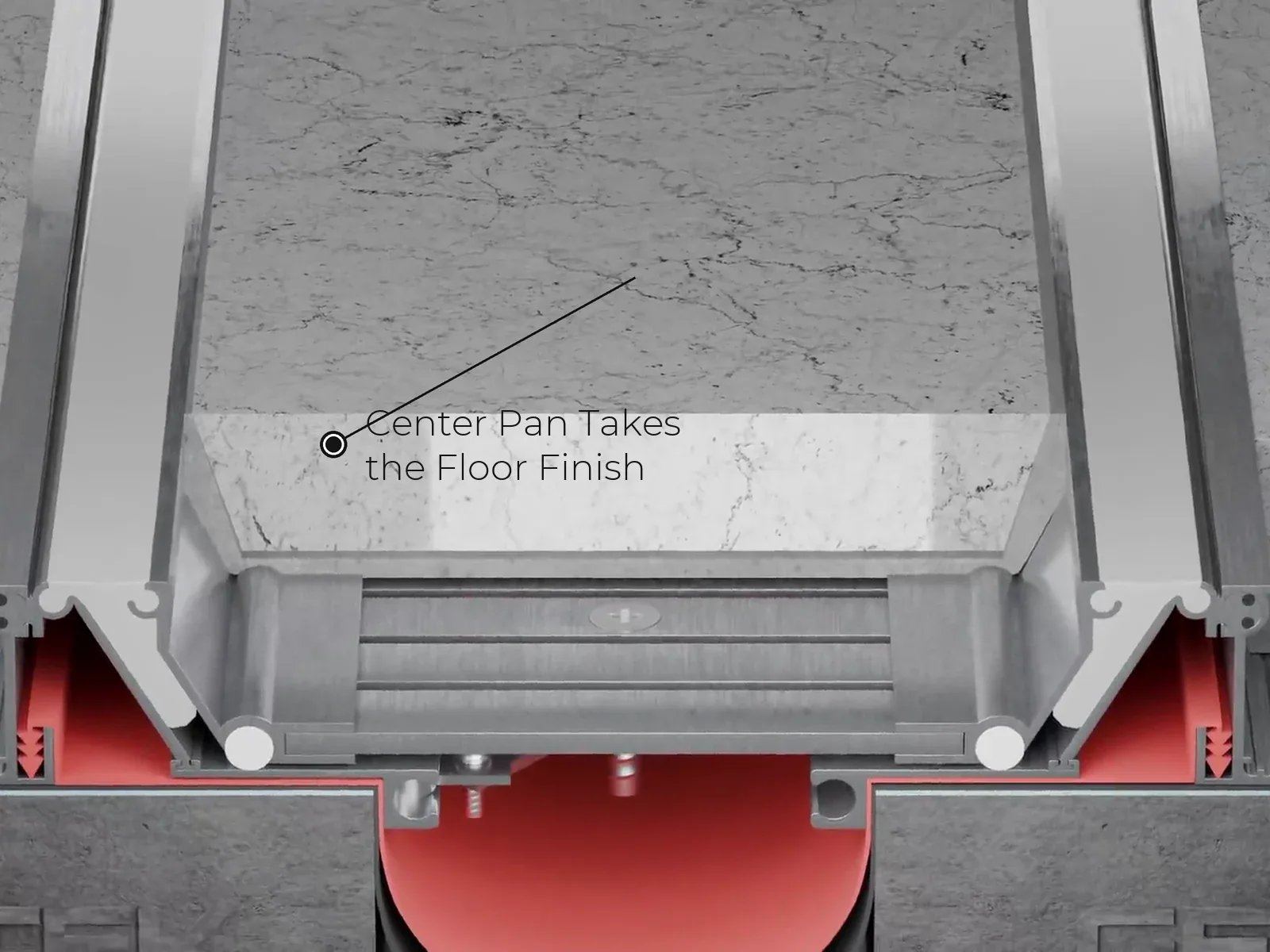

Center Pan Takes The Floor Finish
gap size calculator
enter your expansion gap measurement to see if this product is right for you.
profile specifications
| model name | joint width (mm) | height (mm) | sightline (mm) | movement capability (%) | load capacity |
|---|---|---|---|---|---|
| z-5002-100 | 100 | 50 | 318 | ±50% | 10 kN |
| z-5002-150 | 120-160 | 50 | 368 | ±50% | 10 kN |
| z-5002-200 (h:50) | 170-210 | 50 | 456 | ±50% | 10 kN |
| z-5002-200 (h:64) | 200 | 64 | 550 | ±75% | 10 kN |
| z-5002-250 | 220-260 | 64 | 600 | ±50% | 10 kN |
| z-5002-300 | 300 | 64 | 725 | ±50% | 10 kN |
| zk-5002-100 | 50-110 | 50 | 209 | ±50% | 10 kN |
| zk-5002-50 | 50 | 50 | 200 | ±50% | 10 kN |
| zk-5002-150 | 120-160 | 50 | 260 | ±50% | 10 kN |
| zk-5002-200 | 170-210 | 50 | 328 | ±50% | 10 kN |
| zk-5002-250 (h:64) | 220-260 | 64 | 473 | ±50% | 10 kN |
| zk-5002-250 (h:50) | 250 | 50 | 378 | ±50% | 10 kN |
| zk-5002-300 | 300 | 64 | 515 | ±50% | 10 kN |
datasheet specifications
| Series | PROFINISH Series (Z-5002 & ZK-5002) |
|---|---|
| System type | Pop-up Seismic Expansion Joint Cover |
| Suitable movement | Seismic, Thermal, Settlement |
| Load capacity | Heavy Pedestrian Traffic; Light Vehicular Traffic |
| Recommended for | Areas where Aesthetic plays an important role and Multi Directional/Seismic Movement is expected; Hospitality, Retail, Commercial and similar applications |
| Components | Extruded Aluminum Support Frames; Extruded Aluminum Center Pan Nosing; Aluminum Center Plate; Galvanized Steel Turn-bar |
| Material: Support Profiles, Center Pan Plate, & Pan Nosing | Extruded aluminum, grade AA 6063 preferred |
| Material: Vapor Barrier (Optional) | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); black |
| Supply length | 3.00 m per piece (support profile, pan nosing and center plate) |
| Substrate tolerance | Surface level within ±2 mm; gap level within ±5 mm |
| Sizes | Per the system drawings; profiles can be customized to requirements |
Source: Z5002 technical datasheet. Sizes and dimensions: profile specifications above and the system drawings.
