z4100a
profloor rm series

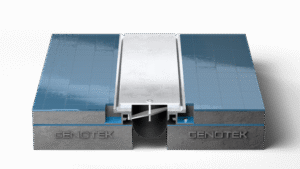

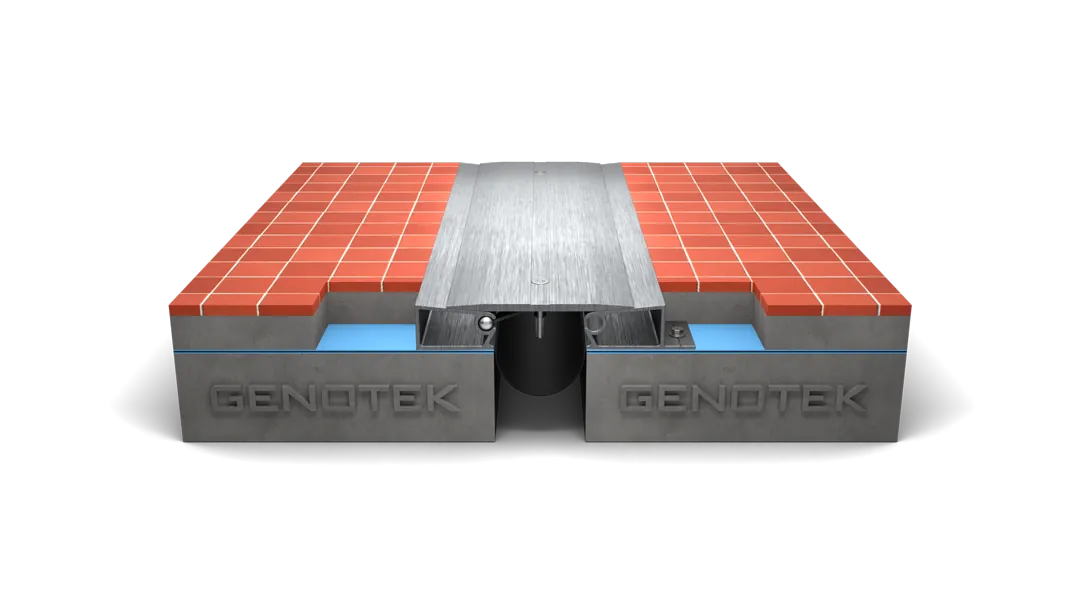

Introducing the Z-4100a
seismic movement accommodation

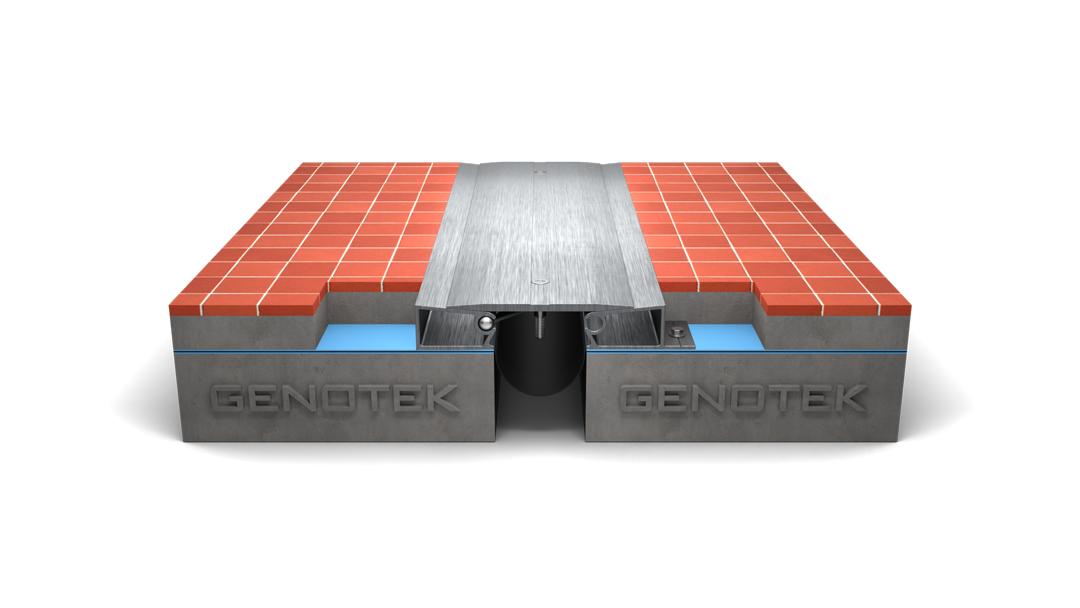

this expansion joint system is designed to handle thermal and seismic movements, allowing adjacent concrete slabs to expand and contract naturally. the interlocking center plate provides additional stability, making it a reliable choice for high-use environments.
water protection

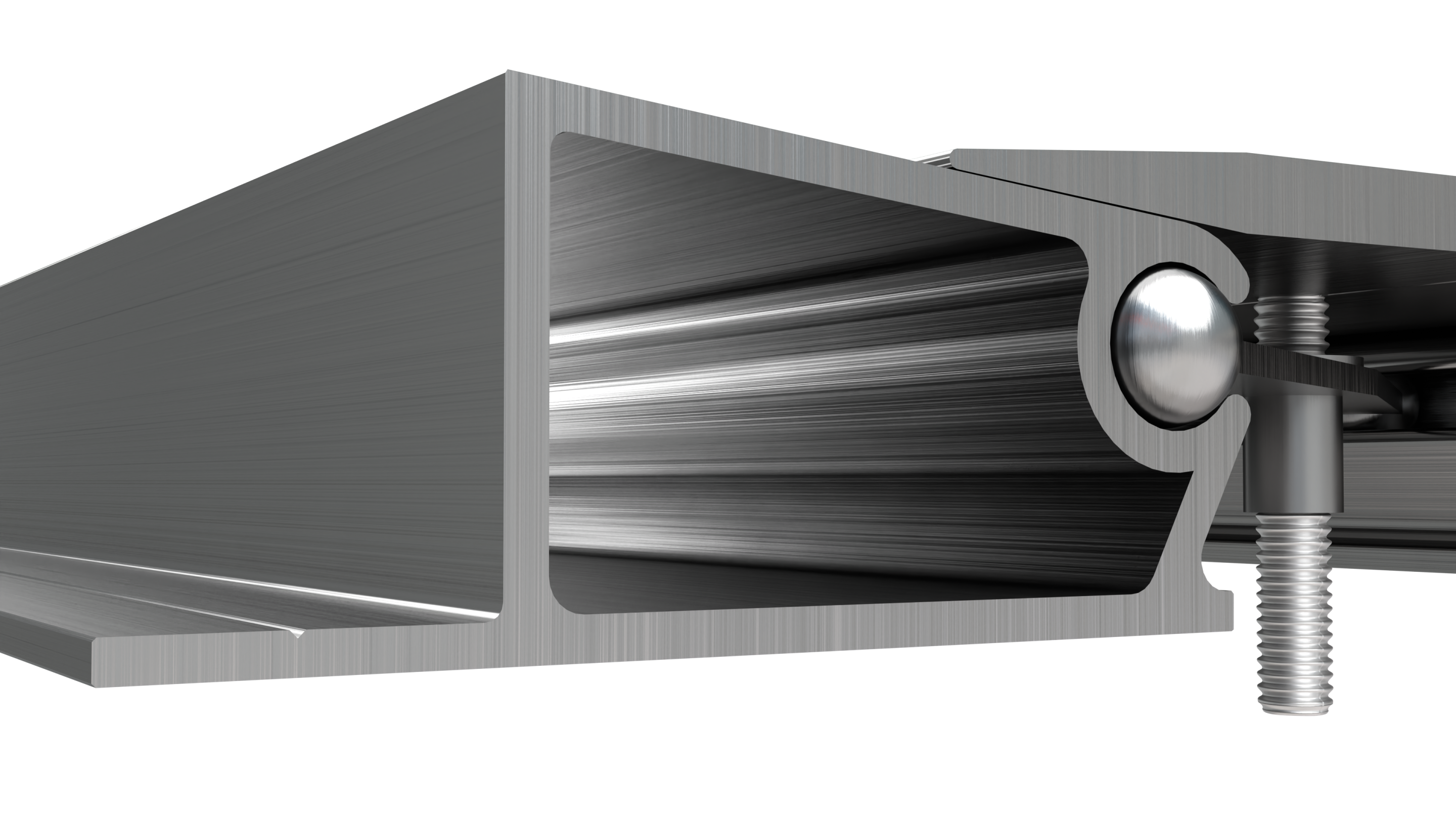

water barrier made of tpe forms seamless intersections, eliminating weak points. the barrier holds water during rain or washing, then allows evaporation once the source stops. save time with quick installation and enjoy long-lasting protection. experience the simplicity and reliability of the clip-in water barrier.
load bearing
rated 60 kn to 90 kn in the system drawings, this system suits floors in continuous heavy use, reducing maintenance needs while maintaining structural integrity.
assembly in action
this video demonstrates the assembly process, perfectly designed for easy installation for durability and reliability.
Aesthetic Choice

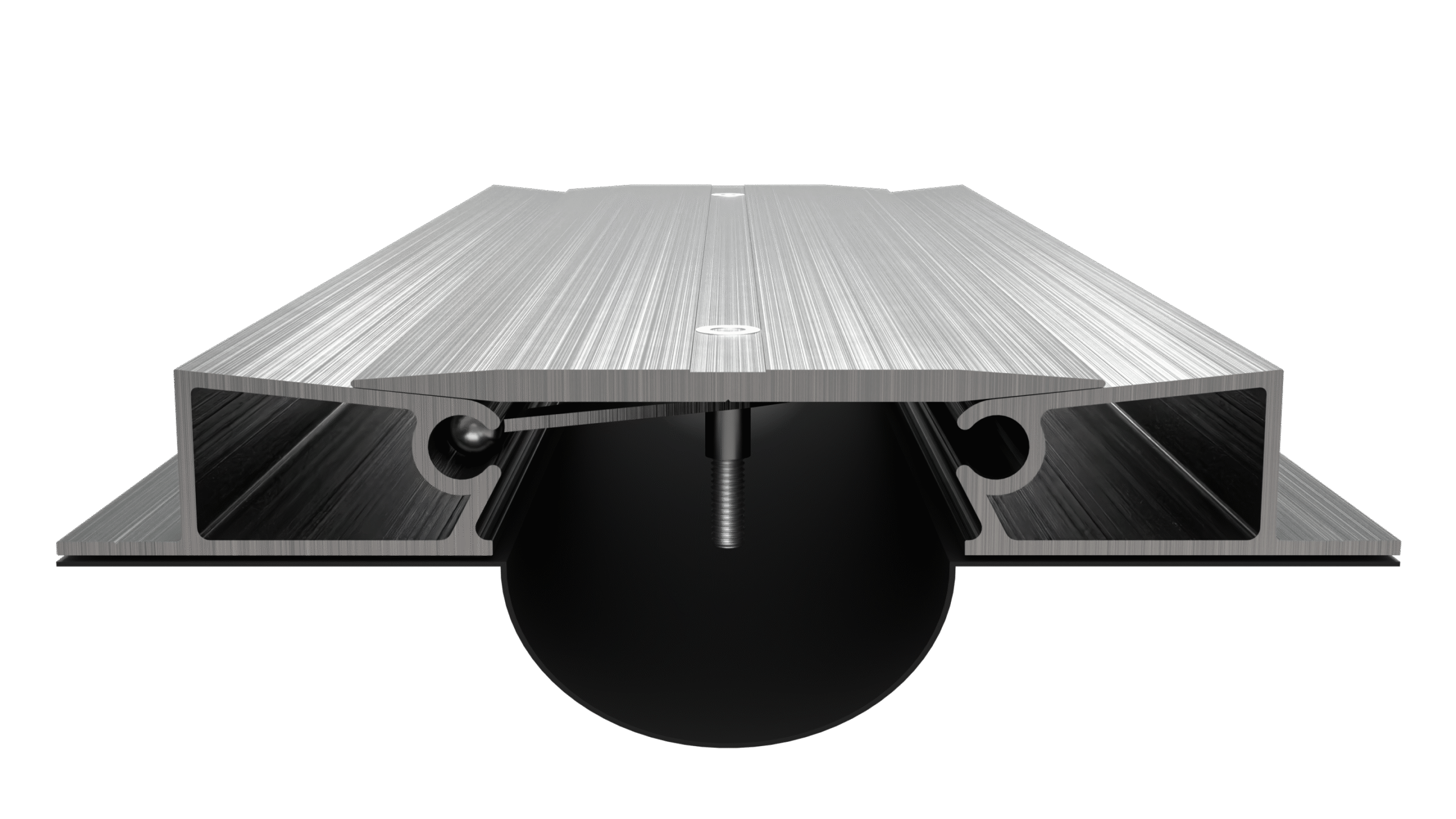

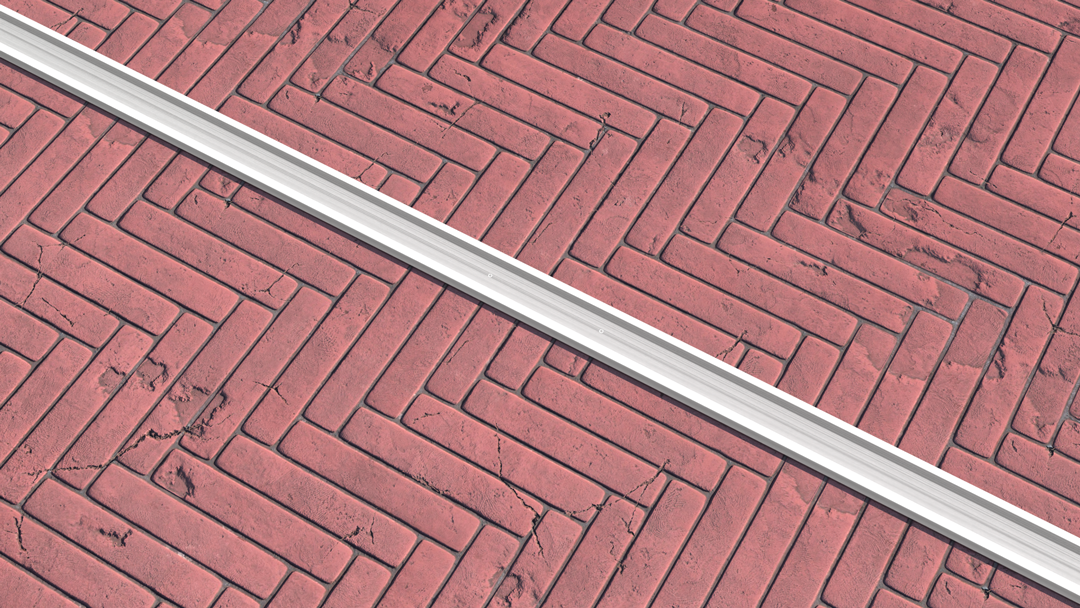

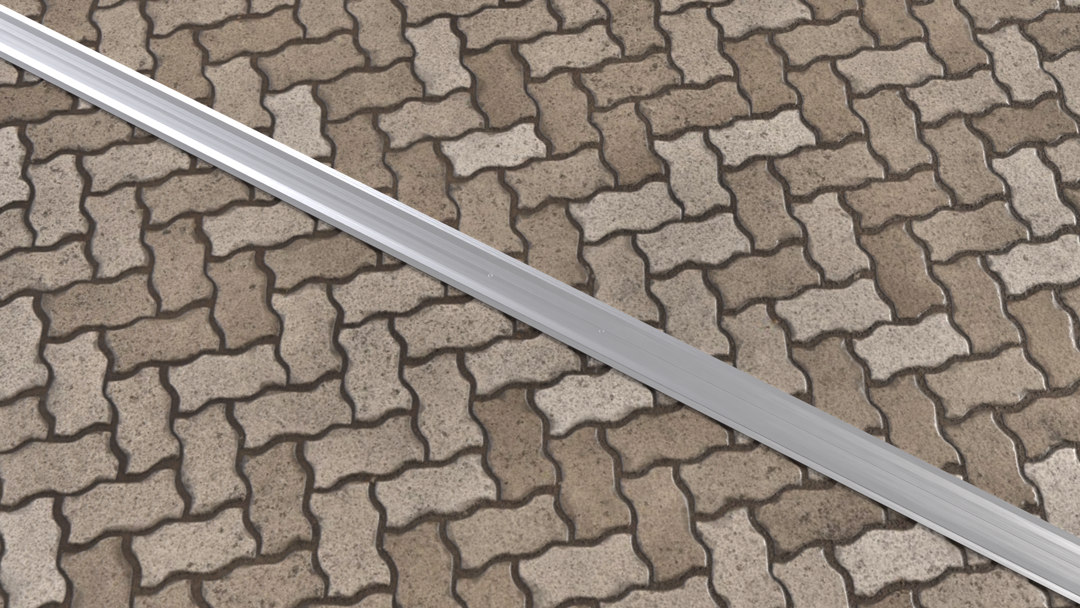

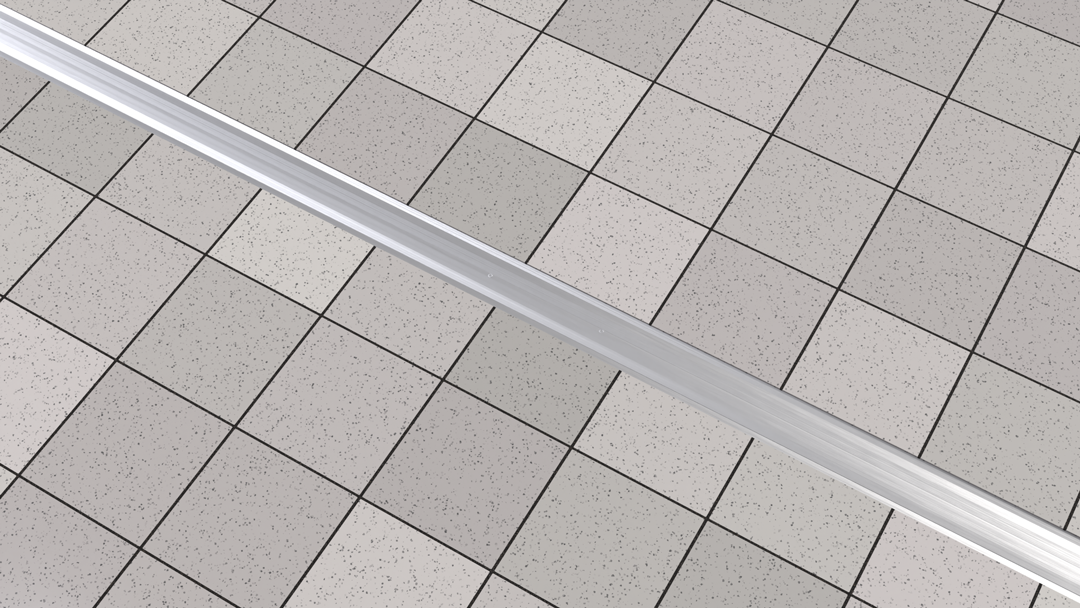

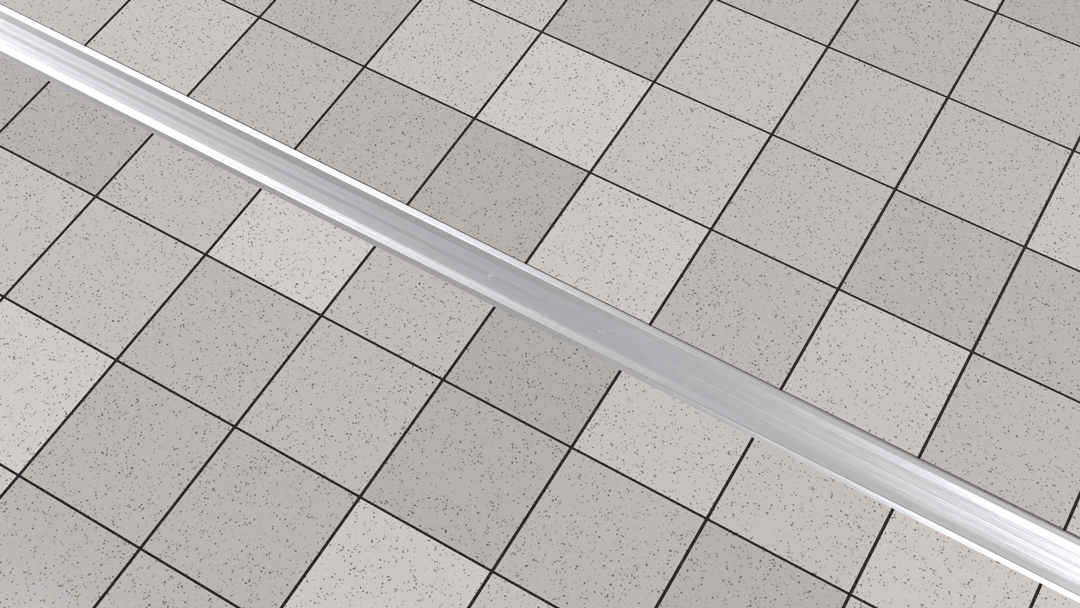

The aesthetic champion. the PROFLOOR RM Z-4100A, with its aluminum or stainless steel center plate finished flush with the floor, effortlessly complements any floor finish. whether you’re working with polished concrete, rustic pavers, elegant marble, or modern tiles, this expansion joint cover seamlessly blends in, enhancing the overall aesthetic of your space. trust the Z-4100A to provide not only exceptional functionality but also a touch of sophistication to your project, no matter the design style.
Clip-in water barrier

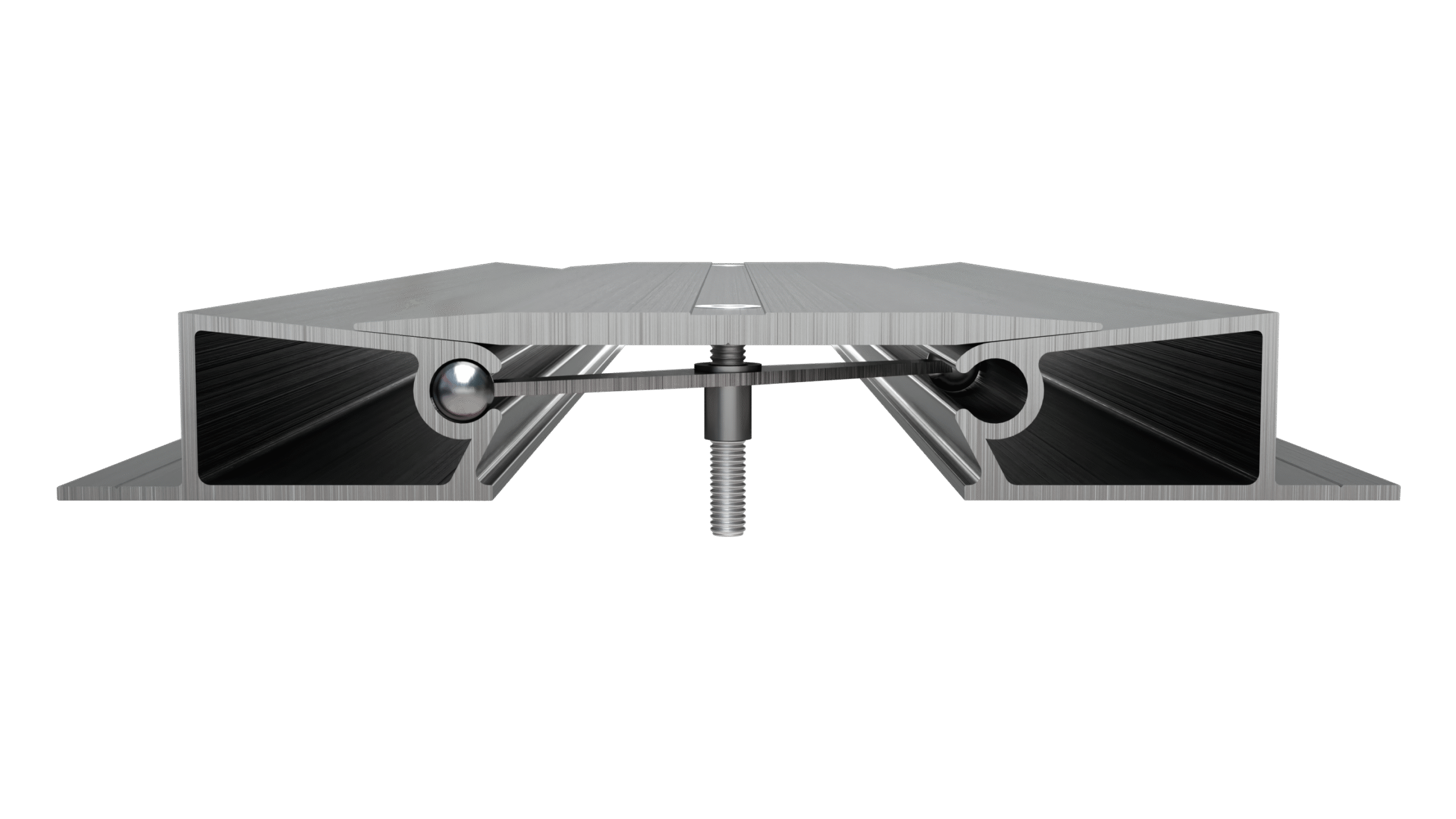

Customizable Height for Seamless Floor Integration

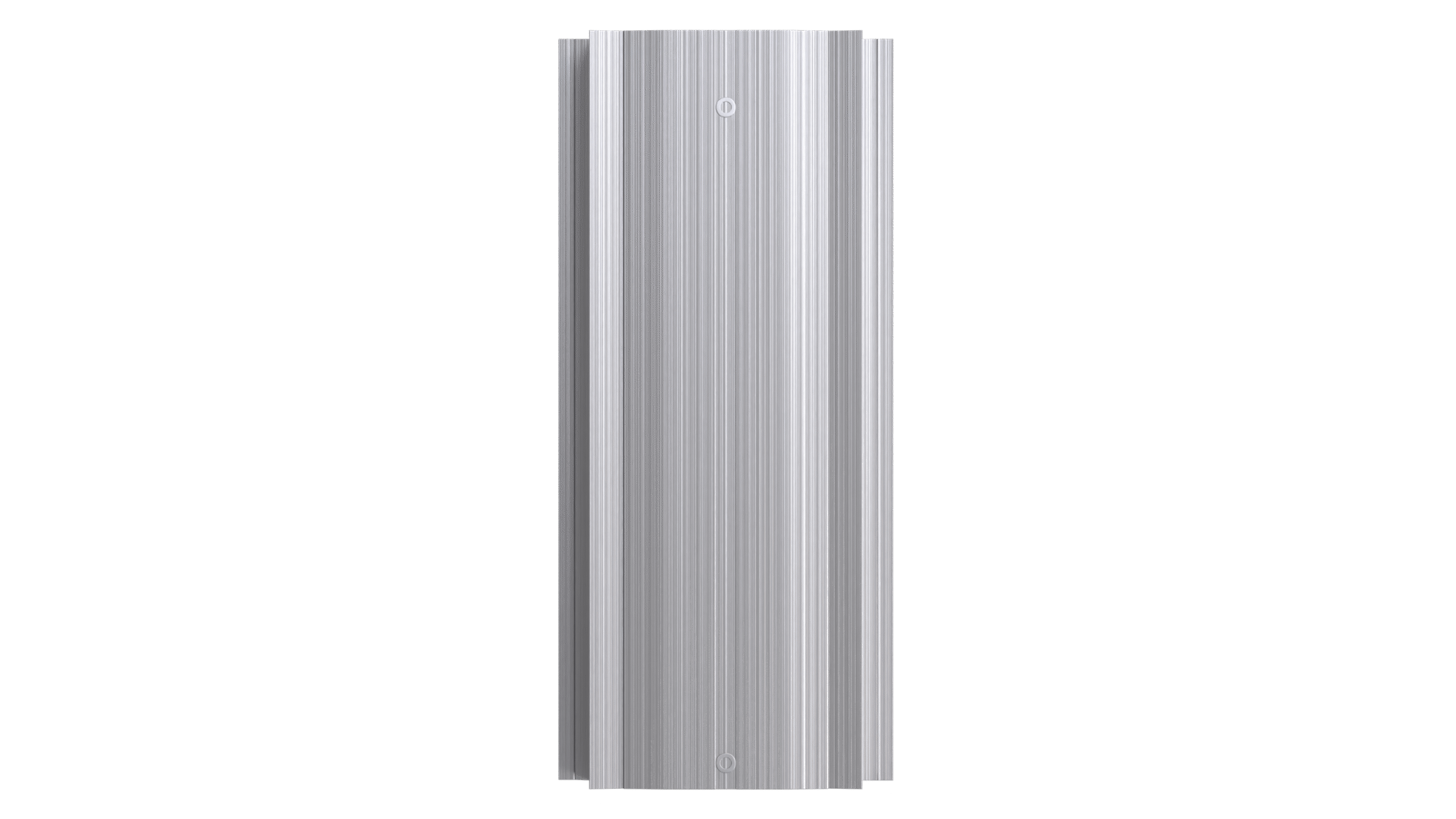

Flush Mount

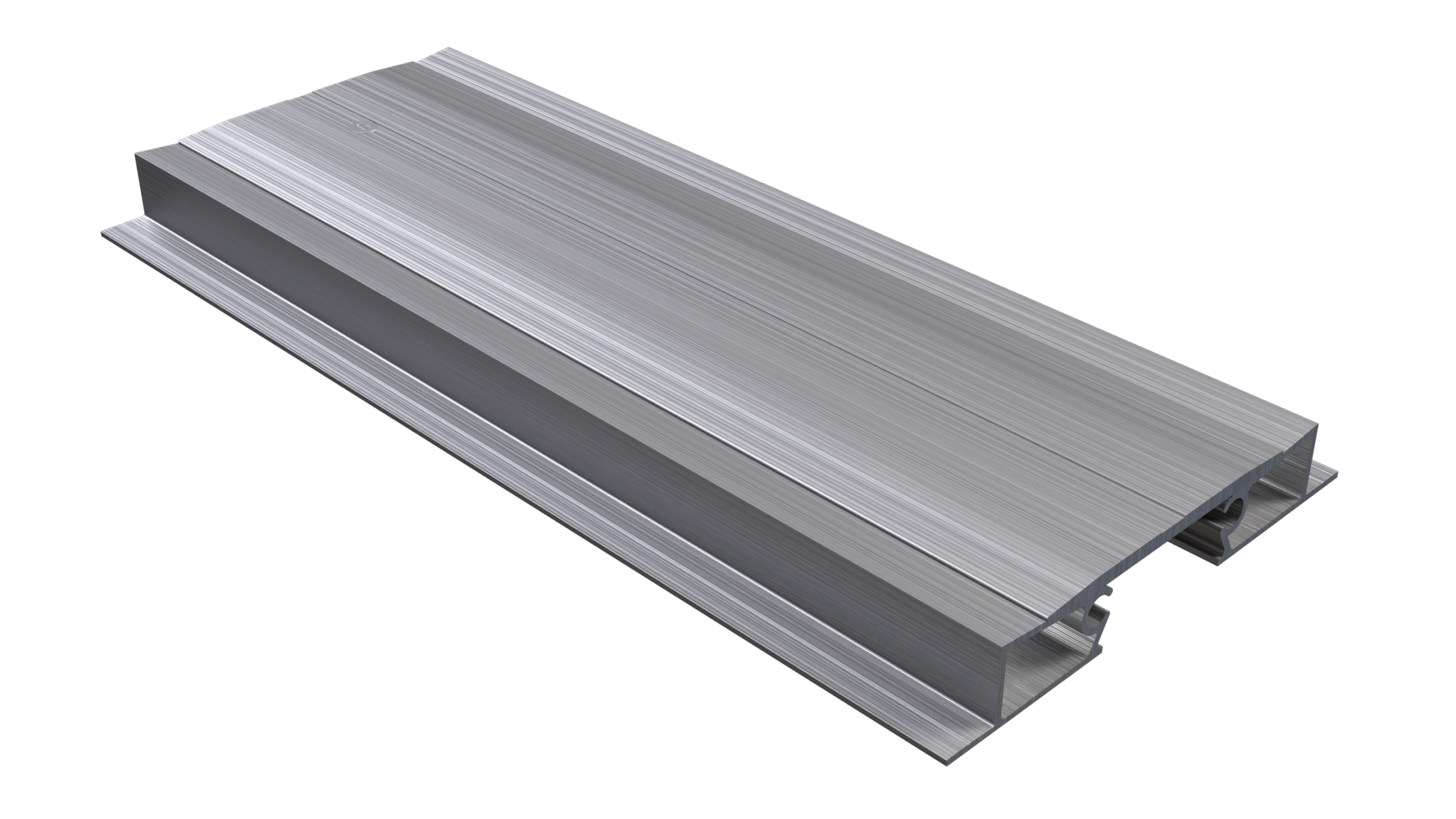

Premium Aluminum for Architectural Materials
System Drawing
gap size calculator
enter your expansion gap measurement to see if this product is right for you.
profile specifications
| model name | joint width (mm) | height (mm) | sightline (mm) | movement capability (%) | load capacity |
|---|---|---|---|---|---|
| z-4100a-50 | 40-60 | 38 | 191 | ±50% | 90 kN |
| z-4100a-75 | 75 | 38 | 200 | ±50% | 90 kN |
| z-4100a-100 | 100 | 50 | 270 | ±50% | 60 kN |
| z-4100a-150 | 150 | 50 | 300 | ±50% | 60 kN |
| z-4100a-200 | 200 | 50 | 335 | ±50% | 60 kN |
| zk-4100a-50 | 50 | 38 | 112 | ±50% | 90 kN |
| zk-4100a-75 | 75 | 38 | 137 | ±50% | 90 kN |
| zk-4100a-100 | 100 | 50 | 185 | ±50% | 60 kN |
| zk-4100a-200 | 200 | 50 | 268 | ±50% | 60 kN |
datasheet specifications
| Series | SUPERFLOOR Series (Z-4100A & ZK-4100A) |
|---|---|
| System type | Centre Bar Seismic Floor System |
| Mounting | Flush-mounted |
| Suitable movement | Seismic, Thermal, Settlement |
| Load capacity | Heavy Volume Pedestrian Traffic; Heavy Vehicular Loads |
| Recommended for | Interior and exterior areas where thermal and multi- directional/seismic movement is expected; Applications where high movement capacity is required |
| Components | Extruded Aluminum Support Profiles; Aluminum / Stainless Steel Cover Plate; Steel Turnbar Assembly |
| Material: Support Profiles | Extruded aluminum, grade AA 6063 preferred |
| Material: Cover Plate | Aluminum, Stainless Steel 304 or Stainless Steel 316 |
| Material: Turnbar | Galvanized Steel; finish: “A” Coating (Corrosion Protection) |
| Material: Vapor Barrier (Optional) | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); black |
| Supply length | 3.00 m per piece (support profile and metal retaining caps) |
| Substrate tolerance | Surface level within ±2 mm; gap level within ±5 mm |
| Sizes | Per the system drawings; profiles can be customized to requirements |
Source: Z4100A technical datasheet. Sizes and dimensions: profile specifications above and the system drawings.
