z2000
superfinish ls series

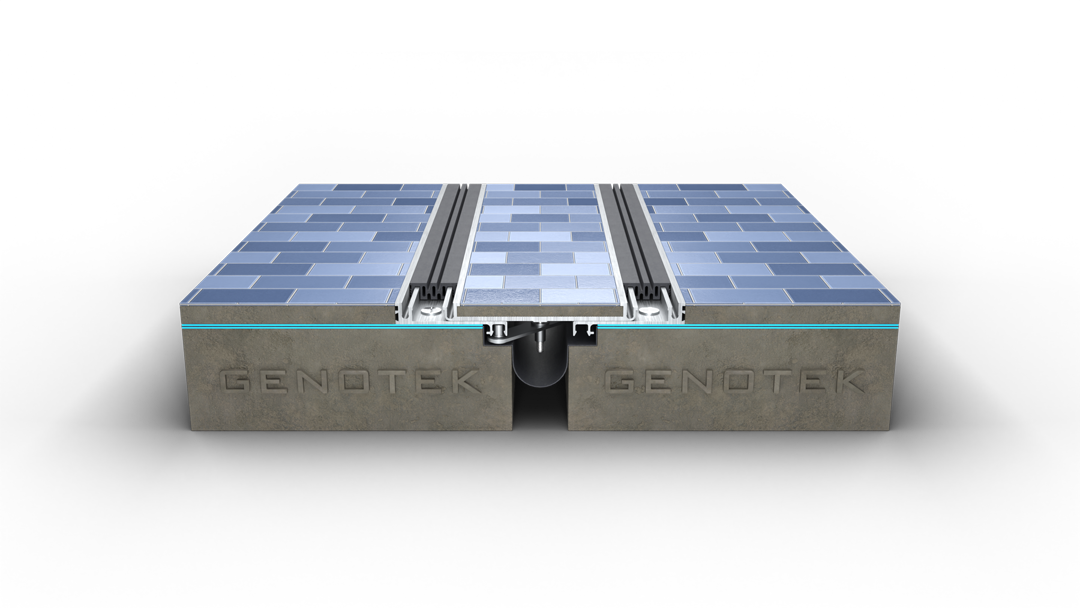

Introducing the Z-2000
seismic movement accommodation
an aluminum plate held centered over the joint by stainless steel screws and steel turn bars at 500 mm on center lets the z-2000 accommodate up to ±25% of the nominal joint width and return to center, staying flush with the floor.
water protection
an optional water barrier membrane is draped into the gap and retained by the base frames, with no punctures through the membrane, to help keep water from passing through the joint to the space below.
load bearing
the z-2000 is scheduled at a 10 kn load capacity, suited to pedestrian traffic on office, education, healthcare and residential floors. the aluminum plate stays flat and flush with the finished floor.
assembly in action
this video demonstrates the assembly process, perfectly designed for easy installation for durability and reliability.

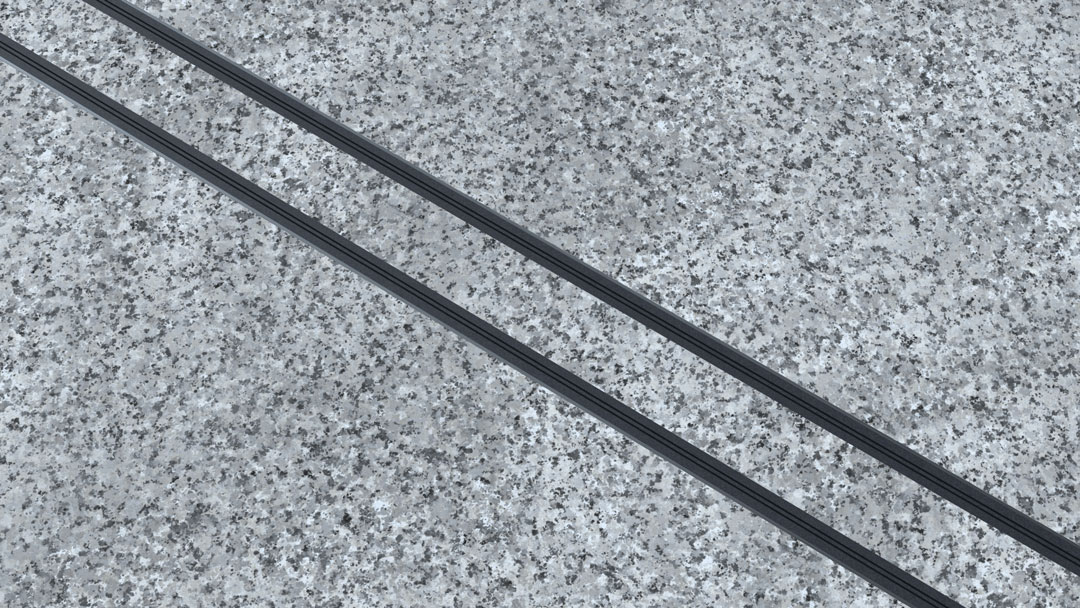

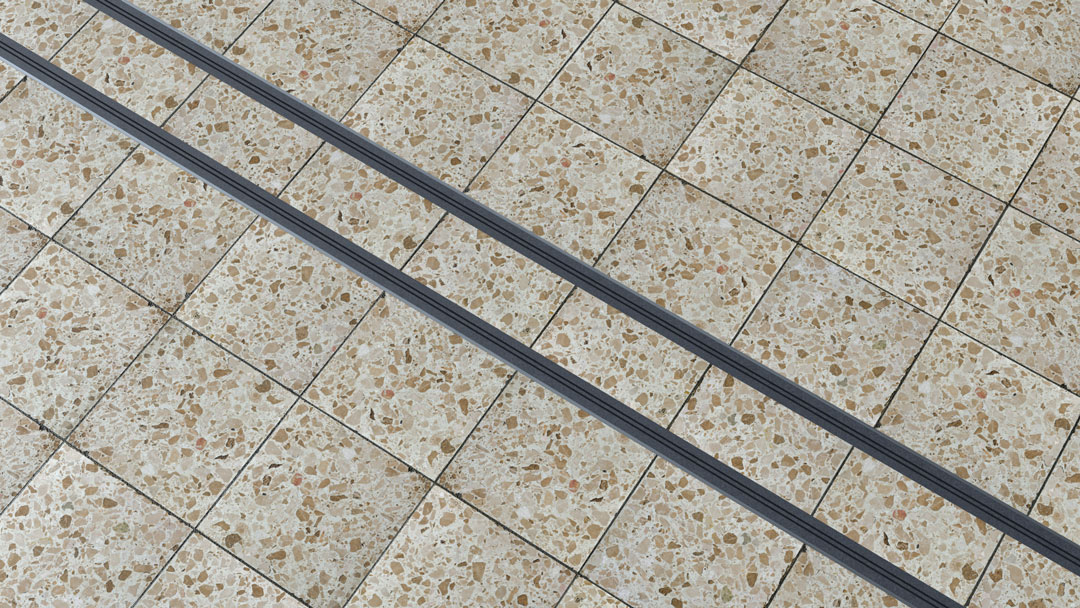

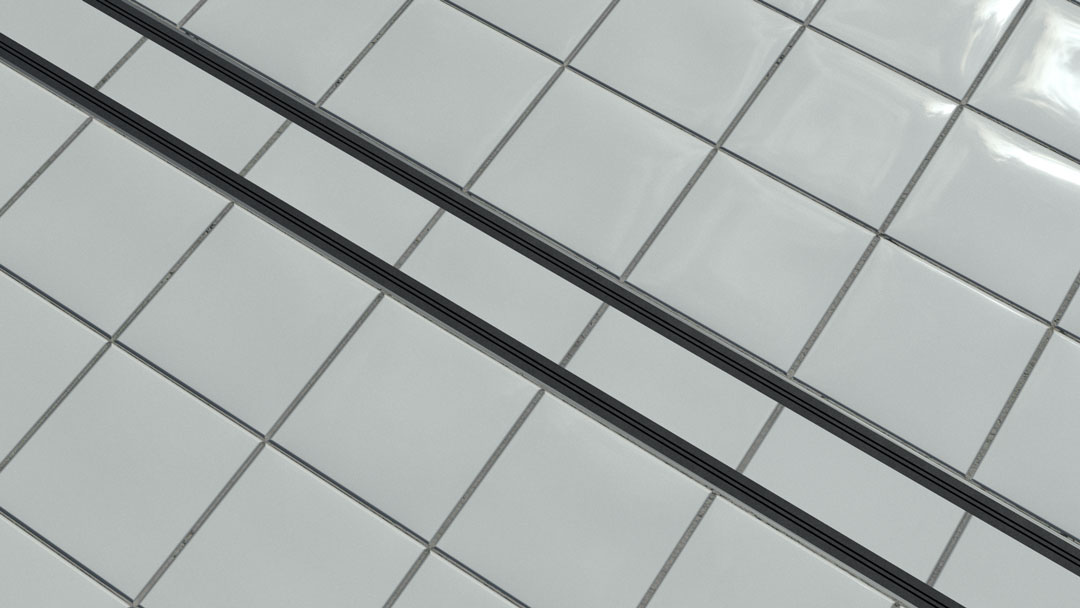

Aesthetic Choice
Only 20 mm high, the Z-2000 fits thin screeds and finishes flush with the floor. A continuous aluminum plate spans the joint, with EPDM inserts closing the gaps between plate and frames, so the joint reads as a clean, narrow line in interior floors.

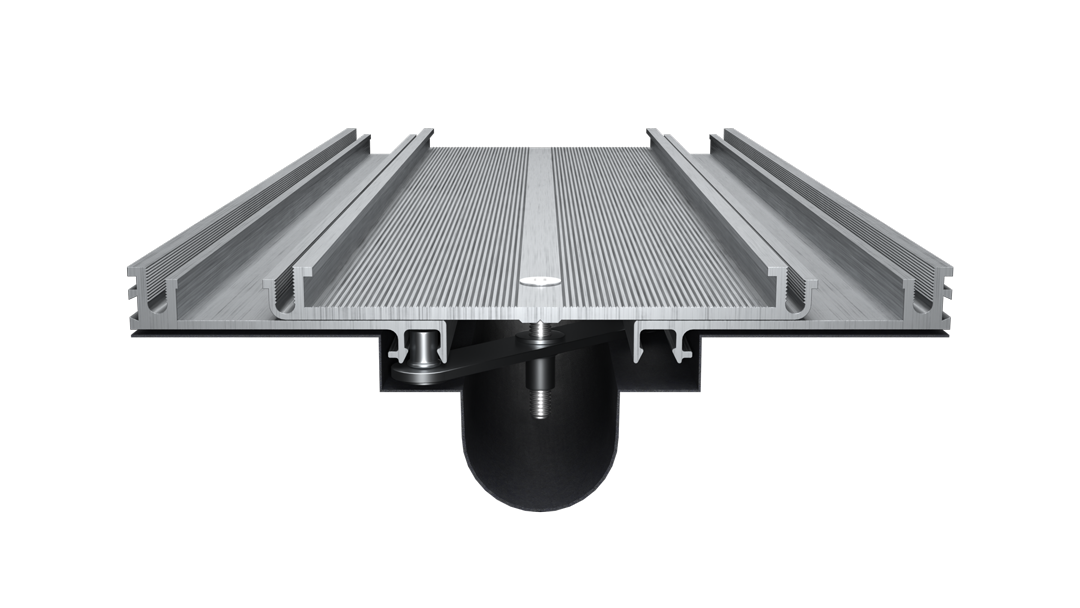

Optional Vapor Barrier

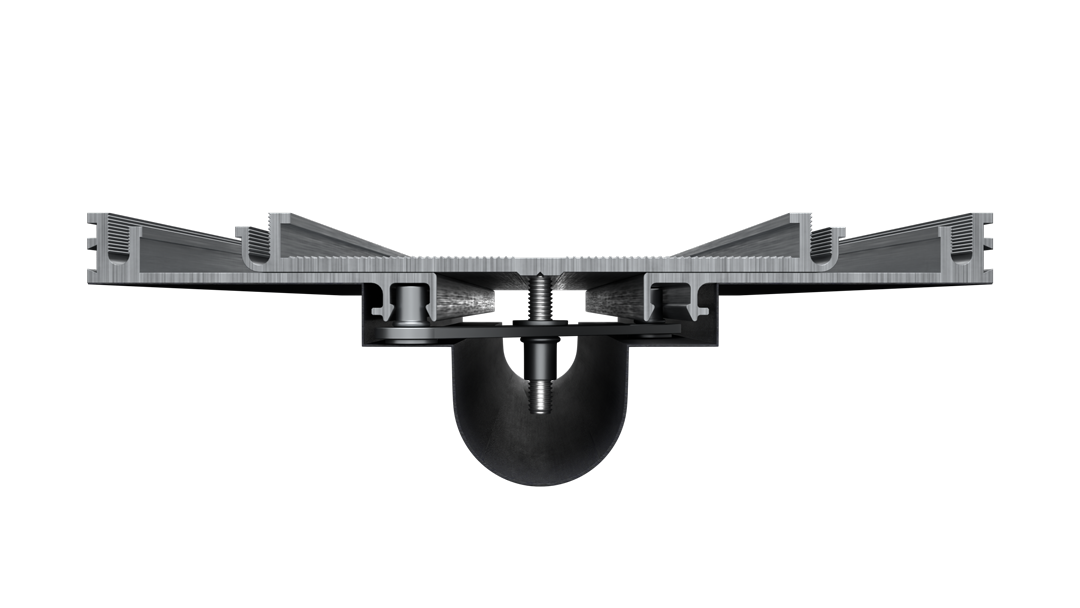

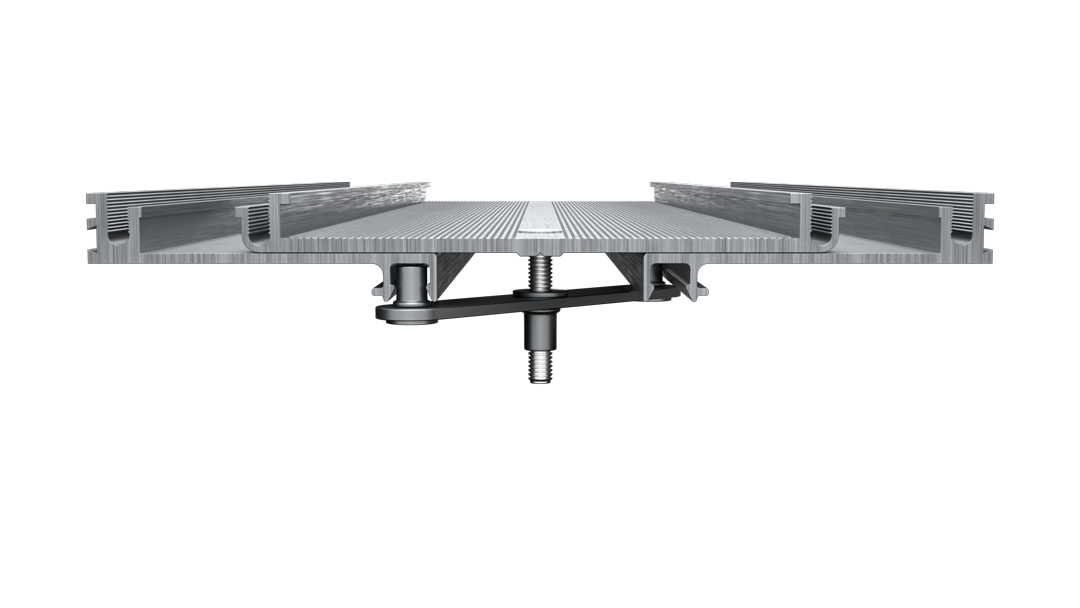

Galvanized Steel Turn-bar for Structural Stability

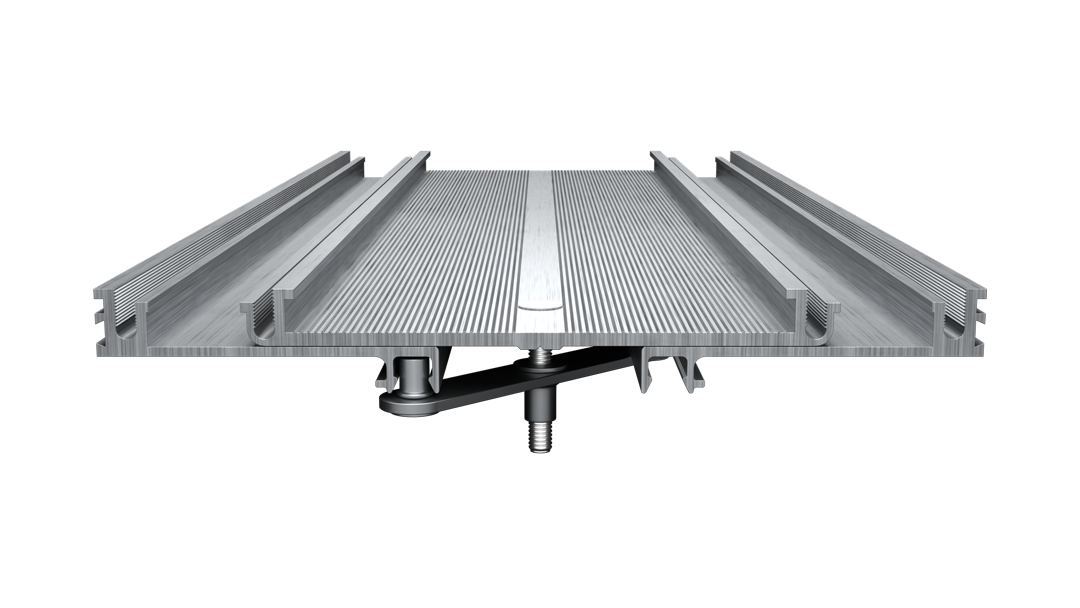

Noise Reduction

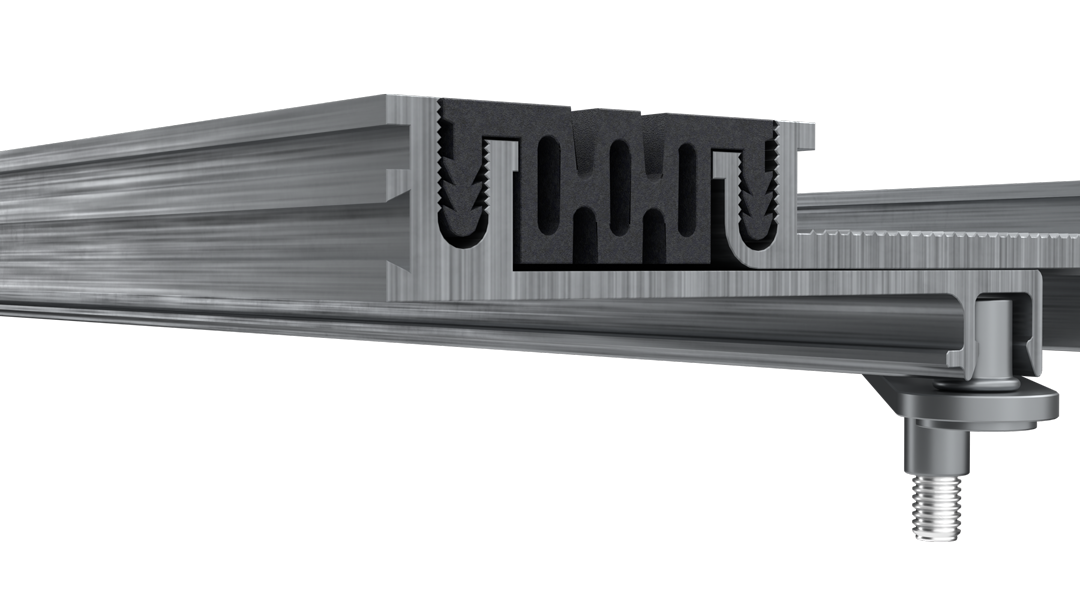

Rubber Insert for Superior Performance

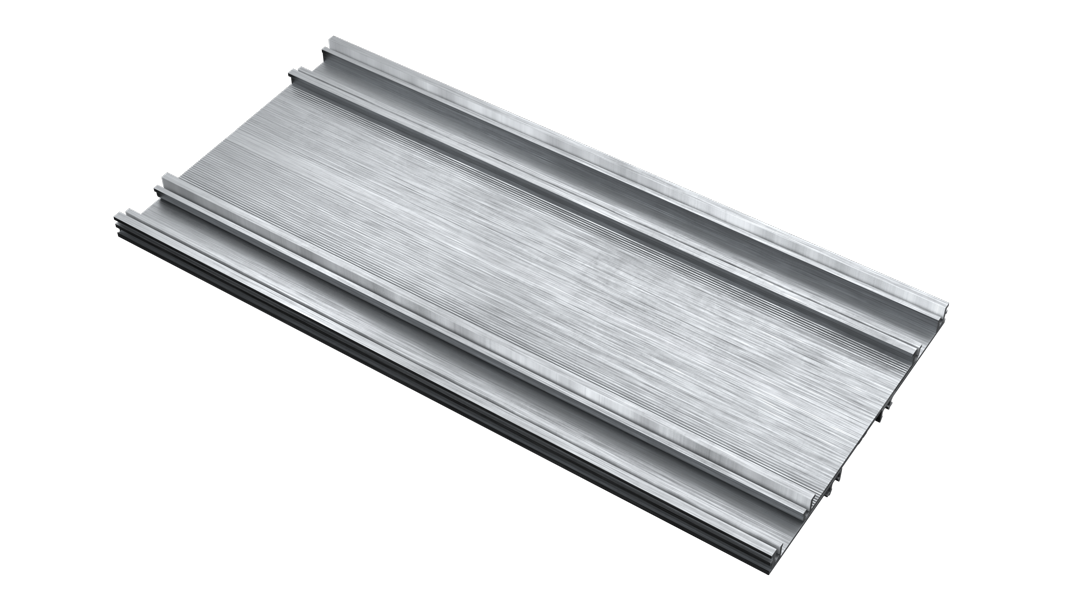

Premium Aluminum for Architectural Materials
System Drawing
gap size calculator
enter your expansion gap measurement to see if this product is right for you.
profile specifications
| model name | joint width (mm) | height (mm) | sightline (mm) | movement capability (%) | load capacity |
|---|---|---|---|---|---|
| z-2000-100 | 50-100 | 20 | 251 | ±25% | 10 kN |
| z-2000-75 | 75 | 20 | 233 | ±25% | 10 kN |
| zk-2000-50 | 50 | 20 | 151 | ±25% | 10 kN |
| zk-2000-75 | 75 | 20 | 154 | ±25% | 10 kN |
datasheet specifications
| Series | SUPERFINISH LS Series (Z-2000 & ZK2000) |
|---|---|
| System type | Seismic System for Floors |
| Suitable movement | Thermal, Seismic, Settlement |
| Recommended for | Areas where a Flush Visible Cover is preferred; Areas where Light Wheeled Equipment is to be used; Areas having bigger gap sizes than usual |
| Components | Extruded Aluminum Support Profiles; Extruded Aluminum Center Pan; Dual Elastomeric Rubber Insert which absorb expansion and contraction of the adjacent concrete slabs; Steel Turnbar Assembly |
| Material: Support Frames & Center Pan | Extruded aluminum, grade AA 6063 preferred |
| Material: Elastomeric Rubber Insert | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); finish: Smooth Finish; black |
| Material: Vapor Barrier (Optional) | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); black |
| Supply length | 3.00 m per piece (aluminum support frame & center pan) |
| Substrate tolerance | Surface level within ±2 mm; gap level within ±5 mm |
| Sizes | Per the system drawings; profiles can be customized to requirements |
Source: Z2000 technical datasheet. Sizes and dimensions: profile specifications above and the system drawings.
