Introducing the Z-7100A

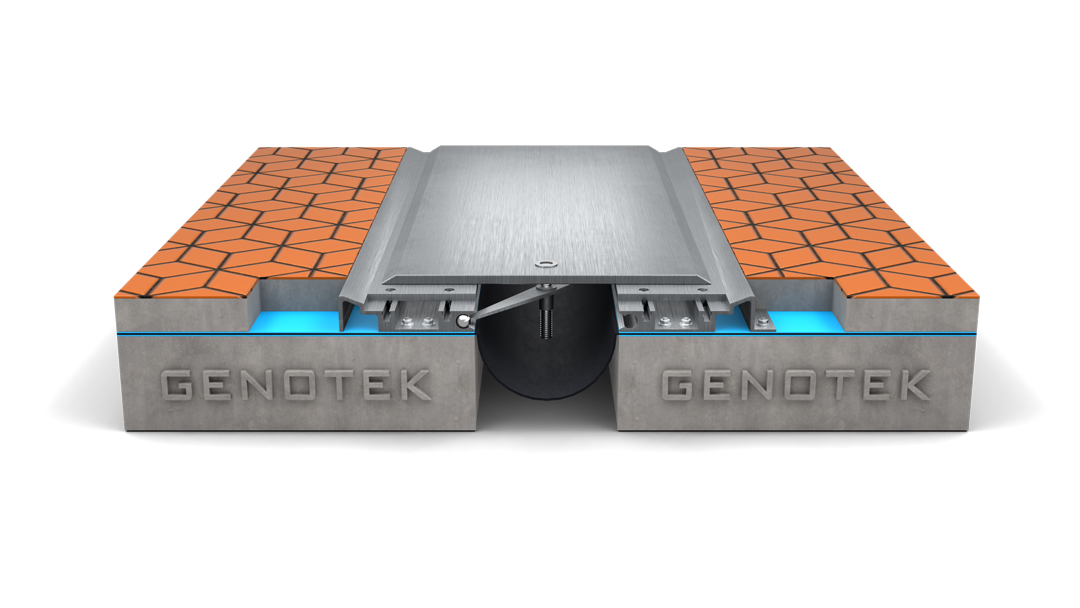

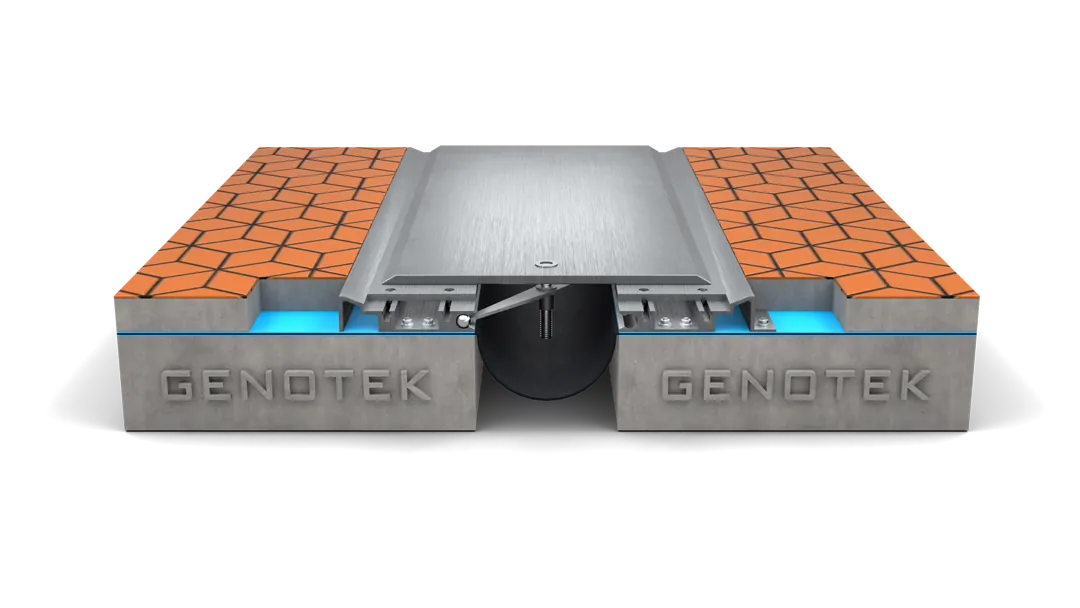

The LUXPARK Series Z-7100A is a heavy-duty centre bar seismic floor expansion joint cover for wide joints under extra heavy loads. Recessed aluminum frames carry an aluminum or stainless steel cover plate on steel turn bars; the plate stays flush during thermal movement and slides over the finish during seismic movement. Optional PTFE tape lets it move with low friction, and water and fire barriers are available.
movement
01 — movement
seismic movement accommodation
handles multi-directional seismic movement, lateral shear and thermal movement: the cover plate stays flush with the floor finish during thermal movement and temporarily slides over the finishing surface during seismic movement.
water barrier
02 — water barrier
water protection
an optional epdm or tpv barrier below the cover plate adds protection against water and moisture, for interior and exterior areas.
load bearing
03 — load bearing
load bearing
built for extra heavy-duty and heavy vehicular loads: rated 50 kn in the system drawings for joints of 150-170 mm, with the cover plate in aluminum or stainless steel of the thickness the site requires.
assembly
04 — assembly
assembly in action
this video demonstrates the assembly process, perfectly designed for easy installation for durability and reliability.
Aesthetic Choice

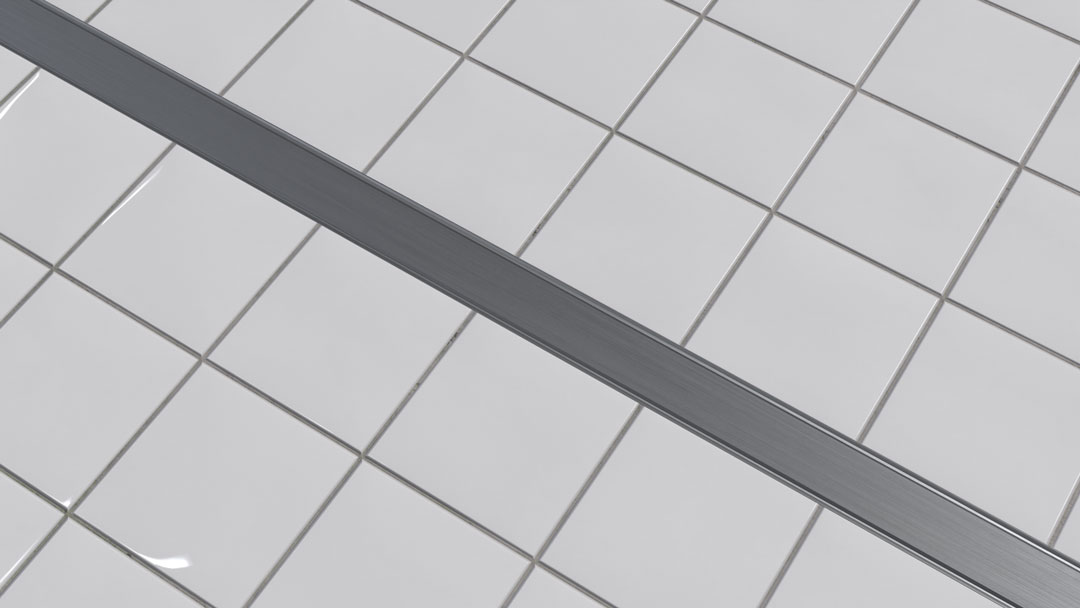

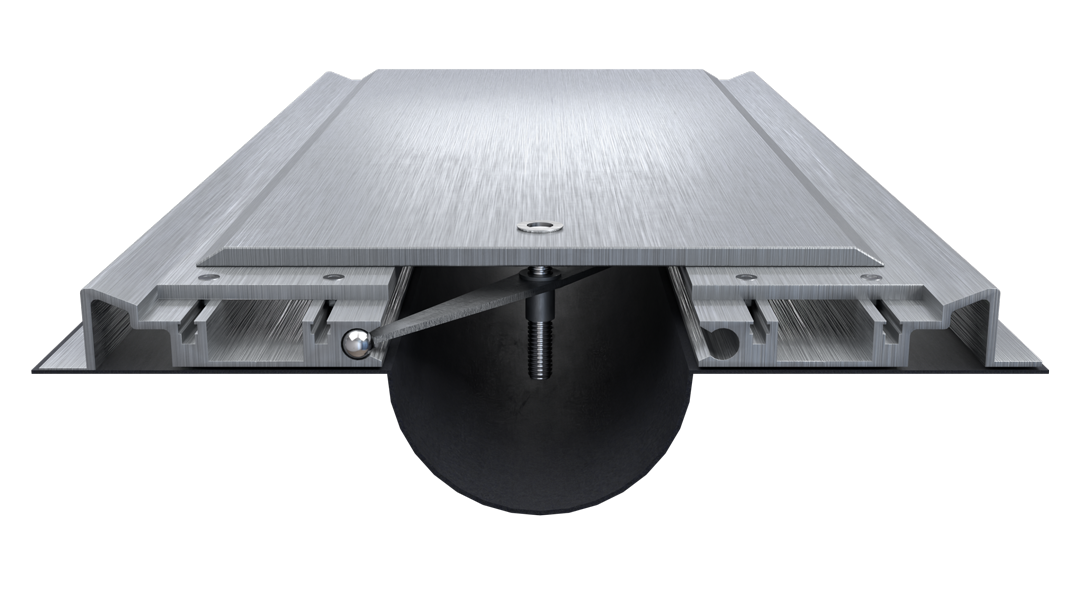

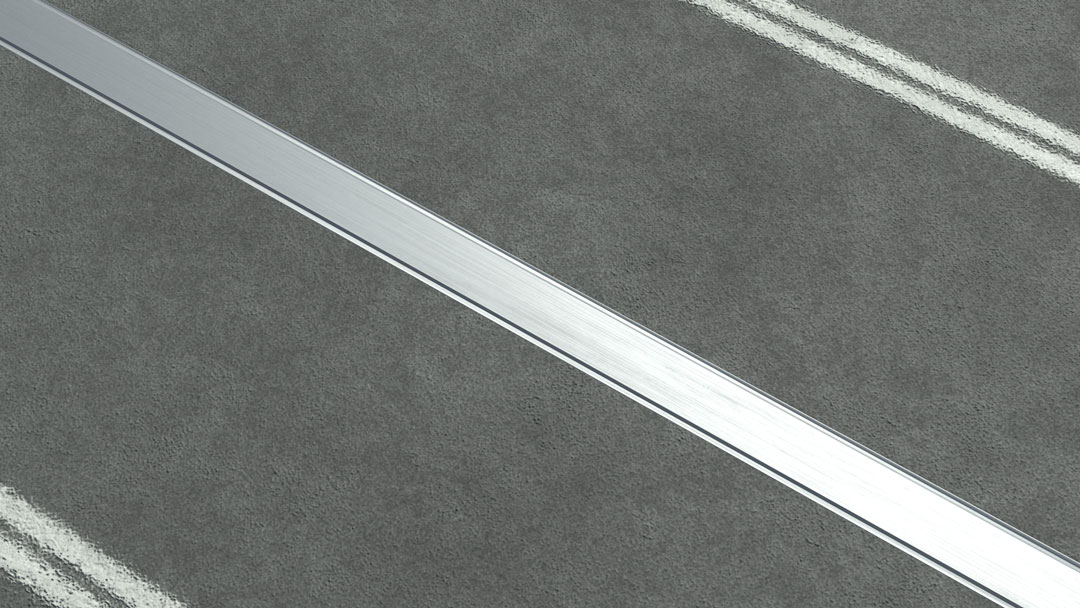

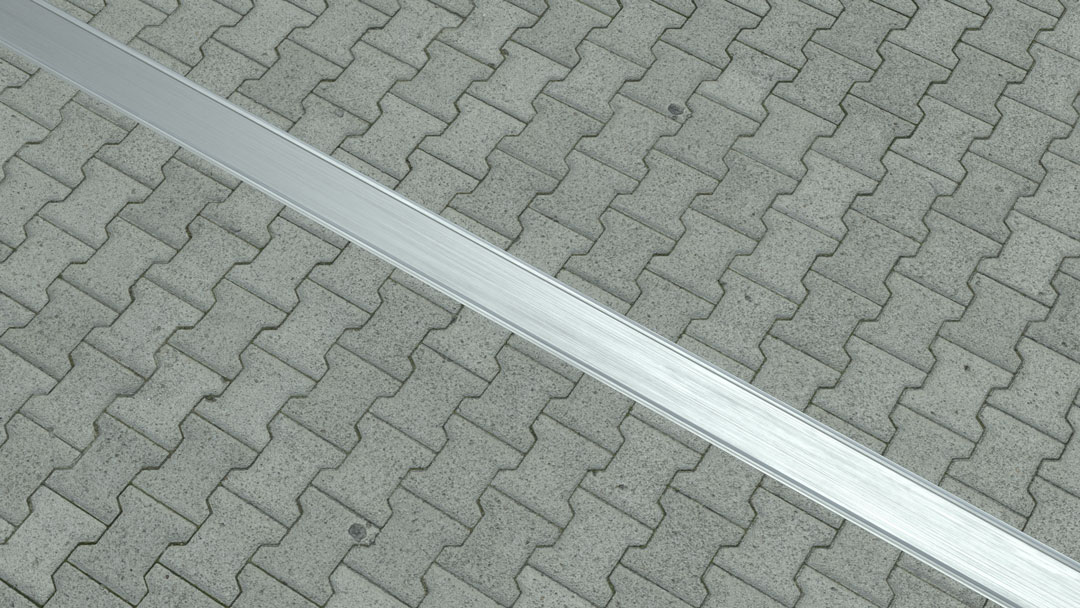

The flush aluminum or stainless steel cover plate sits level with the surrounding floor finish, so the joint stays safe and discreet in heavy-traffic areas such as car parks, loading bays and service corridors.
Optional Vapor Barrier
For added protection, an optional vapor barrier is available, constructed from either EPDM or TPV, which offers high tensile and tear resistance, ensuring long-term performance against moisture penetration
Anti-slip Serration

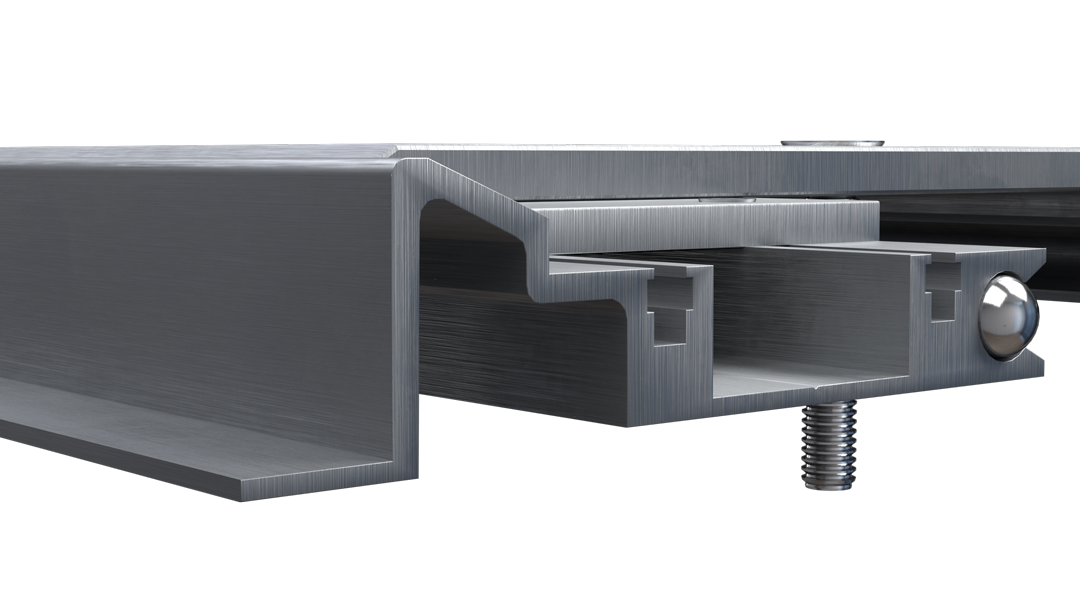

The anti-slip serrations in the aluminum surface of an expansion joint provide exceptional traction and safety. These precision-engineered grooves create a high-grip texture that prevents slips and skids, even in wet conditions. The serrated design ensures secure footing for pedestrians and vehicles, enhancing the joint’s overall safety and functionality. Engineered for durability and performance, these anti-slip serrations offer a reliable, long-lasting solution for maintaining a safe environment in various applications
Galvanized Steel Turn-bar for Structural Stability

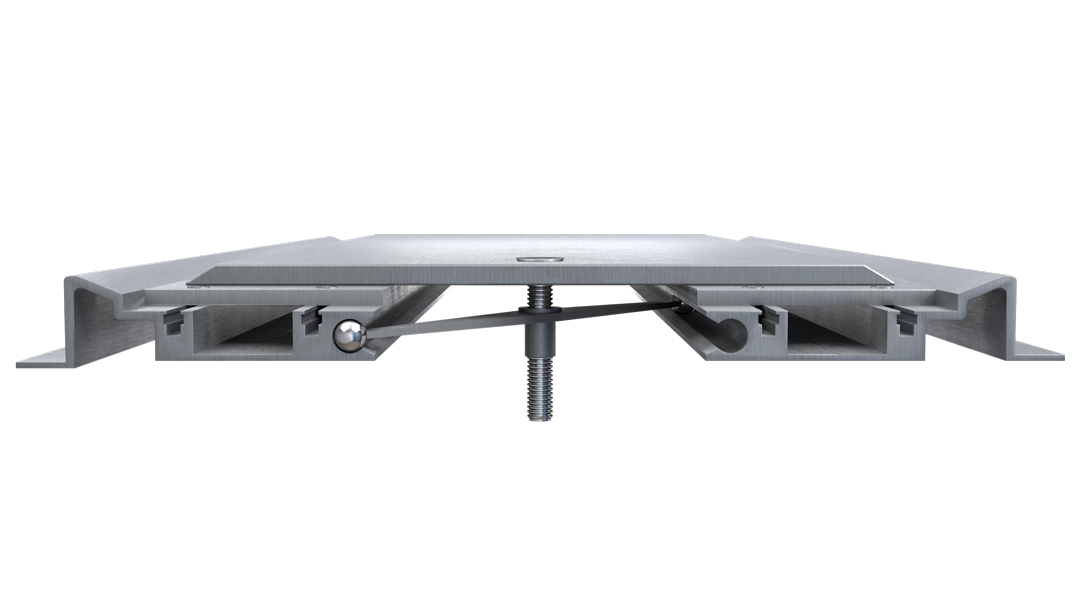

The turn-bar component reinforces stability, enabling the system to accommodate multi-directional movement while keeping the cover aligned and stable.
Premium Aluminum for Architectural Materials

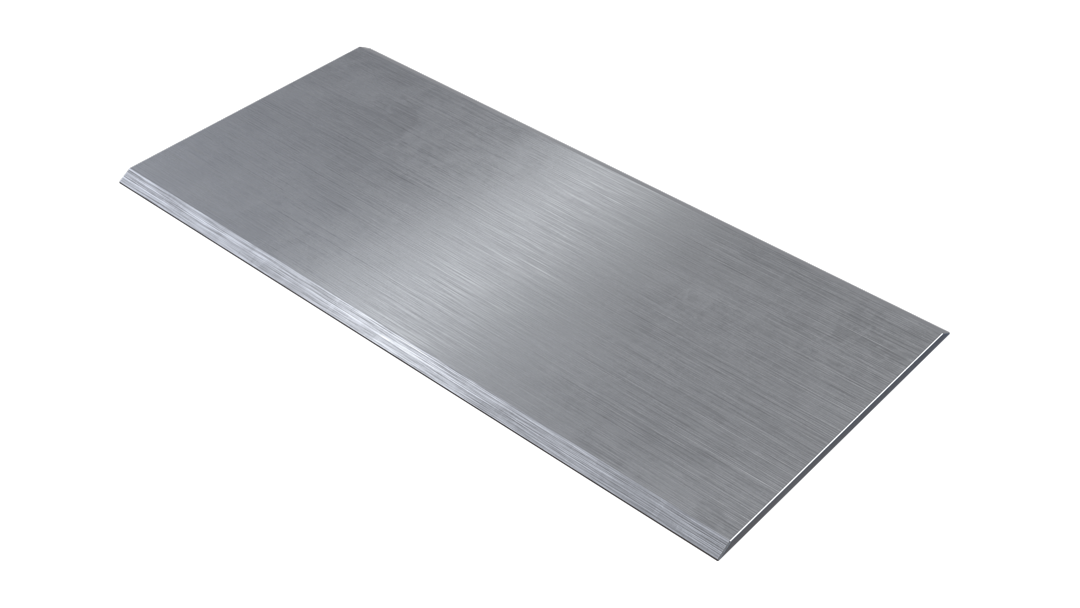

Aluminum grade 6063, the premium material used in the expansion joint cover, offers strength, corrosion resistance, and durability. Available in T5 and T6 tempers or customized to meet project needs, this versatile alloy ensures exceptional structural integrity and longevity. Aluminum 6063 withstands high-traffic areas, extreme temperatures, and corrosive conditions, making it an ideal choice for diverse applications, from commercial facilities to infrastructure projects
System Drawing
The Z-7100A expansion joint cover system drawings cover 150 mm and 160-170 mm joint widths, 43 mm high, rated 50 kN, in floor-to-floor and floor-to-wall (ZK-7100A) conditions. Each size is downloadable as DWG and PDF.
interactive tool
gap size calculator
enter your expansion gap measurement to see if this product is right for you.
20mm ≈ credit card
50mm ≈ two fingers
100mm ≈ fist width
200mm ≈ hand span
mm
z7100a covers gap sizes from 75mm to 255mm. enter your measurement above to see the movement capacity, profile width, and whether this product handles your requirements.
technical data
profile specifications
| model name | joint width (mm) | height (mm) | sightline (mm) | movement capability (%) | load capacity |
|---|---|---|---|---|---|
| z-7100a-150 | 150 | 43 | 462 | ±50% | 50 kN |
| z-7100a-170 | 160-170 | 43 | 482 | ±50% | 50 kN |
| zk-7100a-170 | 160-170 | 43 | 326 | ±50% | 50 kN |
from the technical datasheet
datasheet specifications
| Series | LUXPARK Series (Z-7100A & ZK-7100A) |
|---|---|
| System type | Heavy-Duty Centre Bar Seismic Floor System |
| Mounting | Flush-mounted |
| Suitable movement | Seismic, Thermal, Settlement |
| Load capacity | Heavy Vehicular Loads |
| Recommended for | Interior and Exterior Areas where Thermal and Multi- Directional/Seismic Movement is expected; Areas with exposure to Heavy Loads |
| Components | Extruded Aluminum Support Profiles; Aluminum Support Plate; Aluminum / Stainless Steel Cover Plate; Steel Turnbar Assembly; PTFE Teflon Tape (Optional) |
| Material: Support Profiles | Extruded aluminum, grade AA 6063 preferred |
| Material: Cover Plate | Aluminum, Stainless Steel 304 or Stainless Steel 316 |
| Material: Turnbar | Galvanized Steel; finish: “A” Coating (Corrosion Protection) |
| Material: Vapor Barrier (Optional) | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); black |
| Supply length | 3.00 m per piece (support profiles and cover plates) |
| Substrate tolerance | Surface level within ±2 mm; gap level within ±5 mm |
| Sizes | Per the system drawings; profiles can be customized to requirements |
Source: Z7100A technical datasheet. Sizes and dimensions: profile specifications above and the system drawings.
