z2002
luxflange series

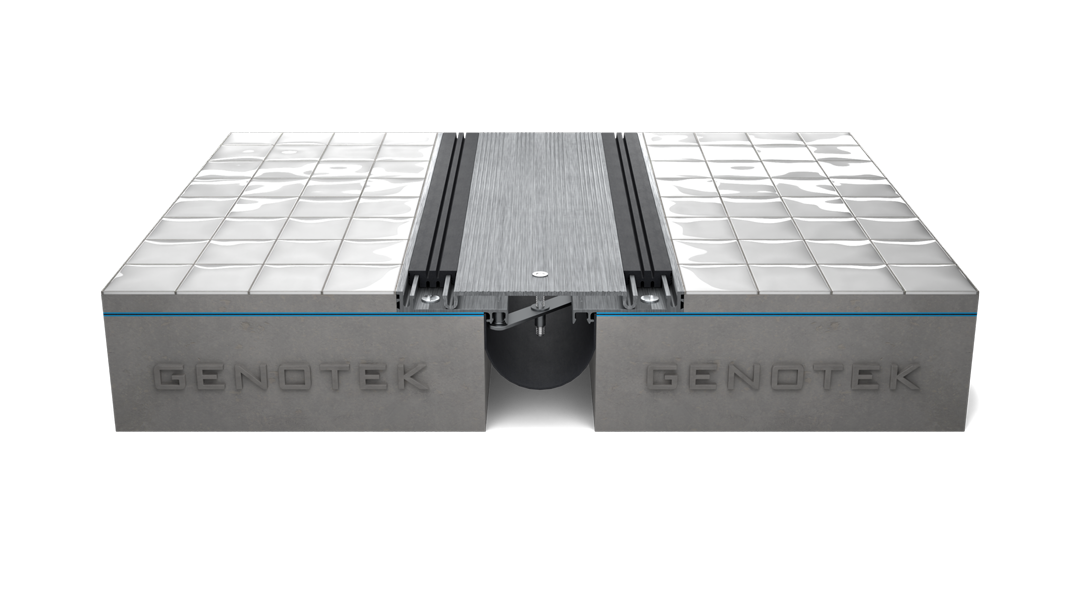

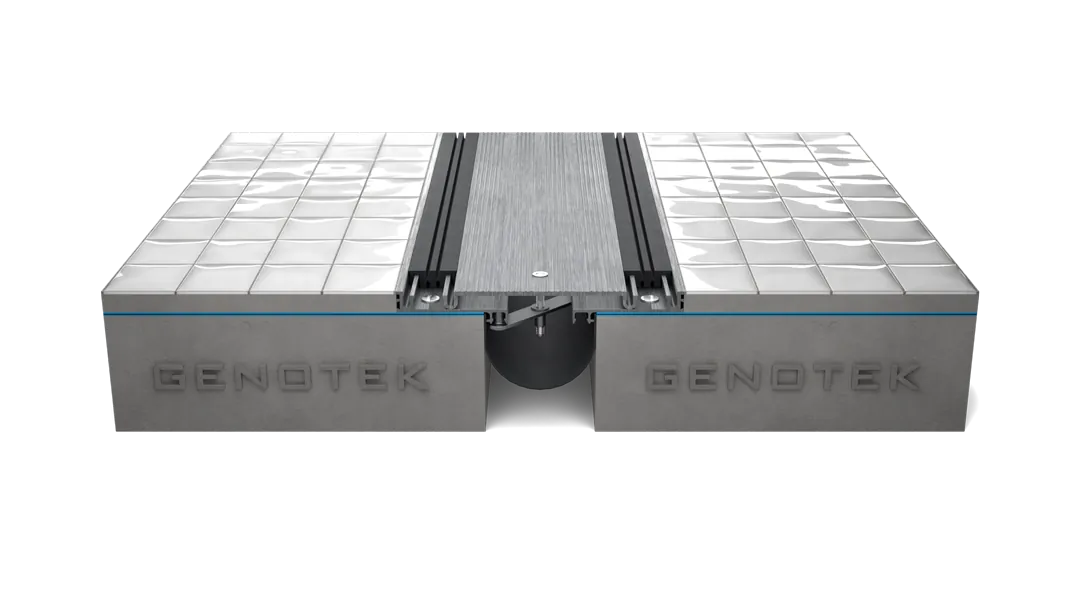

Introducing the Z-2002
movement accommodation
an aluminum plate held centered over the joint by stainless steel screws and steel turn bars at 500 mm on center lets the z-2002 accommodate ±25% of the nominal joint width, and up to ±50% in the z-2002-50 size, staying flush with the floor.
water protection
an optional water barrier membrane is draped into the gap and retained by the base frames, with no punctures through the membrane, to help keep water from passing through the joint to the space below.
load bearing
the z-2002 is scheduled at load capacities from 10 kn to 30 kn depending on size, suited to pedestrian traffic on office, education, healthcare, retail and residential floors. the aluminum plate stays flat and flush with the finished floor.
assembly in action
this video demonstrates the assembly process, perfectly designed for easy installation for durability and reliability.

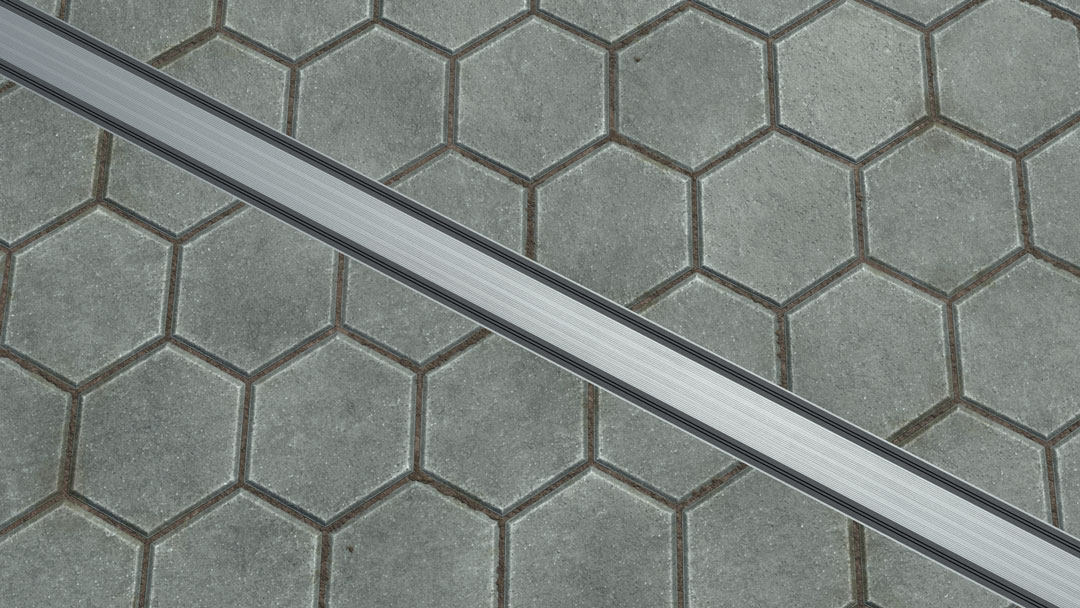

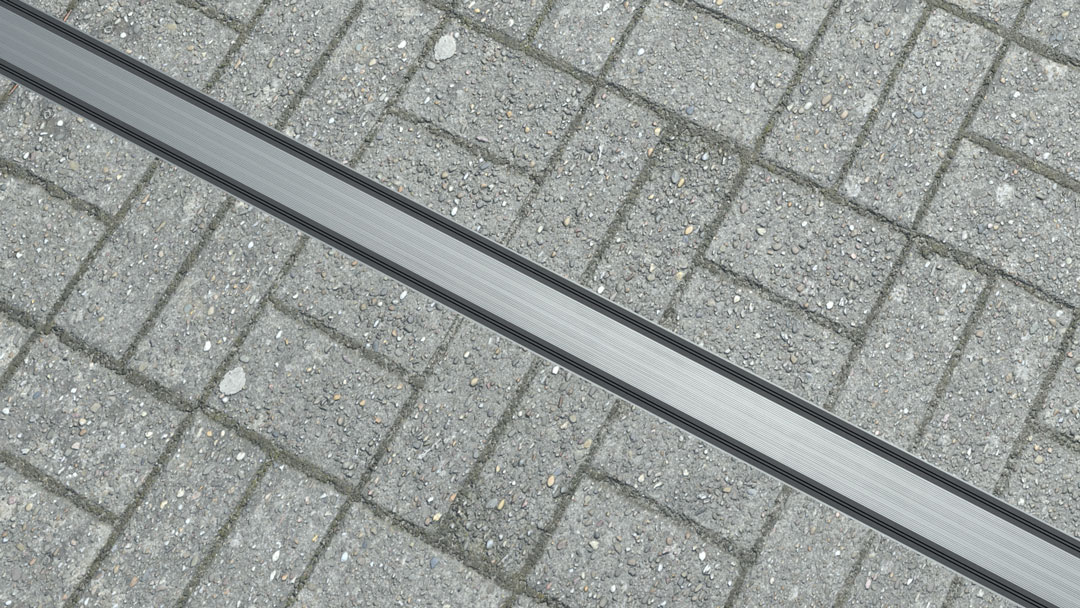

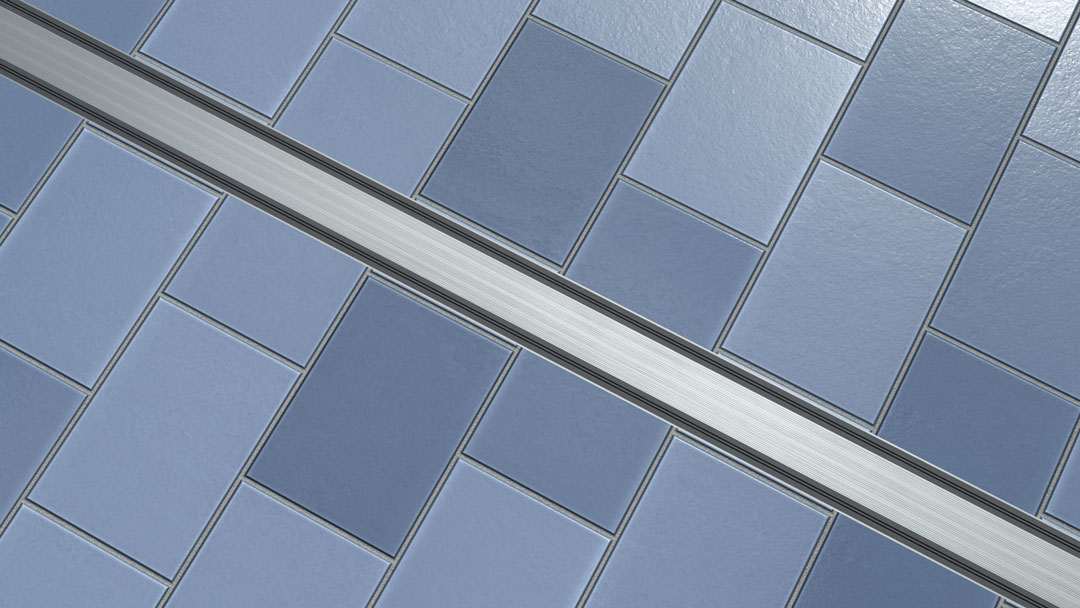

Aesthetic Choice
Only 20 mm high even at 200 mm joint widths, the Z-2002 fits thin screeds and finishes flush with the floor. A continuous aluminum plate spans the joint, with EPDM inserts beside it, so the joint reads as a clean, narrow line in interior floors.

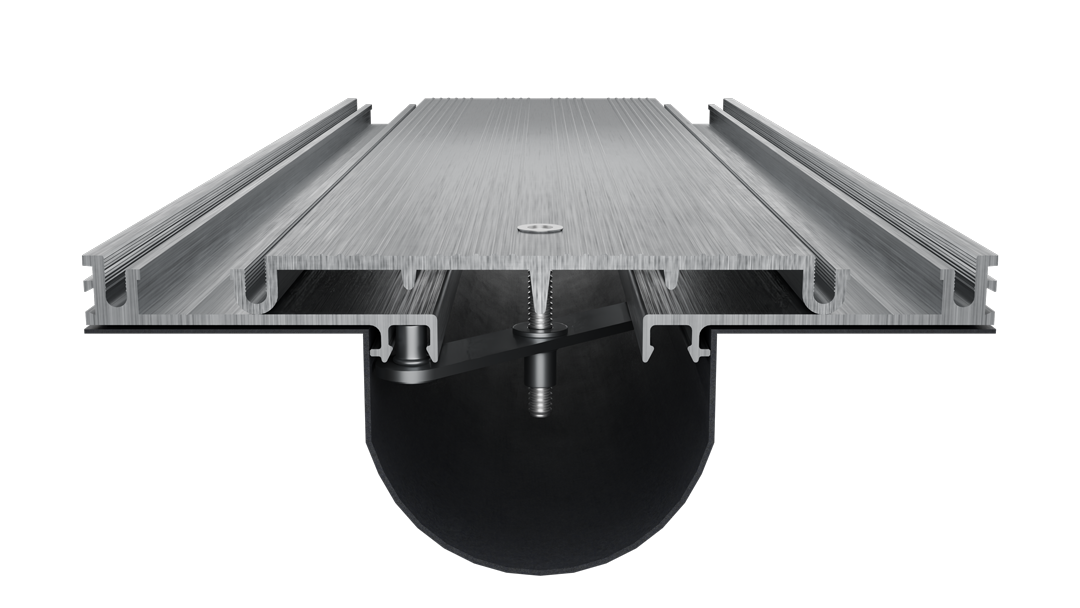

Optional Vapor Barrier

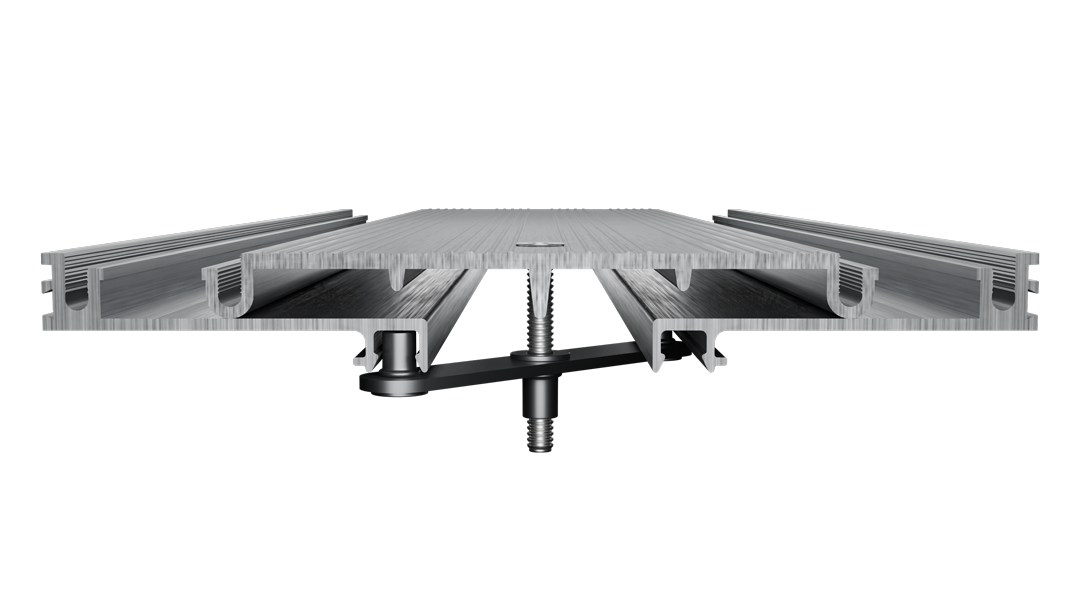

Galvanized Steel Turn-bar for Structural Stability

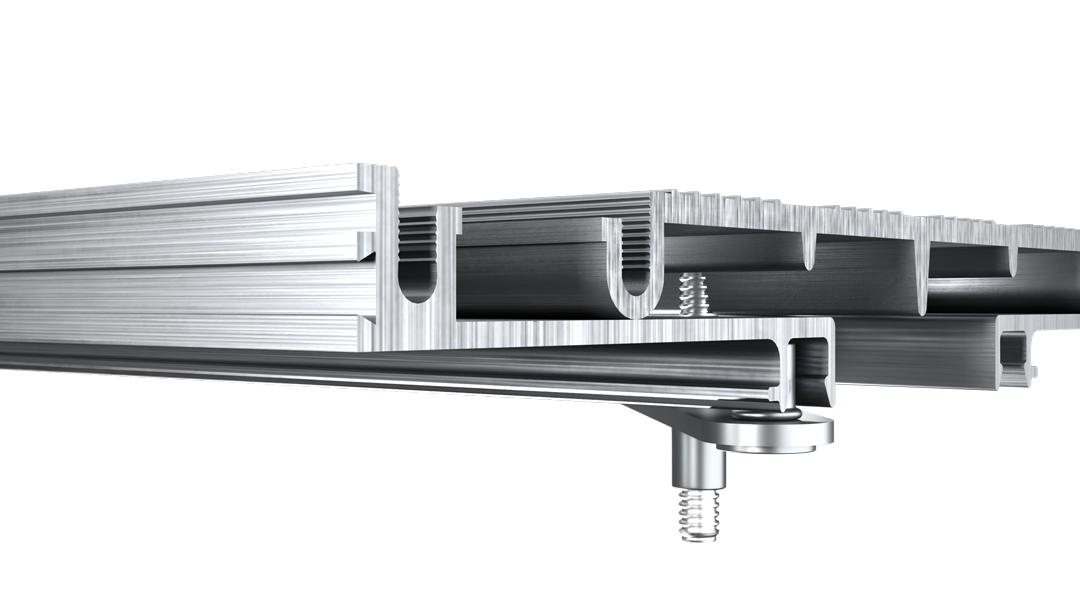

Noise Reduction

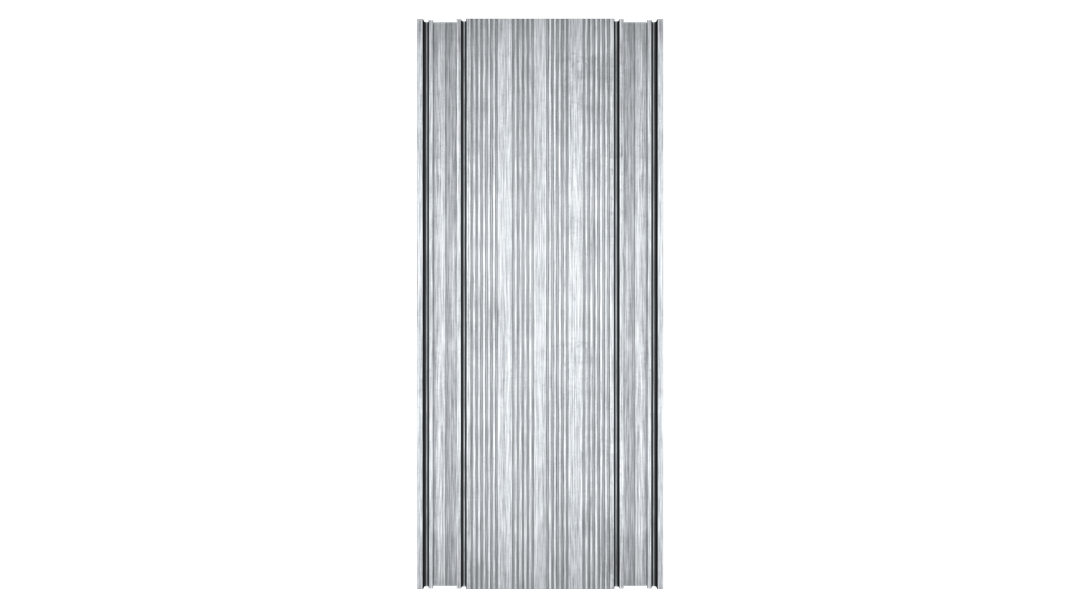

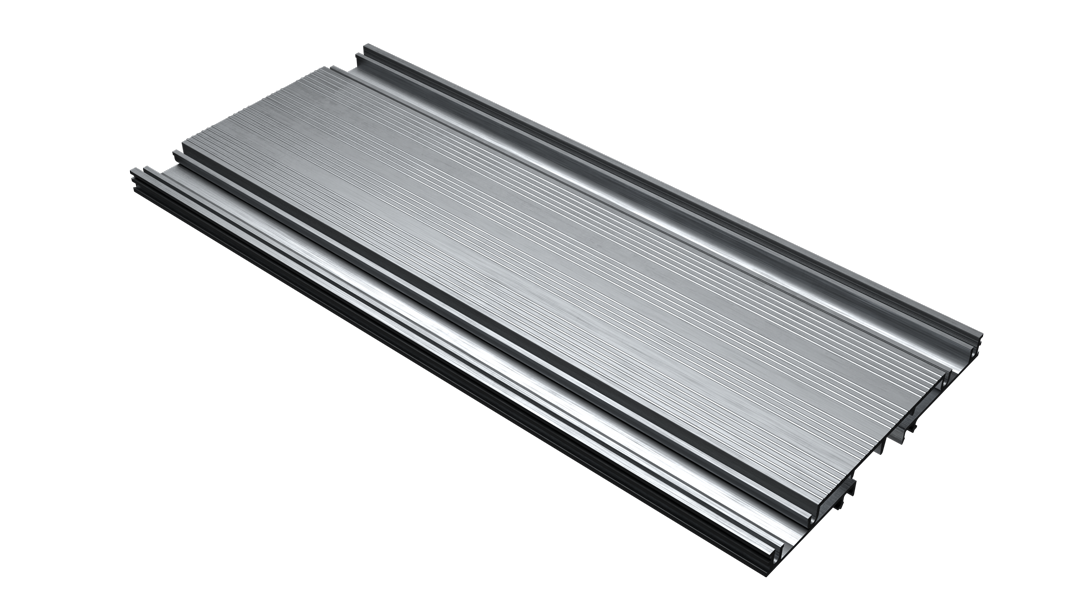

Premium Aluminum for Architectural Materials
System Drawing
gap size calculator
enter your expansion gap measurement to see if this product is right for you.
profile specifications
| model name | joint width (mm) | height (mm) | sightline (mm) | movement capability (%) | load capacity |
|---|---|---|---|---|---|
| z-2002-50 (s:205) | 50 | 20 | 205 | ±25% | 30 kN |
| z-2002-50 (s:250) | 50 | 20 | 250 | ±50% | 10 kN |
| z-2002-100 | 100 | 20 | 250 | ±25% | 20 kN |
| z-2002-200 | 200 | 20 | 345 | ±25% | 10 kN |
| zk-2002-50 | 50 | 20 | 117 | ±25% | 20 kN |
| zk-2002-100 | 100 | 20 | 175 | ±25% | 20 kN |
datasheet specifications
| Series | LUXFLANGE Series (Z-2002 & ZK2002) |
|---|---|
| System type | Recessed Modular Floor System |
| Mounting | Recessed |
| Suitable movement | Thermal, Settlement |
| Recommended for | Areas where a Flush Visible Cover is preferred; Areas where Light Wheeled Equipment is to be used; Areas having bigger gap sizes than usual |
| Components | Extruded Aluminum Support Profiles; Extruded Aluminum Center Plate; Dual Elastomeric Rubber Insert which absorb expansion and contraction of the adjacent concrete slabs; Steel Turnbar Assembly |
| Material: Support Frames & Center Plate | Extruded aluminum, grade AA 6063 preferred |
| Material: Elastomeric Rubber Insert | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); finish: Smooth Finish; black |
| Material: Vapor Barrier (Optional) | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); black |
| Supply length | 3.00 m per piece (aluminum support frame & center plate) |
| Substrate tolerance | Surface level within ±2 mm; gap level within ±5 mm |
| Sizes | Per the system drawings; profiles can be customized to requirements |
Source: Z2002 technical datasheet. Sizes and dimensions: profile specifications above and the system drawings.
