z1700
procarpet series

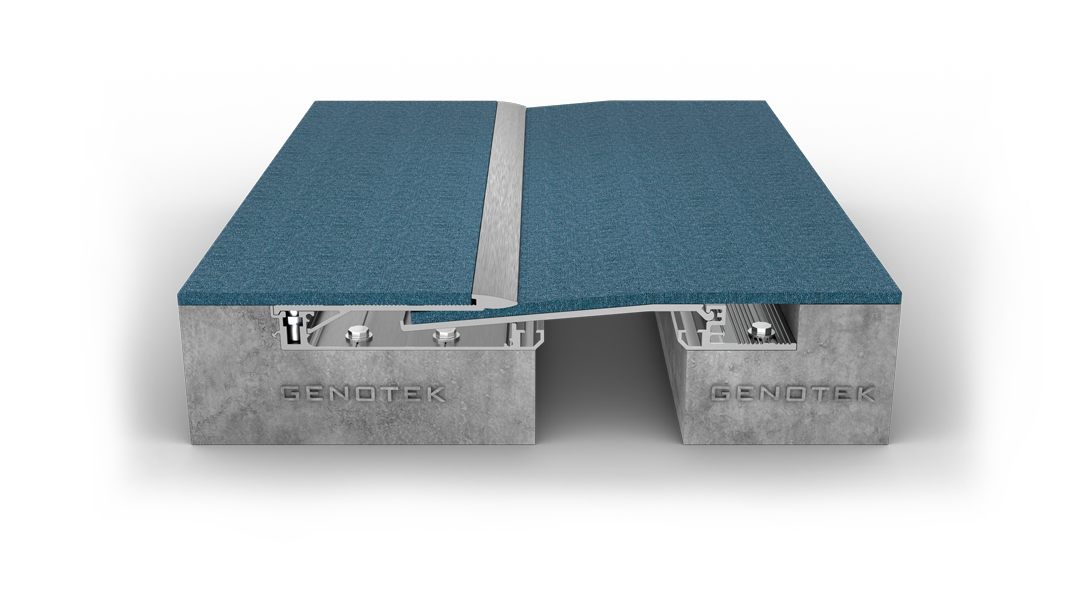

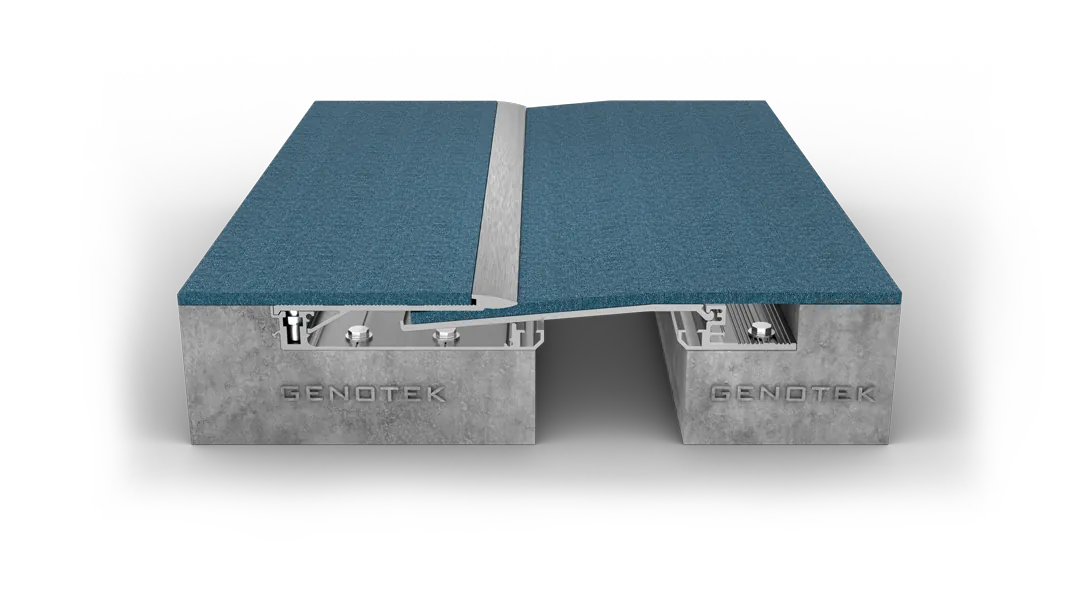

Introducing the Z-1700
seismic movement accommodation
suitable for seismic, thermal and settlement movement: the aluminum hinge frame and centre plate let the joint move while the recessed cover plate keeps the floor finish in place.
load bearing
rated for heavy pedestrian traffic, the full-metal z-1700 is a tamper-resistant, low-maintenance cover for busy interior floors.
assembly in action
this video demonstrates the assembly process, perfectly designed for easy installation for durability and reliability.

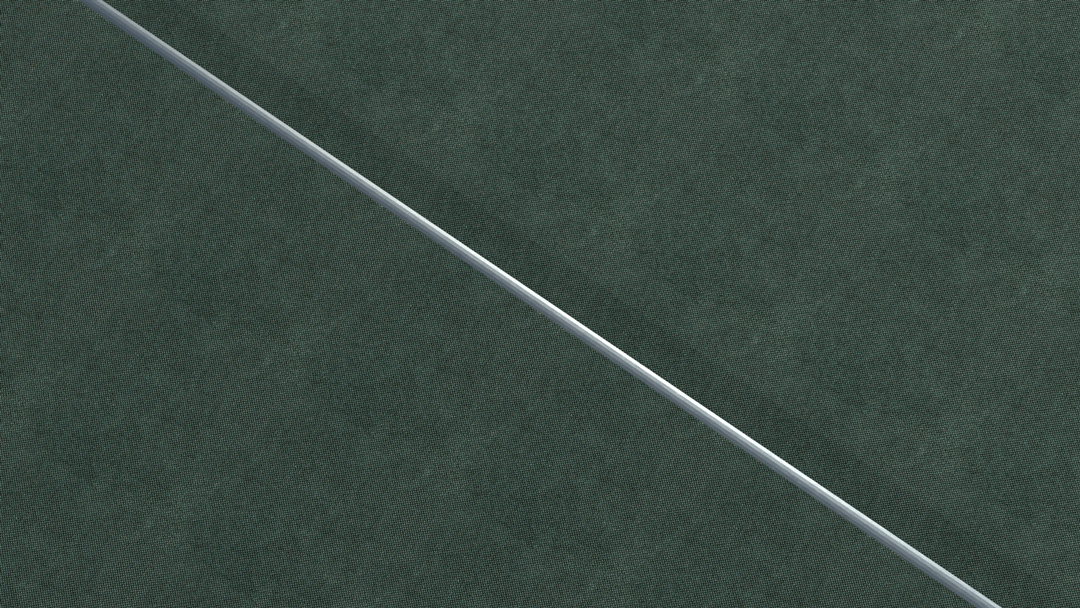

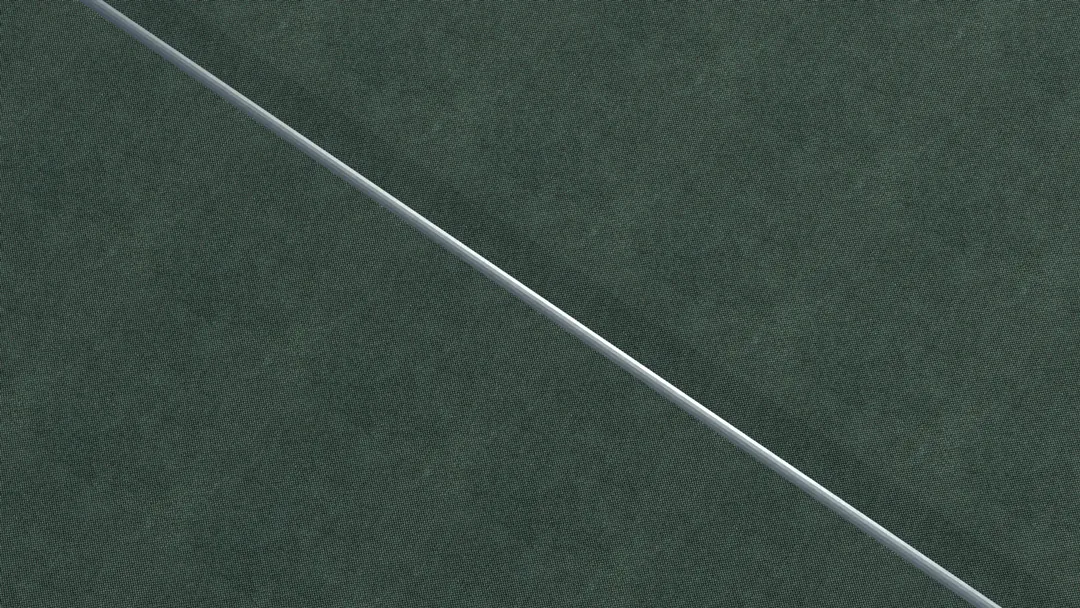

Aesthetic Choice
The slightly recessed cover plate takes the carpet or vinyl finish and the centre plate is gently sloped, so only a 24 mm sightline shows and the floor finish reads as continuous.

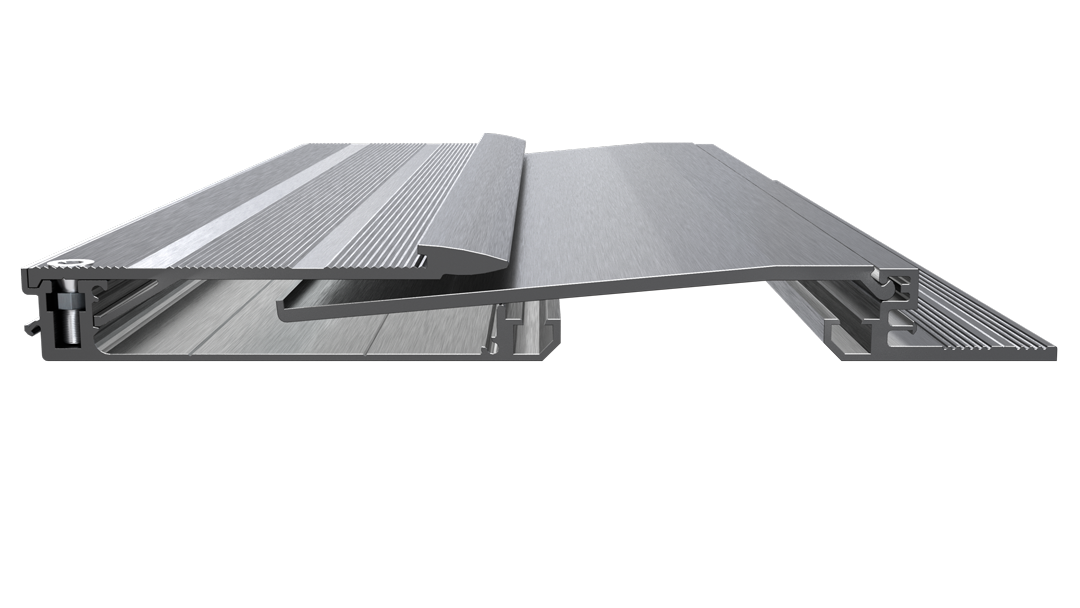

Optional Vapor Barrier

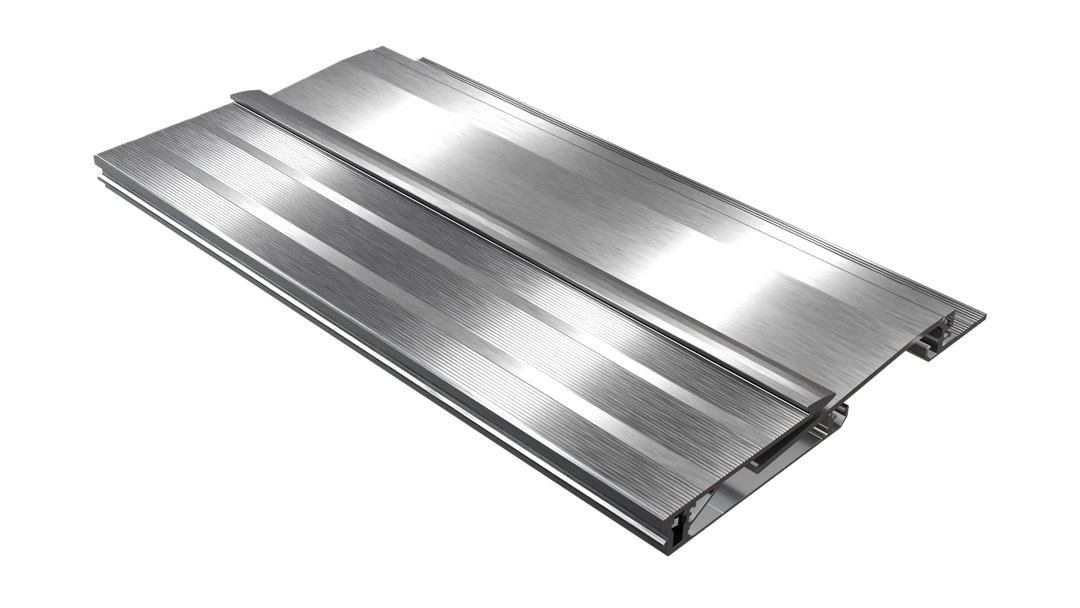

Recessed Cover Plate for Floor Finishes

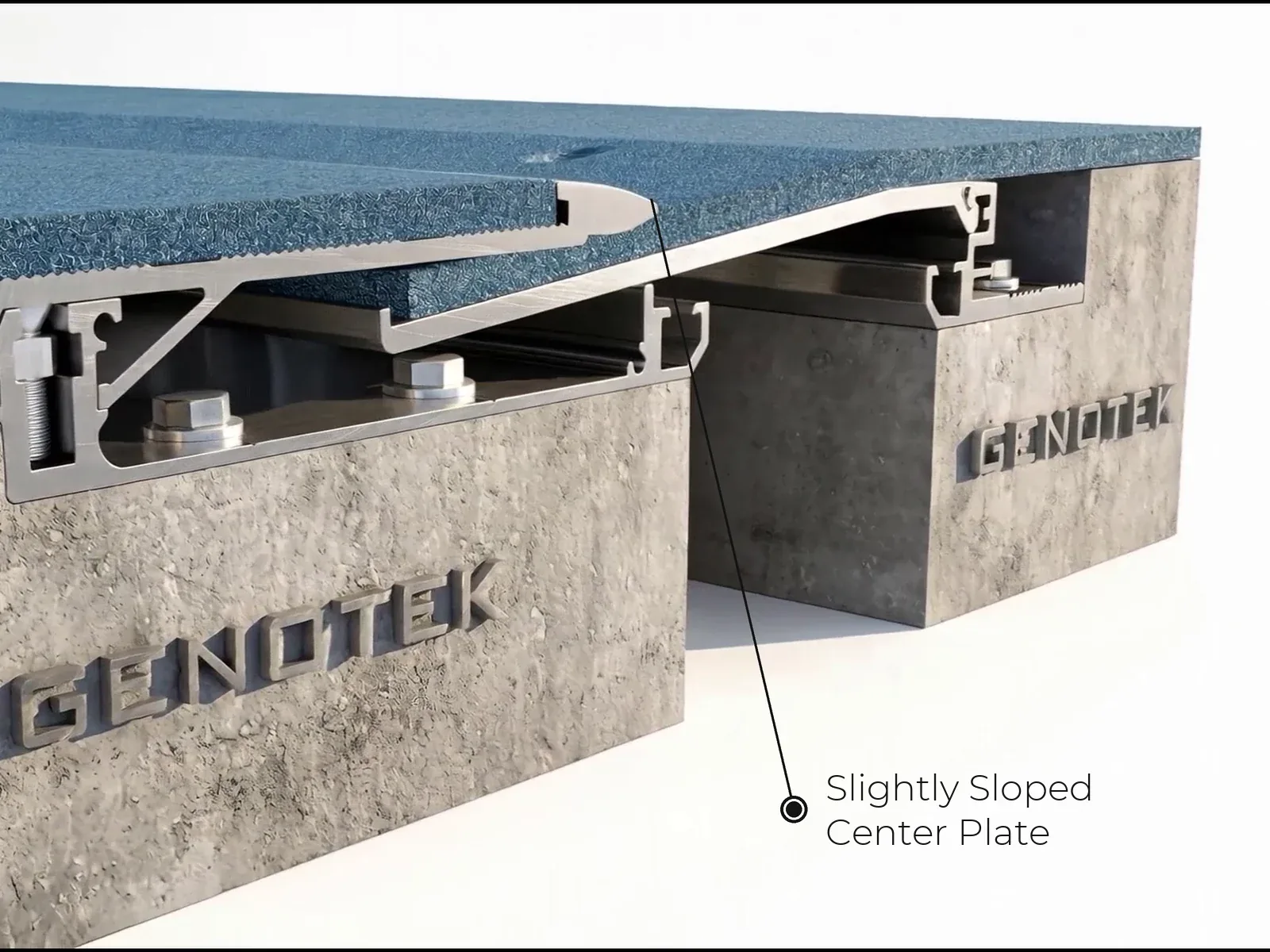

Slightly Sloped Center Plate
System Drawing
gap size calculator
enter your expansion gap measurement to see if this product is right for you.
profile specifications
| model name | joint width (mm) | height (mm) | sightline (mm) | movement capability (%) | load capacity |
|---|---|---|---|---|---|
| z-1700-100 | 20-100 | 25 | 24 | ±50% | 10 kN |
| zk-1700-100 | 20-100 | 25 | 24 | ±50% | 10 kN |
datasheet specifications
| Series | PROCARPET Series (Z-1700 & ZK-1700) |
|---|---|
| System type | Flexible Floor Covering System |
| Suitable movement | Seismic, Thermal, Settlement |
| Load capacity | Heavy Traffic Pedestrian |
| Recommended for | Interior Areas where a Tamper Resistant Low Maintenance installation is needed; Carpeted Areas |
| Components | Extruded Aluminum Support Profiles; Extruded Aluminum Cover Plates which accommodate the expansion and contraction in the adjacent concrete slabs |
| Material: Support Profiles & Cover Plates | Extruded aluminum, grade AA 6063 preferred |
| Material: Vapor Barrier (Optional) | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); black |
| Supply length | 3.00 m per piece (support profiles and cover plates) |
| Substrate tolerance | Surface level within ±2 mm; gap level within ±5 mm |
| Sizes | Per the system drawings; profiles can be customized to requirements |
Source: Z1700 technical datasheet. Sizes and dimensions: profile specifications above and the system drawings.
similar products to consider
premium- gap range
- 50 – 150mm
- movement
- ±50%
- gap range
- 25 – 85mm
- movement
- ±50%
premium- gap range
- 38 – 125mm
- movement
- ±25%
get a quote for z1700 procarpet series
tell us your gap size, quantity, and finish preference — we'll respond with budgetary pricing within 2 hours.
