luxseal wt series

wtz-1700
luxseal wt series

sku: wtz-1700 · floor
best for: wet areas, car parks, external walkways, and commercial floors.
get instant quote → ↓ download datasheet 💬 whatsapp

Introducing the WTZ 1700

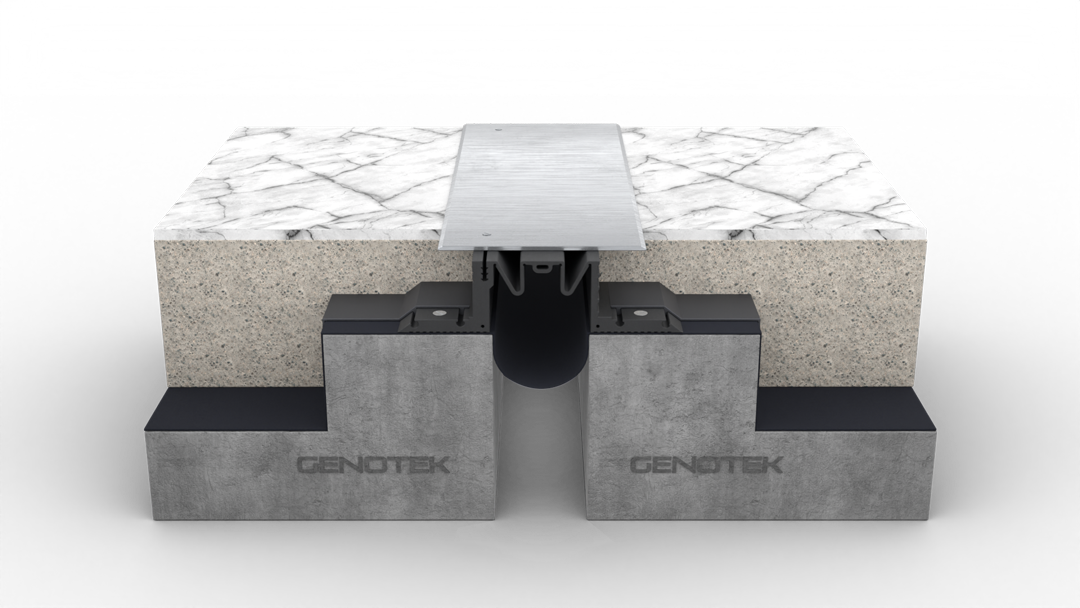

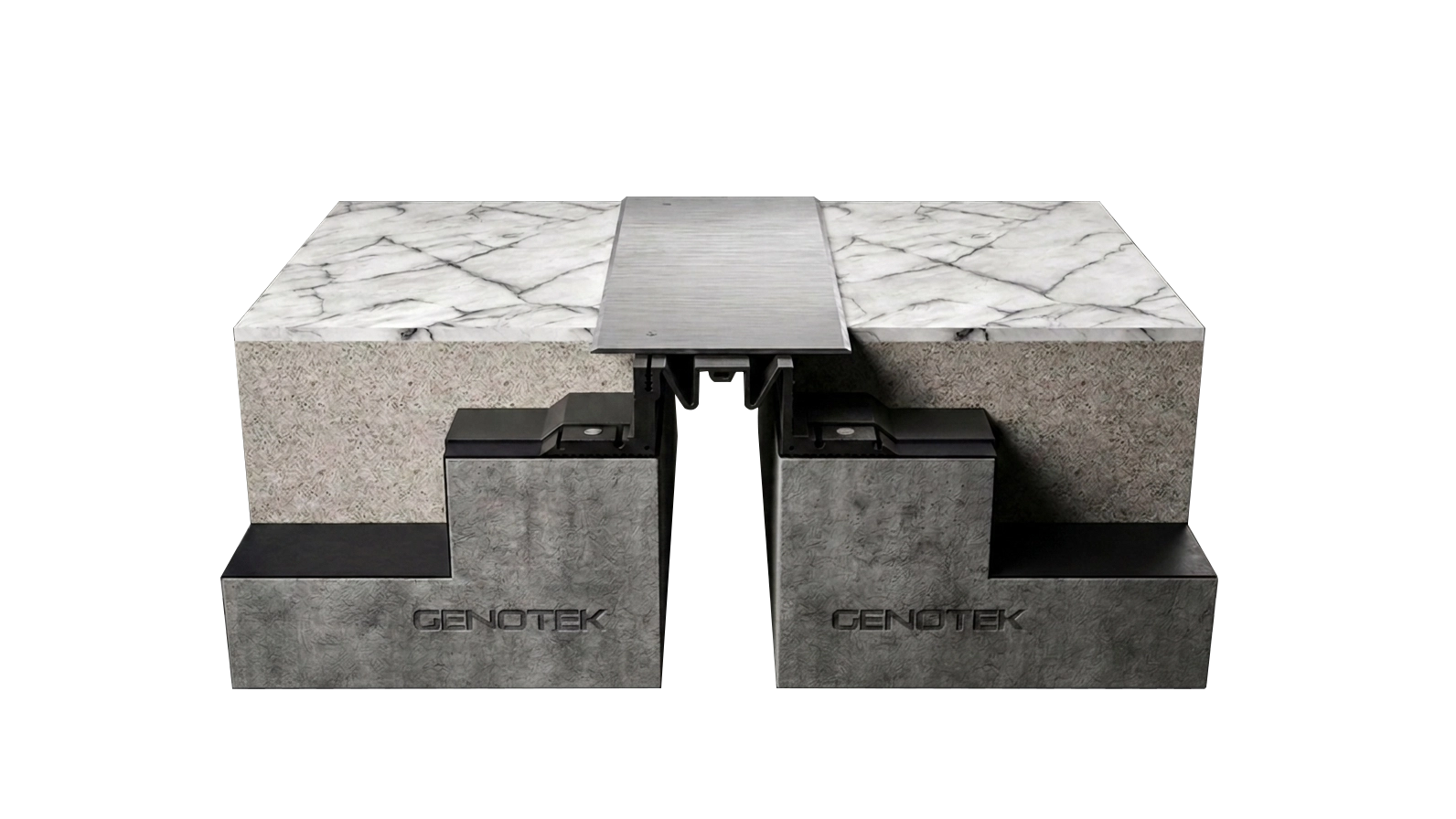

The LUXSEAL WT Series WTZ-1700 & WTZK-1700 is a heavy-duty watertight expansion joint cover system engineered for outdoor and open-to-sky environments where water exposure and thermal movement are constant challenges. Combining a rugged Aluminum 6063-T5 tread plate with a high-performance EPDM rubber core, the system delivers a puncture-free integrated water barrier — reinforced by a snap-fit wing seal that waterproofs every mechanical fixing point. Purpose-built for landscapes, podiums, plazas, and parking decks, the LUXSEAL WT Series ensures complete watertight integrity, superior load resistance, and reliable movement accommodation throughout the structure's lifespan.
LUXSEAL WT WTZ-1700 expansion joint cover
Multi-Directional Movement Multi-Directional Movement
Anti-Slip Serration Anti-Slip Serration
Complete Watertightness Complete Watertightness
Open-to-Sky Exterior Use Open-to-Sky Exterior Use
movement
01 — movement

heavy-duty movement accommodation

the luxseal wt series is built to handle significant thermal expansion and contraction, maintaining structural integrity even in areas with heavy traffic and frequent temperature changes. this makes it ideal for outdoor applications where structural flexibility is essential.

water barrier
02 — water barrier

advanced watertight protection

featuring a factory-integrated, puncture-free rubber water barrier that seamlessly connects to adjacent waterproofing membranes, the luxseal wt delivers complete water resistance — even at mechanical fixing points. the aluminum cover plate anchors through a non-penetrating fixing channel, while a proprietary snap-fit wing seal clips over every screw to seal each anchor point. this puncture-free design eliminates leak paths, prevents water ingress, and ensures reliable, long-term protection in areas exposed to constant moisture and hydrostatic pressure.

load bearing
03 — load bearing

load bearing

the wtz-1700 expansion joint cover is recommended for exterior floors and decks with heavy-duty traffic, such as podiums and parking areas. an extruded aluminum cover plate sits over the rubber center profile and wing seal gasket.

assembly
04 — assembly

revolutionizing expansion joints: snap-fit assembly in action

this video demonstrates the seamless assembly process, showcasing how the continuous water barrier effortlessly integrates through the profile without any punctures. watch as the unique snap-fit fixtures ensure a secure and precise fit, maintaining the integrity of the water barrier and delivering 100% watertight protection. perfectly designed for durability and reliability.

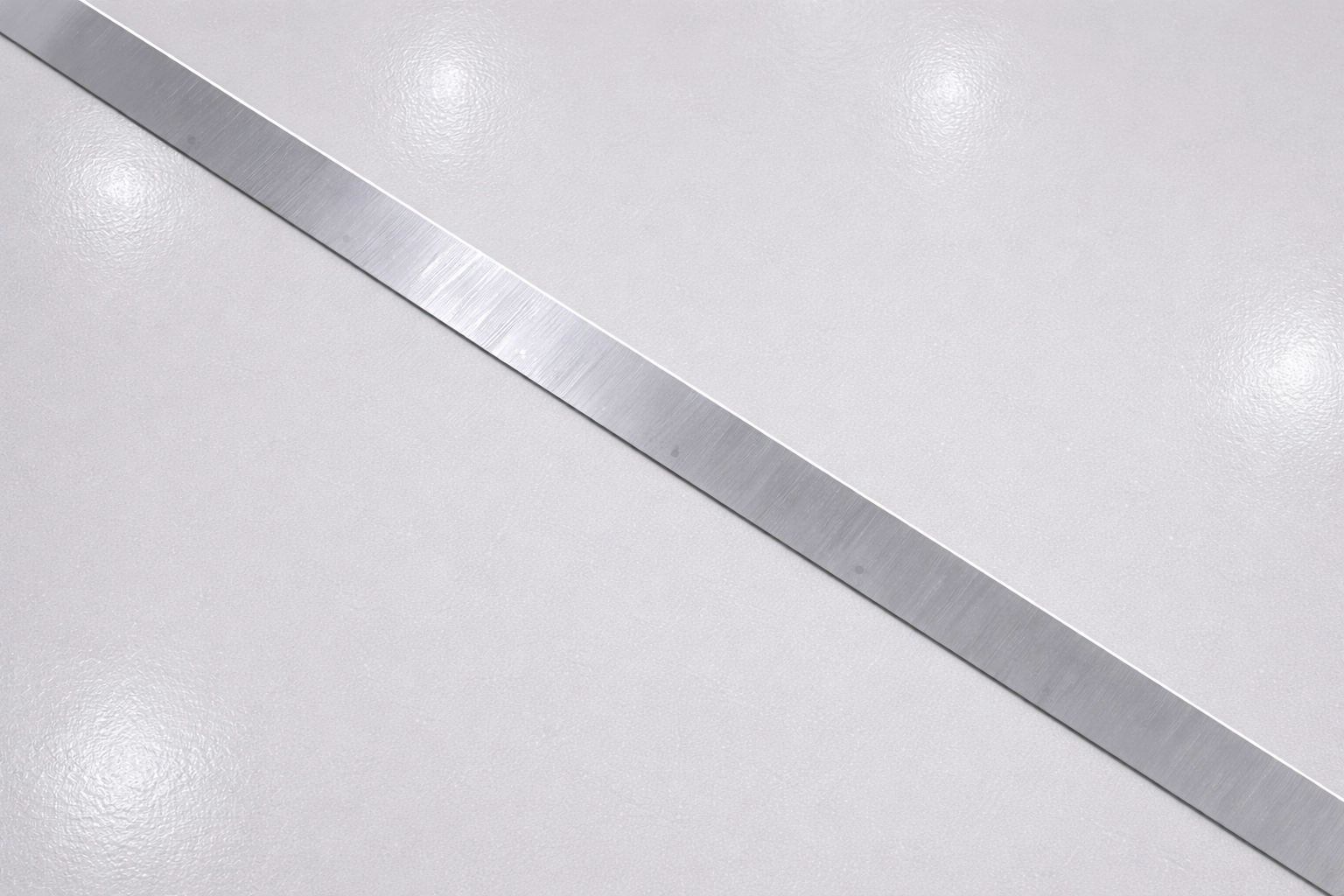

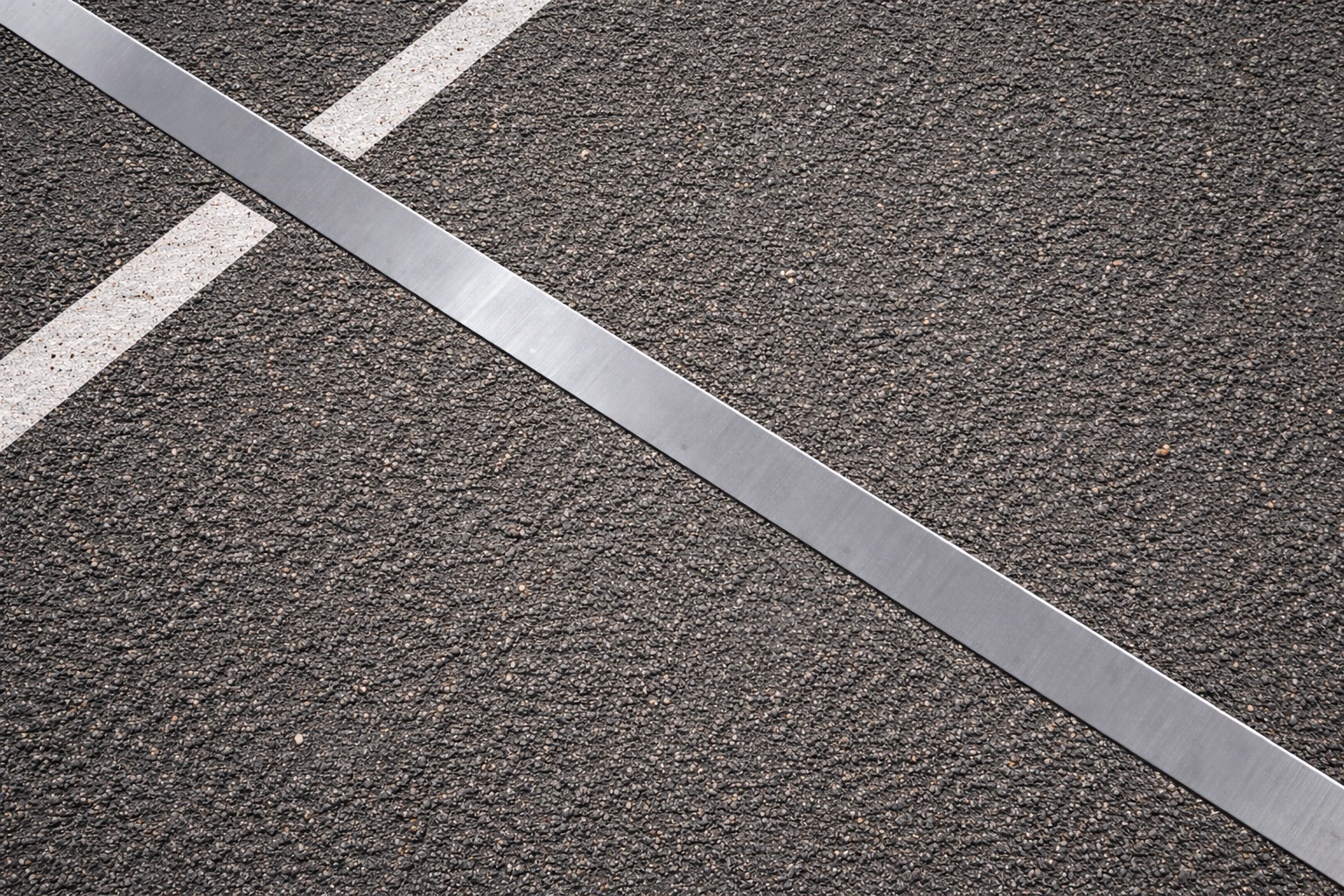

Aesthetic Choice

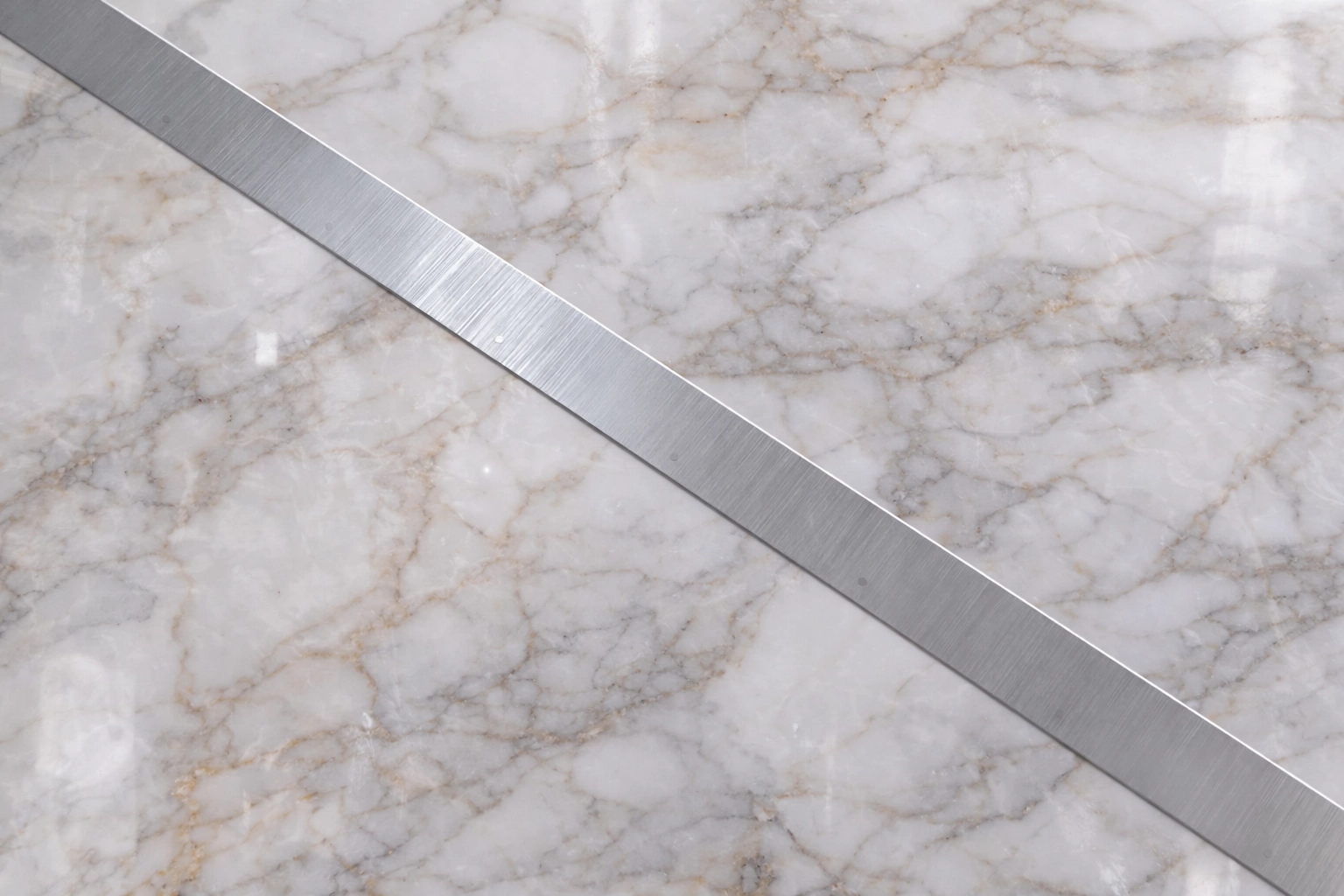

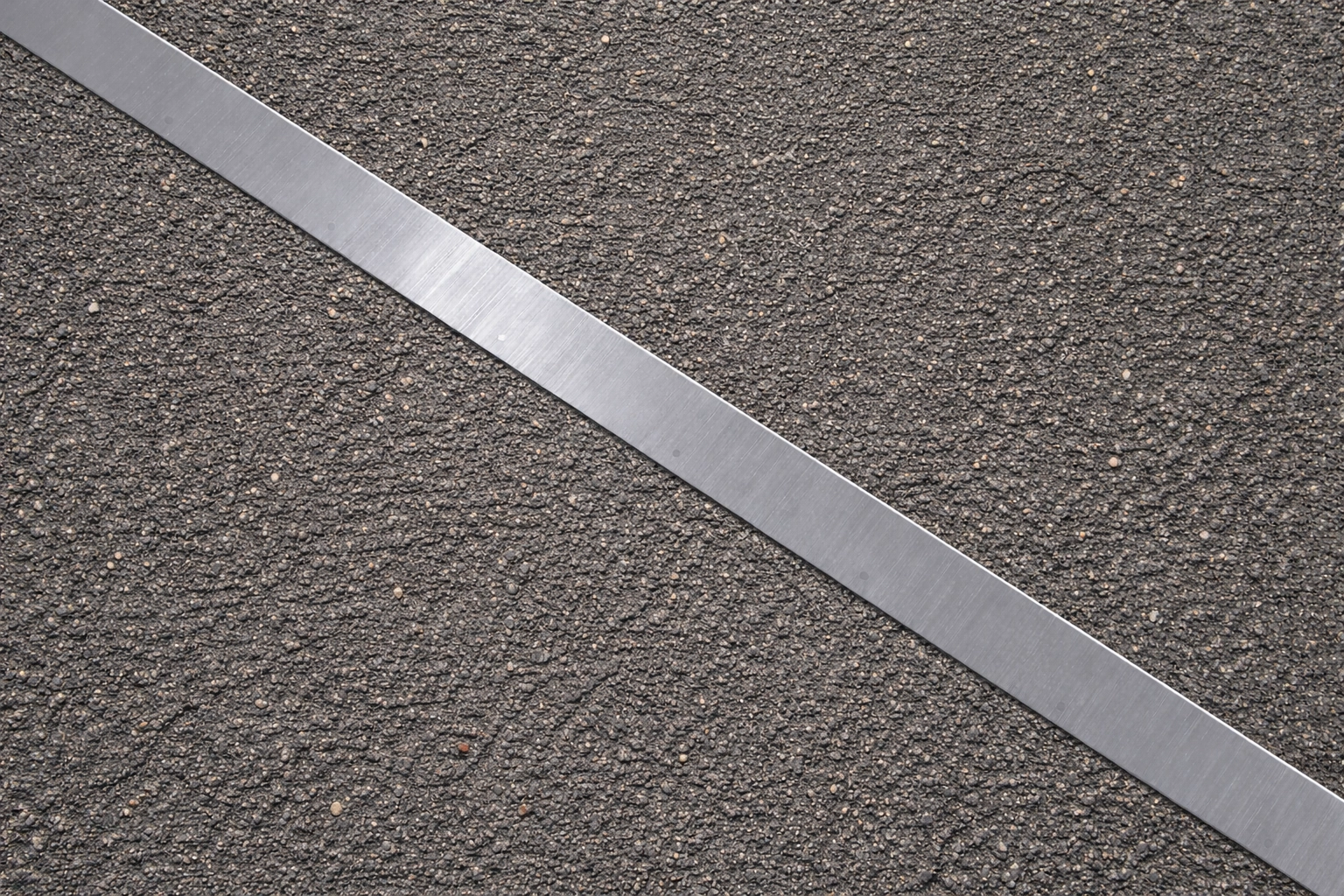

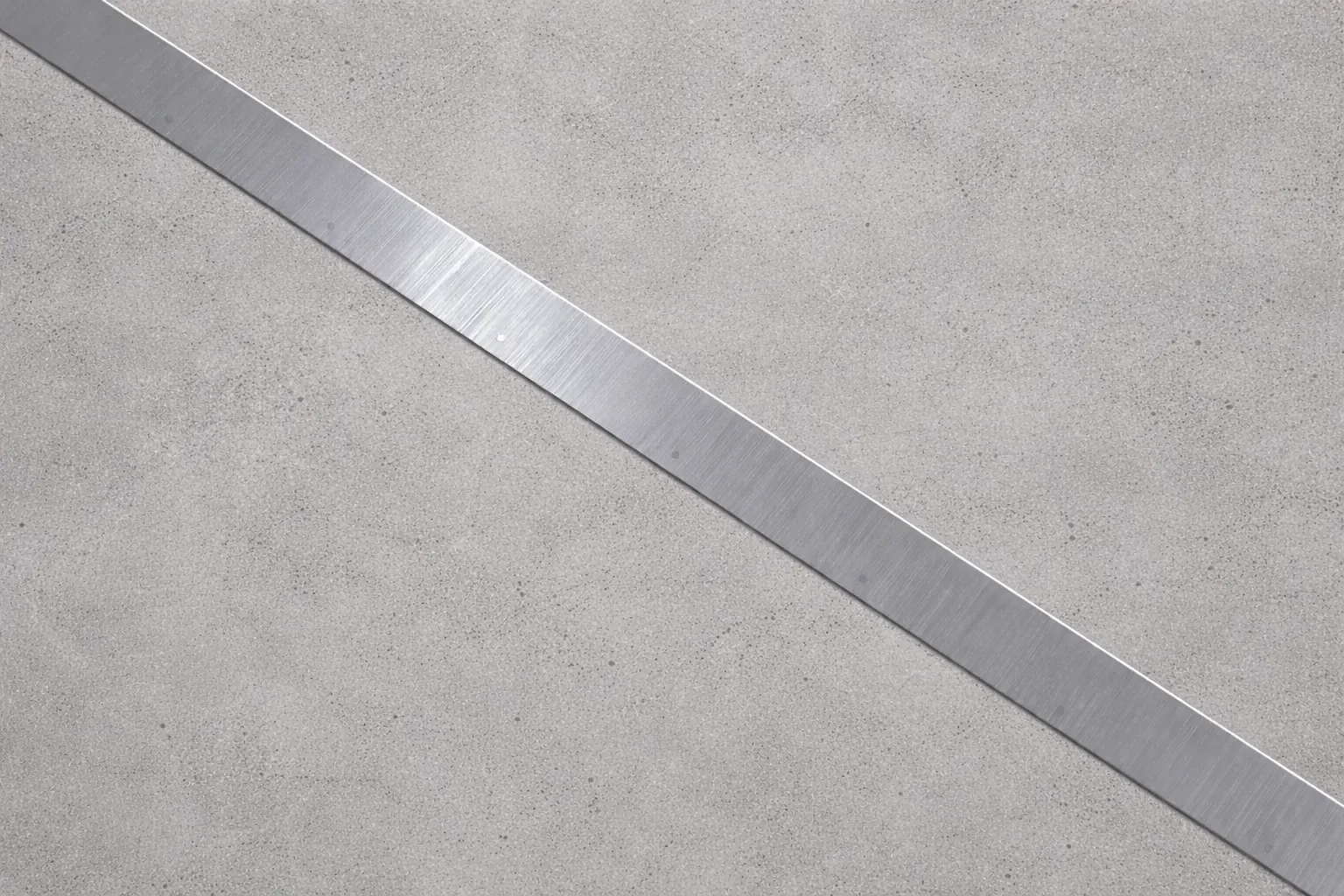

The LUXSEAL WTZ-1700 , crafted entirely from sleek aluminum & flexible rubber effortlessly complements any floor finish. whether you’re working with polished concrete, rustic pavers, elegant marble, or modern tiles, this expansion joint cover seamlessly blends in, enhancing the overall aesthetic of your space. trust the WTZ-1700 to provide not only exceptional functionality but also a touch of sophistication to your project, no matter the design style.

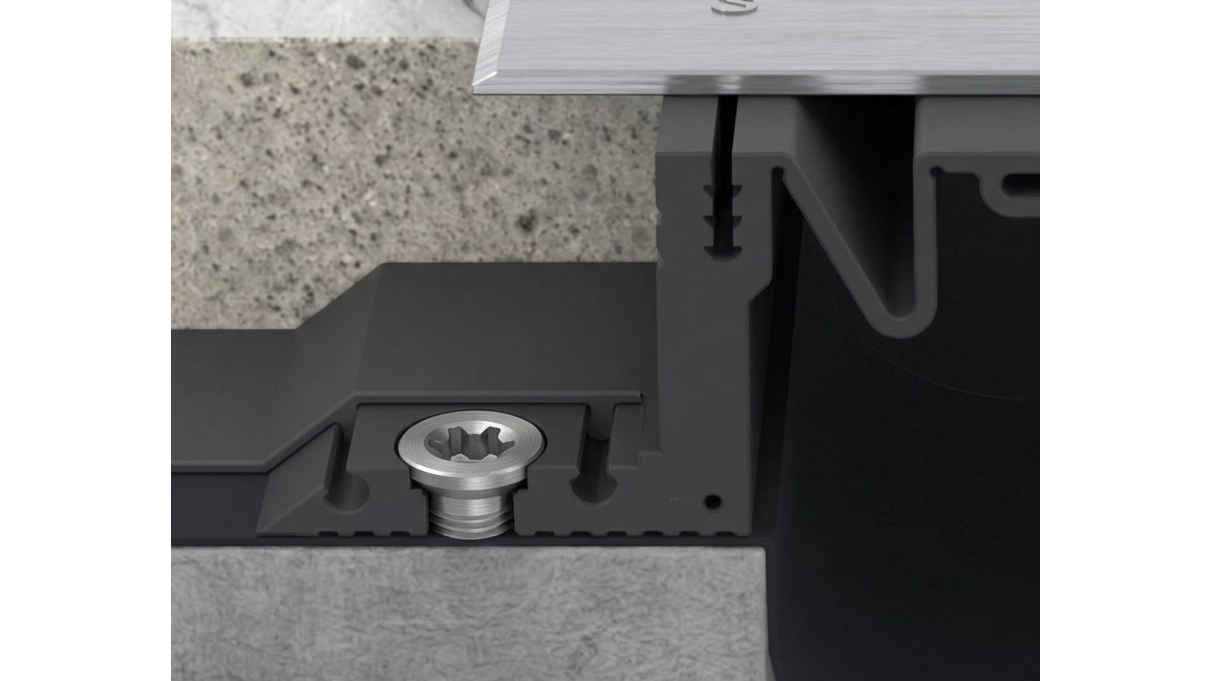

Integrated Watertight Barrier with Snap-Fit Wing Seal Protection

Our expansion joint profile features an advanced integrated water barrier engineered to maintain complete watertight integrity-even at mechanical fixing points. While the profile is secured with screw anchors for maximum structural hold, each fixing point is fully sealed by a snap-fit wing seal that clips securely over the screw head, blocking any potential water ingress at the penetration.
Integrated Watertight Barrier with Snap-Fit Wing Seal Protection

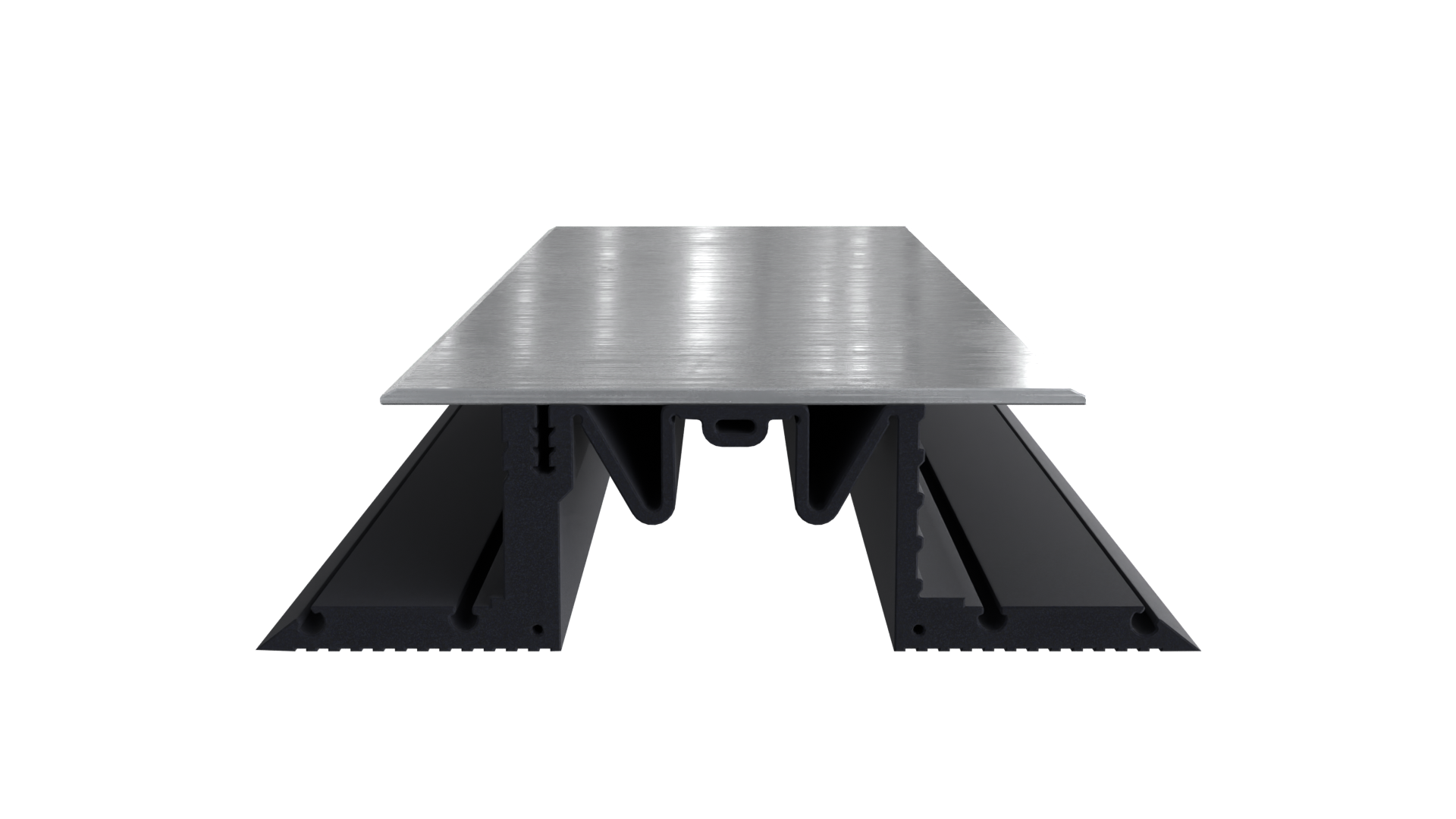

Hybrid Aluminum-Rubber Watertight Expansion Joint Cover - Engineered for Puncture Resistance & Acoustic Control

A heavy-duty hybrid expansion joint cover combining a brushed aluminum tread plate with an integrated EPDM rubber core. The aluminum surface shields the rubber from punctures and heavy traffic loads, while the rubber substructure delivers full watertight sealing and acoustic sound dampening - engineered for durable, silent, and leak-free performance in high-traffic floor applications.
Hybrid Aluminum-Rubber Watertight Expansion Joint Cover - Engineered for Puncture Resistance & Acoustic Control

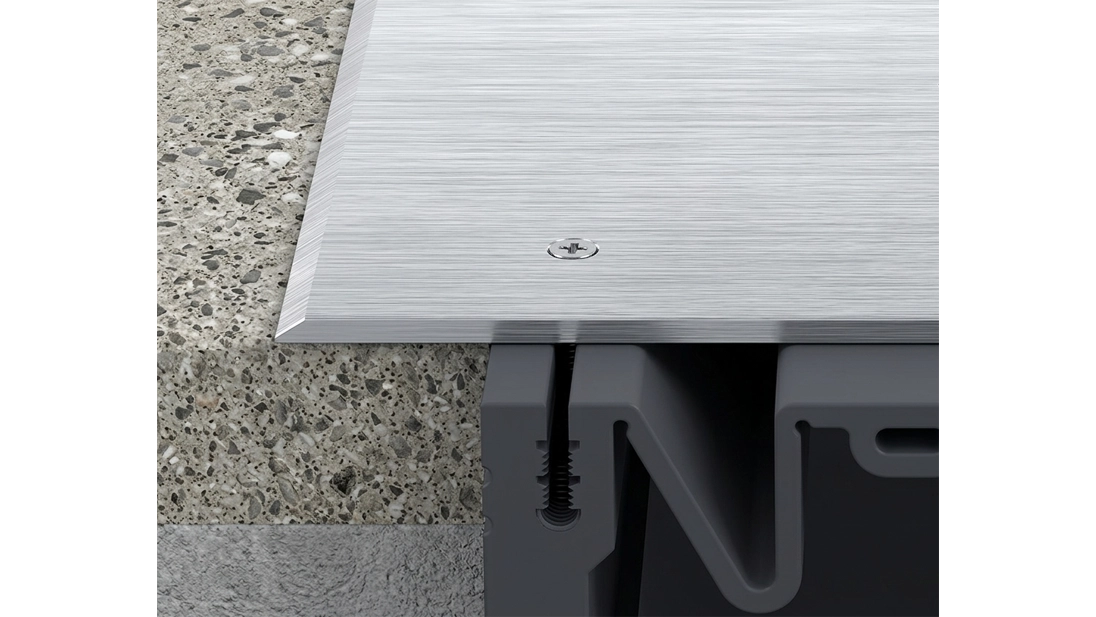

Puncture-Free Screw Fixing — Aluminum Anchored Without Compromising the Watertight Seal

An engineered fixing detail where the aluminum tread plate is mechanically secured to the rubber profile without penetrating the watertight barrier. The screw anchors into a dedicated channel above the sealed rubber core, ensuring the rubber membrane remains fully intact — eliminating leak paths at fixing points and preserving complete watertight integrity across the entire expansion joint system.
Puncture-Free Screw Fixing — Aluminum Anchored Without Compromising the Watertight Seal

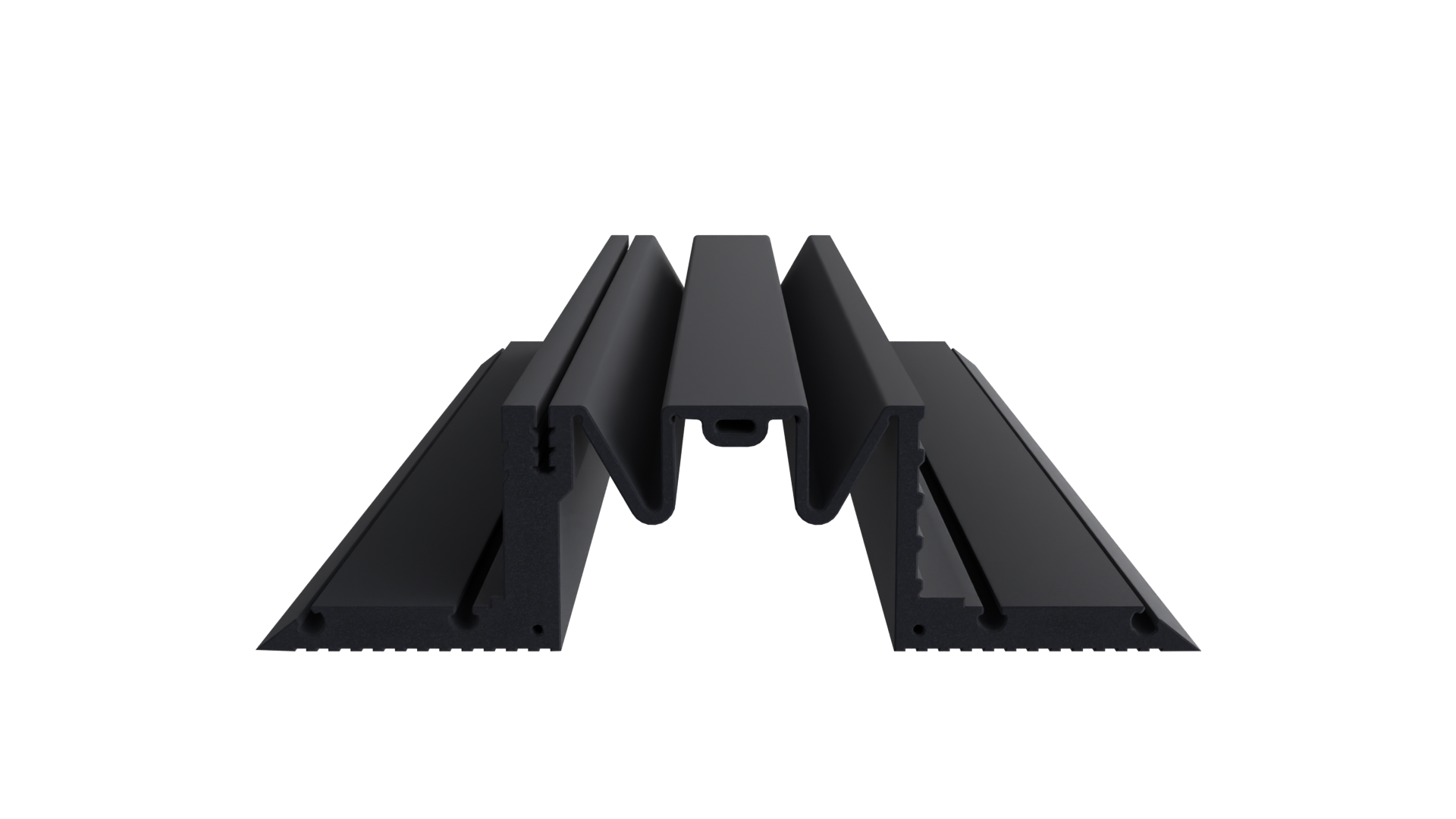

High-Performance Rubber Core — Engineered for Strength, Flexibility & Watertight Movement Absorption

The heart of the expansion joint system, this precision-extruded rubber profile is formulated with an optimized Shore hardness to withstand heavy compressive loads while remaining flexible enough to absorb multidirectional building movement. Its reinforced geometry delivers reliable watertight sealing, long-term elasticity, and consistent performance under dynamic stress — ensuring durable protection against water ingress, vibration, and structural shifts throughout the joint's service life.
High-Performance Rubber Core — Engineered for Strength, Flexibility & Watertight Movement Absorption

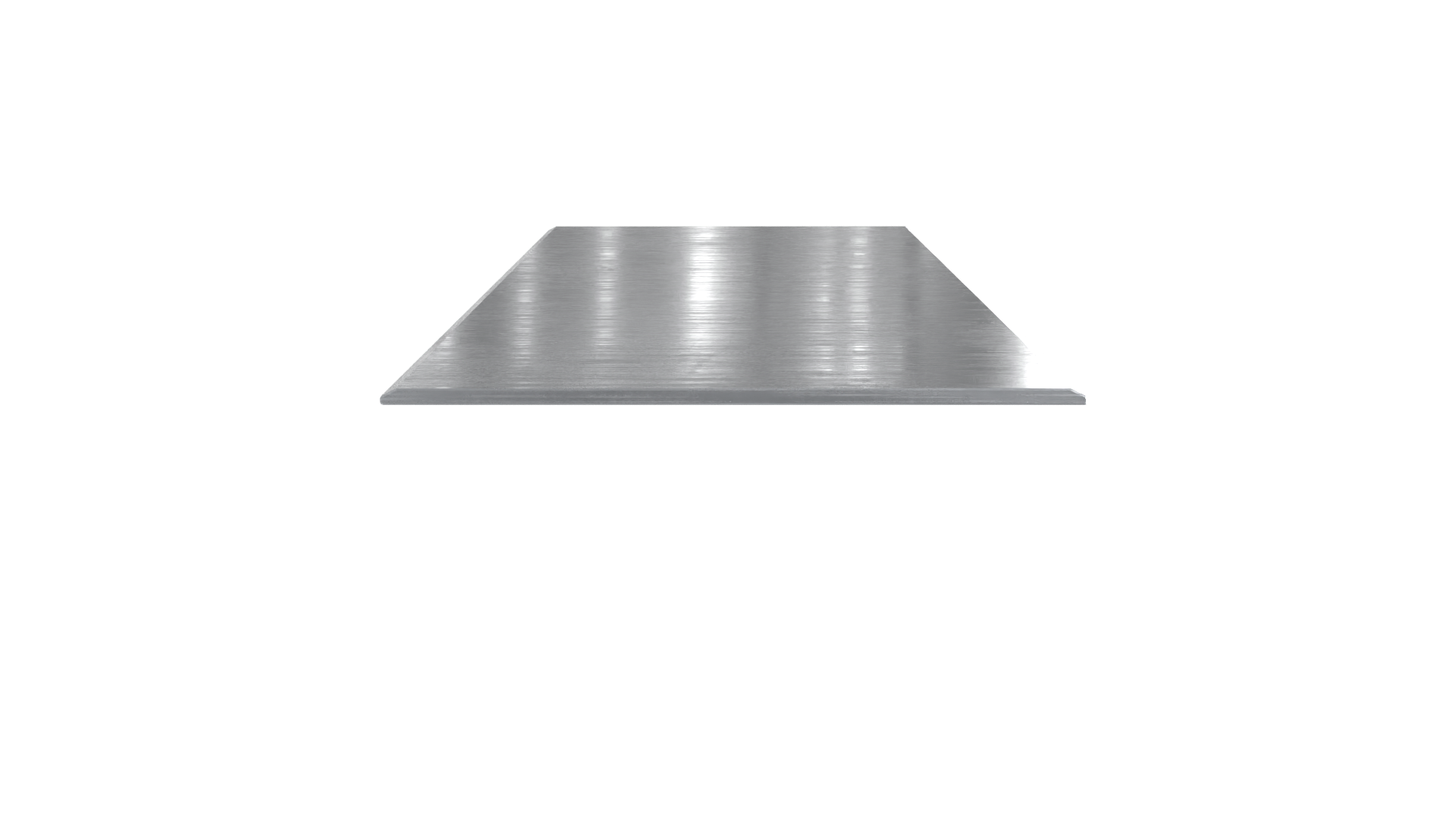

Aluminum 6063-T5 Cover Plate — Heavy-Duty Surface Protection for the Expansion Joint System

Precision-extruded from high-grade Aluminum 6063-T5, this brushed cover plate forms the structural top layer of the expansion joint system, shielding the underlying rubber core from impact, abrasion, and heavy foot or vehicular traffic. Its excellent strength-to-weight ratio, corrosion resistance, and clean architectural finish ensure long-lasting durability and a refined aesthetic, making it ideal for commercial, industrial, and high-traffic floor applications.
Aluminum 6063-T5 Cover Plate — Heavy-Duty Surface Protection for the Expansion Joint System

System Drawing

System drawing for the WTZ-1700 expansion joint cover, a watertight recessed system with an aluminum cover plate, rubber center profile and wing seal gasket, shown for the 50 mm joint size. Downloadable as DWG and PDF.
System Drawing
interactive tool

gap size calculator

enter your expansion gap measurement to see if this product is right for you.

💳
20mm ≈ credit card
✌️
50mm ≈ two fingers
✊
100mm ≈ fist width
🖐️
200mm ≈ hand span
mm
wtz-1700 covers gap sizes from 25mm to 85mm. enter your measurement above to see the movement capacity, profile width, and whether this product handles your requirements.

not sure this is the right product?

answer 3 simple questions — gap size, location, aesthetics — and we'll show you all matching products.

open product finder →
technical data

profile specifications

model namejoint width (mm)height (mm)sightline (mm)movement capability (%)
wtz-1700-505045125±50
from the technical datasheet

datasheet specifications

SeriesLUXSEAL WT Series (WTZ-1700)
System typeWatertight Expansion Joint System
MountingRecessed
Suitable movementThermal movement (expansion and contraction due to temperature variation), Differential settlement between adjacent structural elements, Seismic movement (where applicable per structural design requirements)
Recommended forExterior exposed floor and deck surfaces; Open-to-sky and uncovered terrace areas; High water exposure zones such as landscaped pod; Areas where heavy-duty traffic is present like podiums, parking areas, etc
Material: Cover PlateExtruded aluminum, grade AA 6063 preferred
Material: Center Rubber Profile, Wing Seal GasketEthylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); finish: Grooved Finish; black
Material: Water BarrierEthylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); black
Supply length3.00 m per piece (support profiles)
Substrate toleranceSurface level within ±2 mm; gap level within ±5 mm
SizesPer the system drawings; profiles can be customized to requirements

Source: WTZ-1700 technical datasheet. Sizes and dimensions: profile specifications above and the system drawings.

alternatives

similar products to consider

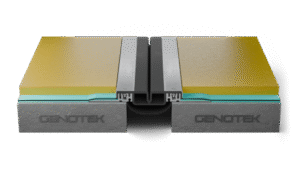

wtz1800 premium
wtz1800
luxseal series
exterior floors with high water usage, such as landscaped areas, podiums and parking areas with heavy-duty traffic.
gap range
50 – 150mm
movement
±50%
view →

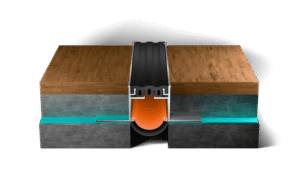

z1000 standard
z1000
progasket series
interior corridors, lobbies, retail areas, and exterior walkways.
gap range
38 – 94mm
movement
±25%
view →

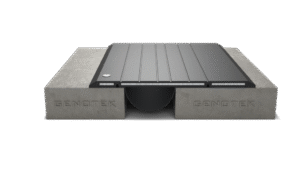

gen1000 premium
gen1000
propark 3p series
multi-storey car parks, parking podiums, ramps, and heavy vehicular traffic areas.
gap range
50 – 100mm
movement
±50%
view →
ready to specify?

get a quote for wtz-1700 luxseal wt series

tell us your gap size, quantity, and finish preference — we'll respond with budgetary pricing within 2 hours.

get instant quote → 💬 whatsapp us talk to an expert

unlock budgetary pricing

enter your details and we'll show indicative pricing instantly.

Documents & Resources

WTZ-1700 Technical Datasheet
PDF
WTZ-1700 Installation Instruction
PDF
WTZ-1700-50
PDF
WTZ-1700-50
DWG
WTZ-1700 Material Safety Datasheet
PDF
Specs.WTZ1700
XLSX
MAXMIN.L.WTZ1700.50-DWG
PDF
