z1000
progasket series

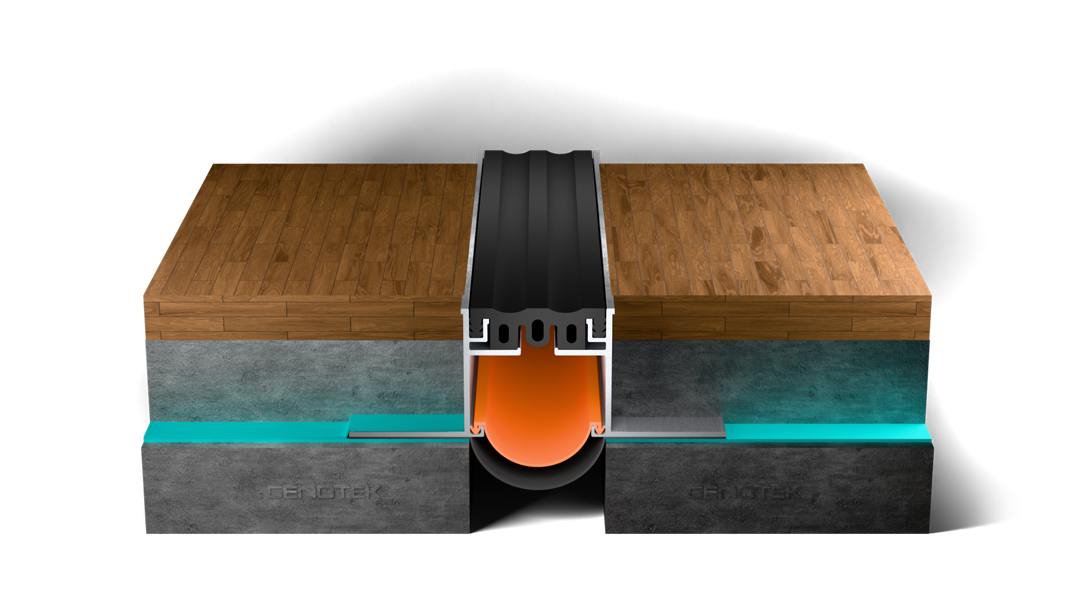

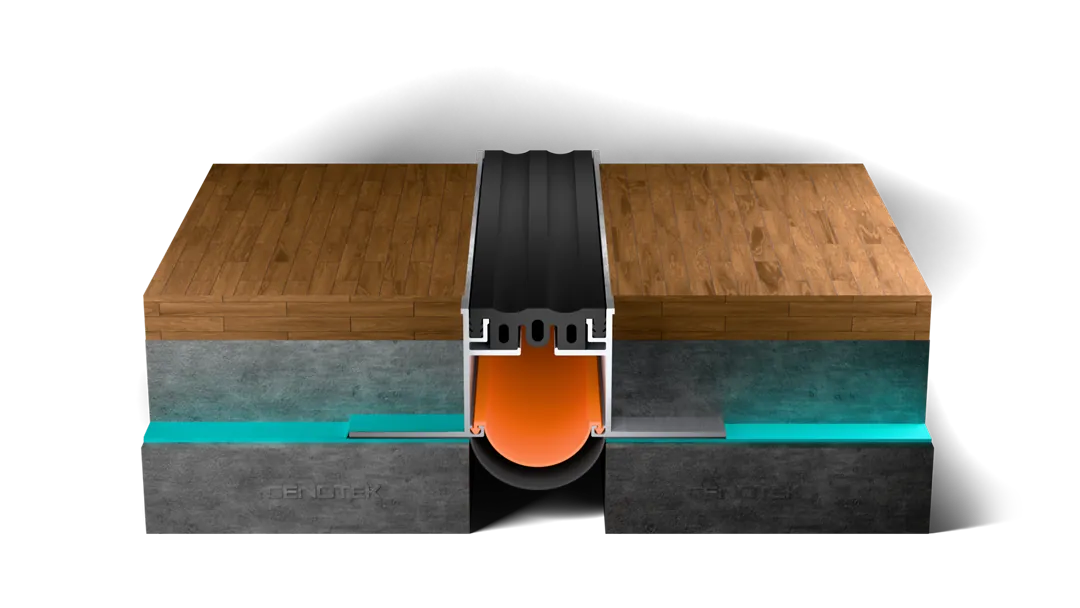

Introducing the Z1000
movement accommodation
the elastomeric rubber insert absorbs the expansion and contraction of the adjacent concrete slabs, taking up thermal movement and settlement while the aluminum support profiles stay fixed to each slab.
water protection
water barrier made of tpe forms seamless intersections, eliminating weak points. the barrier holds water during rain or washing, then allows evaporation once the source stops. save time with quick installation and enjoy long-lasting protection. experience the simplicity and reliability of the clip-in water barrier.
load bearing
engineered to withstand heavy pedestrian and light vehicular traffic, this system is well-suited to areas experiencing continuous use, reducing maintenance needs while maintaining structural integrity.
assembly in action
this video demonstrates the assembly process, perfectly designed for easy installation for durability and reliability.

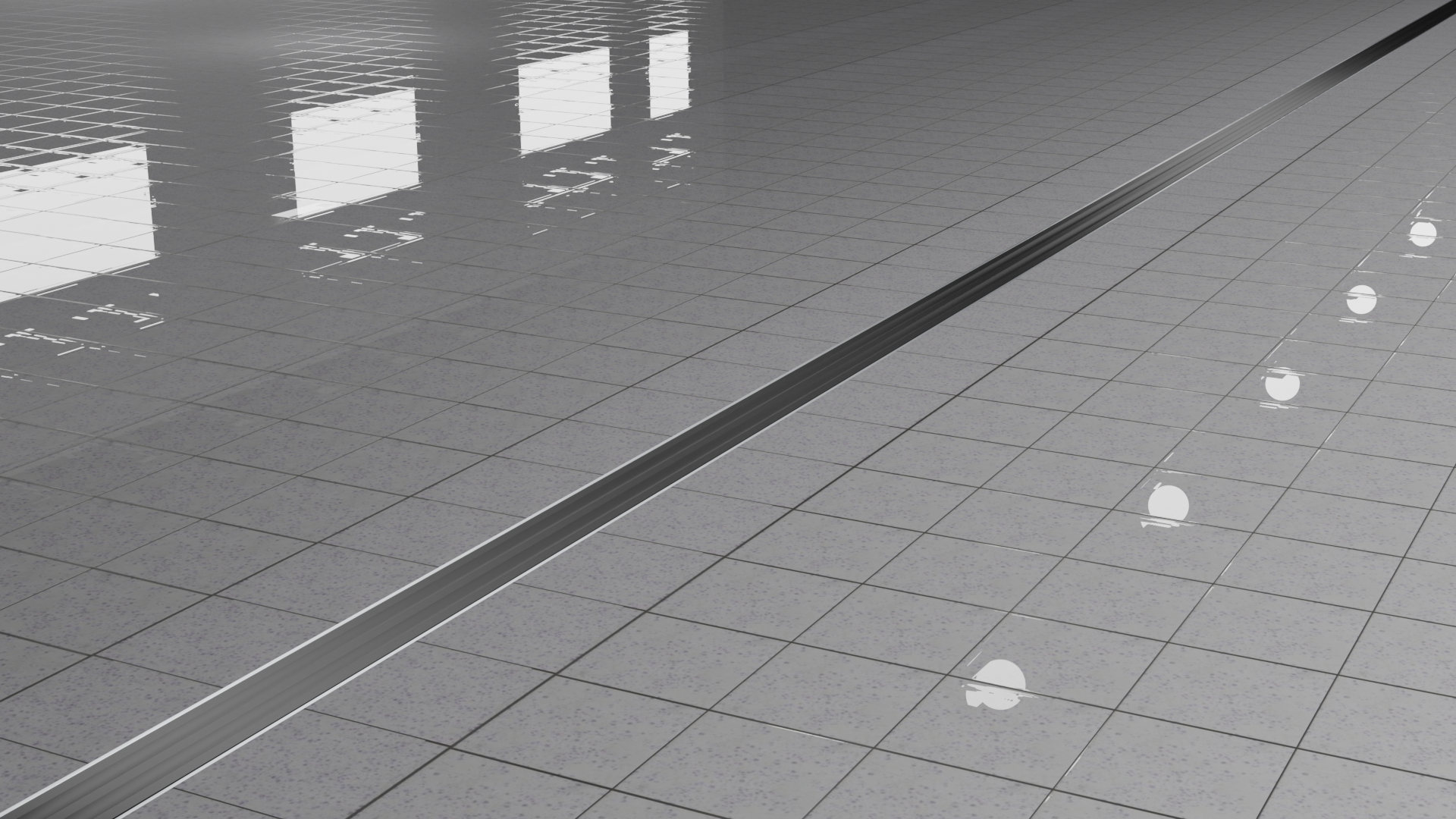

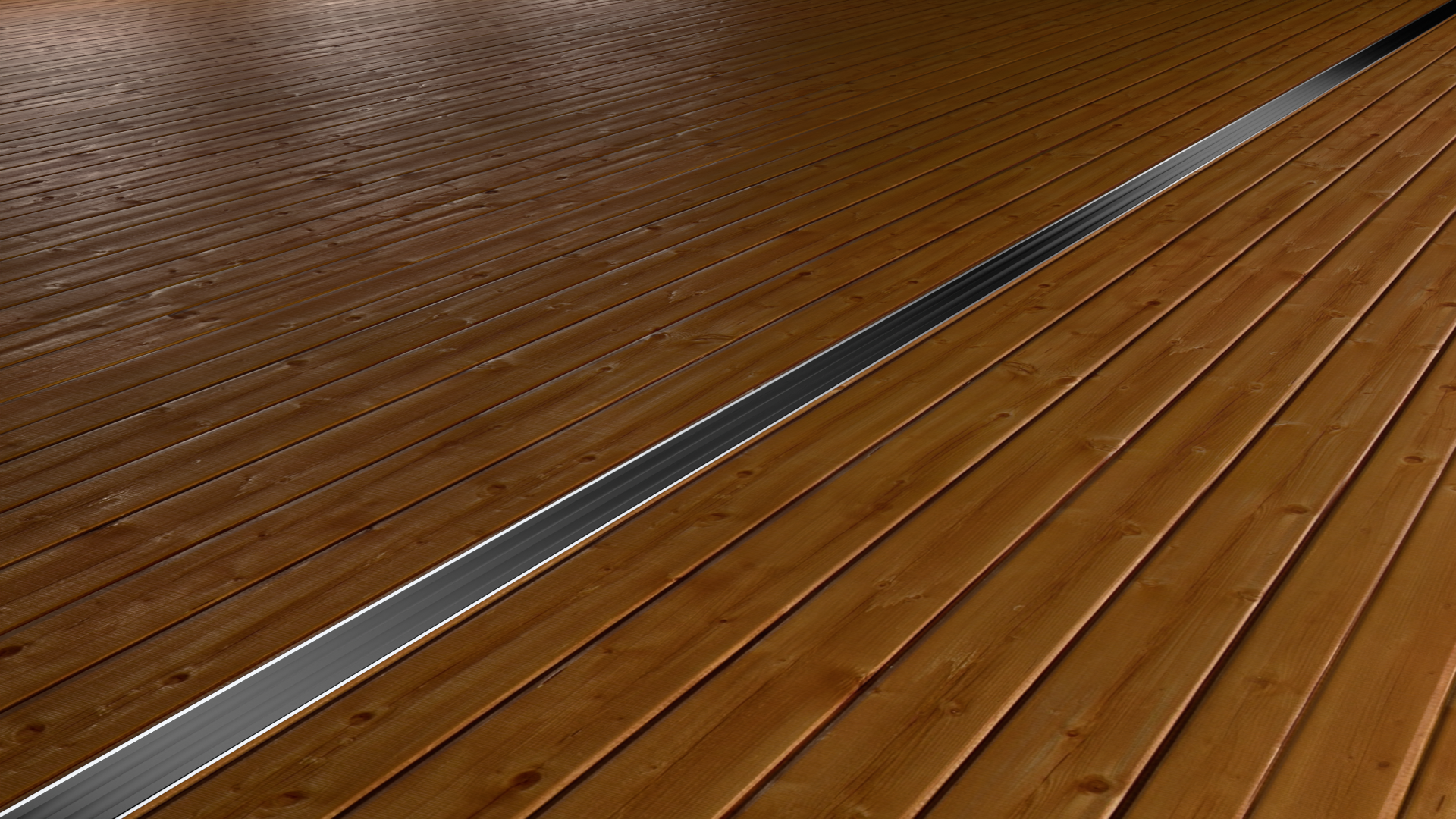

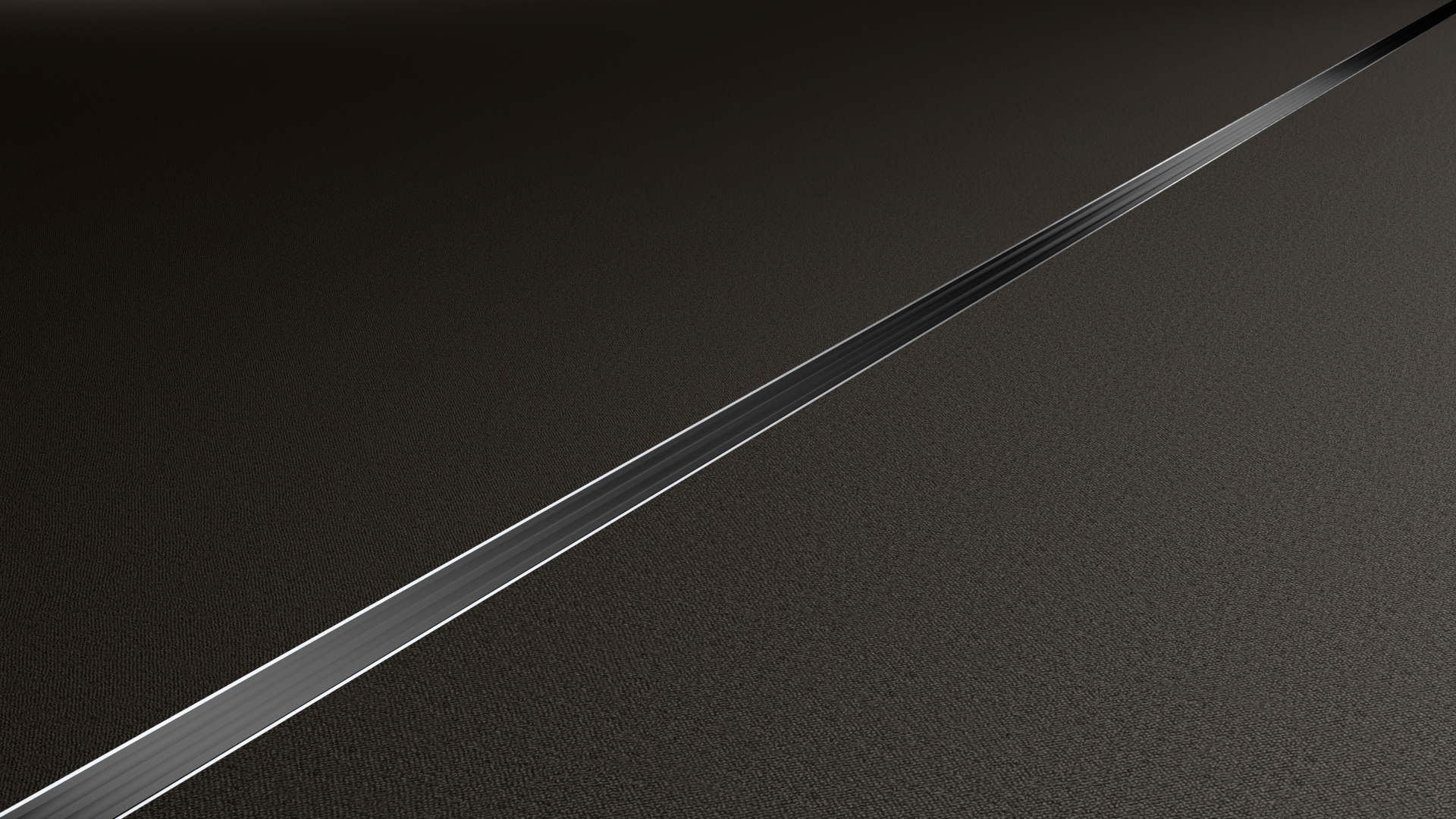

Aesthetic Choice
The aesthetic champion. the PROGASKET RM Z1000, crafted entirely from sleek aluminum & rubber gasket, effortlessly complements any floor finish. whether you’re working with polished concrete, rustic pavers, elegant marble, or modern tiles, this expansion joint cover seamlessly blends in, enhancing the overall aesthetic of your space. trust the Z 1000 to provide not only exceptional functionality but also a touch of sophistication to your project, no matter the design style.

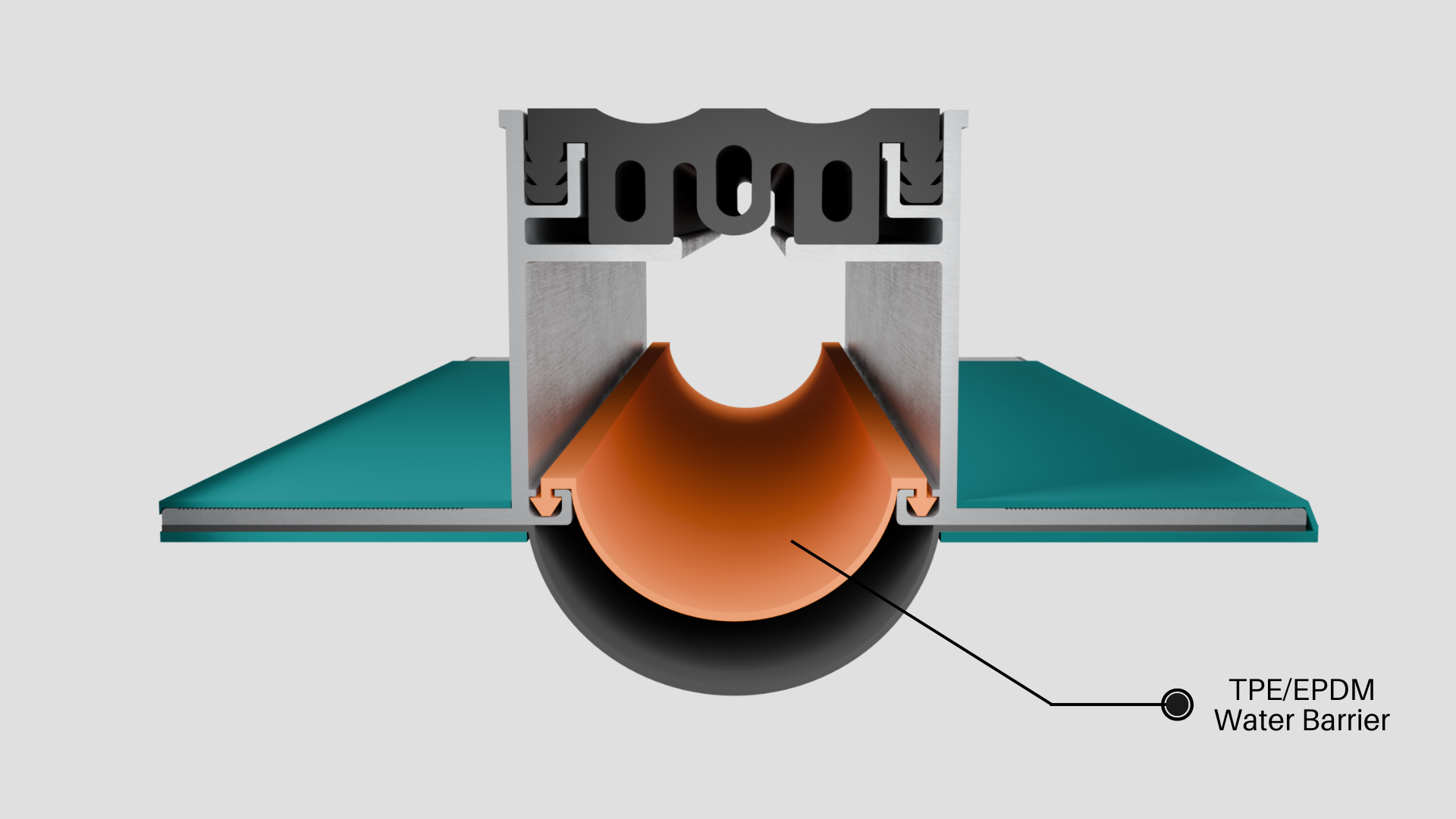

Clip-in water barrier

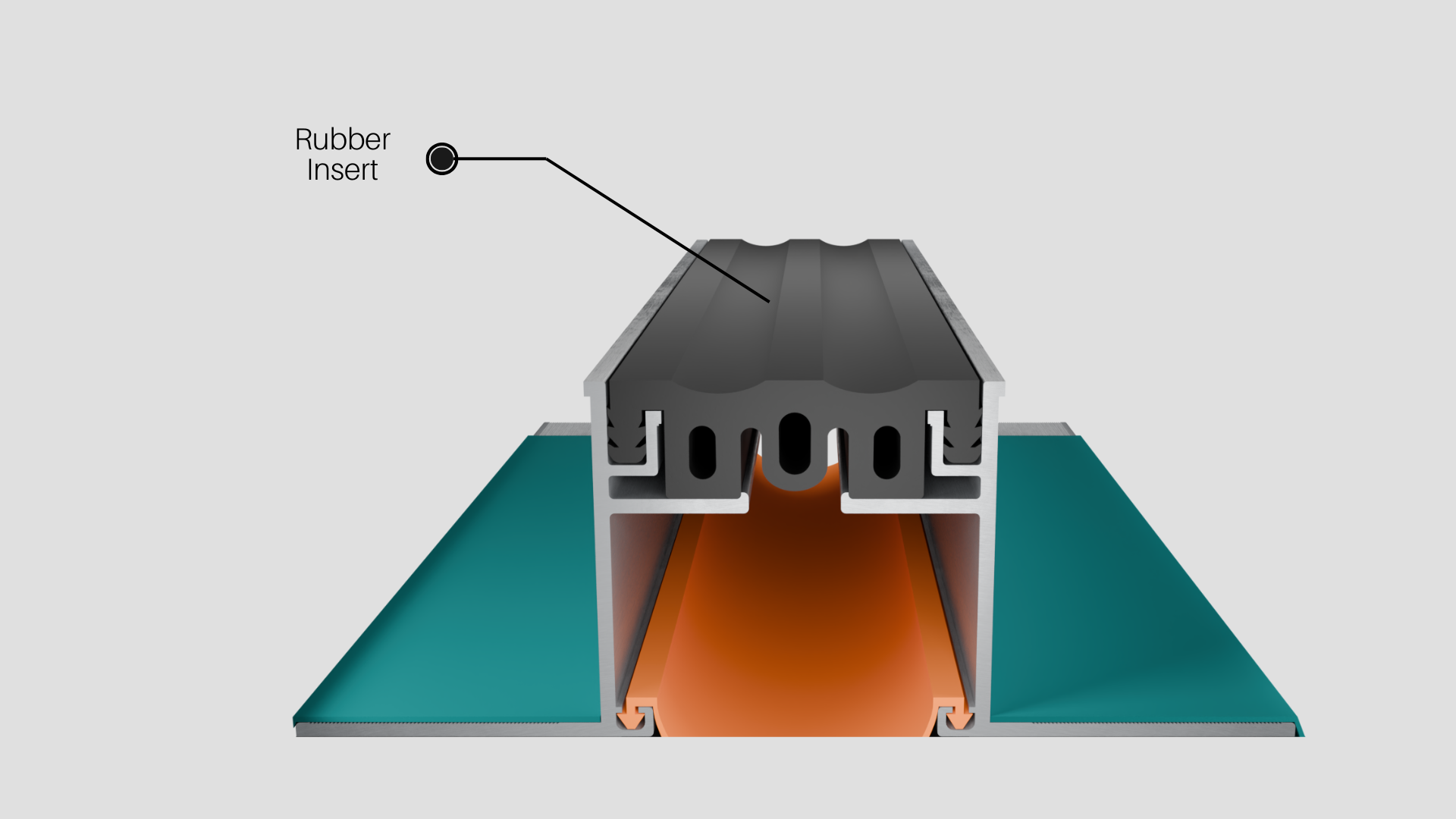

Versatile Elastomeric Rubber Inserts

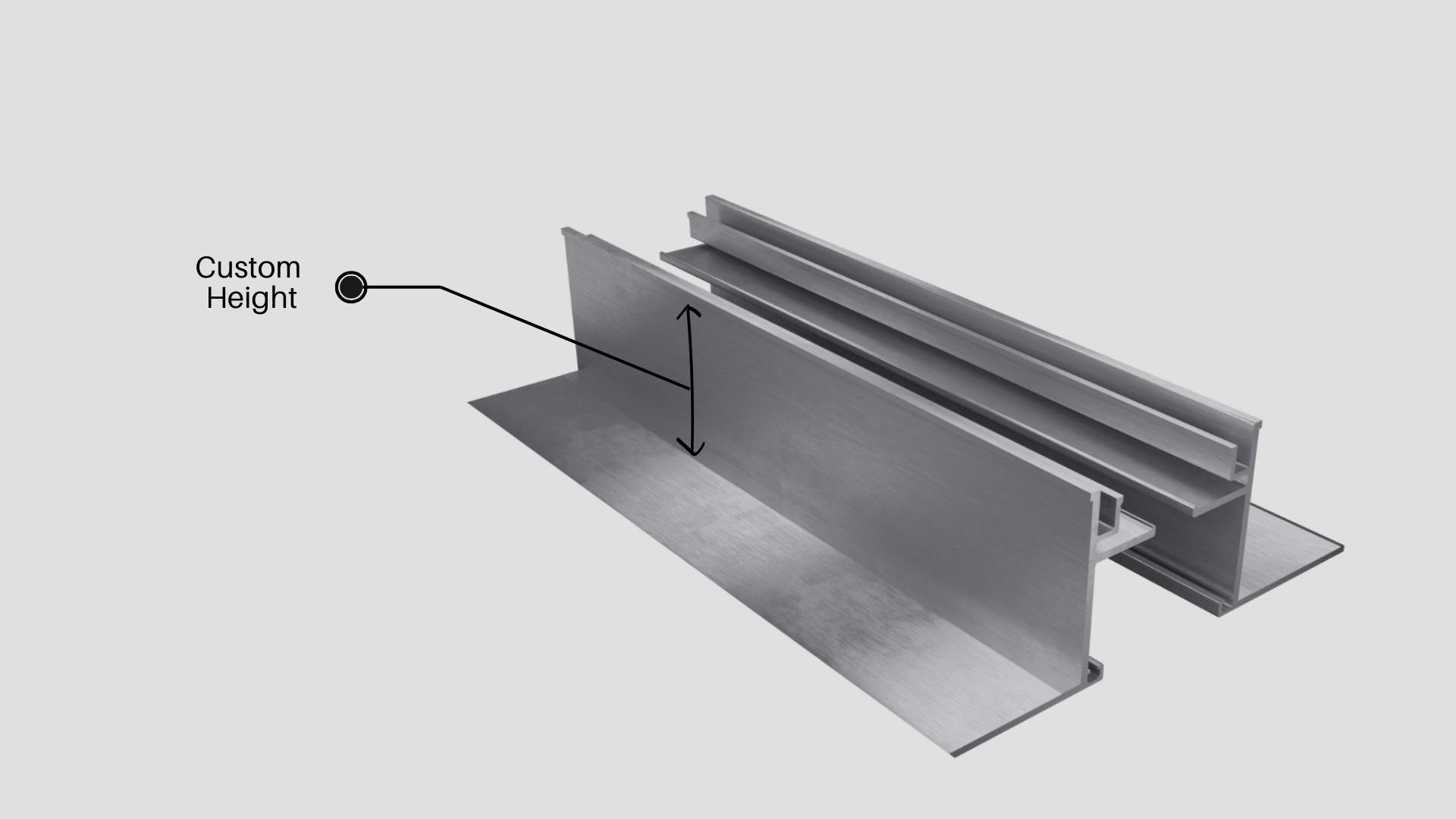

Customizable Height for Seamless Floor Integration

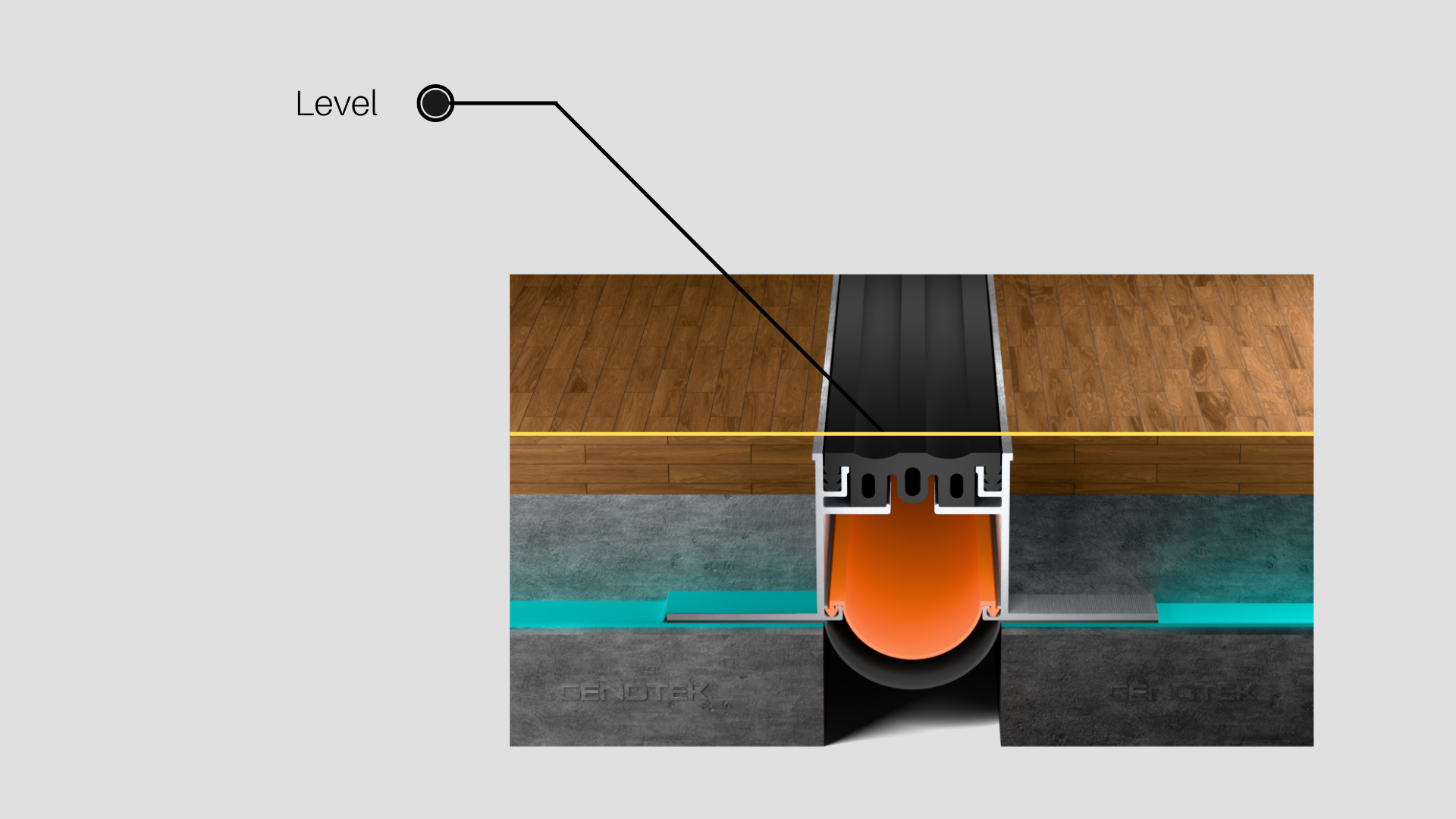

Flush Mount

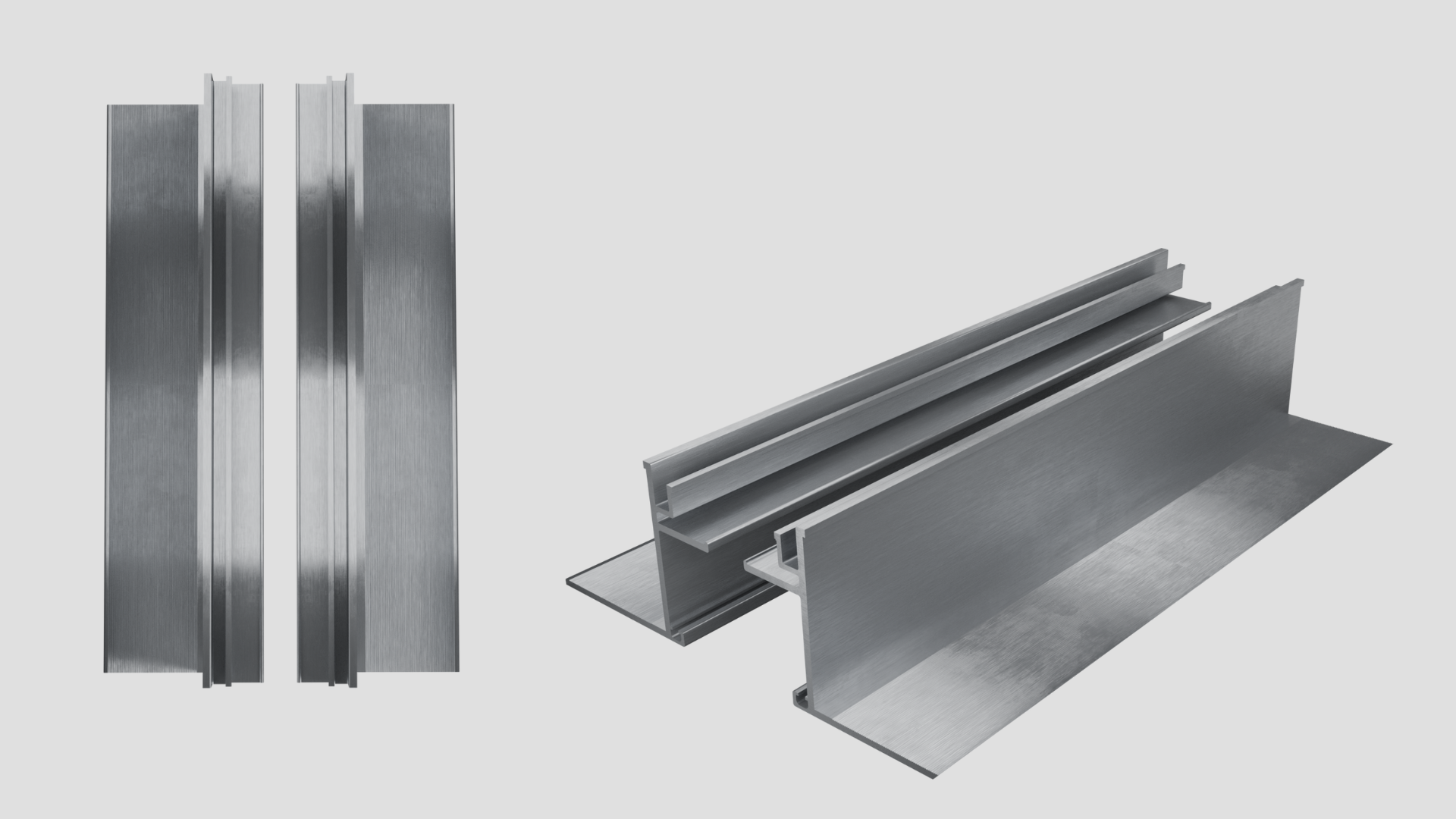

Premium Aluminum for Architectural Materials

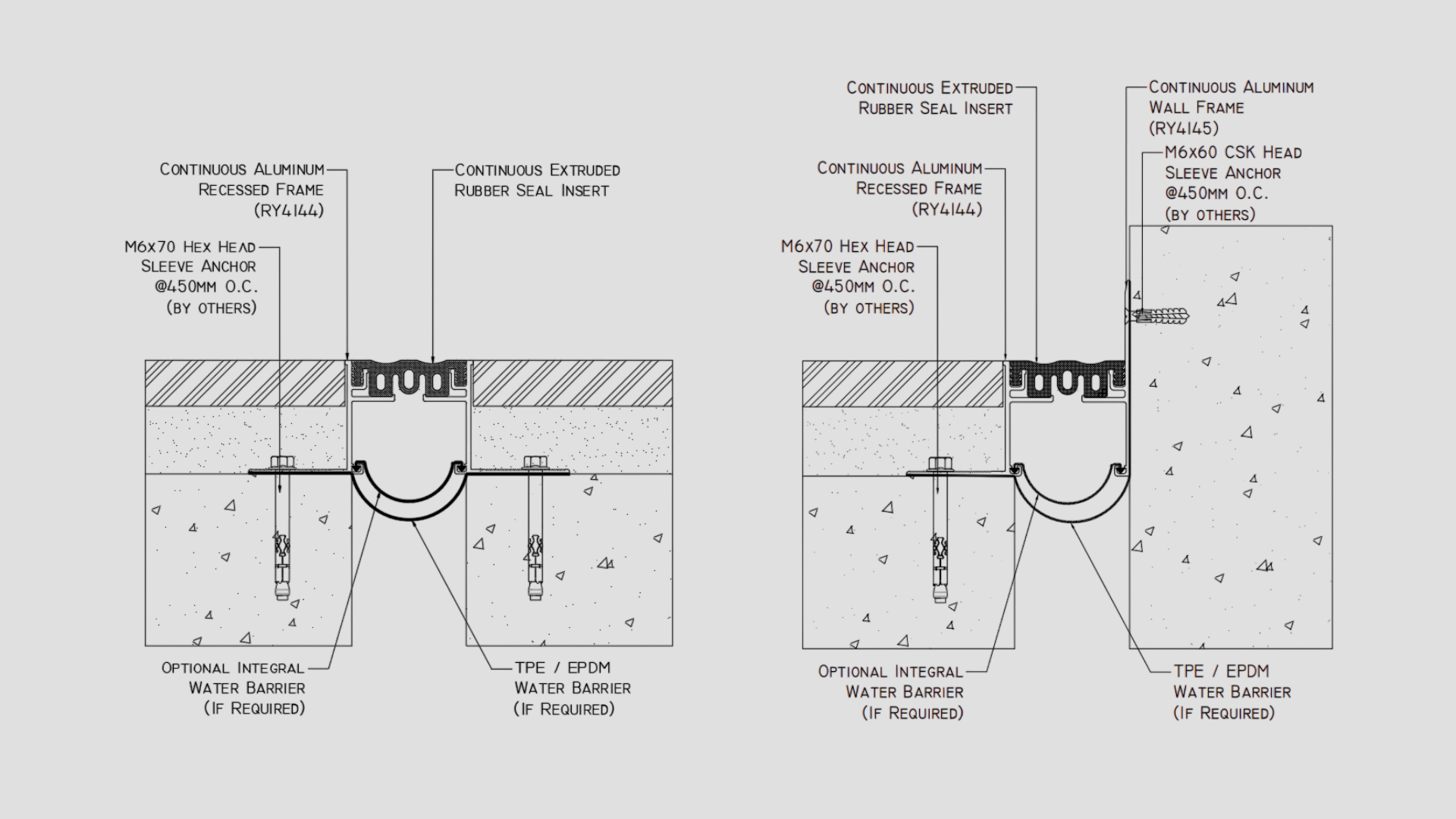

System Drawing
gap size calculator
enter your expansion gap measurement to see if this product is right for you.
profile specifications
| model name | joint width (mm) | height (mm) | sightline (mm) | movement capability (%) | load capacity |
|---|---|---|---|---|---|
| z-1000-50 | 50 | 50 | 56 | ±25 | PEDESTRIAN |
| z-1000-75 | 75 | 50 | 81 | ±22 | PEDESTRIAN |
| zk-1000-50 | 50 | 50 | 55 | ±25 | PEDESTRIAN |
| zk-1000-75 | 75 | 50 | 80 | ±22 | PEDESTRIAN |
datasheet specifications
| Series | PROGASKET RM Series (Z-1000 & ZK-1000) |
|---|---|
| System type | Thermal Recessed Modular Floor System |
| Mounting | Recessed |
| Suitable movement | Thermal, Settlement |
| Recommended for | Interior and exterior areas; Areas where hygiene is of importance; Areas where heavy pedestrian and vehicular load are expected |
| Components | Extruded Aluminum Support Profiles; Elastomeric Rubber Insert which absorbs the expansion & contraction in the adjacent concrete slabs |
| Material: Support Profiles | Extruded aluminum, grade AA 6063 preferred |
| Material: Elastomeric Rubber Insert | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Elastomer (TPE); finish: Grooved Finish; black |
| Material: Vapor Barrier (Optional) | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); black |
| Supply length | 3.00 m per piece (support profiles) |
| Substrate tolerance | Surface level within ±2 mm; gap level within ±5 mm |
| Sizes | Per the system drawings; profiles can be customized to requirements |
Source: Z1000 technical datasheet. Sizes and dimensions: profile specifications above and the system drawings.
