wtz1800
luxseal series

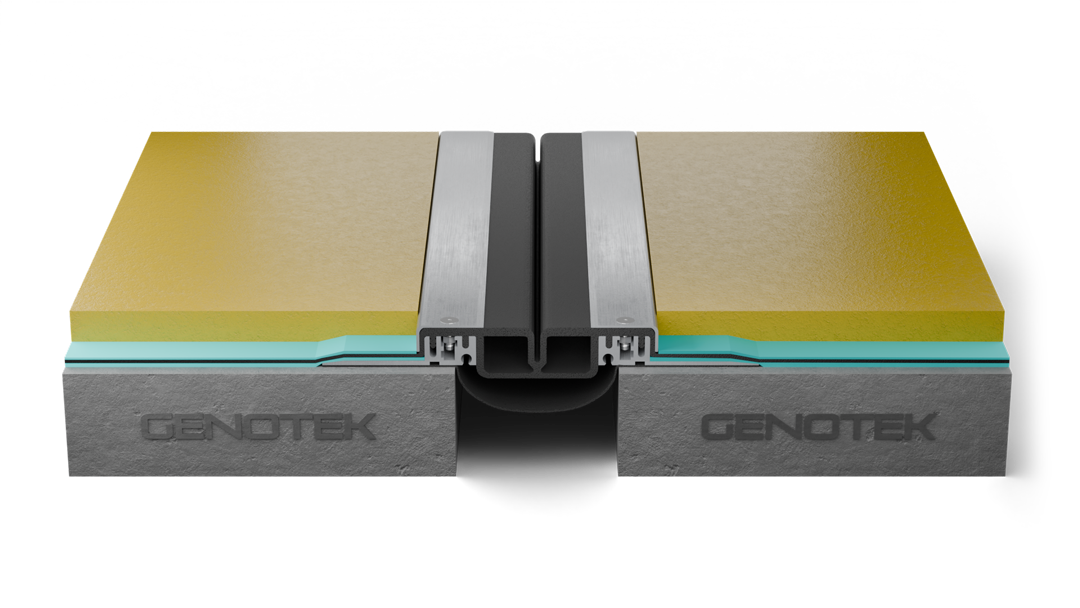

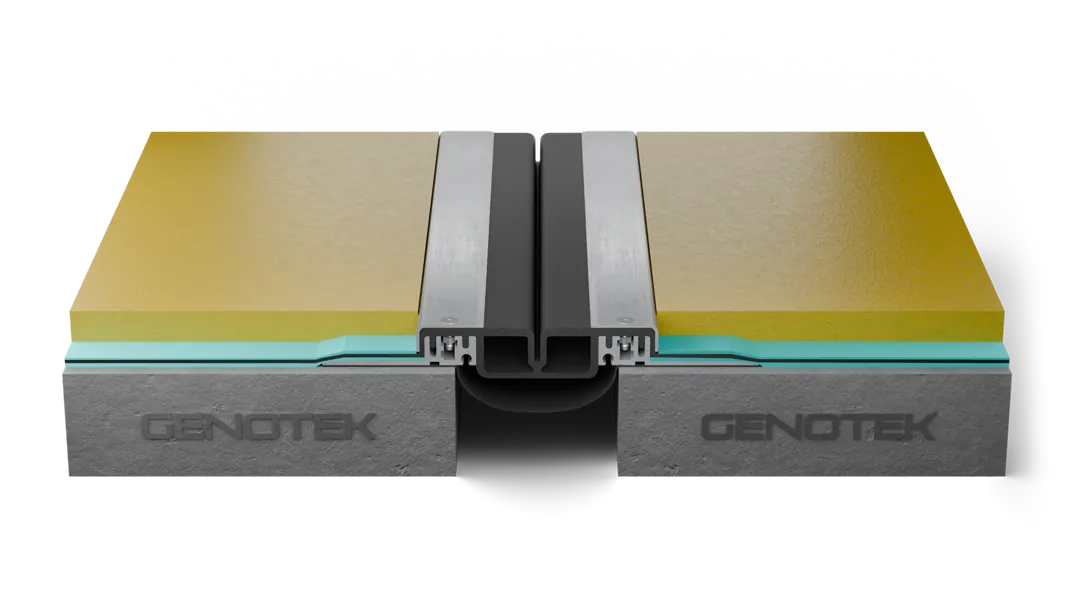

Introducing the WTZ 1800
heavy-duty movement accommodation
the luxseal wt series is built to handle significant thermal expansion and contraction, maintaining structural integrity even in areas with heavy traffic and frequent temperature changes. this makes it ideal for outdoor applications where structural flexibility is essential
advanced watertight protection
featuring an integrated water barrier that connects seamlessly to adjacent waterproofing membranes, the luxseal wt ensures complete water resistance without the need for punctures or anchor holes in the barrier. this design prevents water ingress, providing reliable protection in areas exposed to constant moisture
load bearing
the wtz-1800 expansion joint cover is recommended for exterior areas with heavy-duty traffic, such as podiums and parking areas. aluminum support frames and retaining caps, with an optional aluminum or stainless steel cover plate, form the surface over the joint.
revolutionizing expansion joints: snap-fit assembly in action
this video demonstrates the seamless assembly process, showcasing how the continuous water barrier effortlessly integrates through the profile without any punctures. watch as the unique snap-fit fixtures ensure a secure and precise fit, maintaining the integrity of the water barrier and delivering 100% watertight protection. perfectly designed for durability and reliability

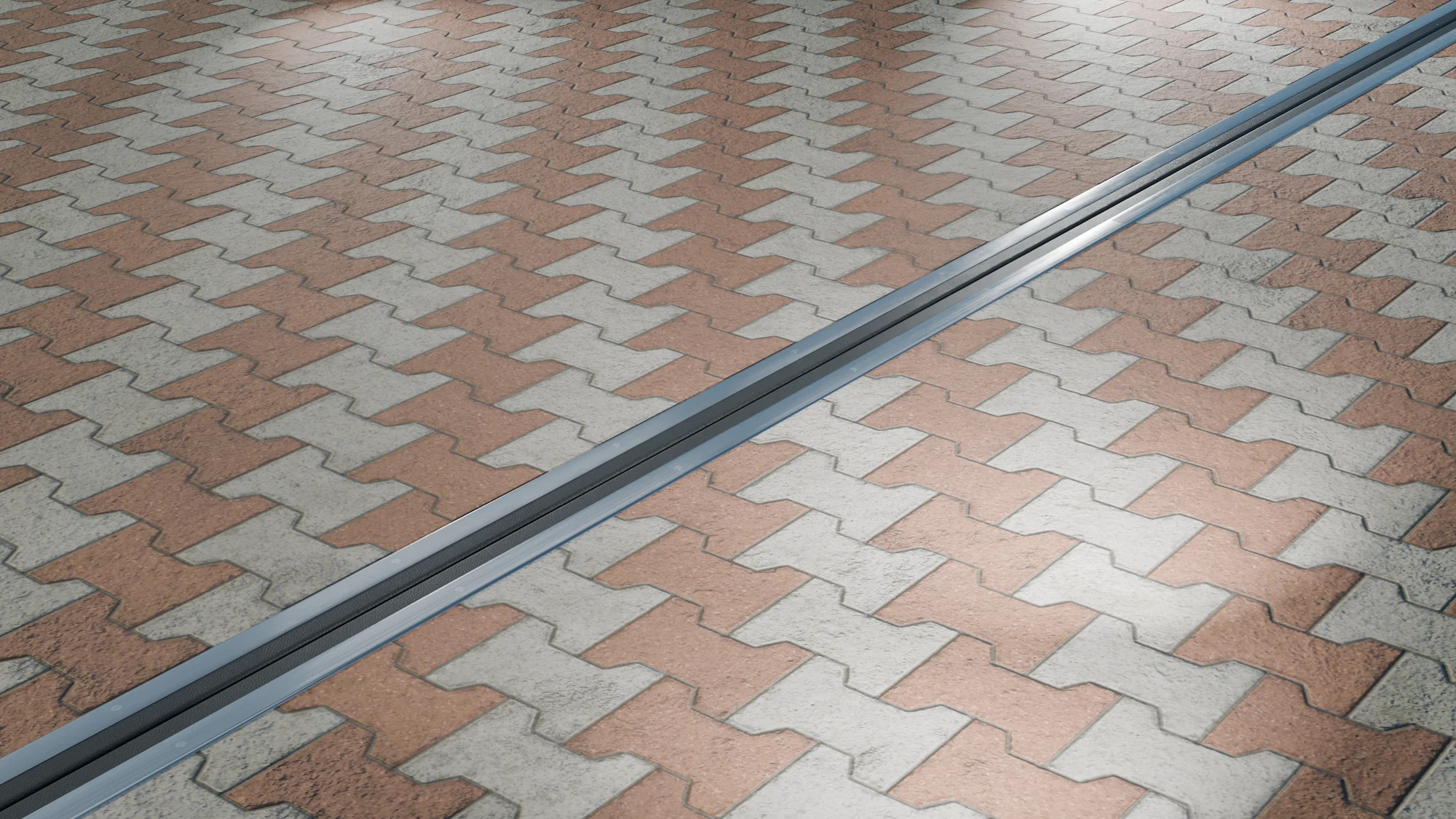

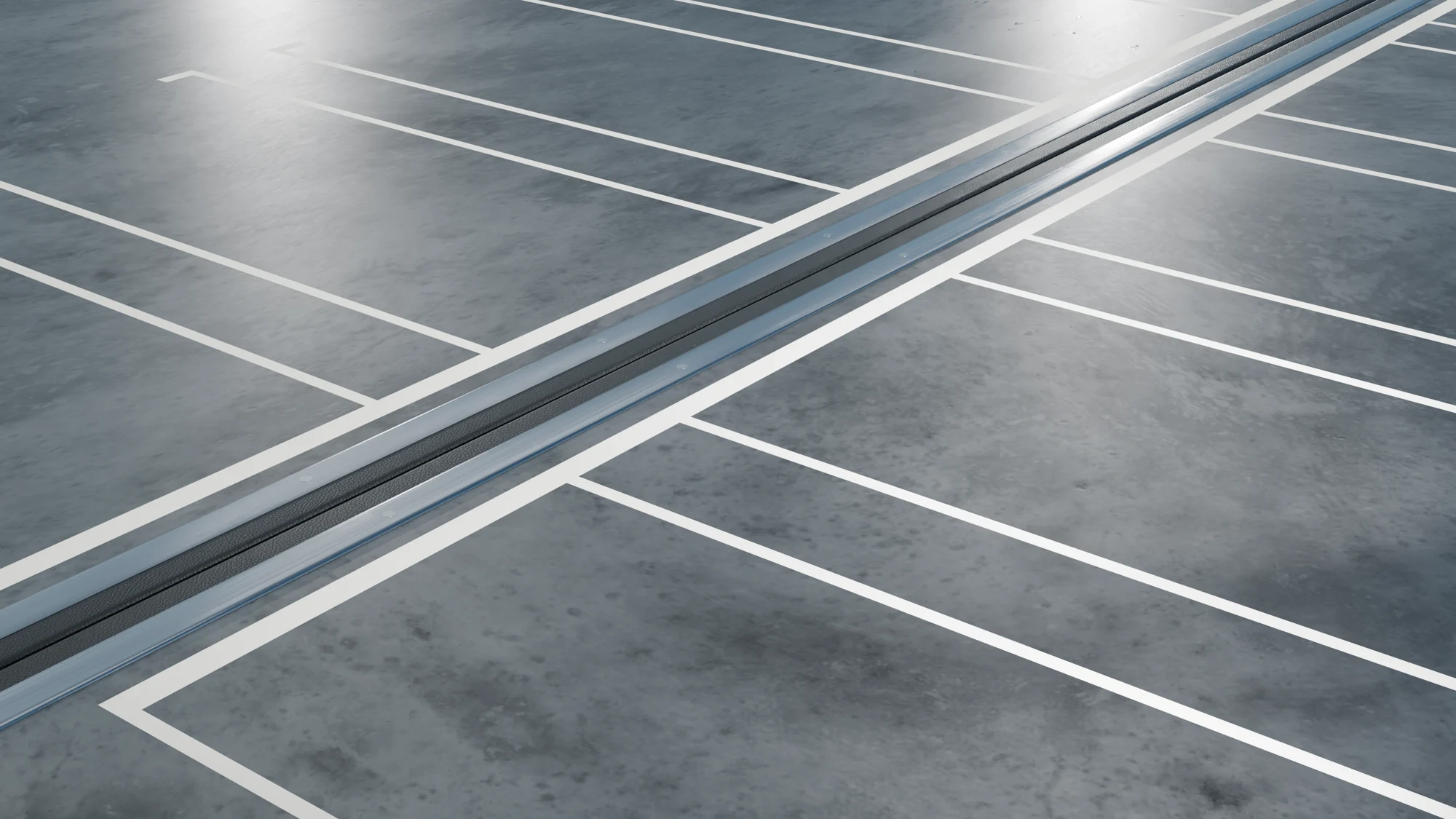

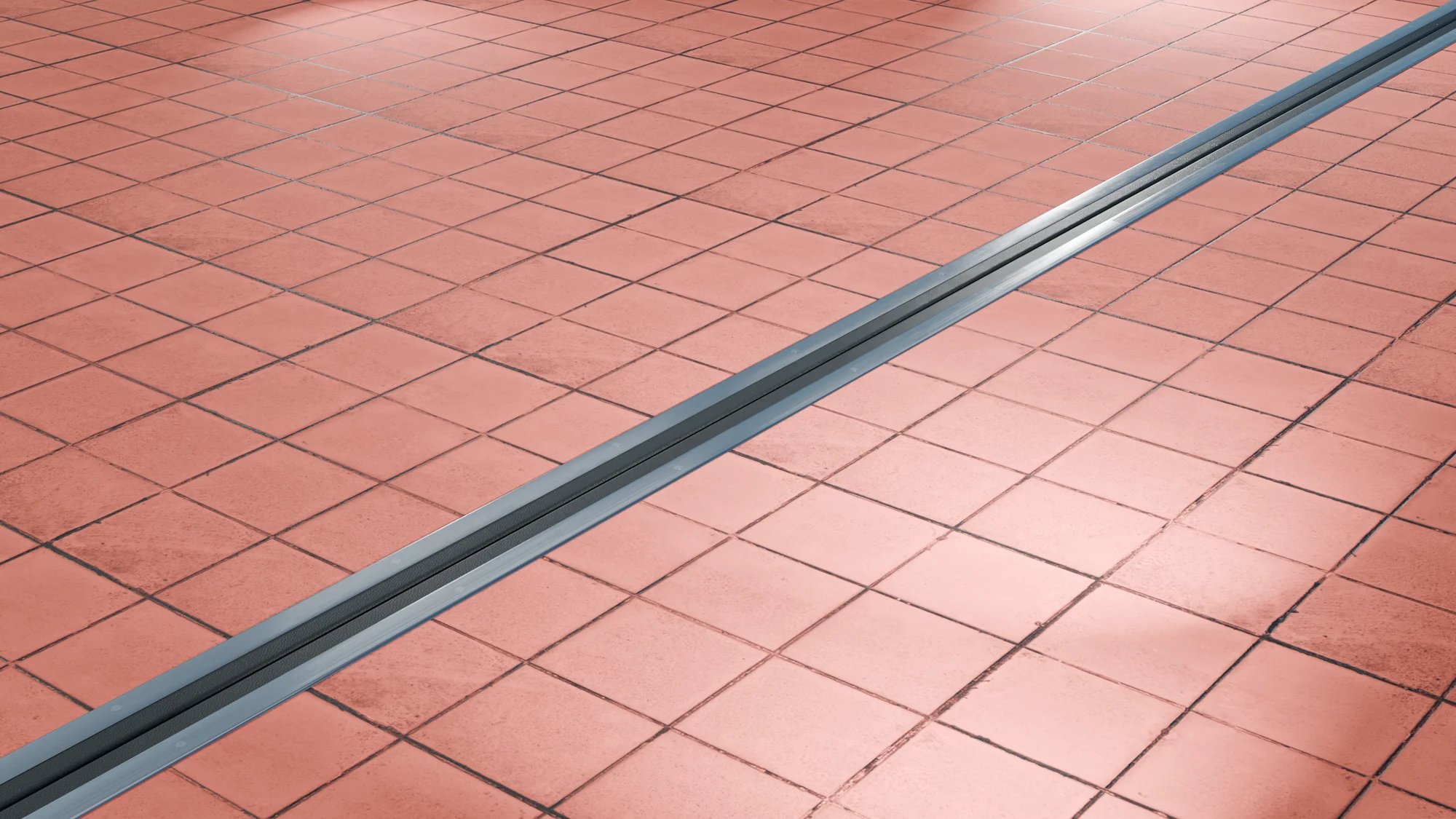

Aesthetic Choice
The LUXSEAL WTZ1800, crafted entirely from sleek aluminum & flexible rubber effortlessly complements any floor finish. whether you’re working with polished concrete, rustic pavers, elegant marble, or modern tiles, this expansion joint cover seamlessly blends in, enhancing the overall aesthetic of your space. trust the WTZ1800 to provide not only exceptional functionality but also a touch of sophistication to your project, no matter the design style

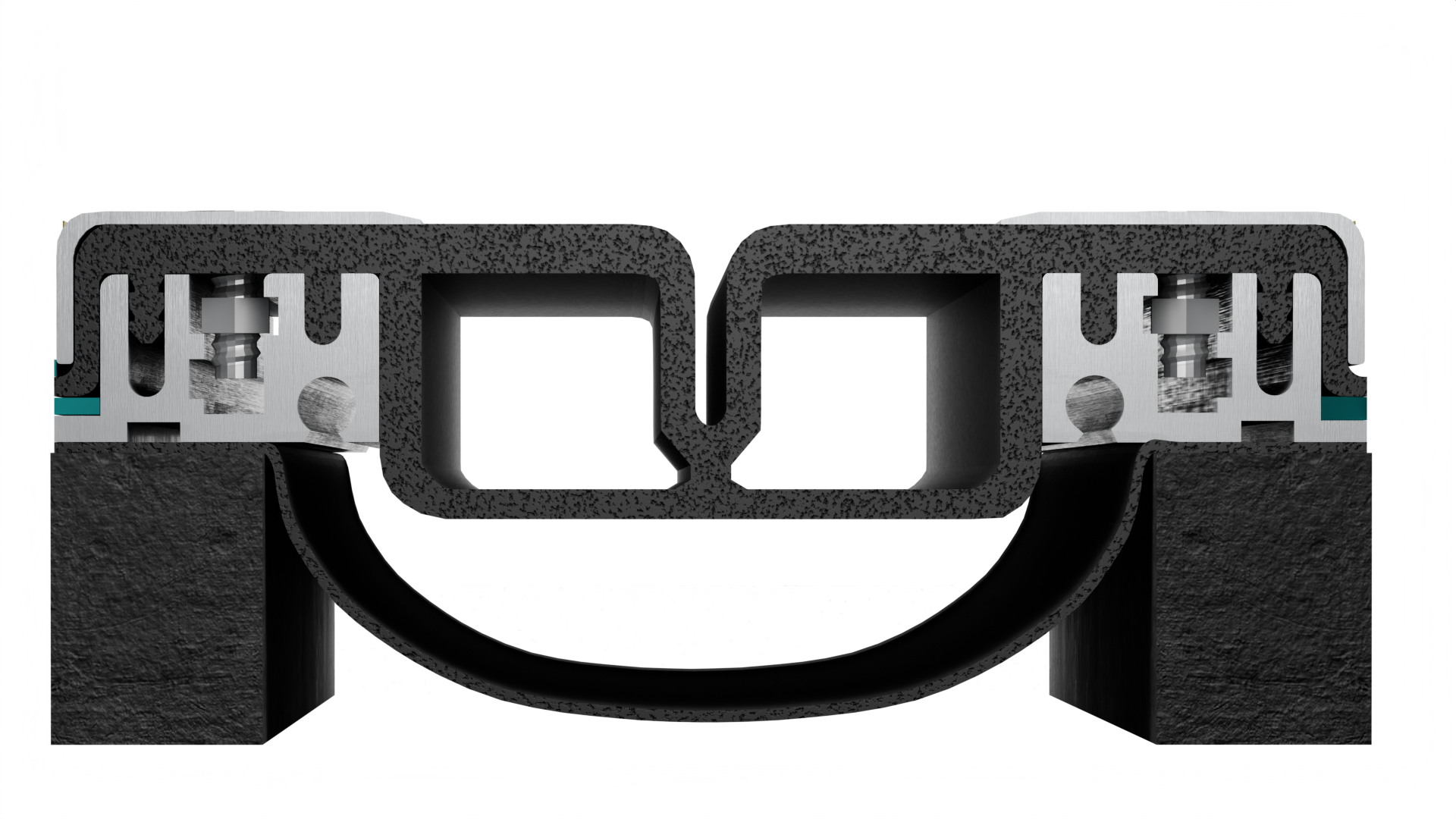

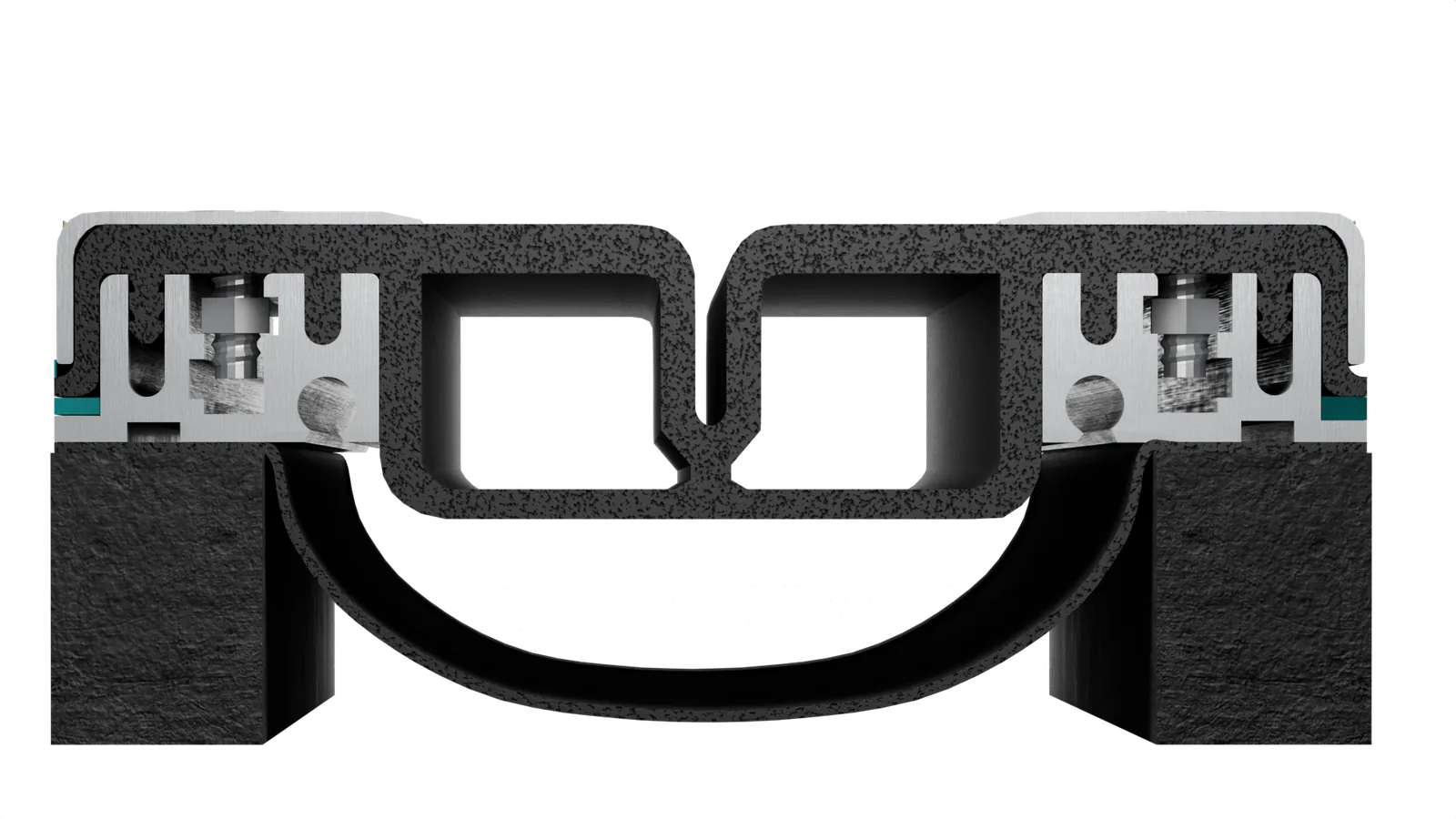

Integrated, Puncture-Free Water Barrier

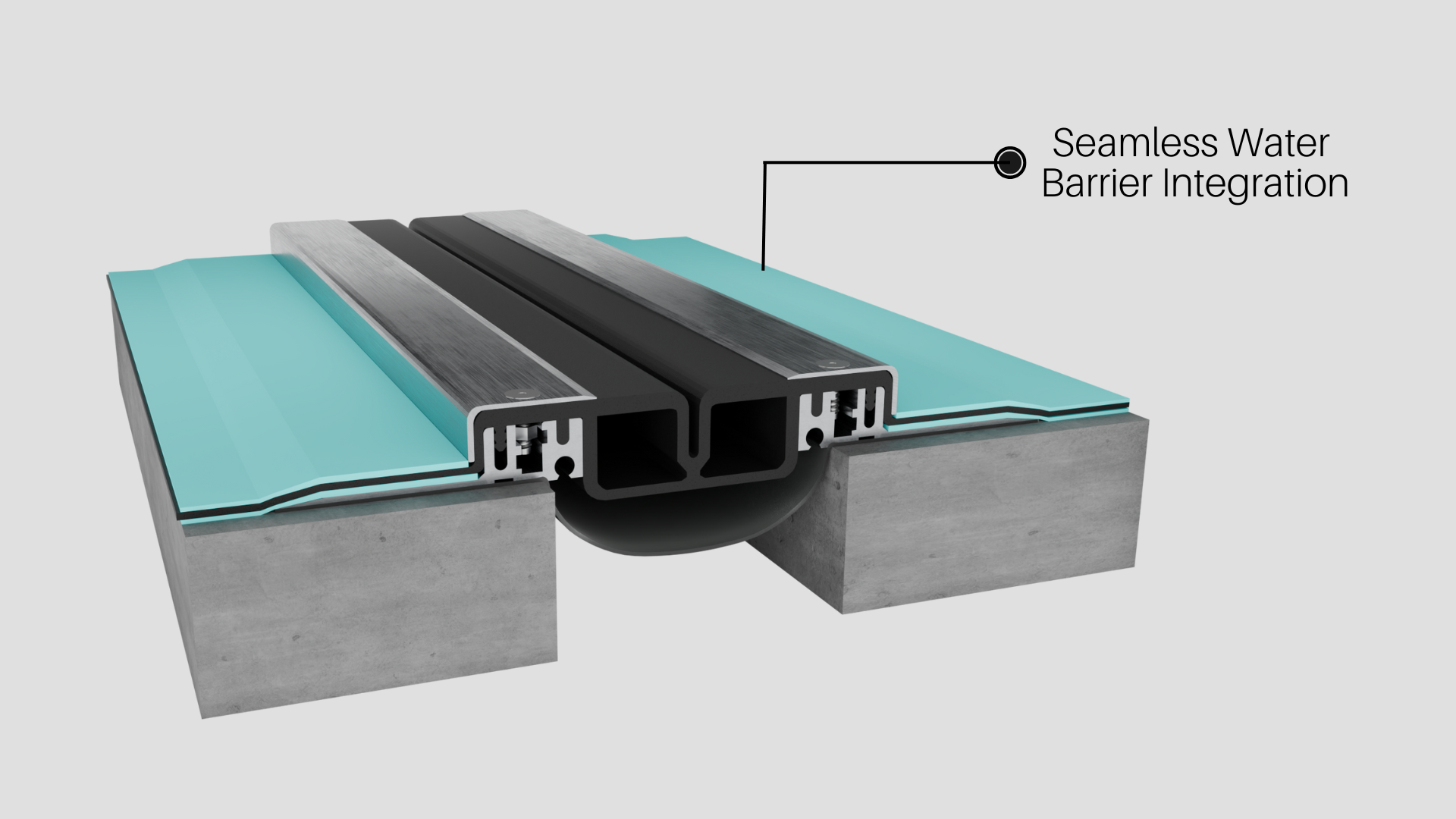

Seamless Water Barrier Integration

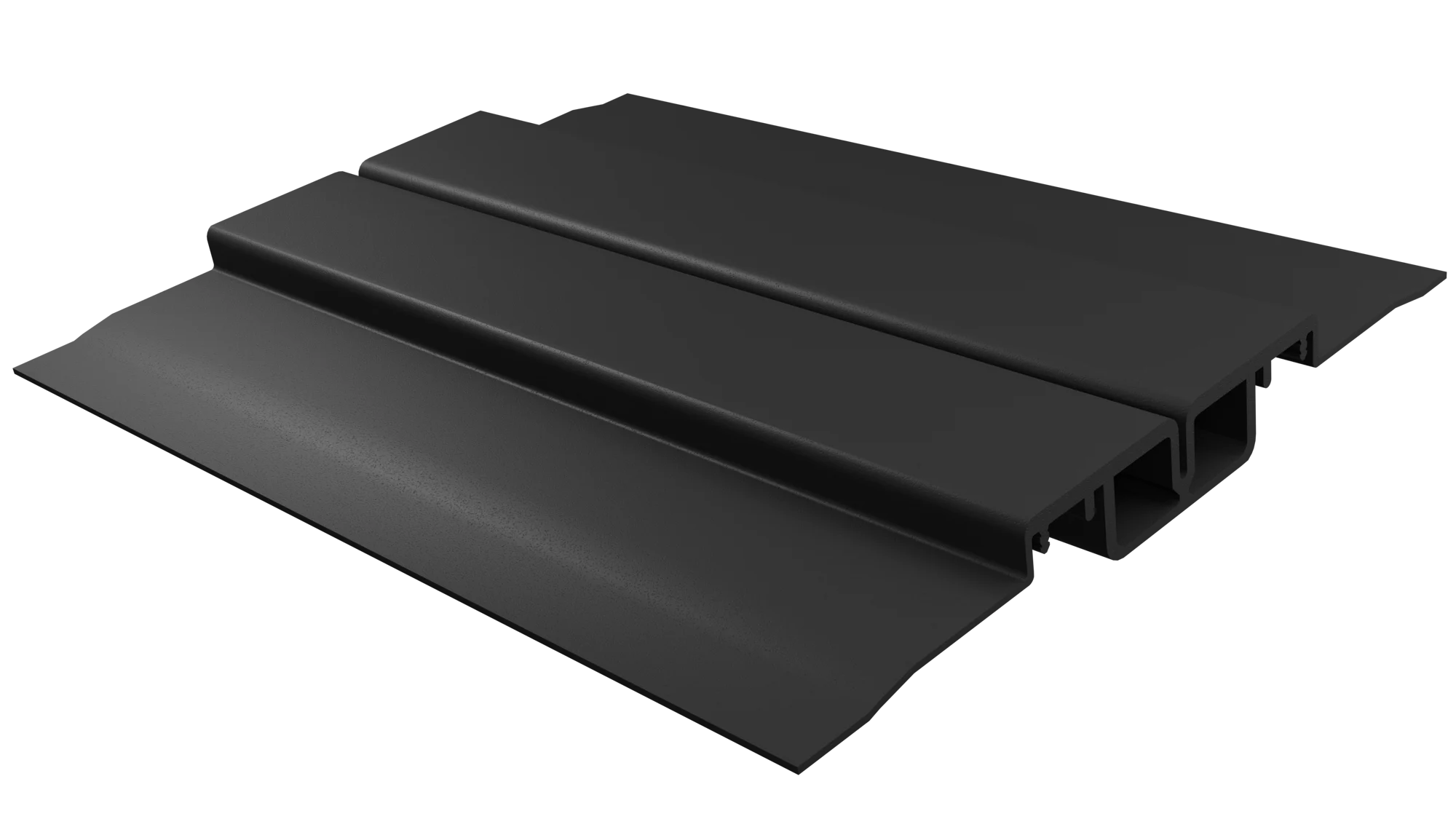

Elastomeric Rubber Insert for Flexibility and Grip

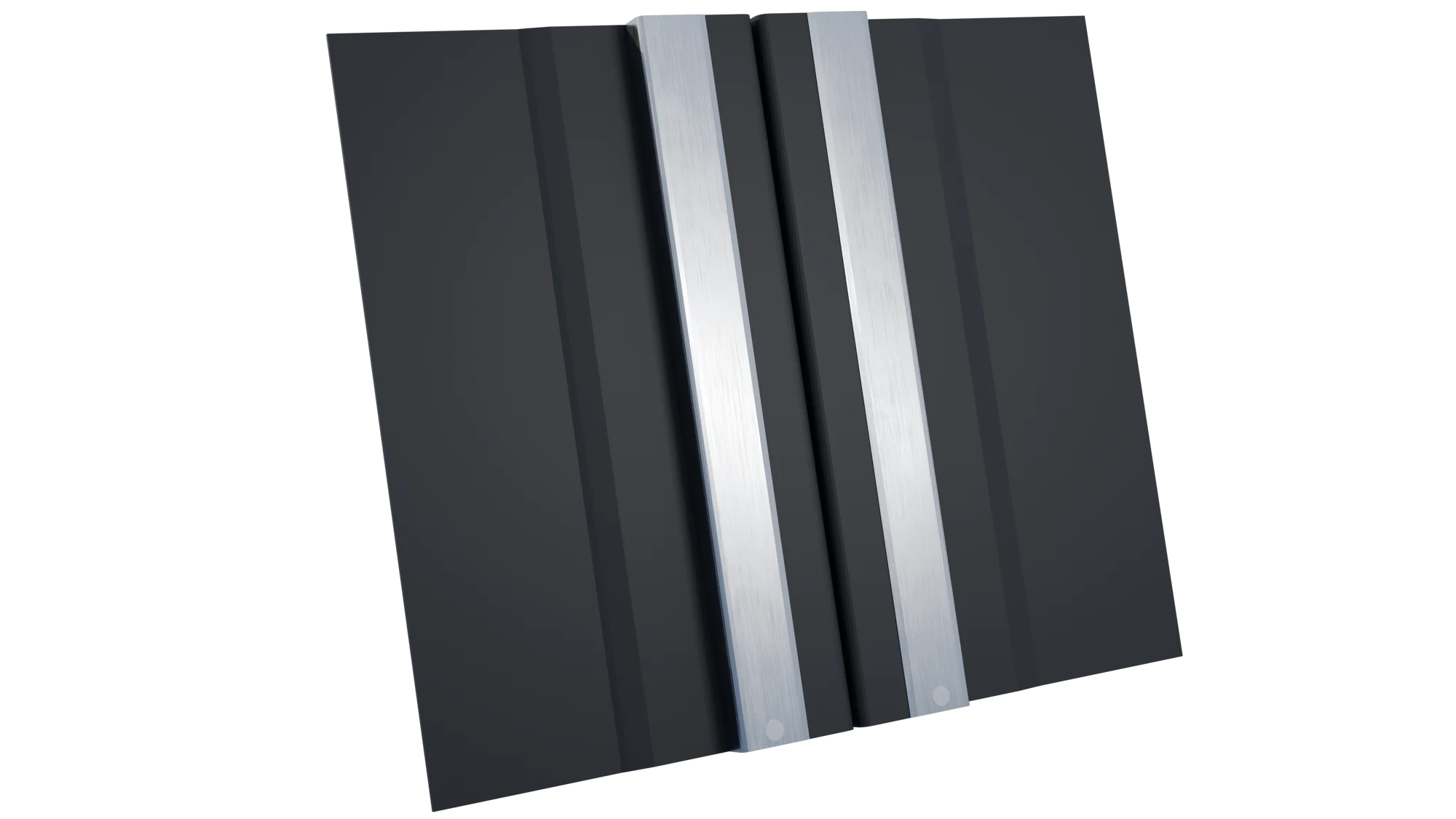

Durable Aluminum & Rubber Profiles

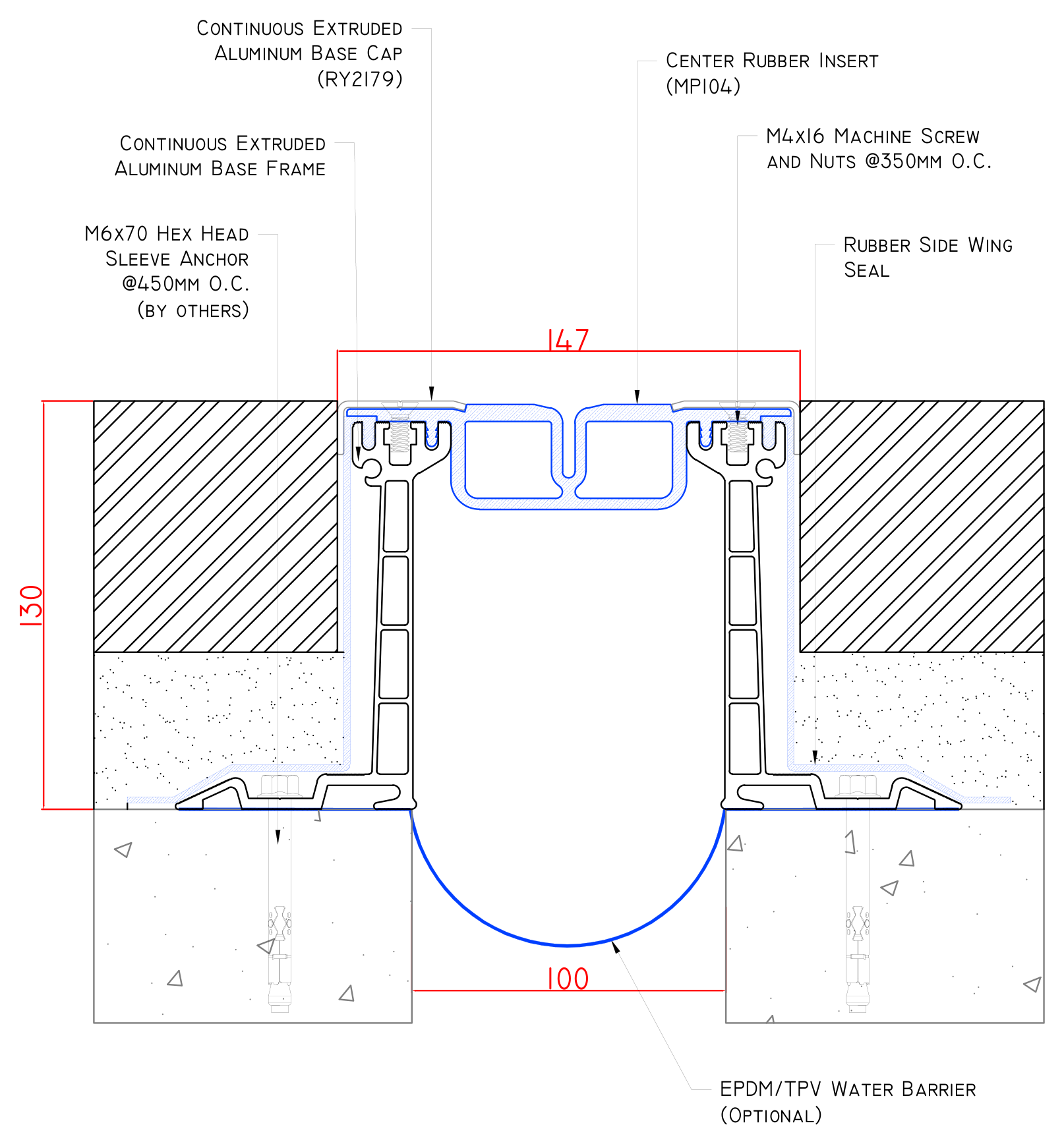

System Drawing
gap size calculator
enter your expansion gap measurement to see if this product is right for you.
profile specifications
| model name | joint width (mm) | height (mm) | sightline (mm) | movement capability (%) |
|---|---|---|---|---|
| wtz-1800-100 (h_130) | 100 | 130 | 147 | ±50 |
| wtz-1800-100 | 100 | 26 | 147 | ±50 |
| wtz-1800-100nvs | 100 | 26 | 175 | ±50 |
| wtz-1800-100ss | 100 | 26 | 147 | ±50 |
| wtz-1800-200 | 200 | 26 | 175 | ±25 |
| wtzk-1800-100 | 100 | 26 | 124 | ±50 |
datasheet specifications
| Series | LUXSEAL Series (WTZ-1800 & WTZK-1800) |
|---|---|
| System type | Watertight Expansion Joint System |
| Mounting | Recessed |
| Suitable movement | Thermal, Settlement |
| Recommended for | Exterior areas; Areas where high water usage is presents like landscapes, etc; Areas where heavy-duty traffic is present like podiums, parking areas, etc |
| Components | Extruded Aluminum Support Frames; Retaining Metal Caps; Continuous Side Elastomeric Rubber Insert; Continuous Central Elastomeric Rubber Insert |
| Material: Support Frames | Extruded aluminum, grade AA 6063 preferred |
| Material: Elastomeric Rubber Central And Side Insert | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); finish: Grooved Finish; black |
| Supply length | 3.00 m per piece (support profiles and retaining caps) |
| Substrate tolerance | Surface level within ±2 mm; gap level within ±5 mm |
| Sizes | Per the system drawings; profiles can be customized to requirements |
Source: WTZ1800 technical datasheet. Sizes and dimensions: profile specifications above and the system drawings.
