r2001
proroof series

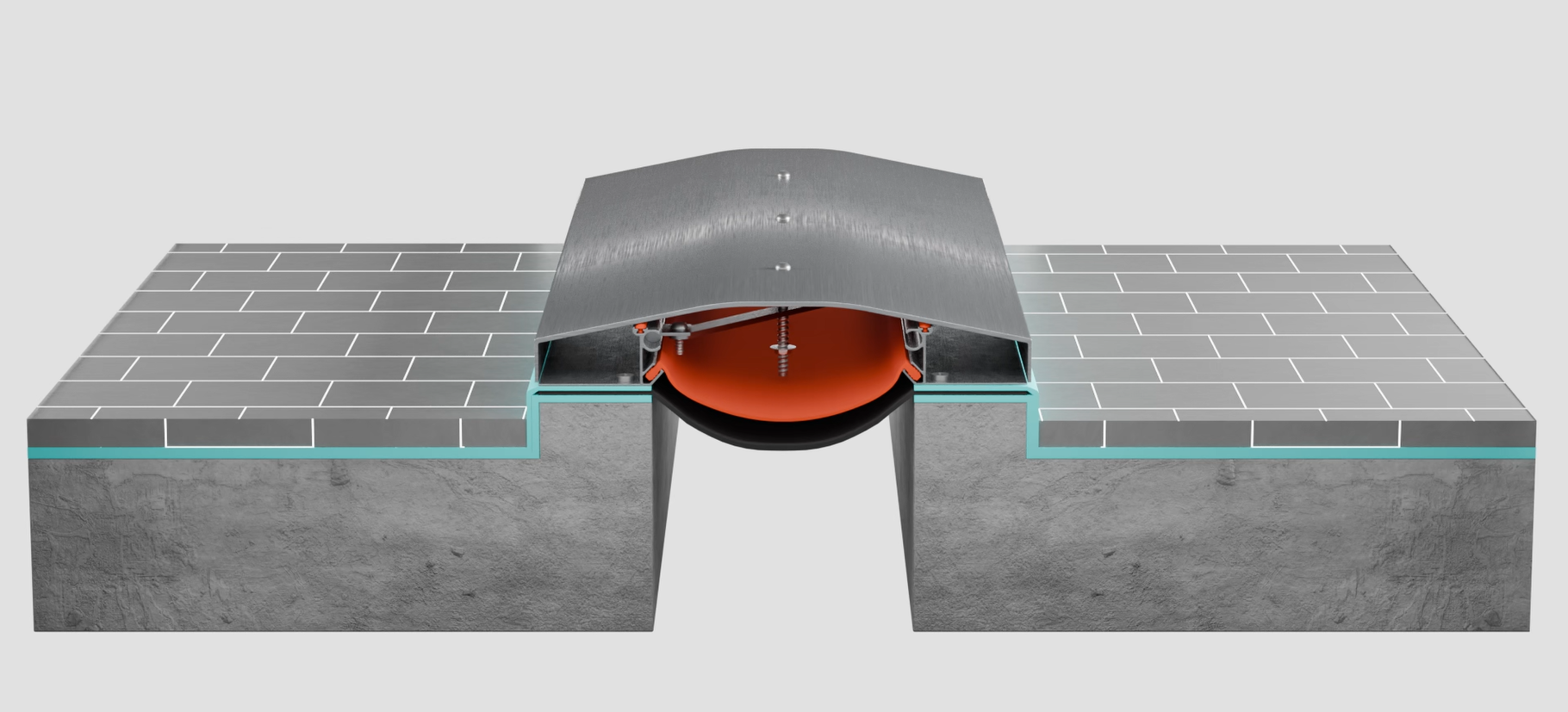

Introducing the R2001
seismic movement accommodation
the proroof series effectively manages seismic shifts and thermal expansion, allowing the roof structure to move without compromising the jointu2019s functionality. this multi-directional capability makes it ideal for areas prone to temperature fluctuations and seismic activity.
Water Protection
assembly in action
this video demonstrates the assembly process, perfectly designed for easy installation for durability and reliability.

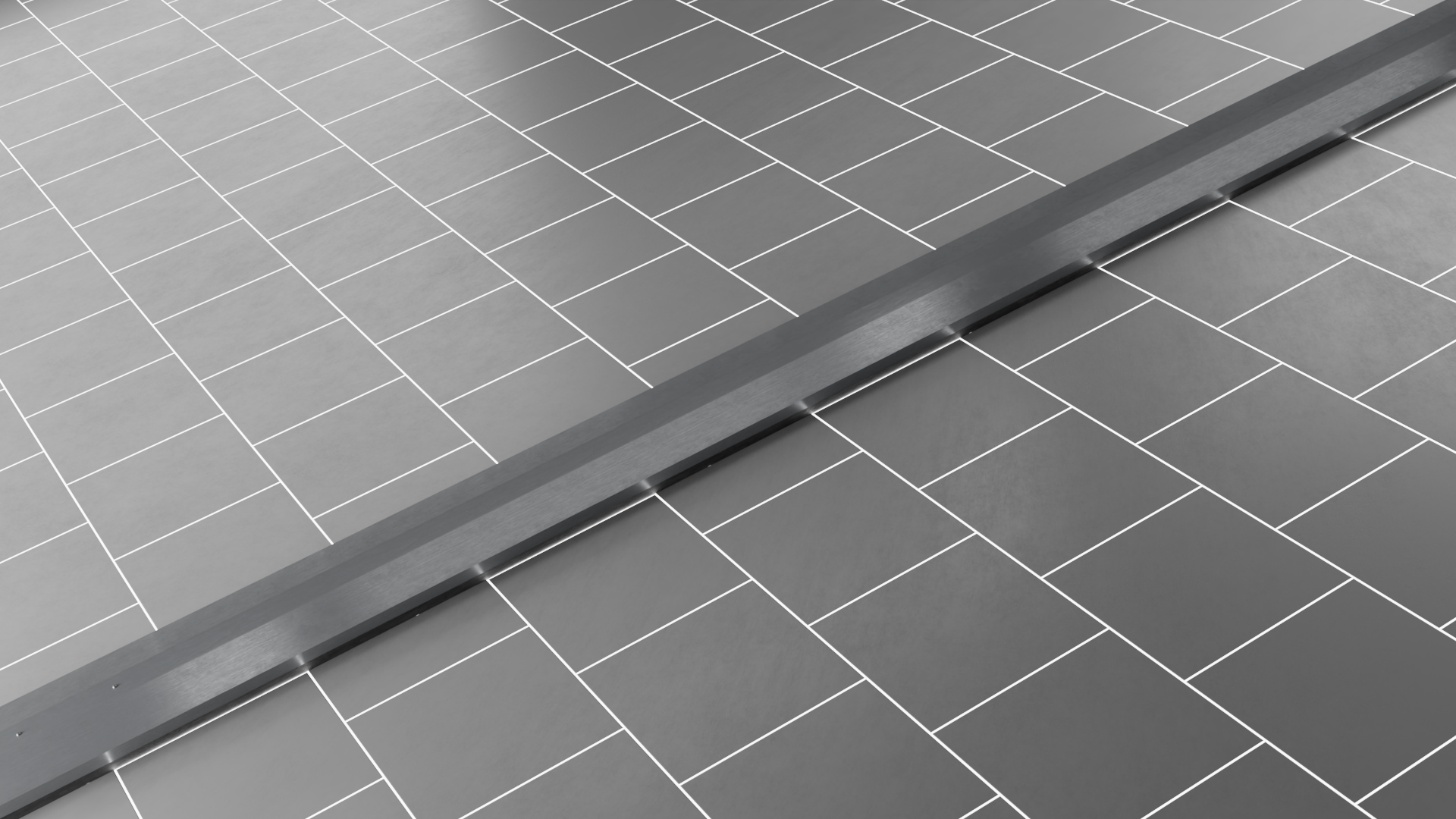

Aesthetic Choice

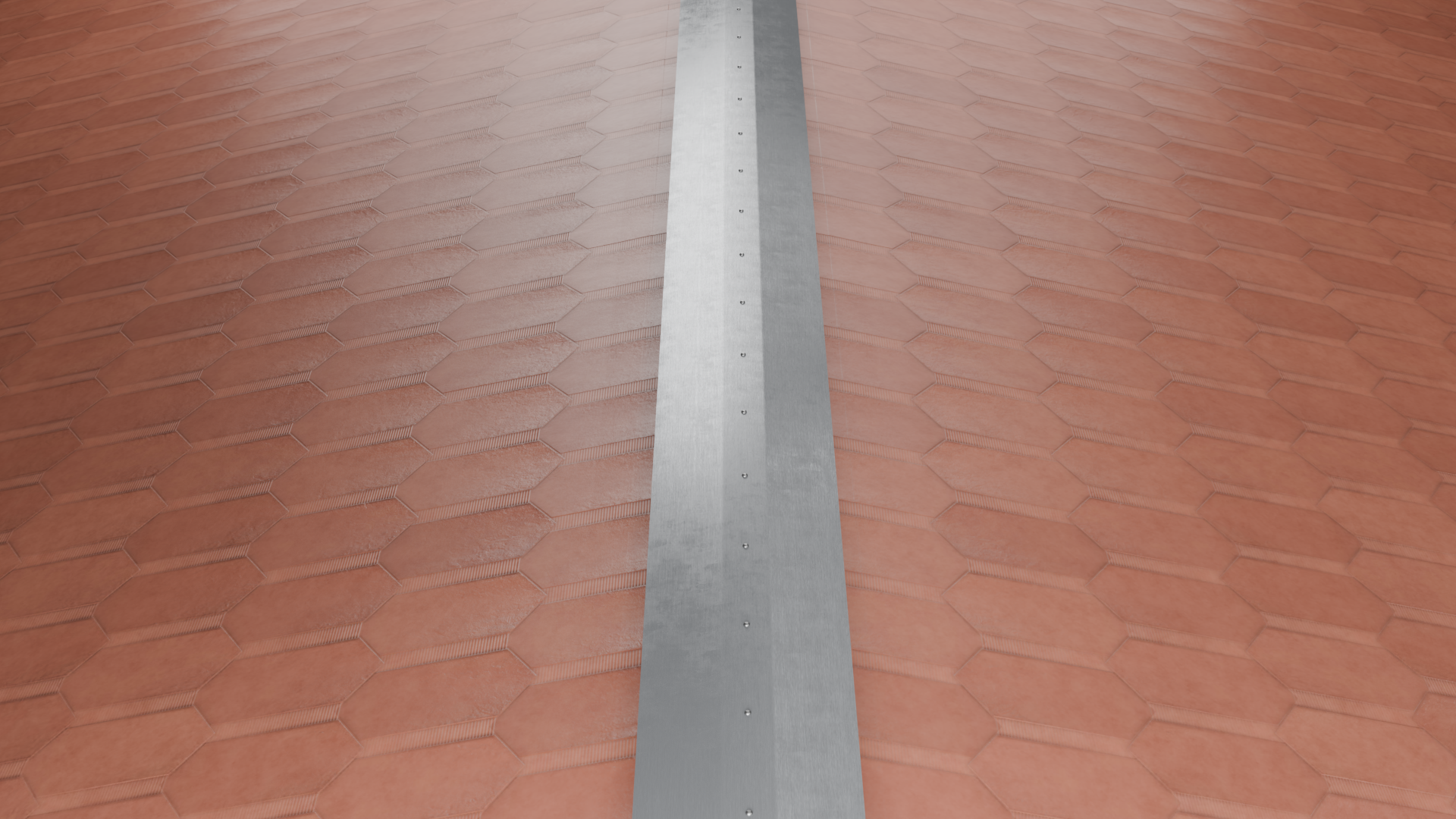

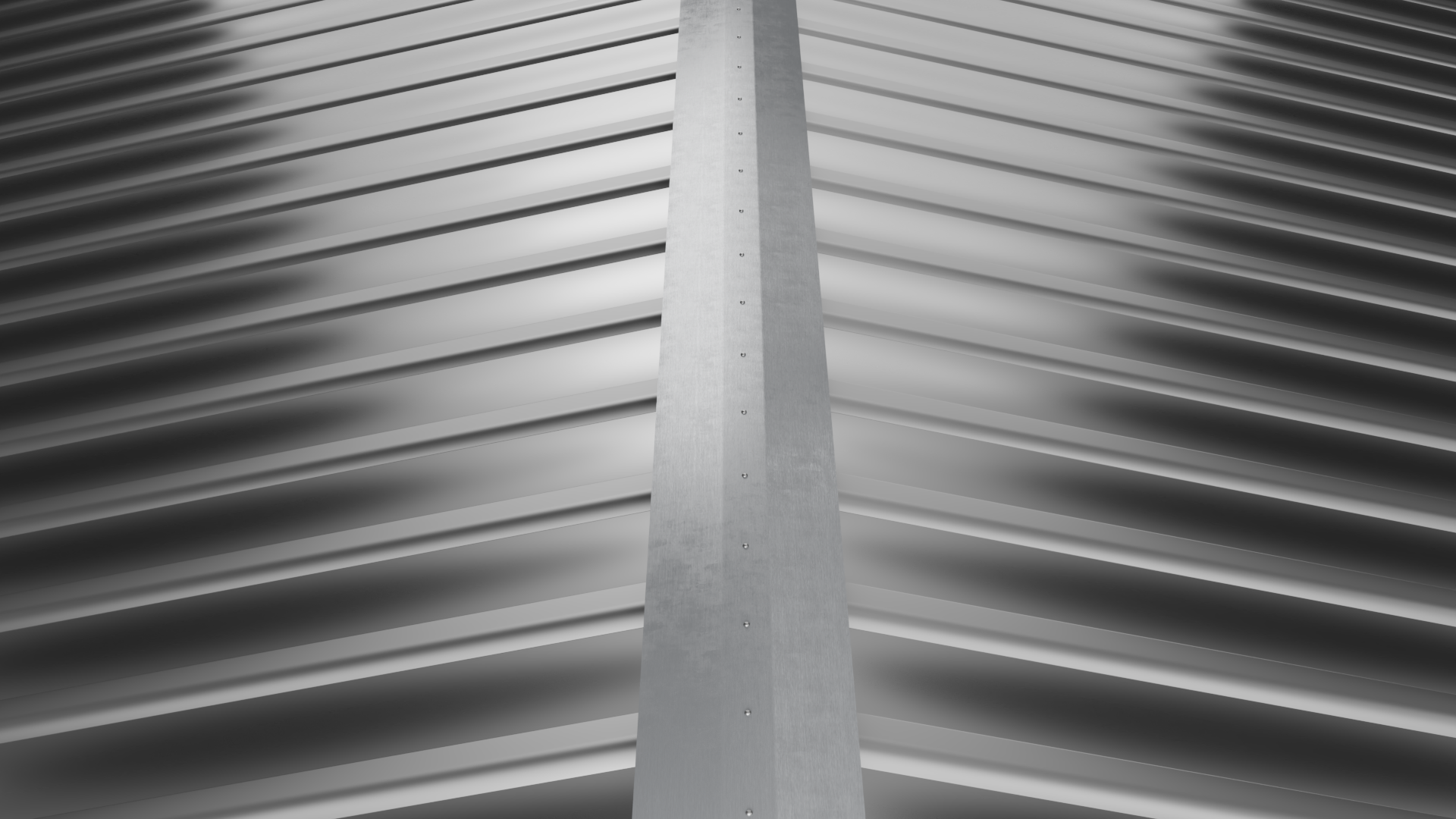

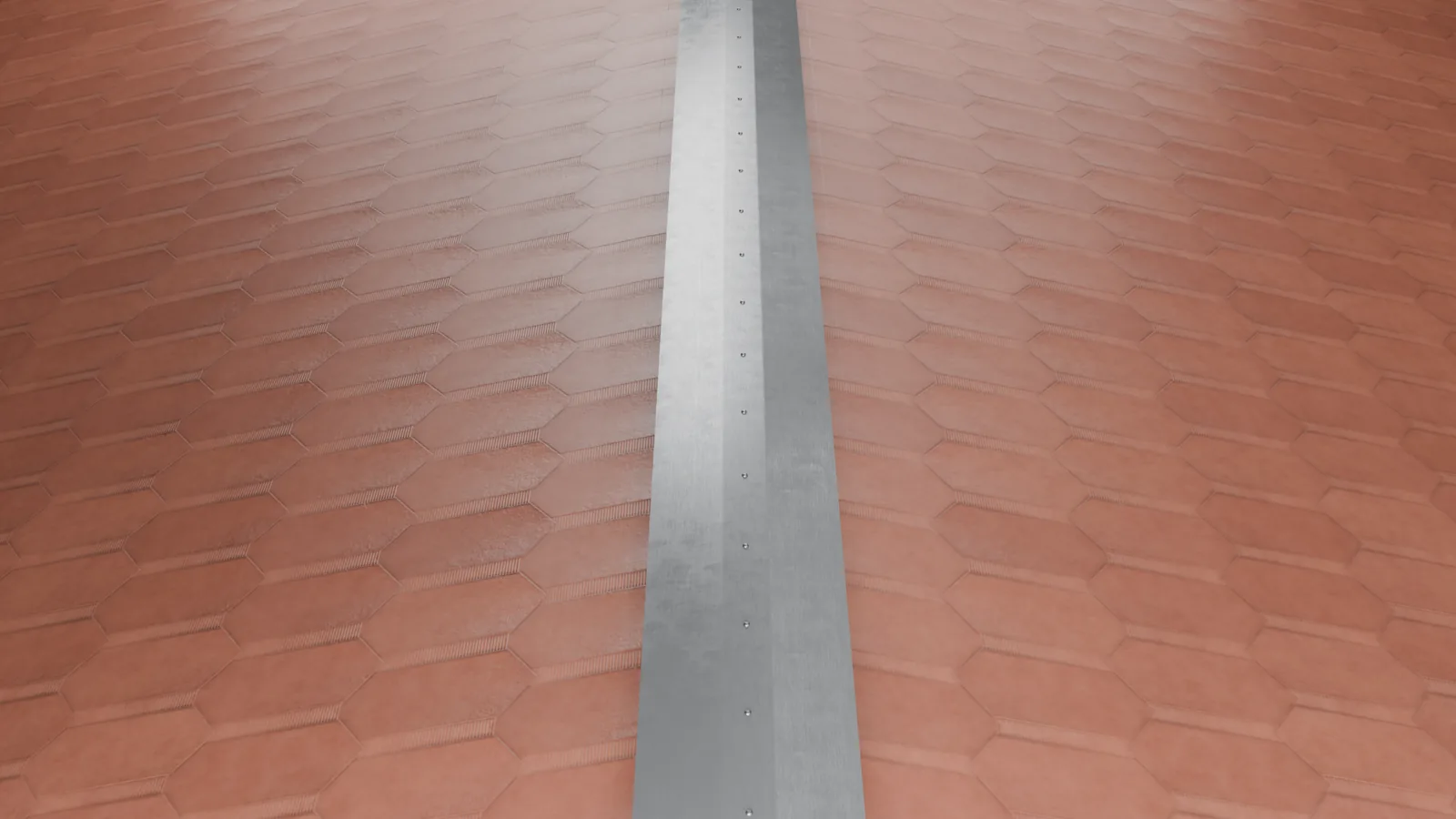

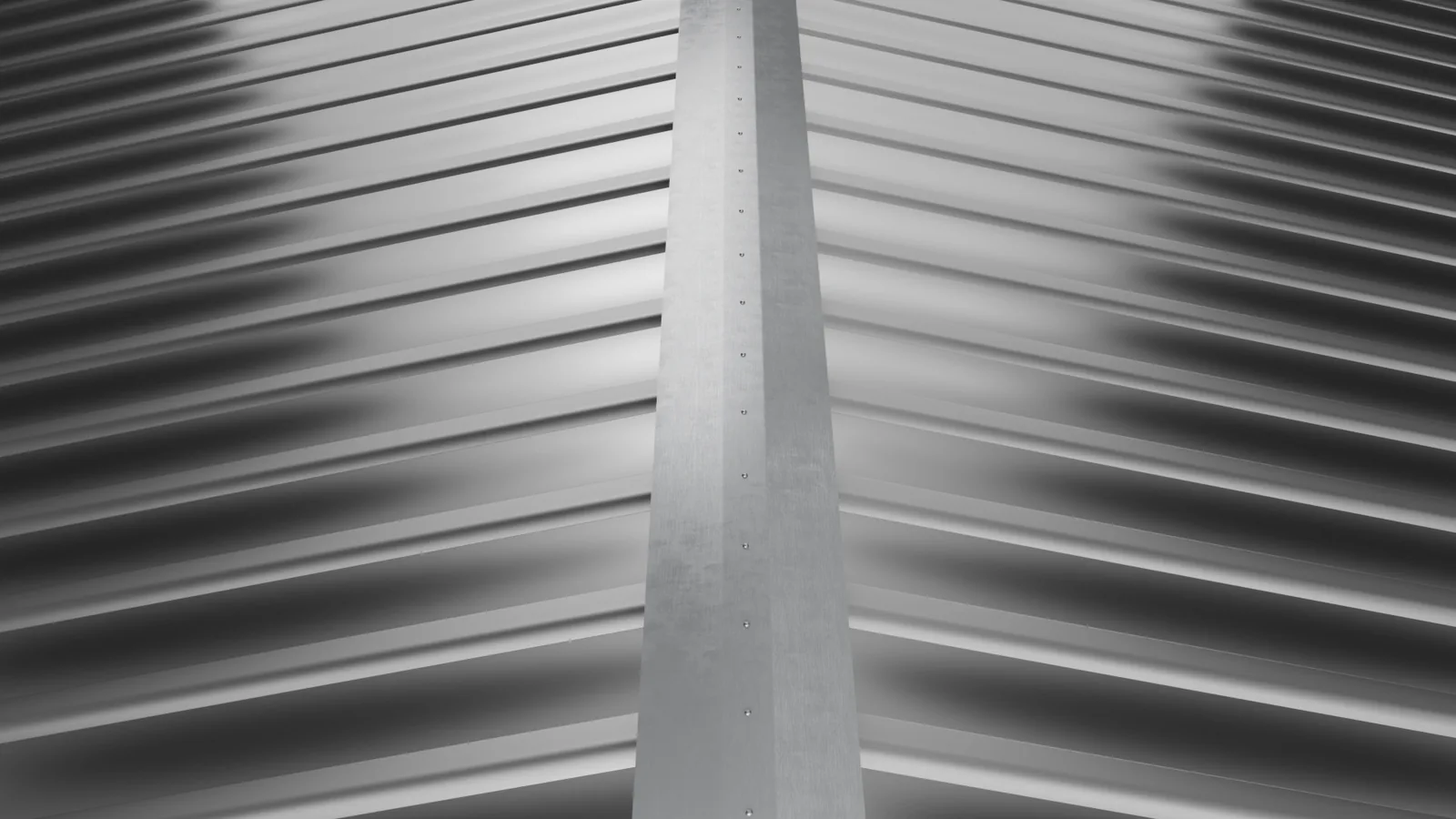

The PROROOF R2001 adapts to varied roof configurations and finishes u2014 from tiled roofs and metal roofing to red terrace finishes. Profiles are supplied in standard lengths and can be customized with accessories or powder coating to meet both functional requirements and the aesthetic language of the surrounding architecture.

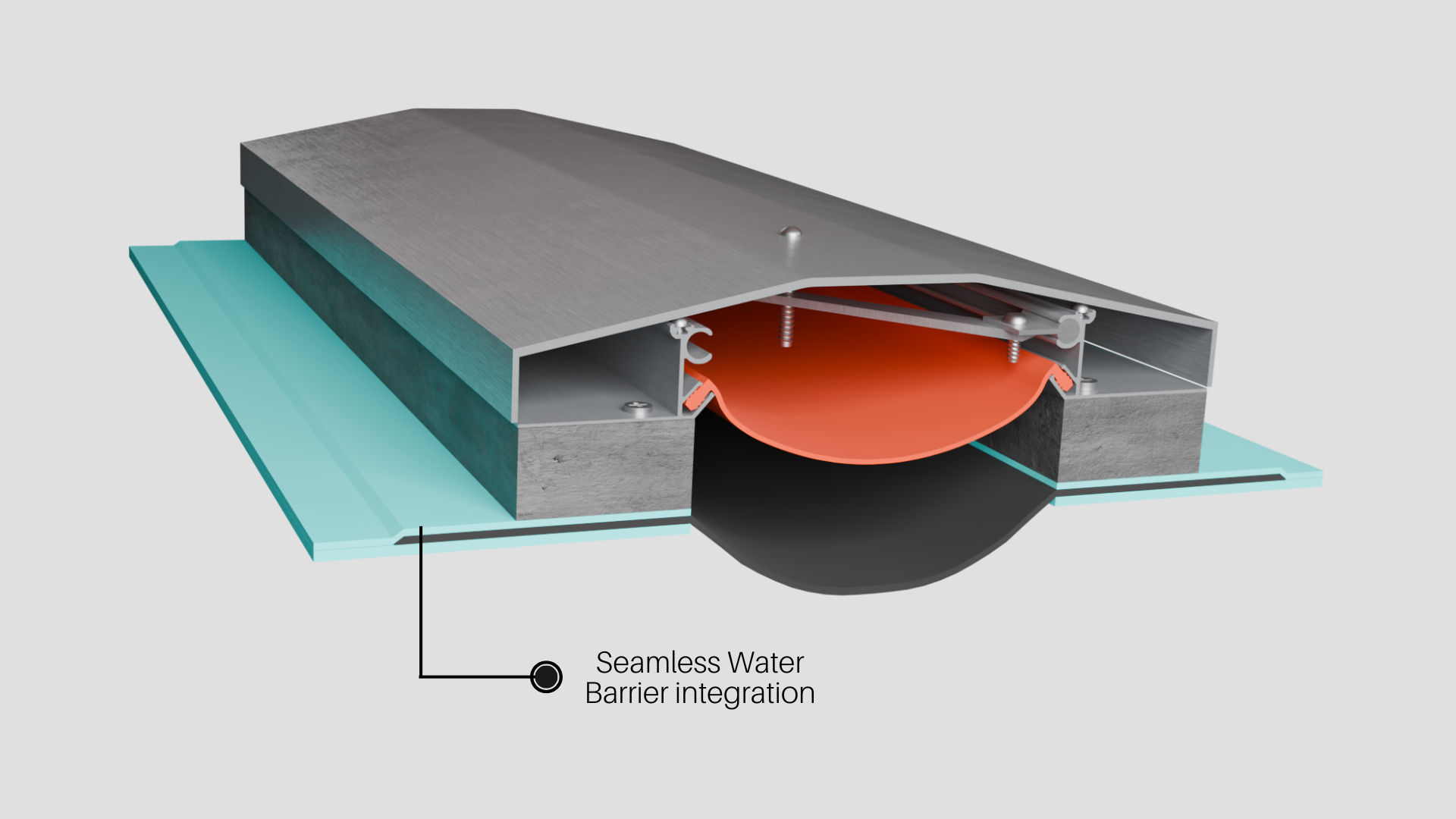

Seamless Water-Barrier Integration

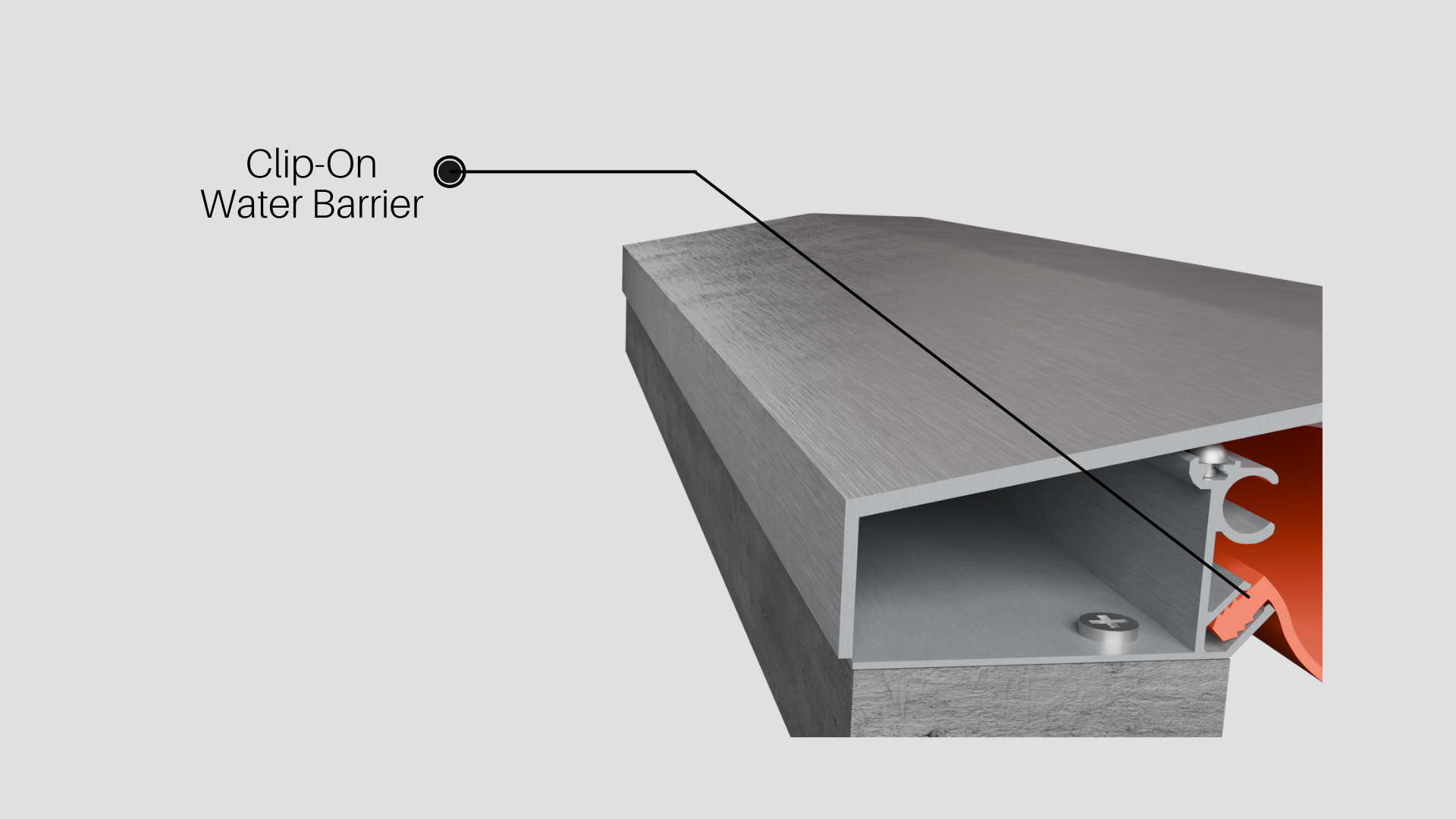

Optional Vapor Barrier

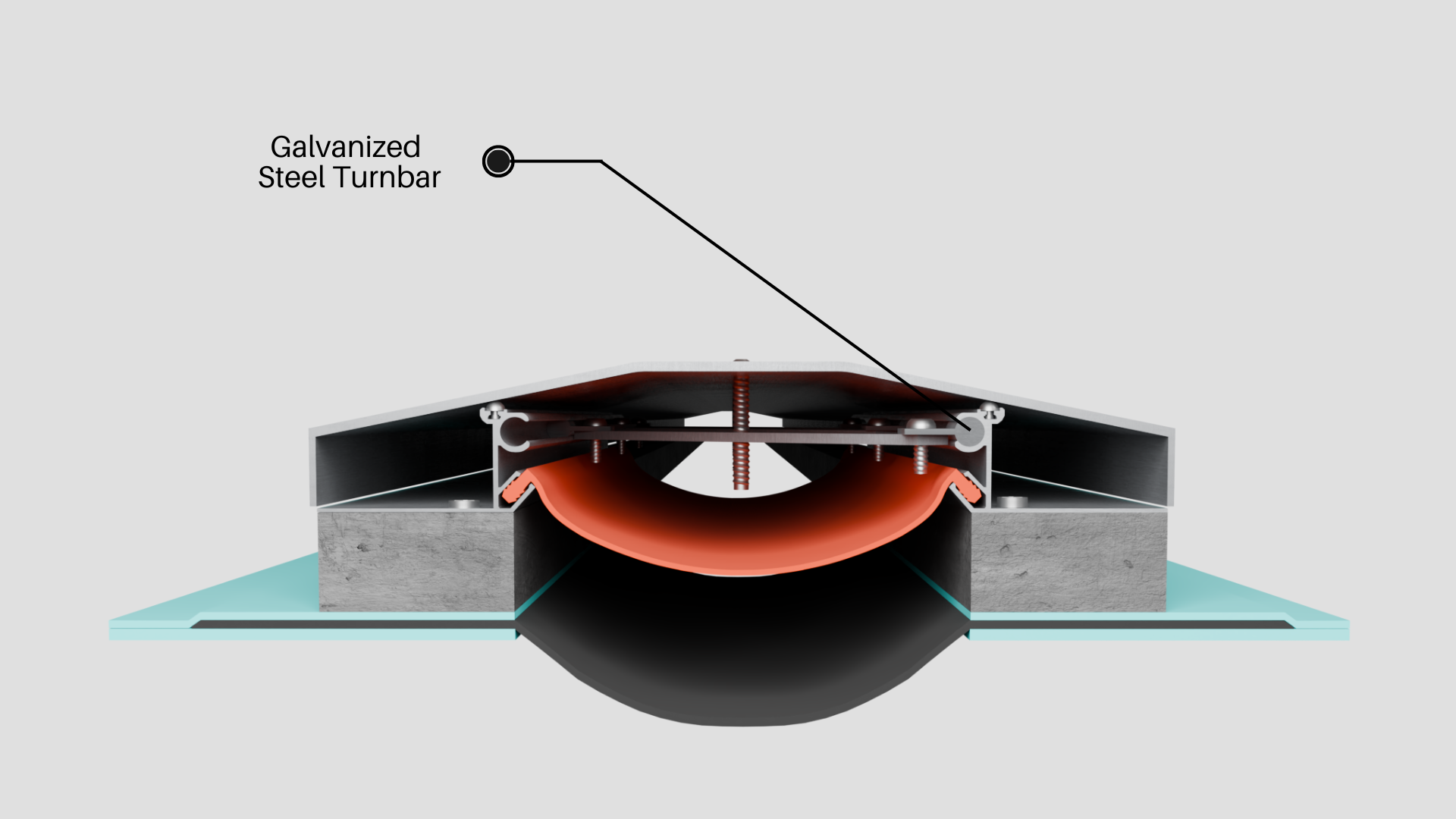

Galvanized Steel Turnbar

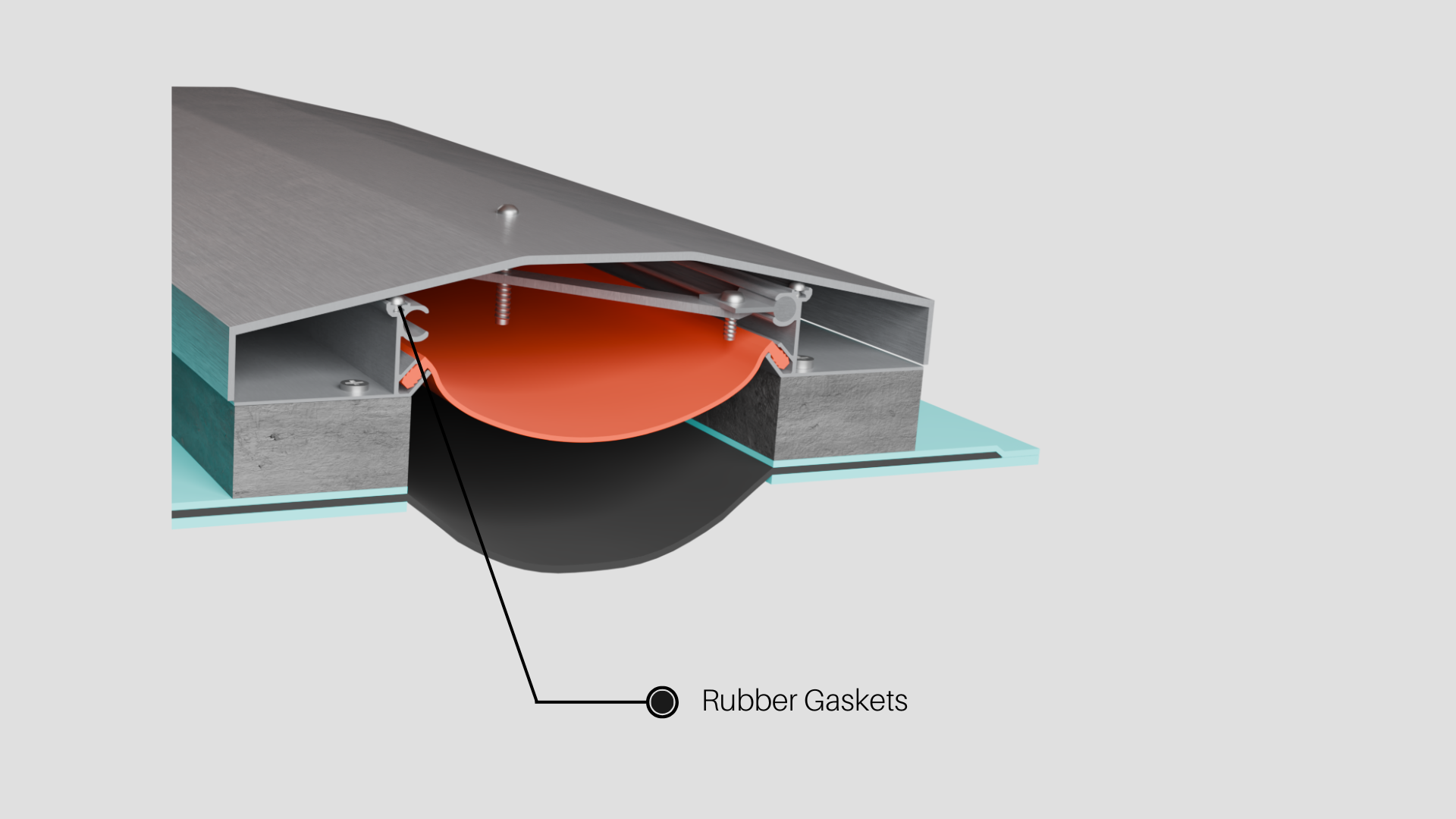

Noise Reduction

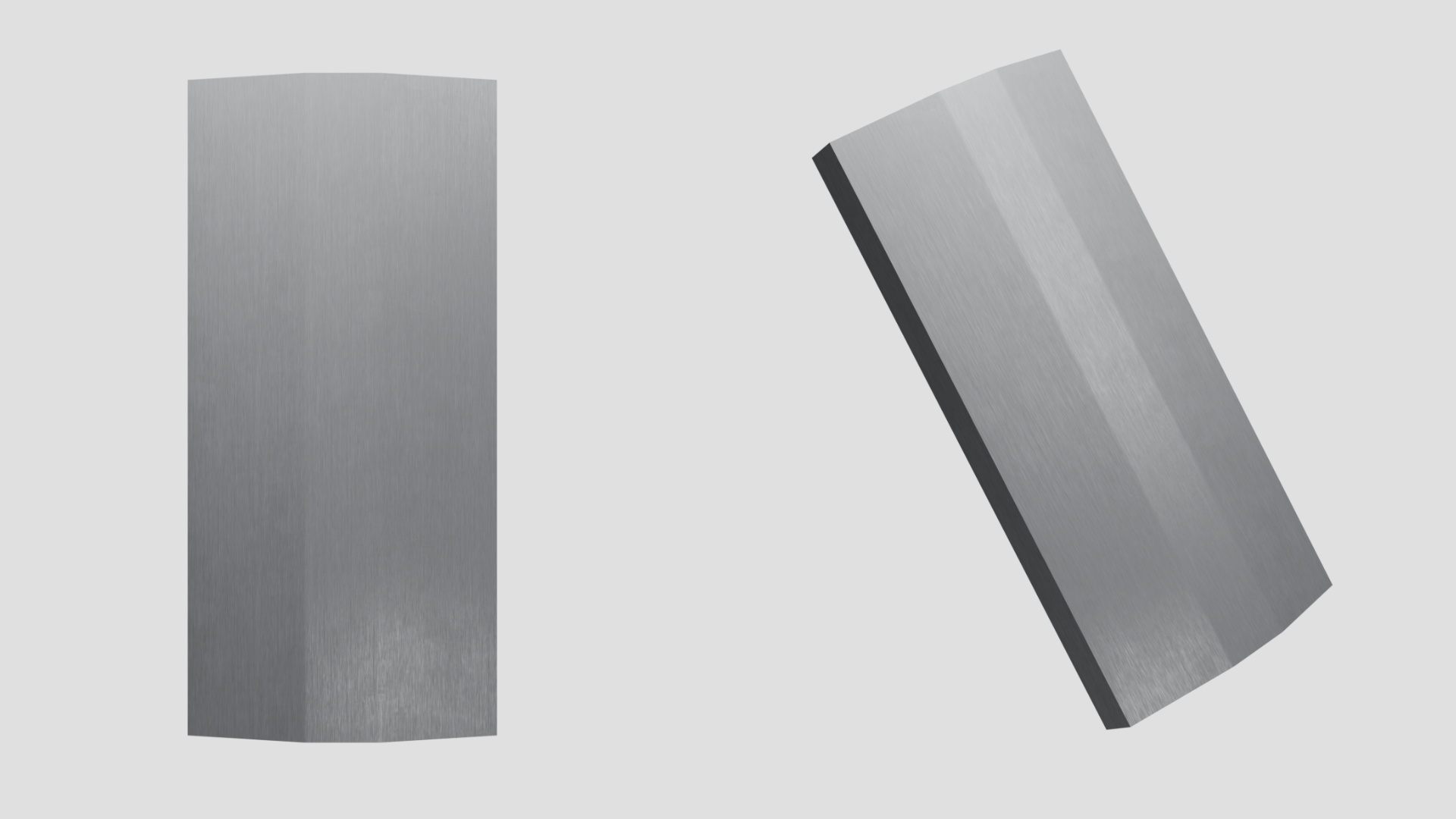

Durable Aluminum Profiles

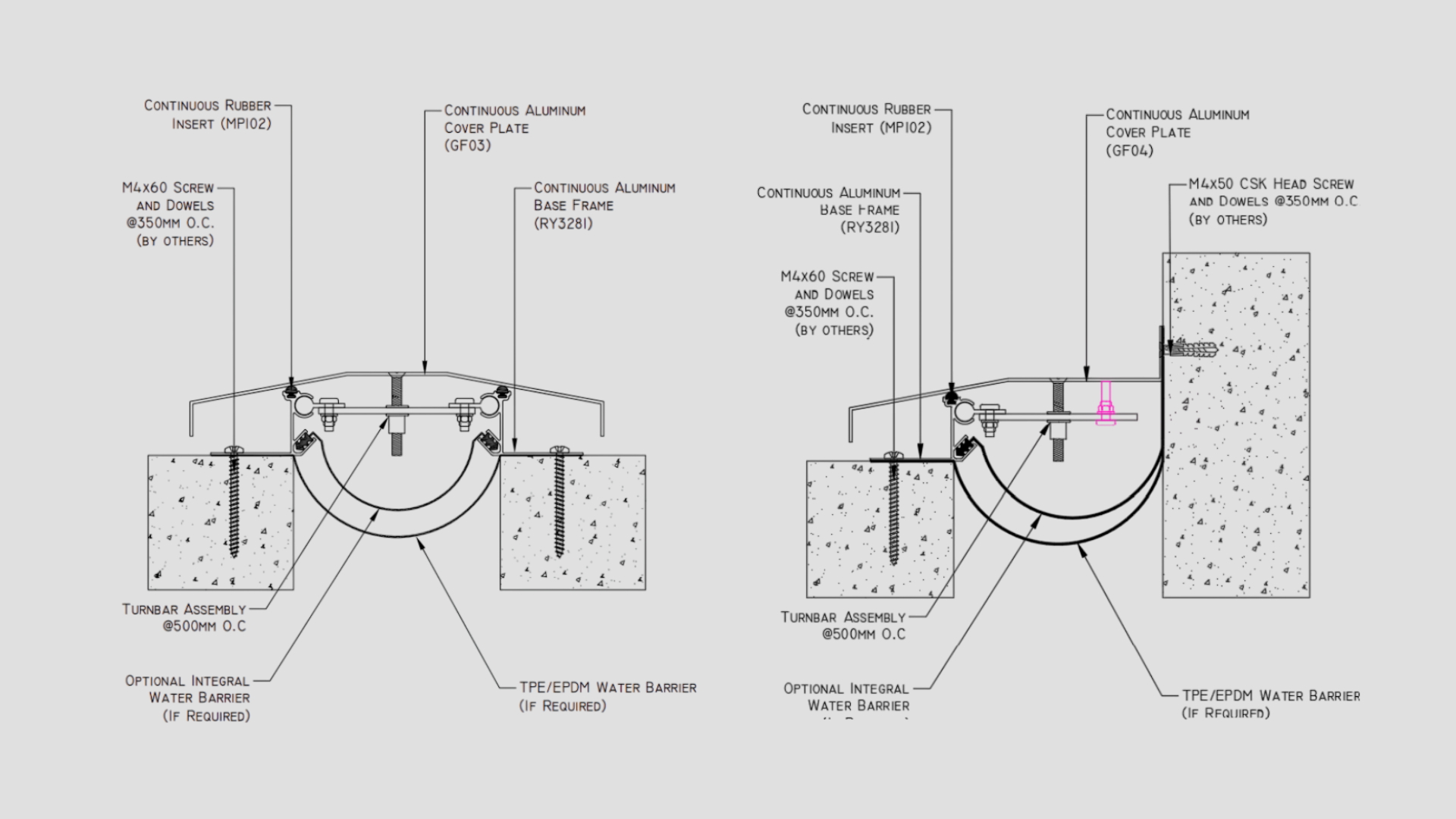

System Drawing
gap size calculator
enter your expansion gap measurement to see if this product is right for you.
profile specifications
| model name | joint width (mm) | height (mm) | sightline (mm) | movement capability (%) |
|---|---|---|---|---|
| r-2001-100 | 100 | 40 | 200 | -50/+86 |
| r-2001-200 | 200 | 40 | 350 | ±65 |
| r-2001-300 | 300 | 43 | 500 | -80/+60 |
| rk-2001-100 | 100 | 40 | 150 | -25/+43 |
| rk-2001-200 | 200 | 40 | 275 | ±33 |
| rk-2001-300 | 300 | 43 | 400 | -40/+30 |
available finishes
similar products to consider
standard
- gap range
- 15 – 125mm
- movement
- ±50%
premium
- gap range
- 50 – 150mm
- movement
- ±50%
premium
- gap range
- 50 – 450mm
- movement
- ±100%
get a quote for r2001 proroof series
tell us your gap size, quantity, and finish preference — we'll respond with budgetary pricing within 2 hours.
