profloor sm series
of4100
profloor sm series
sku: of4100 · floor
best for: vehicular and heavy pedestrian floors in seismic zones where a surface-mount cover is required: car parks, podiums, airports and hospitals.
Introducing the OF-4100

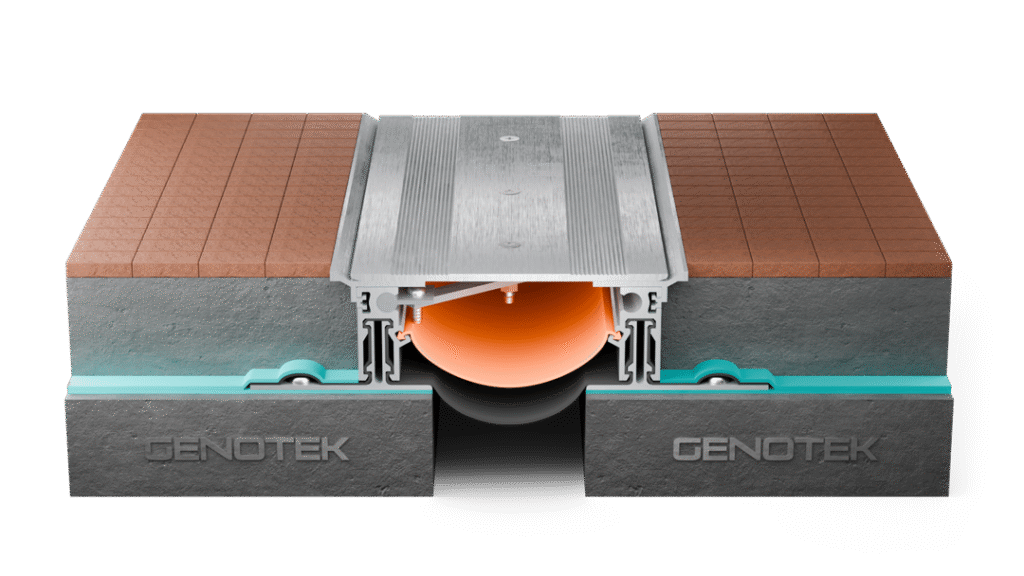

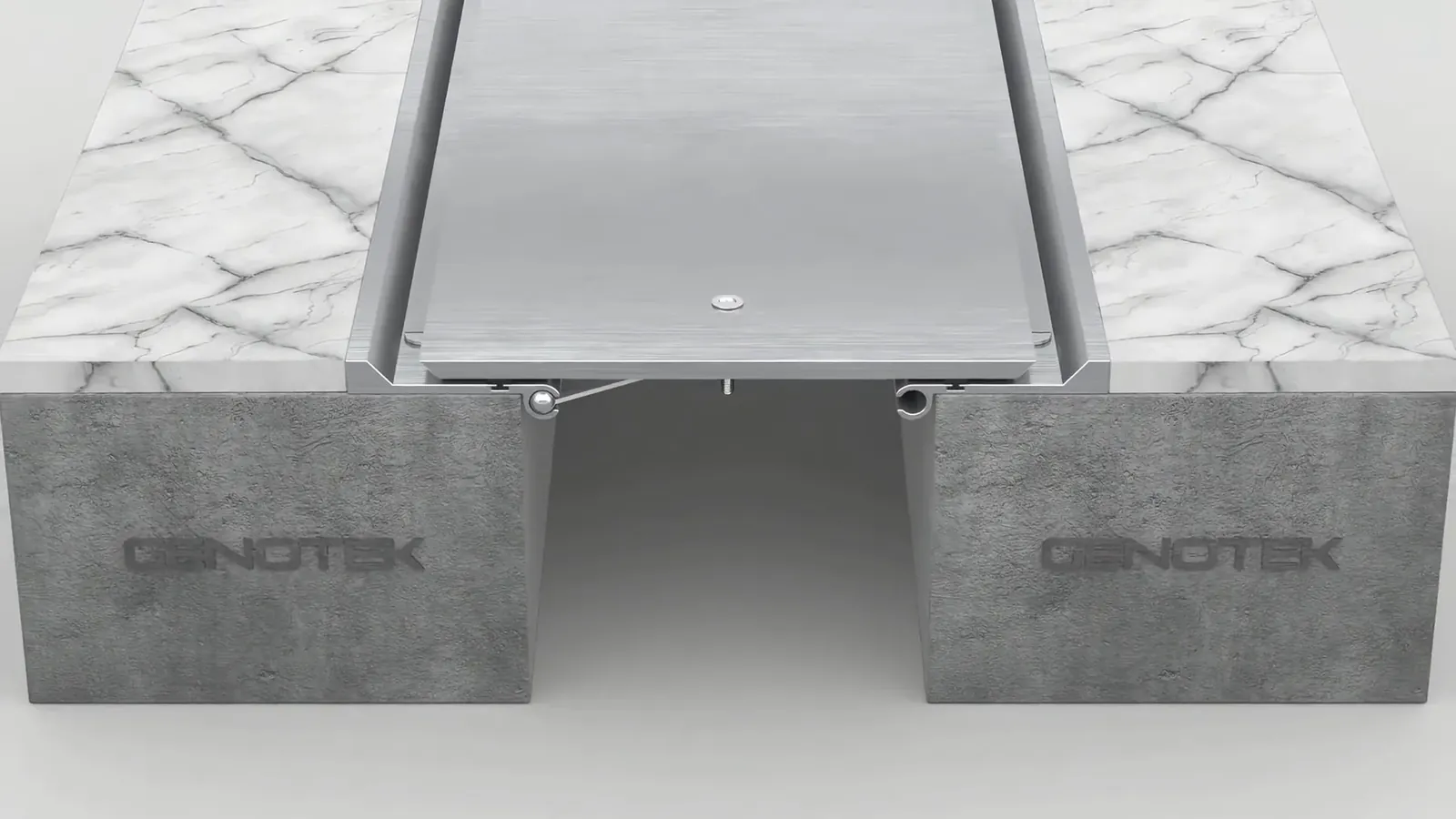

The PROFLOOR SM Series OF-4100 is a surface-mount centre-bar seismic floor expansion joint cover. Extruded aluminum base frames carry an aluminum or stainless steel cover plate on high-density rubber glide pads, centered by steel turn bar assemblies at 500 mm on center. The 200 mm size adds a rubber seal for noise control and a recess for the floor finish, and the OFK-4100 variant uses an aluminum wall hinge. It is not intended for forklifts or other heavy concentrated wheel loads.
movement
01 — movement
seismic movement accommodation
the cover plate stays flush with the finish during thermal movement and temporarily slides over the finishing surface during seismic movement, taking ±50% of the joint width in any direction.
water barrier
02 — water barrier
water protection
the optional water barrier below the of-4100 carries water away along the joint, so the structure below stays dry as the joint moves.
load bearing
03 — load bearing
load bearing
rated vehicular for the 100 mm size and 30 kn for the 200 mm size in the system drawings. not intended for forklifts or other heavy concentrated wheel loads.
assembly
04 — assembly
assembly

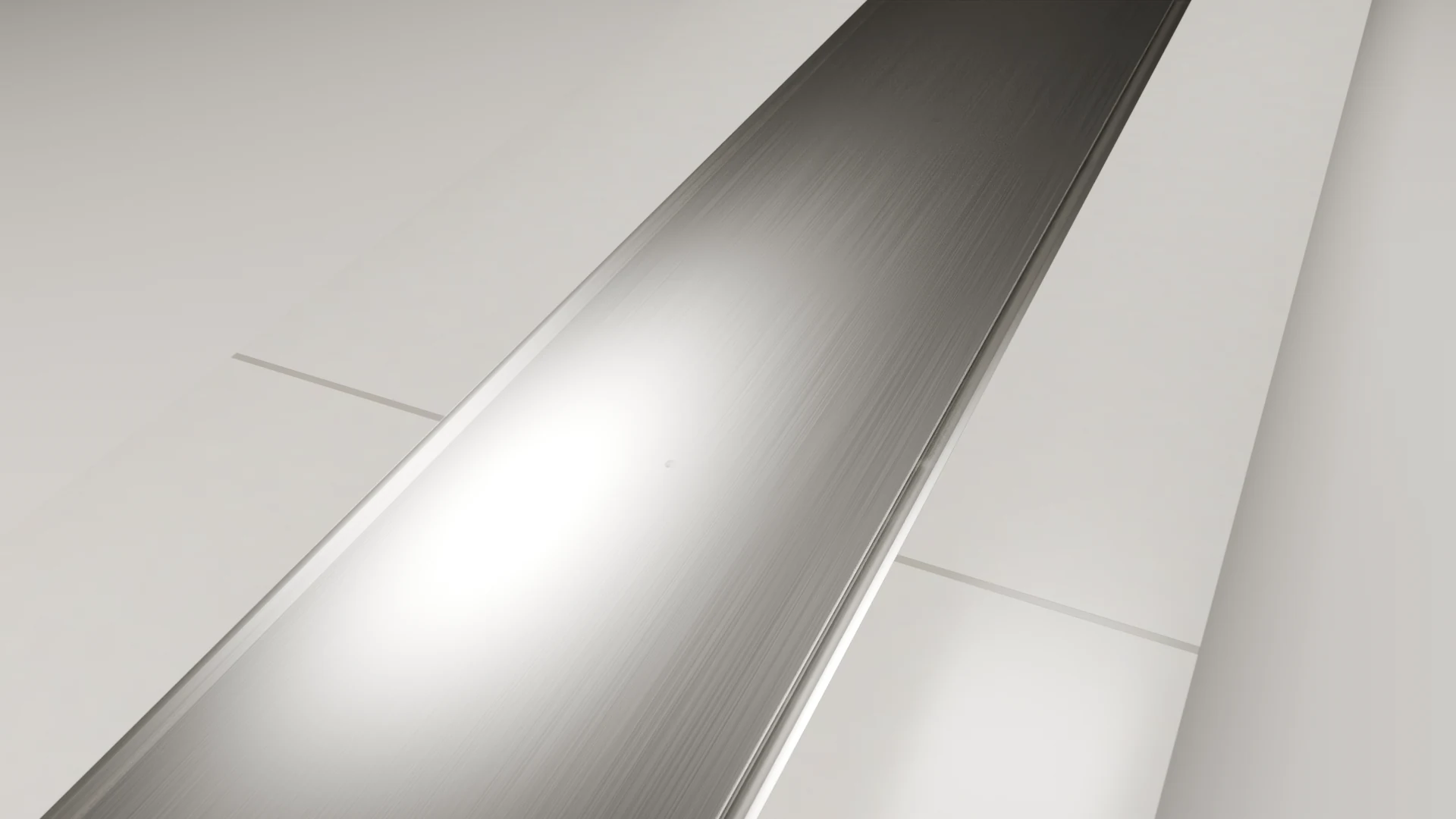

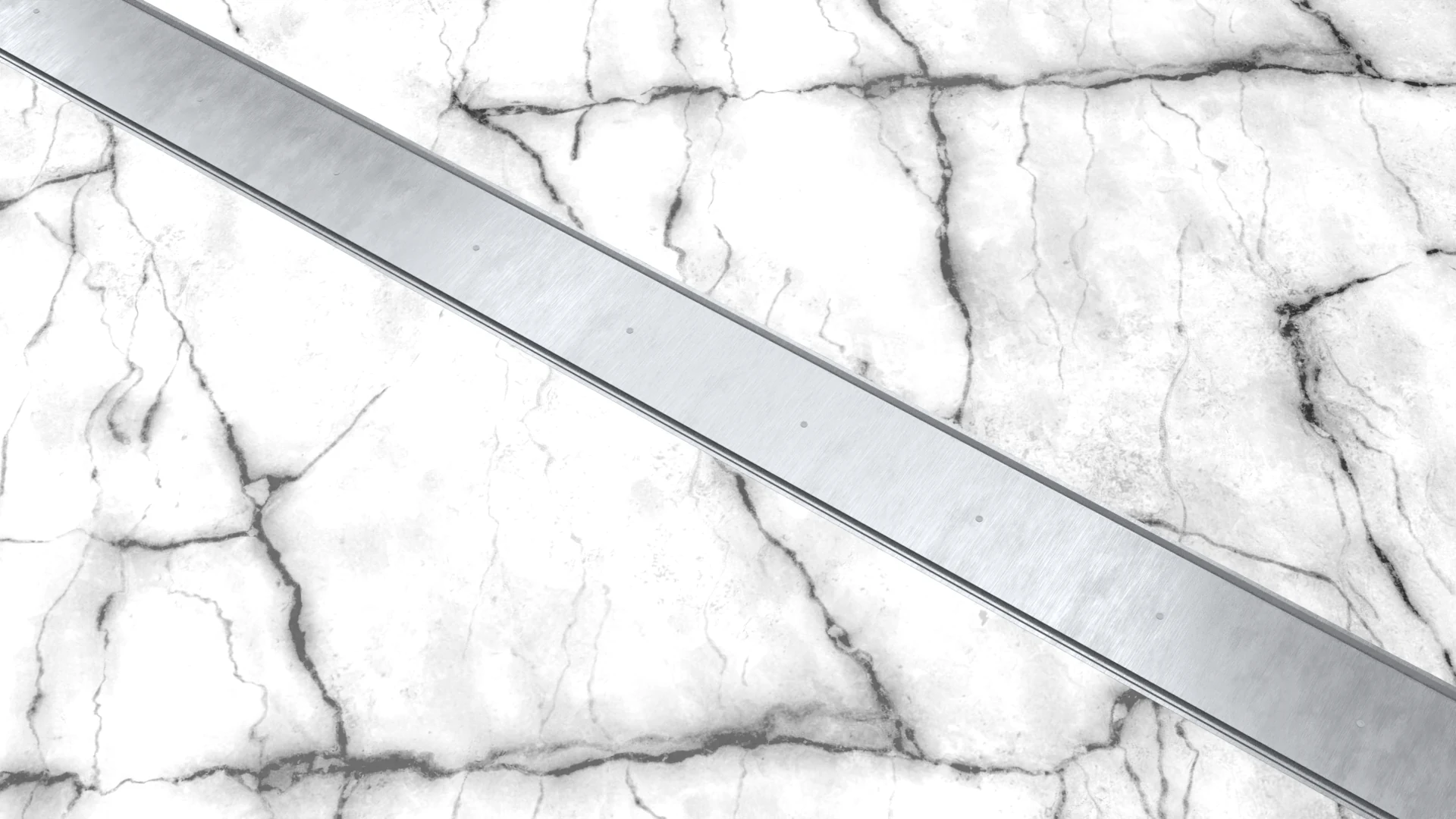

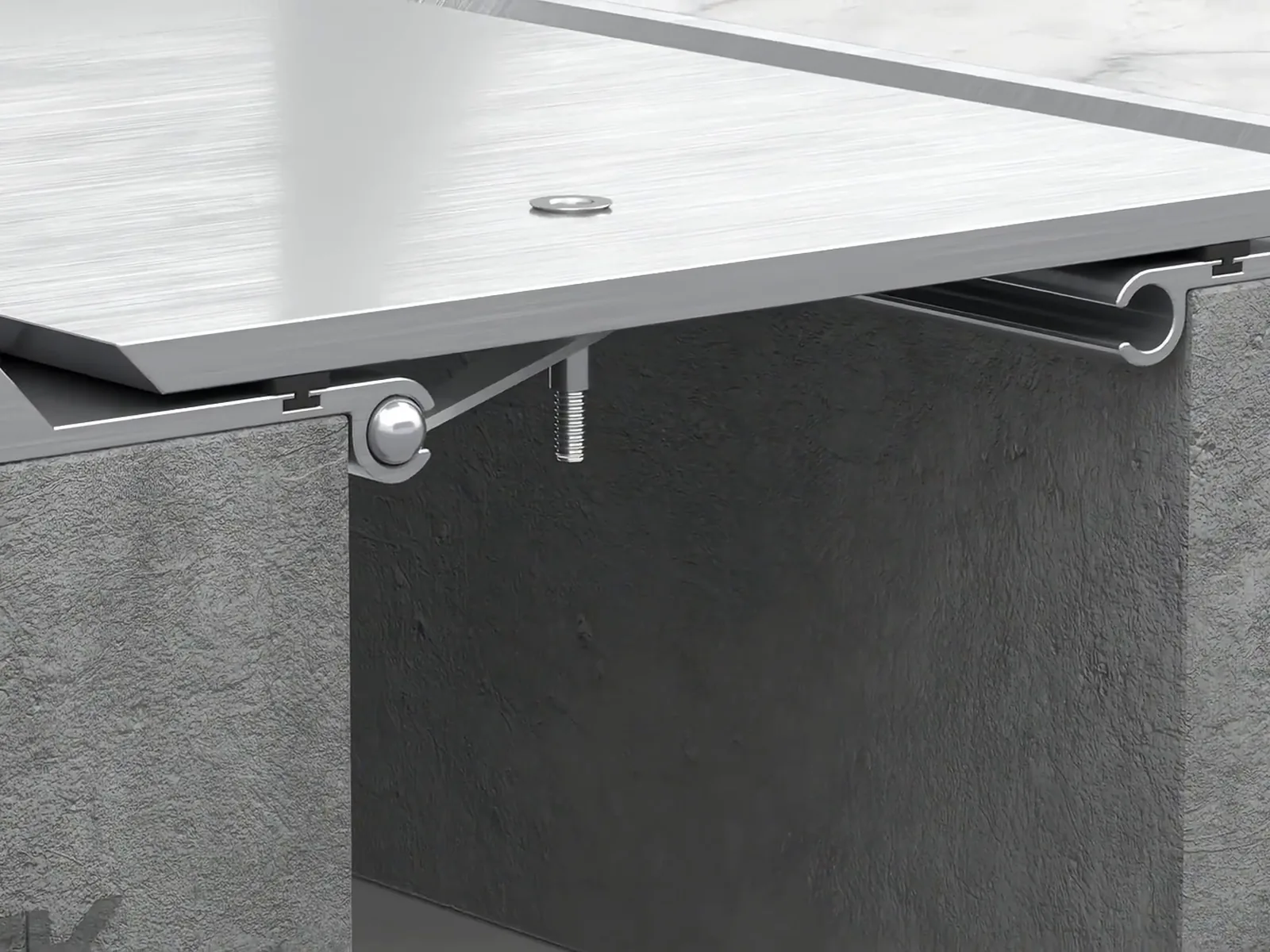

Aesthetic Choice
The aluminum or stainless steel cover plate sits over the finished floor, and on the 200 mm size a recess takes the floor finish so the joint blends in.

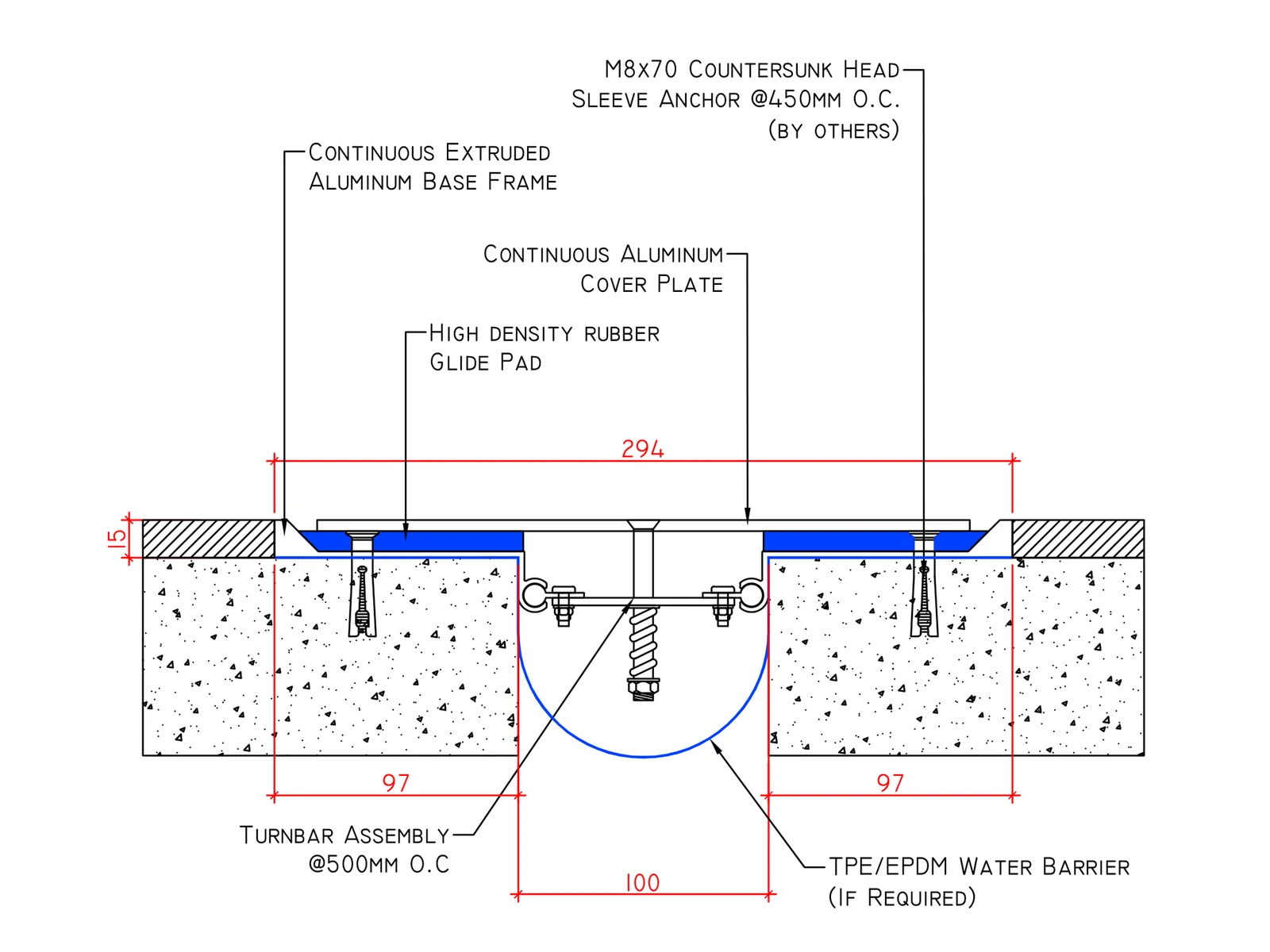

Optional Vapor Barrier
For added protection, an optional vapor barrier is available, constructed from either EPDM or TPV, which offers high tensile and tear resistance, ensuring long-term performance against moisture penetration

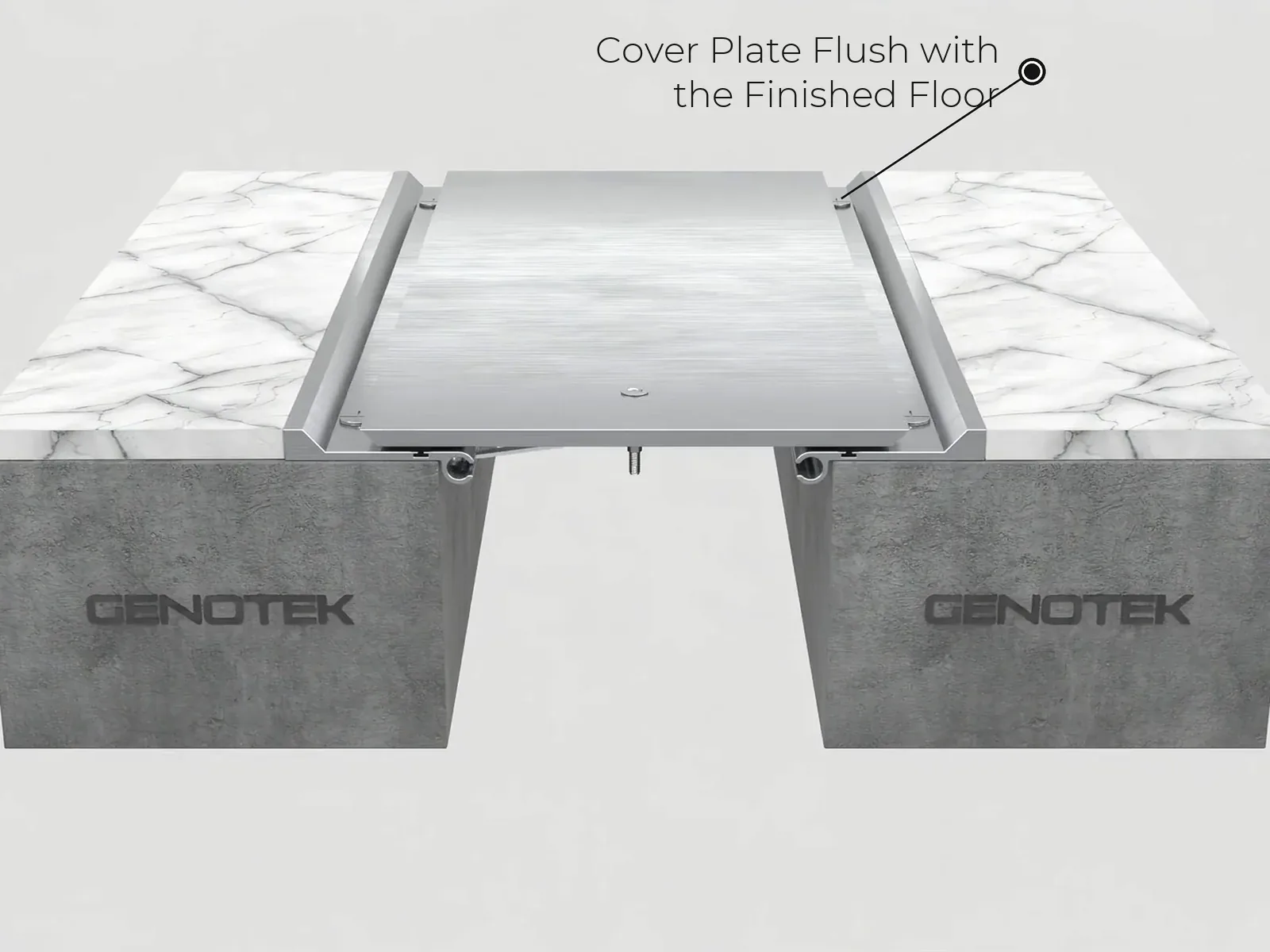

Cover Plate Flush with the Finished Floor
The aluminum or stainless steel cover plate stays flush with the finished floor during thermal movement.
Galvanized Steel Turnbar Assembly
Galvanized steel turnbar assemblies at 500 mm centers hold the cover plate centered over the joint.

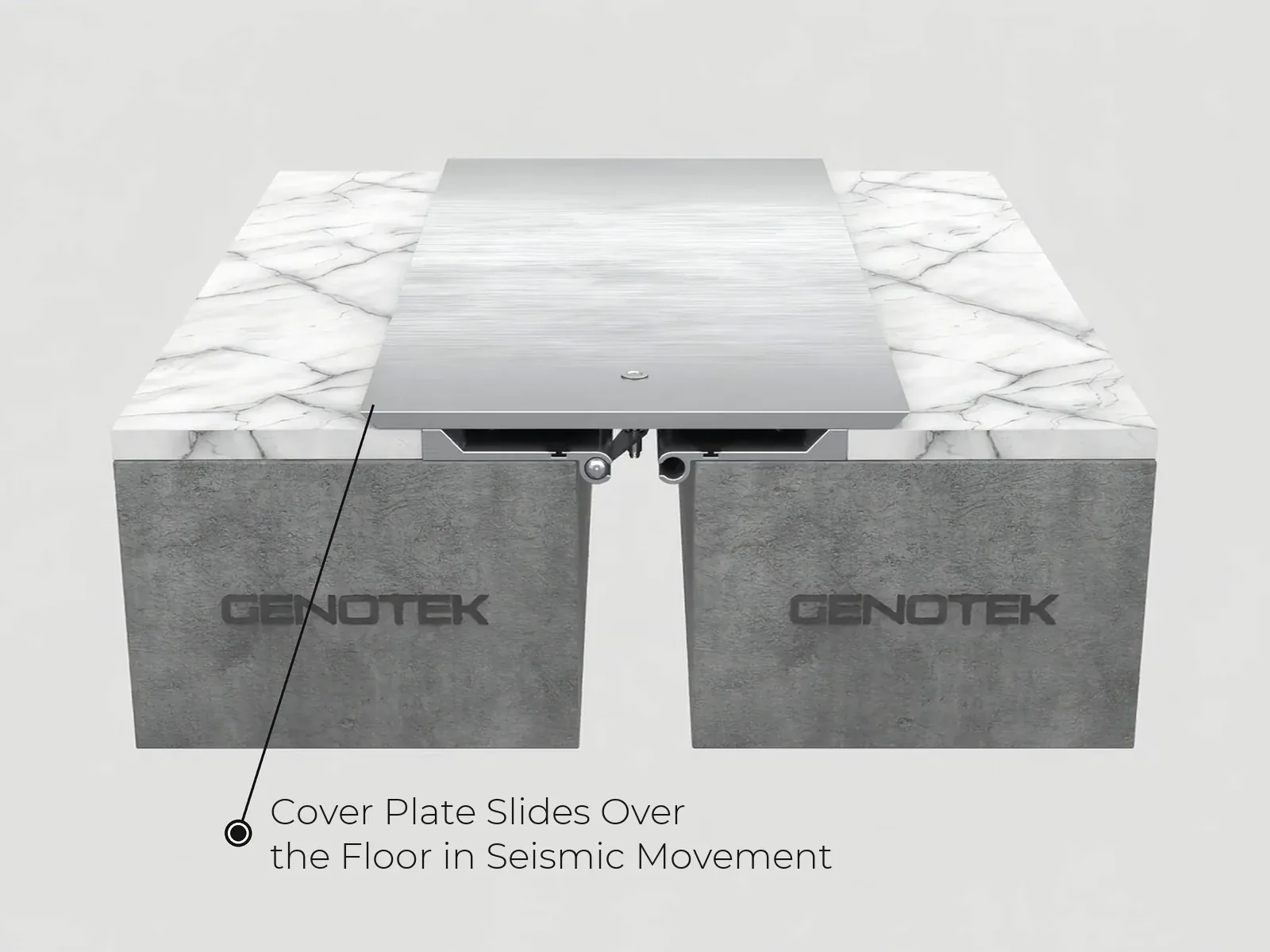

Slides Over the Floor in Seismic Movement
In seismic or multi-directional movement the cover plate temporarily displaces and slides over the finished floor.

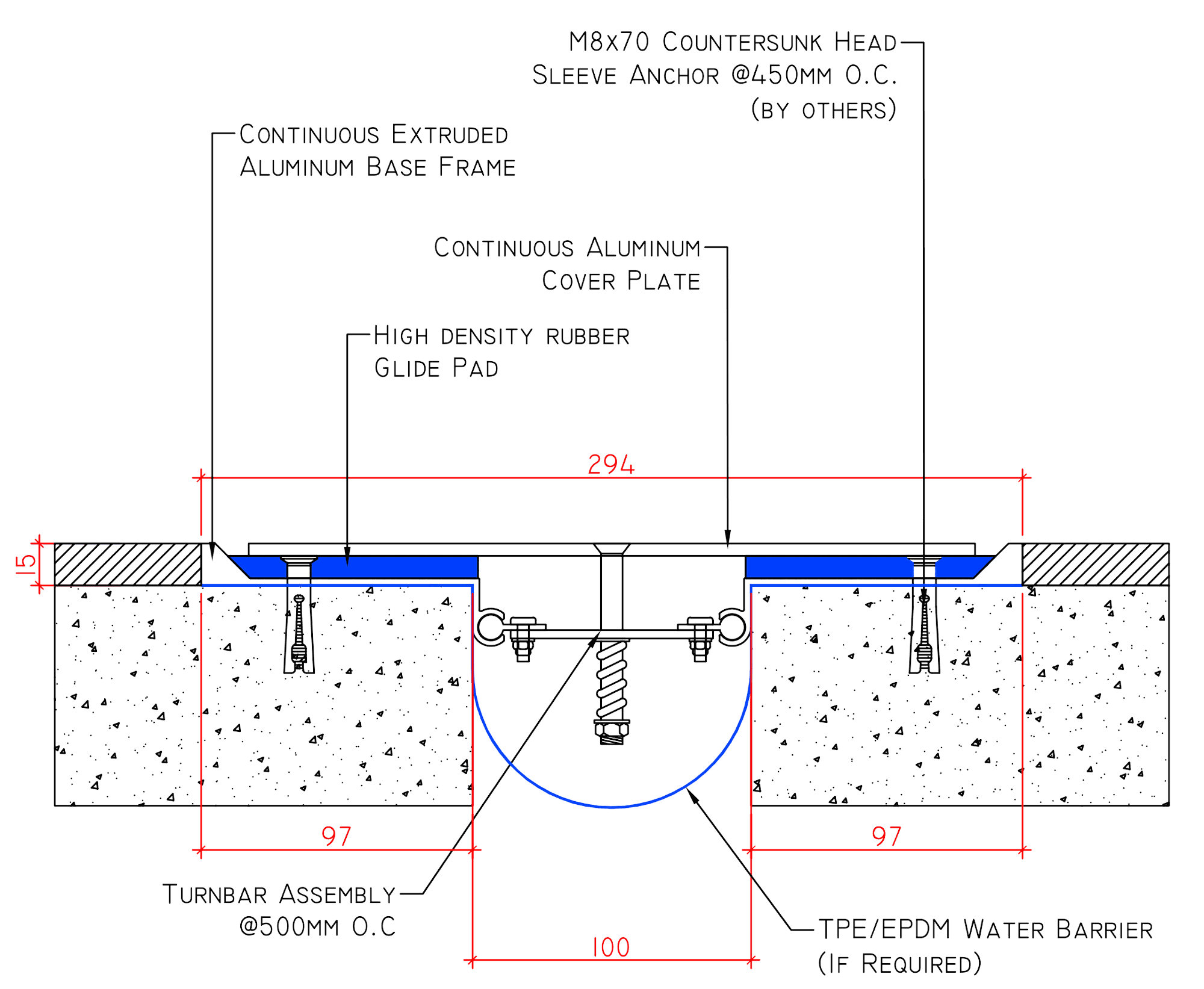

System Drawing
The OF-4100 expansion joint cover drawings cover the 100 mm size (15 mm high, vehicular) and the 200 mm size (18 mm high, 30 kN) floor-to-floor, plus the 100 mm floor-to-wall drawing. Each is downloadable as DWG and PDF.
interactive tool
gap size calculator
enter your expansion gap measurement to see if this product is right for you.
20mm ≈ credit card
50mm ≈ two fingers
100mm ≈ fist width
200mm ≈ hand span
mm
of4100 covers gap sizes from 50mm to 300mm. enter your measurement above to see the movement capacity, profile width, and whether this product handles your requirements.
technical data
profile specifications
| model name | joint width (mm) | height (mm) | sightline (mm) | movement capability (%) | load capacity |
|---|---|---|---|---|---|
| of-4100-100 | 100 | 15 | 294 | ±50% | VEHICULAR |
| of-4100-200 | 200 | 18 | 370 | ±50% | 30 kN |
| ofk-4100-100 | 100 | 15 | 197 | ±50% | VEHICULAR |
from the technical datasheet
datasheet specifications
| Series | PROFLOOR SM Series (OF-4100 & OFK-4100) |
|---|---|
| System type | Center Bar Seismic Floor System |
| Mounting | Surface-mounted |
| Suitable movement | Seismic, Thermal, Settlement |
| Load capacity | Vehicular Traffic (100 mm), 30 kN (200 mm) |
| Recommended for | Interior and exterior areas where thermal and multi-directional/seismic movement is expected; Renovations or retrofit applications |
| Components | Extruded Aluminum Support Profiles; Aluminum / Stainless Steel Cover Plate; Steel Turnbar Assembly |
| Material: Support Profiles | Extruded aluminum, grade AA 6063 preferred |
| Material: Cover Plate | Aluminum, Stainless Steel 304 or Stainless Steel 316 |
| Material: Turnbar | Galvanized Steel; finish: “A” Coating (Corrosion Protection) |
| Material: Vapor Barrier (Optional) | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); black |
| Supply length | 3.00 m per piece (support profile and metal retaining caps) |
| Substrate tolerance | Surface level within ±2 mm; gap level within ±5 mm |
| Sizes | Per the system drawings; profiles can be customized to requirements |
Source: OF4100 technical datasheet. Sizes and dimensions: profile specifications above and the system drawings.
alternatives
similar products to consider
premiumz4100

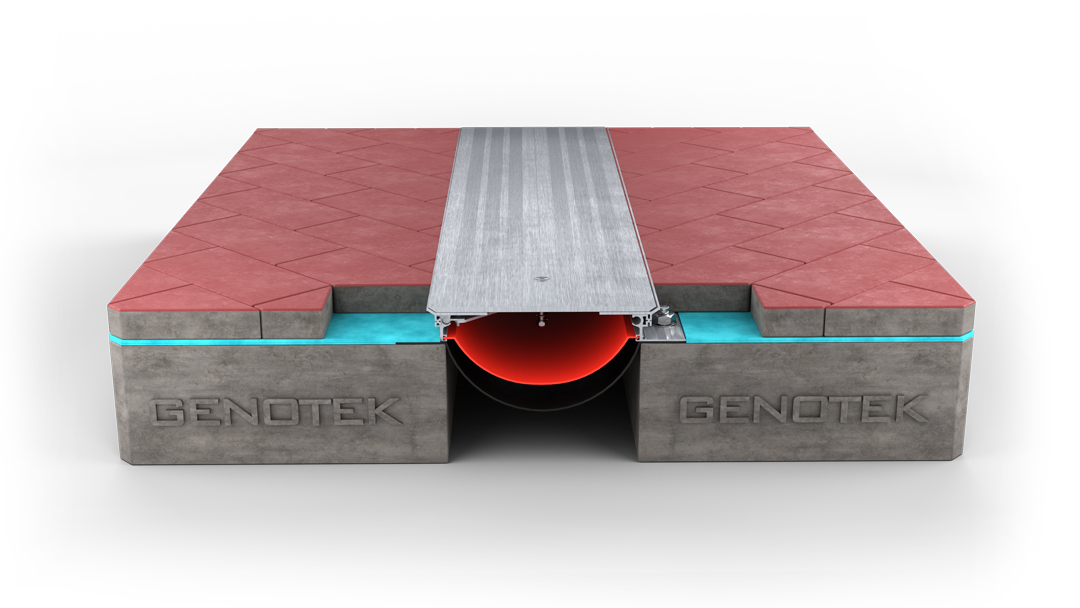

profloor rm series
airports, convention centres, hospitals, and seismic zones.
- gap range
- 50 – 450mm
- movement
- ±100%
premiumz5000

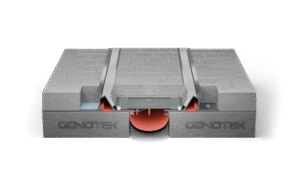

profinish series
