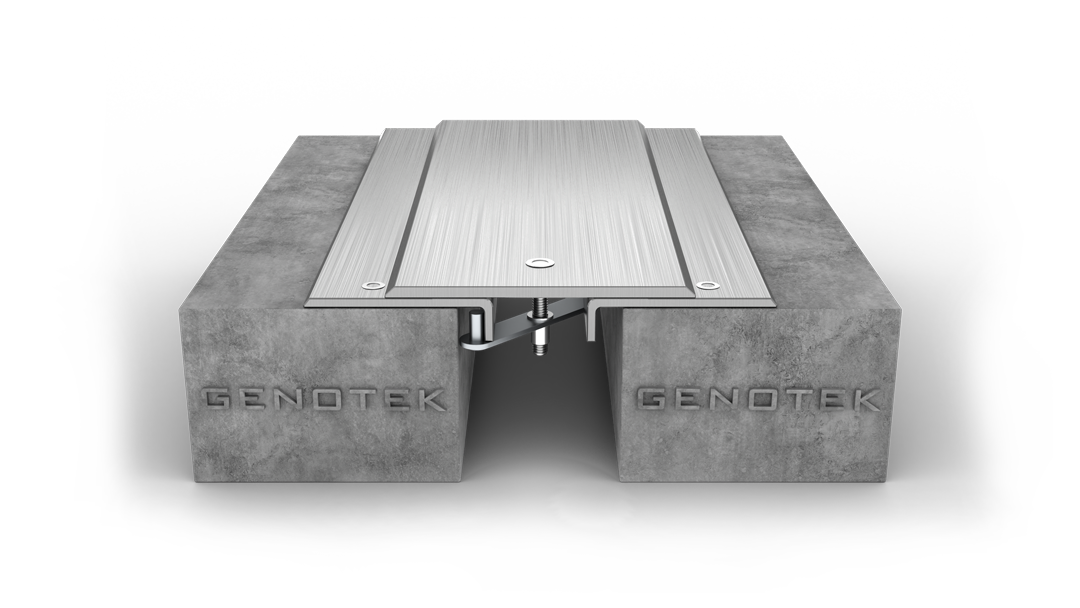

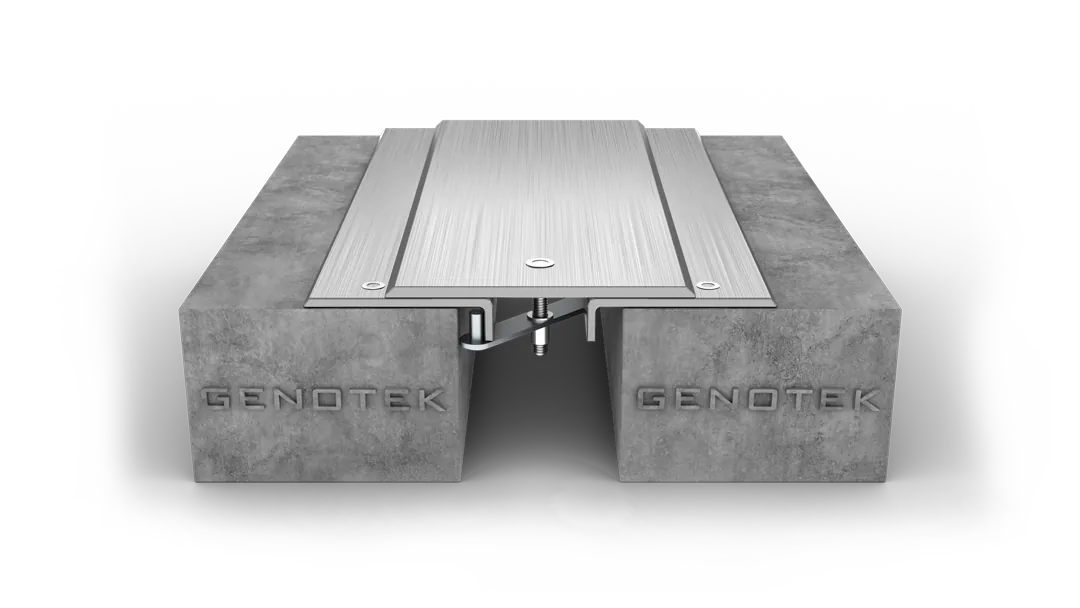

Introducing the OF-4000
seismic movement accommodation
handles thermal, settlement and multi-directional seismic movement of ±50% of the joint width; after each movement the turn bar assembly brings the cover plate back to the joint center.
water protection
the optional water barrier below the of-4000 carries water away along the joint, so the structure below stays dry as the joint moves.
load bearing
rated 30 kn in the system drawings for heavy pedestrian and light vehicular traffic, the 7 mm plate suits offices, hospitals, airports and retrofit projects.
assembly in action
this video demonstrates the assembly process, perfectly designed for easy installation for durability and reliability.
Aesthetic Choice

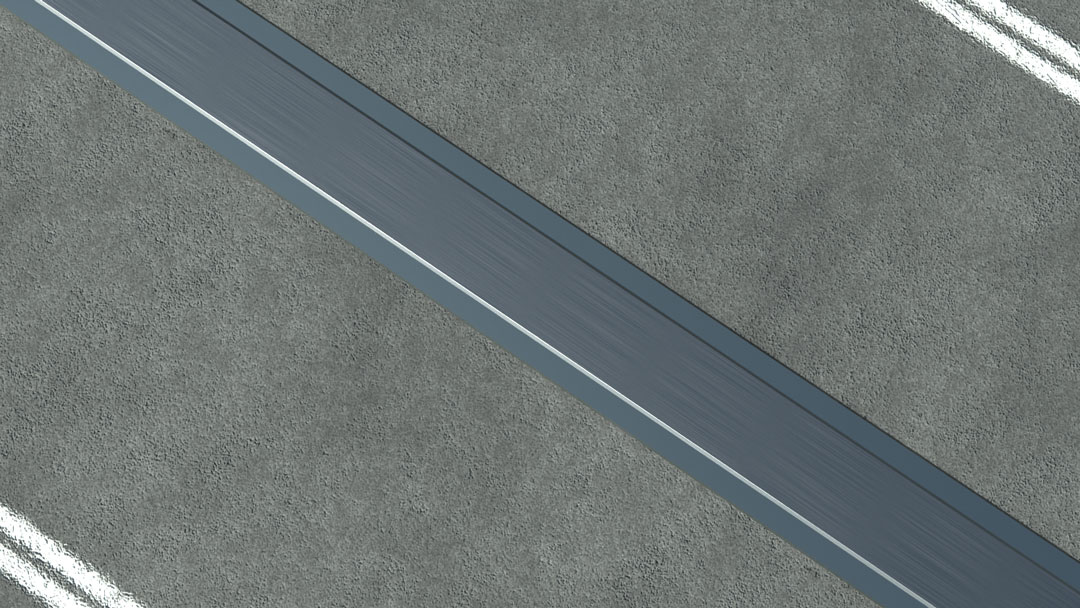

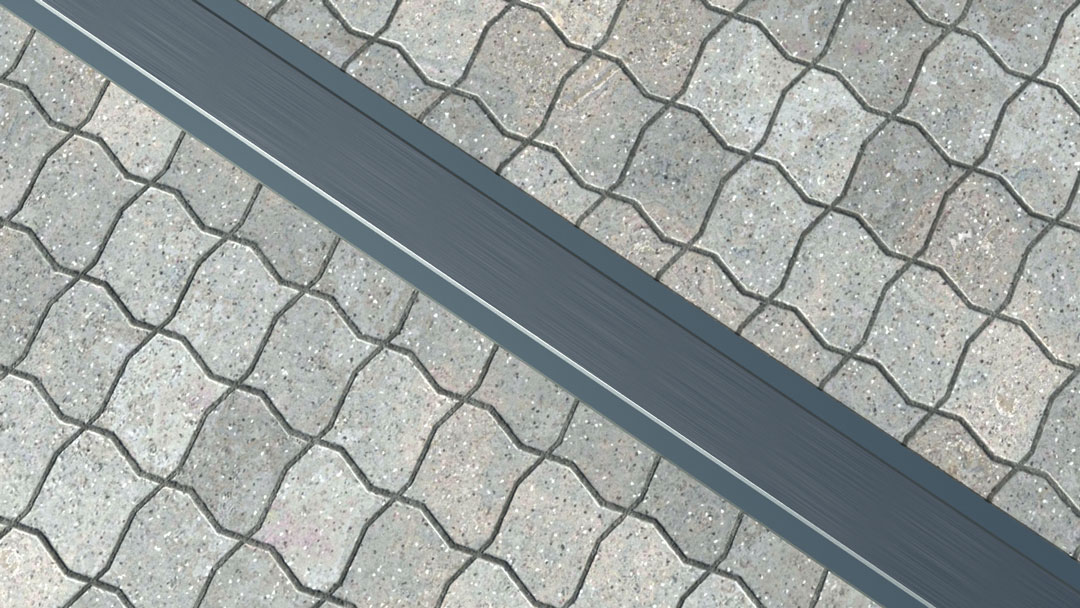

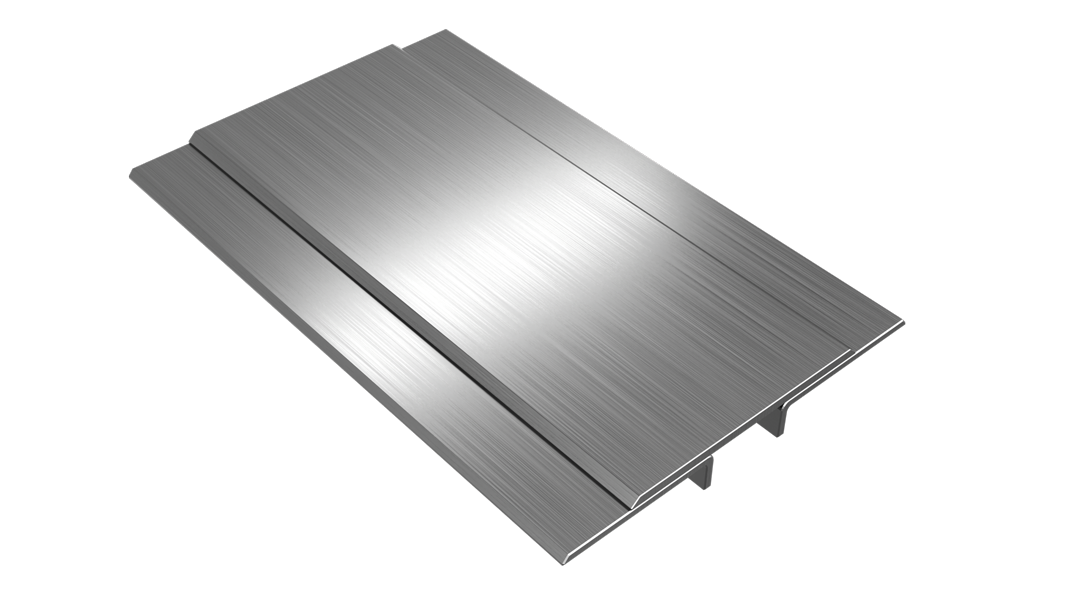

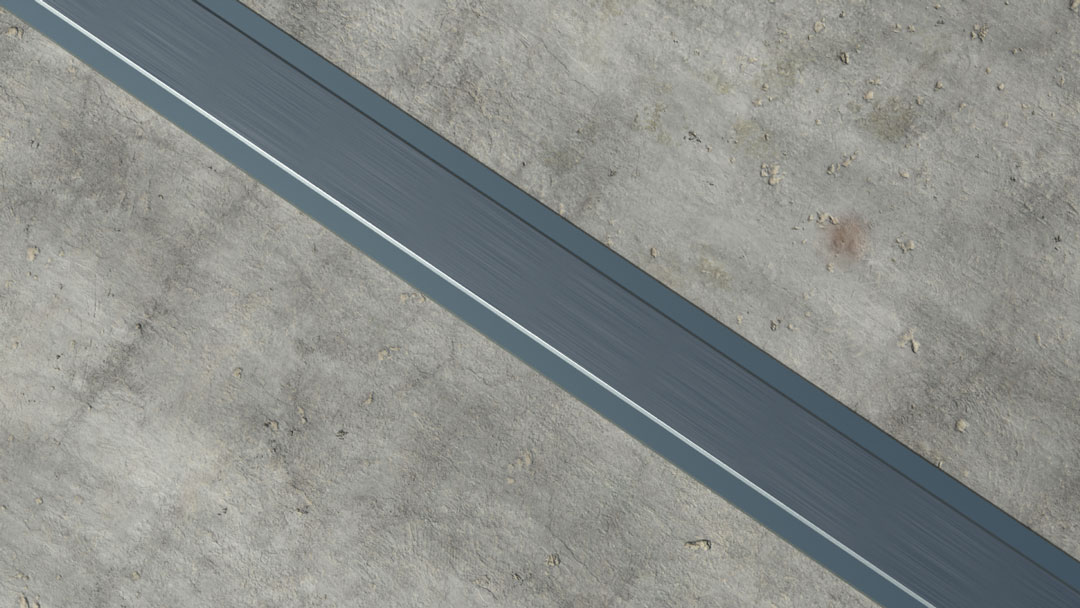

At only 7 mm high, the aluminum or stainless steel cover plate sits almost flush on the finished floor, keeping the joint discreet and easy to walk or roll across.
Optional Vapor Barrier

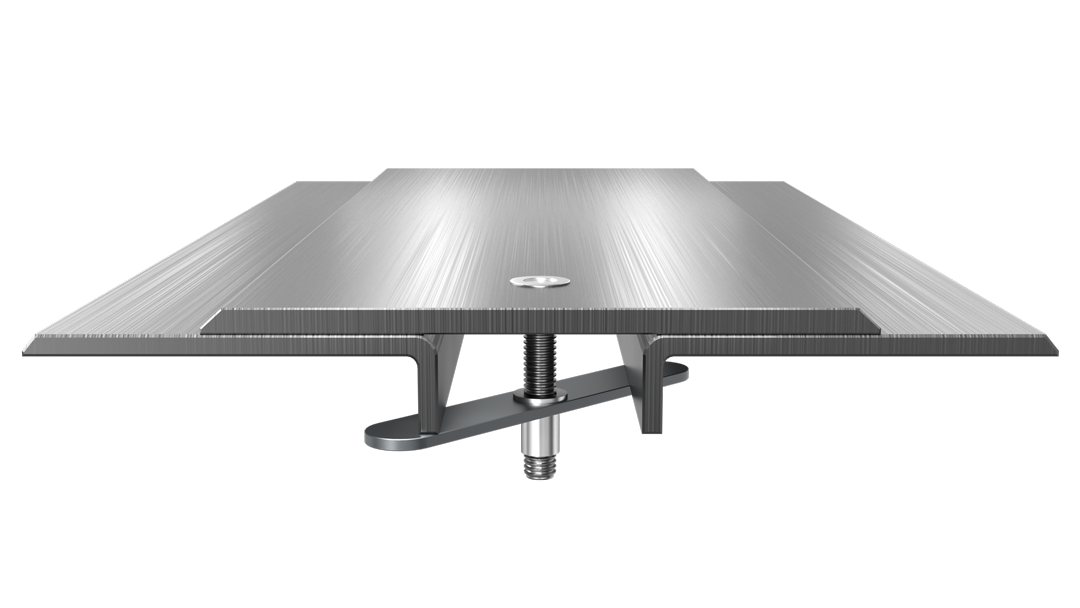

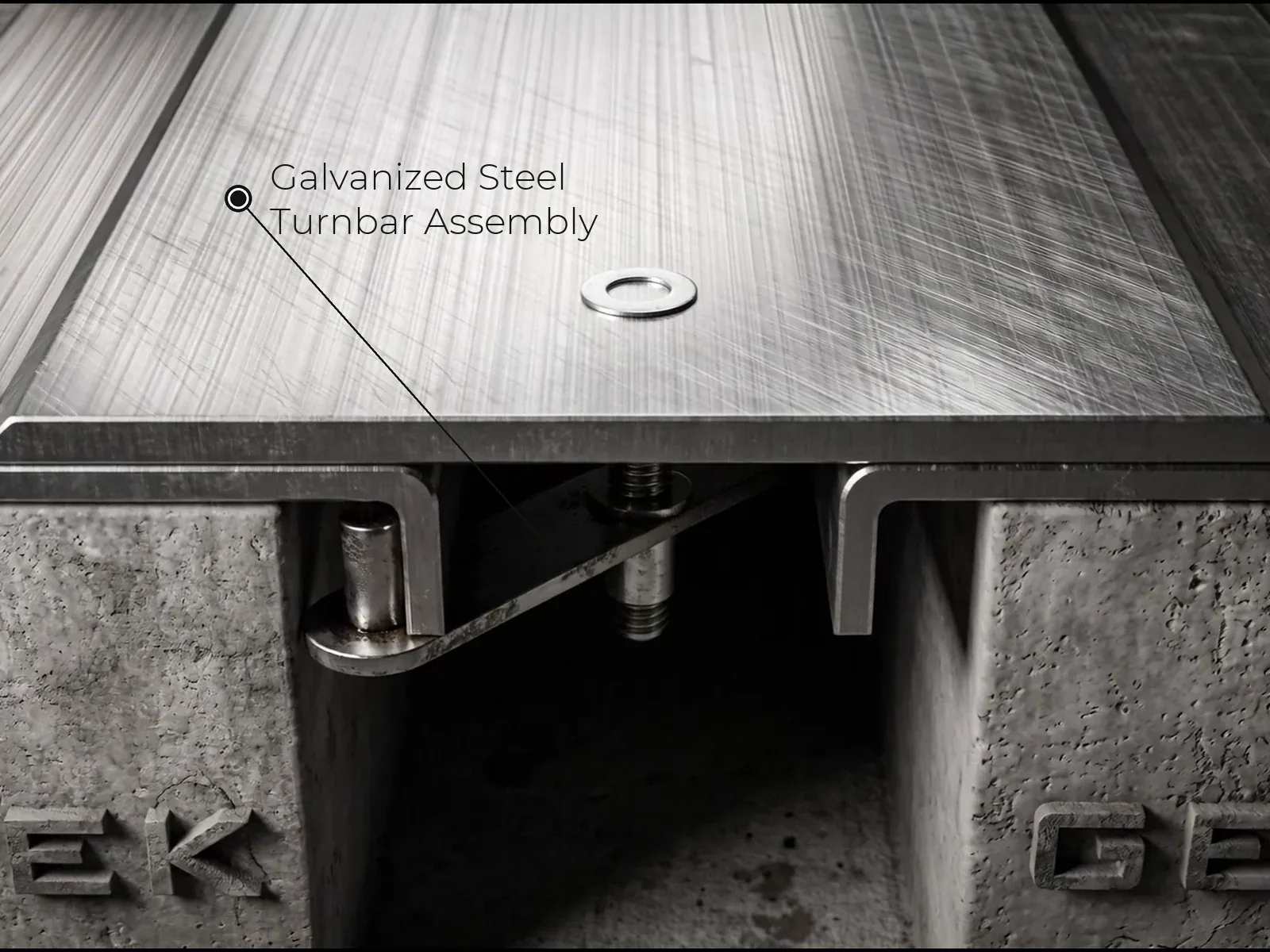

Galvanized Steel Turnbar Assembly
System Drawing
gap size calculator
enter your expansion gap measurement to see if this product is right for you.
profile specifications
| model name | joint width (mm) | height (mm) | sightline (mm) | movement capability (%) | load capacity |
|---|---|---|---|---|---|
| of-4000-50 | 50 | 7 | 155 | ±50% | 30 kN |
| ofk-4000-50 | 50 | 7 | 102 | ±50% | 30 kN |
datasheet specifications
| Series | PROFLEX SM Series (OF-4000 & OFK-4000) |
|---|---|
| System type | Surface Mounted Seismic Floor System |
| Mounting | Surface-mounted |
| Suitable movement | Seismic, Thermal, Settlement |
| Movement capacity | 100 % |
| Load capacity | Heavy Traffic Pedestrian; Light Traffic Vehicular |
| Recommended for | Interior and exterior areas where thermal and multi-directional/seismic movement is expected; Renovations or retrofit applications |
| Components | Extruded Aluminum Support Profiles; Aluminum / Stainless Steel Cover Plate; Steel Turnbar Assembly |
| Material: Support Profiles | Extruded aluminum, grade AA 6063 preferred |
| Material: Cover Plate | Aluminum, Stainless Steel 304 or Stainless Steel 316 |
| Material: Turnbar | Galvanized Steel; finish: “A” Coating (Corrosion Protection) |
| Material: Vapor Barrier (Optional) | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); black |
| Supply length | 3.00 m per piece (support profile and cover plate) |
| Substrate tolerance | Surface level within ±2 mm; gap level within ±5 mm |
| Sizes | Per the system drawings; profiles can be customized to requirements |
Source: OF4000 technical datasheet. Sizes and dimensions: profile specifications above and the system drawings.
