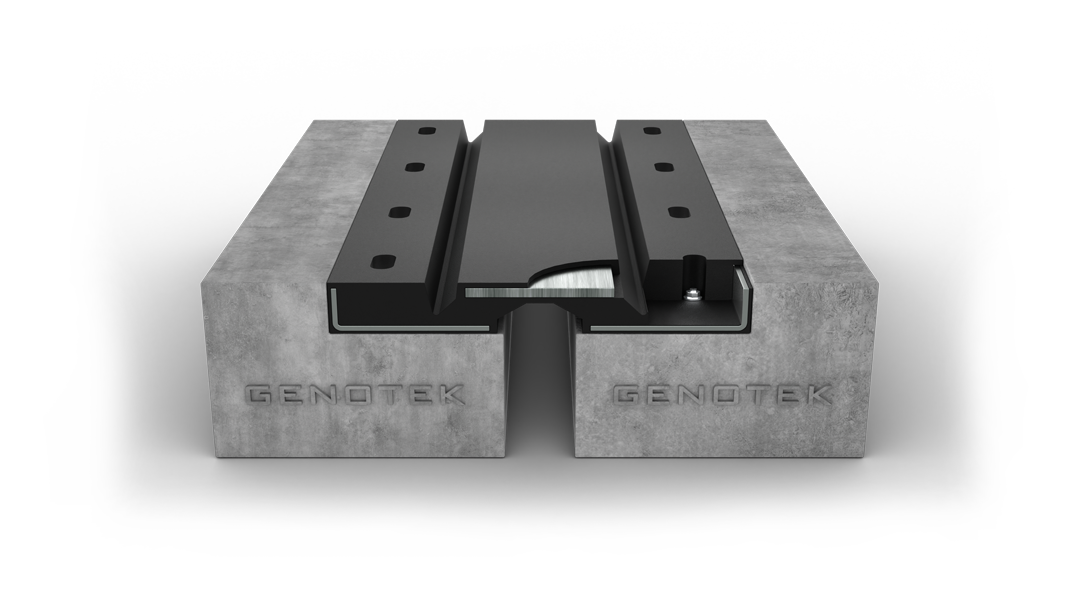

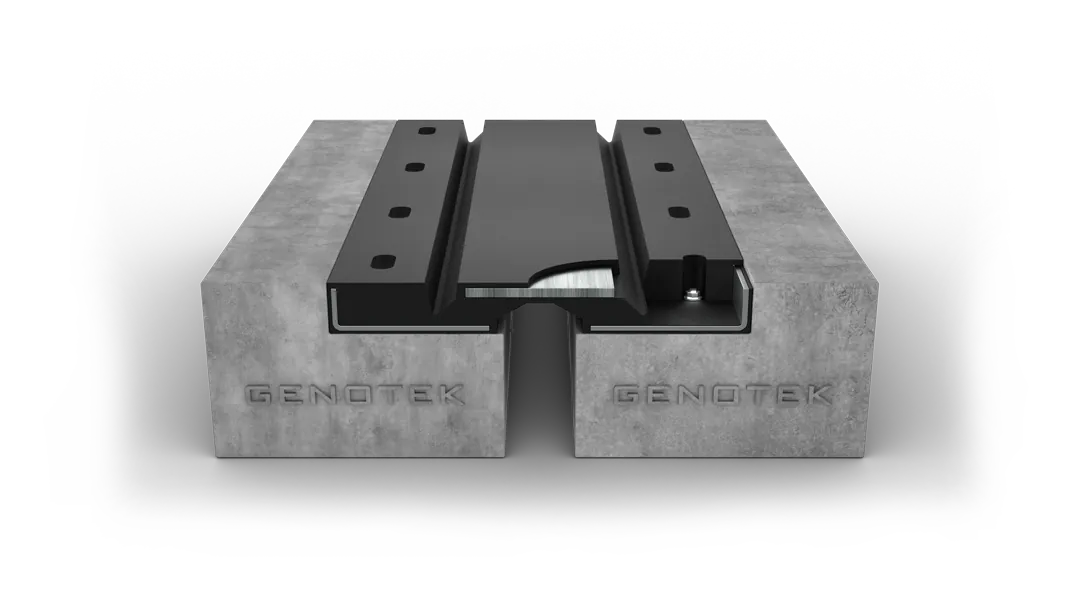

Introducing the GENFLEX
movement accommodation
the factory-molded polychloroprene unit flexes with the movement across the joint: the 240 mm unit is drawn for a 35 mm nominal opening and the 430 mm unit for a 74 mm opening, without tearing, debonding or loss of anchorage.
water protection
rain runs off the continuous polychloroprene riding surface, and bolt-hole sealant closes each anchor pocket around the studs. steel plates are vulcanized into the rubber, and an optional 3 mm epdm flashing membrane beneath the unit adds a secondary watertight line.
load bearing
built for vehicular traffic on bridge decks, flyovers, car park ramps and podium decks, the genflex presents a continuous elastomeric riding surface level with the adjacent deck, with no exposed steel plates in the wheel path.
assembly in action
this video demonstrates the assembly process, perfectly designed for easy installation for durability and reliability.

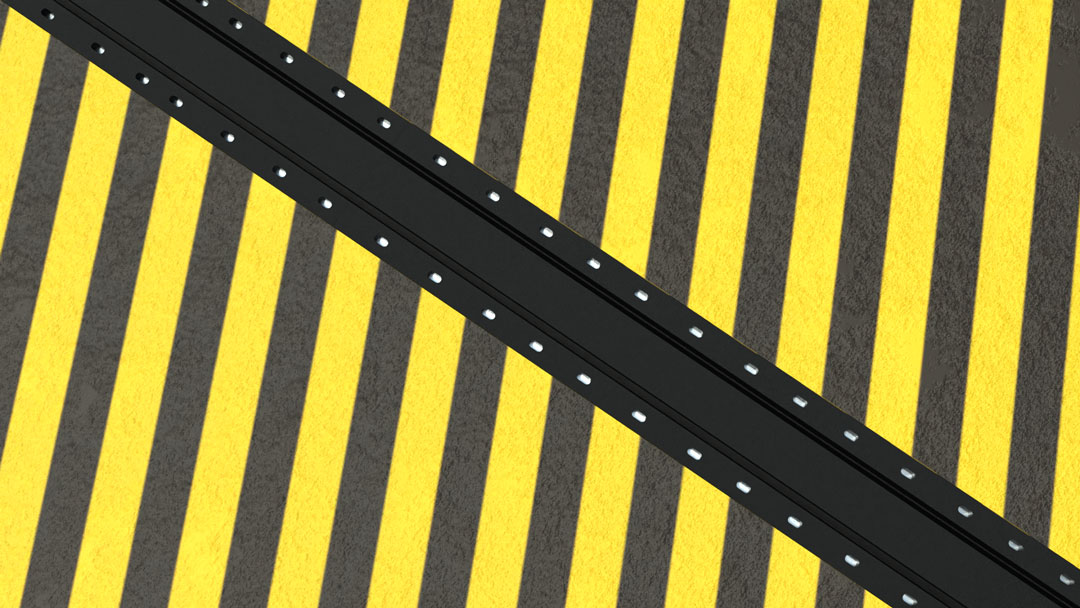

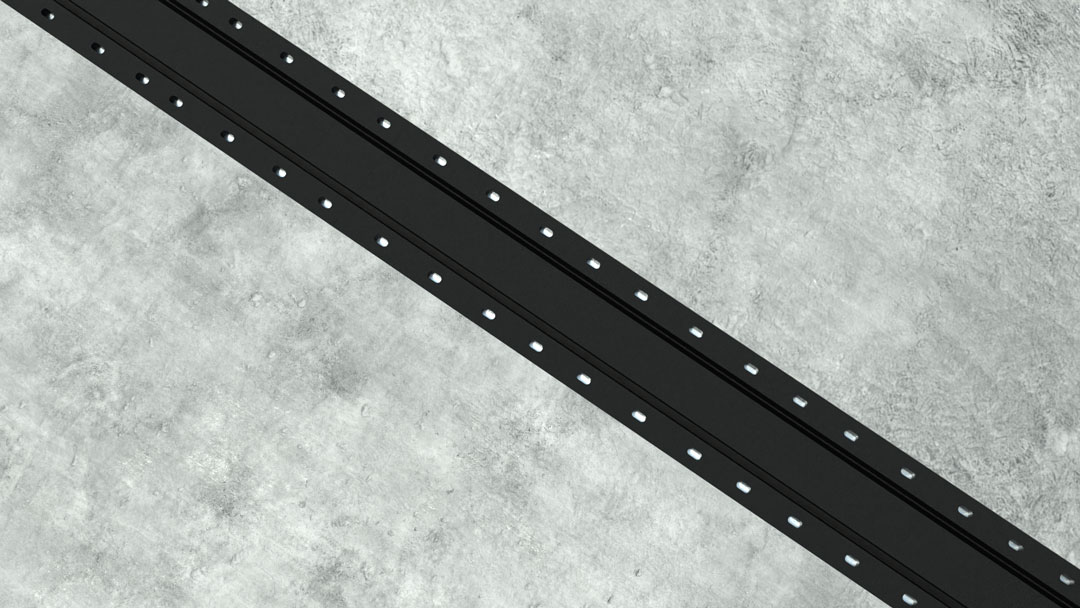

Aesthetic Choice
GENFLEX is supplied as factory-molded polychloroprene units in two widths, 240 mm for a 35 mm nominal opening and 430 mm for a 74 mm opening. The units form a continuous elastomeric riding surface level with the deck, with interlocking ends and no exposed steel plates in the wheel path.
Optional EPDM Flashing Membrane

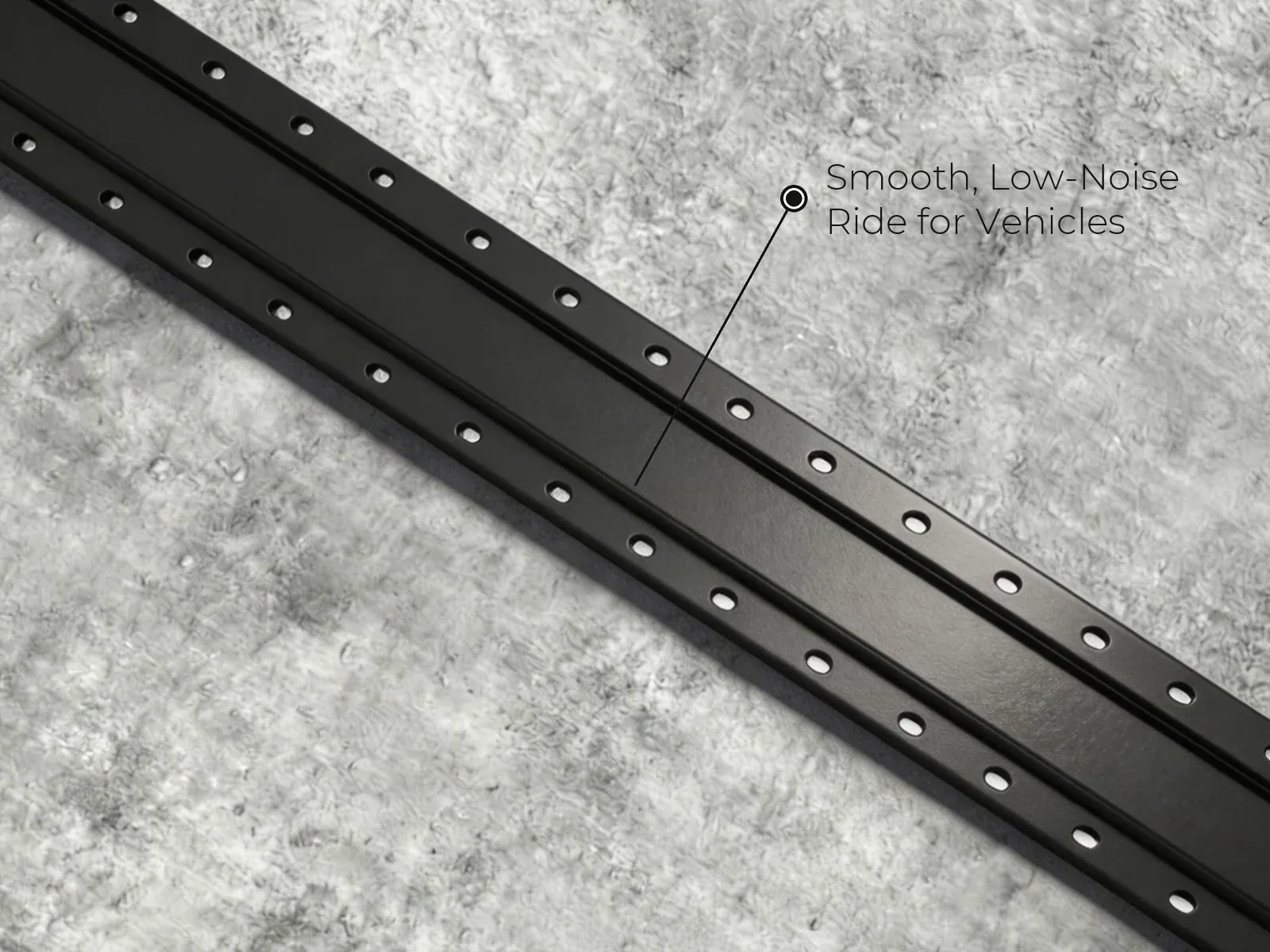

Smooth, Low-Noise Ride for Vehicles

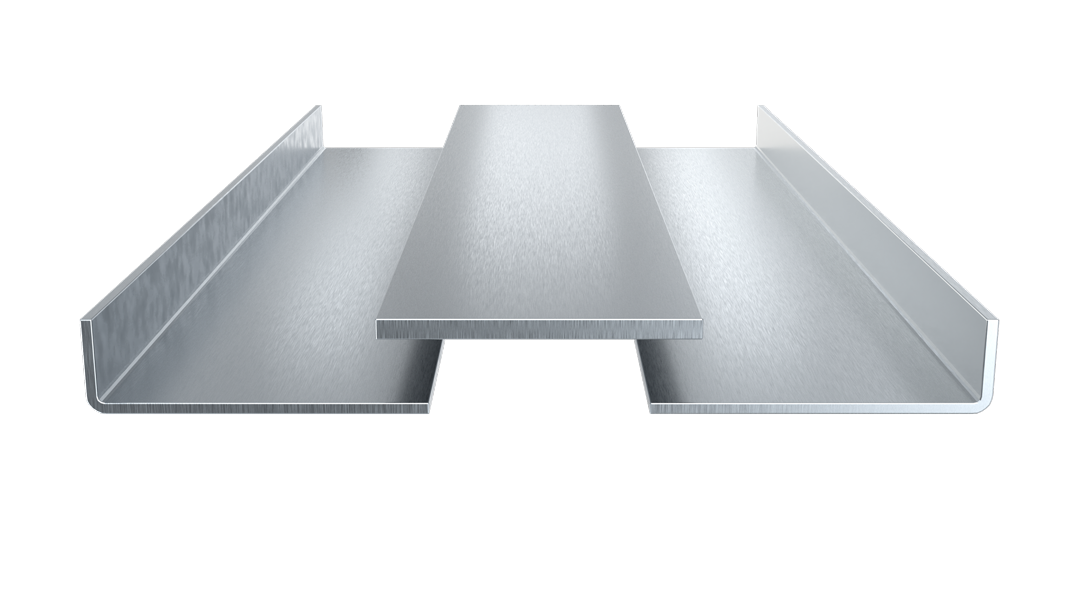

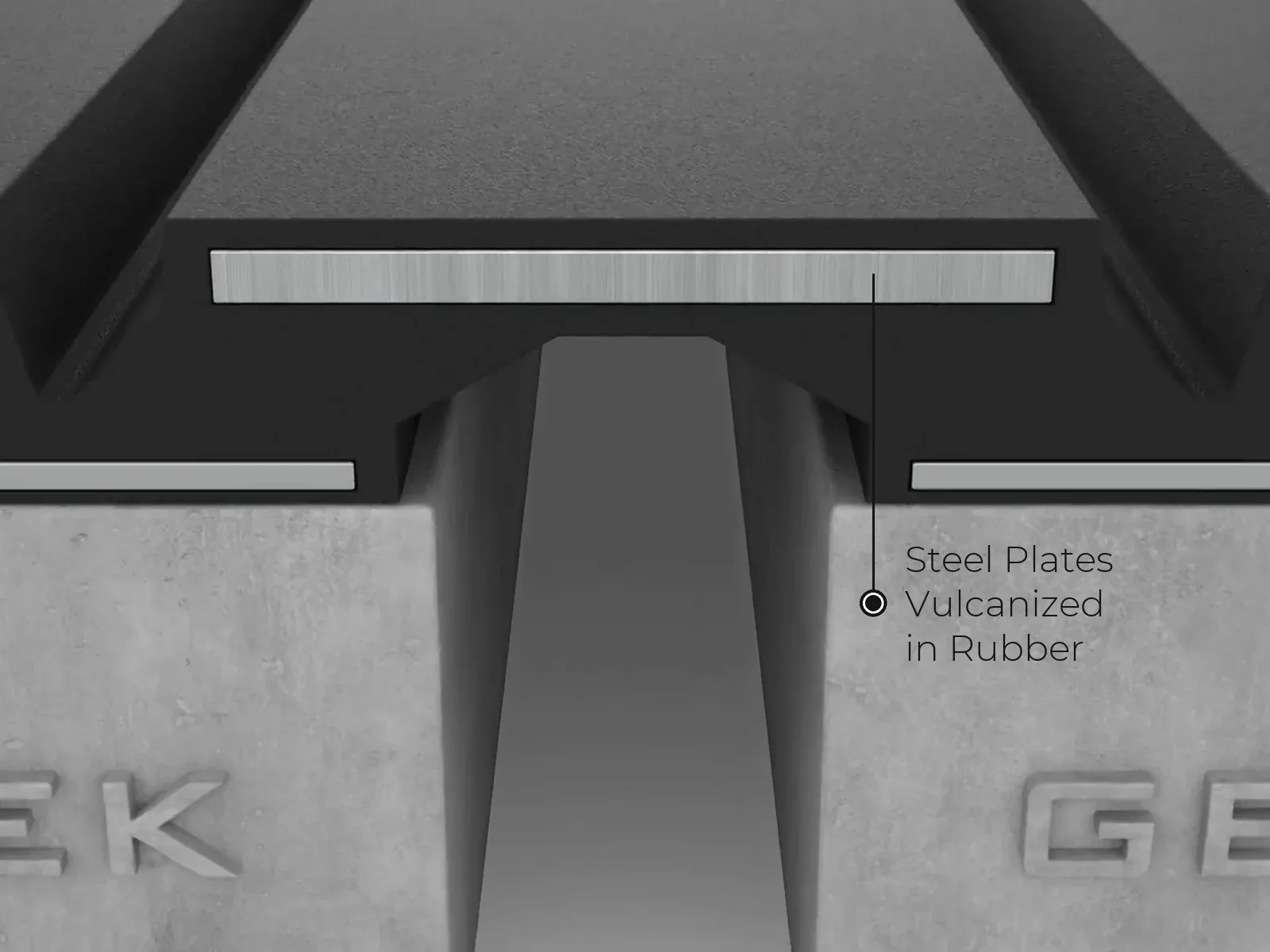

Steel Plates Vulcanized in Rubber
System Drawing
gap size calculator
enter your expansion gap measurement to see if this product is right for you.
profile specifications
| model name | joint width (mm) | height (mm) | sightline (mm) | movement capability (%) | load capacity |
|---|---|---|---|---|---|
| genflex-240c | 35 | 35 | 240 | ±24% | — |
| genflex-430c | 74 | 54 | 430 | ±43% | — |
datasheet specifications
| Series | ULTRABRIDGE Series (GENFLEX) |
|---|---|
| System type | Bridge Expansion Joint System |
| Fixing | Tongue-and-groove installation |
| Load capacity | Heavy Vehicular Traffic |
| Recommended for | Bridges; Ramps; Parking Decks; Other high load bearing areas; Areas where fast moving vehicular is expected |
| Material: Wear Plate | Extruded aluminum, grade AA 6063 preferred |
| Material: Encapsulating Elastomeric Rubber Profile | Ethylene Propylene Diene Monomer; finish: Grooved Finish; black |
| Material: Steel Plates | Galvanized Iron Plate, Stainless Steel 304 or Stainless Steel 316 |
| Material: Vapor Barrier (Optional) | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); black |
| Supply length | 2.00 m per piece (elastomeric rubber profile encapsulated steel plates) |
| Substrate tolerance | Surface level within ±2 mm; gap level within ±5 mm |
| Sizes | Per the system drawings; profiles can be customized to requirements |
Source: GENFLEX technical datasheet. Sizes and dimensions: profile specifications above and the system drawings.
