ecoclip series

ecoclip
ecoclip series

sku: ecoclip · wall
best for: interior walls and ceilings in commercial buildings, offices, and public spaces requiring no visible anchor joint coverage.
get instant quote → ↓ download datasheet 💬 whatsapp

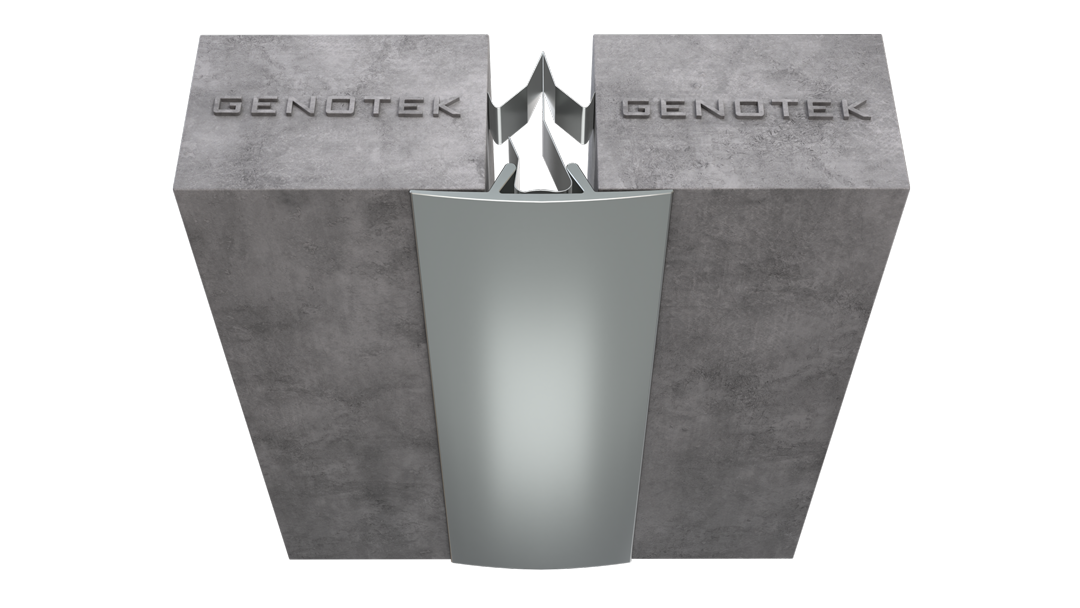

Introducing the ECOCLIP

The ECOCLIP Series is a clip-on wall and ceiling expansion joint cover with concealed anchoring, delivering a clean uninterrupted surface with no visible screws or fasteners. The aluminum cover clips onto a retainer channel that's fixed to the substrate, making it fast to install, easy to remove for maintenance, and visually minimal — ideal for premium offices, hotel corridors, and public spaces where aesthetics matter.

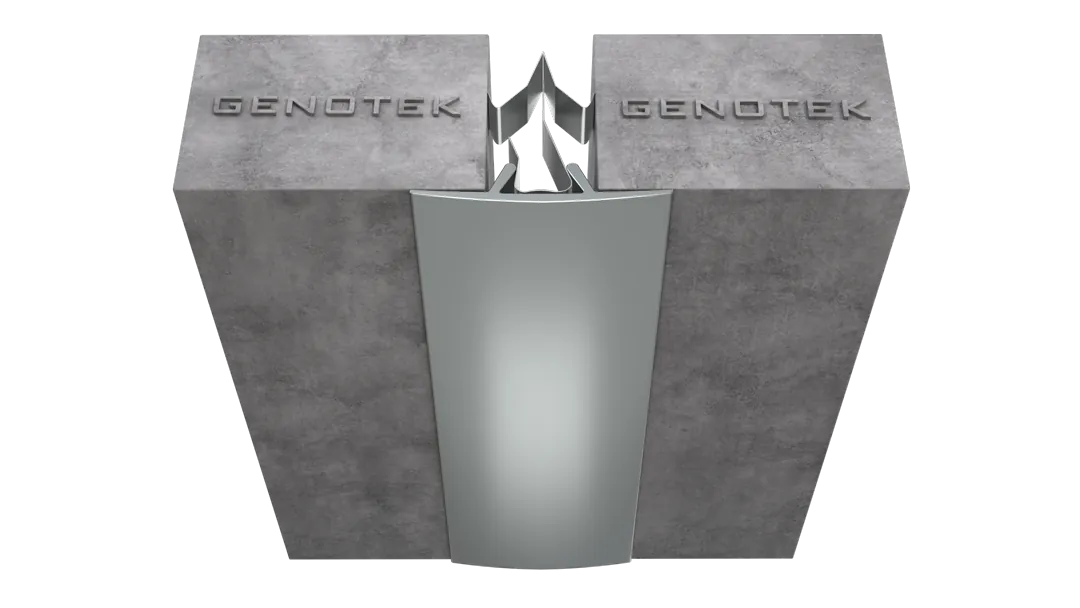

ECOCLIP expansion joint cover
Multi-Directional Movement Multi-Directional Movement
No Visible Anchor No Visible Anchor
Multiple Finishes Multiple Finishes
Aesthetic Flexibility Aesthetic Flexibility
movement
01 — movement

seismic movement accommodation

the free-floating ecoclip cover plate slides over the wall or ceiling surface on steel spring clips, letting the joint follow seismic and thermal movement while the plate spans the gap.

assembly
02 — assembly

assembly in action

this video demonstrates the assembly process, perfectly designed for easy installation for durability and reliability.

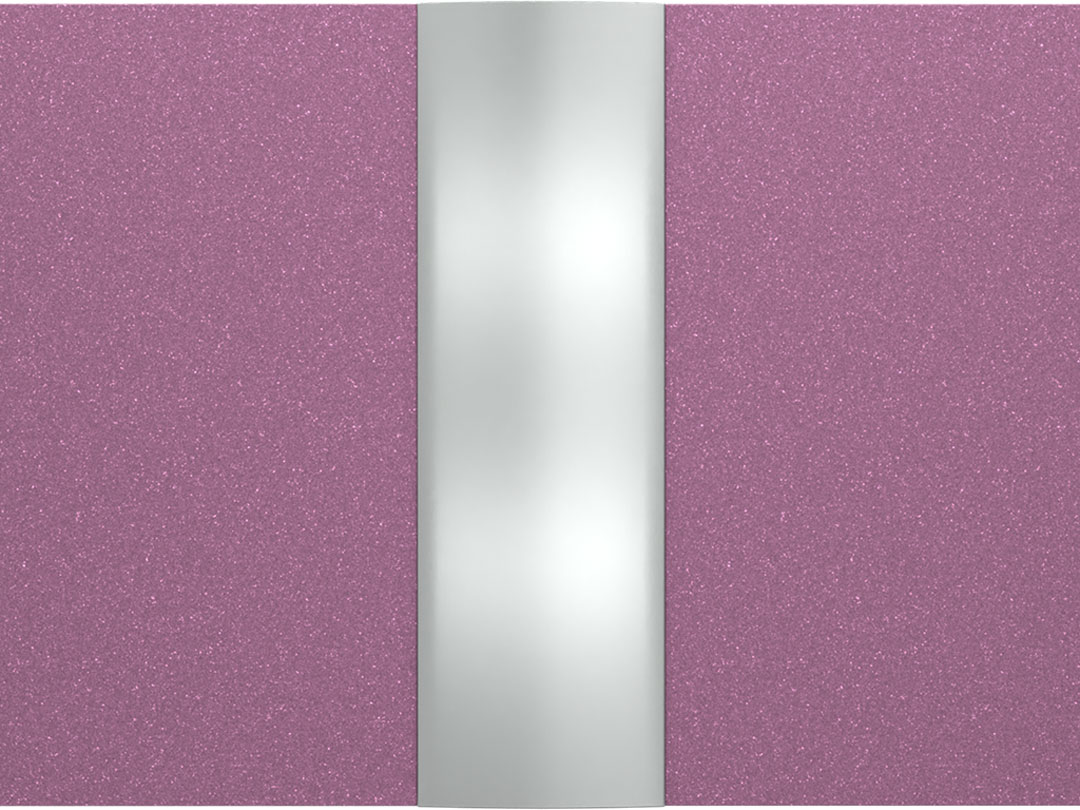

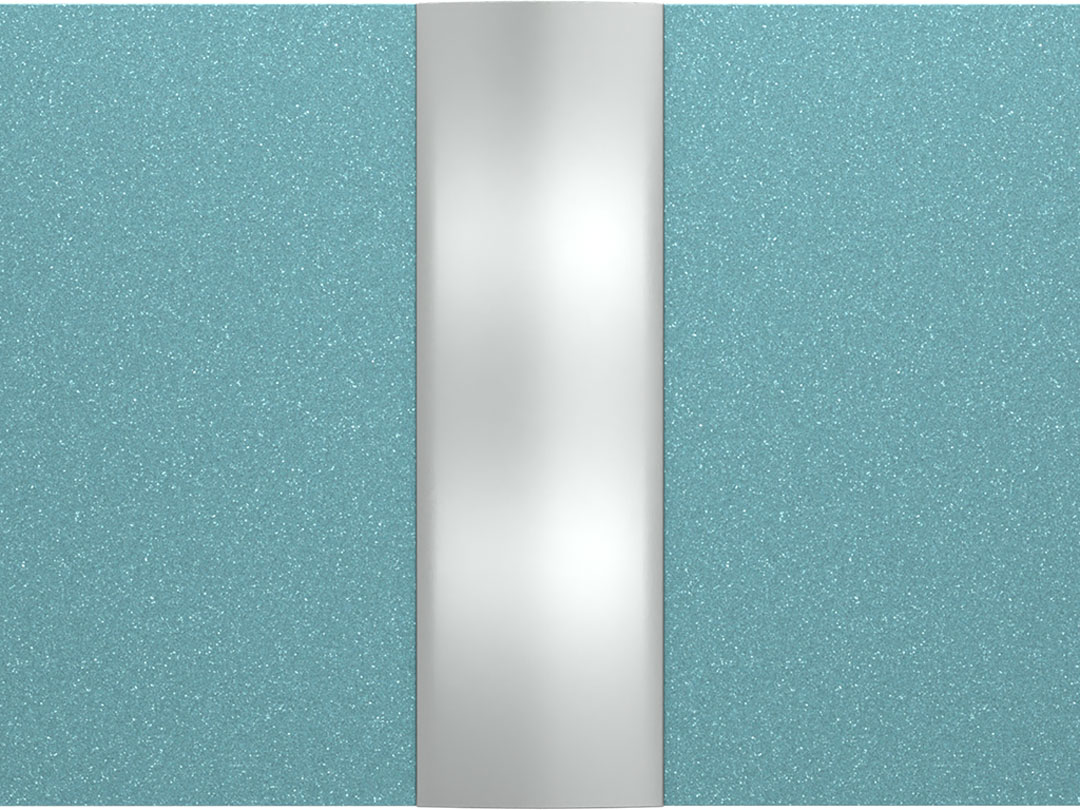

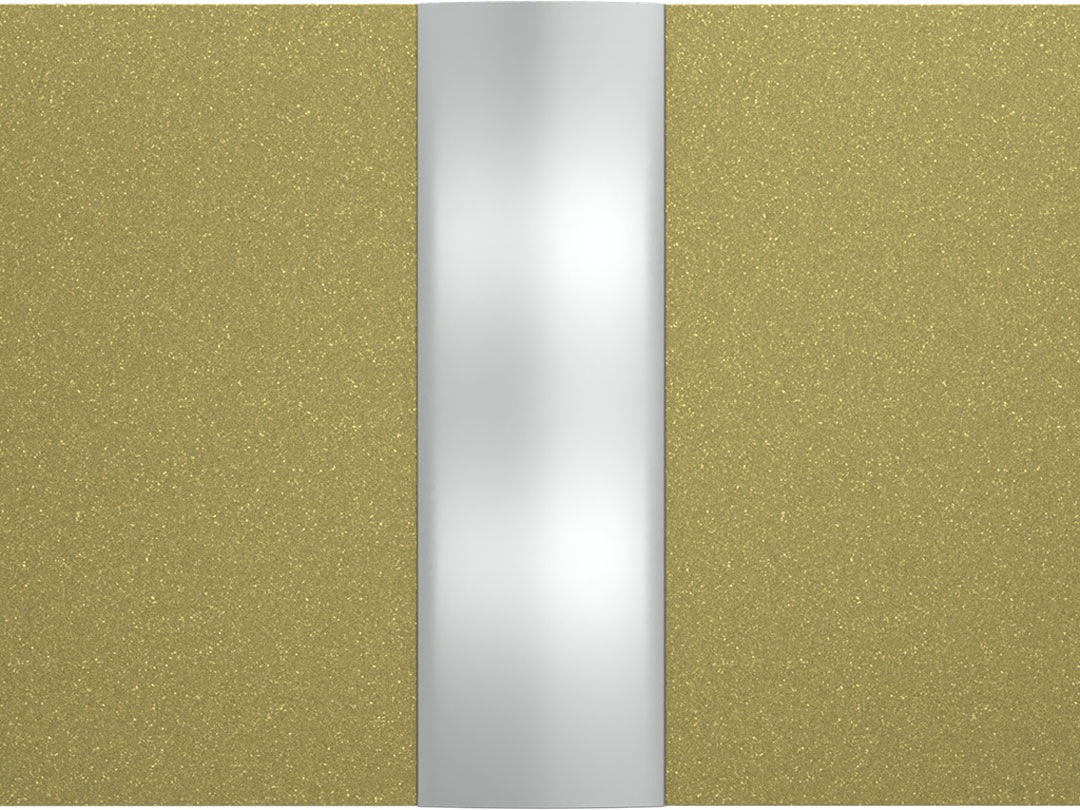

Aesthetic Choice

The ECOCLIP aluminum cover plate has an anodized finish, or can be powder coated in the color needed to match the adjacent wall or ceiling finishes. Two sizes are available, ECOCLIP-70 with a 70 mm sightline and ECOCLIP-90 with a 90 mm sightline, both with a simple profile.

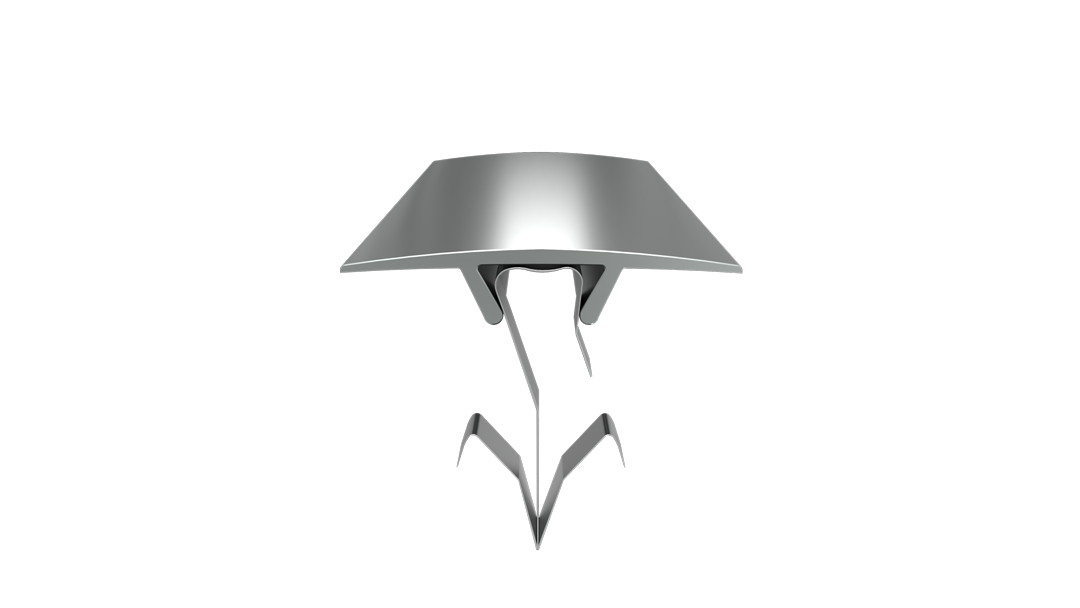

Optional Vapor Barrier

For added protection, an optional vapor barrier is available, constructed from either EPDM or TPV, which offers high tensile and tear resistance, ensuring long-term performance against moisture penetration
Optional Vapor Barrier

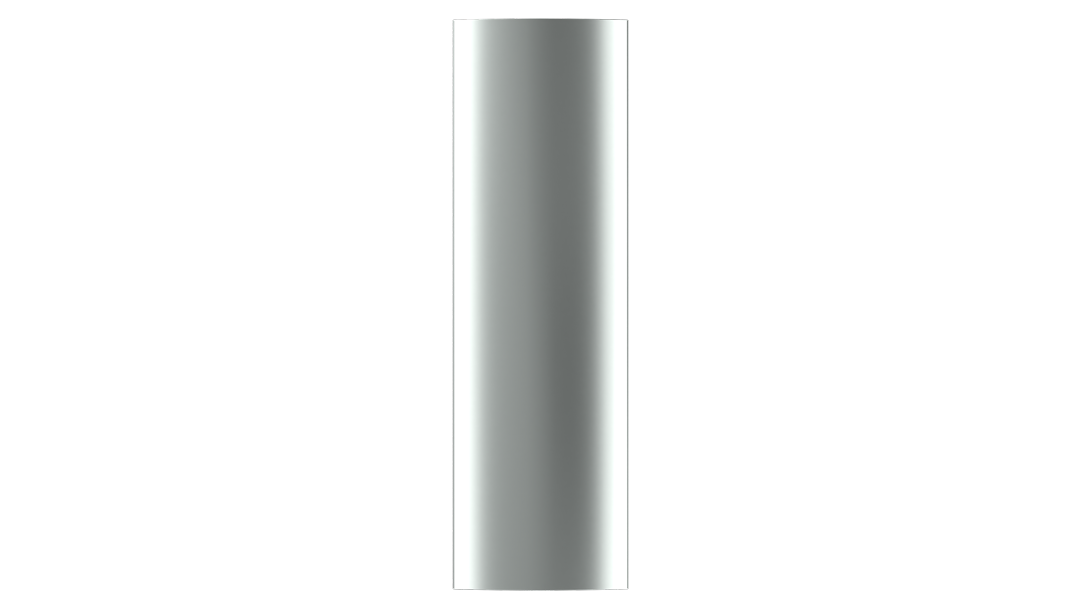

Premium Aluminum for Architectural Materials

Aluminum grade 6063, the premium material used in the expansion joint cover, offers strength, corrosion resistance, and durability. Available in T5 and T6 tempers or customized to meet project needs, this versatile alloy ensures exceptional structural integrity and longevity. Aluminum 6063 withstands high-traffic areas, extreme temperatures, and corrosive conditions, making it an ideal choice for diverse applications, from commercial facilities to infrastructure projects
Premium Aluminum for Architectural Materials

System Drawing

System drawings for the ECOCLIP expansion joint cover include the ECOCLIP-70 (30 mm joint width, 70 mm sightline) and ECOCLIP-90 (50 mm joint width, 90 mm sightline) in wall-to-wall or ceiling-to-ceiling conditions. Each size is downloadable as DWG and PDF.
System Drawing
interactive tool

gap size calculator

enter your expansion gap measurement to see if this product is right for you.

💳
20mm ≈ credit card
✌️
50mm ≈ two fingers
✊
100mm ≈ fist width
🖐️
200mm ≈ hand span
mm
ecoclip covers gap sizes from 15mm to 75mm. enter your measurement above to see the movement capacity, profile width, and whether this product handles your requirements.

not sure this is the right product?

answer 3 simple questions — gap size, location, aesthetics — and we'll show you all matching products.

open product finder →
technical data

profile specifications

model namejoint width (mm)height (mm)sightline (mm)movement capability (%)
ecoclip-70305070±50
ecoclip-90506090±50
from the technical datasheet

datasheet specifications

SeriesECOCLIP Series
System typeWall & Ceiling Expansion Joint Cover
Gap range30–65 mm
FixingSteel spring clips in the joint gap
Suitable movementSeismic, Thermal
Recommended forInterior or exterior wall & ceiling applications; Areas where low maintenance profile is required
ComponentsExtruded aluminum cover plate; Steel Spring Clips
FinishesAnodized, Powder coated
Supply length3.00 m per piece (aluminum cover plate)
Substrate toleranceSurface level within ±2 mm; gap level within ±5 mm
SizesPer the system drawings; profiles can be customized to requirements

Source: ECOCLIP technical datasheet. Sizes and dimensions: profile specifications above and the system drawings.
