procap c series
cwe
procap c series
sku: cwe · ceiling
best for: office buildings, hospitals, hotels, and commercial spaces with suspended ceiling systems requiring expansion joint coverage.
Introducing the C-WE

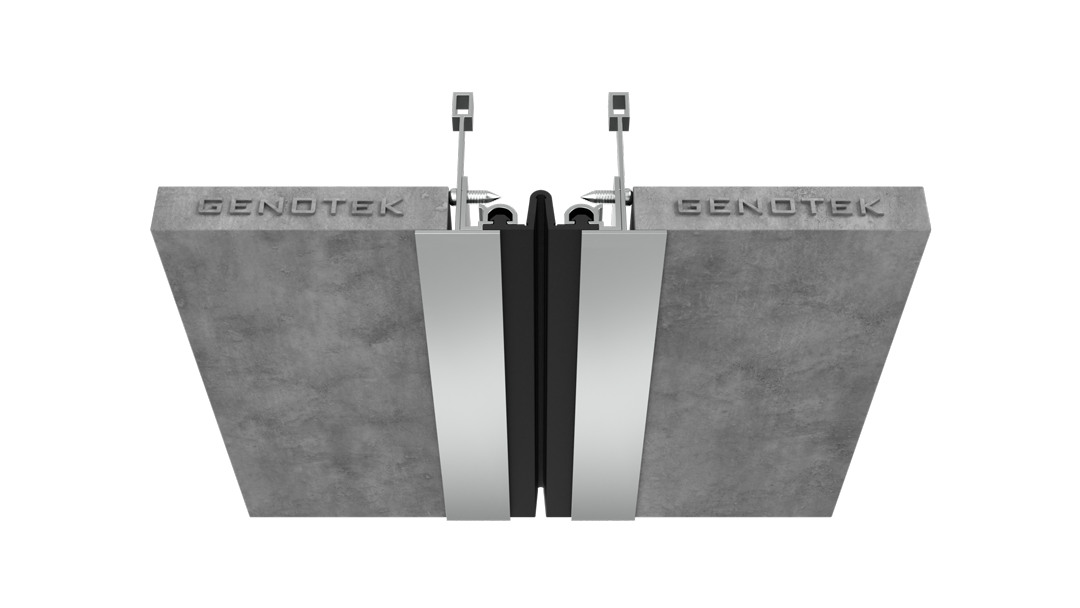

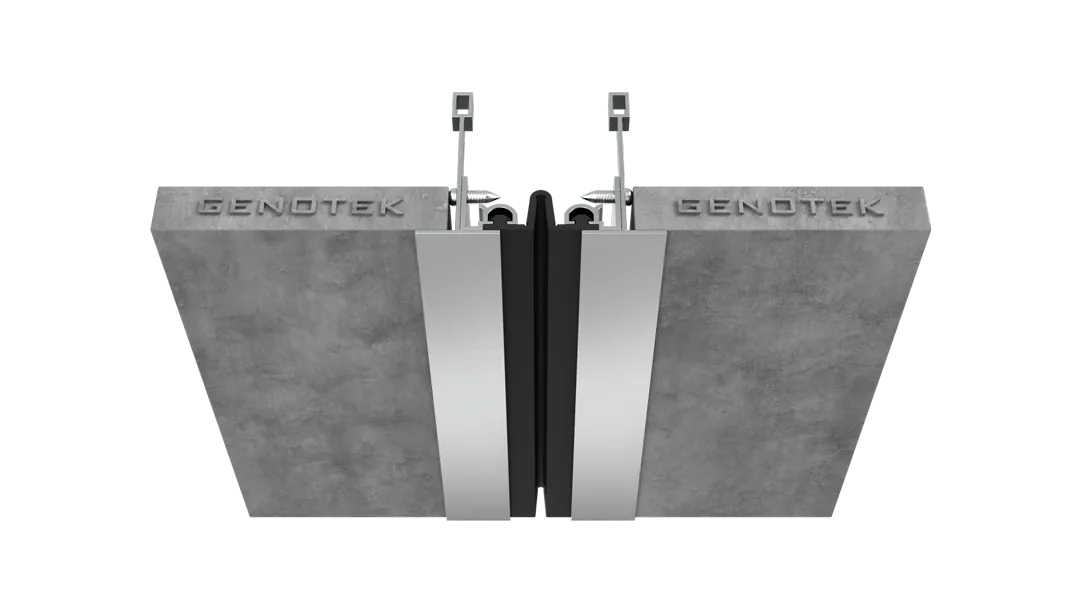

The PROCAP C Series CWE is a suspended-ceiling expansion joint cover for interior ceilings, including acoustical tile ceilings. Extruded aluminum support profiles hold a central elastomeric rubber insert that flexes with thermal and settlement movement; its rigid edges lock into the profiles so no hairline gap opens. Frame configurations suit both flat and corner conditions.
movement
01 — movement
thermal & settlement movement

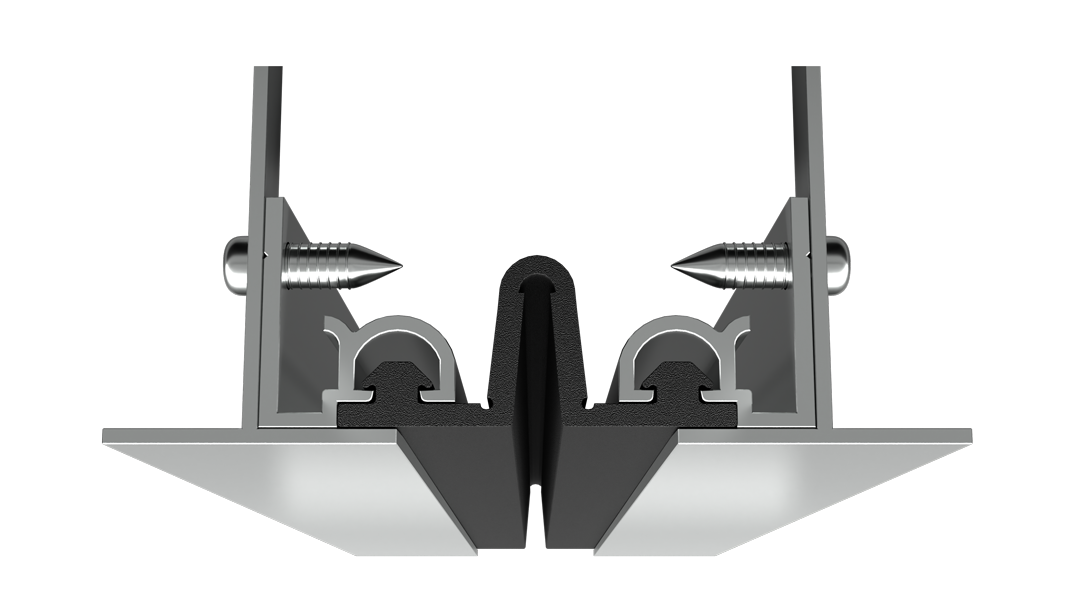

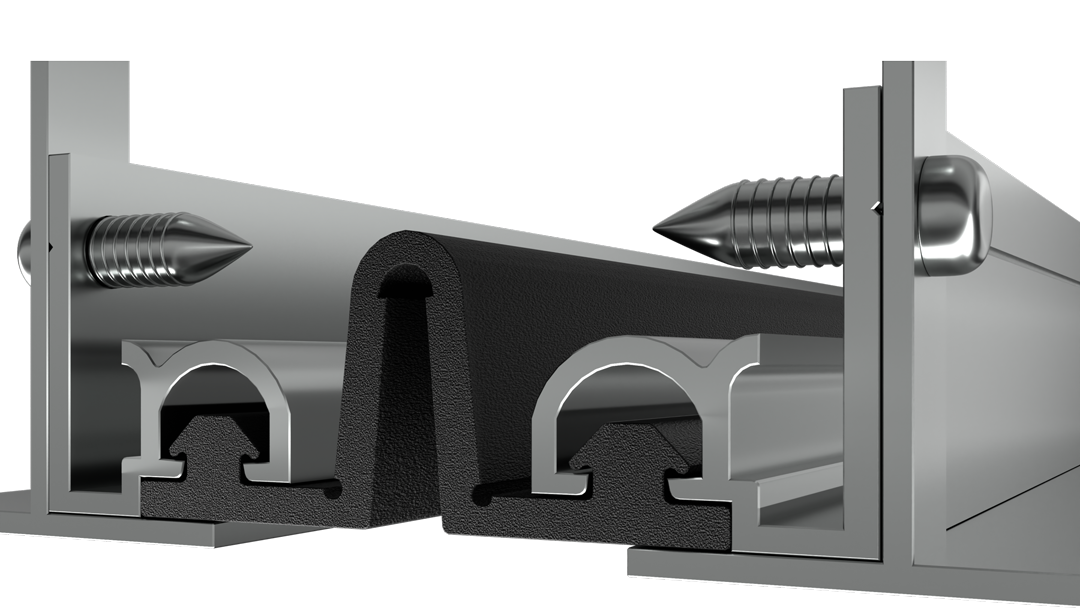

the central elastomeric rubber insert of the cwe flexes to take up thermal and settlement movement. its rigid edges lock into the aluminum support profiles, so no hairline gap opens as the ceiling moves.
assembly
02 — assembly
assembly in action
this video demonstrates the assembly process, perfectly designed for easy installation for durability and reliability.

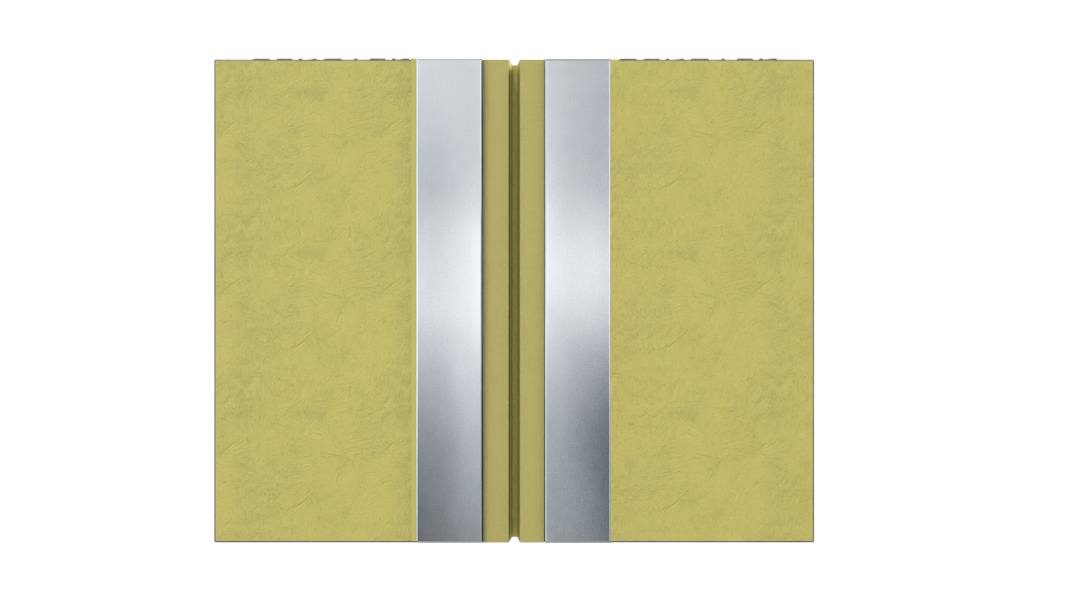

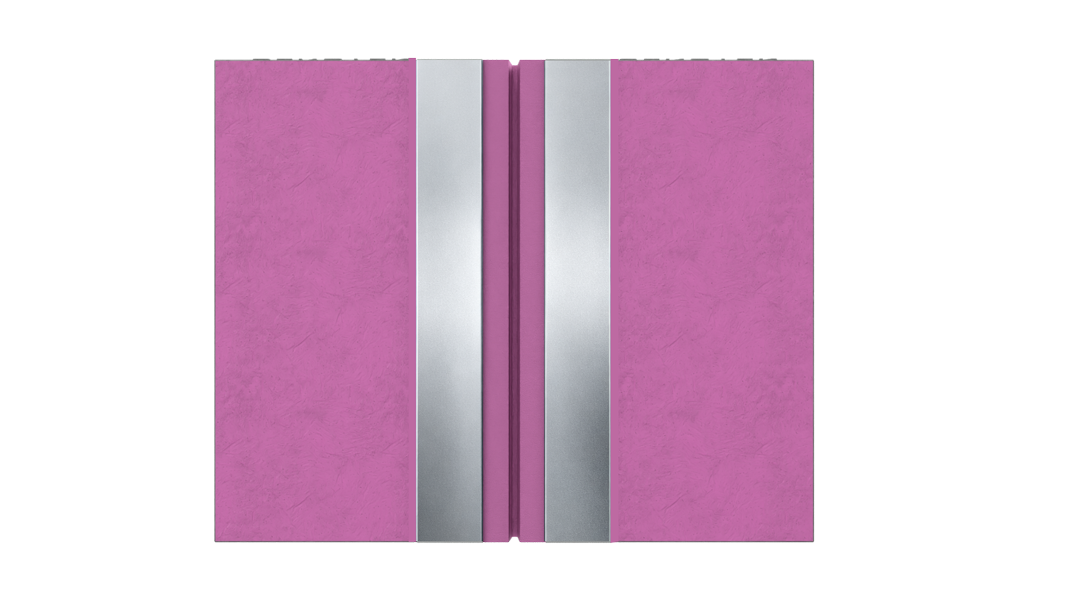

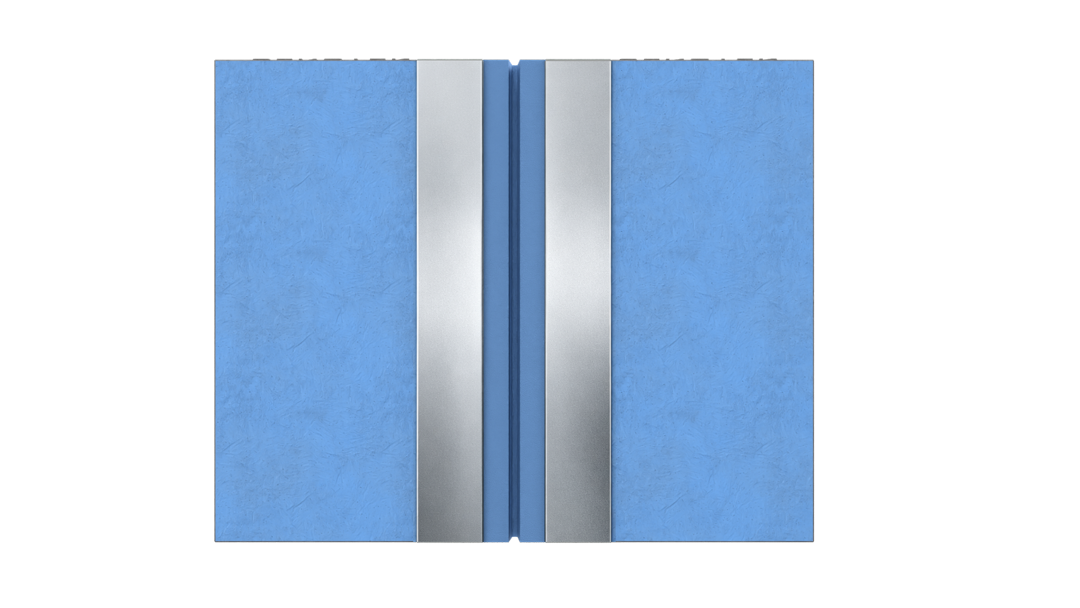

Aesthetic Choice

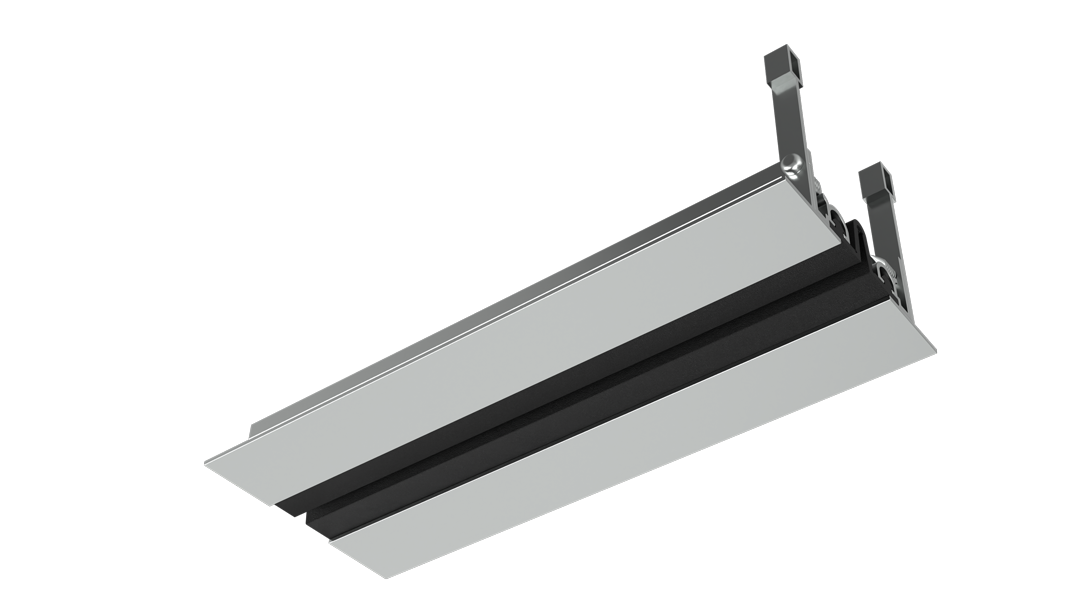

The CWE is designed for minimal visual impact in interior ceilings, including acoustical tile ceilings. A black, grooved rubber insert sits between slim extruded aluminum support profiles, with frame configurations for both flat and corner conditions, and the profiles can be customized to suit project requirements.

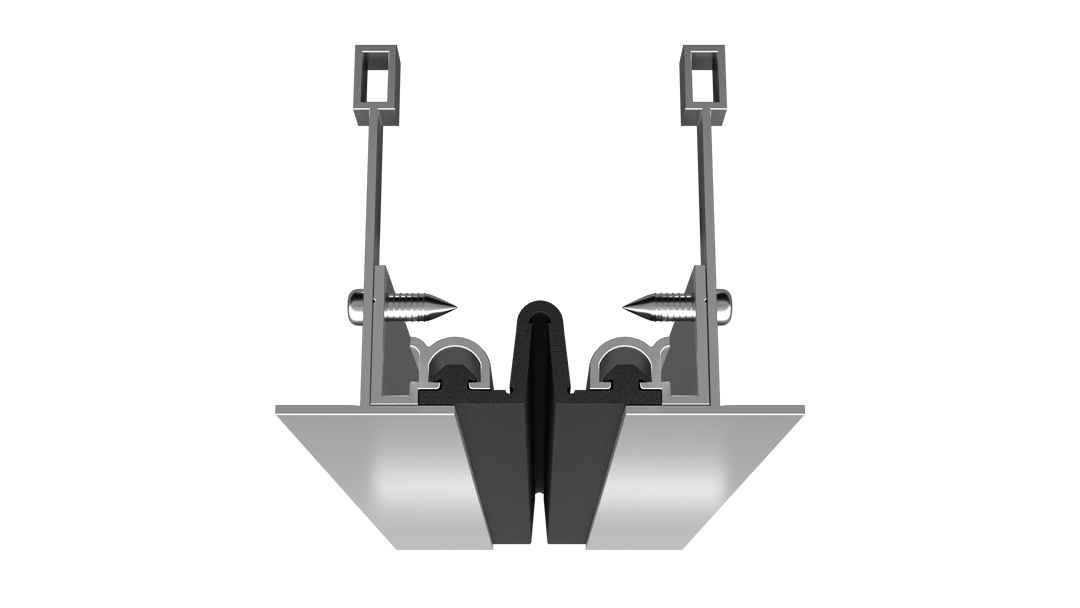

Optional Vapor Barrier
For added protection, an optional vapor barrier is available, constructed from either EPDM or TPV, which offers high tensile and tear resistance, ensuring long-term performance against moisture penetration

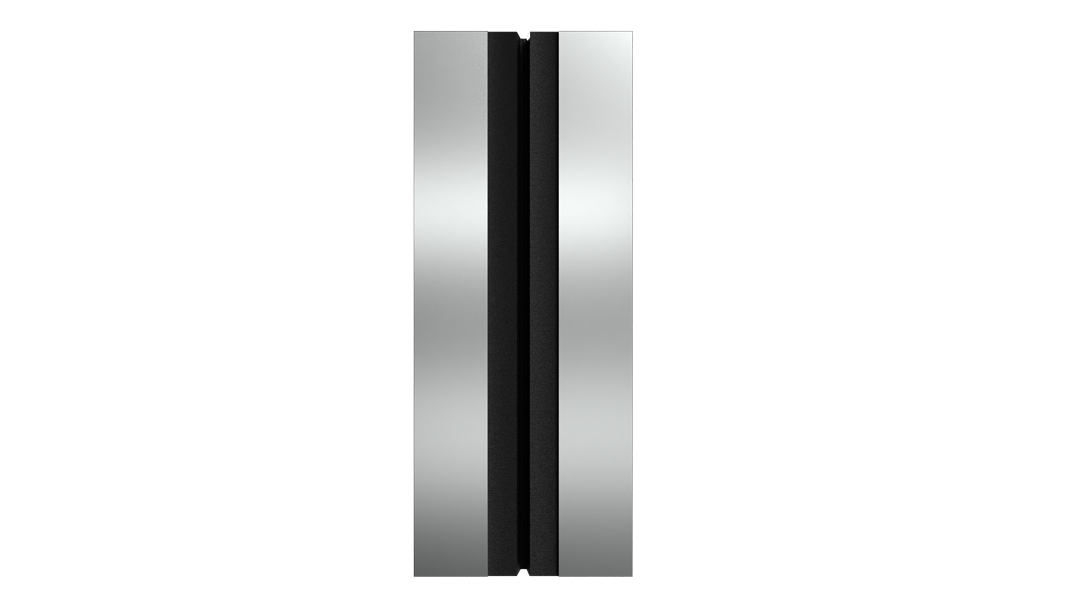

Premium Aluminum for Architectural Materials
Aluminum grade 6063, the premium material used in the expansion joint cover, offers strength, corrosion resistance, and durability. Available in T5 and T6 tempers or customized to meet project needs, this versatile alloy ensures exceptional structural integrity and longevity. Aluminum 6063 withstands high-traffic areas, extreme temperatures, and corrosive conditions, making it an ideal choice for diverse applications, from commercial facilities to infrastructure projects
System Drawing
System drawings for the CWE expansion joint cover and its CWEK variant, showing the aluminum support profiles and rubber insert in flat and corner ceiling configurations. Each size can be downloaded as a DWG and PDF.
interactive tool
gap size calculator
enter your expansion gap measurement to see if this product is right for you.
20mm ≈ credit card
50mm ≈ two fingers
100mm ≈ fist width
200mm ≈ hand span
mm
cwe covers gap sizes from 25mm to 125mm. enter your measurement above to see the movement capacity, profile width, and whether this product handles your requirements.
technical data
profile specifications
| model name | joint width (mm) | height (mm) | sightline (mm) | movement capability (%) |
|---|---|---|---|---|
| cwe-100 | 100 | 50 | 150 | ±40 |
| cwe-120 | 120 | 50 | 170 | ±40 |
| cwe-150 | 150 | 50 | 200 | ±50 |
| cwe-30 | 30 | 50 | 80 | ±33 |
| cwe-50 | 50 | 50 | 100 | ±40 |
| cwe-80 | 80 | 50 | 130 | ±40 |
| cwek-100 | 100 | 50 | 130 | ±50 |
| cwek-120 | 120 | 50 | 150 | ±50 |
| cwek-150 | 150 | 50 | 180 | ±50 |
| cwek-30 | 30 | 50 | 60 | ±33 |
| cwek-50 | 50 | 50 | 80 | ±40 |
| cwek-80 | 80 | 50 | 110 | ±40 |
from the technical datasheet
datasheet specifications
| Series | PROCAP C Series (CWE & CWEK) |
|---|---|
| System type | Suspended Ceiling Cover System |
| Suitable movement | Thermal, Settlement |
| Recommended for | Interior Areas; Ceiling Applications; Acoustical Tile Ceiling Constructions |
| Components | Extruded Aluminum Support Profiles; Elastomeric Rubber Insert which absorbs the expansion & contraction in the adjacent substrate |
| Material: Support Profiles | Extruded aluminum, grade AA 6063 preferred |
| Material: Elastomeric Rubber Insert | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); finish: Grooved Finish; black |
| Material: Vapor Barrier (Optional) | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); black |
| Supply length | 3.00 m per piece (support profiles) |
| Substrate tolerance | Surface level within ±2 mm; gap level within ±5 mm |
| Sizes | Per the system drawings; profiles can be customized to requirements |
Source: CWE technical datasheet. Sizes and dimensions: profile specifications above and the system drawings.
