progasket wcr series
ds1002
progasket wcr series
sku: ds1002 · wall
best for: interior wall and ceiling areas with small joints where a minimal sightline is preferred and thermal movement is expected.

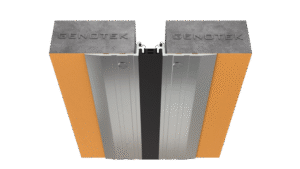

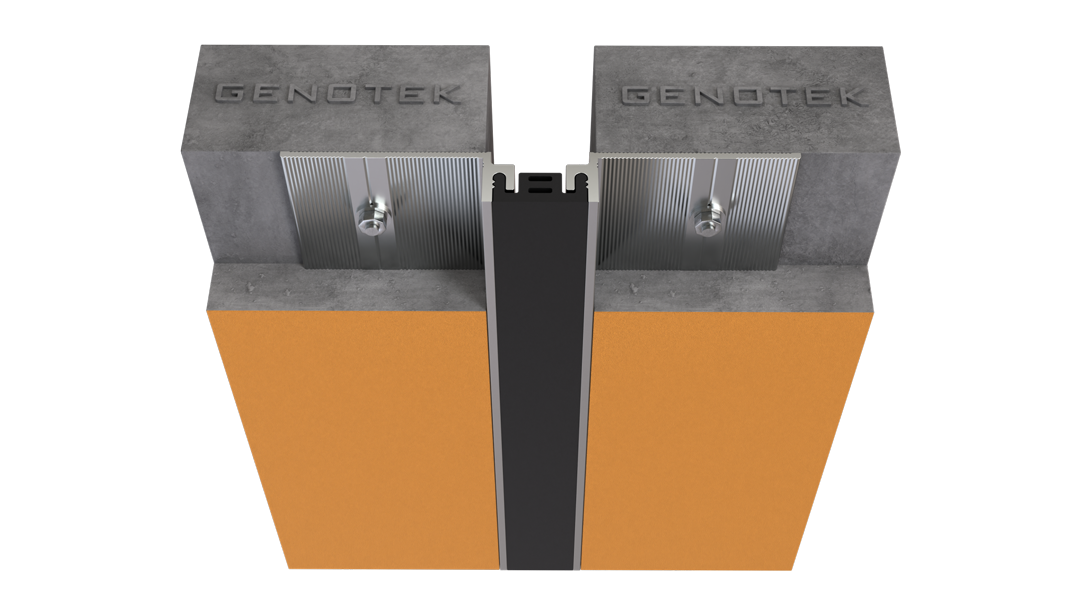

Introducing the DS-1002

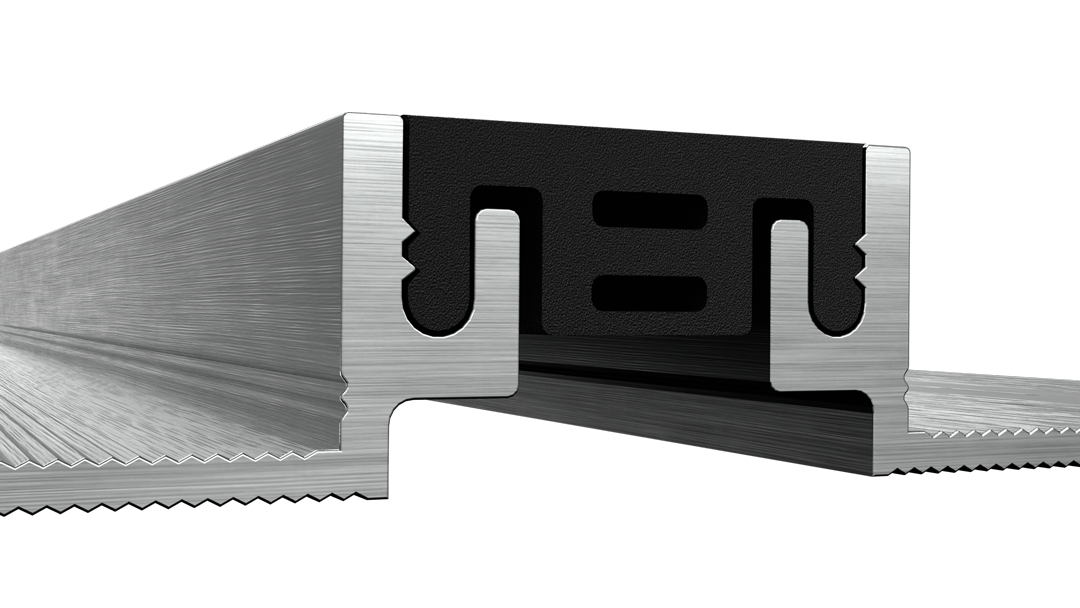

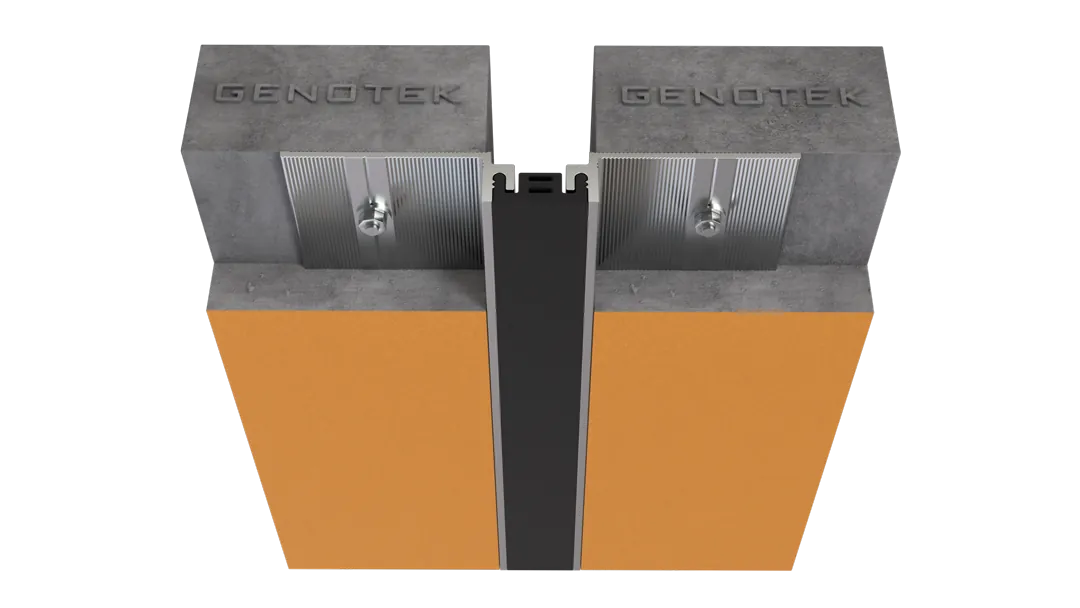

The PROGASKET WCR Series DS-1002 is a recessed modular wall and ceiling expansion joint cover for interior areas with small joints where a minimal sightline is preferred. Extruded aluminum support profiles retain an elastomeric rubber insert, grooved for slightly higher movement or smooth for a hygienic, easy-to-clean seal. The profiles can be capped in stainless steel or brass, or fully faced with stainless steel plate, to match the adjacent finishes.
movement
01 — movement
thermal & settlement movement
the elastomeric rubber insert of the ds-1002, grooved for slightly higher movement or smooth for a hygienic seal, takes up thermal and settlement movement between the aluminum support profiles.
assembly
02 — assembly
assembly in action
this video demonstrates the assembly process, perfectly designed for easy installation for durability and reliability.

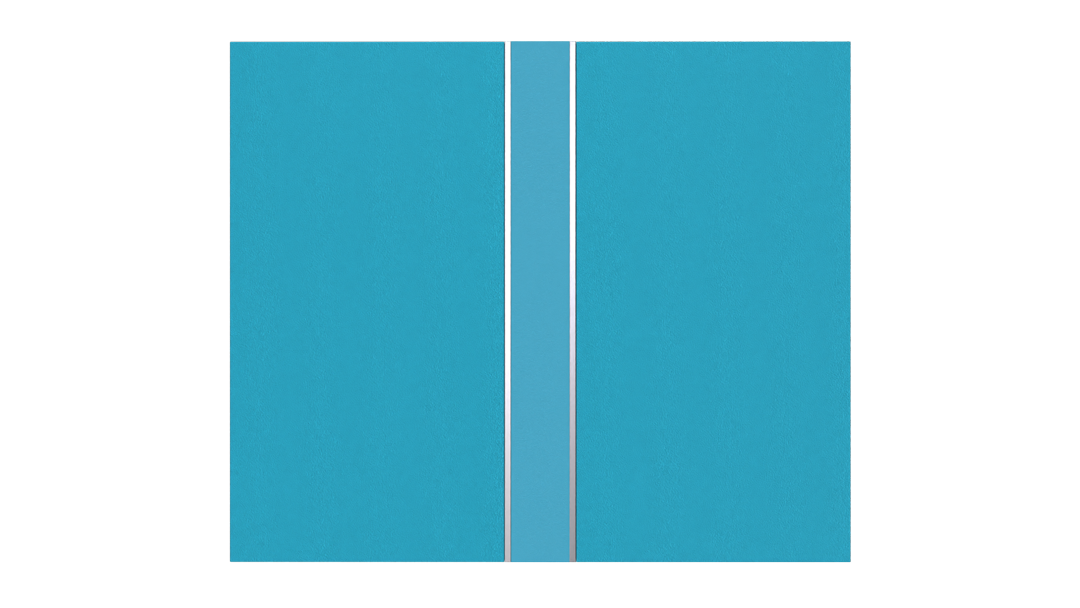

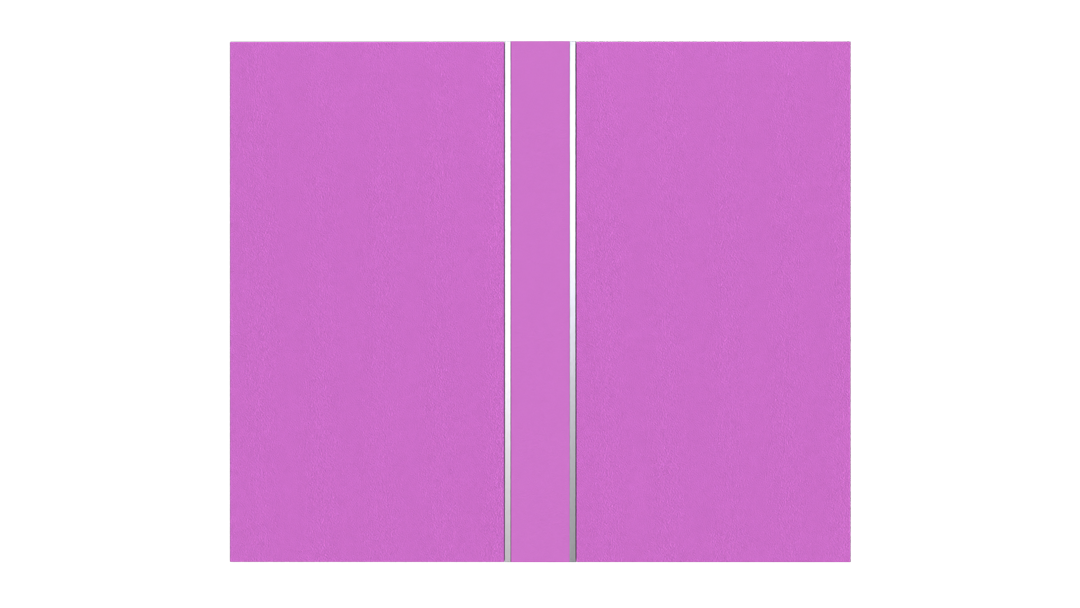

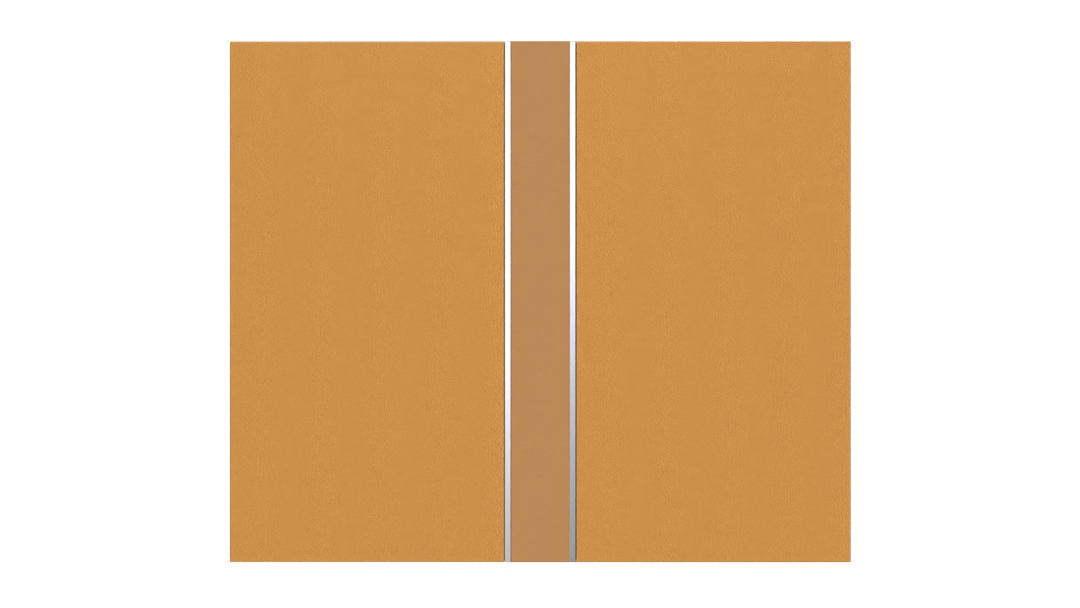

Aesthetic Choice
The DS-1002 keeps a minimal sightline in interior walls and ceilings. To match adjacent finishes, the aluminum support profiles can be capped in stainless steel or brass, or the entire visible surface can be covered with stainless steel plates. The rubber insert is available in a grooved or smooth finish.

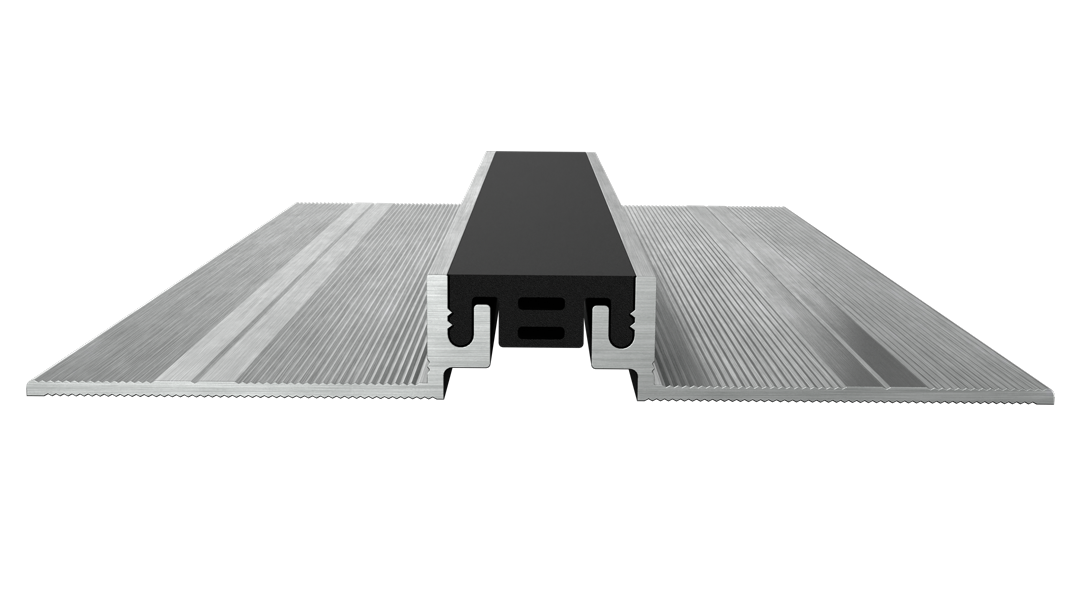

Optional Vapor Barrier
For added protection, an optional vapor barrier is available, constructed from either EPDM or TPV, which offers high tensile and tear resistance, ensuring long-term performance against moisture penetration

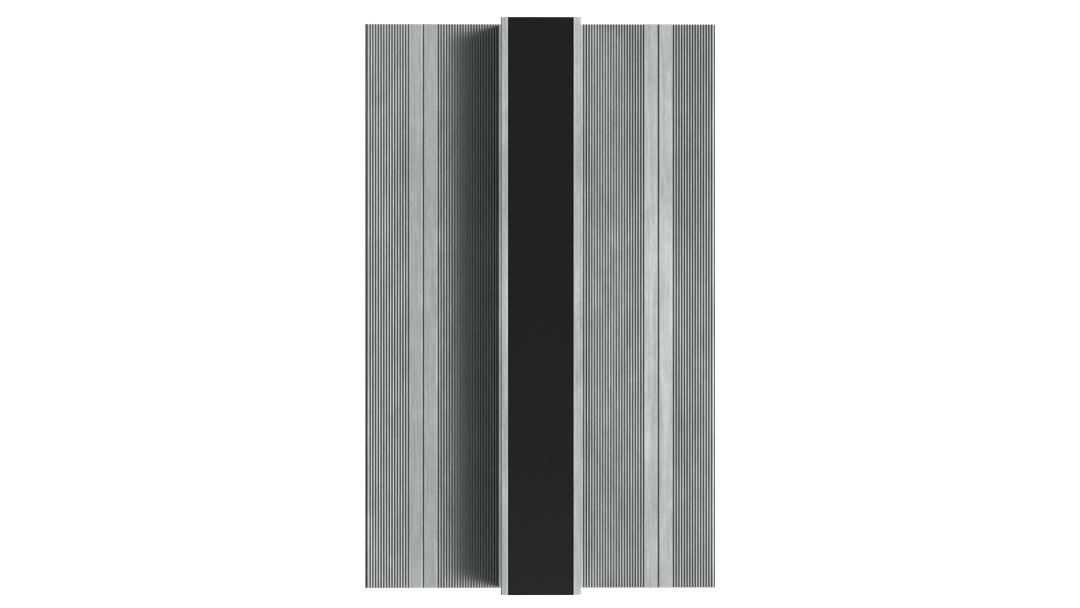

Premium Aluminum for Architectural Materials
Aluminum grade 6063, the premium material used in the expansion joint cover, offers strength, corrosion resistance, and durability. Available in T5 and T6 tempers or customized to meet project needs, this versatile alloy ensures exceptional structural integrity and longevity. Aluminum 6063 withstands high-traffic areas, extreme temperatures, and corrosive conditions, making it an ideal choice for diverse applications, from commercial facilities to infrastructure projects
System Drawing
System drawings for the DS-1002 expansion joint cover and its DSK-1002 variant, showing the recessed aluminum support profiles and rubber insert for wall and ceiling joints. Each size can be downloaded as a DWG and PDF.
interactive tool
gap size calculator
enter your expansion gap measurement to see if this product is right for you.
20mm ≈ credit card
50mm ≈ two fingers
100mm ≈ fist width
200mm ≈ hand span
mm
ds1002 covers gap sizes from 25mm to 100mm. enter your measurement above to see the movement capacity, profile width, and whether this product handles your requirements.
technical data
profile specifications
| model name | joint width (mm) | height (mm) | sightline (mm) | movement capability (%) |
|---|---|---|---|---|
| ds-1000-30 | 30 | 15 | 27 | ±25 |
| ds-1000-50 | 50 | 15 | 50 | ±25 |
| dsk-1002-30 | 30 | 15 | 24 | ±25 |
| dsk-1002-50 | 50 | 15 | 50 | ±25 |
from the technical datasheet
datasheet specifications
| Series | PROGASKET WCR Series (DS-1002 & DSK-1002) |
|---|---|
| System type | Recessed Modular Wall & Ceiling System |
| Mounting | Recessed |
| Suitable movement | Thermal, Settlement |
| Recommended for | Interior areas with small joint sizes where minimal sightline are preferred; Areas where thermal movement is expected |
| Components | Extruded Aluminum Support Profiles; Elastomeric Rubber Insert which absorb expansion and contraction of the adjacent concrete slabs |
| Material: Support Frames | Extruded aluminum, grade AA 6063 preferred |
| Material: Elastomeric Rubber Insert | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); finish: Smooth Finish; black |
| Material: Vapor Barrier (Optional) | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); black |
| Supply length | 3.00 m per piece (aluminum support frame) |
| Substrate tolerance | Surface level within ±2 mm; gap level within ±5 mm |
| Sizes | Per the system drawings; profiles can be customized to requirements |
Source: DS1002 technical datasheet. Sizes and dimensions: profile specifications above and the system drawings.
