progasket wcs series
d1002
progasket wcs series
sku: d1002 · wall
best for: interior and exterior walls and ceilings in commercial buildings, hospitals, and hotels requiring surface-mount joint coverage with multiple finish options.
Introducing the D-1002
The SUPERFINISH FS Series Z-5200 & ZK-5200 is a thermal expansion joint cover designed for floor applications requiring seamless integration. Suitable for both interior and exterior areas, this profile provides a clean, minimal sightline that enhances the aesthetic of hospitality, retail, and commercial spaces. With a recessed design and a central pan for floor finishing materials, it ensures a durable, visually appealing solution for areas where thermal and seismic movement may occur
movement
01 — movement
seismic movement accommodation
capable of handling multi-directional seismic movement, lateral shear, and thermal expansion, the superfinish series ensures flexibility without stressing its metal components. this allows the system to maintain its integrity and function even under significant structural shifts
assembly
02 — assembly
assembly in action
this video demonstrates the assembly process, perfectly designed for easy installation for durability and reliability.

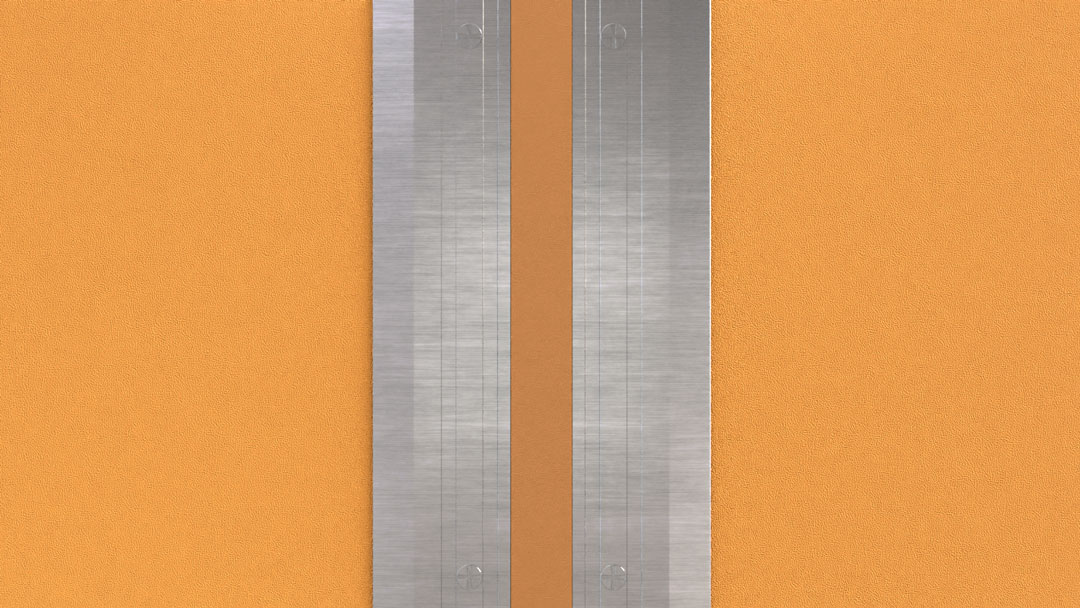

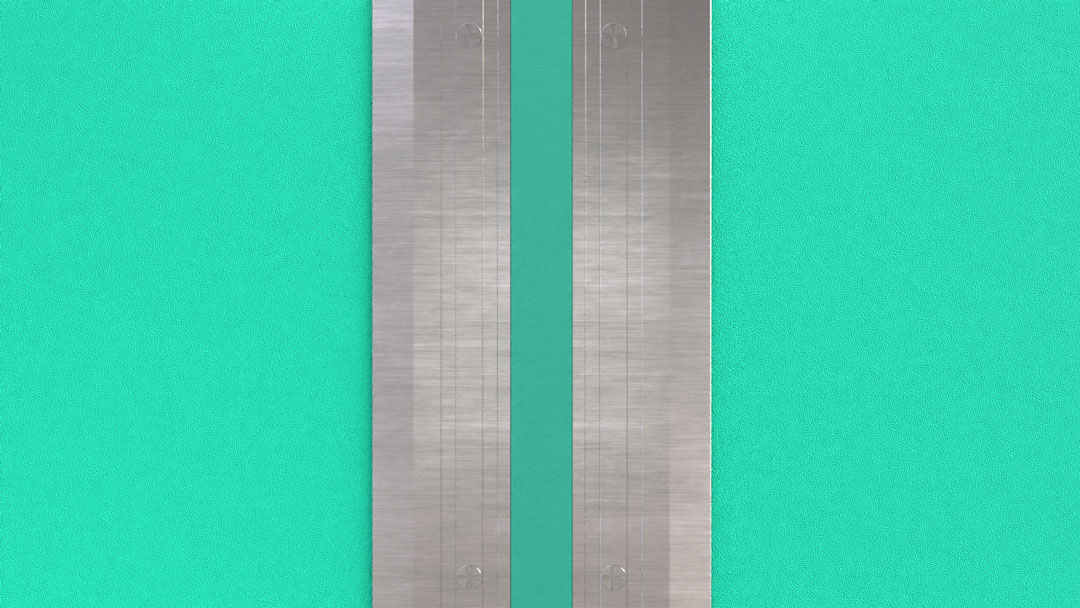

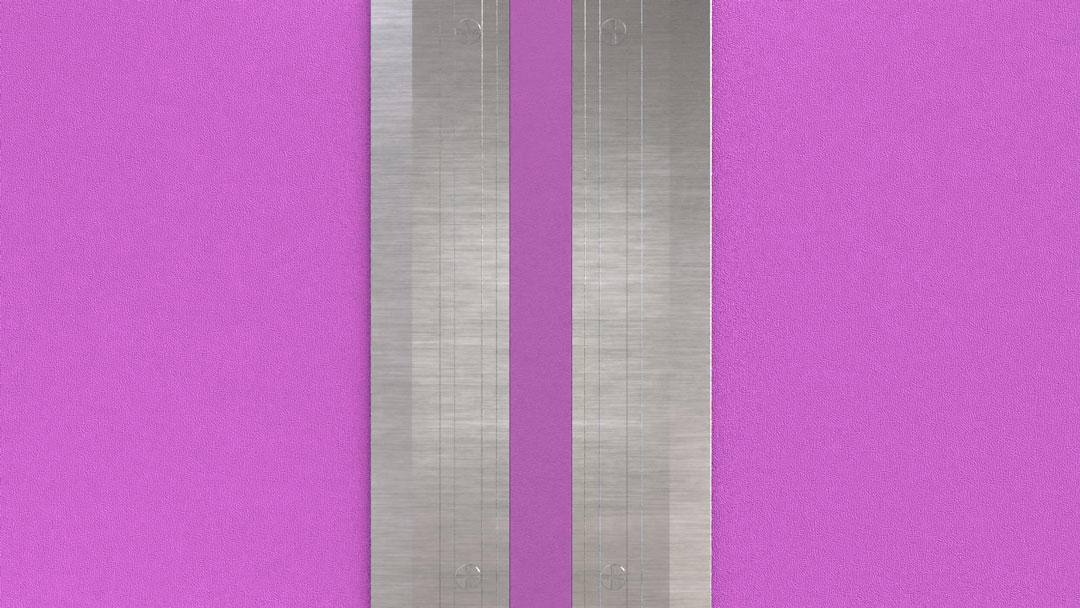

Aesthetic Choice
The central pan assembly provides a deep recess that can hold finishing materials, effectively concealing the joint while blending with the surrounding flooring. This feature makes the SUPERFINISH a perfect solution for spaces that prioritize a clean, uninterrupted aesthetic

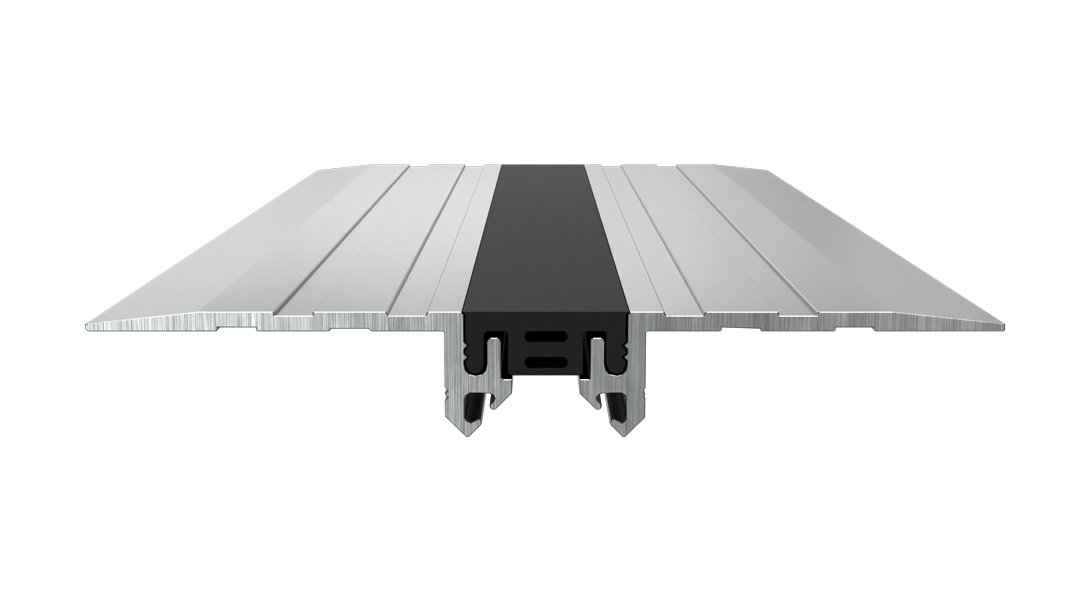

Optional Vapor Barrier
For added protection, an optional vapor barrier is available, constructed from either EPDM or TPV, which offers high tensile and tear resistance, ensuring long-term performance against moisture penetration

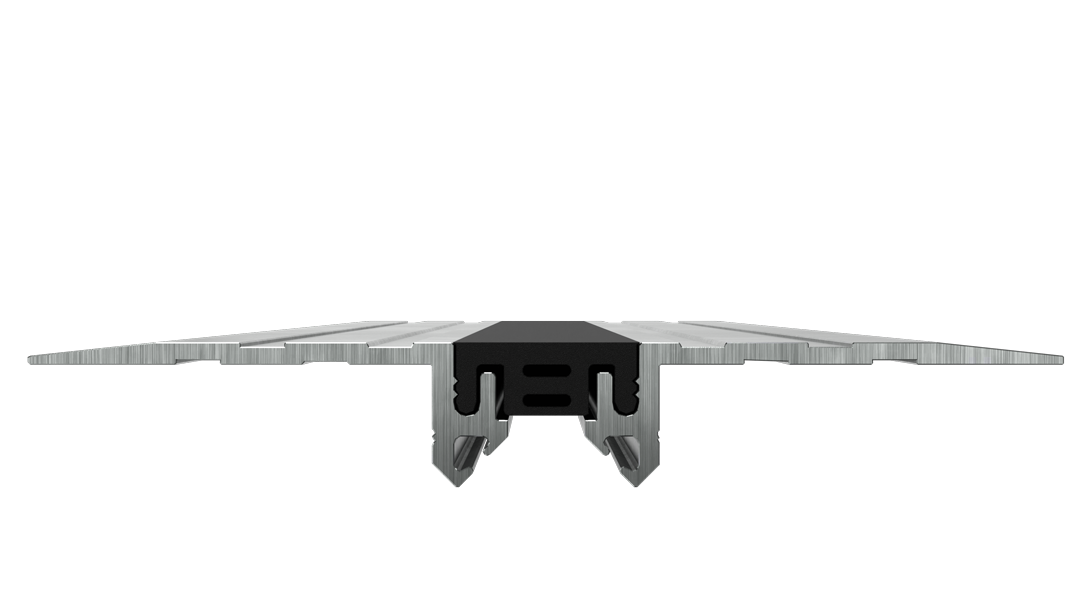

Anti-slip Serration
The anti-slip serrations in the aluminum surface of an expansion joint provide exceptional traction and safety along with rubber insert for enhanced grip. These precision-engineered grooves create a high-grip texture that prevents slips and skids, even in wet conditions. The serrated design ensures secure footing for pedestrians and vehicles, enhancing the jointu2019s overall safety and functionality. Engineered for durability and performance, these anti-slip serrations offer a reliable, long-lasting solution for maintaining a safe environment in various applications

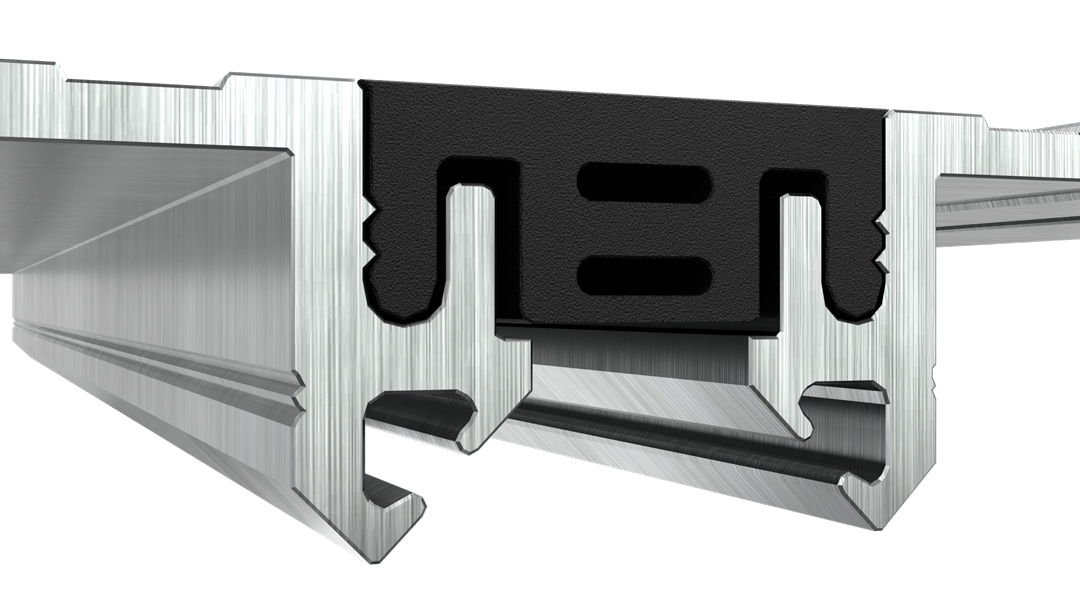

Customizable Recessed Pan for Floor Finishes
The deep recessed pan allows for customization with various floor finishes, enabling the joint to blend seamlessly with different design styles while maintaining the structural support required for heavy-duty use

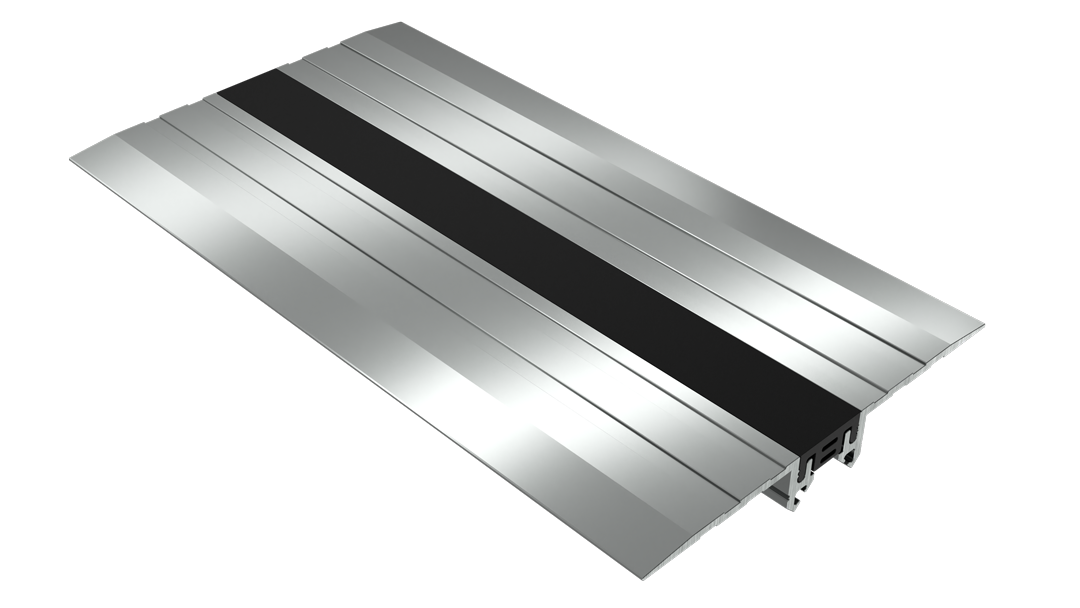

Rubber Insert for Superior Performance
Rubber inserts with a Shore A hardness of 60-70, designed for reliable movement absorption. These inserts provide exceptional durability and flexibility, ensuring seamless performance even under high movement conditions. Additionally, they maintain the aesthetic appeal by effectively concealing the joint, delivering a clean and professional finish to your structure

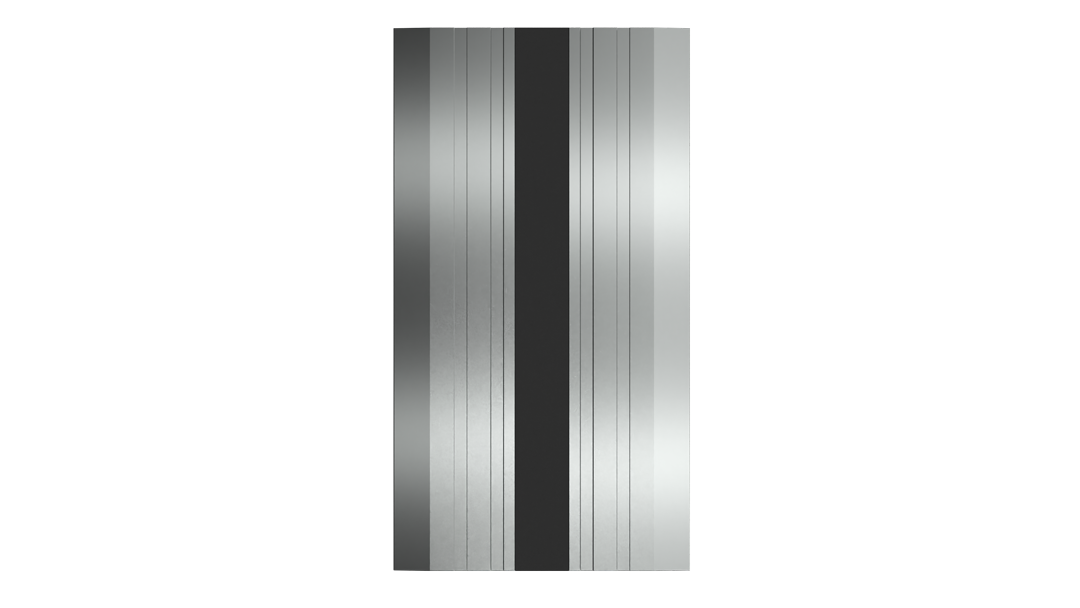

Premium Aluminum for Architectural Materials
Aluminum grade 6063, the premium material used in the expansion joint cover, offers strength, corrosion resistance, and durability. Available in T5 and T6 tempers or customized to meet project needs, this versatile alloy ensures exceptional structural integrity and longevity. Aluminum 6063 withstands high-traffic areas, extreme temperatures, and corrosive conditions, making it an ideal choice for diverse applications, from commercial facilities to infrastructure projects
System Drawing
Technical system drawing.
interactive tool
gap size calculator
enter your expansion gap measurement to see if this product is right for you.
20mm ≈ credit card
50mm ≈ two fingers
100mm ≈ fist width
200mm ≈ hand span
mm
d1002 covers gap sizes from 25mm to 100mm. enter your measurement above to see the movement capacity, profile width, and whether this product handles your requirements.
technical data
profile specifications
| model name | joint width (mm) | height (mm) | sightline (mm) | movement capability (%) |
|---|---|---|---|---|
| d-1002-30 | 30 | 17 | 122 | ±20 |
| d-1002-50 | 50 | 17 | 114 | ±24 |
| dk-1002-30 | 30 | 17 | 75 | ±20 |
| dk-1002-50 | 50 | 17 | 96 | ±24 |
aesthetic options
available finishes
aluminum / rubber exposed|anodized
aluminum / rubber exposed|anodized
alternatives
similar products to consider
premium

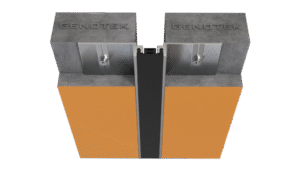

ds1002
