z3000
ecoglide fl series

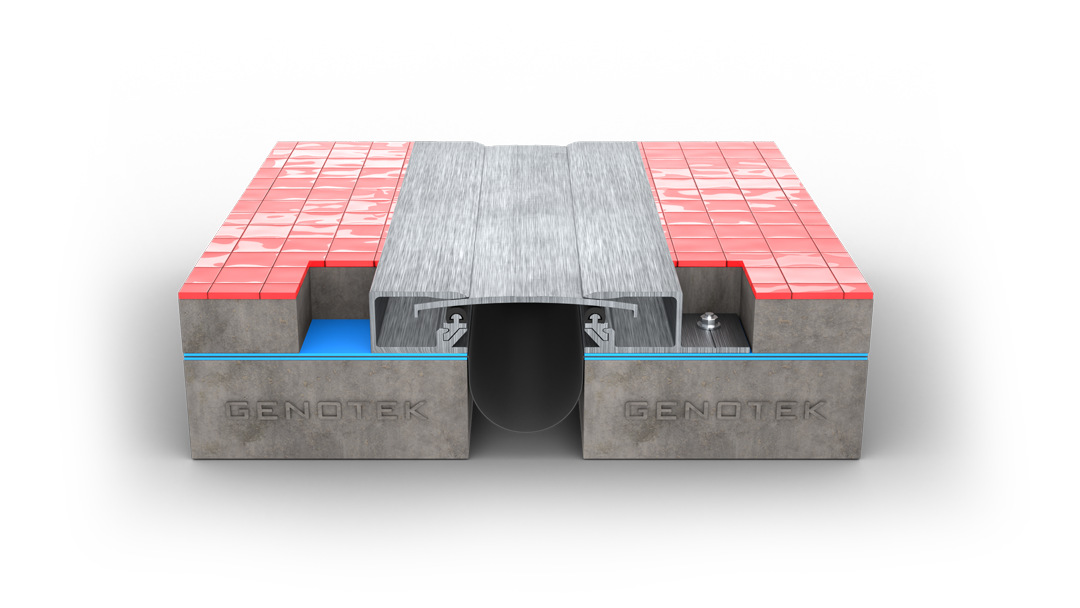

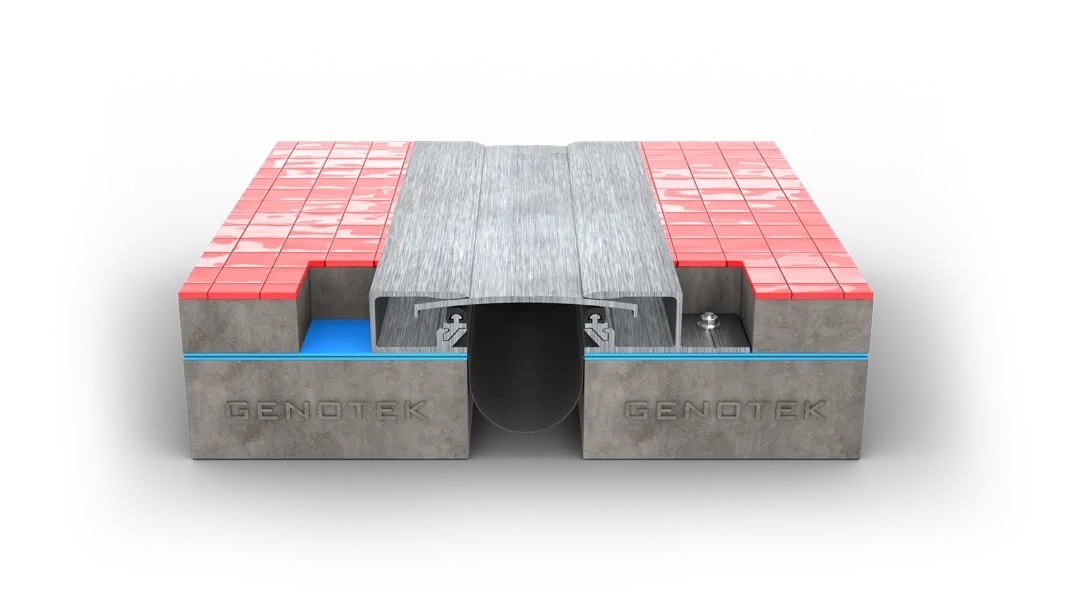

Introducing the Z3000
seismic movement accommodation
specifically designed for areas where multi-directional movement is expected, ensuring structural integrity during seismic events. features a free-floating central glide plate and elastomeric rubber gaskets that offer noise cancellation and profile protection while remaining tamper-proof.
water protection
water barrier made of tpe forms seamless intersections, eliminating weak points. the barrier holds water during rain or washing, then allows evaporation once the source stops. save time with quick installation and enjoy long-lasting protection.
load bearing
engineered to withstand heavy pedestrian and light vehicular traffic, this system is well-suited to areas experiencing continuous use, reducing maintenance needs while maintaining structural integrity.
assembly in action
this video demonstrates the assembly process, perfectly designed for easy installation for durability and reliability.

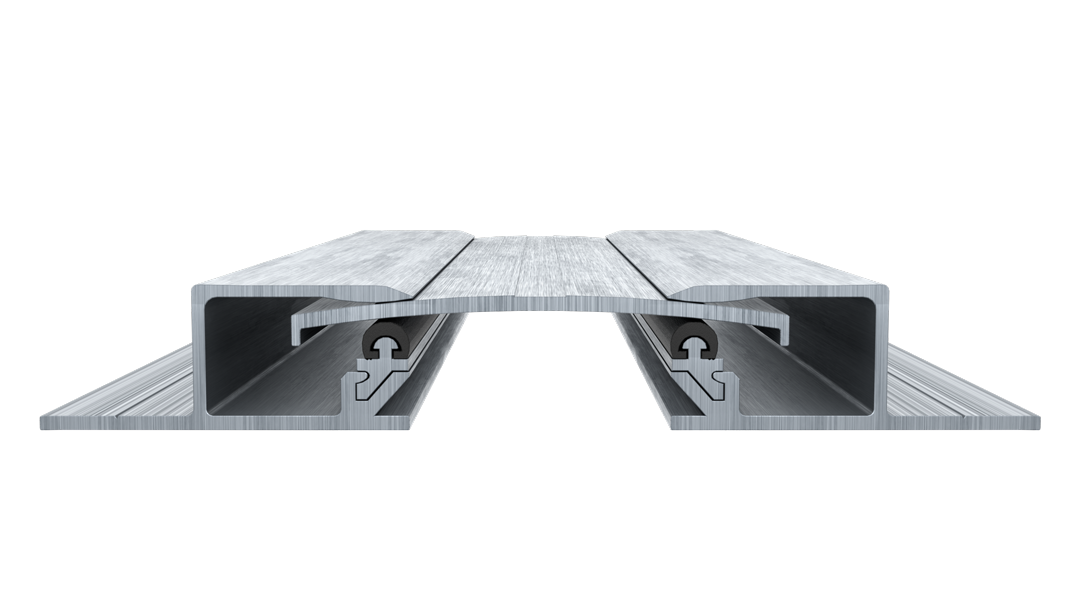

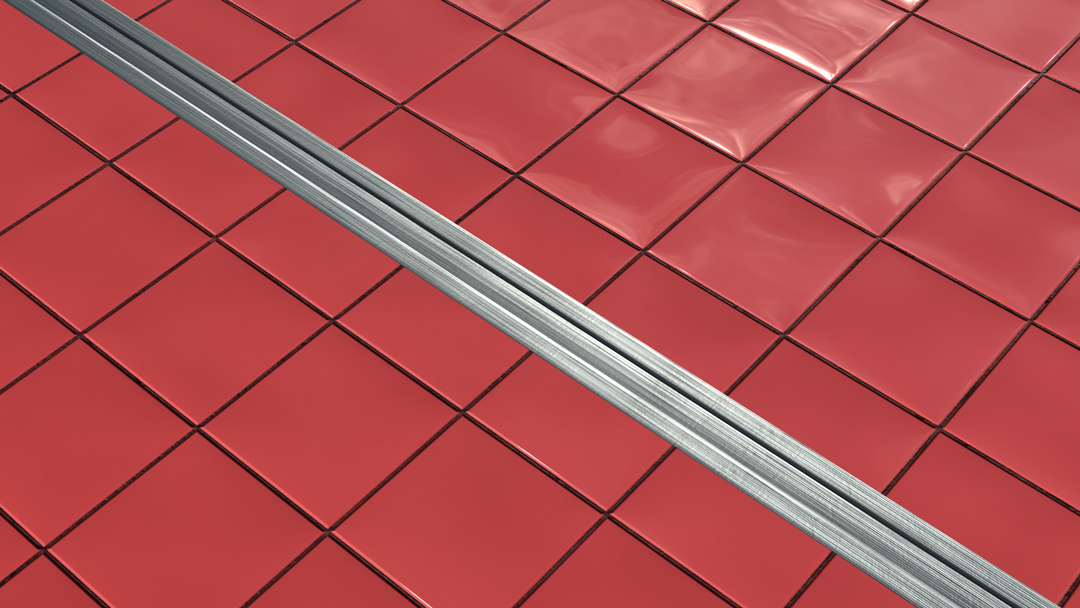

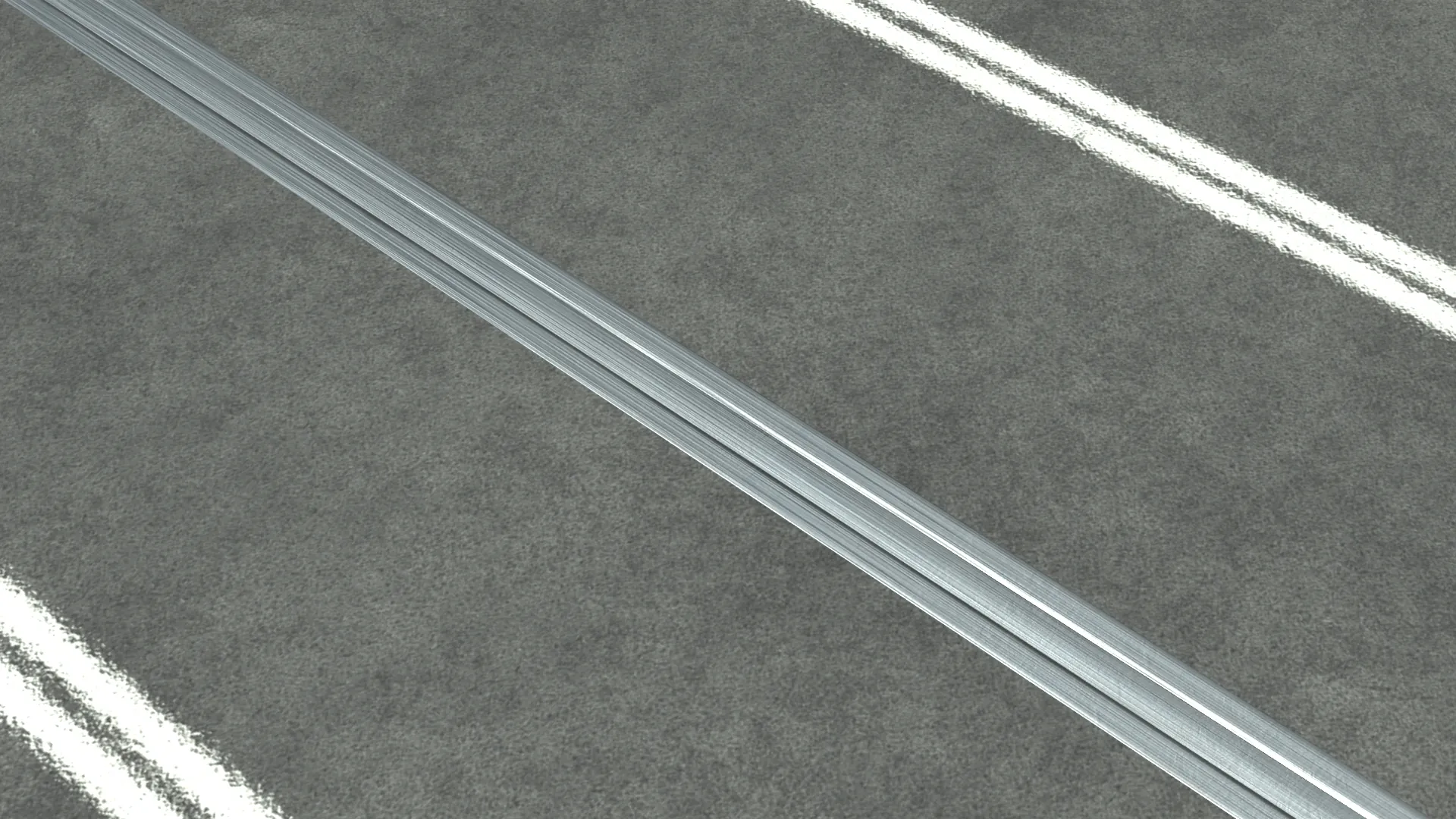

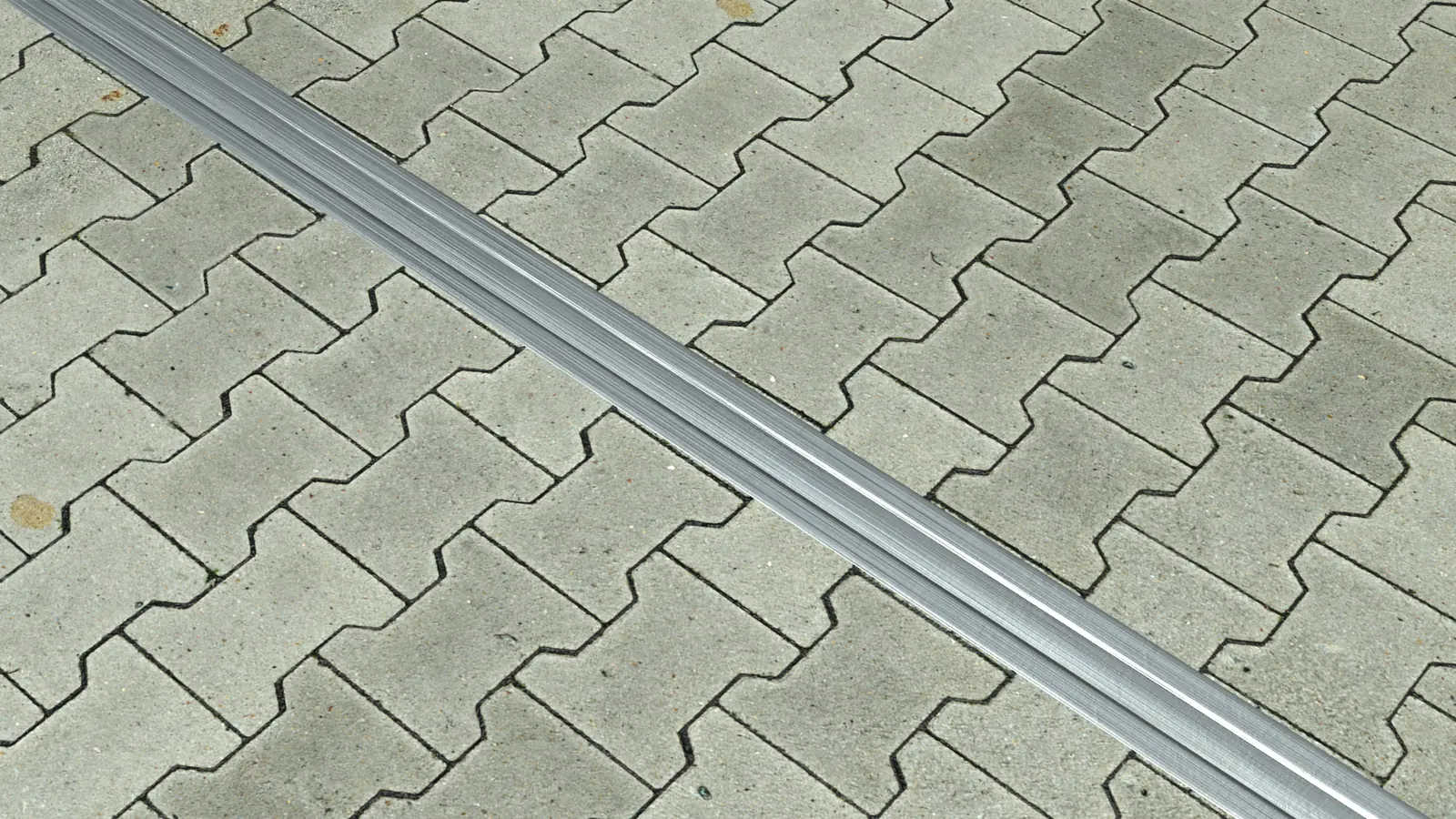

Aesthetic Choice
The system is designed to be visually unobtrusive while providing heavy-duty performance. The recessed support frames allow the joint to be integrated seamlessly with various floor materials such as marble, granite, ceramic tiles, or concrete. The central glide plate slides smoothly between side frames, maintaining a consistent, sleek appearance even as the building moves thermally or through settlement.
“No-Bump” Surface

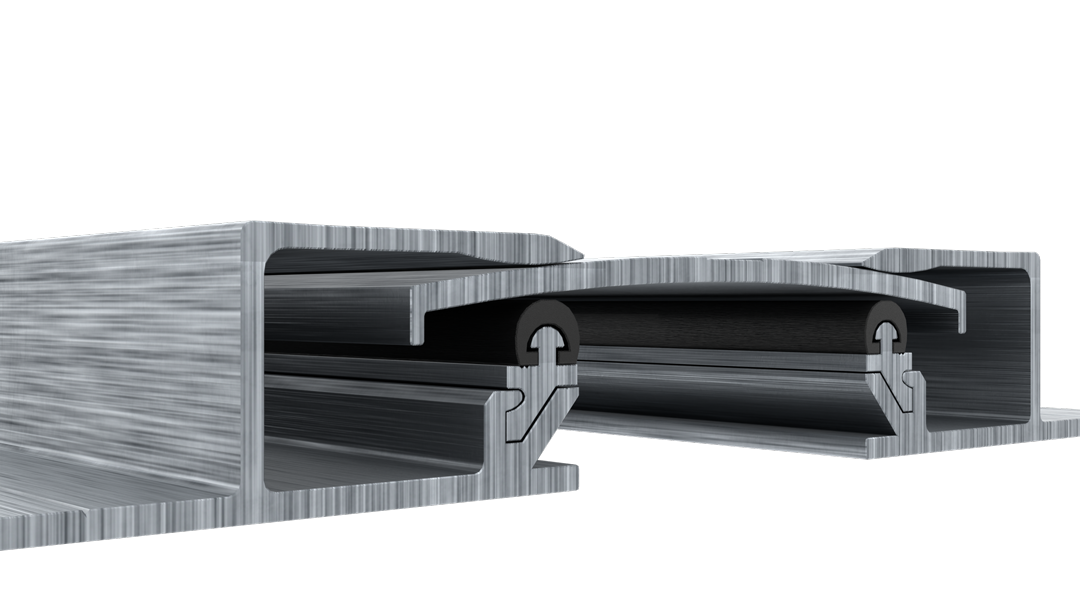

Noise Cancellation

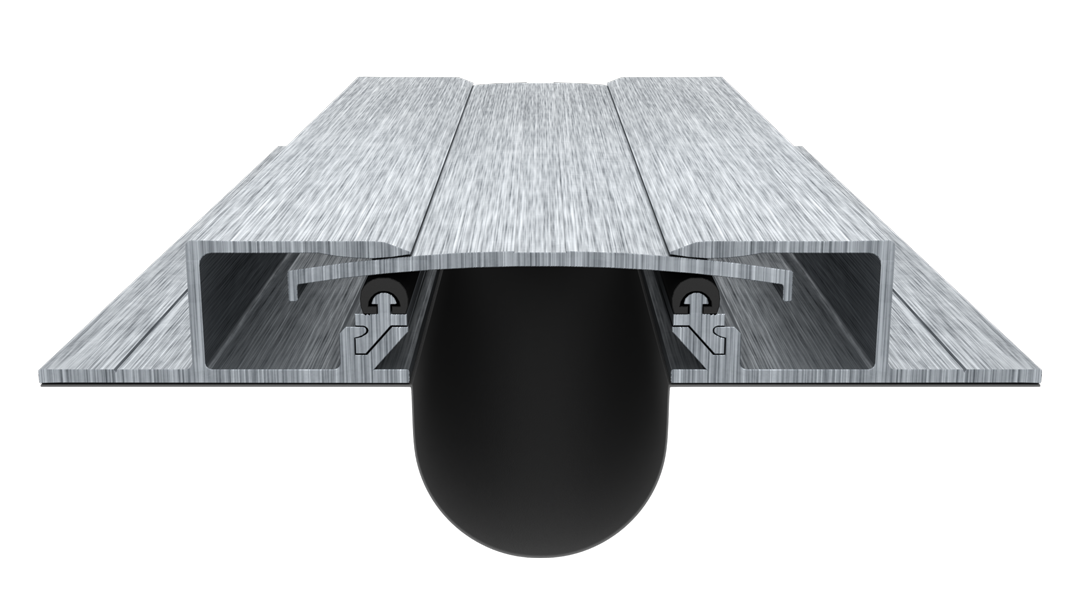

Tamper Resistance
Premium Aluminum for Architectural Materials

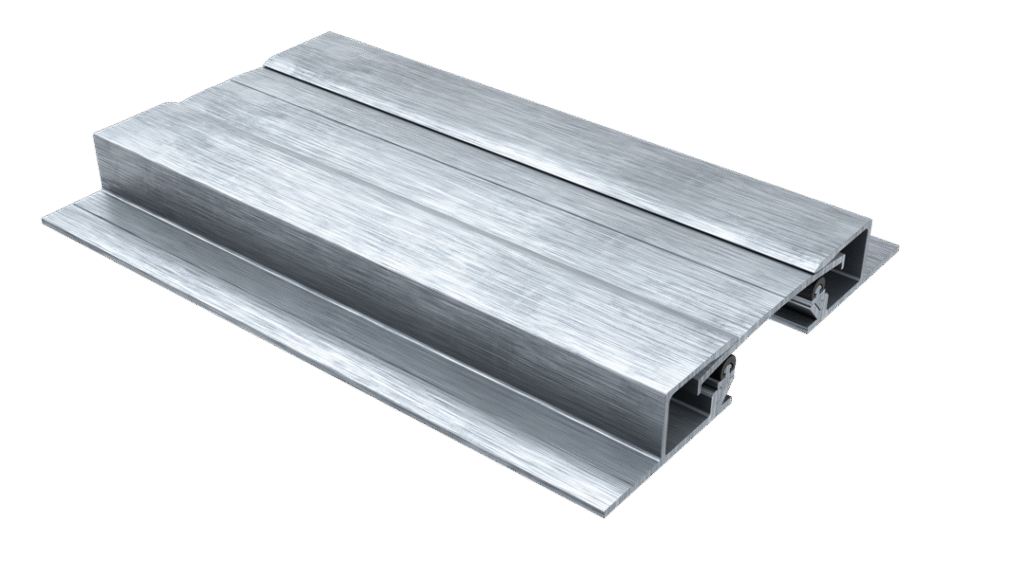

System Drawing
gap size calculator
enter your expansion gap measurement to see if this product is right for you.
profile specifications
| model name | joint width (mm) | height (mm) | sightline (mm) | movement capability (%) | load capacity |
|---|---|---|---|---|---|
| z-3000-50 | 50 | 29 | 135 | ±50% | 20 kN |
| z-3000-100 | 100 | 29 | 185 | -29/+50% | 10 kN |
| zk-3000-50 | 50 | 29 | 92 | ±30% | 20 kN |
| zk-3000-100 | 100 | 29 | 142 | ±15% | 10 kN |
datasheet specifications
| Series | ECOGLIDE FL Series (Z-3000 & ZK-3000) |
|---|---|
| System type | No Bump Glide Plate Seismic Floor System |
| Suitable movement | Thermal, Seismic, Settlement |
| Recommended for | Interior areas of low maintenance; Areas where seismic/multi-directional movement is expected |
| Components | Extruded Aluminum Support Frame; Extruded Aluminum Center Plate; Elastomeric Rubber Gasket |
| Material: Support Frames And Center Plate | Extruded aluminum, grade AA 6063 preferred |
| Material: Vapor Barrier (Optional) | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); black |
| Supply length | 3.00 m per piece (aluminum centre plate, cover frames and support frame) |
| Substrate tolerance | Surface level within ±2 mm; gap level within ±5 mm |
| Sizes | Per the system drawings; profiles can be customized to requirements |
Source: Z3000 technical datasheet. Sizes and dimensions: profile specifications above and the system drawings.
similar products to consider
premium- gap range
- 50 – 200mm
- movement
- ±50%
premium- gap range
- 38 – 188mm
- movement
- ±100%
economy- gap range
- 15 – 94mm
- movement
- ±25%
get a quote for z3000 ecoglide fl series
tell us your gap size, quantity, and finish preference — we'll respond with budgetary pricing within 2 hours.
