proroof series
r2003
proroof series
sku: r2003 · roof
best for: flat roofs, parapets, and rooftop applications requiring weatherproof expansion joint coverage.
Introducing the R-2003

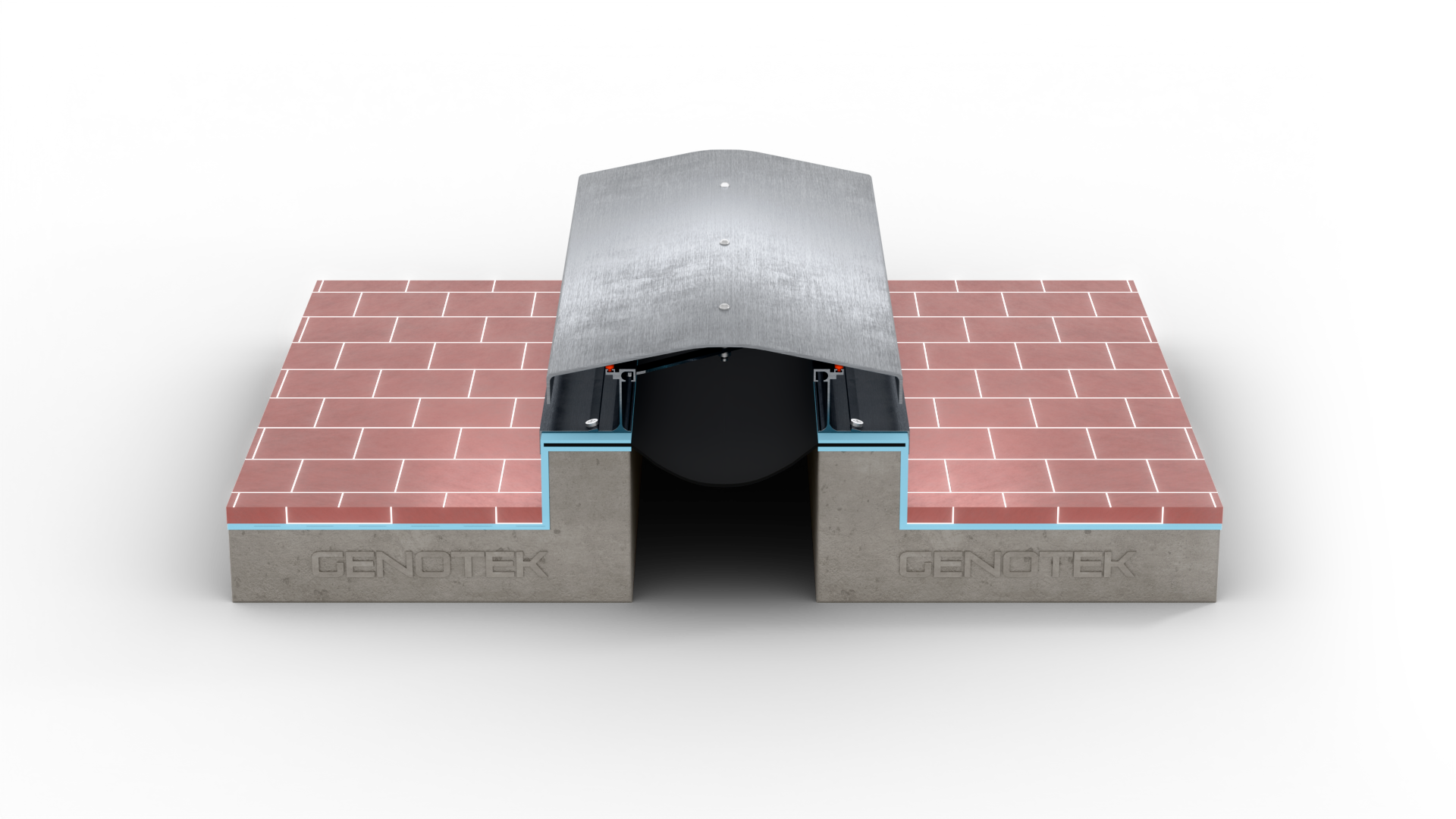

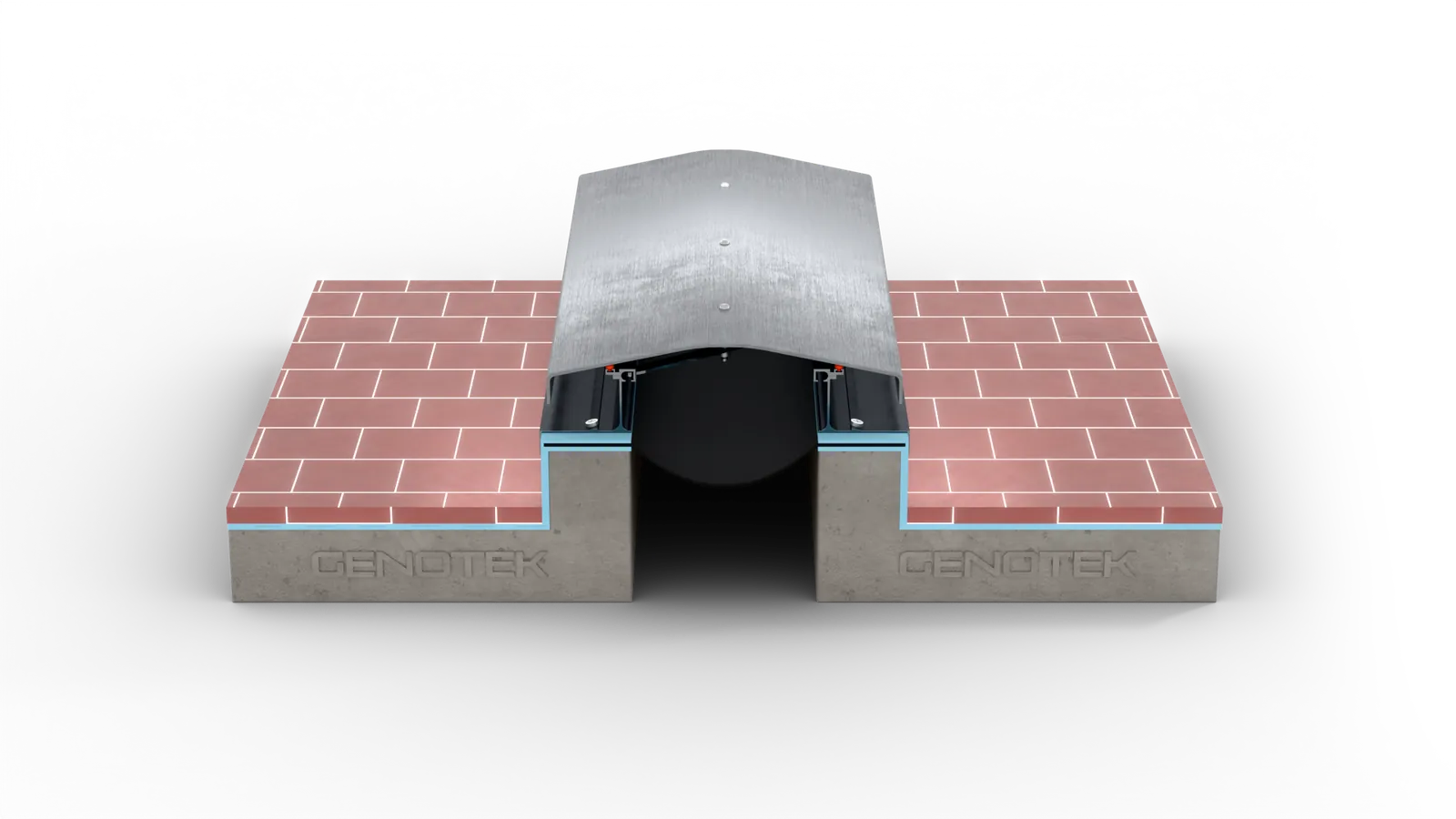

The PROROOF Series R-2003 is a center bar seismic roof expansion joint cover for flat roofs, parapets and roof-to-wall conditions with joints from 50 mm to 250 mm. Continuous recessed aluminum frames carry an aluminum cover plate that steel centering bars, at 500 mm on center, hold centered over the joint. A continuous water barrier laps into the roof waterproofing, and the cover is 40 mm high in every size. The RK-2003 variant closes the joint against a parapet or wall.
movement
01 — movement
movement
the r2003 takes up thermal and structural movement (the movement for each size is in the profile specifications below) while the cover stays seated on both sides of the joint.
water barrier
02 — water barrier
water protection
the r-2003 has a continuous water barrier that laps into the roof waterproofing on both sides of the joint, without punctures, forming the primary watertight line. the cover plate and epdm inserts above it form the secondary line, so the roof stays dry as the joint moves.
assembly
03 — assembly
assembly in action
this video demonstrates the assembly process, perfectly designed for easy installation for durability and reliability.

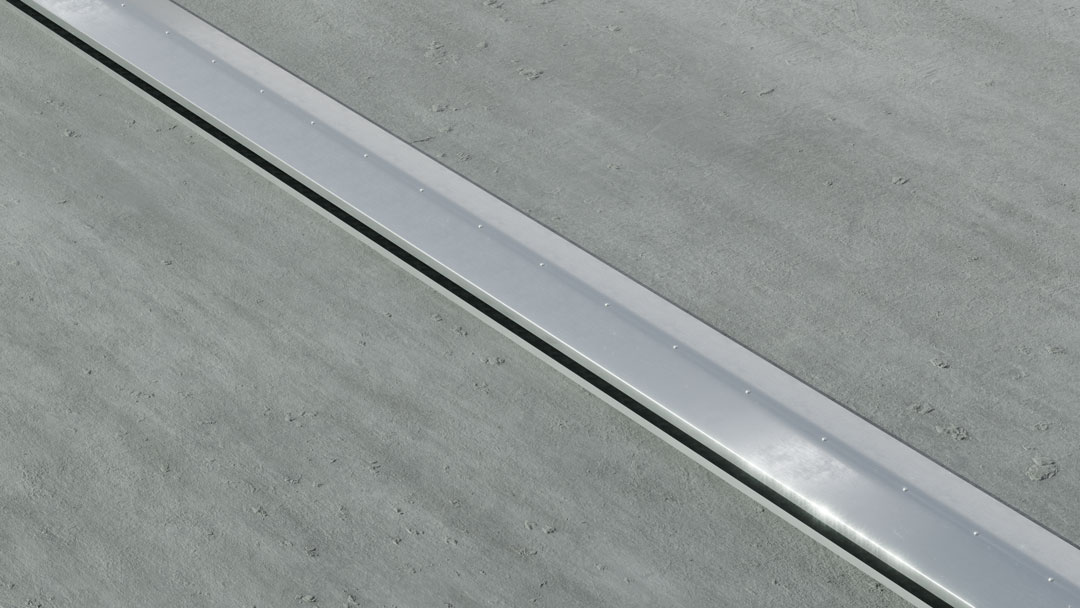

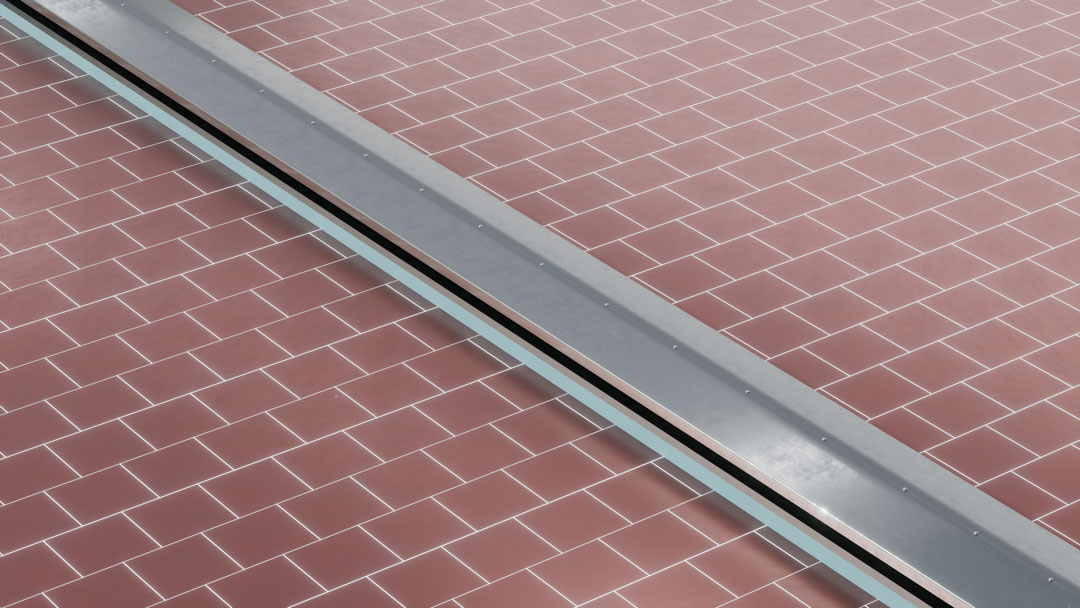

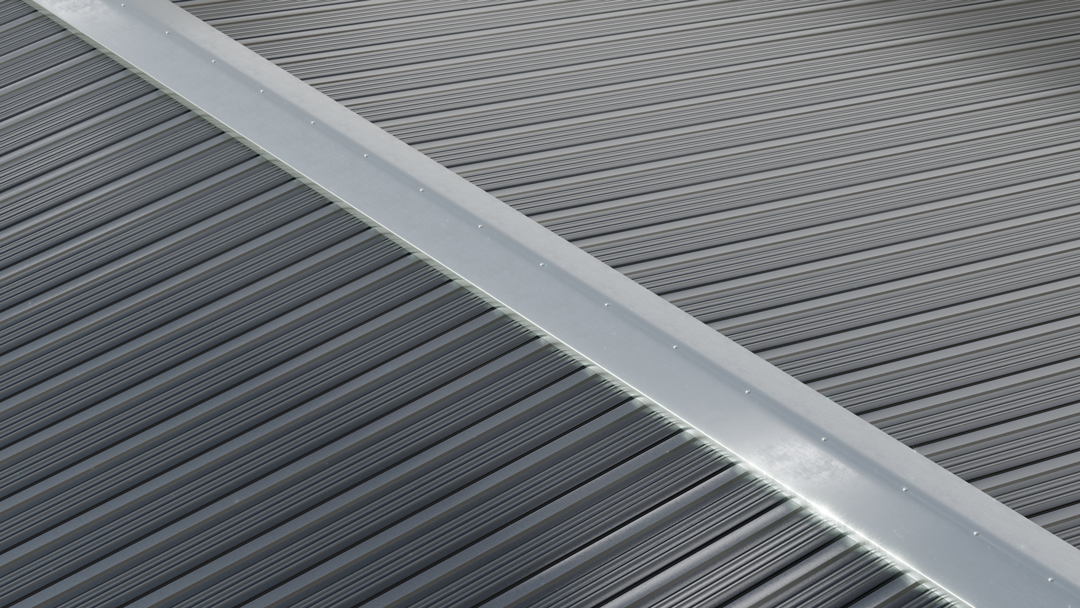

Aesthetic Choice

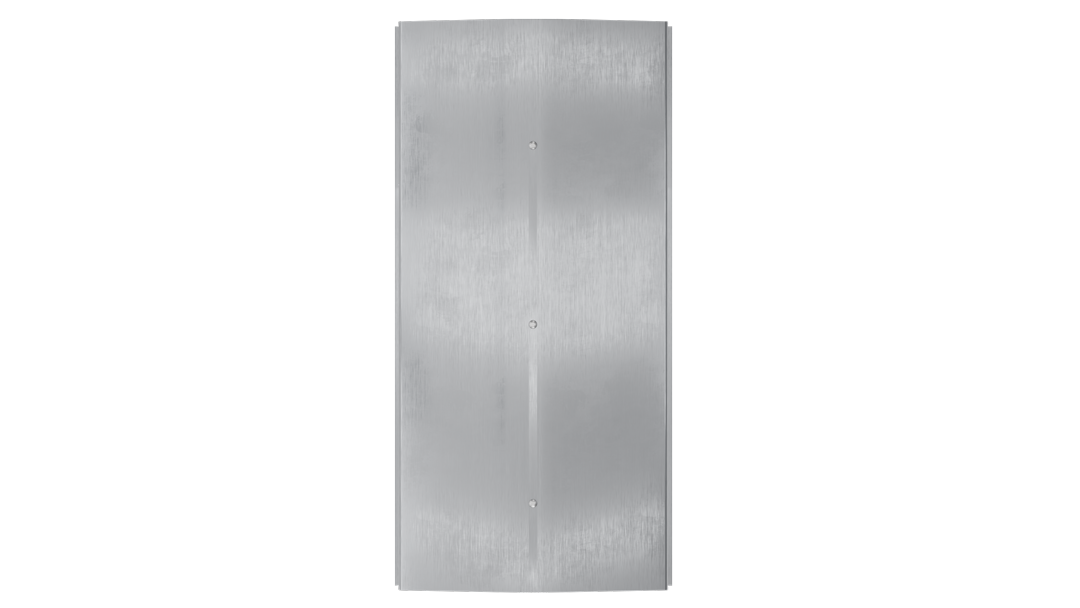

The R-2003 cover plate is aluminum, 2 mm thick (3 mm where scheduled), in mill finish as standard with clear anodizing optional. Sitting in recessed frames across joints of 50 to 250 mm, the 40 mm high cover gives roof joints a clean, continuous metal line.

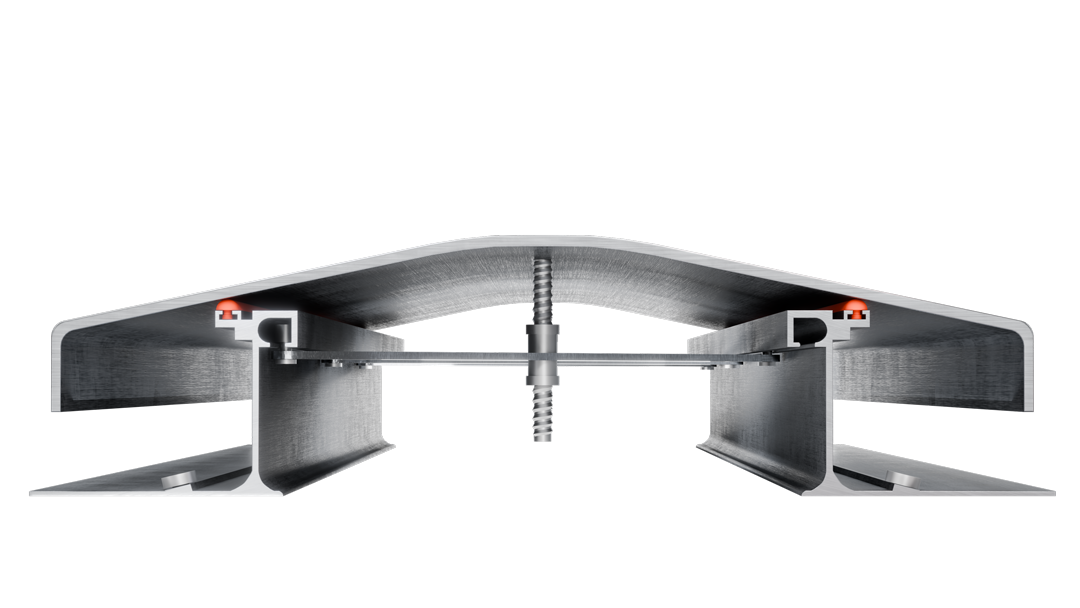

Integrated Puncture-Free Water Barrier
A unique, puncture-free water barrier is integrated into the profile, ensuring watertight integrity while simplifying installation. The barrier is constructed from durable EPDM or TPV, with high tensile and puncture resistance, securing water protection over the system’s lifespan.
Optional Vapor Barrier
For added protection, an optional vapor barrier is available, constructed from either EPDM or TPV, which offers high tensile and tear resistance, ensuring long-term performance against moisture penetration

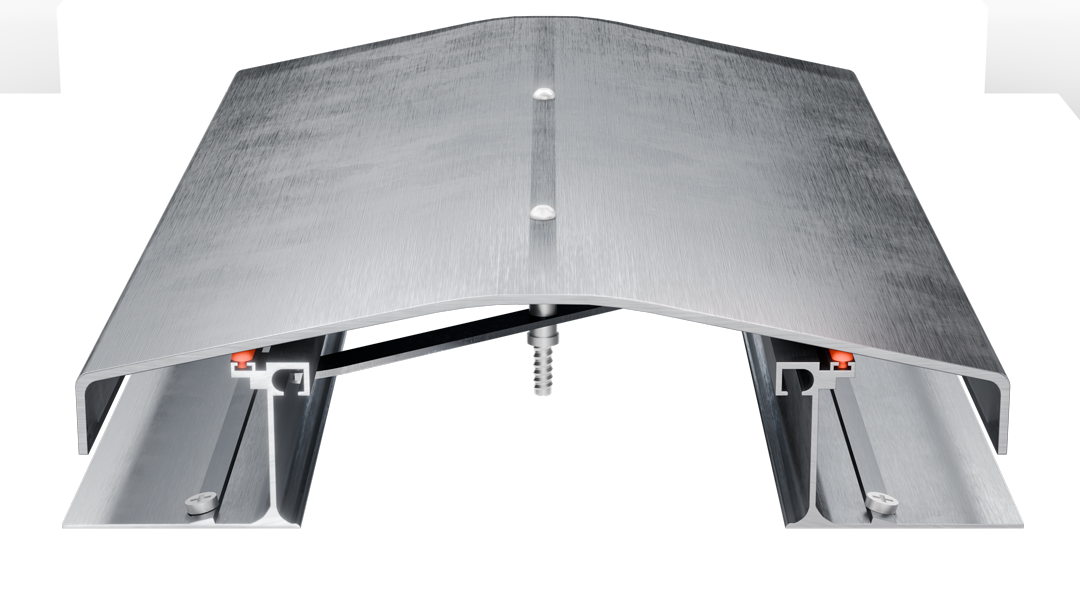

Recessed Frames and Cover Plate
Continuous recessed aluminum frames are anchored on each side of the joint, and the aluminum cover plate spans between them at a 40 mm profile height in every size. The RK-2003 variant uses the same frames, cover plate and water barrier to close the joint against a parapet or wall.
Galvanized Steel Turn-bar for Structural Stability
The turn-bar component reinforces stability, enabling the system to accommodate multi-directional movement while keeping the cover aligned and stable.
Noise Reduction

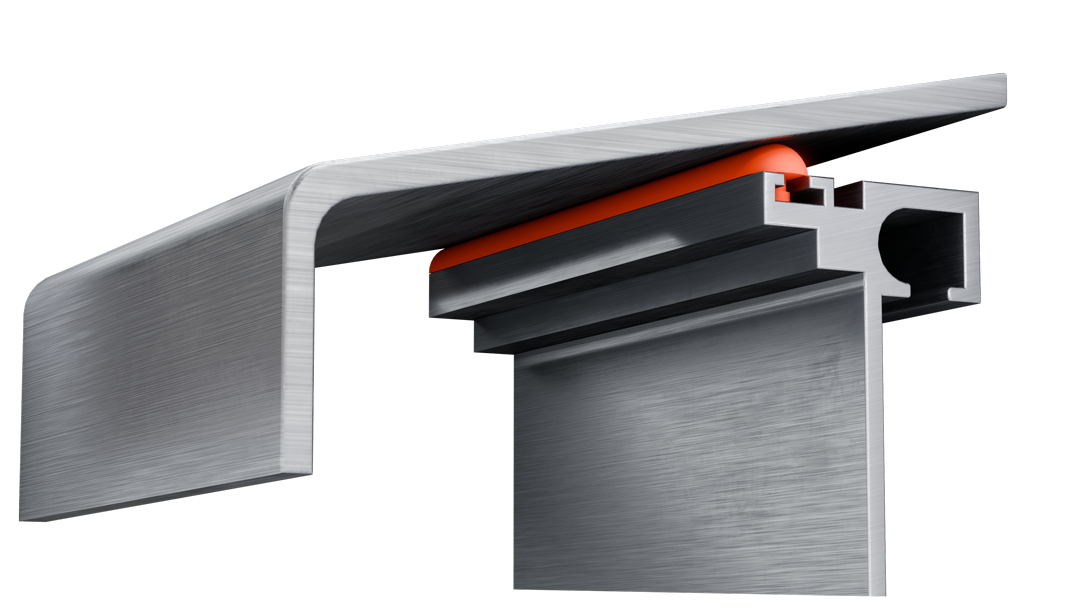

Integrated elastomeric rubber gaskets between the aluminum profiles to cancel out metal-to-metal noise, enhancing acoustic comfort. This feature minimizes noise when subjected to movement, delivering a quiet and efficient joint cover solution for various applications
System Drawing
The R-2003 roof expansion joint cover drawings cover 50, 100, 120, 150, 200, 220 and 250 mm joints, all 40 mm high, for roof-to-roof conditions, plus the 250 mm roof-to-wall size. Each can be downloaded as DWG and PDF.
interactive tool
gap size calculator
enter your expansion gap measurement to see if this product is right for you.
20mm ≈ credit card
50mm ≈ two fingers
100mm ≈ fist width
200mm ≈ hand span
mm
r2003 covers gap sizes from 25mm to 375mm. enter your measurement above to see the movement capacity, profile width, and whether this product handles your requirements.
technical data
profile specifications
| model name | joint width (mm) | height (mm) | sightline (mm) | movement capability (%) | load capacity |
|---|---|---|---|---|---|
| r-2003-50 (s:146) | 50 | 40 | 146 | ±50% | — |
| r-2003-50 (s:370) | 50 | 40 | 370 | ±50% | — |
| r-2003-100 | 100 | 40 | 305 | ±50% | — |
| r-2003-120 | 120 | 40 | 485 | ±50% | — |
| r-2003-150 | 150 | 40 | 370 | ±50% | — |
| r-2003-200 | 200 | 40 | 430 | ±50% | — |
| r-2003-220 | 220 | 40 | 440 | ±50% | — |
| r-2003-250 | 250 | 40 | 480 | ±50% | — |
| rk-2003-250 | 250 | 40 | 416 | ±50% (250 mm) | — |
from the technical datasheet
datasheet specifications
| Series | PROROOF Series (R-2003 & RK-2003) |
|---|---|
| System type | Roof Expansion Joint Cover System |
| Suitable movement | Seismic, Thermal, Settlement |
| Recommended for | Roof areas where less foot traffic is expected; Transitionary areas where exterior Wall Joint Covers are used |
| Components | Aluminum Cover Plate; Aluminum Support Frames; Elastomeric Rubber Water Barrier; Steel Turnbar; Elastomeric Rubber Gasket |
| Material: Support Frames & Cover Plate | Extruded aluminum, grade AA 6063 preferred |
| Material: Turnbar | Galvanized Steel; finish: “A” Coating (Corrosion Protection) |
| Material: Vapor Barrier (Optional) | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); black |
| Supply length | 3.00 m per piece (support profile and cover plate) |
| Substrate tolerance | Surface level within ±2 mm; gap level within ±5 mm |
| Sizes | Per the system drawings; profiles can be customized to requirements |
Source: R2003 technical datasheet. Sizes and dimensions: profile specifications above and the system drawings.
alternatives
similar products to consider

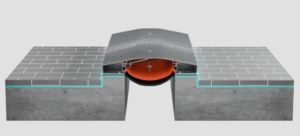

premiumr2001
proroof series
roof areas with less foot traffic and transitions to exterior wall joint covers, where seismic or multi-directional movement must be accommodated.
- gap range
- 38 – 188mm
- movement
- ±100%

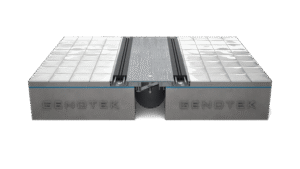

premiumz2002
luxflange series
interior floors with thin screeds and 50-200 mm joints: offices, education, healthcare, retail and residential buildings.
- gap range
- 25 – 200mm
- movement
- ±25%

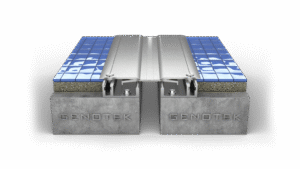

premiumz3100
