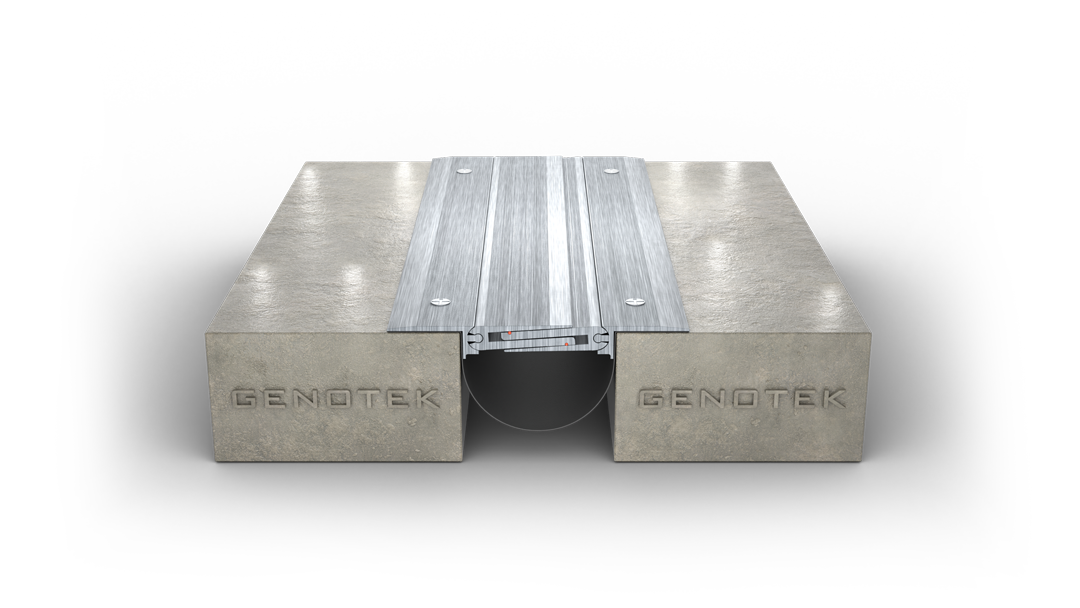

Introducing the OF-1670

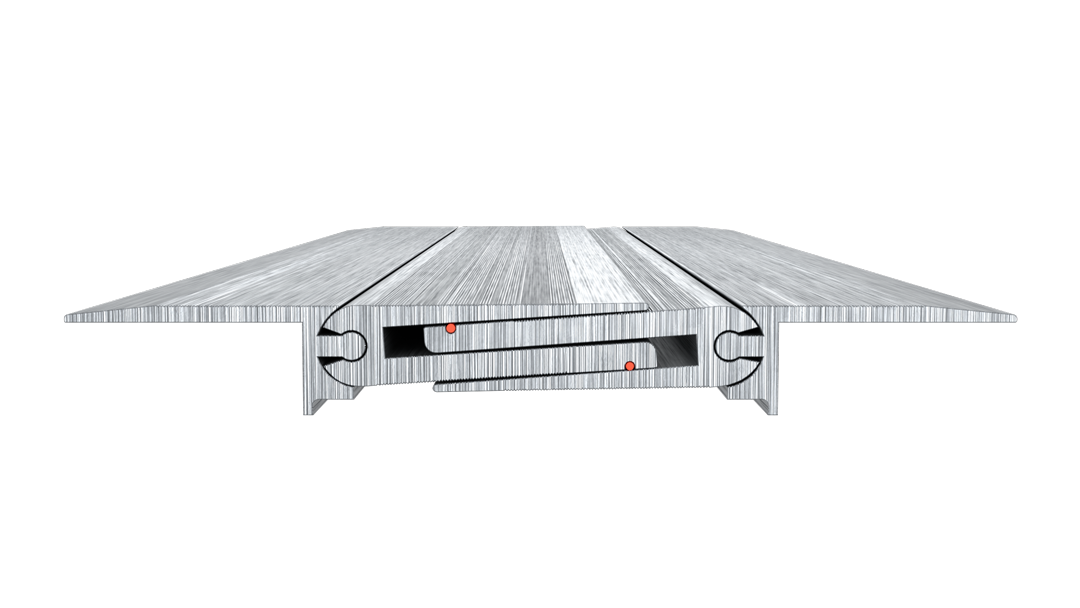

three-directional movement
the aluminum profiles move between the surface-mount support plates to take thermal movement, minimal seismic movement and some vertical deflection, while rubber gaskets between them stop metal-to-metal noise.
water protection
the optional water barrier below the of-1670 carries water away along the joint, so the structure below stays dry as the joint moves.
load bearing
built for heavy loads and slow-moving vehicles in warehouses and parking garages, the of-1670 is rated 35 kn in the system drawings.
assembly in action
this video demonstrates the assembly process, perfectly designed for easy installation for durability and reliability.

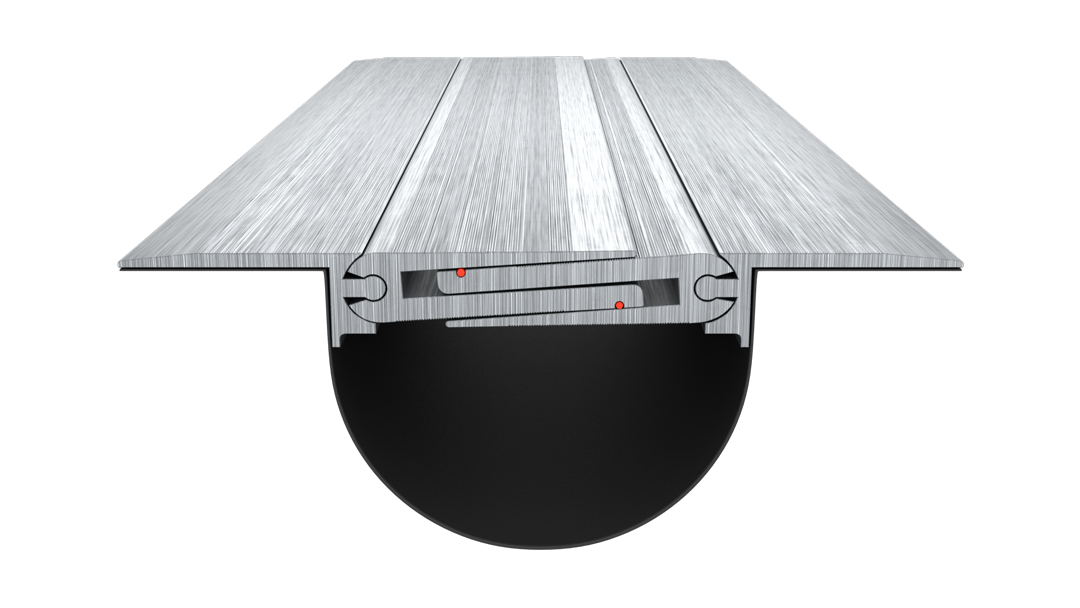

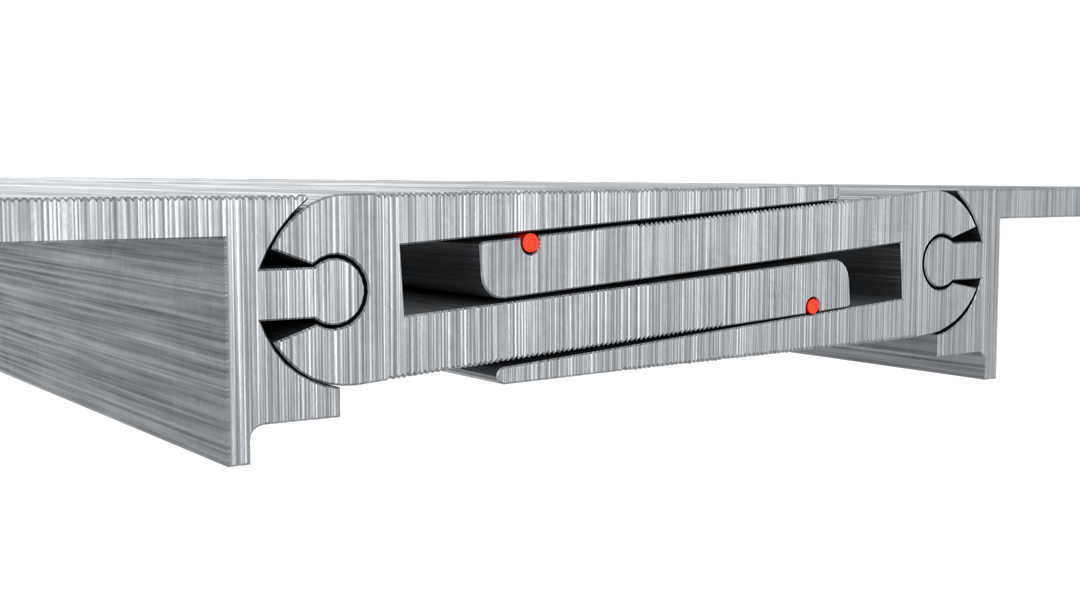

Aesthetic Choice

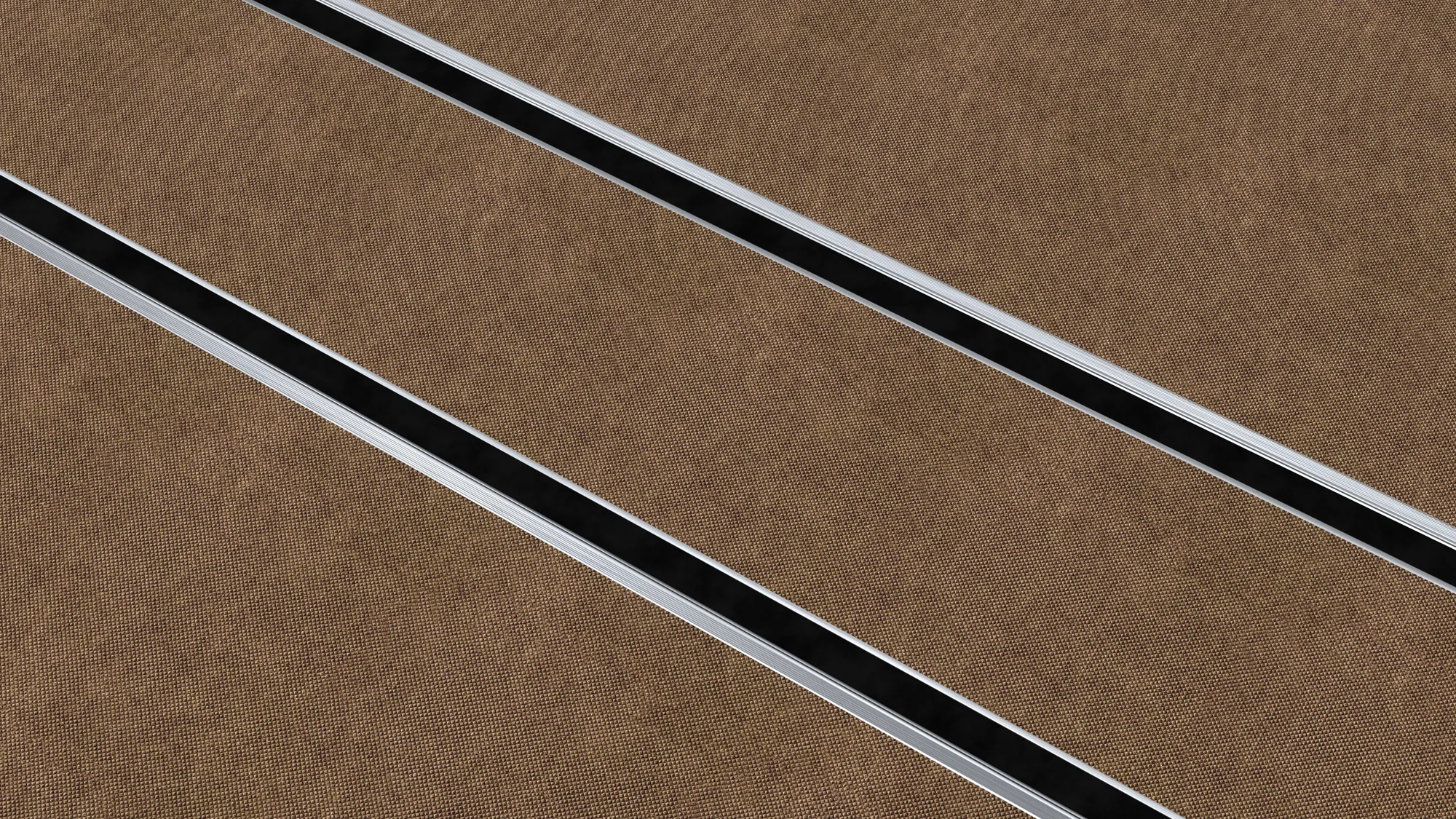

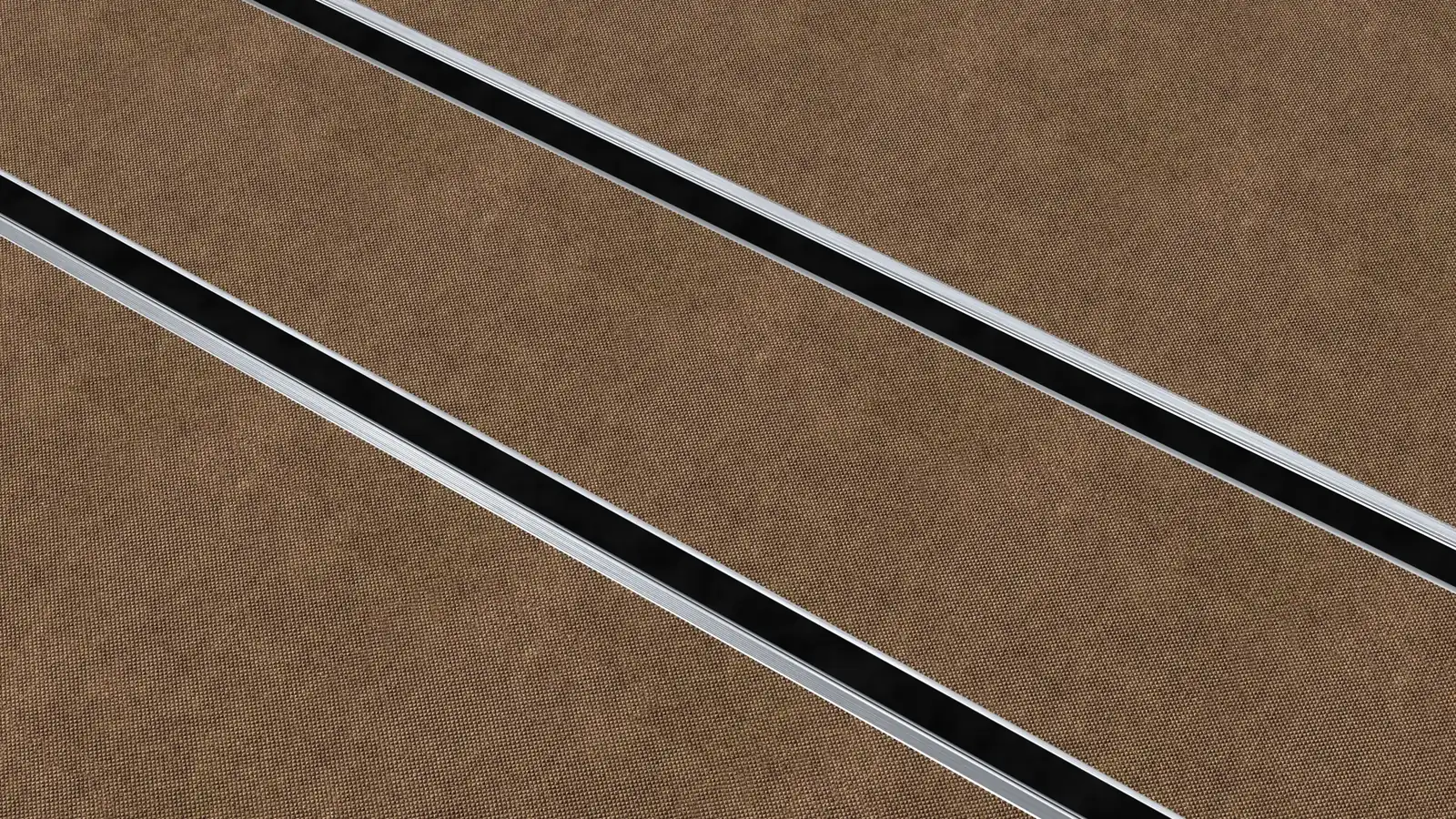

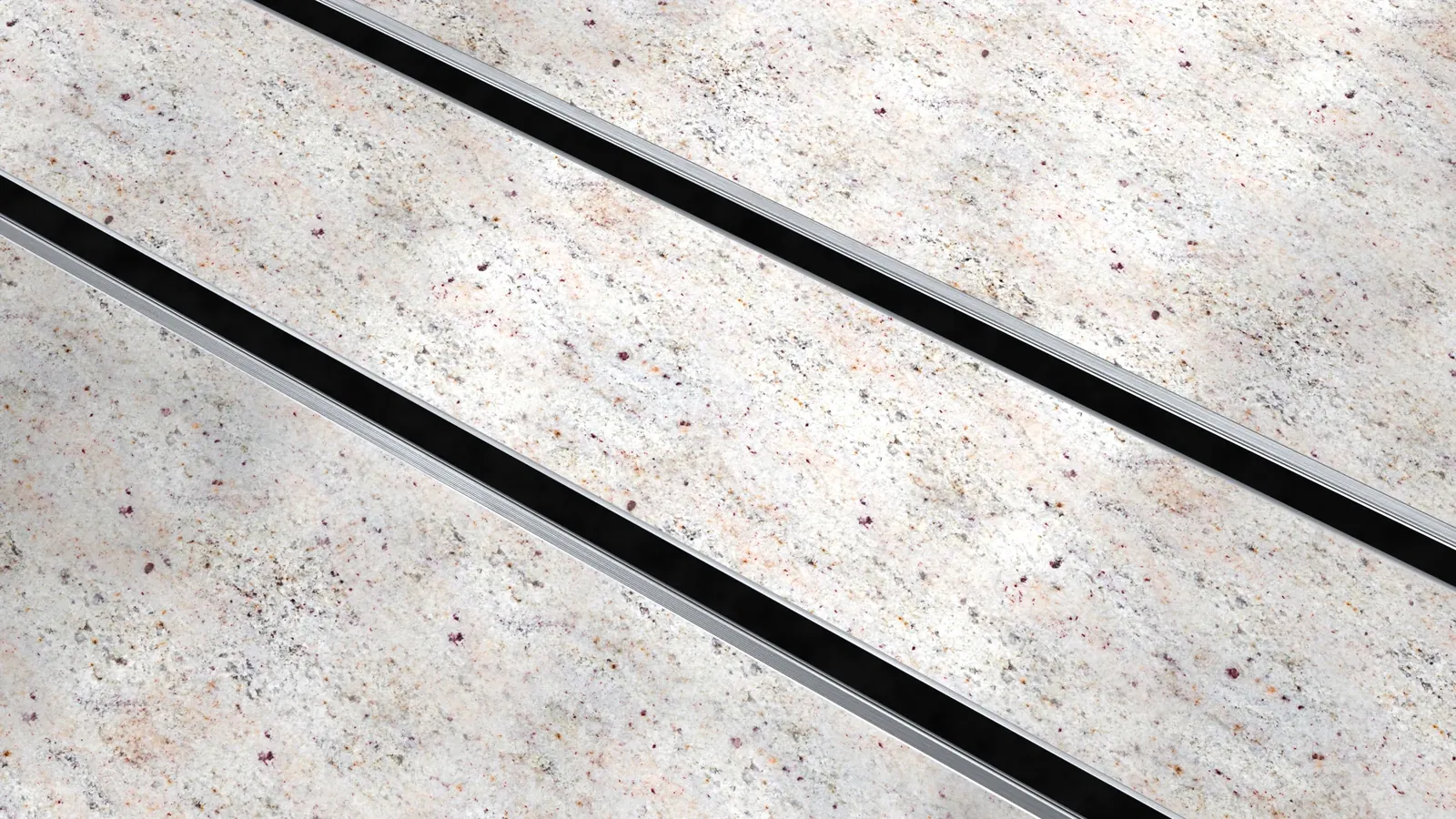

The surface-mount aluminum profile sits over the finished floor with a clean, continuous line, and the EPDM insert keeps liquids and dirt out of the joint.
Optional Vapor Barrier

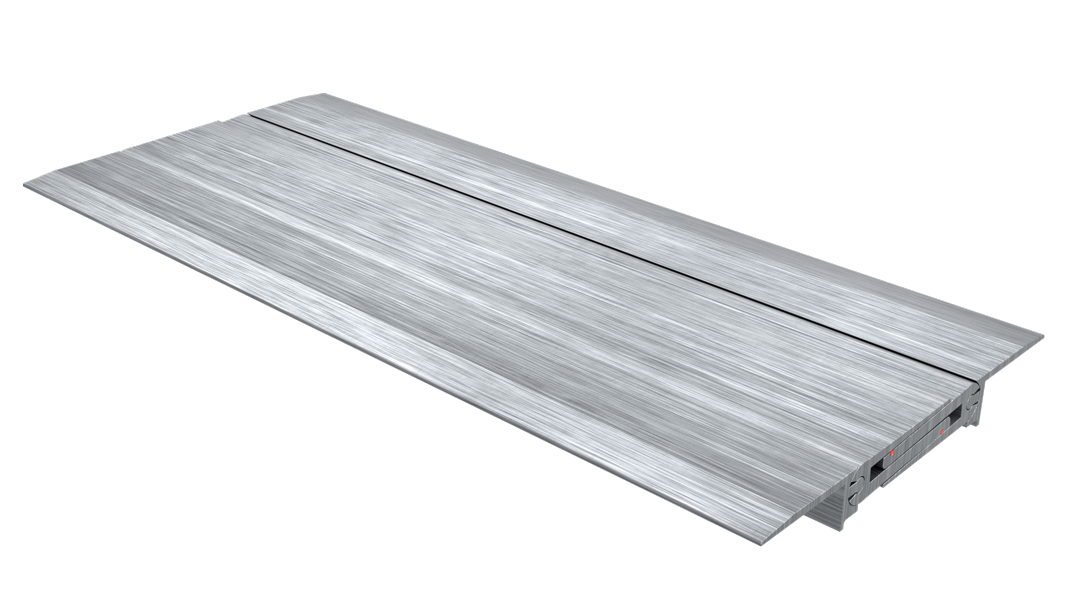

Noise Reduction

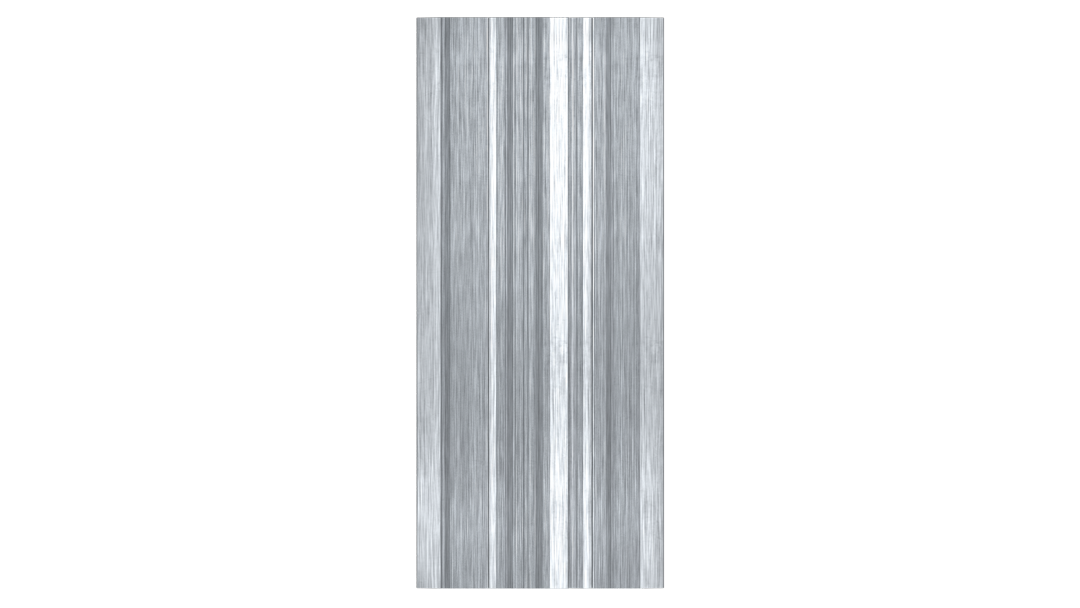

Premium Aluminum for Architectural Materials
System Drawing
gap size calculator
enter your expansion gap measurement to see if this product is right for you.
profile specifications
| model name | joint width (mm) | height (mm) | sightline (mm) | movement capability (%) | load capacity |
|---|---|---|---|---|---|
| of-1670-150 | 150 | 35 | 300 | ±25% | 35 kN |
| ofk-1670-150 | 150 | 35 | 225 | ±25% | 35 kN |
datasheet specifications
| Series | LUXMATE SM Series (OF-1670 & OFK-1670) |
|---|---|
| System type | Heavy-Duty Surface-Mounted Modular Floor System |
| Mounting | Surface-mounted |
| Suitable movement | Seismic, Thermal, Settlement |
| Recommended for | Areas with heavy duty vehicular traffic; Warehouses & parking garages |
| Components | Extruded Aluminum Support Profiles; Extruded Aluminum Interlocking Profiles which accommodate the expansion and contraction in the adjacent concrete slabs; Elastomeric Rubber Gaskets |
| Material: Support Profiles & Interlocking Profiles | Extruded aluminum, grade AA 6063 preferred |
| Material: Vapor Barrier (Optional) | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); black |
| Supply length | 3.00 m per piece (support profiles and interlocking profiles) |
| Substrate tolerance | Surface level within ±2 mm; gap level within ±5 mm |
| Sizes | Per the system drawings; profiles can be customized to requirements |
Source: OF1670 technical datasheet. Sizes and dimensions: profile specifications above and the system drawings.
