of1685
supermate sm series

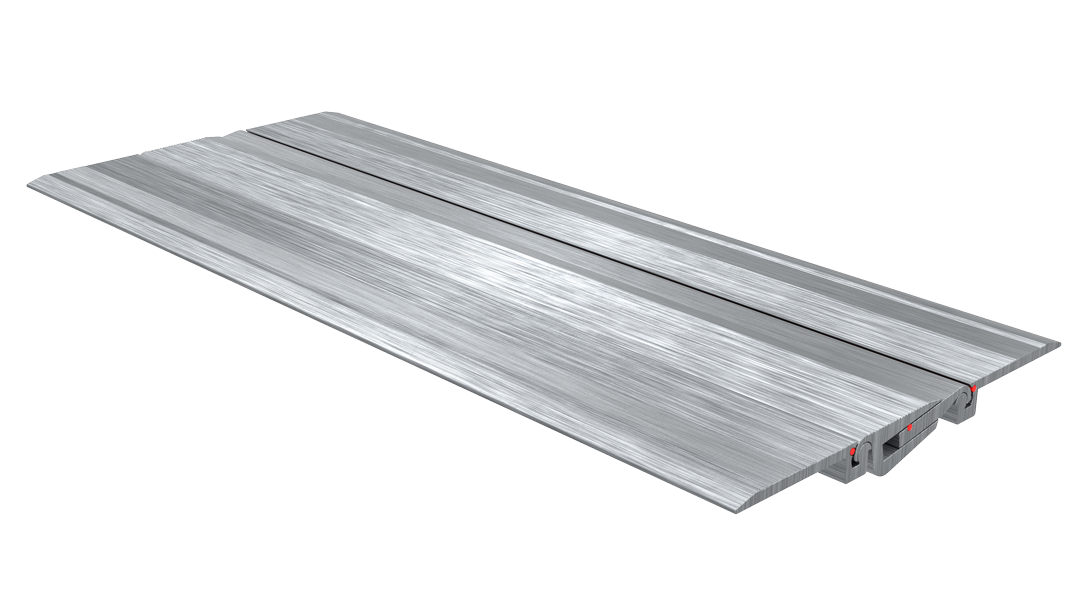

Introducing the OF-1685

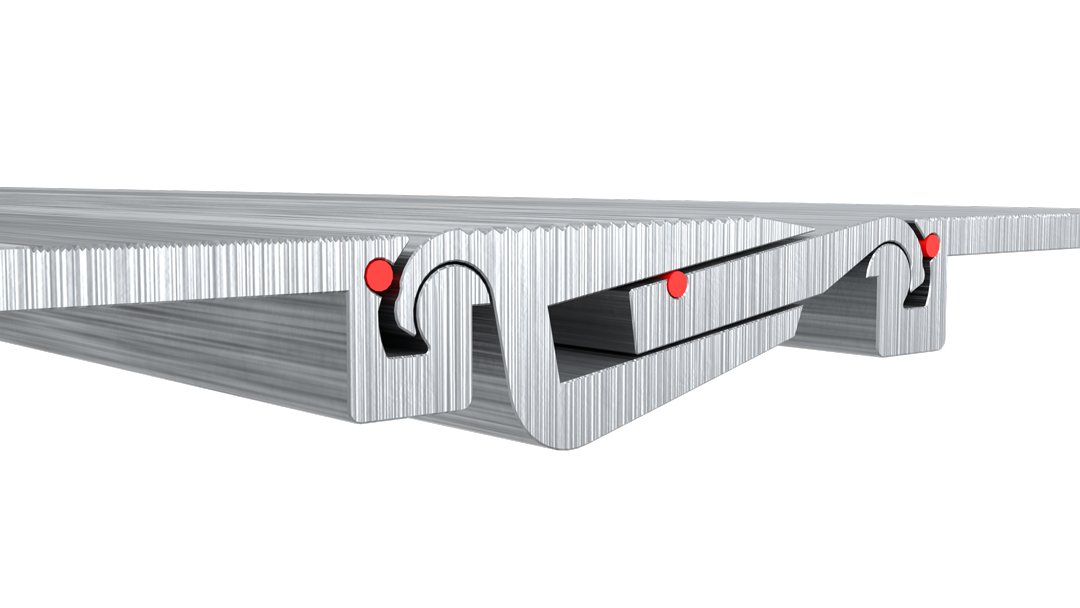

thermal movement accommodation
the interlocking aluminum profiles take horizontal thermal movement and settlement of ±25% of the joint width, plus some vertical movement, and neither profile can lift under wheel load.
water protection
the optional water barrier below the of-1685 carries water away along the joint, so the structure below stays dry as the joint moves.
load bearing
rated 35 kn in the system drawings for heavy pedestrian and vehicular traffic, the of-1685 suits heavy loads and slow-moving vehicles in warehouses and parking garages.
assembly in action
this video demonstrates the assembly process, perfectly designed for easy installation for durability and reliability.

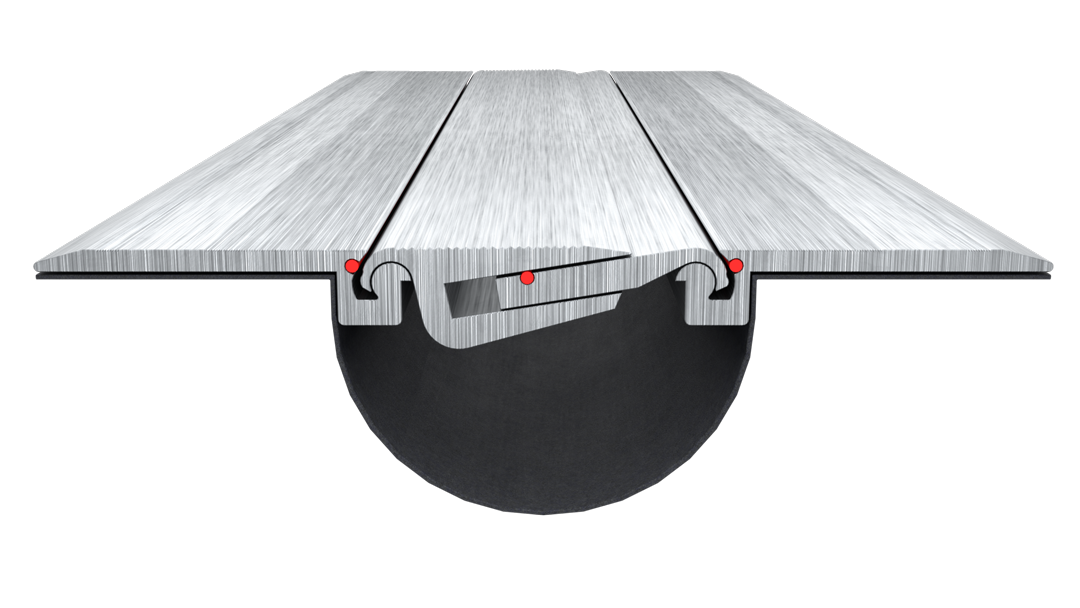

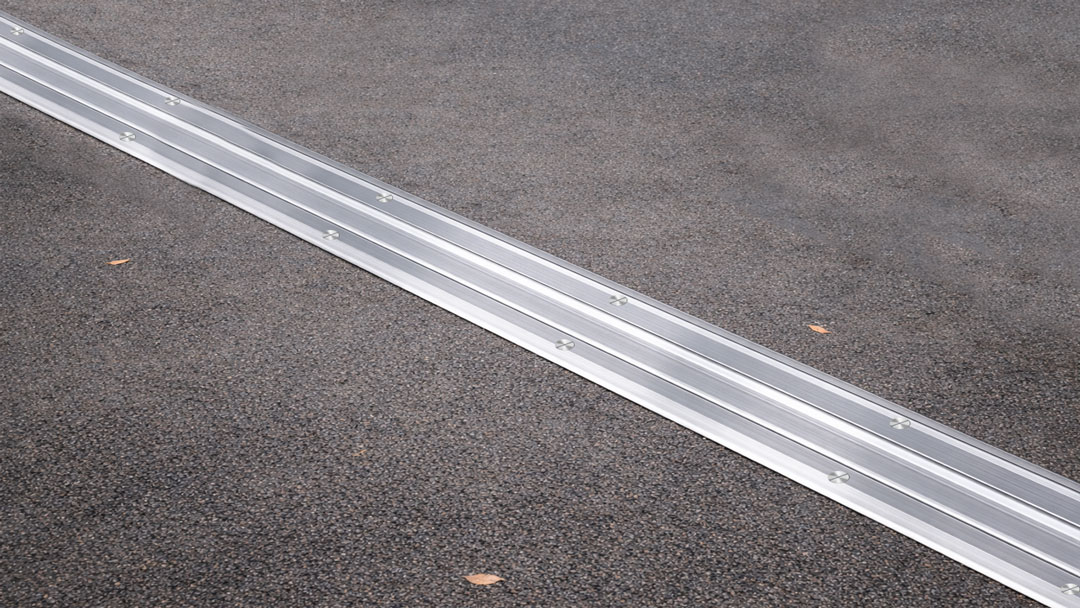

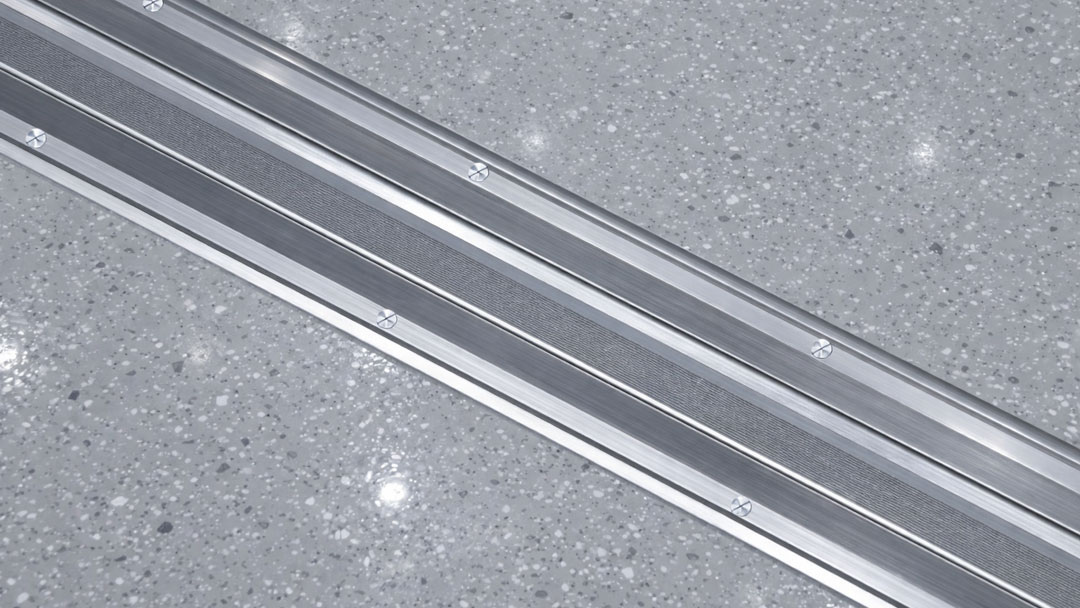

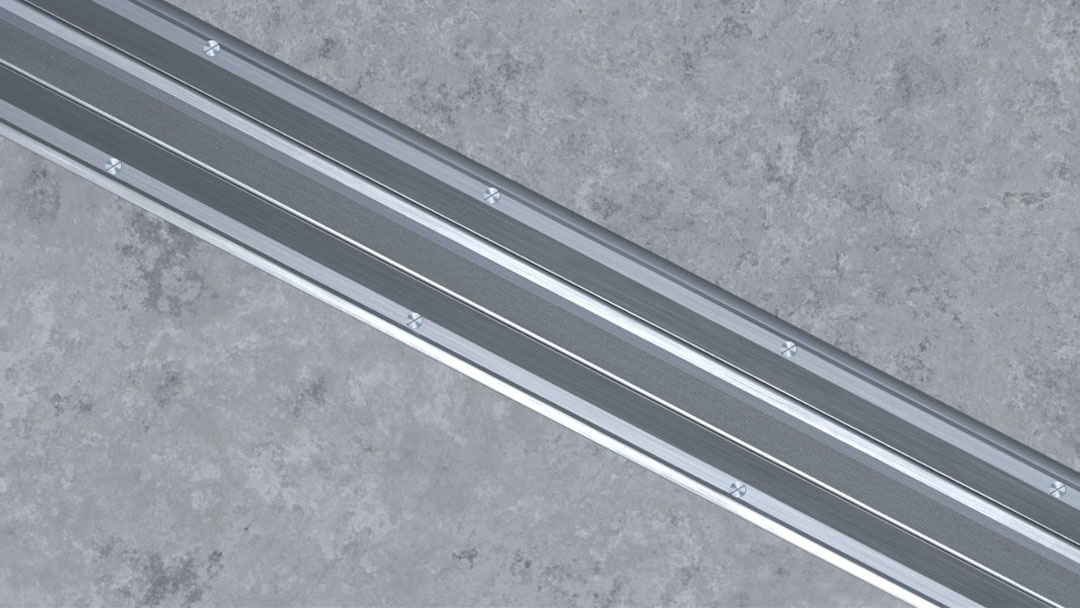

Aesthetic Choice

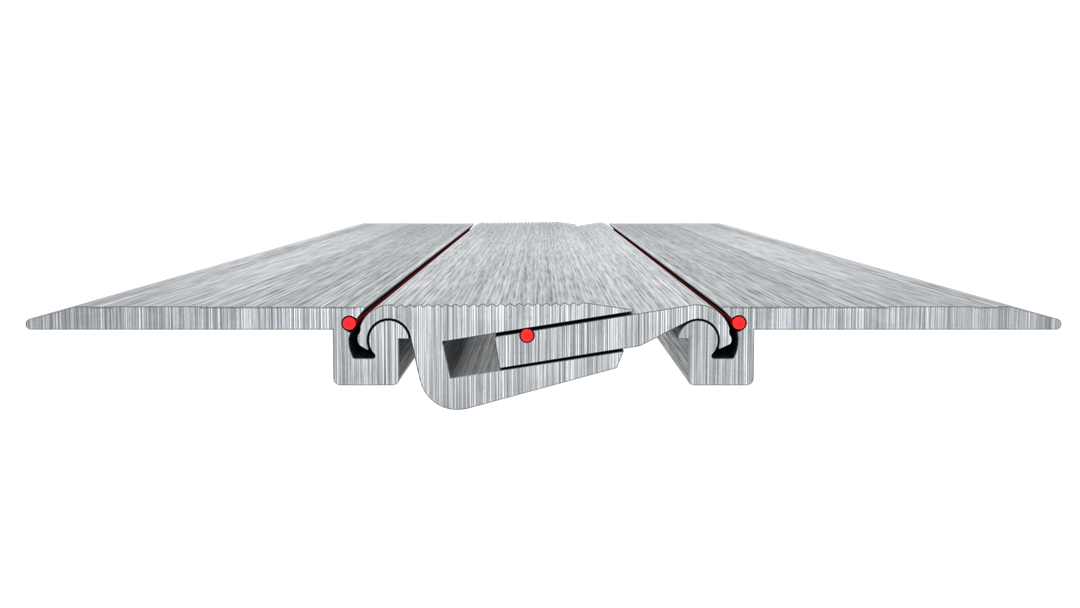

The low 19 mm interlocking profile sits over the finished floor with a neat metal line, and rubber gaskets between the plates cancel metal-to-metal noise and keep liquids out.
Optional Vapor Barrier

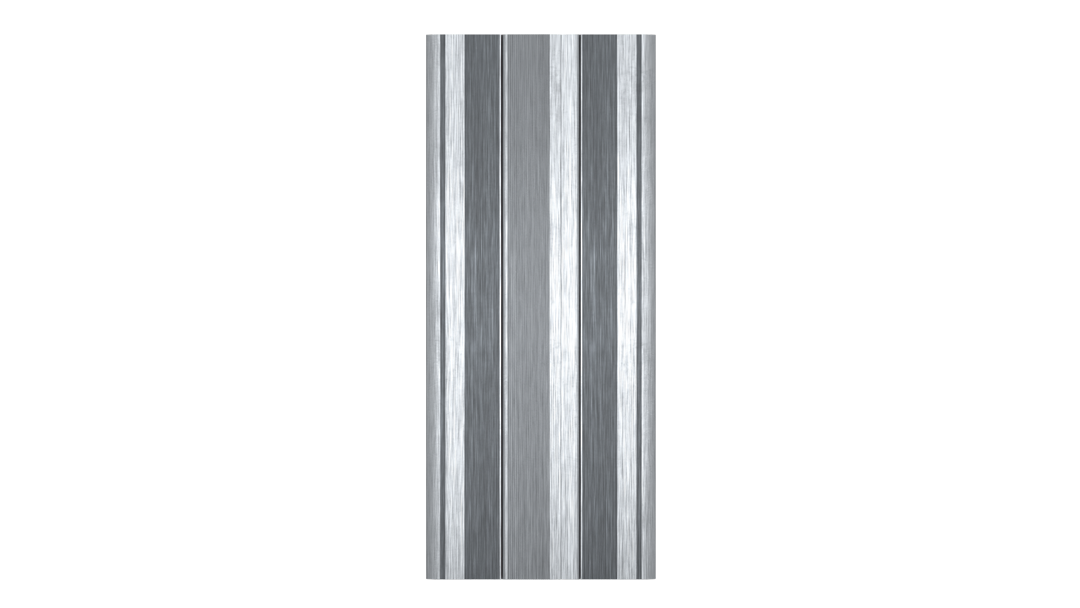

Premium Aluminum for Architectural Materials
System Drawing
gap size calculator
enter your expansion gap measurement to see if this product is right for you.
profile specifications
| model name | joint width (mm) | height (mm) | sightline (mm) | movement capability (%) | load capacity |
|---|---|---|---|---|---|
| of-1685-100 | 100 | 19 | 240 | ±25% | 35 kN |
datasheet specifications
| Series | SUPERMATE SM Series (OF-1685 & OFK-1685) |
|---|---|
| System type | Heavy-Duty Surface-Mounted Modular Floor System |
| Mounting | Surface-mounted |
| Suitable movement | Thermal, Settlement |
| Load capacity | Heavy Pedestrian Traffic; Heavy Vehicular Traffic |
| Recommended for | Areas undergoing heavy loads and slow moving vehicular traffic; Warehouses & parking garages |
| Components | Extruded Aluminum Support Profiles; Extruded Aluminum Interlocking Profiles which accommodate the expansion and contraction in the adjacent concrete slabs |
| Material: Support Profiles & Interlocking Profiles | Extruded aluminum, grade AA 6063 preferred |
| Material: Vapor Barrier (Optional) | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); black |
| Supply length | 3.00 m per piece (support profiles and interlocking profiles) |
| Substrate tolerance | Surface level within ±2 mm; gap level within ±5 mm |
| Sizes | Per the system drawings; profiles can be customized to requirements |
Source: OF1685 technical datasheet. Sizes and dimensions: profile specifications above and the system drawings.

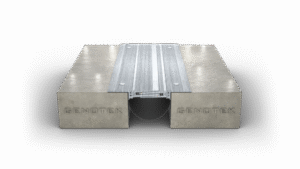

similar products to consider
