z1100
ecogasket series

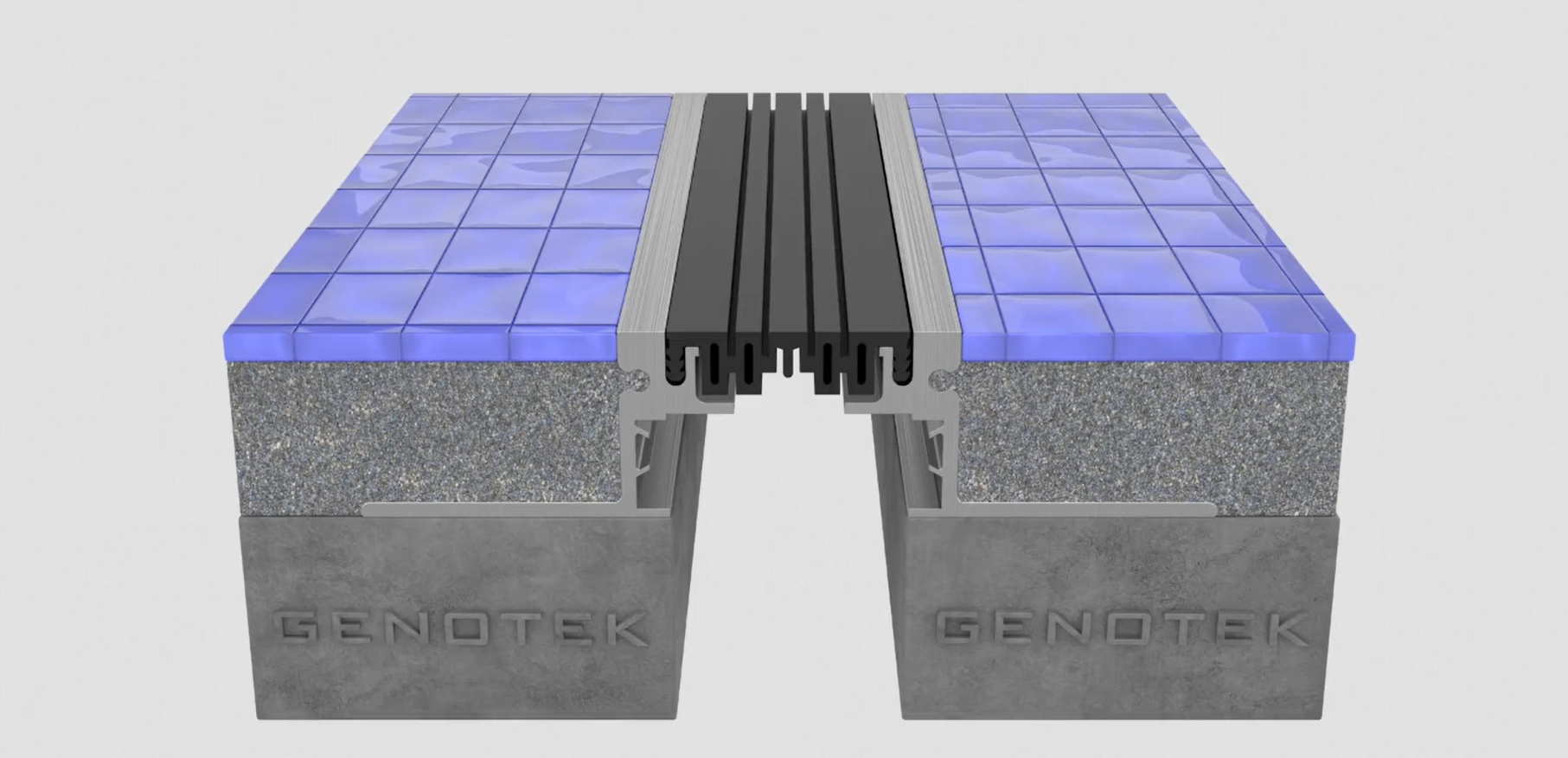

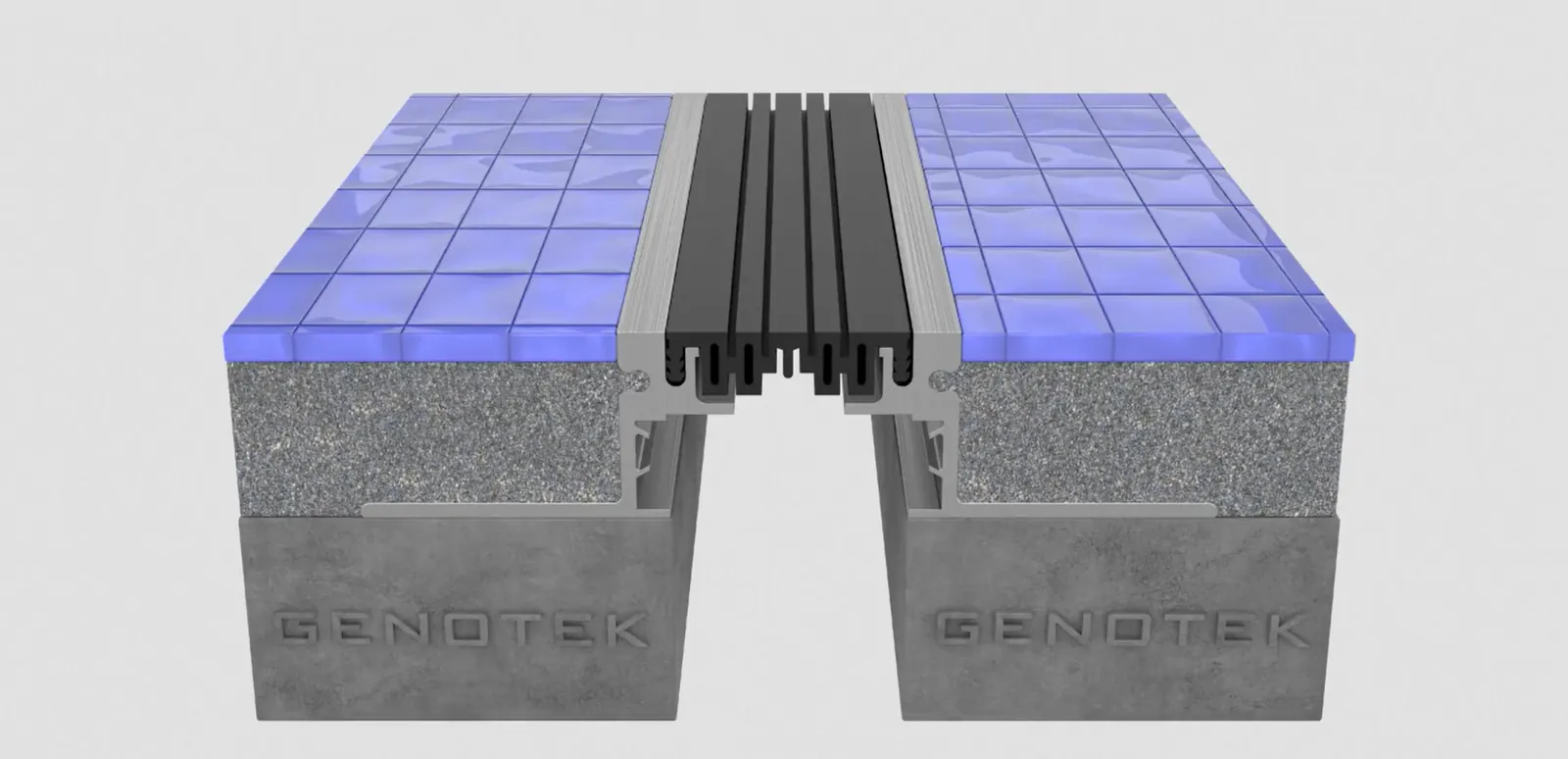

Introducing the Z-1100
movement accommodation
the continuous epdm seal flexes between the recessed aluminum frames to take up thermal movement: ±20% on the 30 mm joint and ±24% on the 50 to 100 mm joints.
water protection
the barrier is designed to temporarily retain water, effectively preventing it from flowing through or escaping during events such as rainfall or washing. once the water source is no longer active, the barrier facilitates the gradual release of the retained moisture by allowing it to evaporate naturally over time. this controlled process ensures both containment and eventual drying, maintaining the integrity of the area without causing any lasting accumulation of water.
load bearing
rated 20 kn to 30 kn in the system drawings, the z-1100 suits areas with heavy pedestrian traffic and vehicular loads in continuous use, reducing maintenance needs while maintaining structural integrity.
assembly in action
this video demonstrates the assembly process, perfectly designed for easy installation for durability and reliability.

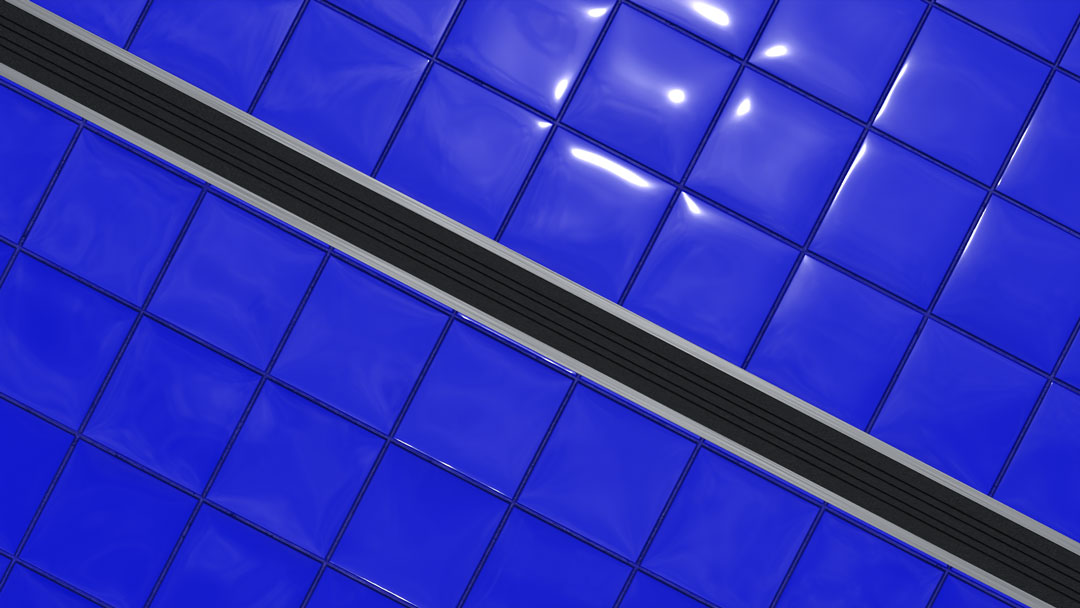

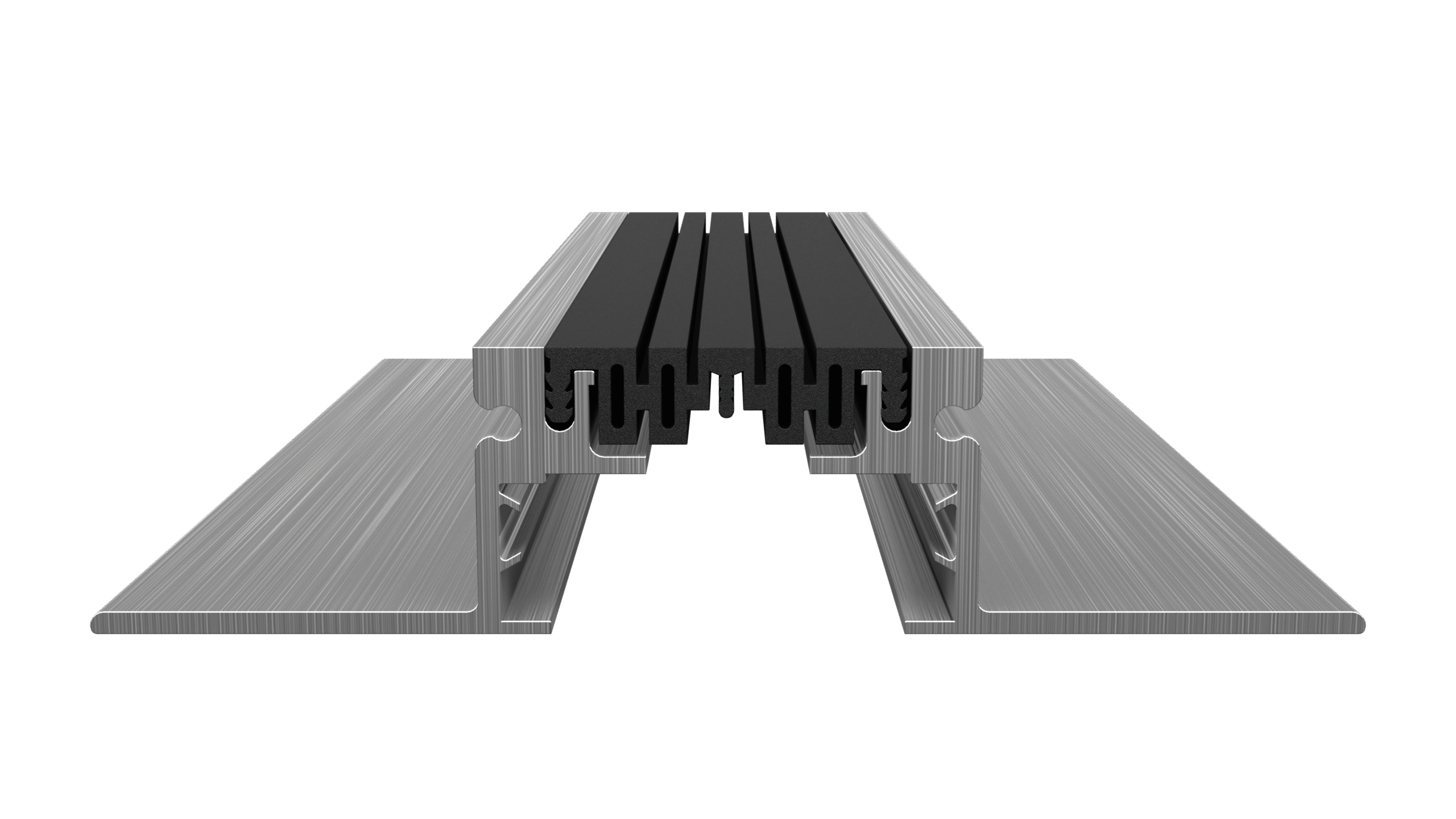

Aesthetic Choice
The aesthetic champion. the ECOGASKET Z1100, crafted entirely from sleek aluminum & rubber gasket, effortlessly complements any floor finish. whether you’re working with polished concrete, rustic pavers, elegant marble, or modern tiles, this expansion joint cover seamlessly blends in, enhancing the overall aesthetic of your space. trust the Z 1100 to provide not only exceptional functionality but also a touch of sophistication to your project, no matter the design style.
Clip-in water barrier

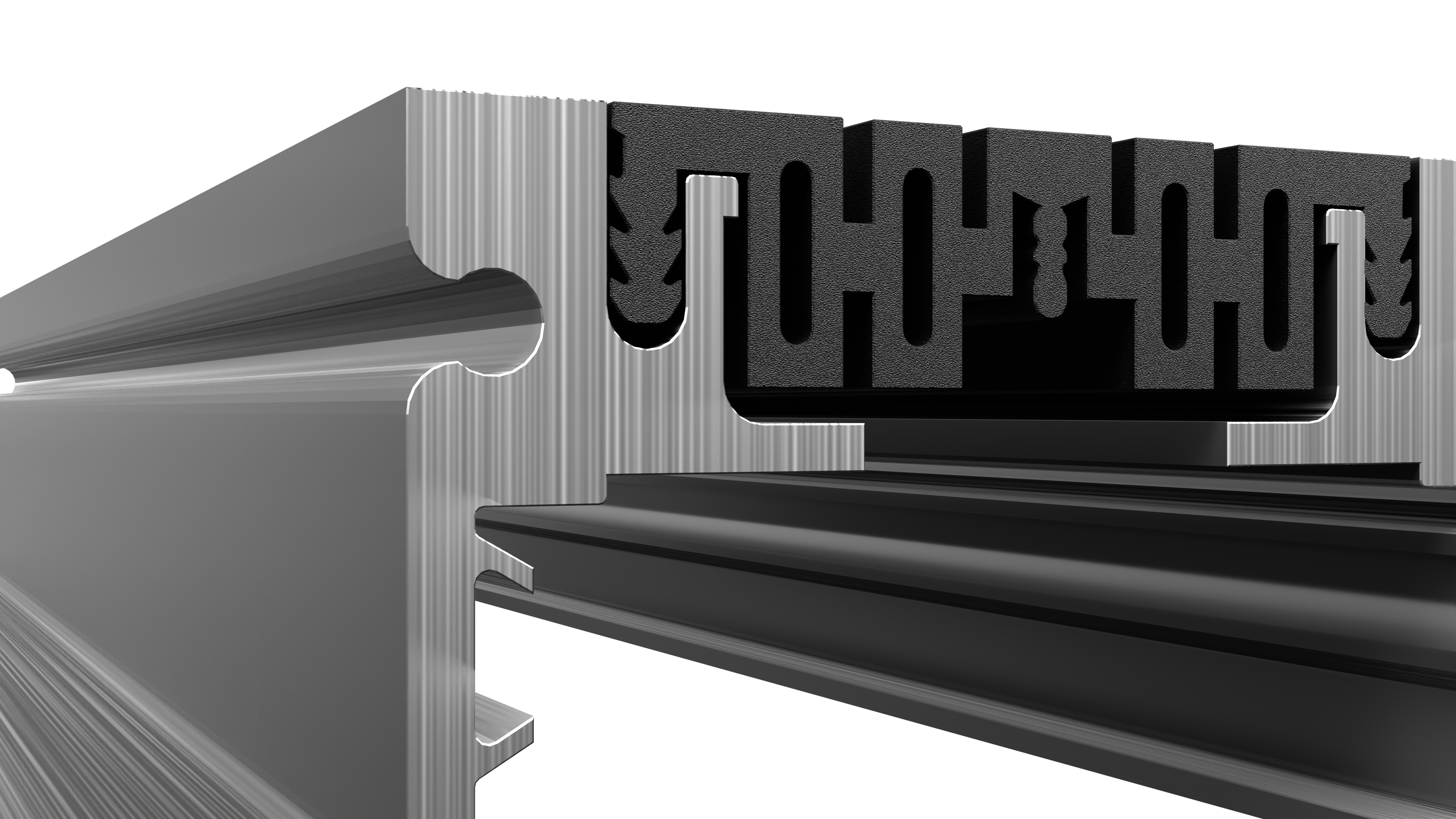

Versatile Elastomeric Rubber Inserts

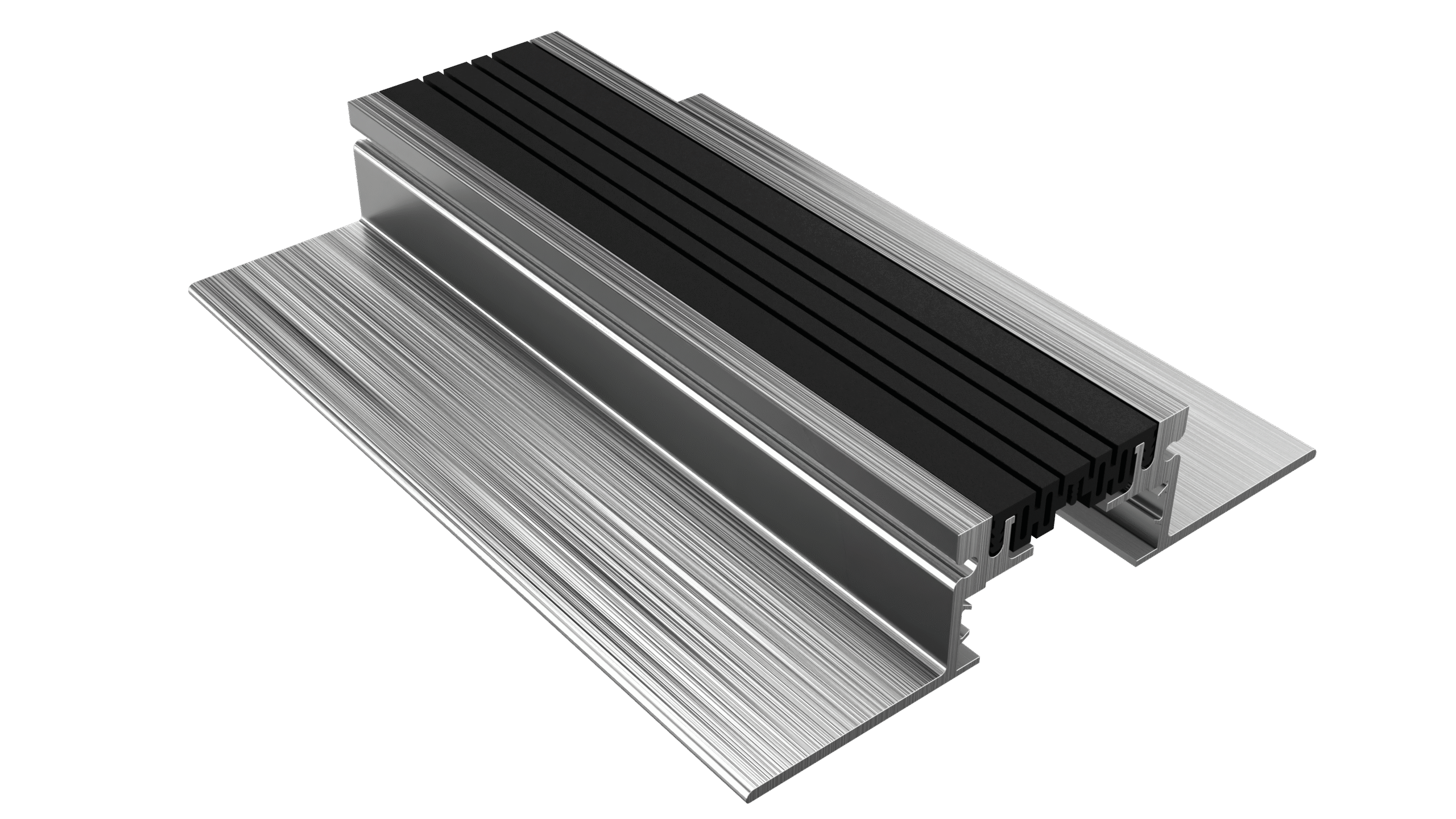

Customizable Height for Seamless Floor Integration

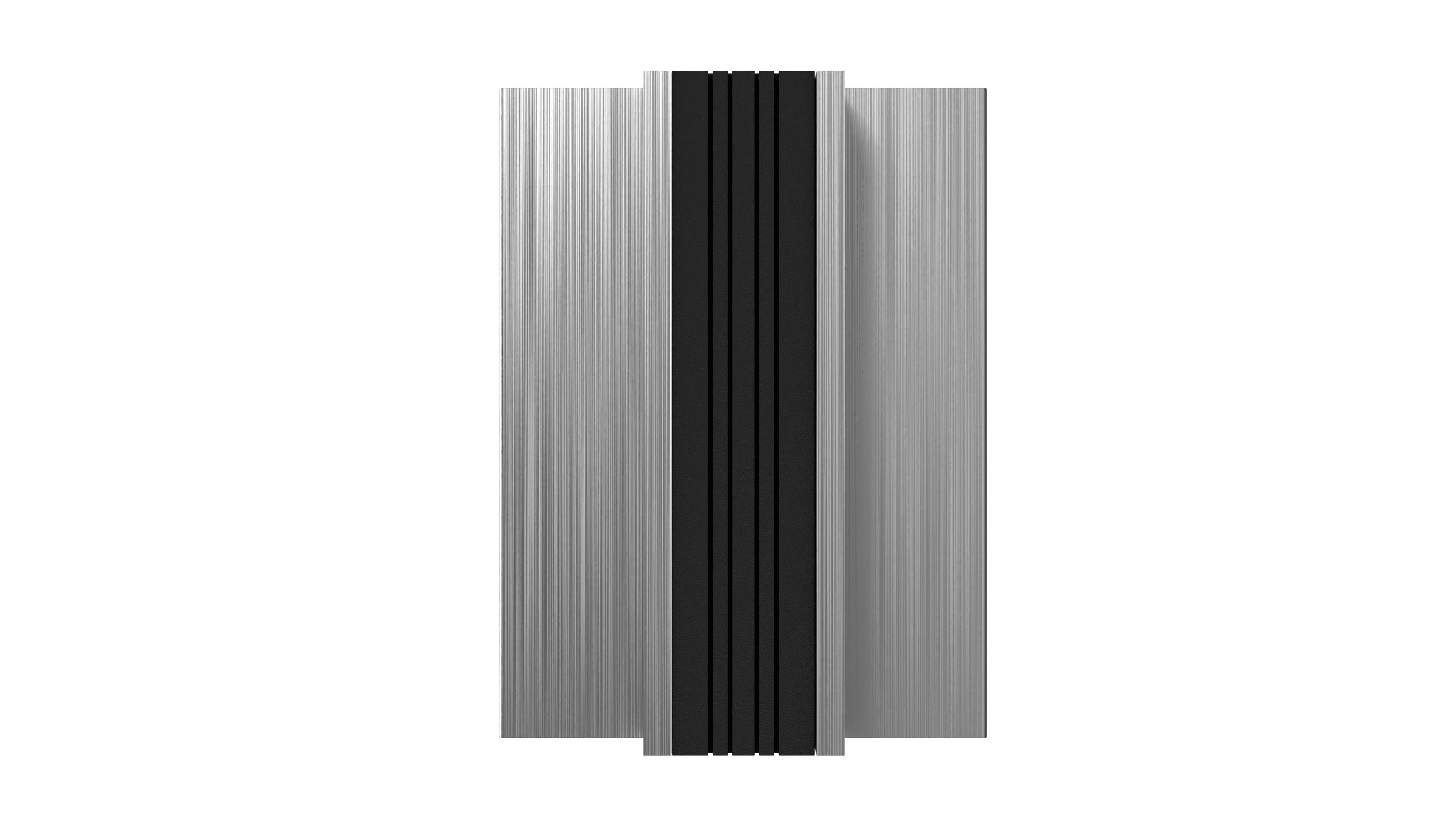

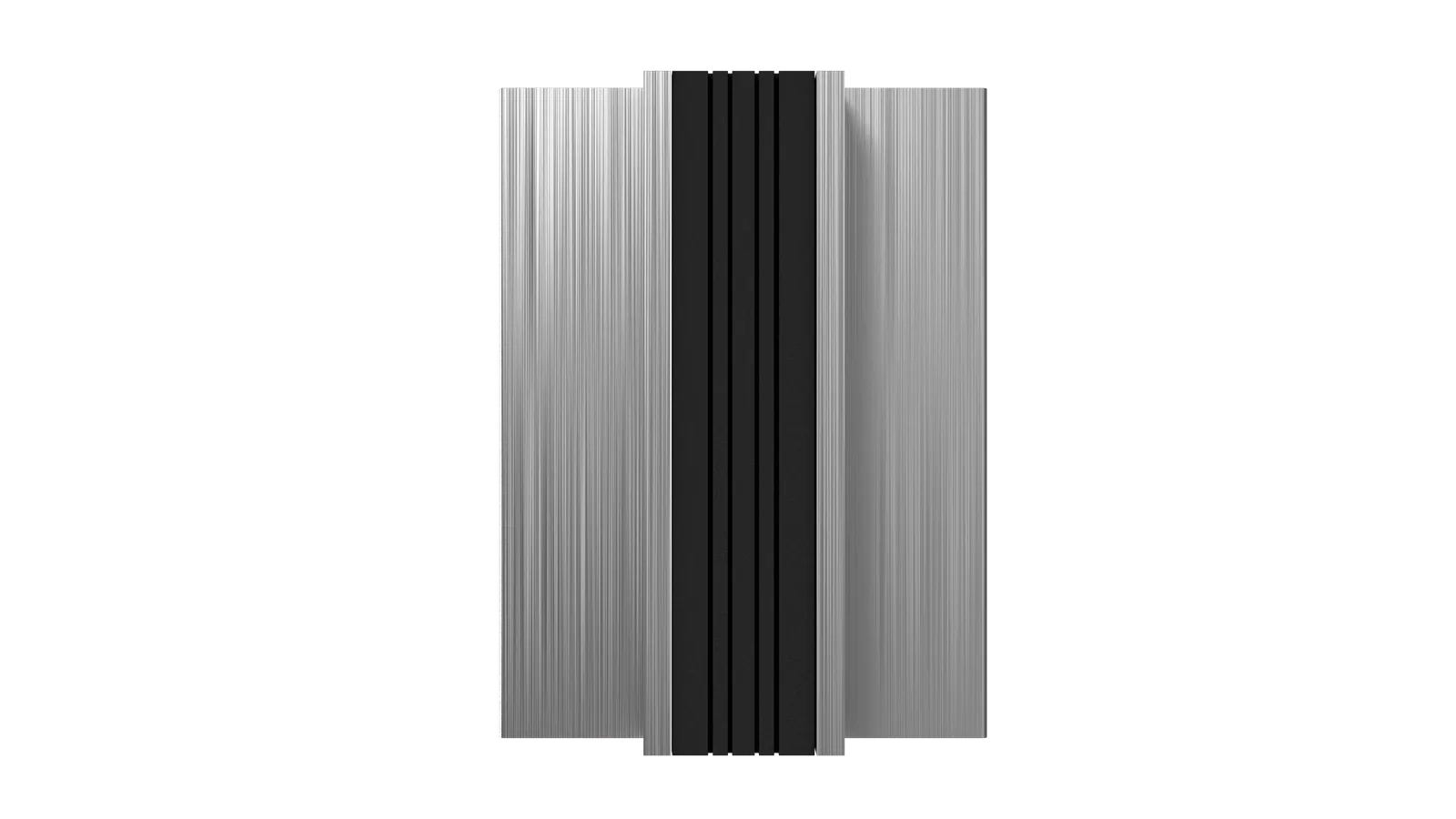

Flush Mount
System Drawing
gap size calculator
enter your expansion gap measurement to see if this product is right for you.
profile specifications
| model name | joint width (mm) | height (mm) | sightline (mm) | movement capability (%) | load capacity |
|---|---|---|---|---|---|
| z-1100-30 | 30 | 50 | 44 | ±20% | 30 kN |
| z-1100-50 (h:35) | 50 | 35 | 56 | ±24% | 20 kN |
| z-1100-50 (h:50) | 50 | 50 | 56 | ±24% | 20 kN |
| z-1100-75 | 75 | 50 | 86 | -18/+24% | 20 kN |
| z-1100-100 | 100 | 50 | 106 | ±24% | 20 kN |
| zk-1100-30 | 30 | 50 | 40 | ±20% | 30 kN |
| zk-1100-50 (h:35) | 50 | 35 | 52 | ±24% | 20 kN |
| zk-1100-50 (h:50) | 50 | 50 | 52 | ±24% | 20 kN |
| zk-1100-75 | 75 | 50 | 82 | -18/+24% | 20 kN |
| zk-1100-100 | 100 | 50 | 104 | ±24% | 20 kN |
datasheet specifications
| Series | PROFLANGE RM Series (Z-1100 & ZK-1100) |
|---|---|
| System type | Thermal Recessed Modular Floor System |
| Mounting | Recessed |
| Suitable movement | Thermal, Settlement |
| Recommended for | Interior and exterior areas with small joint sizes where minimal sightline is preferred; Areas where heavy pedestrian traffic and vehicular load are expected; Areas where hygiene is of importance |
| Components | Extruded Aluminum Support Profiles; Elastomeric Rubber Insert which absorbs the expansion & contraction in the adjacent concrete slabs |
| Material: Support Profiles | Extruded aluminum, grade AA 6063 preferred |
| Material: Elastomeric Rubber Insert | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Elastomer (TPE); finish: Grooved Finish; black |
| Material: Vapor Barrier (Optional) | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); black |
| Supply length | 3.00 m per piece (support profiles) |
| Substrate tolerance | Surface level within ±2 mm; gap level within ±5 mm |
| Sizes | Per the system drawings; profiles can be customized to requirements |
Source: Z1100 technical datasheet. Sizes and dimensions: profile specifications above and the system drawings.

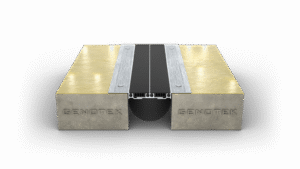

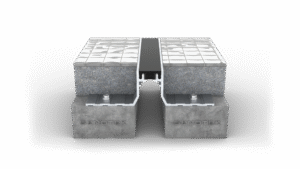

similar products to consider
