wtz5500
luxfinish wt series

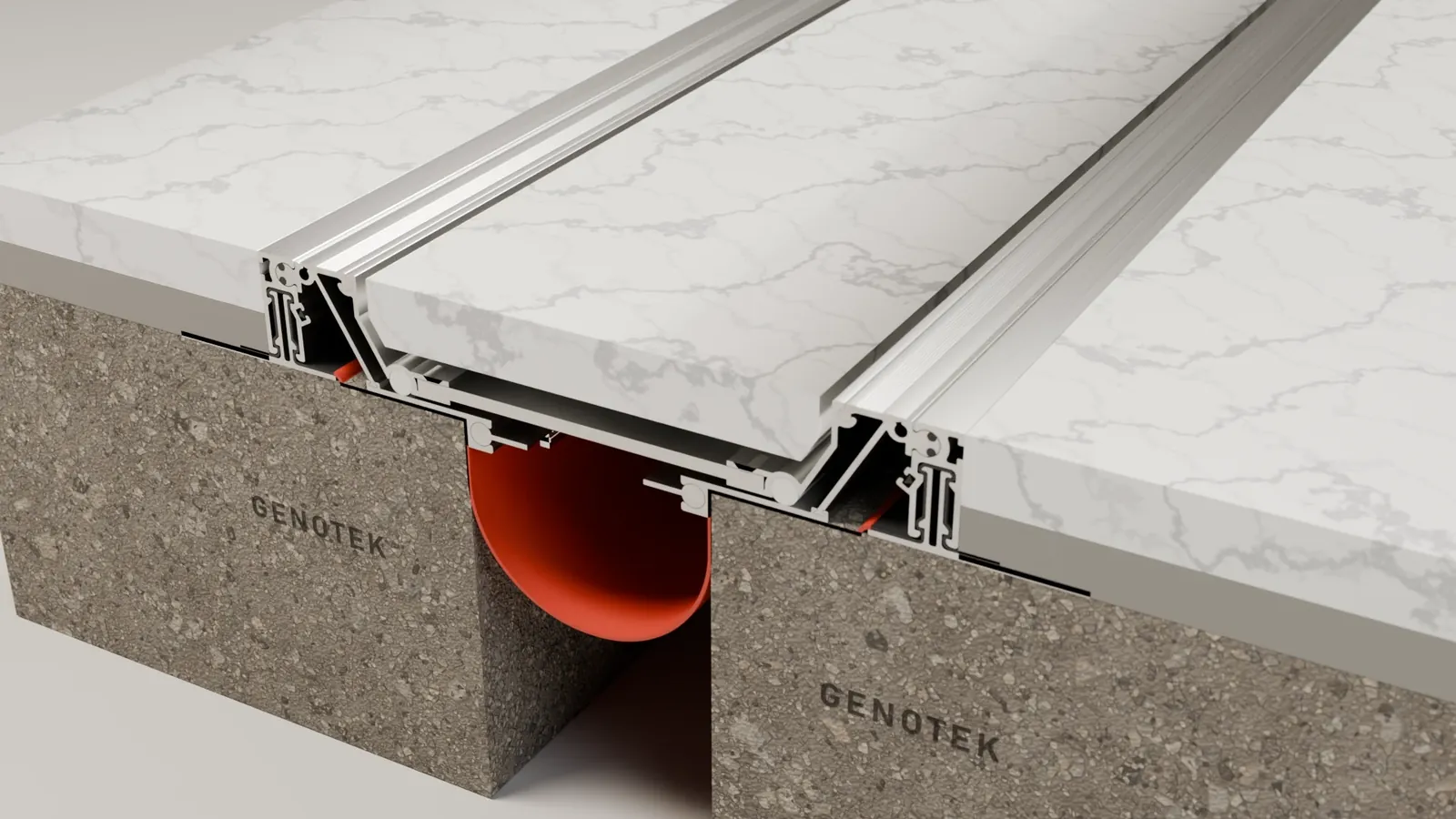

Introducing the WTZ5500
movement
the wtz5500 takes up thermal and structural movement (the movement for each size is in the profile specifications below) while the cover stays seated on both sides of the joint.
integral punctureless water barrier

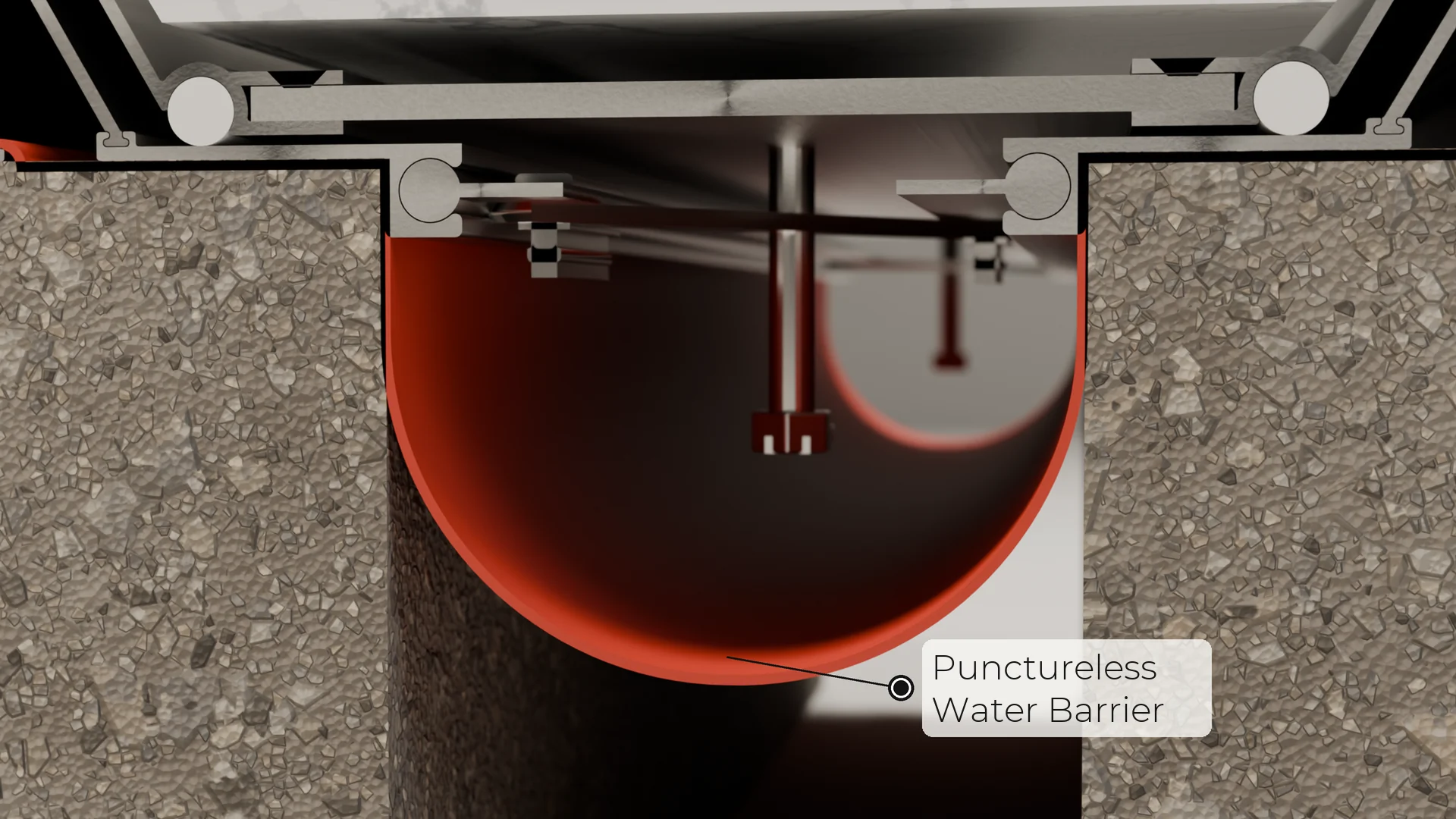

the cross-section reveals the punctureless epdm/tpv water barrier integrated below the hinged pan assembly, connected to the adjacent waterproofing membrane for complete watertightness.
load bearing
the wtz5500 under traffic, rated for heavy pedestrian and light vehicular traffic. the load capacity of each size is in the profile specifications below.
seamless finished installation
with tile or carpet laid into the recessed pan and the aluminum hinge cover flush with the finish, the joint all but disappears from view in premium front-of-house floors.
Aesthetic Choice

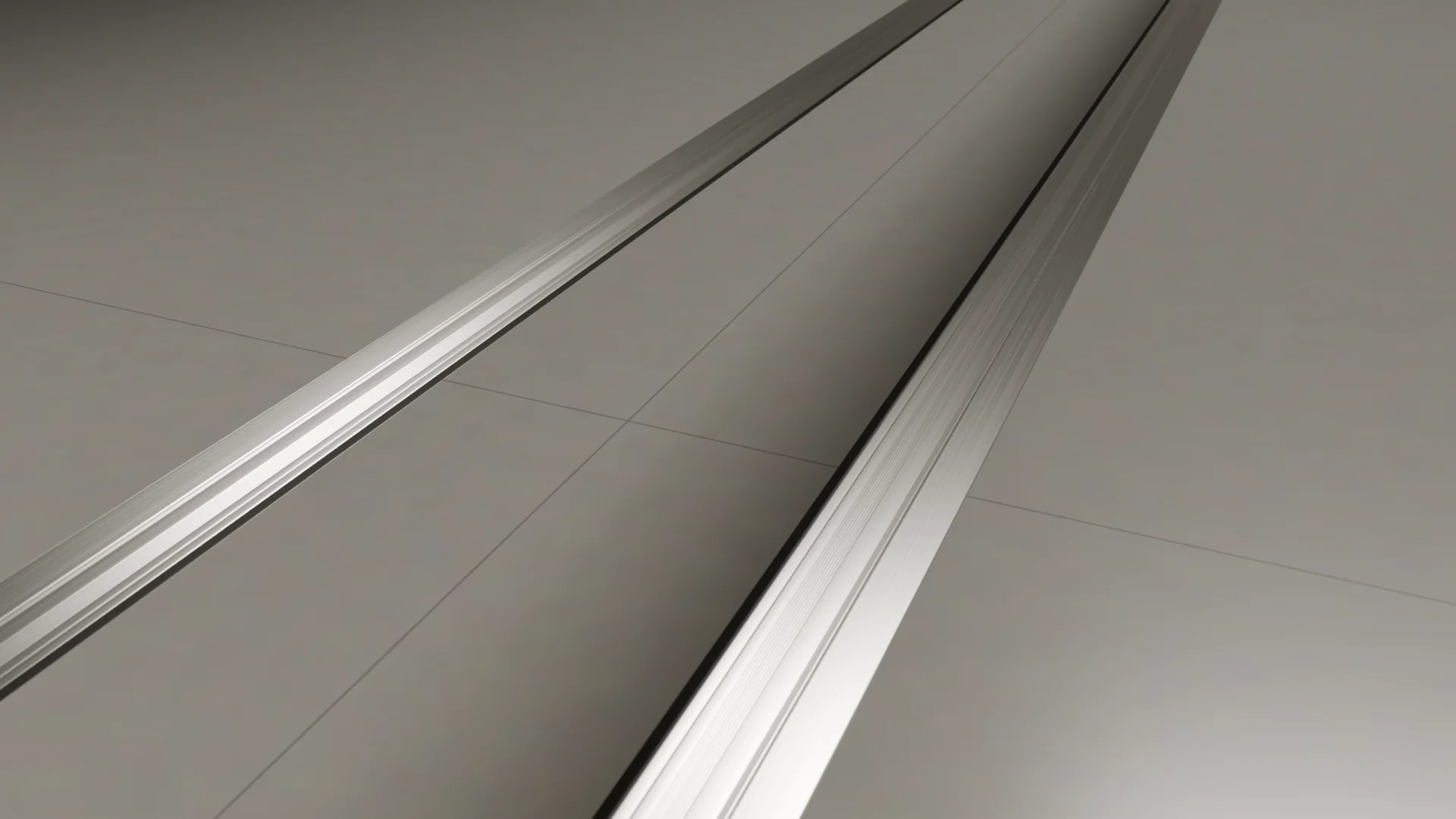

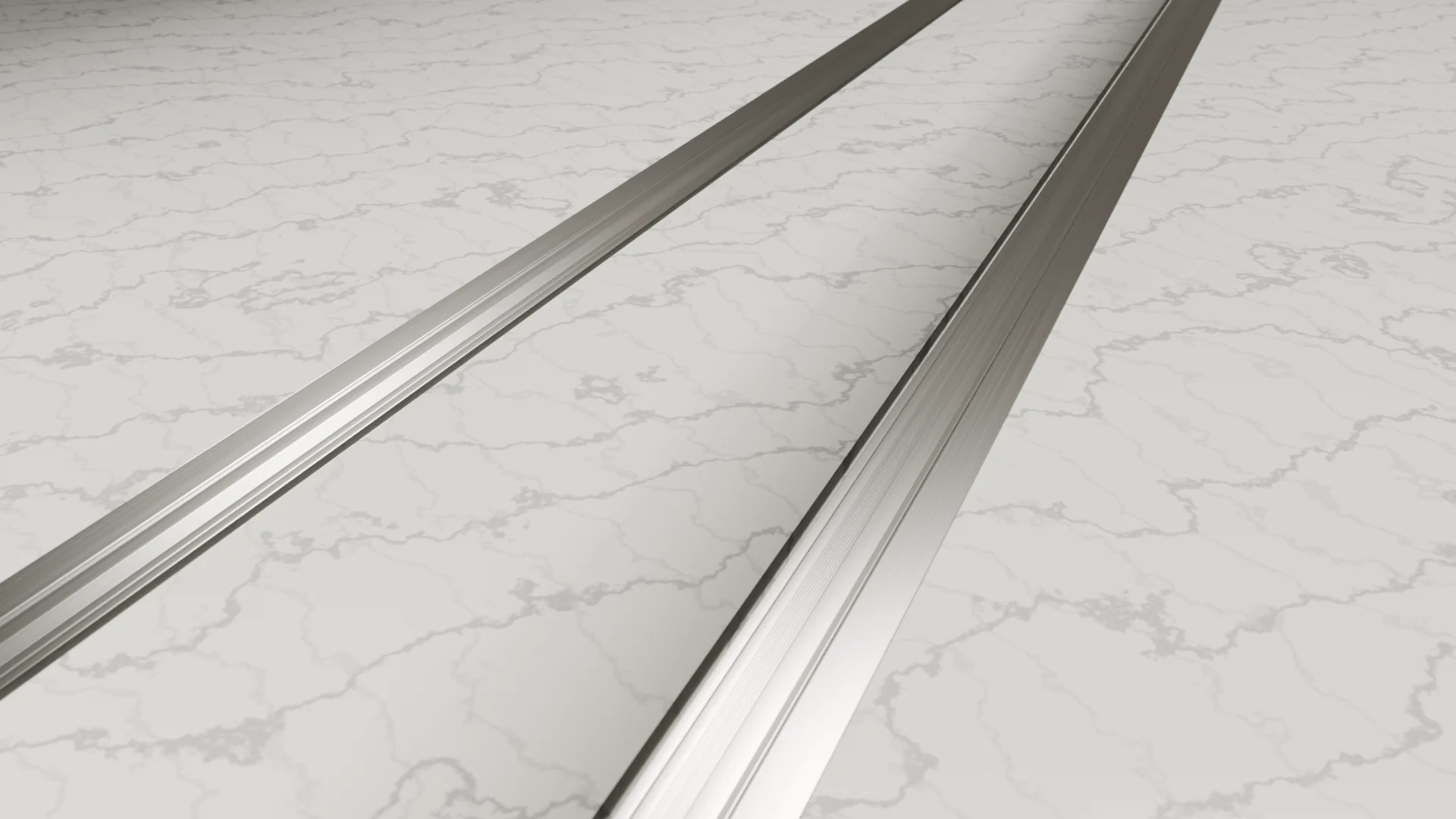

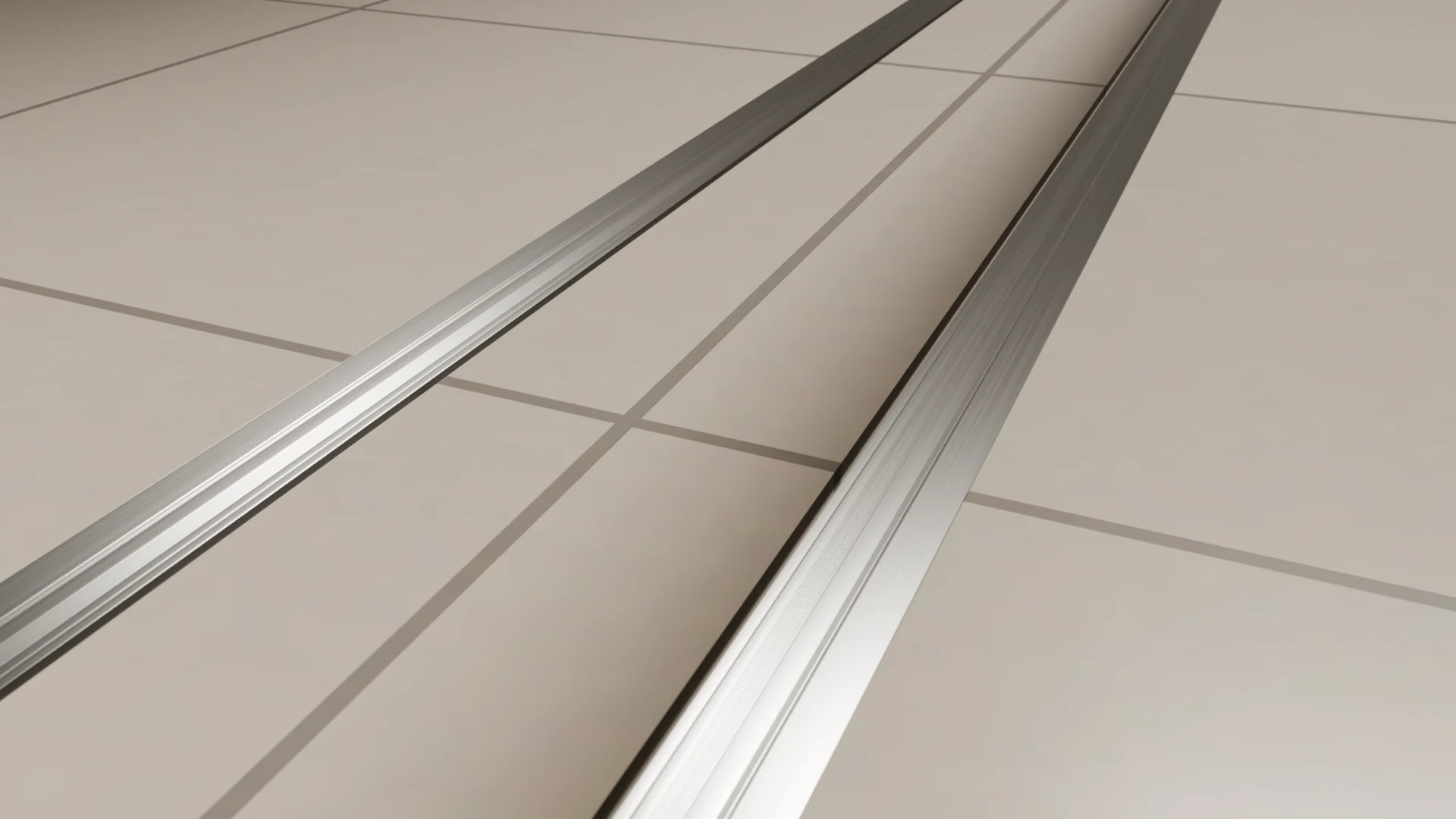

The recessed centre pan takes the surrounding floor finish, so only slim aluminum lines stay visible, shown here in marble, porcelain tile and polished concrete.
Punctureless Water Barrier Integration

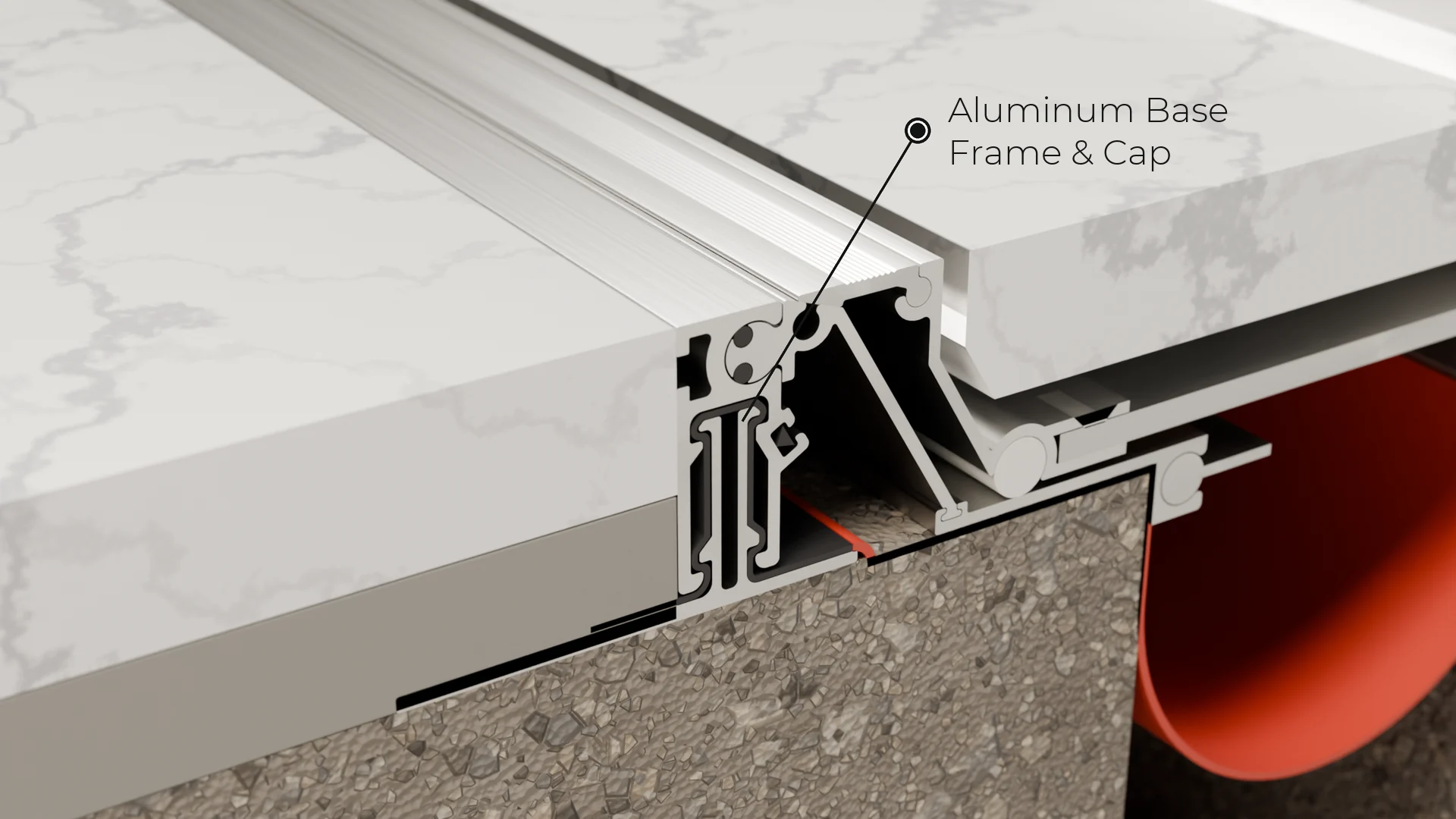

Extruded Aluminum Base Frame and Cap

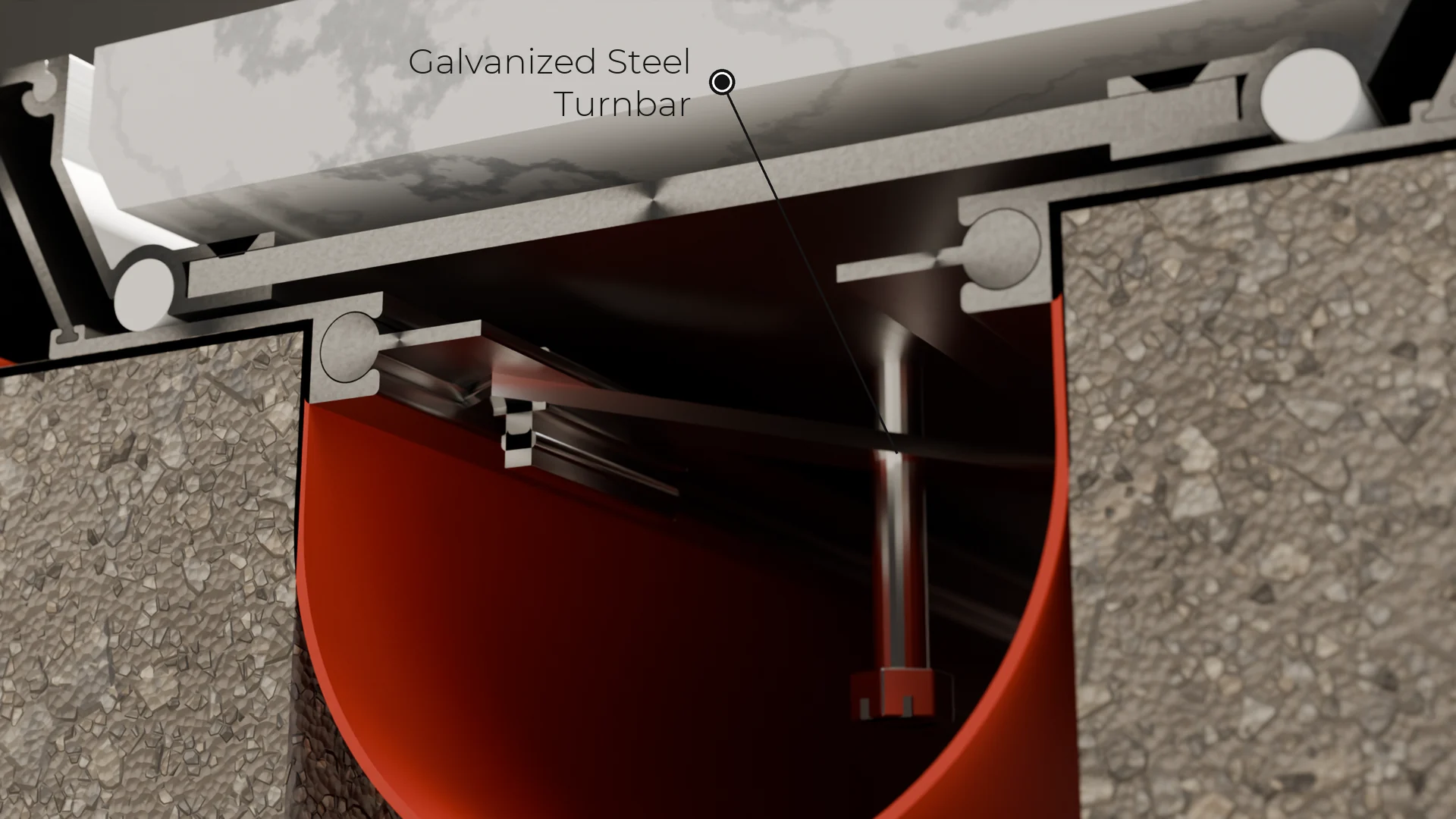

Galvanized Steel Turnbar

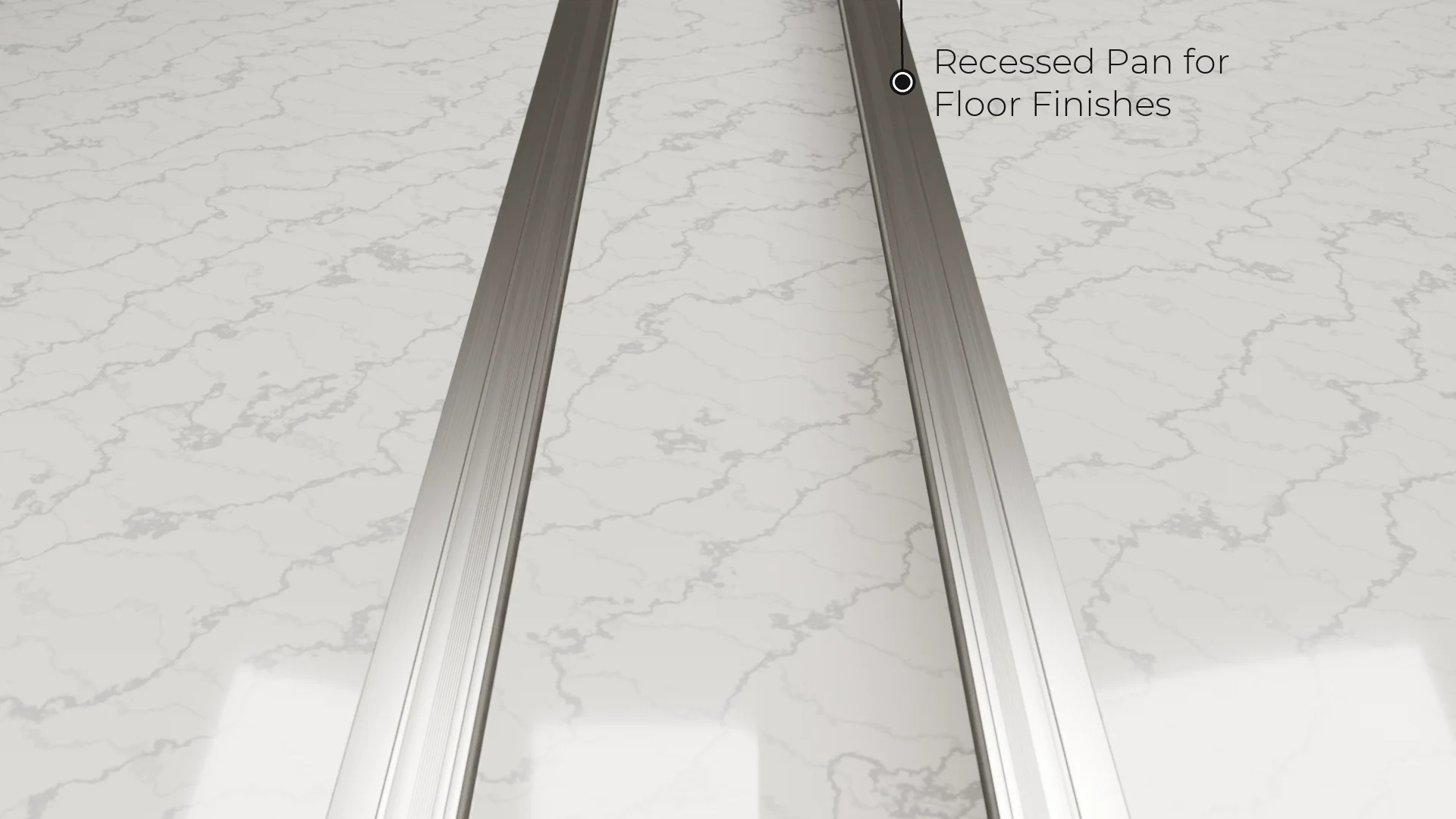

Recessed Pan for Floor Finishes

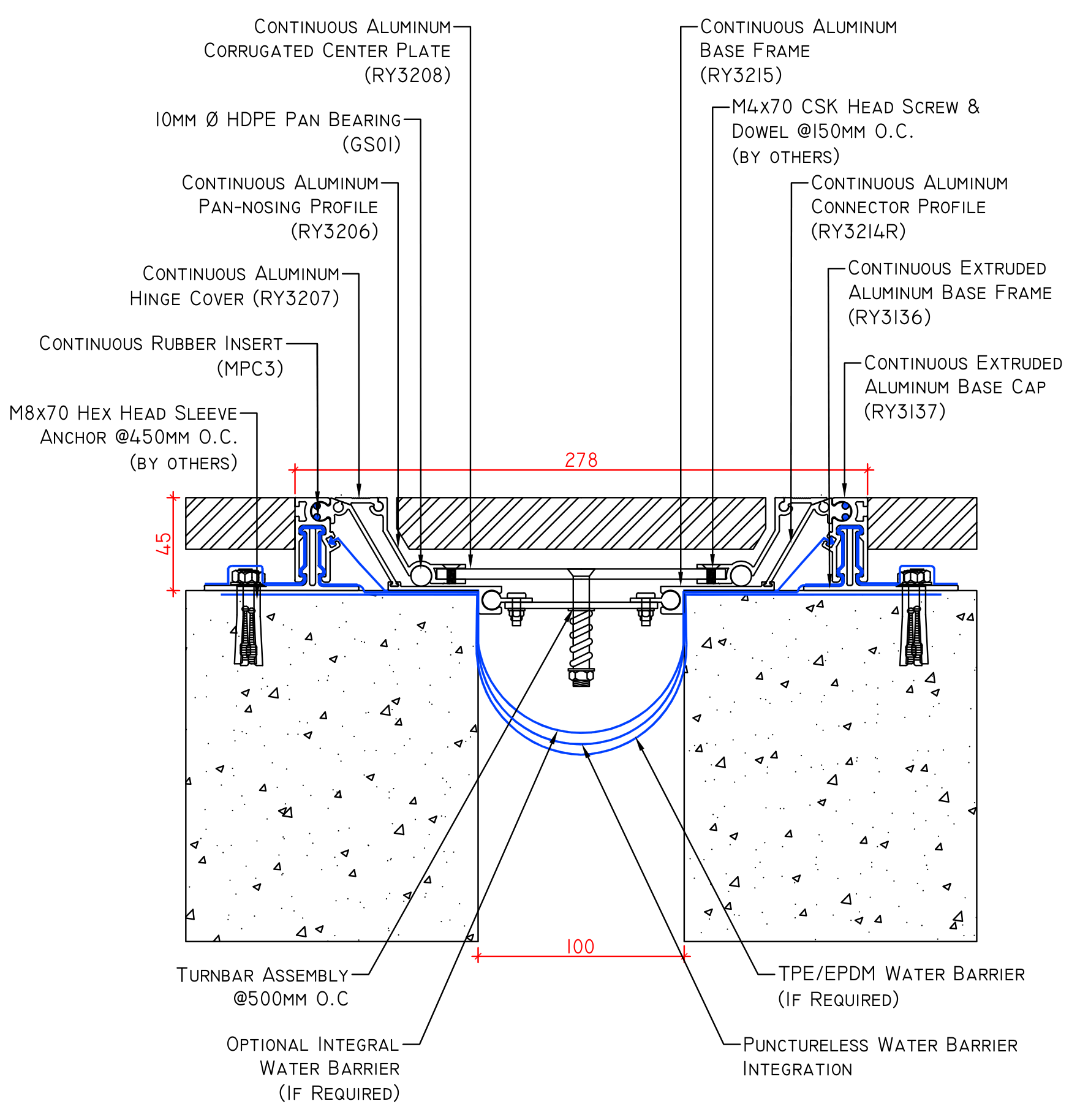

System Drawing
gap size calculator
enter your expansion gap measurement to see if this product is right for you.
profile specifications
| model name | joint width (mm) | height (mm) | sightline (mm) | movement capability (%) | load capacity |
|---|---|---|---|---|---|
| wtz-5500-100 | 100 | 45 | 278 | ±50% | HEAVY PEDESTRIAN / LIGHT VEHICULAR |
| wtz-5500-200 | 200 | 45 | 428 | ±50% | HEAVY PEDESTRIAN / LIGHT VEHICULAR |
| wtz-5500-300 | 300 | 45 | 578 | ±50% | HEAVY PEDESTRIAN / LIGHT VEHICULAR |
| wtzk-5500-100 | 100 | 45 | 189 | -50/+25% | HEAVY PEDESTRIAN / LIGHT VEHICULAR |
| wtzk-5500-200 | 200 | 45 | 314 | -50/+25% | HEAVY PEDESTRIAN / LIGHT VEHICULAR |
| wtzk-5500-300 | 300 | 45 | 439 | -50/+25% | HEAVY PEDESTRIAN / LIGHT VEHICULAR |
datasheet specifications
| Series | LUXFINISH WT Series (WTZ-5500 & WTZK-5500) |
|---|---|
| System type | Watertight Pop-up Seismic Expansion Joint Cover |
| Suitable movement | Seismic, Thermal, Settlement |
| Load capacity | Heavy Pedestrian Traffic; Light Vehicular Traffic |
| Recommended for | Areas where Aesthetic plays an important role and Multi Directional/Seismic Movement is expected; Hospitality, Retail, Commercial and similar applications |
| Components | Extruded Aluminum Base Frame; Extruded Aluminum Base Capping; Extruded Aluminum Center Pan Assembly; Aluminum Hinge Cover; Galvanized Steel Turn-bar; Integral Punctureless Water Barrier |
| Material: Base Profiles, Center Pan Components & Hinge Cover | Extruded aluminum, grade AA 6063 preferred |
| Material: Water Barrier | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); black |
| Supply length | 3.00 m per piece (aluminum profile components) |
| Substrate tolerance | Surface level within ±2 mm; gap level within ±5 mm |
| Sizes | Per the system drawings; profiles can be customized to requirements |
Source: WTZ5500 technical datasheet. Sizes and dimensions: profile specifications above and the system drawings.
