wtz1685
supermate wt series

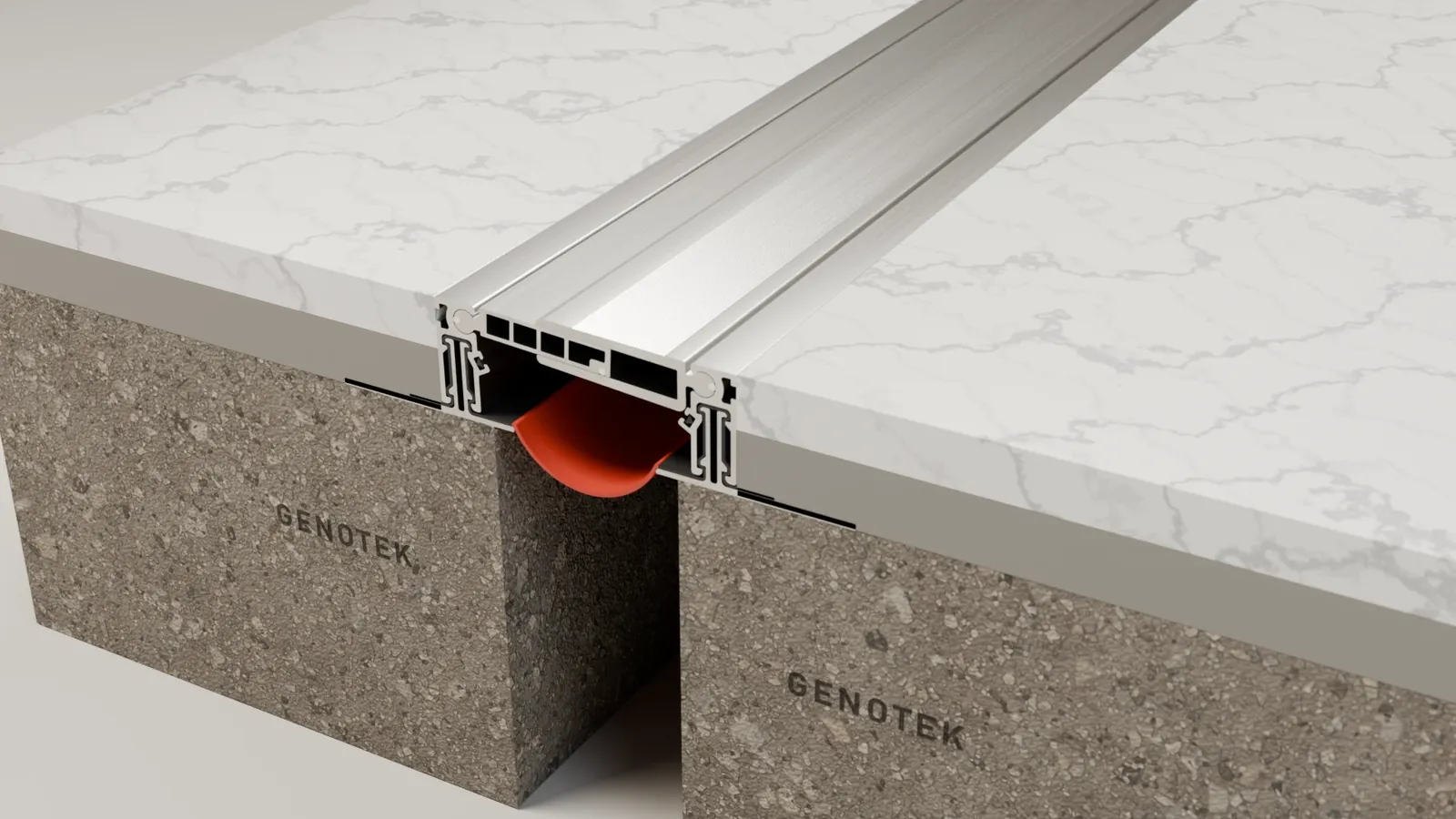

Introducing the WTZ1685
movement
the wtz1685 takes up thermal and structural movement of ±28% to ±33% while the cover stays seated on both sides of the joint.
integral punctureless water barrier
the cross-section reveals the integral epdm/tpv water barrier running continuously beneath the aluminum interlocking profiles - 100% watertight with no punctures, connected directly to the adjacent waterproofing membrane.
load bearing
the wtz1685 under traffic, rated vehicular. the load capacity of each size is in the profile specifications below.
seamless finished installation
recessed installation with internal tile finish keeps the profile flush with the surrounding floor, exposing only slim aluminum sightlines for areas with heavy-duty traffic.

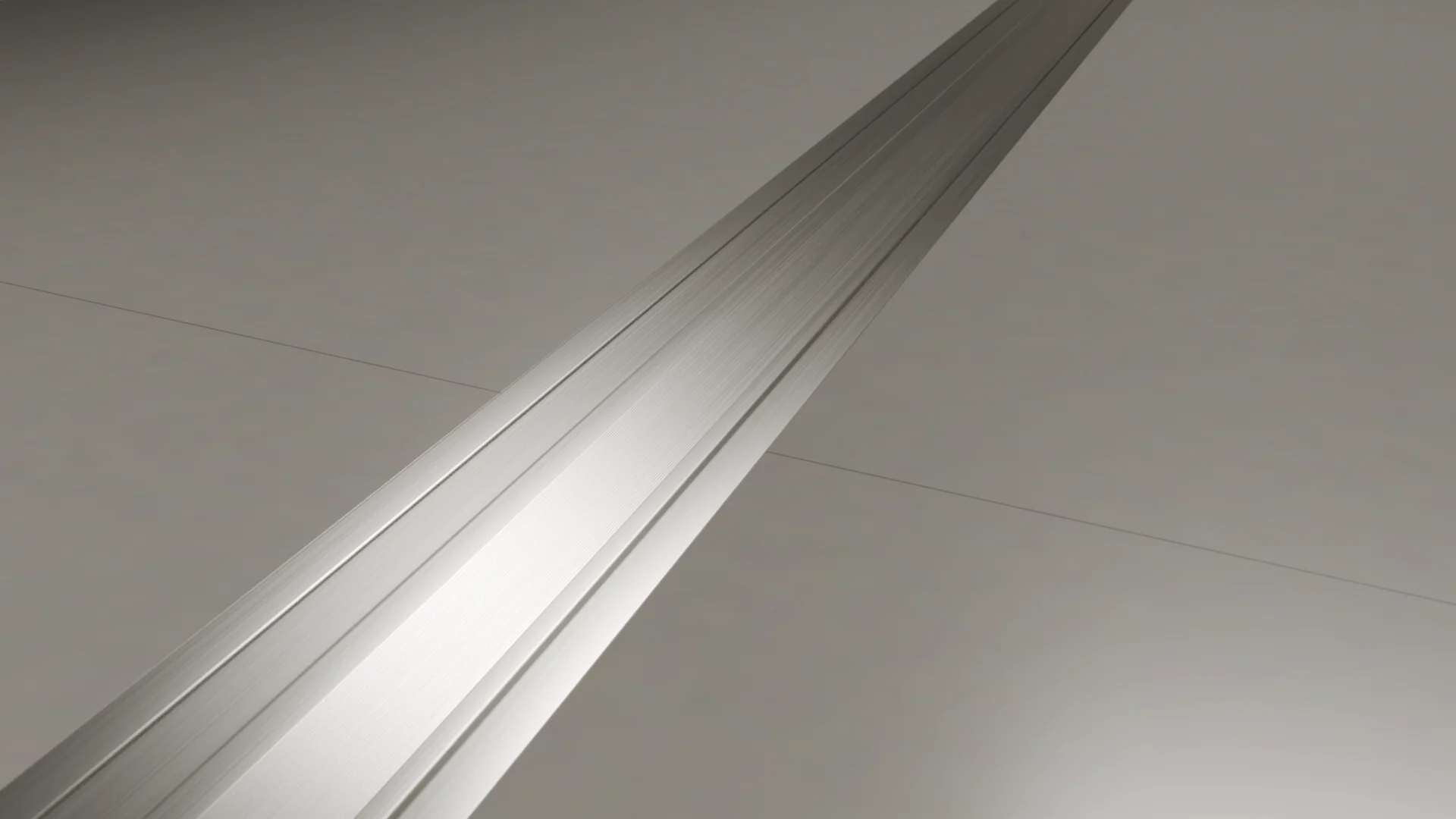

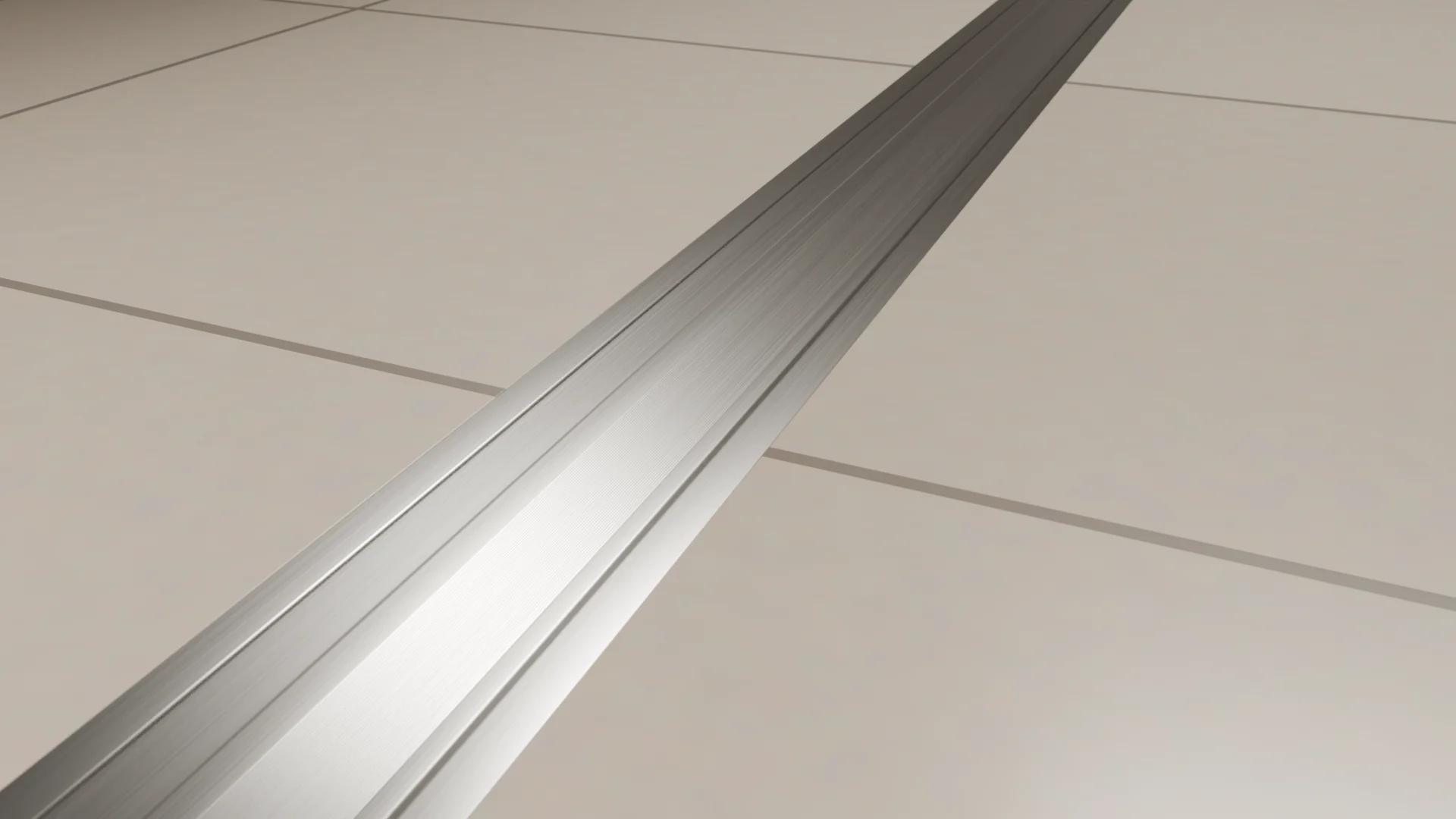

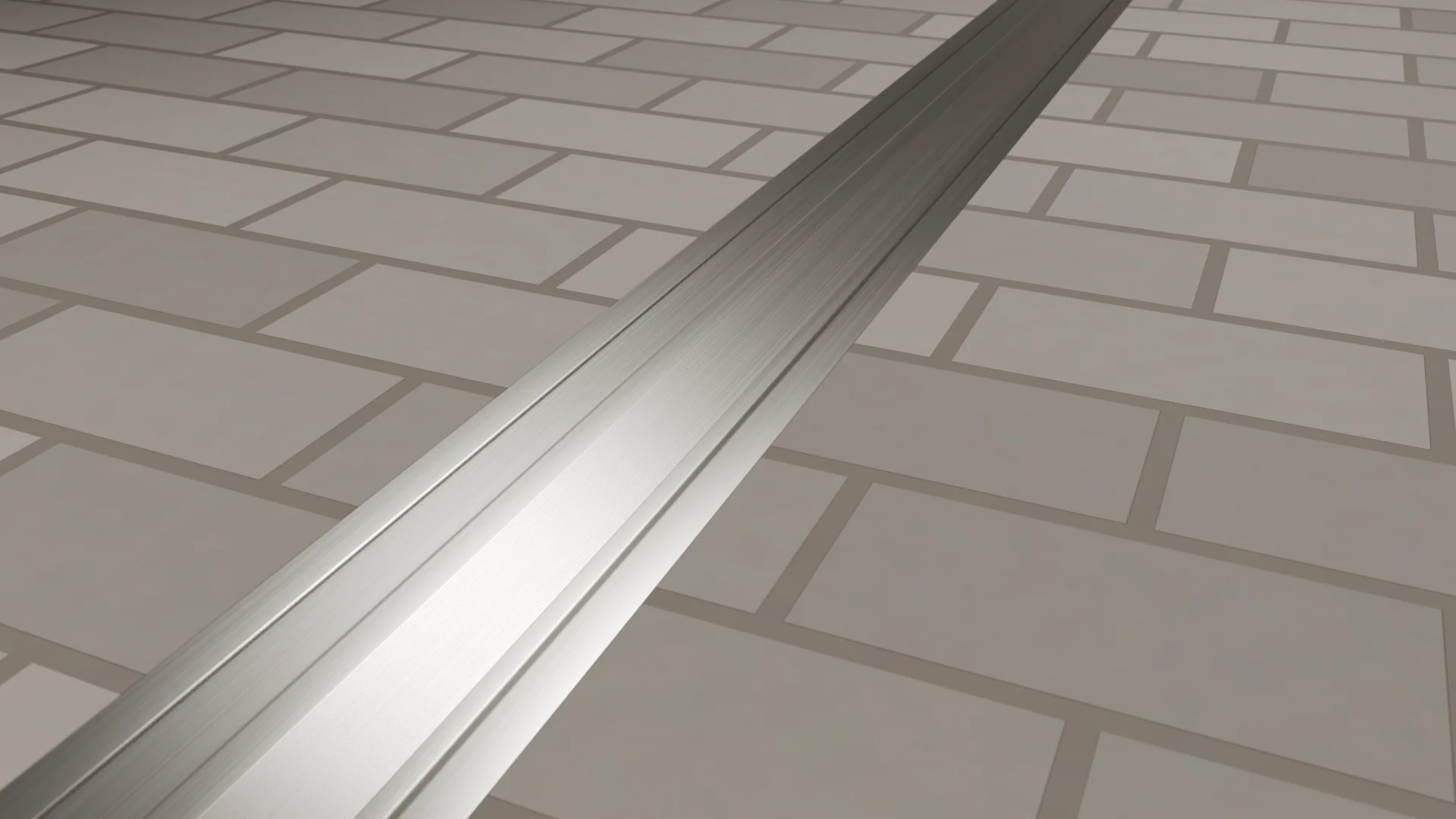

Aesthetic Choice
The aluminum interlocking profiles sit level with the finished surface, shown here in concrete pavers, porcelain tile and polished concrete.
Punctureless Water Barrier Integration

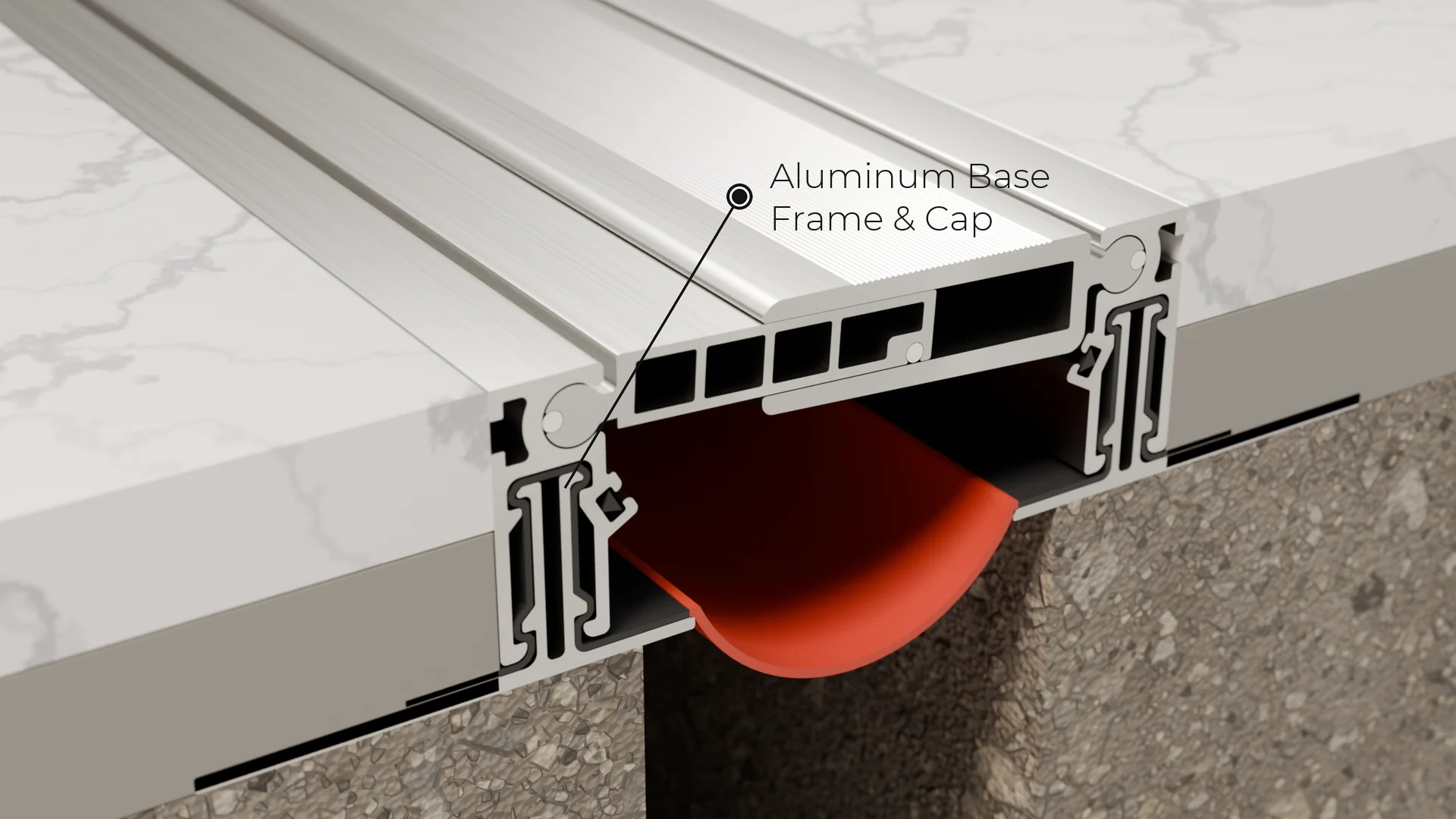

Extruded Aluminum Base Frame and Cap

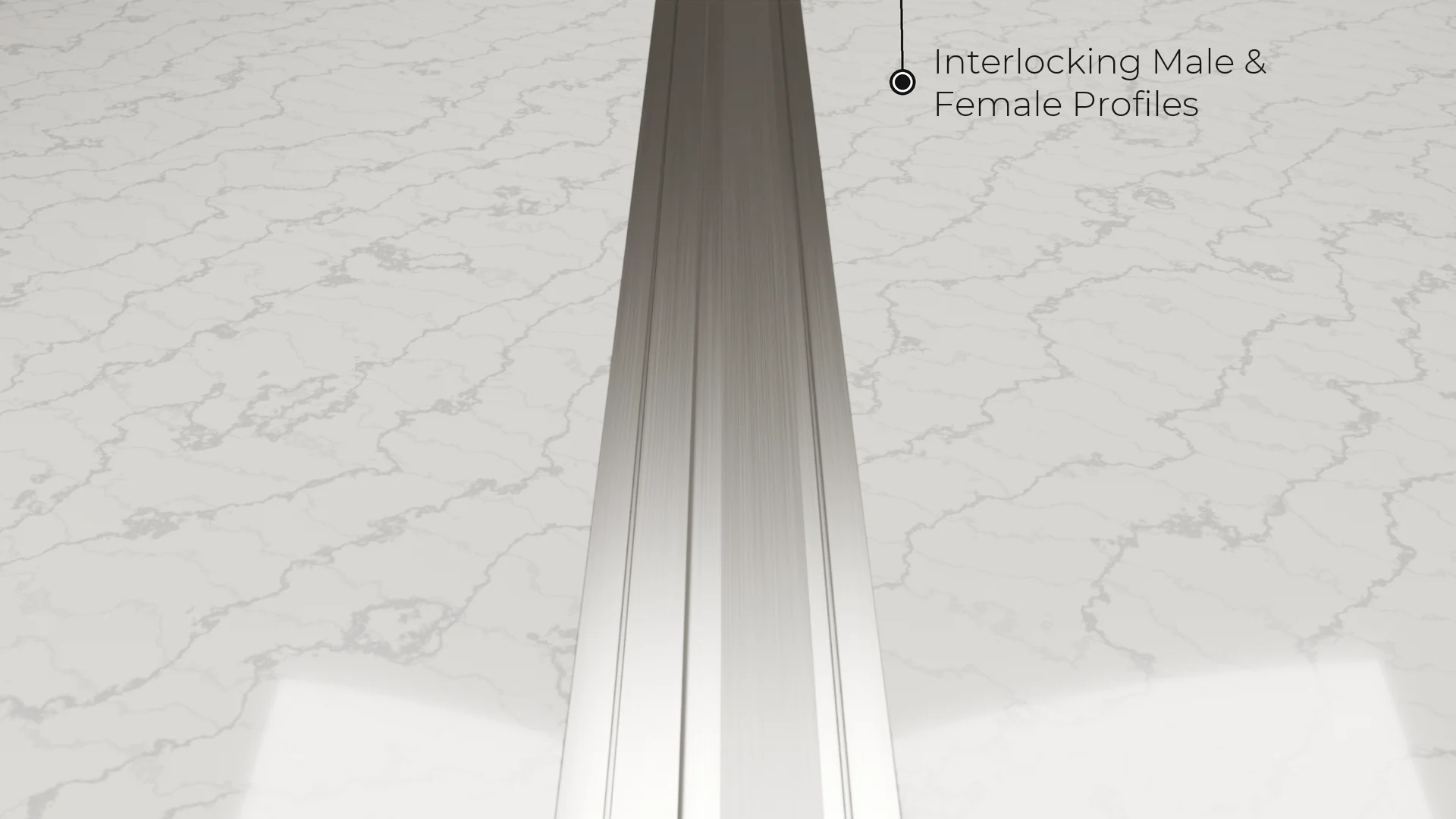

Aluminum Male and Female Profiles

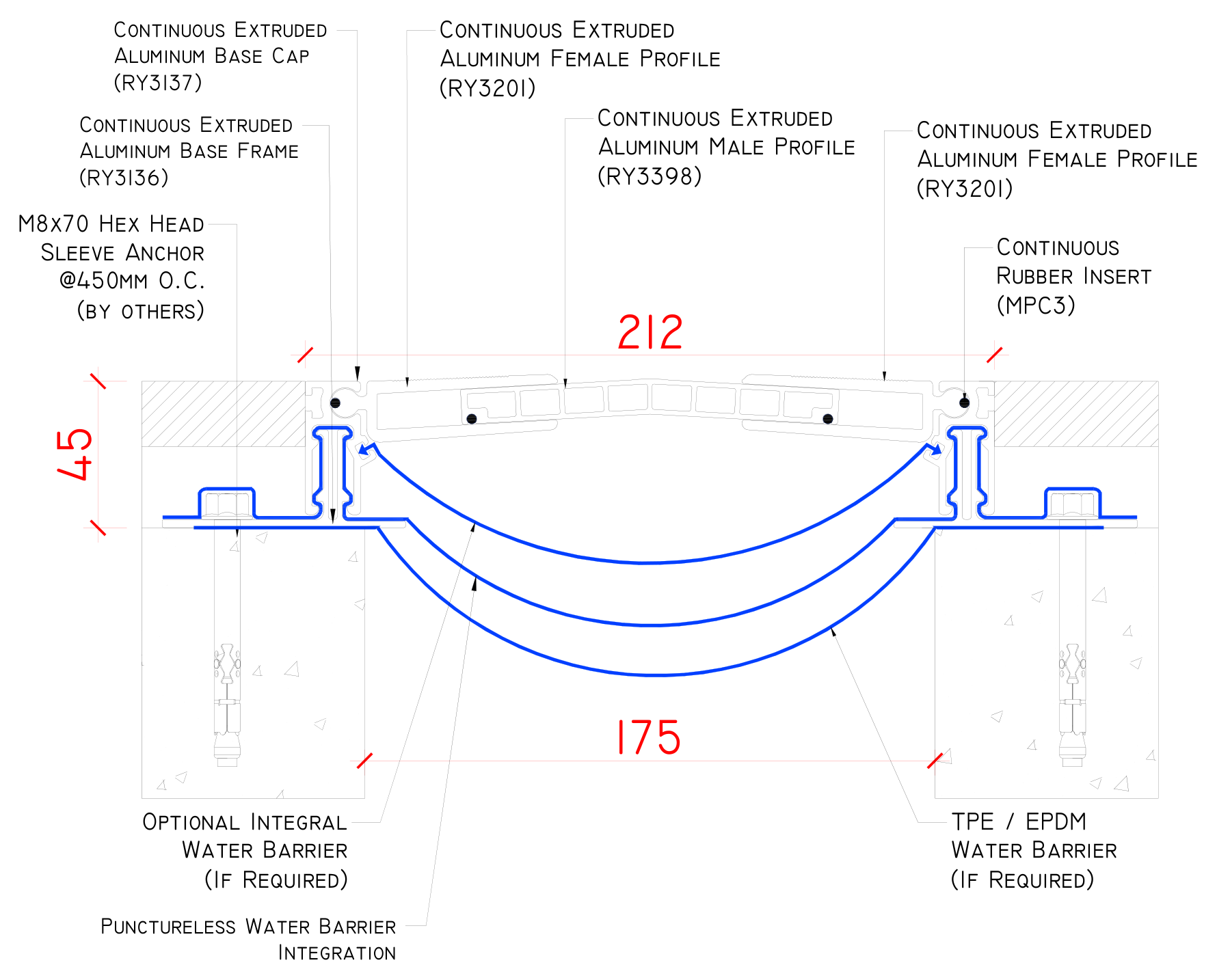

System Drawing
gap size calculator
enter your expansion gap measurement to see if this product is right for you.
profile specifications
| model name | joint width (mm) | height (mm) | sightline (mm) | movement capability (%) | load capacity |
|---|---|---|---|---|---|
| wtz-1685-175 | 175 | 45 | 212 | ±28% | VEHICULAR |
| wtz-1685-50 | 50 | 45 | 90 | ±30% | VEHICULAR |
| wtz-1685-75 | 75 | 45 | 120 | ±33% | VEHICULAR |
| wtzk-1685-175 | 175 | 45 | 207 | ±28% | VEHICULAR |
| wtzk-1685-50 | 50 | 45 | 85 | ±30% | VEHICULAR |
| wtzk-1685-75 | 75 | 45 | 115 | ±33% | VEHICULAR |
datasheet specifications
| Series | SUPERMATE WT Series (WTZ-1685 & WTZK-1685) |
|---|---|
| System type | Watertight Expansion Joint System |
| Suitable movement | Thermal, Settlement |
| Recommended for | Exterior areas; Open to sky areas; Areas where high water usage is presents like landscapes, etc; Areas where heavy-duty traffic is present like podiums, parking areas, etc |
| Components | Extruded Aluminum Base Frame; Extruded Aluminum Base Capping; Extruded Aluminum Interlocking Profiles; Elastomeric Rubber Seal; Integral Punctureless Water Barrier |
| Material: Base Profiles, Capping, Interlocking Profiles | Extruded aluminum, grade AA 6063 preferred |
| Material: Integral Water Barrier | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); black |
| Supply length | 3.00 m per piece (aluminum profiles) |
| Substrate tolerance | Surface level within ±2 mm; gap level within ±5 mm |
| Sizes | Per the system drawings; profiles can be customized to requirements |
Source: WTZ1685 technical datasheet. Sizes and dimensions: profile specifications above and the system drawings.
