dwe
procap d series

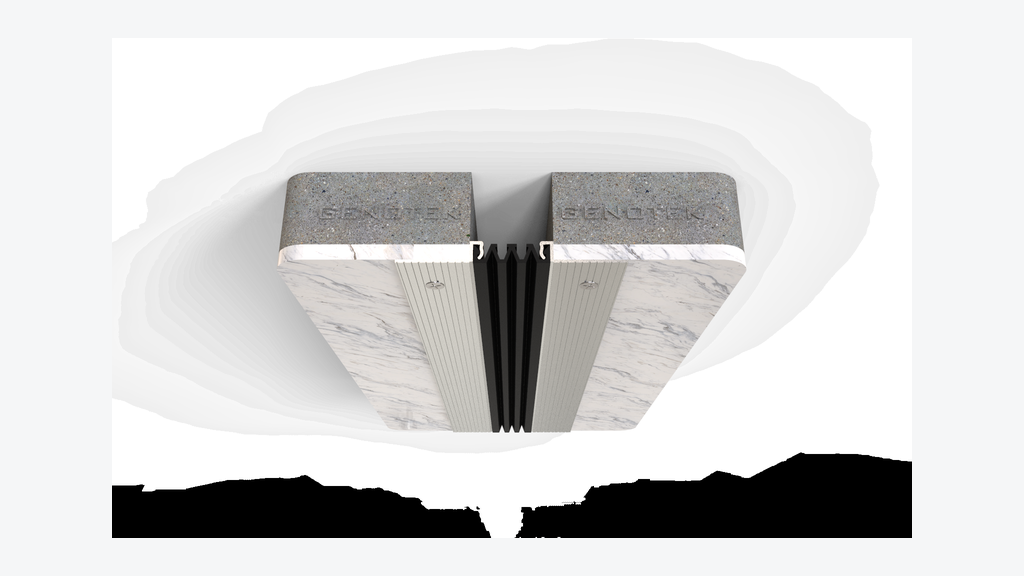

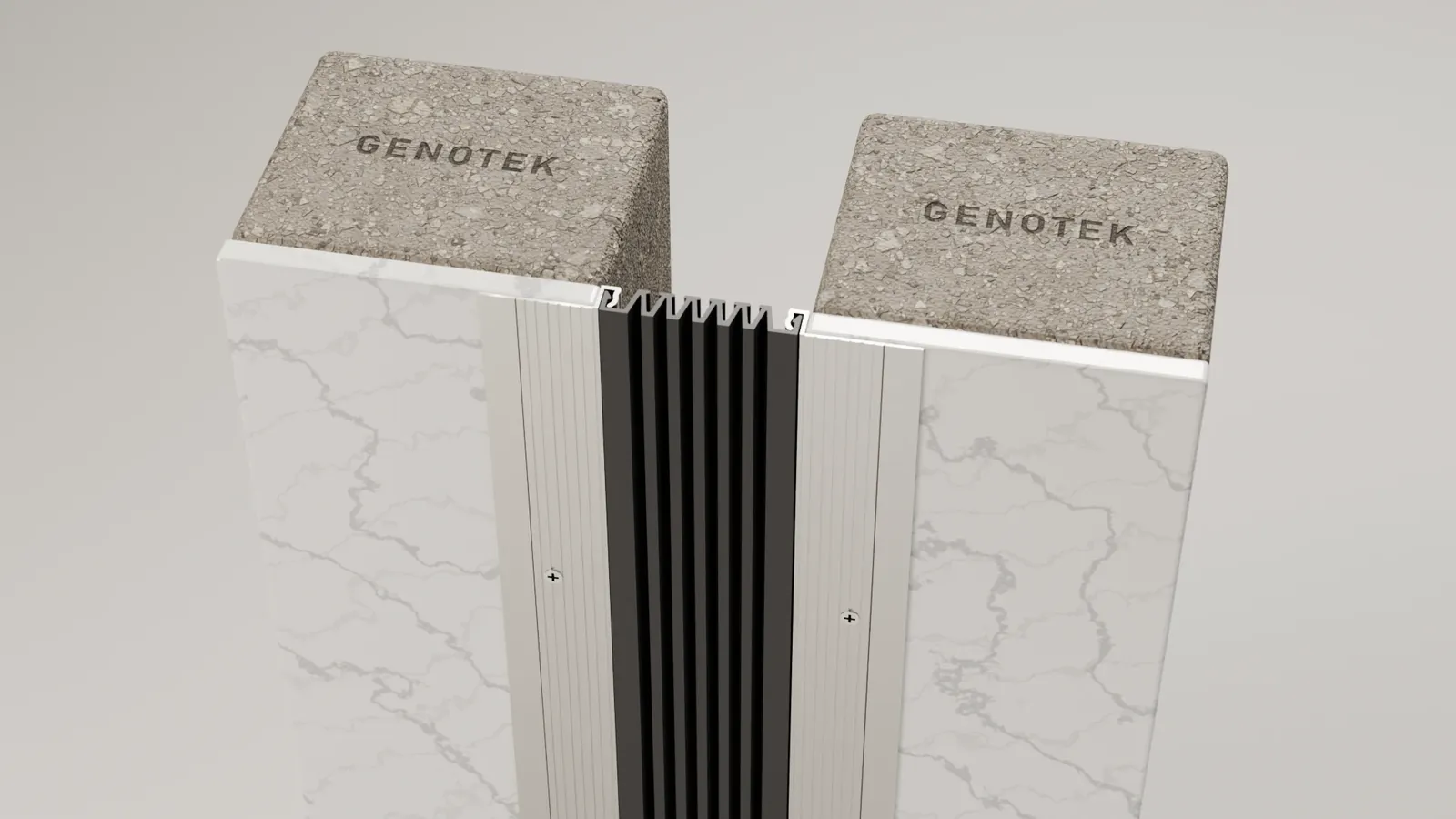

Introducing the DWE
assembly
watch how the dwe expansion joint cover goes together: the aluminum surface-mount frames are fixed to the wall or ceiling with screws and plugs, then the rubber insert is pushed into the frame receptacles, using soapy water to ease insertion.
movement
the dwe rubber insert has an enlarged fold (serration) geometry, so it absorbs thermal and settlement movement through its own folding, with movement of up to ±50% of the nominal joint width depending on the size.
Recommended Applications

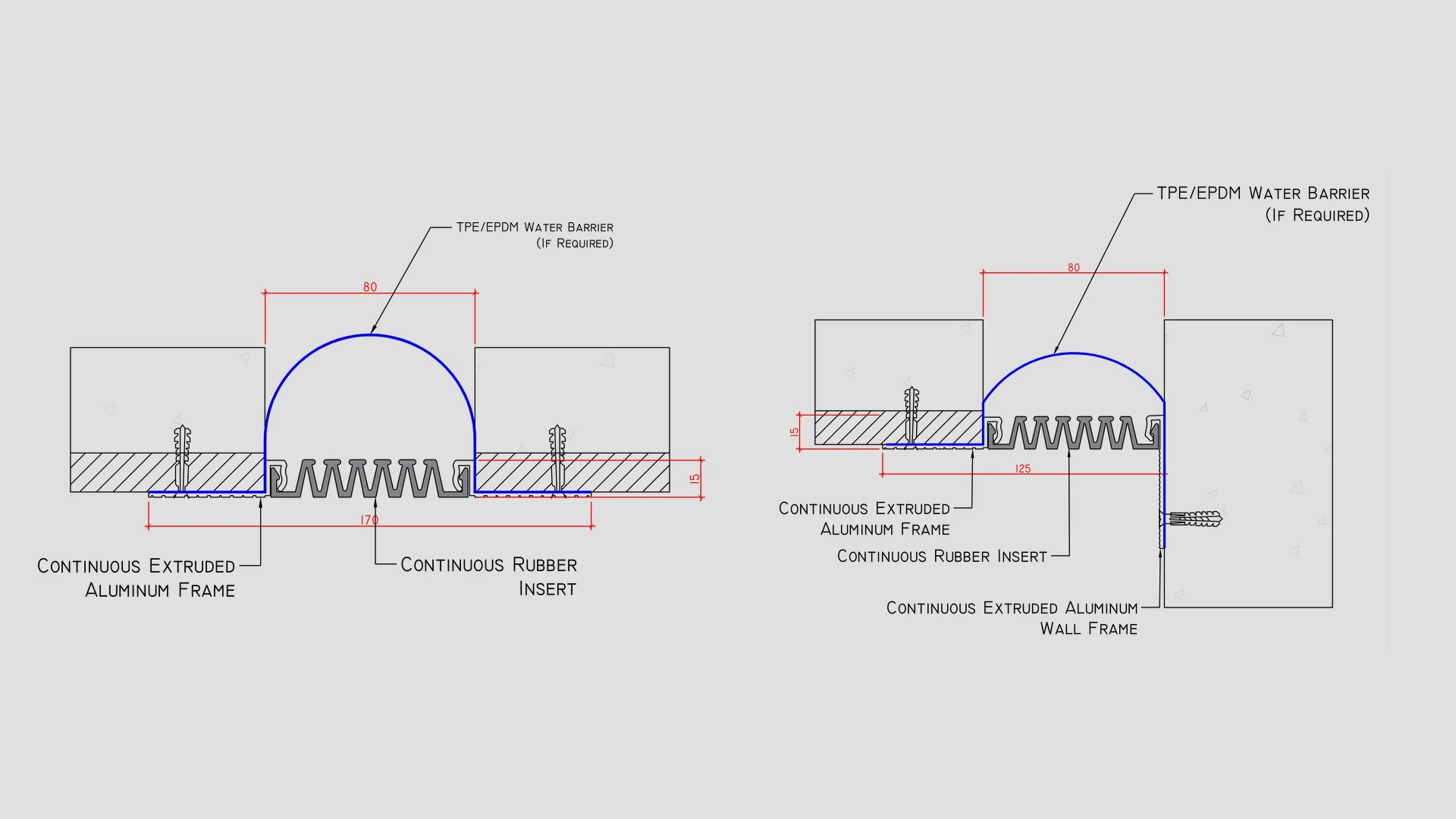

System Drawing

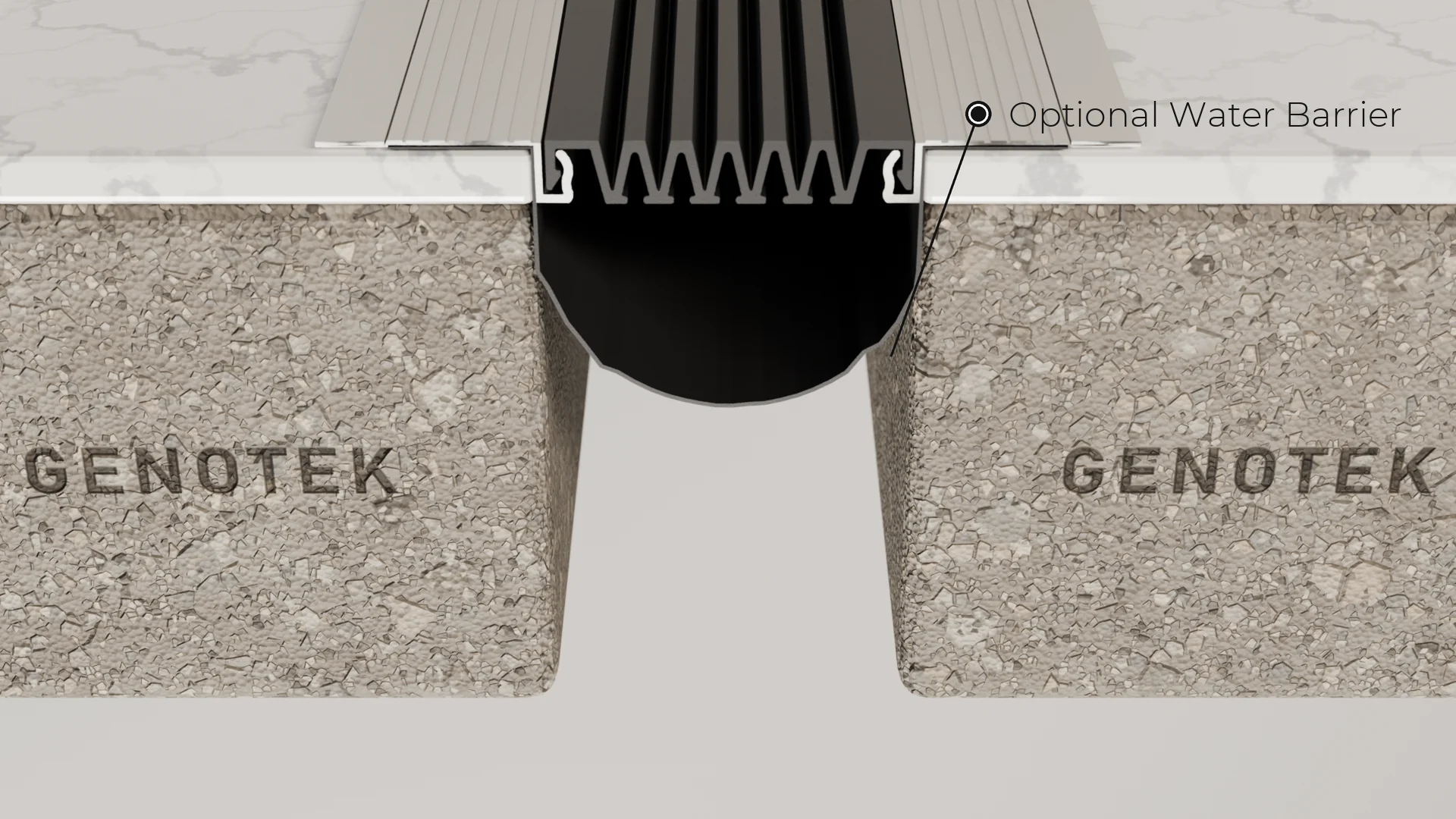

Additional Water Protection

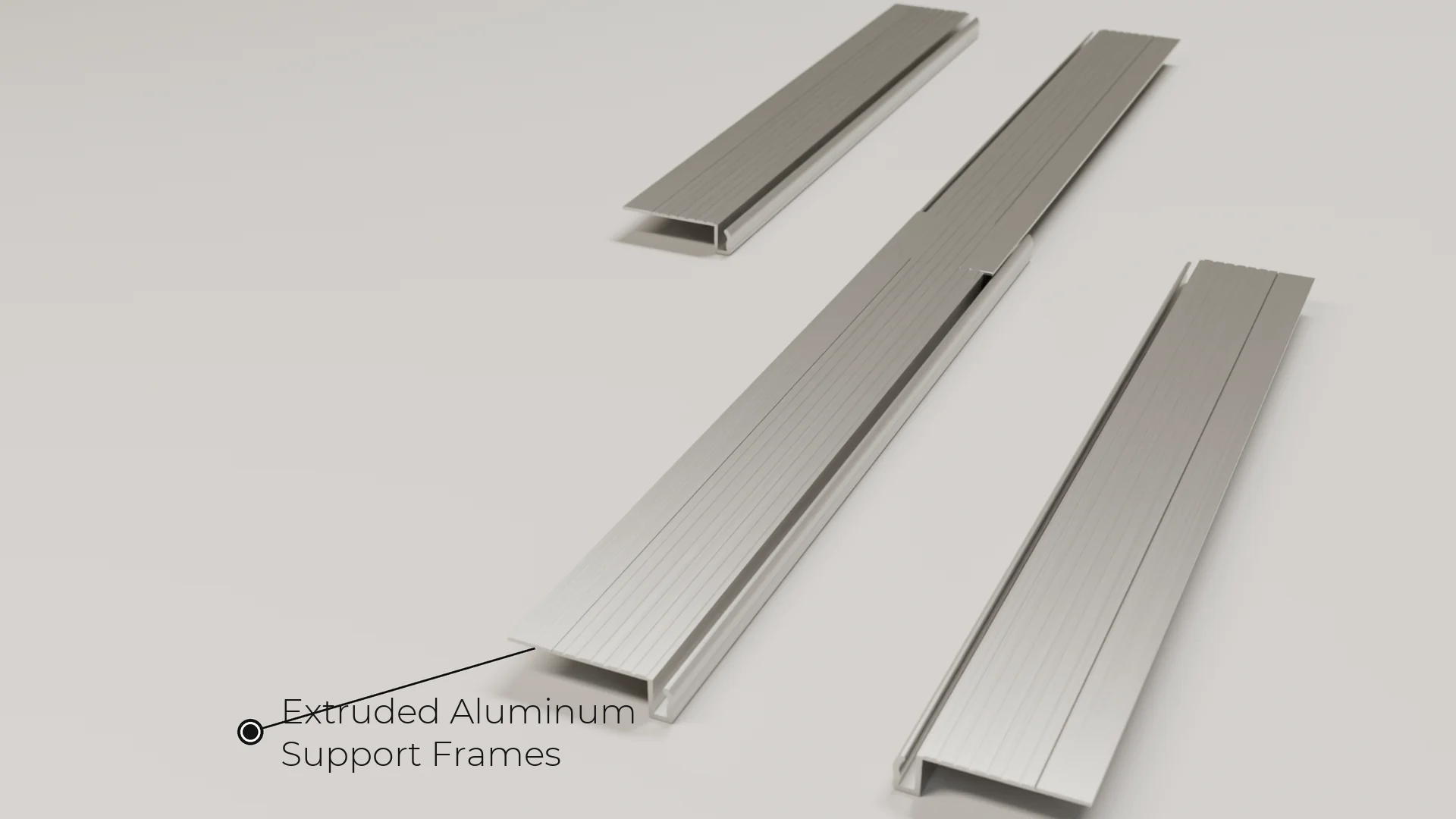

Durable Aluminum Support Frames
Aesthetic Choice

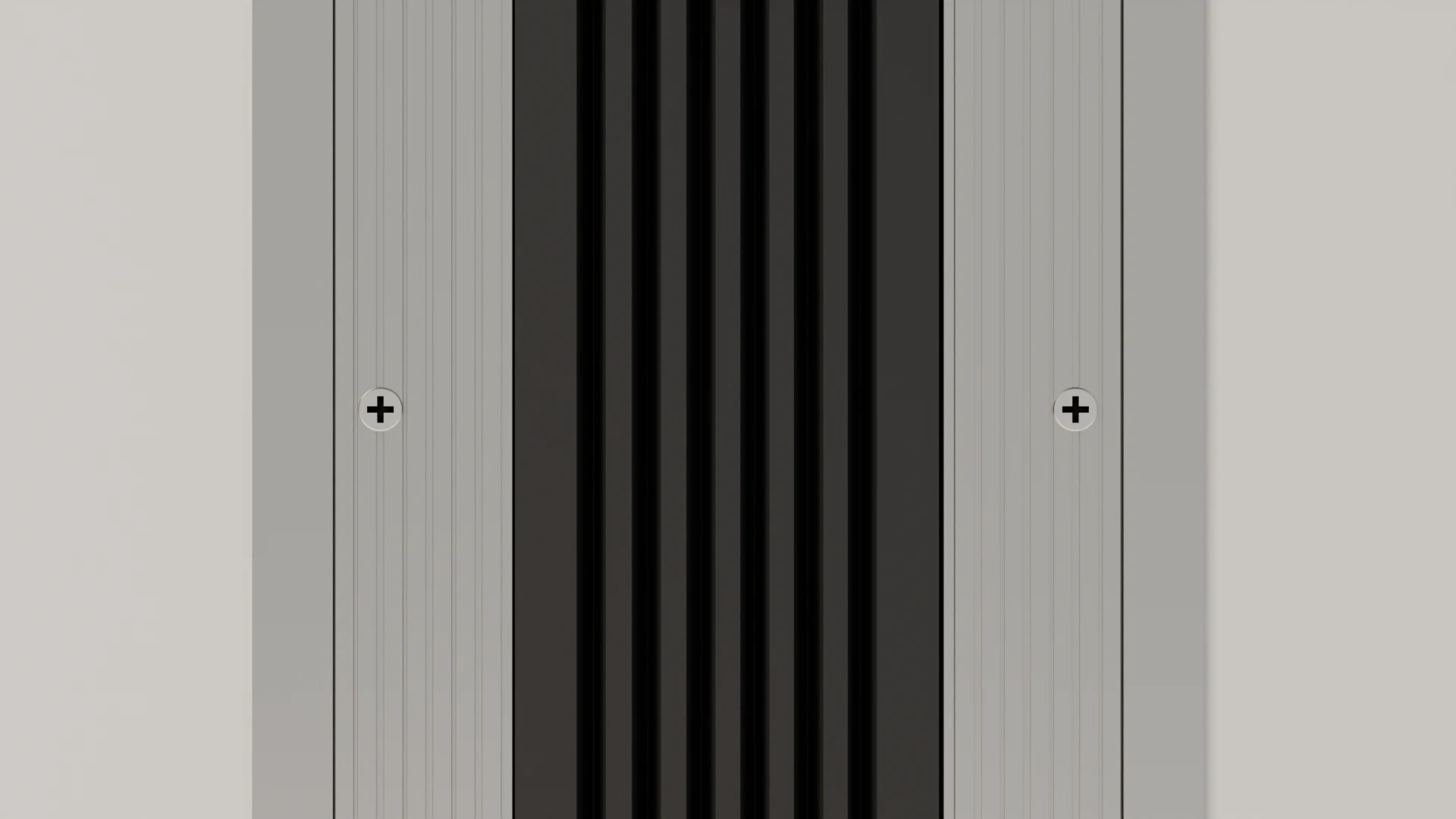

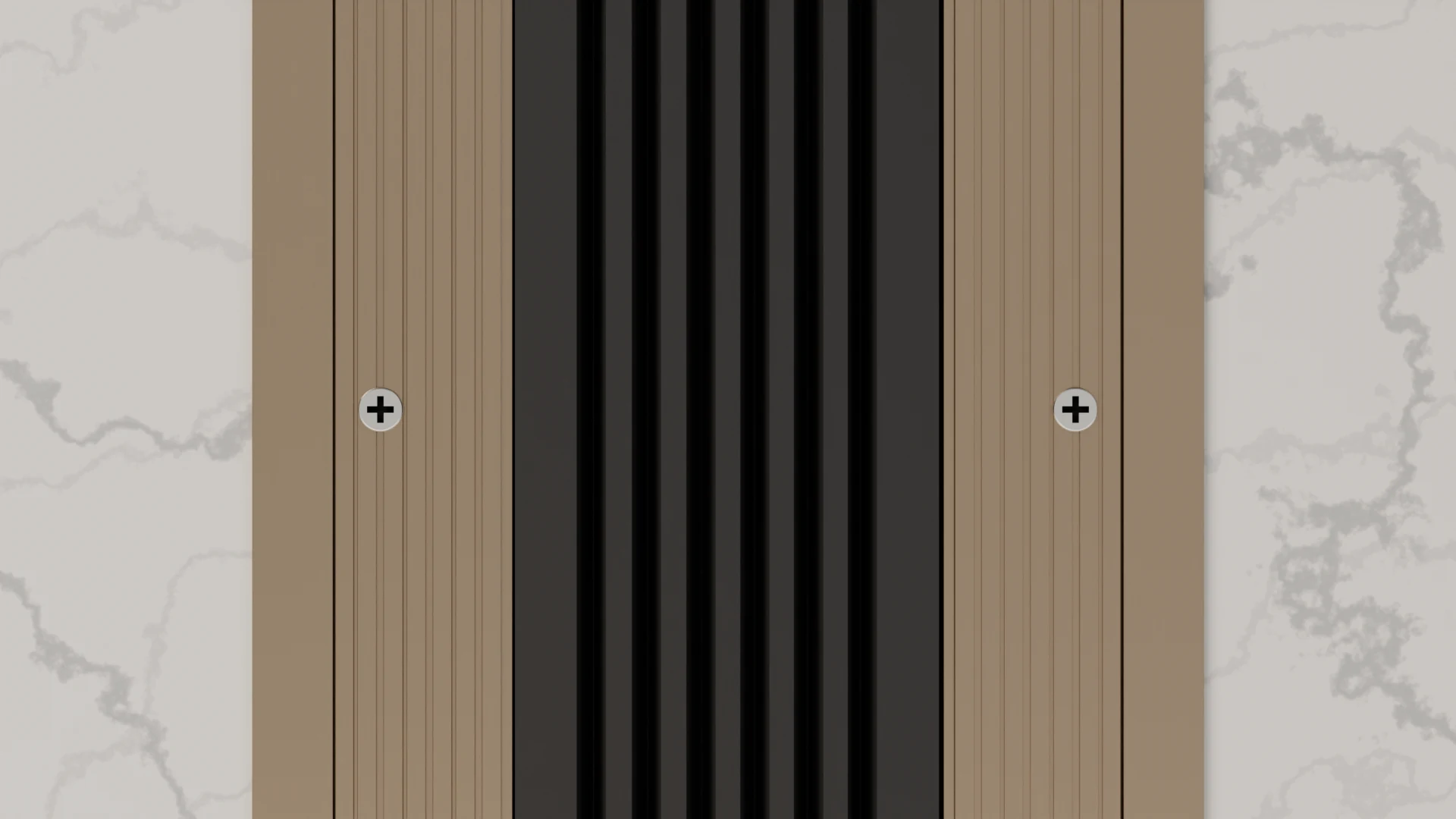

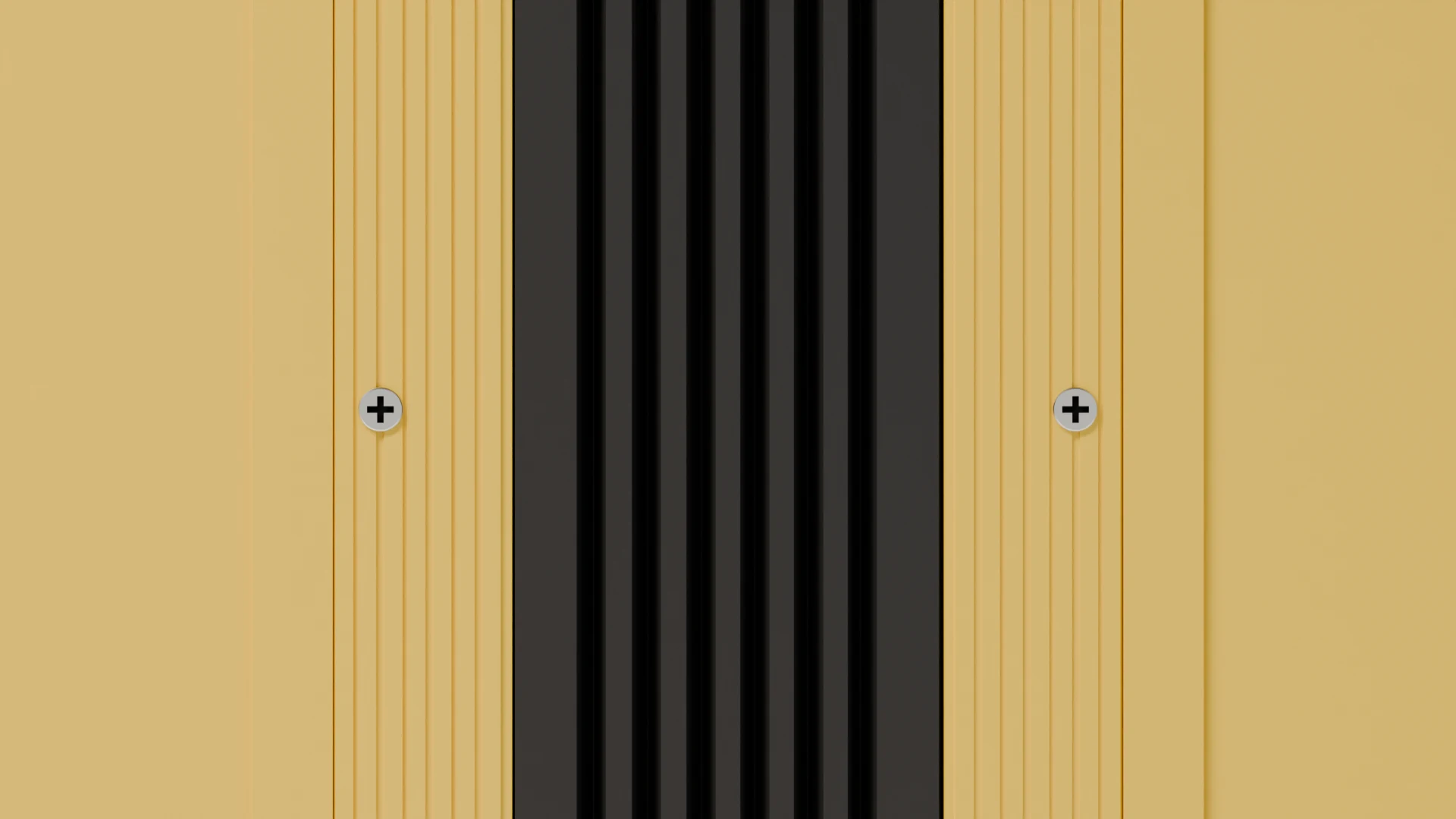

The smooth rubber insert of the DWE comes in four standard colors and has a hygienic surface that is easy to clean. The aluminum frames are supplied in mill finish, with anodized or powder-coated finishes optional, so the joint can be matched to the surrounding wall or ceiling. Joint widths run from 30 mm to 150 mm.

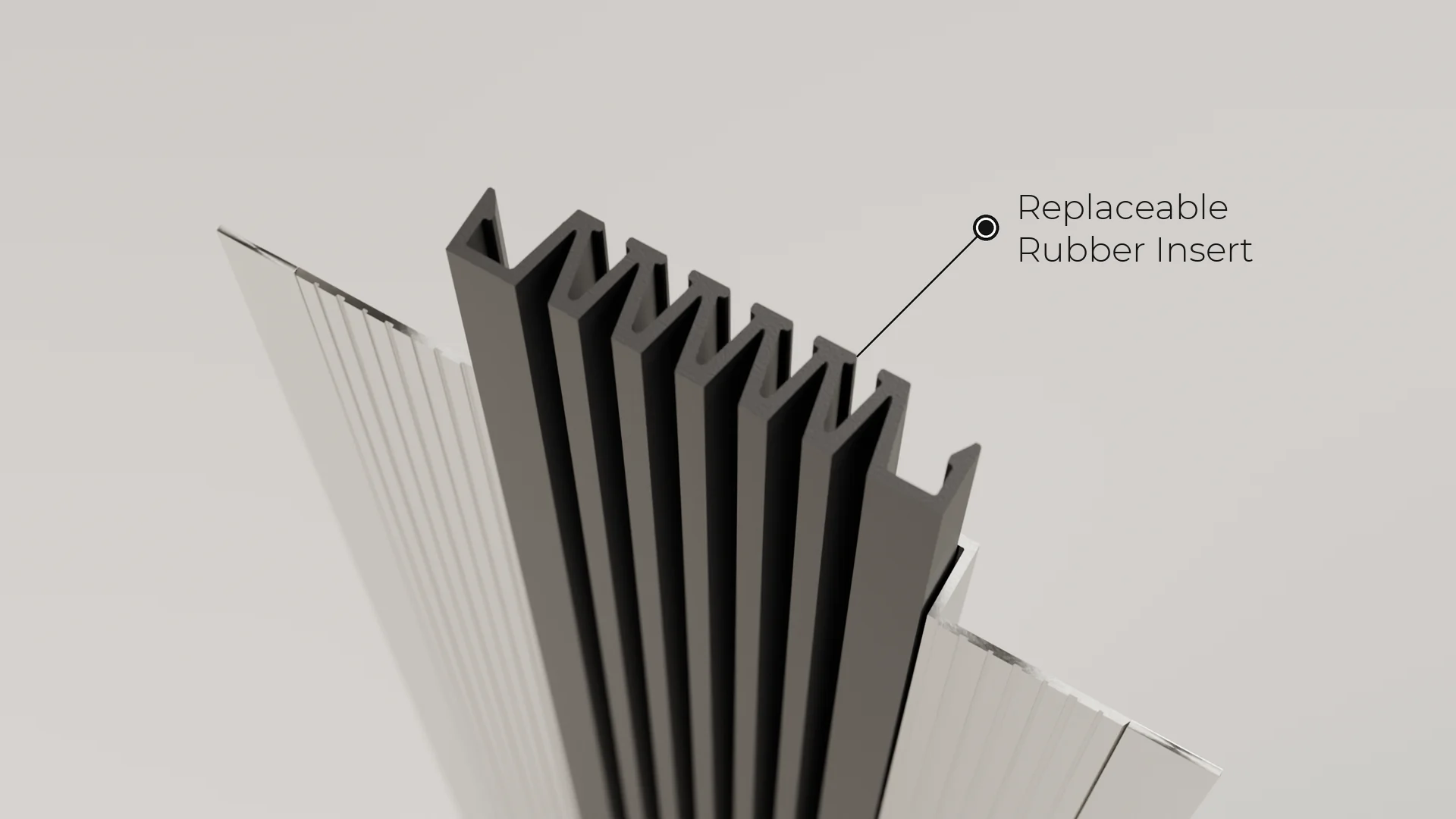

Replaceable Rubber Insert

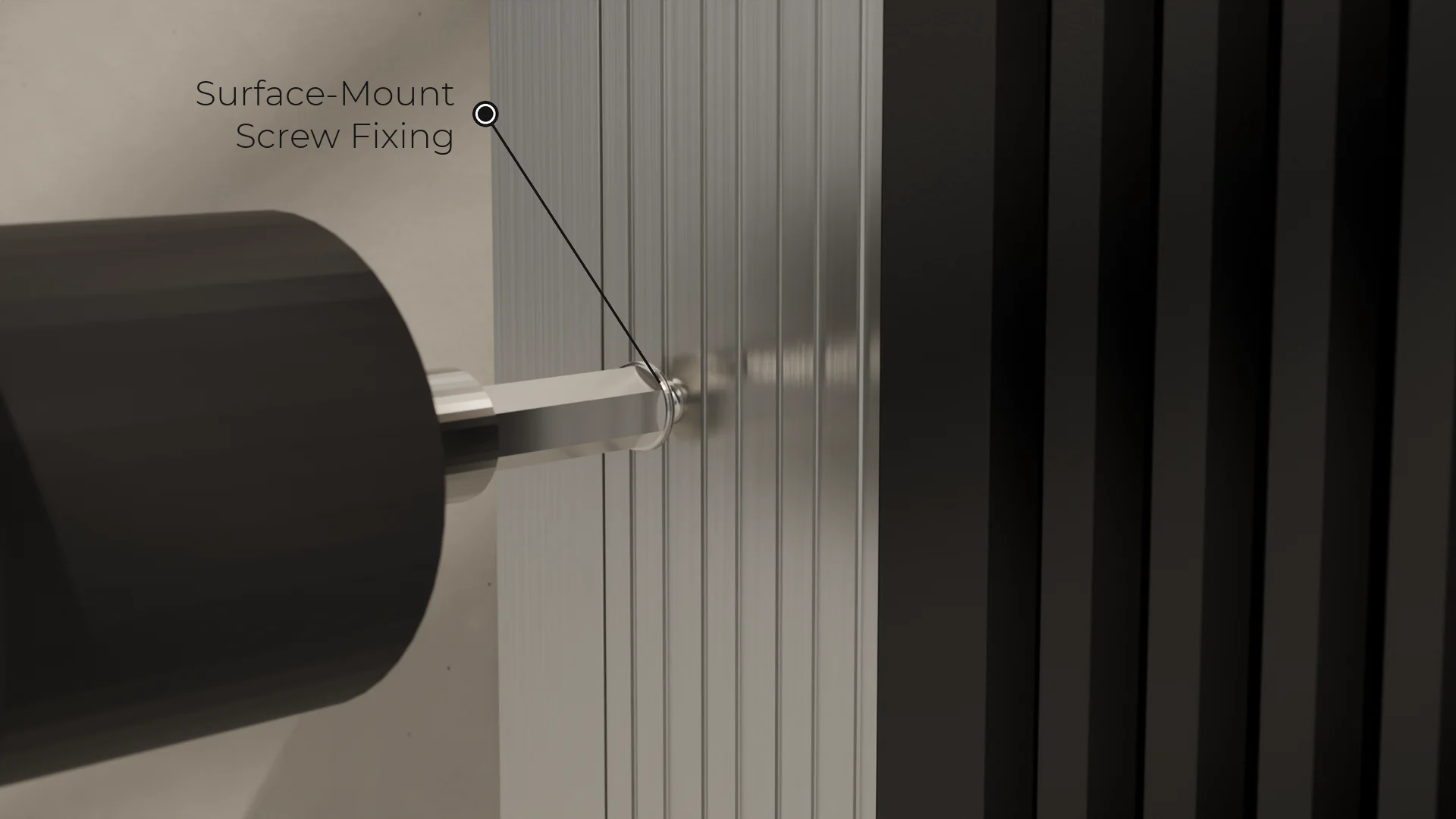

Simple And Secure Installation

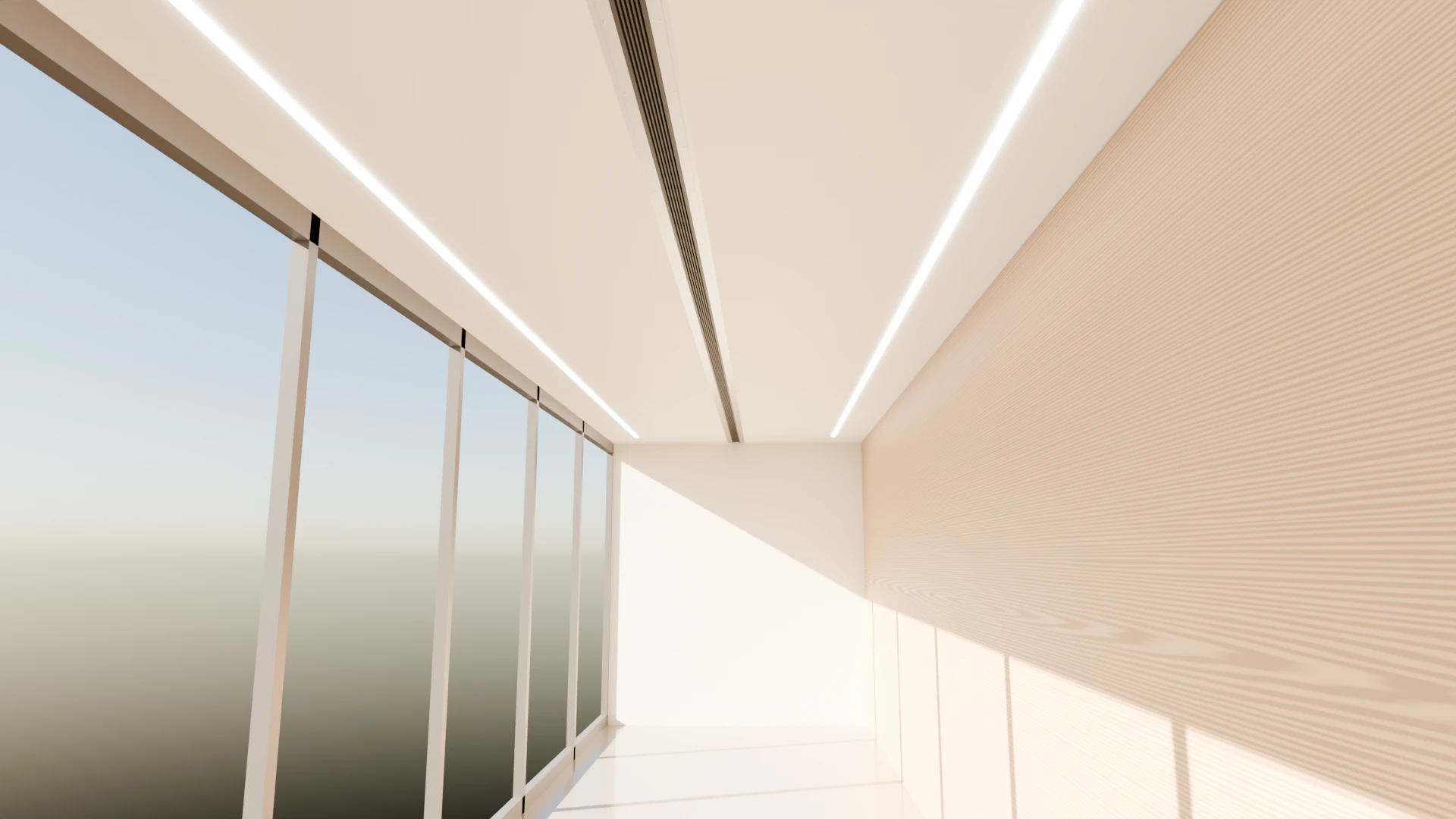

Wall And Ceiling Applications

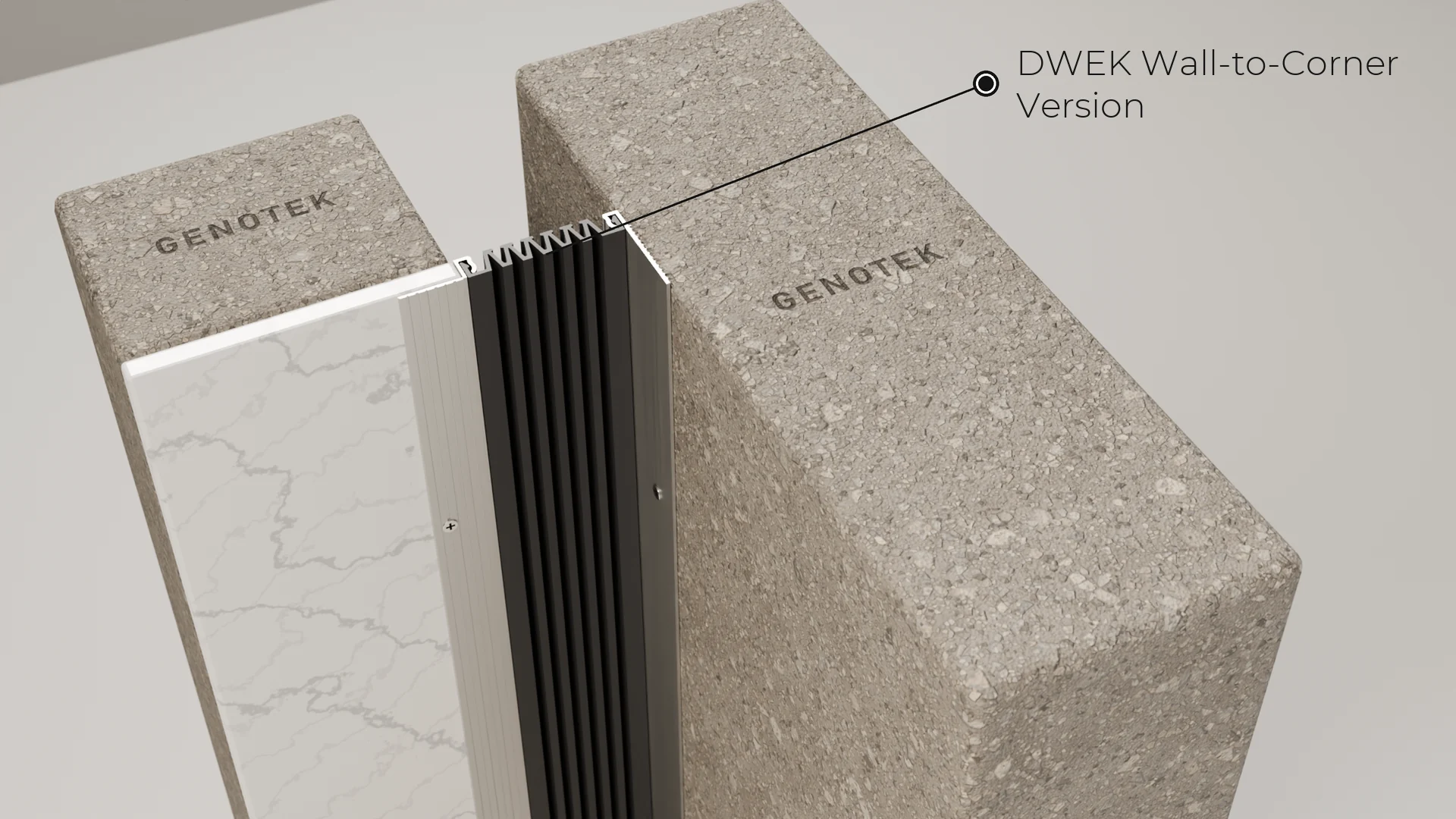

Wall To Corner Option
gap size calculator
enter your expansion gap measurement to see if this product is right for you.
profile specifications
| model name | joint width (mm) | height (mm) | sightline (mm) | movement capability (%) | load capacity |
|---|---|---|---|---|---|
| dwe-30 | 30 | 15 | 120 | ±33% | — |
| dwe-50 | 50 | 15 | 140 | ±40% | — |
| dwe-80 | 80 | 15 | 170 | +50/-38% | — |
| dwe-100 | 100 | 15 | 190 | ±50% | — |
| dwe-120 | 120 | 15 | 210 | ±50% | — |
| dwe-150 | 150 | 15 | 240 | ±50% | — |
| dwek-30 | 30 | 15 | 75 | ±33% | — |
| dwek-50 | 50 | 15 | 95 | ±50% | — |
| dwek-80 | 80 | 15 | 125 | ±40% | — |
| dwek-100 | 100 | 15 | 145 | ±50% | — |
| dwek-120 | 120 | 15 | 165 | ±50% | — |
| dwek-150 | 150 | 15 | 195 | ±50% | — |
datasheet specifications
| Series | PROCAP D Series (DWE & DWEK) |
|---|---|
| System type | Thermal Surface-Mount Wall & Ceiling System |
| Mounting | Surface-mounted |
| Suitable movement | Thermal, Settlement |
| Recommended for | Interior Wall & Ceiling Areas with small joint gaps; Drywall Applications; Areas of Installation directly to Wall Substrate |
| Components | Extruded Aluminum Surface Mount Support Profiles; Elastomeric Rubber Insert which absorb expansion and contraction of the adjacent concrete slabs |
| Material: Support Frames | Extruded aluminum, grade AA 6063 preferred |
| Material: Elastomeric Rubber Insert | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Elastomer (TPE); finish: Smooth Finish; black |
| Material: Vapor Barrier (Optional) | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); black |
| Supply length | 3.00 m per piece (aluminum support frame) |
| Substrate tolerance | Surface level within ±2 mm; gap level within ±5 mm |
| Sizes | Per the system drawings; profiles can be customized to requirements |
Source: DWE technical datasheet. Sizes and dimensions: profile specifications above and the system drawings.
