proflange wcs series
d1100
proflange wcs series
sku: d1100 · wall
best for: interior wall and ceiling areas with small joint gaps, drywall applications, and installations fixed directly to the wall substrate.
Introducing the D1100

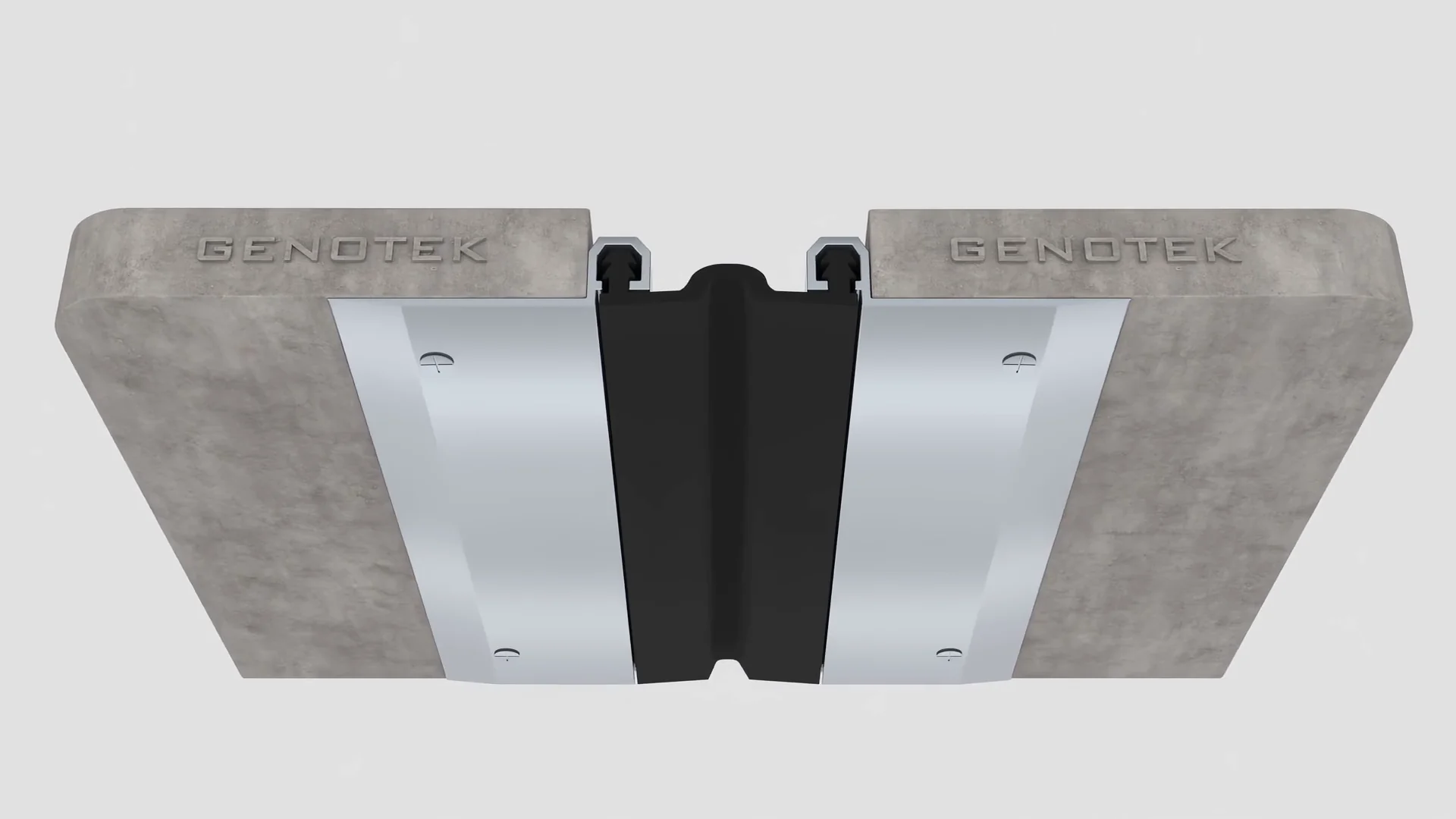

The PROFLANGE WCS is an aluminum + rubber expansion joint cover profile. The elastomeric rubber insert comes in four standard colors with a smooth finish that eliminates dirt, dust and water accumulation - assuring a hygienic, easy-to-clean surface. The extruded aluminum frames are designed to provide a minimal bump in surface mounted applications.
movement
01 — movement
movement
the d1100 takes up thermal and structural movement (the movement for each size is in the profile specifications below) while the cover stays seated on both sides of the joint.
assembly
02 — assembly
assembly
how the d1100 goes together on site, from the frames to the finished joint.
Recommended Applications
Interior wall and ceiling areas with small joint gaps, drywall applications, and areas of installation directly to the wall substrate. Suitable for thermal and settlement movement. Rubber insert hardness 60-70 Shore A (ASTM D 2240) with optional EPDM/TPV vapor barrier.
Aesthetic Choice
The D1100 sits almost flush with the wall, so it blends into marble, fair-faced concrete or painted plaster. The insert comes in four standard colors, held between extruded aluminum frames that give a clean edge on both sides.

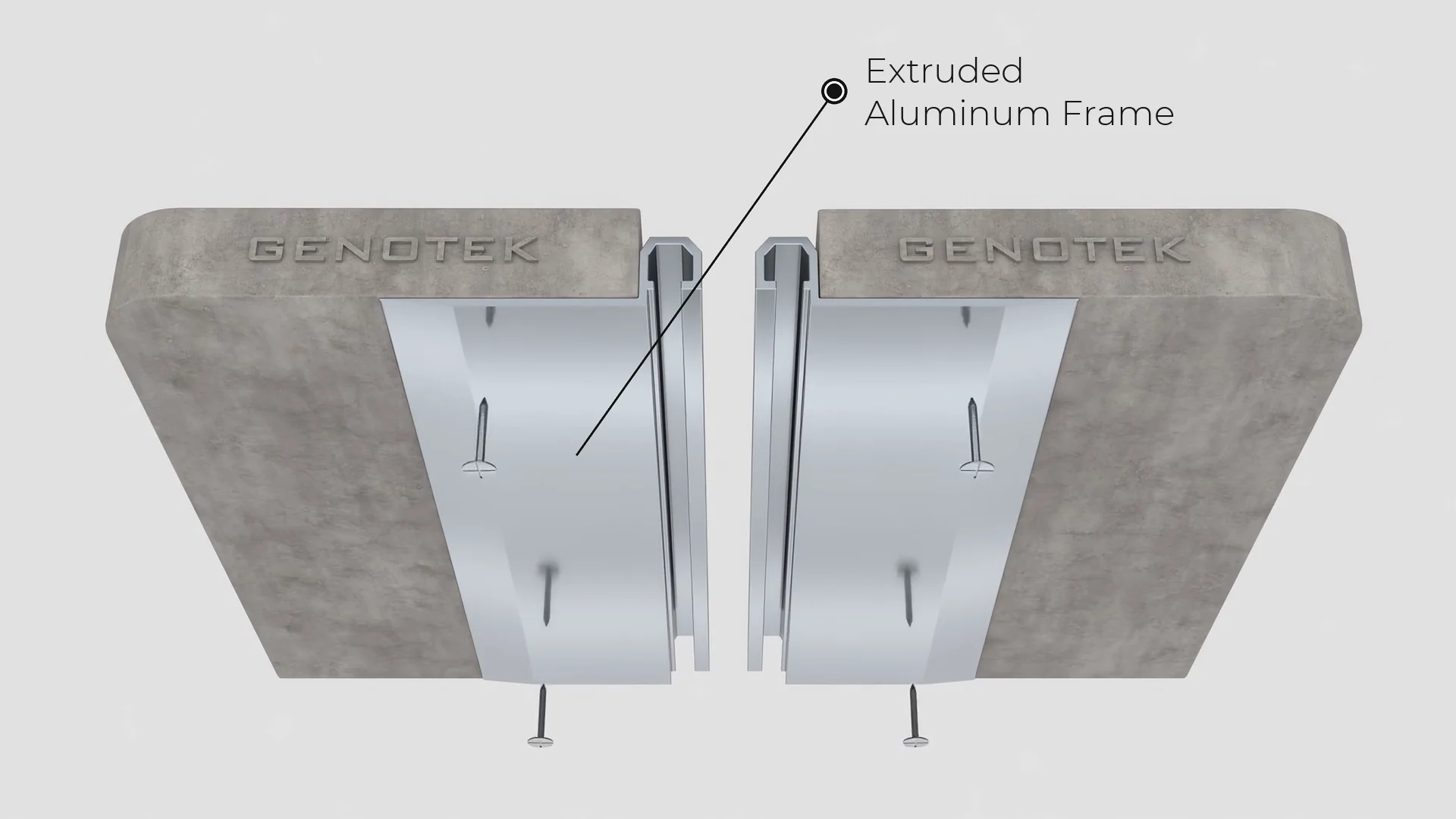

Extruded Aluminum Support Frames
Extruded aluminum surface-mount support frames are fixed directly to the wall or ceiling substrate, with a minimal bump on the surface.

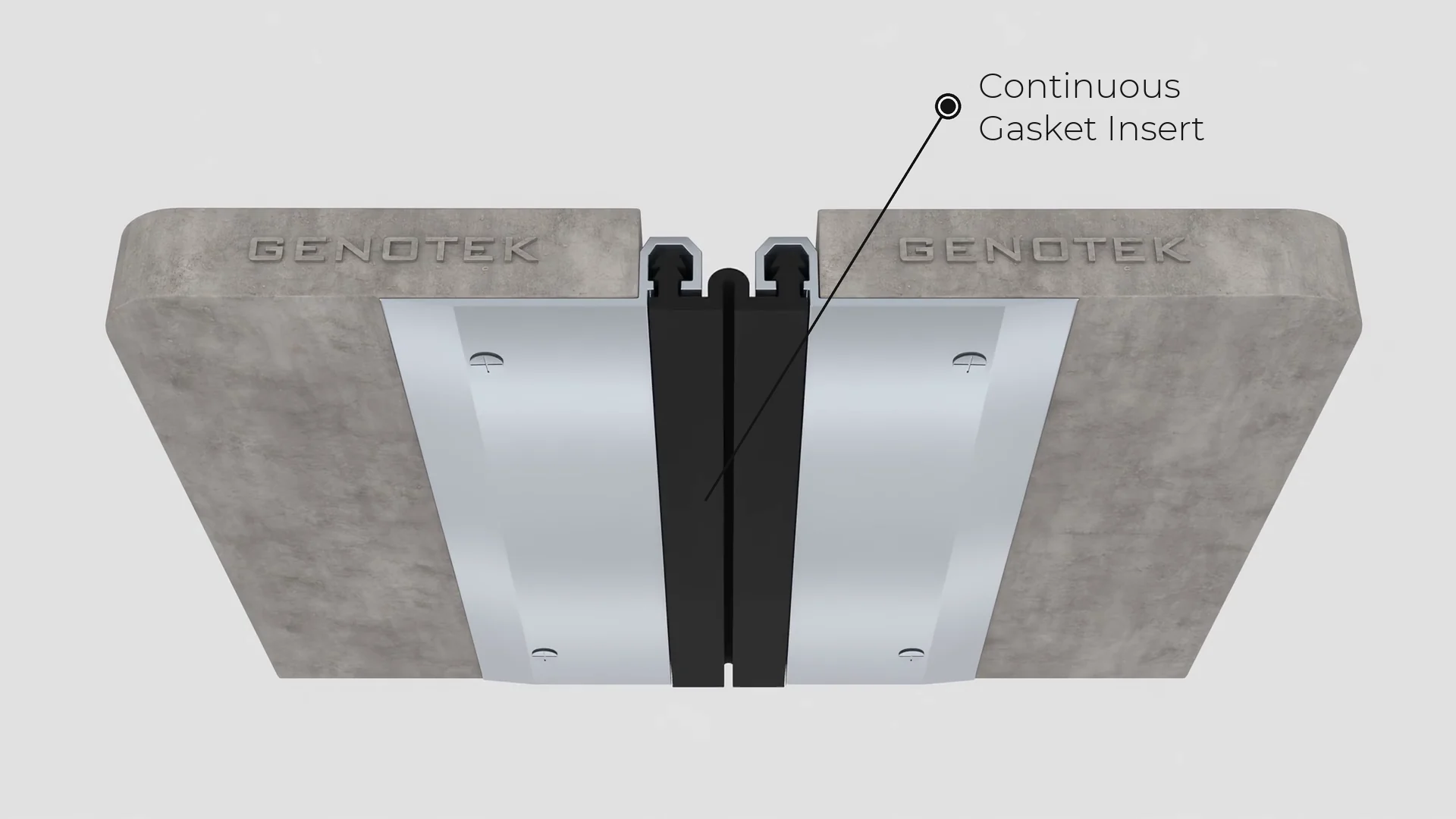

Replaceable Rubber Insert
The elastomeric rubber insert absorbs the expansion and contraction of the adjacent slabs. It comes in four standard colors with a smooth, easy-to-clean finish and is easily replaced.
System Drawing

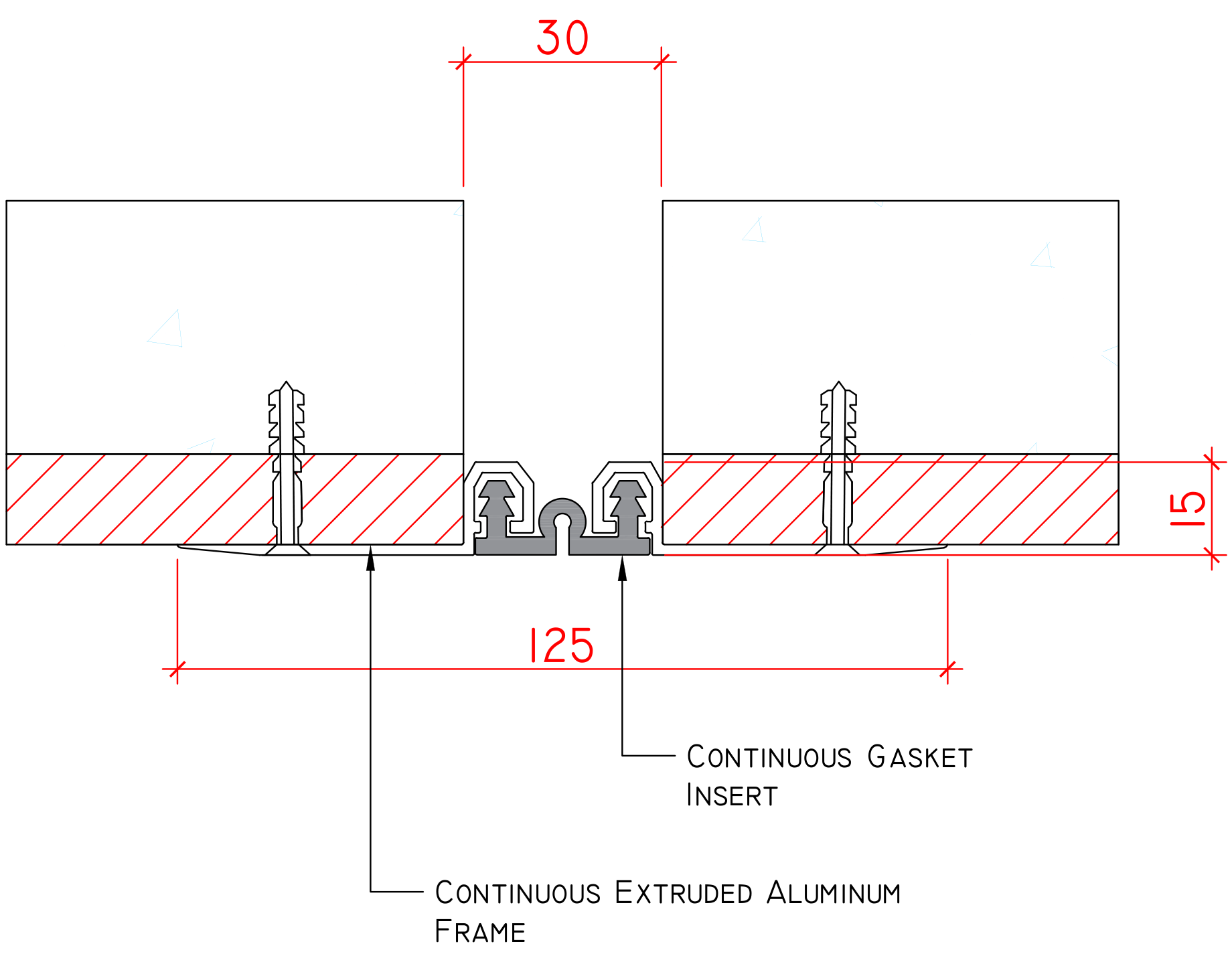

The D1100 expansion joint cover is drawn for 30, 50 and 80 mm joint widths in wall-to-wall, ceiling-to-ceiling and wall-to-ceiling conditions, all with a 15 mm surface projection. Each size can be downloaded as a DWG and PDF.
interactive tool
gap size calculator
enter your expansion gap measurement to see if this product is right for you.
20mm ≈ credit card
50mm ≈ two fingers
100mm ≈ fist width
200mm ≈ hand span
mm
d1100 covers gap sizes from 30mm to 80mm. enter your measurement above to see the movement capacity, profile width, and whether this product handles your requirements.
technical data
profile specifications
| model name | joint width (mm) | height (mm) | sightline (mm) | movement capability (%) | load capacity |
|---|---|---|---|---|---|
| d-1100-30 | 30 | 15 | 125 | ±33% | — |
| d-1100-50 | 50 | 15 | 145 | -16/+20% | — |
| d-1100-80 | 80 | 15 | 175 | ±25% | — |
| dk-1100-30 | 30 | 15 | 78 | ±33% | — |
| dk-1100-50 | 50 | 15 | 98 | -16/+20% | — |
| dk-1100-80 | 80 | 15 | 128 | ±25% | — |
from the technical datasheet
datasheet specifications
| Series | PROFLANGE WCS Series (D-1100 & DK-1100) |
|---|---|
| System type | Thermal Surface-Mount Wall & Ceiling System |
| Mounting | Surface-mounted |
| Suitable movement | Thermal, Settlement |
| Recommended for | Interior Wall & Ceiling Areas with small joint gaps; Drywall Applications; Areas of Installation directly to Wall Substrate |
| Components | Extruded Aluminum Surface Mount Support Profiles; Elastomeric Rubber Insert which absorb expansion and contraction of the adjacent concrete slabs |
| Material: Support Frames | Extruded aluminum, grade AA 6063 preferred |
| Material: Elastomeric Rubber Insert | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); finish: Smooth Finish; black |
| Material: Vapor Barrier (Optional) | Ethylene Propylene Diene Monomer (EPDM) or Thermoplastic Vulcanizate (TPV); black |
| Supply length | 3.00 m per piece (aluminum support frame) |
| Substrate tolerance | Surface level within ±2 mm; gap level within ±5 mm |
| Sizes | Per the system drawings; profiles can be customized to requirements |
Source: D1100 technical datasheet. Sizes and dimensions: profile specifications above and the system drawings.
