ecofloor series
cf
ecofloor series
sku: cf · floor
best for: interior and exterior floors with heavy pedestrian and medium vehicular traffic where a simple, low-maintenance cover profile is required.
Introducing the CF

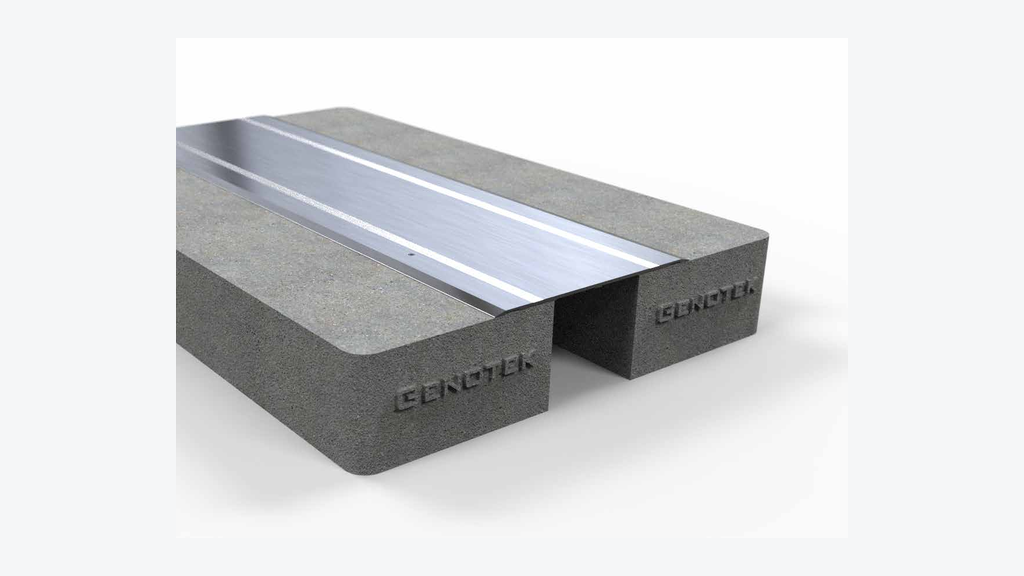

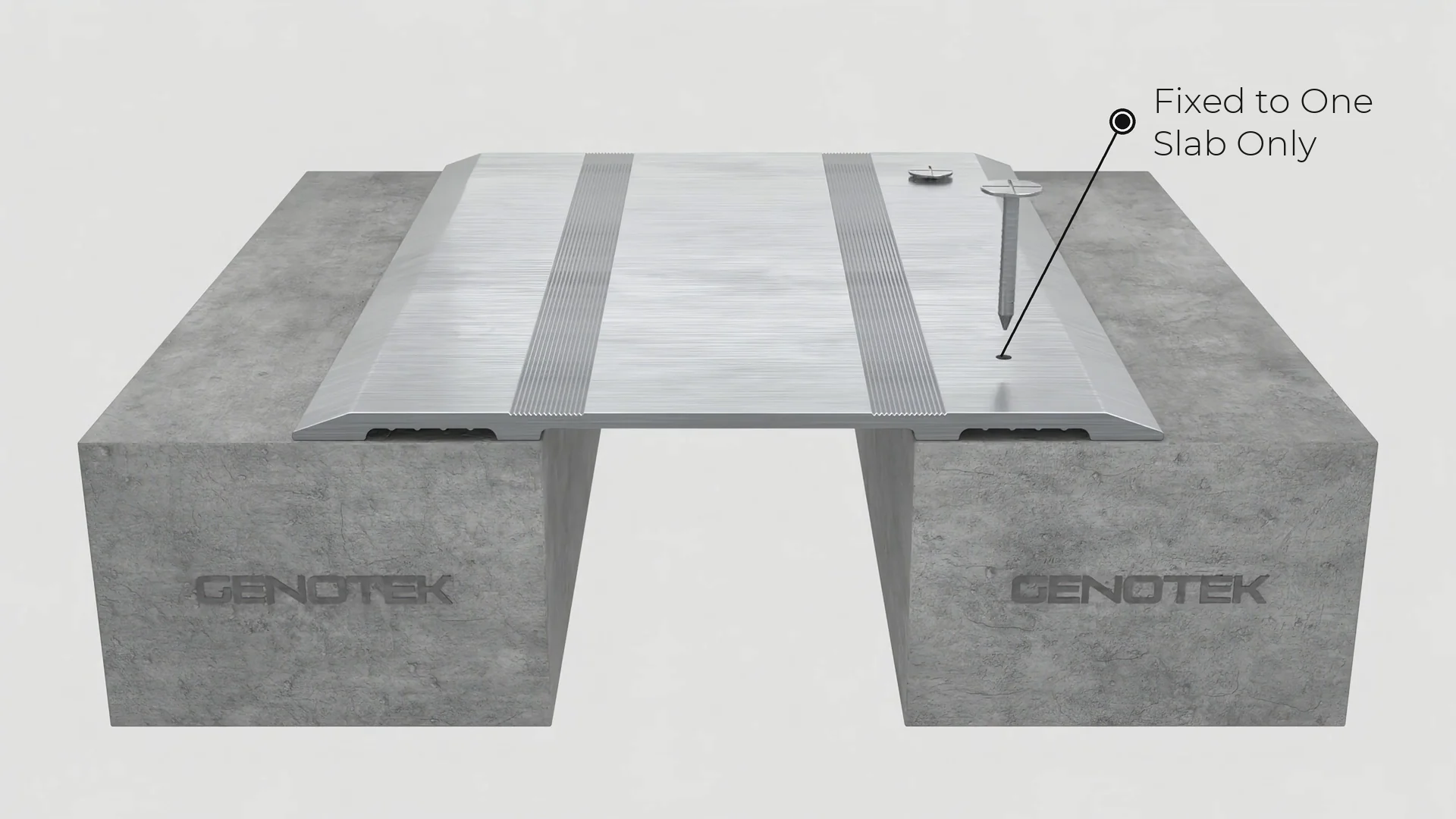

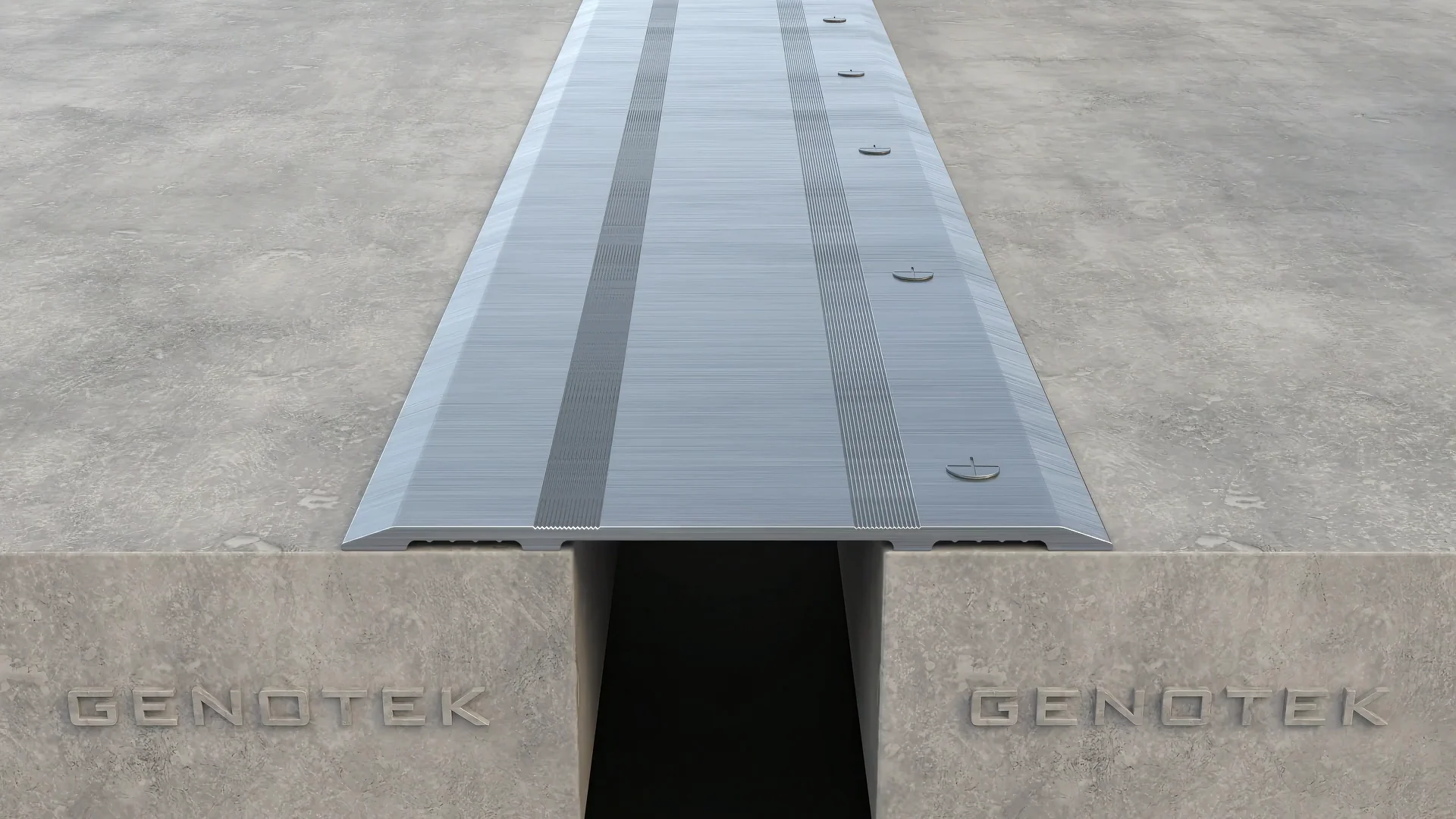

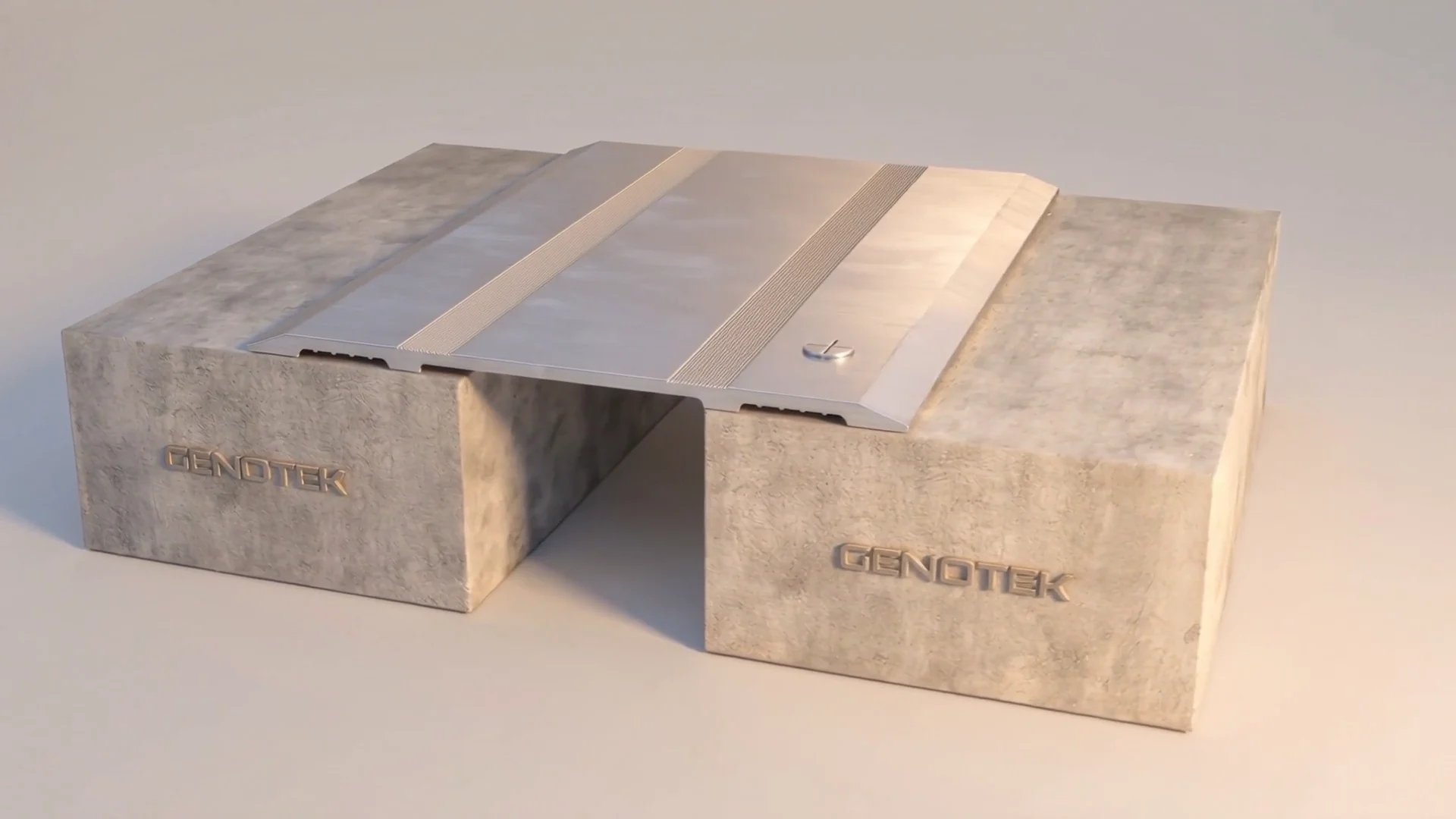

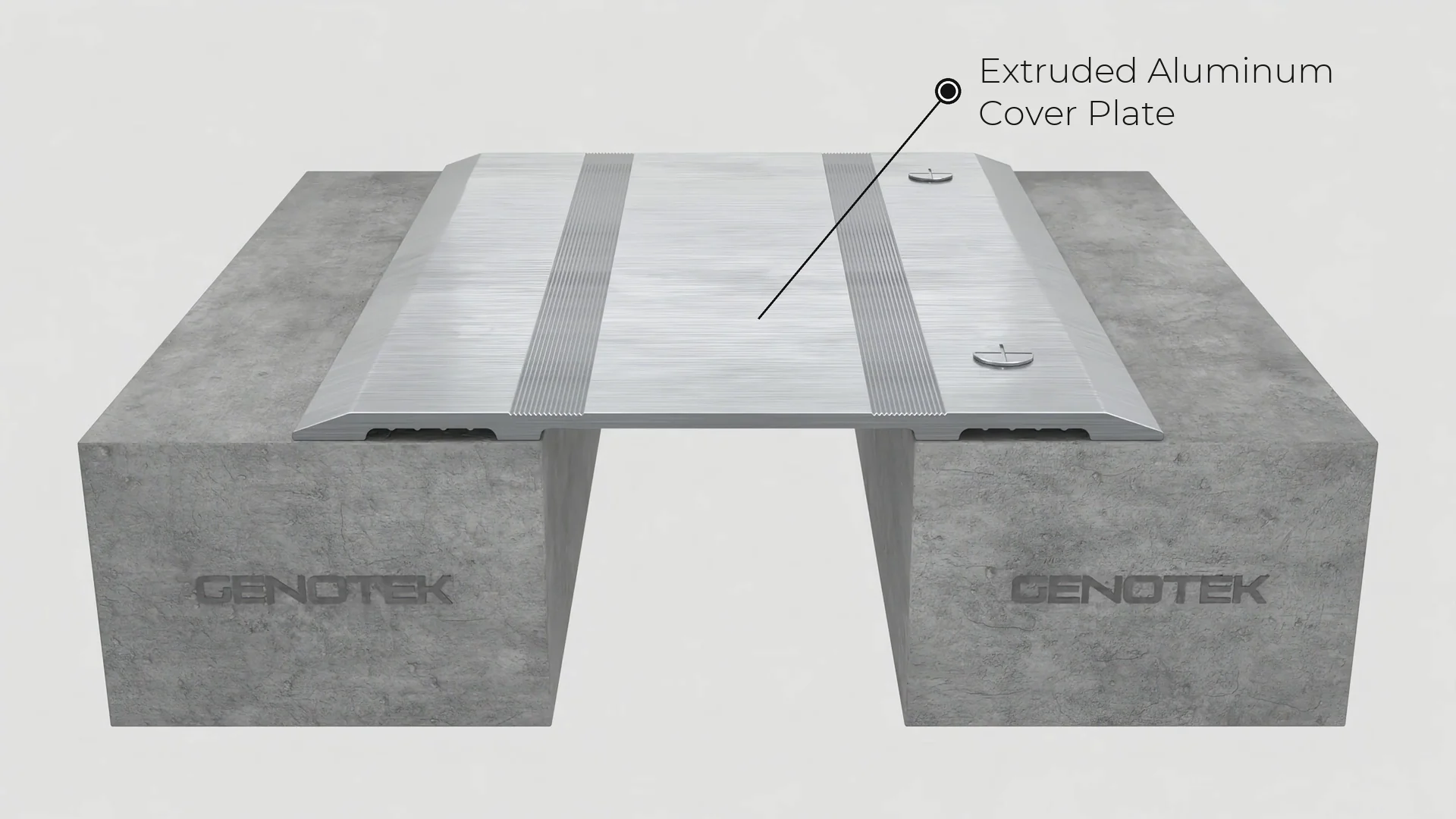

The ECOFLOOR Series is a full metal expansion joint cover profile available in aluminum as well as stainless steel. Recommended for interior and exterior areas where up to 100% movement capacity is required. It is a heavy duty cover profile designed for simple hassle-free installation - low maintenance, easily replaceable, and requiring no block-outs in the concrete slab.
Recommended Applications

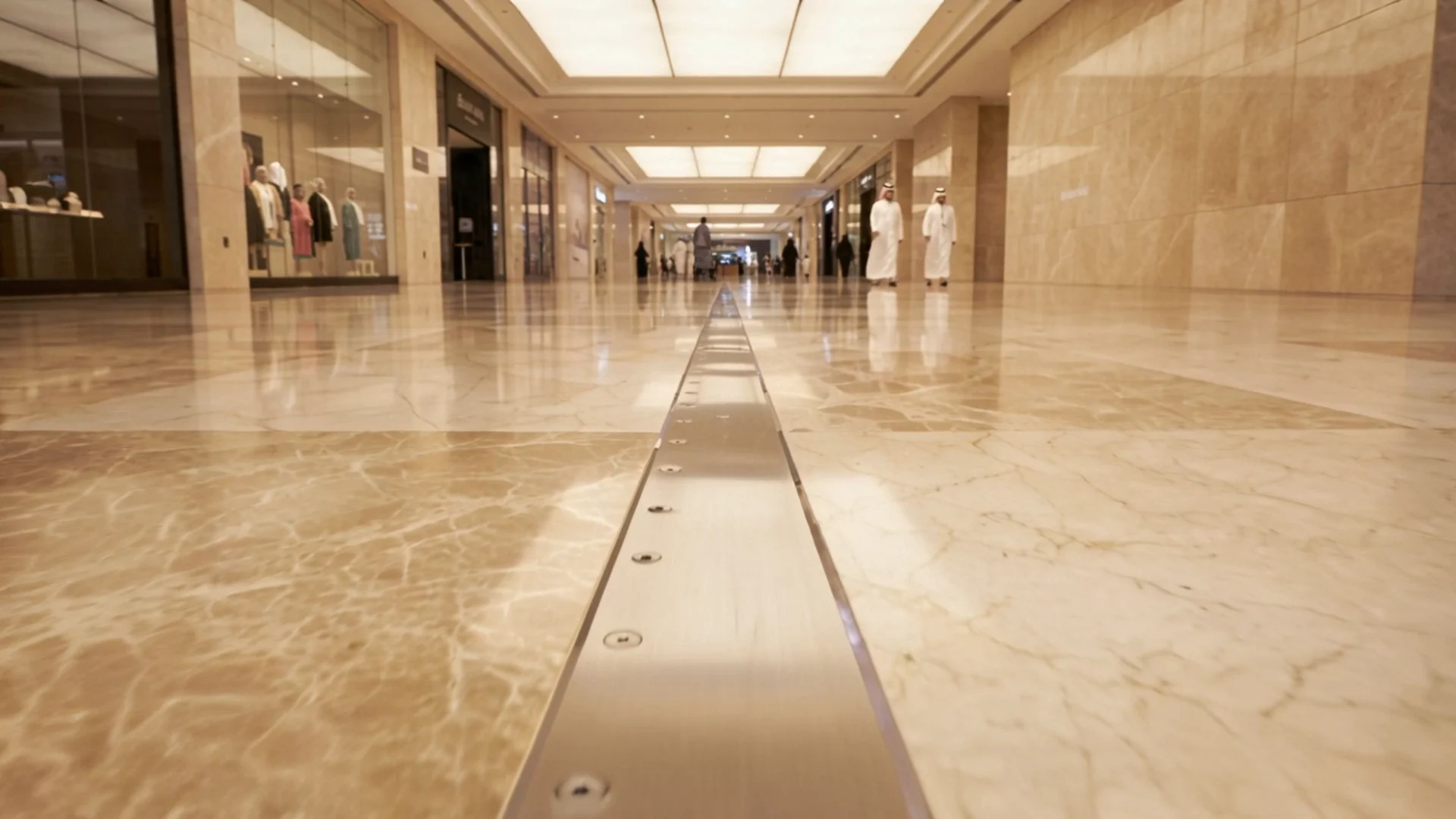

Interior or exterior floor applications and areas where a low maintenance profile is required. Suitable for thermal and settlement movement with heavy traffic pedestrian and medium traffic vehicular load capacity. Standard supply length 3.00 LM per piece with optional moisture barrier ordered separately.
interactive tool
gap size calculator
enter your expansion gap measurement to see if this product is right for you.
20mm ≈ credit card
50mm ≈ two fingers
100mm ≈ fist width
200mm ≈ hand span
mm
cf covers gap sizes from 45mm to 175mm. enter your measurement above to see the movement capacity, profile width, and whether this product handles your requirements.
technical data

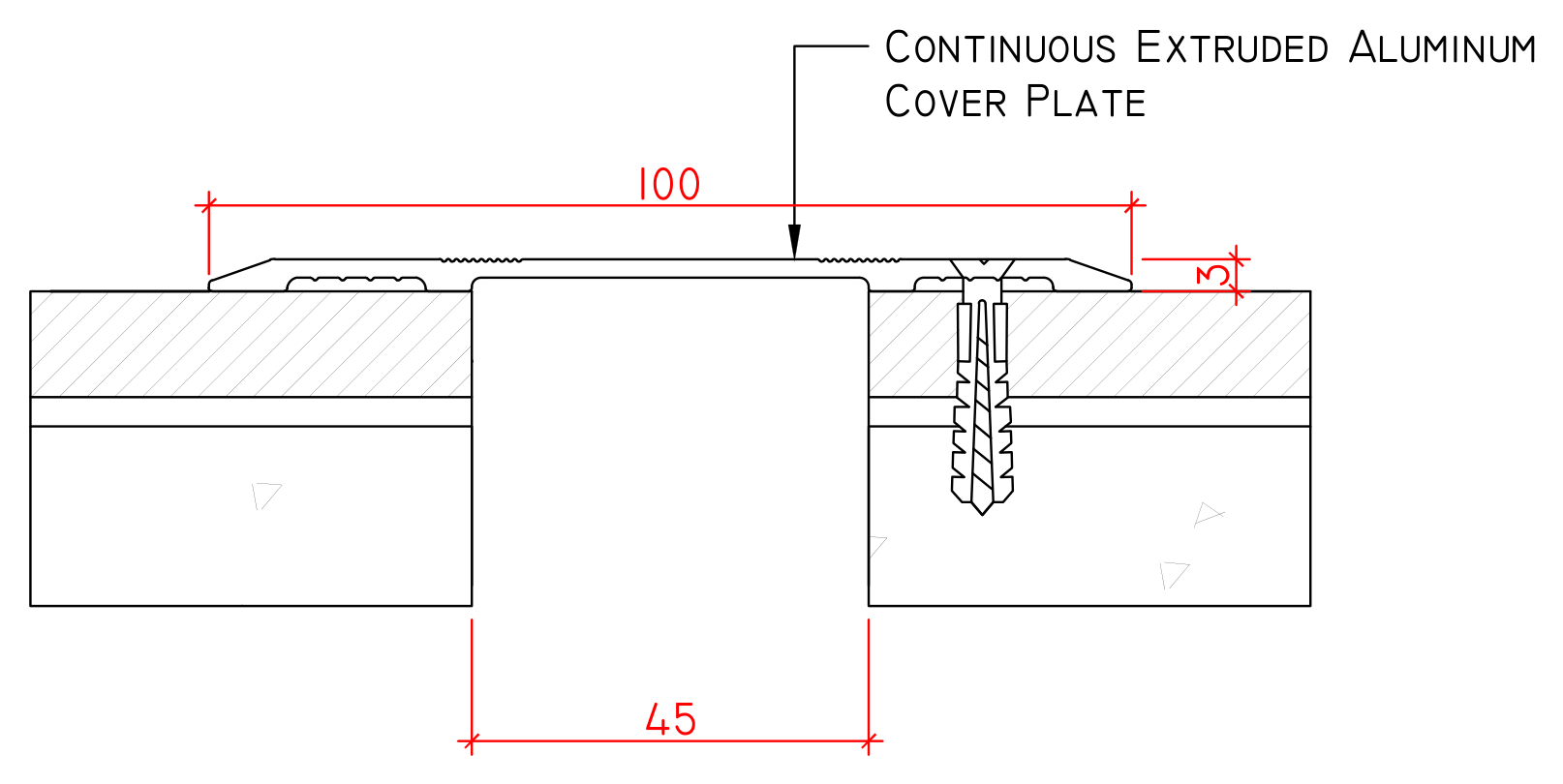

profile specifications
| profile width | gap range | movement | height | cover | weight |
|---|---|---|---|---|---|
| 80mm | 45 – 75mm | ±45 – ±75mm | 12mm | 40mm | 0.42 kg/m |
| 120mm | 67 – 110mm | ±67 – ±110mm | 12mm | 55mm | 0.58 kg/m |
| 160mm | 110 – 153mm | ±110 – ±153mm | 14mm | 70mm | 0.74 kg/m |
| 200mm | 153 – 175mm | ±153 – ±175mm | 14mm | 85mm | 0.9 kg/m |
ready to specify?
get a quote for cf ecofloor series
tell us your gap size, quantity, and finish preference — we'll respond with budgetary pricing within 2 hours.
